Kino Flo Diva-Lite 30 User manual

Operation Manual
LED Software
Celeb 250, 450, 450Q, 850
Diva-Lite 30/20
FreeStyle 31/21
Select 30/20 LED
Part No. 3100106 Rev A 7-28-2017

2
LED Software
This LED Software operation manual is for the following Kino Flo LED
products using Version 2.76*:
Diva-Lite 20/30 LED
FreeStyle 21/31 LED
Select 20/30 LED
This is also used for the following Celeb LED products Version 2.77*:
Celeb 250 = Version 2.77 CL2
Celeb 450/450Q = Version 2.77 CL4
Celeb 850 = Version 2.77 CL8
* Latest software release as of August 1st, 2017

3
Control Panel - White Mode
ABCDEFGH
A) On /Off: On = Green light displayed. Off = Red light displayed. The display and
all menu settings can be operated while the power button is in the Off position,
as long as power is applied to the controller. The On /Off button only controls the
light source.
B) Menu: Provides access to menu options such as General settings, Reset, DMX and
DMX Wireless settings. Tip: While on control screen, press and hold for 3 seconds to
switch through menus (White, Gels & Hue, RGB).
C) Kelvin & G/M (Green/Magenta) Preset Buttons: Factory defaults left to right are:
2700K, 3200K, 5000K and 6500K. G/M default value is 000. User can also use
these preset buttons to store custom Kelvin and G/M settings.
D) Display: Provides access to Dim, Kelvin, G/M, and DMX channel.
Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
E) Lock: Press the Lock button to disable all buttons and control knob.
Press for 3 seconds to restore presets to default factory settings.
F) Mode: Press to navigate from Dim to Kelvin and G/M settings. When in sub-menus,
pressing Mode always returns you to main display. When DMX is applied, use Mode
to access DMX channel on main display. Tip: Long press will bring you back one step.
G) Data Port: Mini B USB for software updates.
H) Dimmer Knob: Manually adjusts Dim, Kelvin, G/M levels and DMX address.
Press the knob to toggle between ne and coarse adjustments or when selecting
options within menus.
DMX Note: Each LED Fixture has an “AUTO TERMINATE” feature. The last xture that
does not have an XLR cable attached to the DMX “Out” port will automatically terminate.
Select LED 150 DMX Controller shown for example purposes only.

4
Control Panel - Color & RGB Mode
AA BB CC D
A) Menu: Provides access to menu options such as General settings (Color Mode),
Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and
hold for 3 seconds to switch through menus (White, Gels & Hue, RGB).
B) Kelvin, G/M (Green/Magenta) Gel, Hue & Saturation Preset Buttons:
Factory defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default
value is 000. User can also use these preset buttons to store custom Kelvin
between 2500K and 9900K and custom G/M, Gel, Hue and Saturation settings.
C) Display: Provides access to Dim, Kelvin, G/M, Gel, Hue/Saturation and DMX
channel. Factory reset will show: Dim = 10%, Kelvin = 2700K, G/M = 000,
DMX = 001.
D) Mode: Press to navigate from Dim to Kelvin, G/M, Gel, Hue and Saturation
settings. When in sub-menus, pressing Mode always returns you to main display.
When DMX is applied, use Mode to access DMX channel on main display.
Tip: Long press will bring you back one step.
A) Menu: Provides access to menu options such as General settings (RGB Mode),
Reset, DMX and DMX Wireless settings. Tip: While on control screen, press and
hold for 3 seconds to switch through menus (White, Gels & Hue, RGB).
B) Kelvin, G/M (Green/Magenta) RGB (Red, Green, Blue) Preset Buttons: Factory
defaults left to right are: 2700K, 3200K, 5000K and 6500K. G/M default value is 000.
User can also use these preset buttons to store custom Kelvin between 2500K and
9900K and custom G/M, and RGB settings.
C) Display: Provides access to Dim, Kelvin, G/M, RGB and DMX channel. Factory reset
will show: Dim = 10%, Kelvin = 2700K, G/M = 000, DMX = 001.
.
D) Mode: Press to navigate from Dim to Kelvin, G/M, RGB settings. When in
sub-menus, pressing Mode always returns you to main display. When DMX is
applied, use Mode to access DMX channel on main display.
Tip: Long press will bring you back one step.
Color Mode
RGB Mode
D

Menu Overview
5

6
Press the Mode button to select Dim. Rotating the control knob will dim
the light of the xture. Default setting is Fine. Press the rotating knob once
to shift to Coarse. When the power is turned off or removed, the display will
remember its last setting.
Dimming

7
Kelvin Selection/Presets
Press the Mode button until Kelvin is highlighted.
Default Presets:
1 = 2700K
2 = 3200K
3 = 5000K
4 = 6500K
Default setting is Fine. Press the control knob to shift to Coarse. Rotating
the control knob will change the Kelvin.

White, Gels/Hue & RGB Color Modes
8
In White mode, Kelvin custom settings between 2700K to 6500K and
displayed G/M can be assigned to any preset button by holding down the
desired button for 3 seconds. The Kelvin display will ash once the setting is
registered.
In Gels/Hue Color mode, Kelvin custom settings between 2500K to 9900K
and displayed G/M, Gel or Hue angle and Saturation can be assigned to any
preset button by holding down the desired button for 3 seconds. The Kelvin
display will ash once the setting is registered.
In RGB Color mode, Kelvin custom settings between 2500K to 9900K and
displayed G/M, RGB can be assigned to any preset button by holding down
the desired button for 3 seconds. The Kelvin display will ash once the
setting is registered.
To restore presets to default factory settings, choose Reset under General
settings and Clear Presets 1-4. This method will reset all buttons in White &
both Color modes. Tip: If only want to clear presets individually (White or
Color), hold Lock button for 3 seconds while on that display.

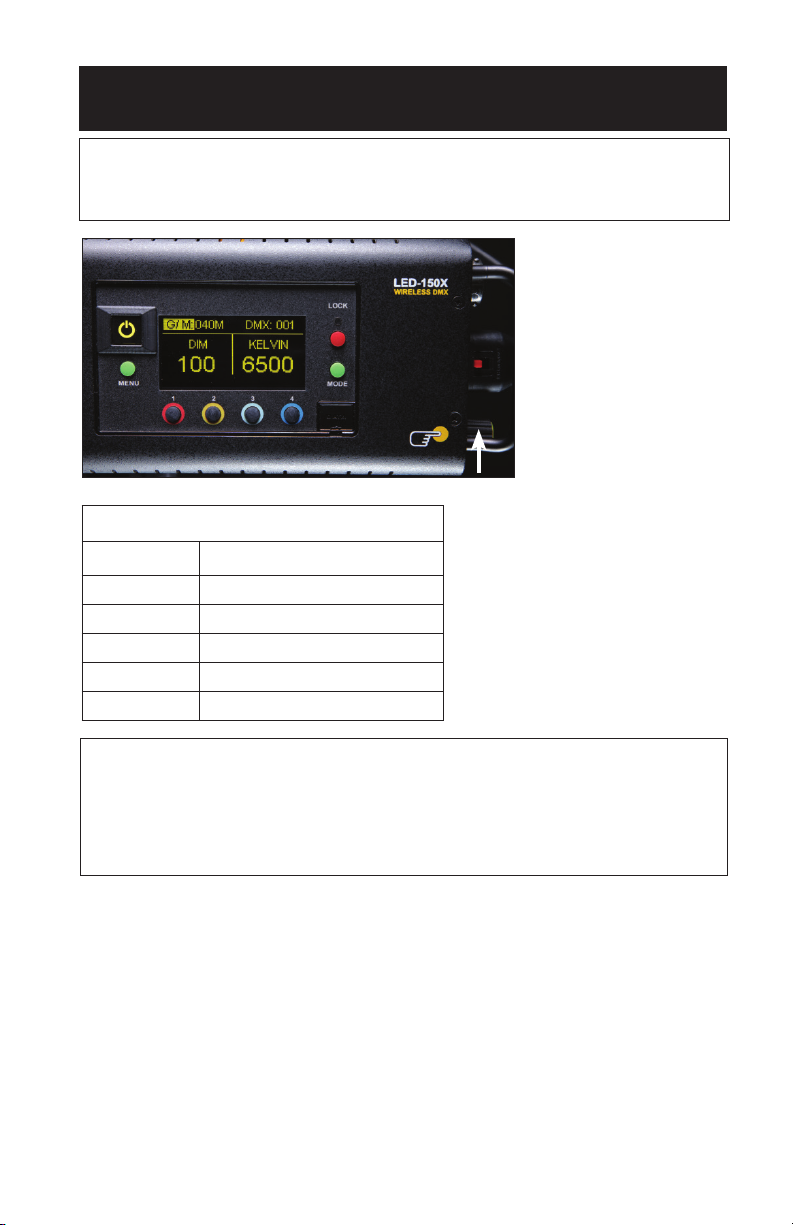

Press the Mode button until G/M is highlighted. Rotating the control knob
to the right will adjust towards Green. Rotating to the left will adjust towards
Magenta. Default setting is Fine. Press the rotating knob to shift the G/M
from Fine to Coarse increments. For DMX protocol for G/M settings,
see www.kinoo.com.
The LED software features a G/M (Green/Magenta) control to match the
spectral sensitive curves of most popular cameras and other light sources.
Green/Magenta
Green/Magenta Chart
100G +1 Green
50G +½ Green
25G +¼ Green
25M +¼ Magenta
50M +½ Magenta
100M +1 Magenta
9

In Gels/Hue Color mode
(in addition to G/M control),
Gel, Hue angle and Saturation
adjustments are available.
Kino Flo Presets and industry
standard preset Gels are includ-
ed. Press Menu, select General
and press control knob to change
Mode to Gels/Hue.
In RGB Color mode (in addition
to G/M control), individual RGB
(Red, Green, Blue) adjustments
are available. Press Menu, select
General and press control knob to
change Mode to RGB.
Gel
Press the Mode button until Gel is highlighted. Rotate the dimming knob
to choose preset Gels. For DMX protocol for preset Gels, see www.kinoo.com.
Hue Angle and Saturation
Press the Mode button until Hue or Saturation is highlighted. Rotate the dimming
knob to select custom Hue angle and Saturation. Press the knob to toggle between
ne and coarse adjustments.
The Hue angle and Saturation values are based on a HSV / RGB model where
0° = red, 120° = green and 240° = blue.
RGB
Press the Mode button until R (Red),G (Green) or B (Blue) is highlighted.
Rotate the dimming knob to choose individual RGB settings. Press the knob to toggle
between ne and coarse adjustments. For DMX protocol for RGB Color mode,
see www.kinoo.com.
Gel, Hue Angle & Saturation
RGB
10

Press the Lock button to
lock the Kelvin, G/M, Gel,
Hue and Saturation settings
(or Kelvin, G/M, RGB
settings). A red indicator light
will display in Lock mode.
Manual controls will be
disabled. To unlock, press the
Lock button again. The red
indicator will turn off.
Lock
11

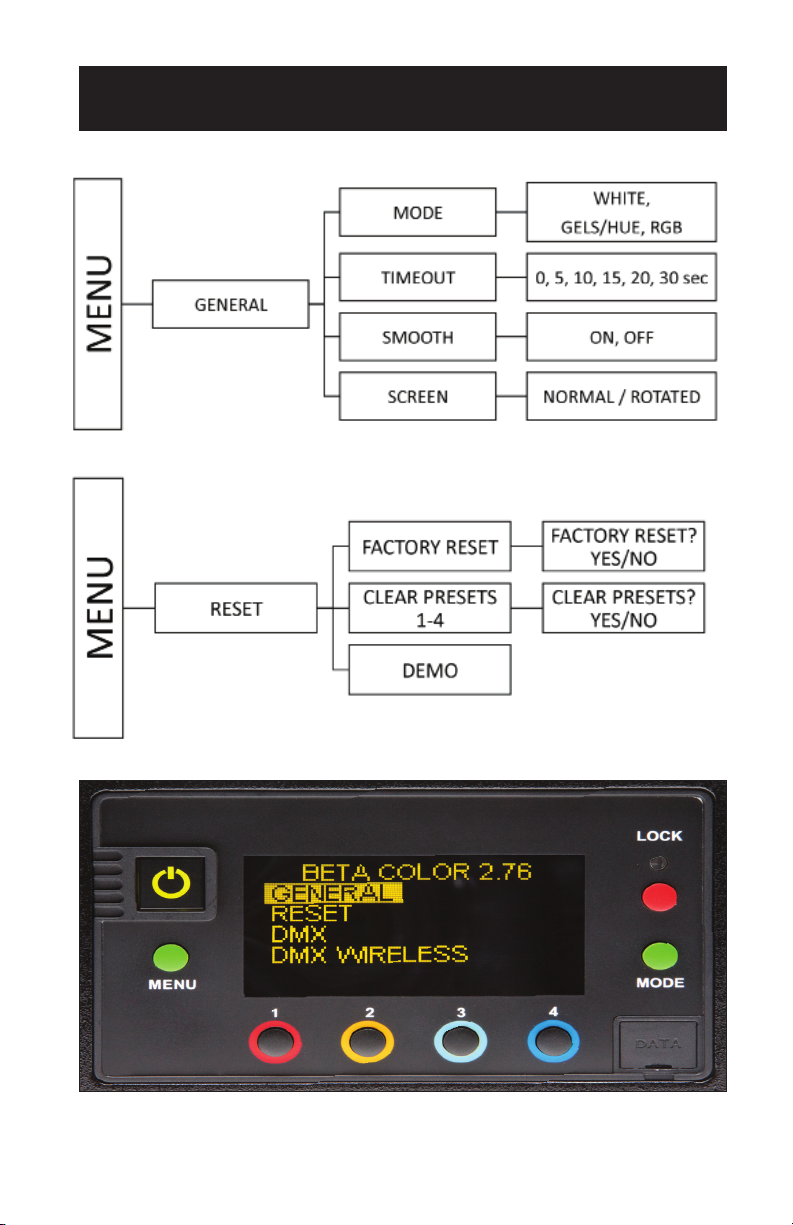

General Settings
12

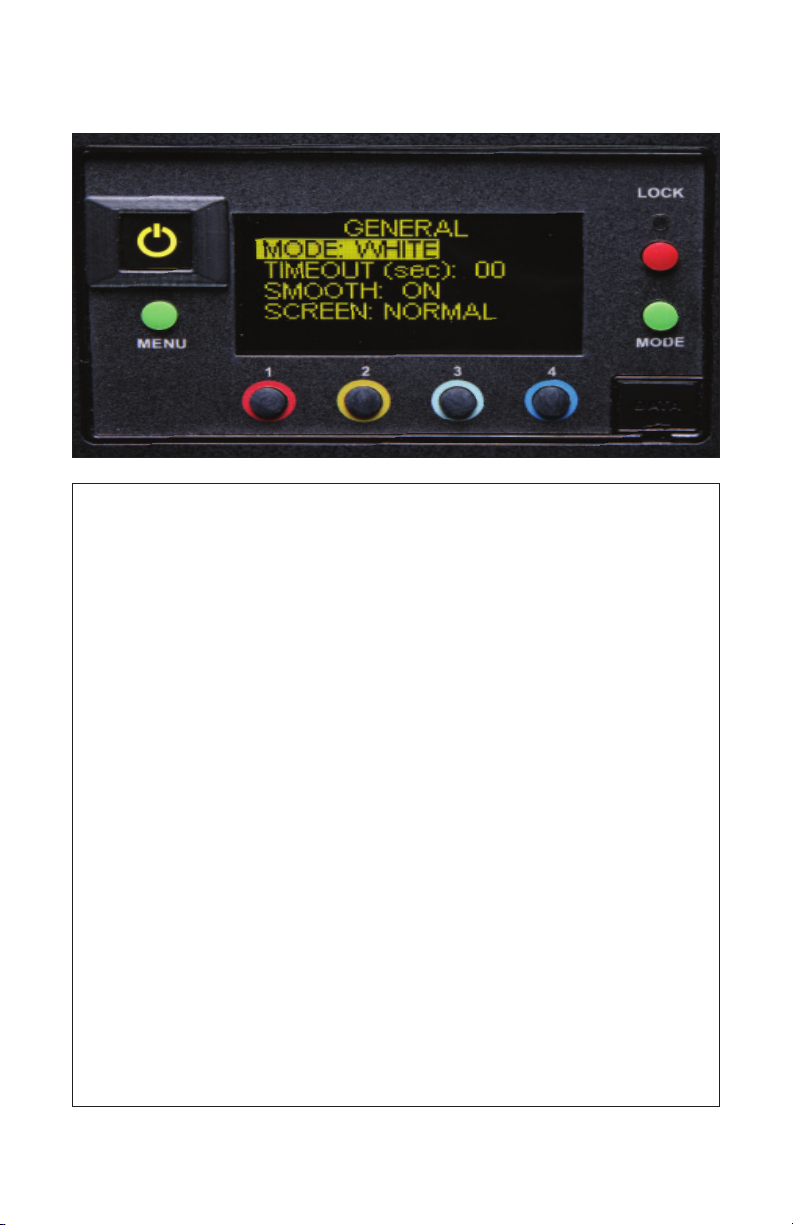

Mode: White, Gels/Hue or RGB
Default is White mode. Custom Kelvin settings can be set between 2700K to 6500K.
To change to Gels/Hue or RGB Color mode, press the control knob. Custom Kelvin
settings can be set between 2500K to 9900K.
Timeout
When choosing settings, if there is no activity, the display will default to Dim.
The default for White mode and both Color modes is 15 seconds, but can be changed
by pressing the control knob to 0, 5, 15, 20 and 30 seconds.
Smooth
Default is On. Press control knob to turn Dim Smooth Off for instant response
for special effects such as ashing, ickering, strobing, etc. For high speed cameras,
it is recommended to keep Dim Smooth On.
Screen Normal
Press control knob to rotate display.
Factory Reset
To reset to factory settings, press the control knob to select Reset, press to select
Factory Reset. Rotate the control knob to select Yes and press to conrm reset.
Main display will default to: Dim = 10%, Kelvin = 2700K, G/M = 000 and DMX = 001.
Note: Factory Reset resets settings in White mode and both Color modes.
Clear Presets 1-4
Will reset buttons 1-4: 2700K, 3200K, 5000K, 6500K. G/M will reset to 000. Press the
control knob to select Clear Presets 1-4. Rotate the control knob press to select Yes
and press to conrm.
Note: Clear Presets 1-4 resets buttons in White mode and both Color modes.
13

DMX
DMX
White mode
In White mode, the xture operates on three DMX channels using DMX512 while in
the default 8 Bit Dim mode. The rst channel operates dimming; 2nd channel operates
Kelvin color temperature control from 2700K to 6500K; 3rd channel operates G/M.
Once an address is selected, the xture automatically assigns 3 channels.
Gels/Hue Color Mode
In Gels/Hue Color mode, the xture operates on six DMX channels while in the
default 8 Bit Dim mode. The rst channel operates dimming; 2nd channel operates
Kelvin color temperature control from 2500K to 9900K; 3rd channel operates G/M;
4th channel operates the Gel; 5th channel operates the Hue angle and the 6th channel
operates the Saturation. Once an address is selected, the xture automatically assigns
6 channels.
Note: In order to control the Gel list channel, the G/M channel needs to be set to 0.
In order to control the Hue angle and Saturation channels, the G/M and Gel list
channels both need to be set to 0.
RGB Color Mode
In RGB Color mode, the xture operates on six DMX channels while in the default
8 Bit Dim mode. The rst channel operates dimming; 2nd channel operates
Kelvin color temperature control from 2500K to 9900K; 3rd channel operates G/M;
4th channel operates Red; 5th channel operates Green and the 6th channel operates
Blue. Once an address is selected, the xture automatically assigns 6 channels.
Note: In order to control the RGB channels, the G/M channel needs to be set to 0.
If a xture loses its DMX signal, it will hold its last DMX command. For this
reason, it is important to turn a xture off using the DMX commands. For example,
if you try to turn off the lights by turning off the dimmer board, the lights will remember
their last DMX command and stay on. The xtures require a DMX “Off” or “Black-Out”
command in order to turn off.
14

Press the Menu button to select DMX. Press and turn the control knob to select
individual digit settings for a valid address from 1-512. On the main display, “X” next to
DMX indicates DMX signal is present.
All manual controls are disabled once the DMX cable is applied and DMX is turned on.
To regain manual control with the DMX cable plugged in, set the DMX address to “0”.
15
DMX Settings

16
DIM Curve
Default is Square. Press control knob to change to Linear. Dim Curve applies
to how the input DMX Dim command is applied. In Linear mode an address of
127 = 50% Dim. Because single channel DMX is only 8 bit (0-255), the lower end of
the Dim curve has the same increment as the higher end. Square Dim applies
x^2 curve and allocates more values to the lower end of the Dim scale.
8/16 Bit DIM
Default is 8 Bit. 16 Bit Dim allocates an additional DMX channel for the Dim input,
one channel for the upper 8 Bits and another channel for the lower 8 Bits.
DMX Map
In White mode, DMX Map displays three DMX channel settings for DIM, CCT (Kelvin)
and G/M.
In Gels/Hue Color mode, DMX Map displays six DMX channel settings for DIM,
CCT (Kelvin), G/M, Gel, Hue and Saturation.
In RGB Color mode, DMX Map displays six DMX channels settings for DIM,
CCT (Kelvin), G/M, R (Red), G (Green) and B (Blue).
Note: If 16 Bit Dim is on, a total of 4 channels are displayed for White mode (7
channels displayed for Gels/Hue or RGB Color mode). The rst 2 DMX channels are
assigned to dimming. 1st channel = DIM MSB (Most Signicant Byte); 2nd channel
DIM LSB (Least Signicant Byte); 3rd channel = CCT (Kelvin); 4th channel = G/M. In
Gels/Hue Color mode, 5th channel = Gel, 6th channel = Hue; 7th channel =
Saturation. In RGB Color mode, 5th channel = R (Red), 6th channel = G (Green),
7th channel = B (Blue).

17
DMX Wireless Settings
The LED Controller/Fixtures include a built-in Lumen Radio receiver and can
be operated wirelessly with a Lumen Radio transmitter (sold separately).
DMX Wireless isan alternative to using DMX cables. Set DMX address as
previously instructed on p 15.
Note: DMX protocol will only operate in one of two methods. User will need
to choose between wireless or DMX cables. For more information on Lumen
Radio Receiver/Transmitter, see www.LumenRadio.com.
Tip: DMX xtures without wireless capability can be daisy chained with
DMX cables to the wireless xture.

18
Enable
Enables wireless DMX. Default is OFF. Press the control knob to turn Enable ON.
The following are examples of what will be seen in the main display when wireless
DMX is Enabled:
1) “R” with no signal bar: Indicates wireless DMX is enabled, but there is
no connection to a transmitter.
2) “R” with signal bar: Indicates wireless DMX is enabled; the xture is connected
to a transmitter, but no valid DMX is currently being transmitted.
3) “RX” with signal bar: Indicates wireless DMX is enabled; the xture is connected
to a transmitter and valid DMX is currently being transmitted.
All manual controls are disabled when wireless DMX is enabled.
Unlink - Press 3 secs
Press the control button for 3 seconds to unlink from wireless DMX transmitter.
Status – Unlinked, Linking, Linked
This shows the status of the wireless connection. Default is Unlinked. When linking
is initiated from the transmitter, the status will display Linking. Once connected, the
status will change to Linked. If the xture is linked to a transmitter that is not present,
the status will show Linking.
Signal
Indicates signal strength of wireless connection. In main display, up to 5 bars indicate
signal strength.
Note: Controller/Fixture must be powered on. In addition, the wireless transmitter must
be connected to a DMX controller with a valid DMX output.

19
For latest Warranty information and Certications,
see Kino Flo website at www.kinoo.com.
Environmental: Disposal of Old Electrical & Electronic Equipment.
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. This product is made
of recyclable materials and should be disposed of in accordance with
governmental regulations.
Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA
Tel: [phone] website: www.kinoo.com
FCC Part 15 Verication:
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition
that this device does not cause harmful interference.
FCC Part 15 Declaration of Conformity:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
KINO FLO, INC
Select 30/20, FreeStyle 31/21, Diva-Lite 30/20, Celeb 250, 450, 450Q and 850
ID: XRSCRMXTIMO101
IC: 8879A-CRMXT101
