Kino Flo Celeb 400 DMX LED User manual

Operation Manual
Celeb 400 DMX LED
Part No. 3100072 Rev A 01-31-2014
®

2
Celeb 400 DMX LED Fixtures
Included w/ all Celeb 400 Models
CEL-400C-120U
Celeb 400 DMX Center Mount, Univ 120U
CEL-400C-230U
Celeb 400 DMX Center Mount, Univ 230U
CEL-400Y-120U
Celeb 400 DMX Yoke Mount, Univ 120U
CEL-400Y-230U
Celeb 400 DMX Yoke Mount, Univ 230U
CEL-400P-120U
Celeb 400 DMX Pole-Op, Univ 120U
CEL-400P-230U
Celeb 400 DMX Pole-Op, Univ 230U
LVR-CE490-P
Celeb 400 Louver/HP, 90° (Included)
GFR-CE4
Celeb 400 Gel Frame (Included)

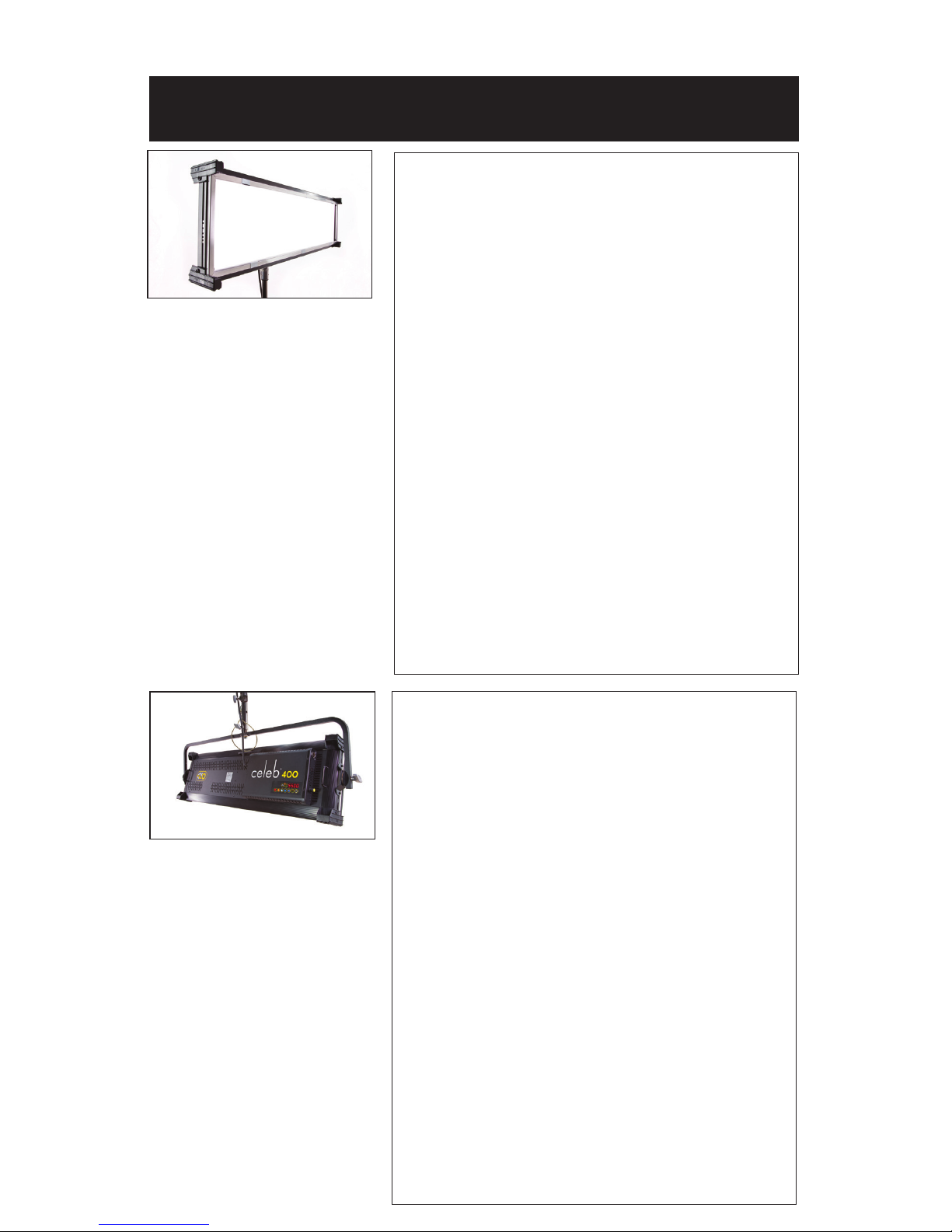

Celeb 400 Center Mount
Celeb 400 Yoke Mount
Celeb 400 Pole-Op

Celeb 400 DMX LED Kits
KIT-C4-120U
Celeb 400 DMX Center Mount Kit,
Univ 120U
KIT-C4-230U
Celeb 400 DMX Center Mount Kit,
Univ 230U

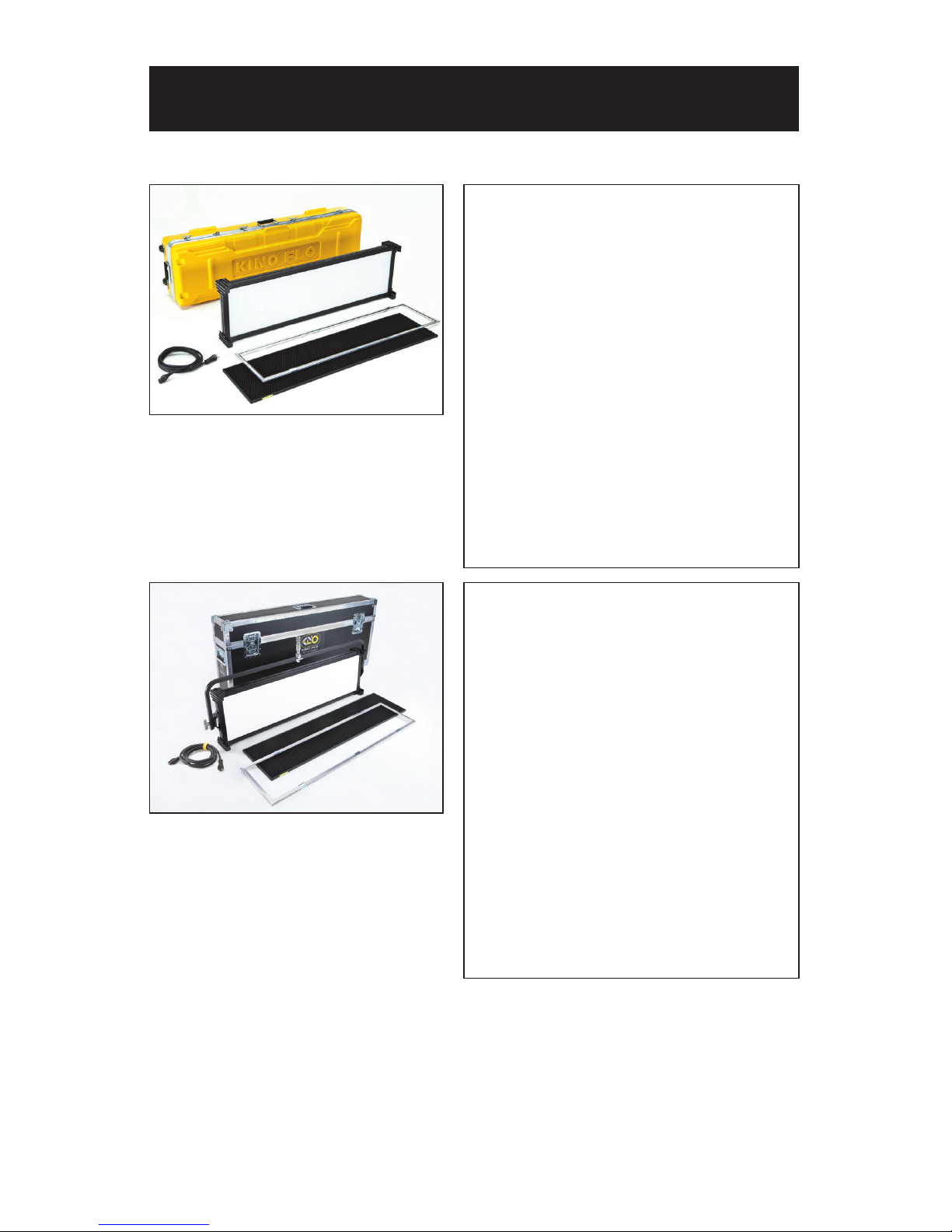

Kit Contents:
1 Celeb 400 DMX Center Mount
1 Flight Case
Weight: 52.5 lb (24kg)
Dimensions: 53.5 x 11 x 16.5”
(136 x 28 x 42cm)
KIT-C4Y-120U
Celeb 400 DMX Yoke Mount Kit,
Univ 120U
KIT-C4Y-230U
Celeb 400 DMX Yoke Mount Kit,
Univ 230U
Kit Contents:
1 Celeb 400 DMX Yoke Mount
1 Jr. Pin
1 Ship Case
Weight: 57 lb (26kg)
Dimensions: 54.5 x 9.5 x 25”
(138.5 x 24 x 63.5cm)
3
Celeb 400 Center Mount Kit
Celeb 400 Yoke Mount Kit

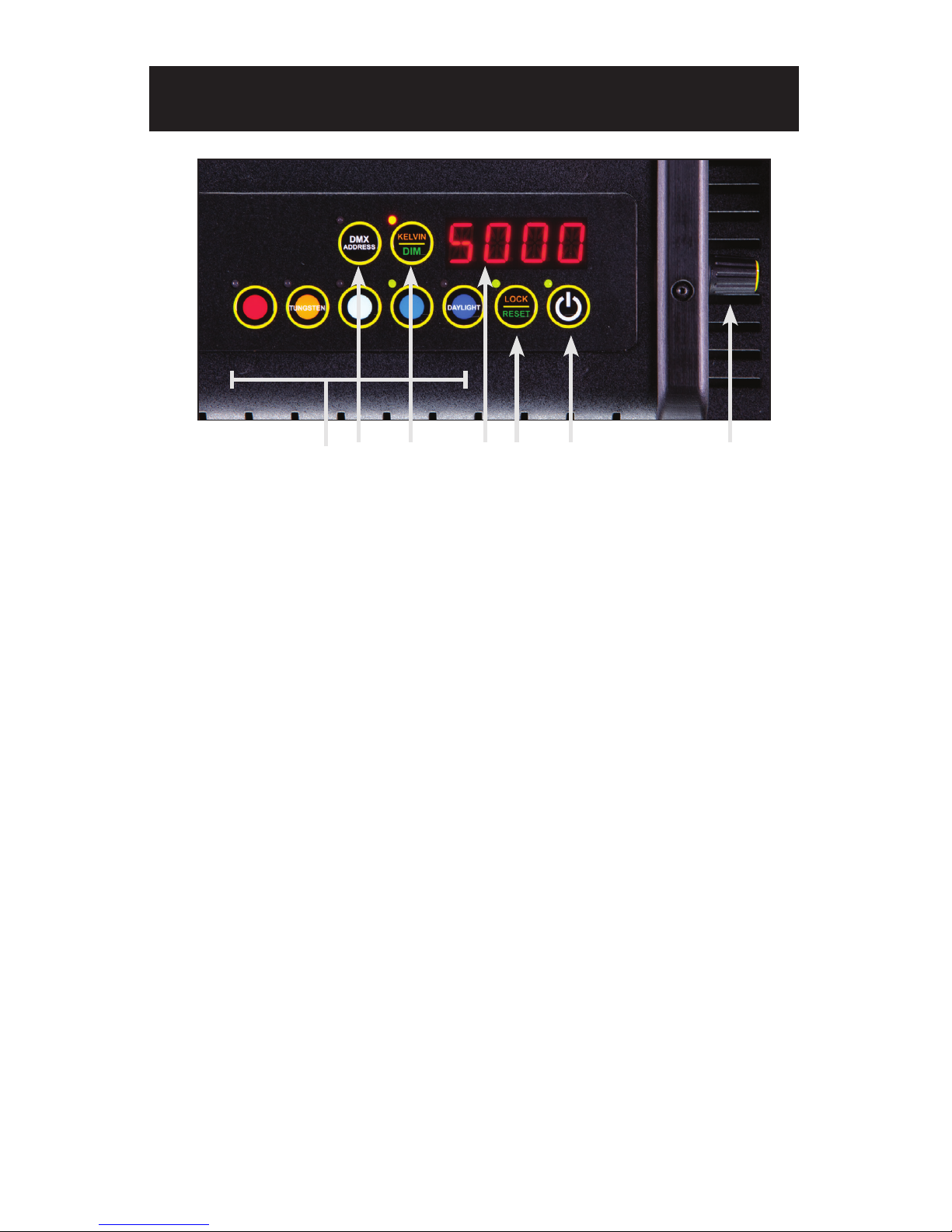

Celeb 400 DMX Control Panel
A) Kelvin Preset Buttons: Kelvin buttons come preset at the factory.
Factory defaults left to right are: 2700K, 3200K, 4000K, 5000K, 5500K.
User can also use these preset buttons to store custom Kelvin settings.
B) DMX ADDRESS – Use to set DMX address. The Celeb 400 automatically
assigns 2 channels. First Channel controls Dimming; Second Channel
controls Kelvin.
C) KELVIN / DIM: In KELVIN mode, an amber light appears to the left of
the button and Kelvin is displayed. Press the button again to change to
DIM mode. In DIM mode, a green light will appear to the left of the button
and Dim level is displayed.
D) Display: Provides Kelvin, Dim level and software revision data.
E) LOCK / RESET: In LOCK mode, an amber light is displayed to the left
of the button. In RESET mode, the indicator light is green. To reset to
factory presets, hold the LOCK / RESET button for 5 seconds.
F) On / Off: On = Green light displayed. Off = Amber light displayed.
G) Kelvin / Dimmer Knob: Manually adjusts Kelvin or Dim levels.
Press the knob to toggle between ne and coarse adjustments.
Note: Each Celeb 400 DMX xture has an “AUTO TERMINATE” feature.
The last xture that does not have an XLR cable attached to the
DMX “Out” port will automatically terminate.
AGB C D E F
4

5
Fixture Power
DC Input
The Celeb can also be operated on 24VDC (input range 18-28VDC) through
a 3-Pin XLR. A low voltage warning will display “LPWR” when the battery is
running low.
The pin polarity is:
Pin #1 – Ground
Pin #2 + 18-28VDC
Pin #3 not used
AC Input

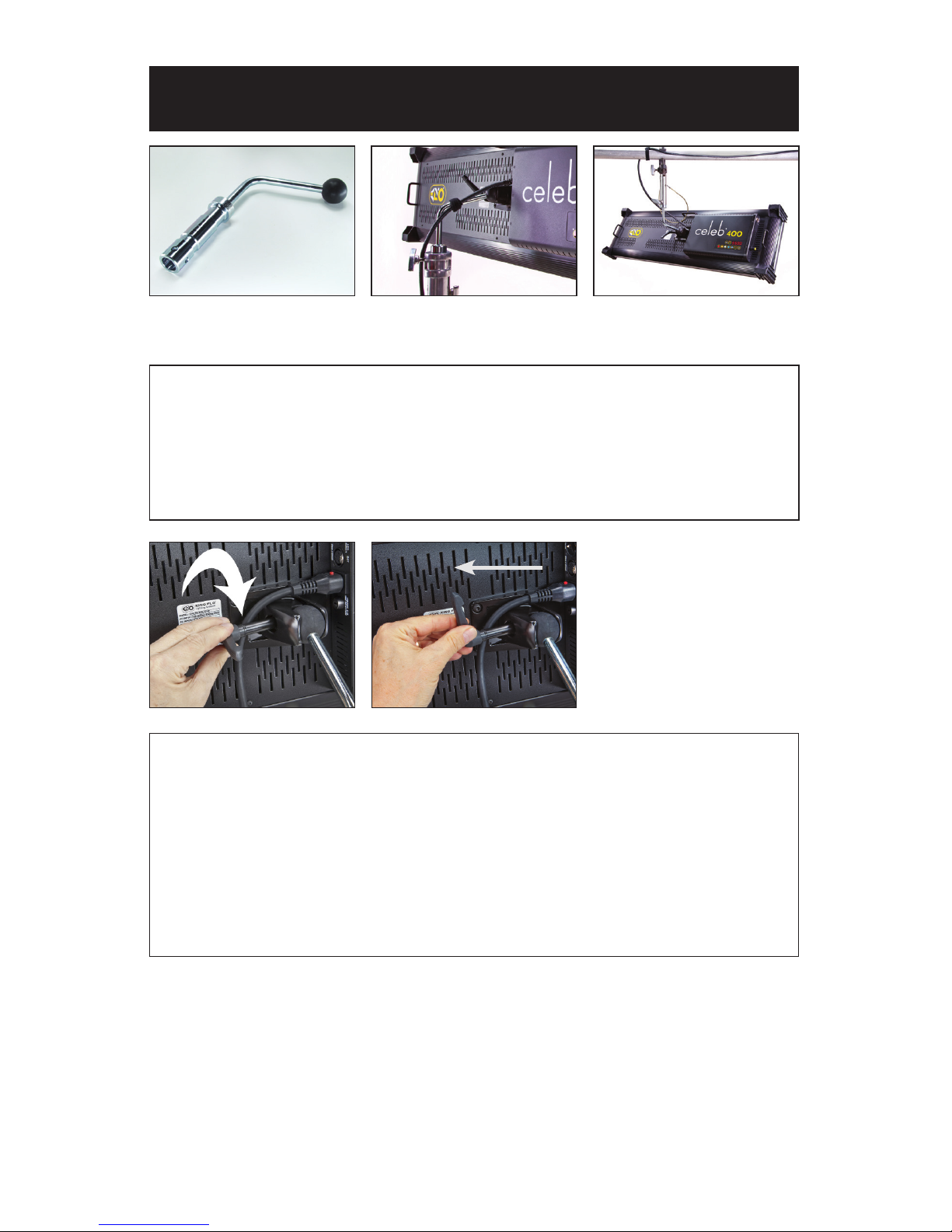

The Celeb is powered AC and includes an IEC connection. A locking
power cord is included with the xture. To remove the plug, move the red tab
to release. The ballast has a built-in power supply with universal input from
100-240VAC.
Ambient Operating Temperature
The Celeb is designed to operate at temperatures from 14°F to 104°F
(-10°C to 40°C).

6
Start Up

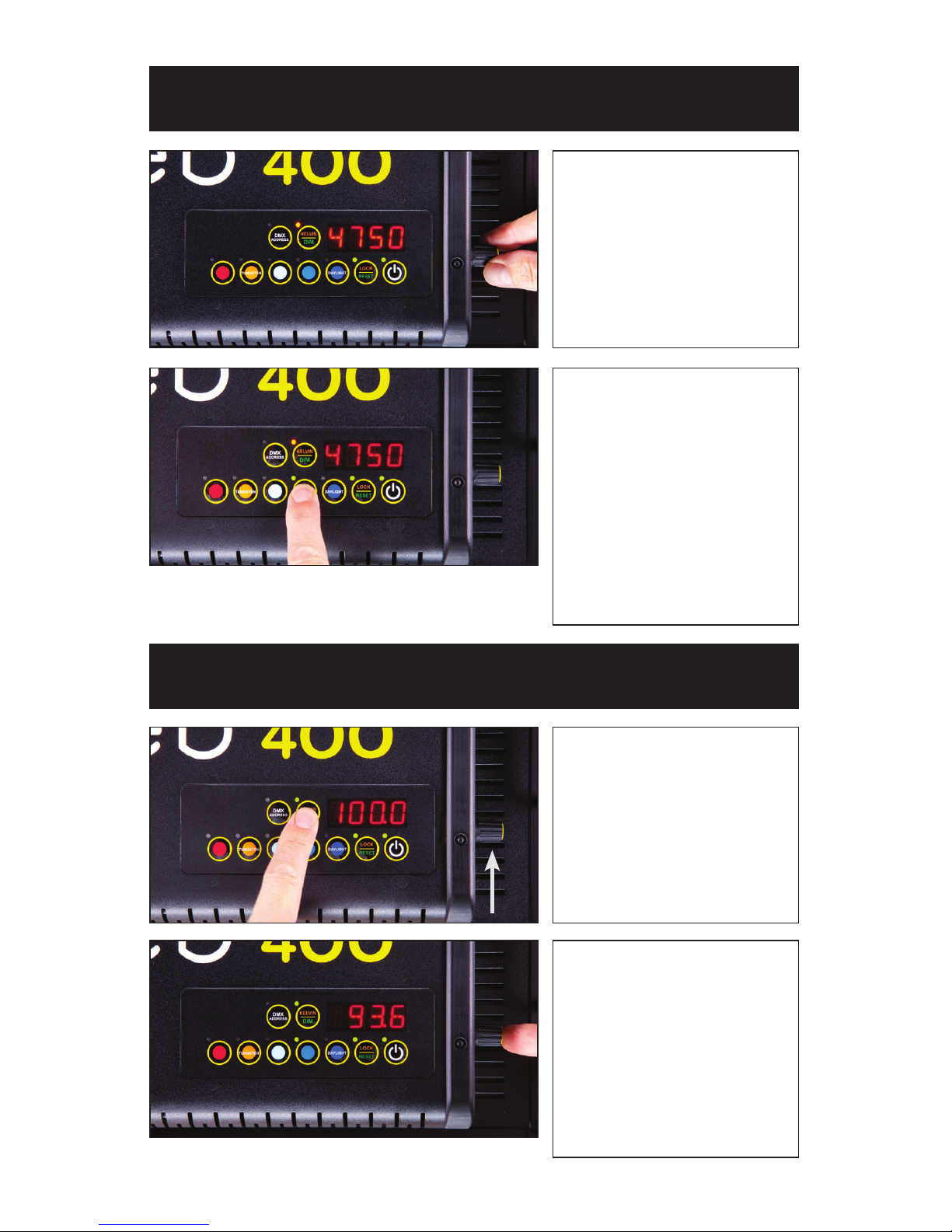

Kelvin Selection
When power is rst applied to
the xture, the alphanumeric
display shows the current
software version.
Press the On/Off button
to turn on the xture.
The display will default to a
Kelvin setting of 5000.
There are 5 Kelvin factory
preset buttons. Left to right
they display 2700K, 3200K,
4000K, 5000K and 5500K.
A green indicator will light to
the left of the active button.
Rotating the adjustment knob
will change the Kelvin.
Press the rotating knob once
to shift the Kelvin prole from
Coarse to Fine increments.
In the Coarse mode,
the xture can be adjusted in
one rotation of the knob.
In Fine mode, it will require
8 rotations for full range of
adjustment.

7
In KELVIN mode, the Kelvin
can be ne tuned with the
adjustment knob to custom
settings between 2700K to
5500K.
The setting can be assigned
to any preset button by
holding down the desired
button for 5 seconds.
The Kelvin display will ash
once the setting is registered.
Note: When the power is
turned off or removed,
the xture will remember
its last setting.
Press the KELVIN / DIM
button. The indicator light to
the left of the button will turn
green.
Rotating the adjustment knob
will dim the light of the xture.
Press the rotating knob once
to shift the Dim prole from
Coarse to Fine increments.
In the Coarse mode, the
xture can be adjusted in
one rotation of the knob.
In Fine mode, it will require
8 rotations for full range of
adjustment.
Kelvin Custom Settings
Dimming

Press the LOCK / RESET
button to lock the Kelvin
and Dim settings. An amber
indicator will display in
LOCK mode.
In LOCK mode, controls
are disabled and LOCK
will appear in the display.
To unlock, press the
LOCK / RESET button again.
The indicator light will turn
green.
In LOCK mode, you can
toggle back and forth on
the KELVIN / DIM button
and review your Kelvin and
Dim settings.
Note: When the power is
removed, the xture will
reset to unlock.
To reset factory settings,
press and hold the LOCK /
RESET button for 5 seconds.
The indicator light will turn
green and the display will
ash 5000 and light output
will be at 100%.
Lock Mode
Reset Factory Settings
8

The Celeb 400 DMX operates
on two DMX channels using
DMX512. The rst channel
operates dimming; the 2nd
channel operates Kelvin color
temperature control.
Once an address is selected,
the xture automatically
assigns 2 channels.
Press and hold the DMX
ADDRESS button to select a
DMX address. The displayed
number will ash while in edit
mode.
Turn the dimming knob to
select a valid address from
1-512. (Note: 0 or 513-999
are invalid addresses.)
Press the rotating knob once
to shift between Fine (single
digits) and Coarse (in 10th’s)
address selection.
DMX Operation
9
To save the DMX channel,
press the DMX ADDRESS
button again. When set,
the displayed number will stop
ashing.

10
AUTO TERMINATE FEATURE
The Celeb 400 DMX xtures have an AUTO
TERMINATE feature. The last xture that
does not have an XLR cable attached to the
DMX “Out” port will automatically terminate.
Any theatrical lighting board with DMX512
protocol can be used to control the Celeb 400
DMX xture. The xtures can be jumpered
using the IN and OUT ports. As many as 100
xtures can be jumpered on one chain as long
as the DMX cable run remains under 1000 feet
or 40 x 25ft DMX cables.
Note: When operating xtures at
great distances from the dimmer
board, it is recommended to use
Opto-Isolators to provide DMX
signal amplication.
Kelvin Color Temperature – Dimmer level
When DMX is applied, the DMX signal will override the manual settings and the
Celeb Kelvin temperature will default to 5500K and dim setting will be at 100%.
Sliding the fader on the 1st channel will lower the light level. Sliding the fader on the
2nd channel will lower the Kelvin from 5500K to 2700K. (See chart on the following
page for approximate Kelvin dimmer levels.). The xture may respond ± 4 slider
channels, depending on the dimmer board.
All manual controls are disabled once the
DMX cable is applied and DMX is turned on.
Note: To regain manual control with the DMX
cable plugged in, set the DMX address to “0”.
DMX Kelvin Dimmer Control
Note: All Kelvin indicator lights will turn green if a valid DMX signal is present.
If a xture loses its DMX signal, it will hold its last DMX command.
For this reason, it is important to turn a xture off using the DMX commands.
For example, if you try to turn off the lights by turning off the dimmer board, the lights
will remember their last DMX command and stay on. The xtures require a DMX “Off”
or “Black-Out” command in order to turn off.

11
Celeb 400 DMX
Kelvin Color Temperature
Dimmer Level
Kelvin Color
Temperature
Dimmer
Level
5500K 100%
5000K 75%
4000K 50%
3200K 15%
2700K 0%

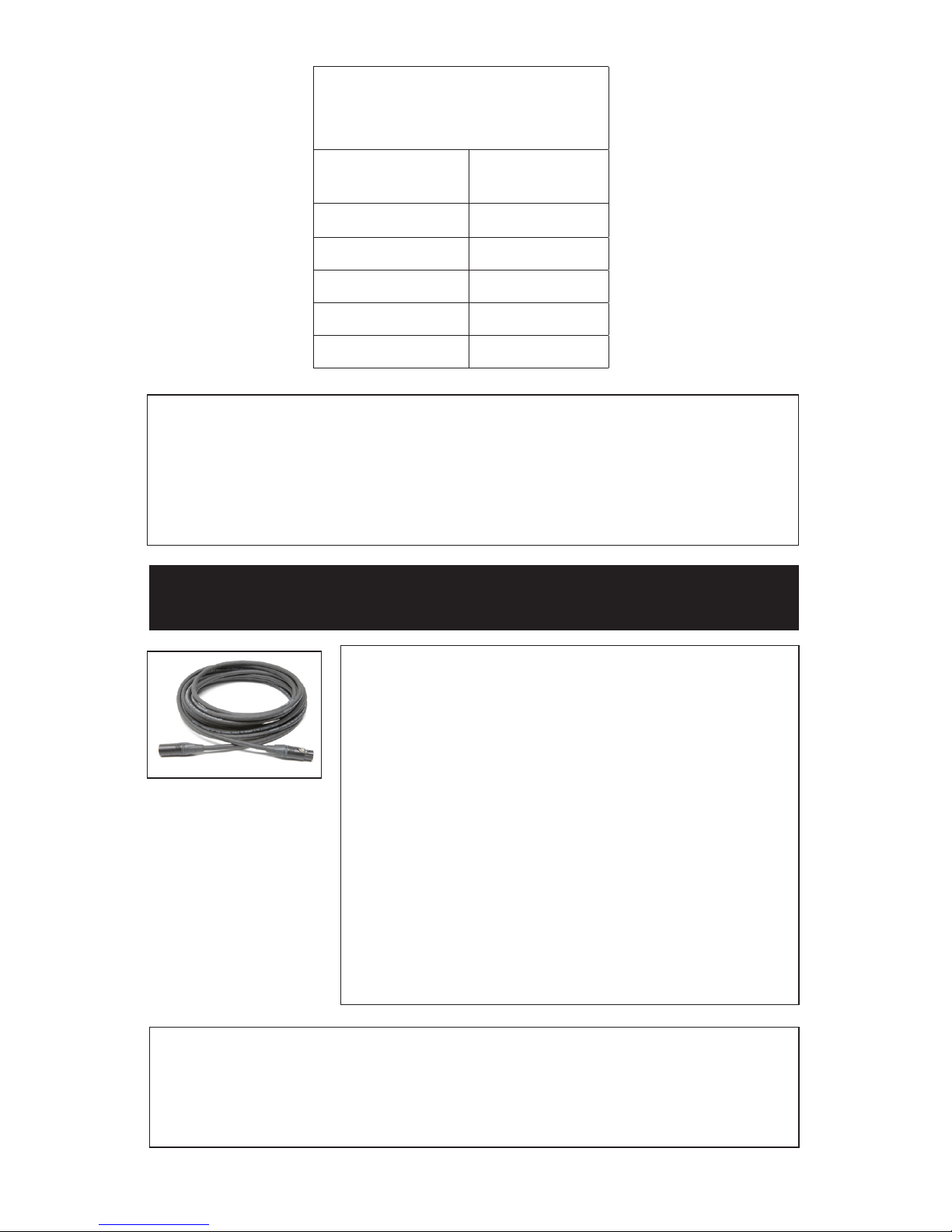

DMX Cables
DMX Cables
The Celeb 400 DMX xtures use ve-pin XLR male and
female connectors to receive DMX signals from the Dimmer
Board and jumper the xtures in a series. DMX pin-out
wiring follows the USITT DMX512 standard:
Pin 1: Shield
Pin 2: Data –
Pin 3: Date +
Pin 4: Spare –
Pin 5: Spare +
Note: Pin four and ve in the xture are connected internally
as Pin four to four and Pin ve to ve. Connecting Pin
four and ve as the pass-thru allows secondary data to be
passed through other equipment.
Do not use Microphone Cables and other general purpose, two-core cables designed
for audio or signaling use. They are not suitable for DMX512. Problems due to
incorrect cabling may not be immediately apparent. Microphone Cables may appear
to work ne, but systems built with such cables may fail or be prone to random errors.
Cable must comply with EIA-485 (RS485).
Note: The detailed DMX mapping for the Celeb 400 DMX xture can be downloaded
from the Operation Manual posted on www.kinoo.com.
IMPORTANT!
The dimmer board/light console should have its channel set to LINEAR light output
response. (LINEAR response is the default setting on most dimmer boards.)

12
Center Mount
The Celeb 400 Center Mount xture includes a Lollipop w/ Junior Pin
(28mm) (MTP-LM) which allows the xture to be mounted directly onto a
junior stand or hung from a grid with a junior pipe clamp.
Note: The handles on the back of the xture provide attachment points for a
safety chain.
MTP-LM Mounted on
a junior stand
Mounted to pipe grid
A 180° turn loosens the orientation of the mount. A right turn tightens the
mount.
The tension on the lock lever may be adjusted by pulling the handle away
from the mount. This disengages the handle from the screw mechanism and
allows the lever to be reoriented.
You can also use a screwdriver to adjust the tension. Pull back on handle
and adjust screw.

13
Yoke Mount
MTP-I80
The yoke has a ½” hole to accept industry standard mounting hardware.
The Celeb 400 Yoke Mount xture can hang from a grid by a junior pipe
hanger using a Junior Pin Assembly for Yoke (MTP-I80), sold separately.
Note: The yoke also provides an attachment point for a safety chain.
Warning: Use only M5 X 10mm screws (supplied) to assemble yoke.
Note that threads on the xture are self-locking and may seem tight.
Replacement screws: Part No. 2020127
Recommended torque setting:
USA: 18 lb-in
Metric: 2 Nm
Pole-Op
The Celeb 400 Pole-Op xture includes a yoke with
an attached junior pin. It can be hung from a grid with
a Junior pipe hanger.
Junior pin attached to Pole-Op Yoke

14

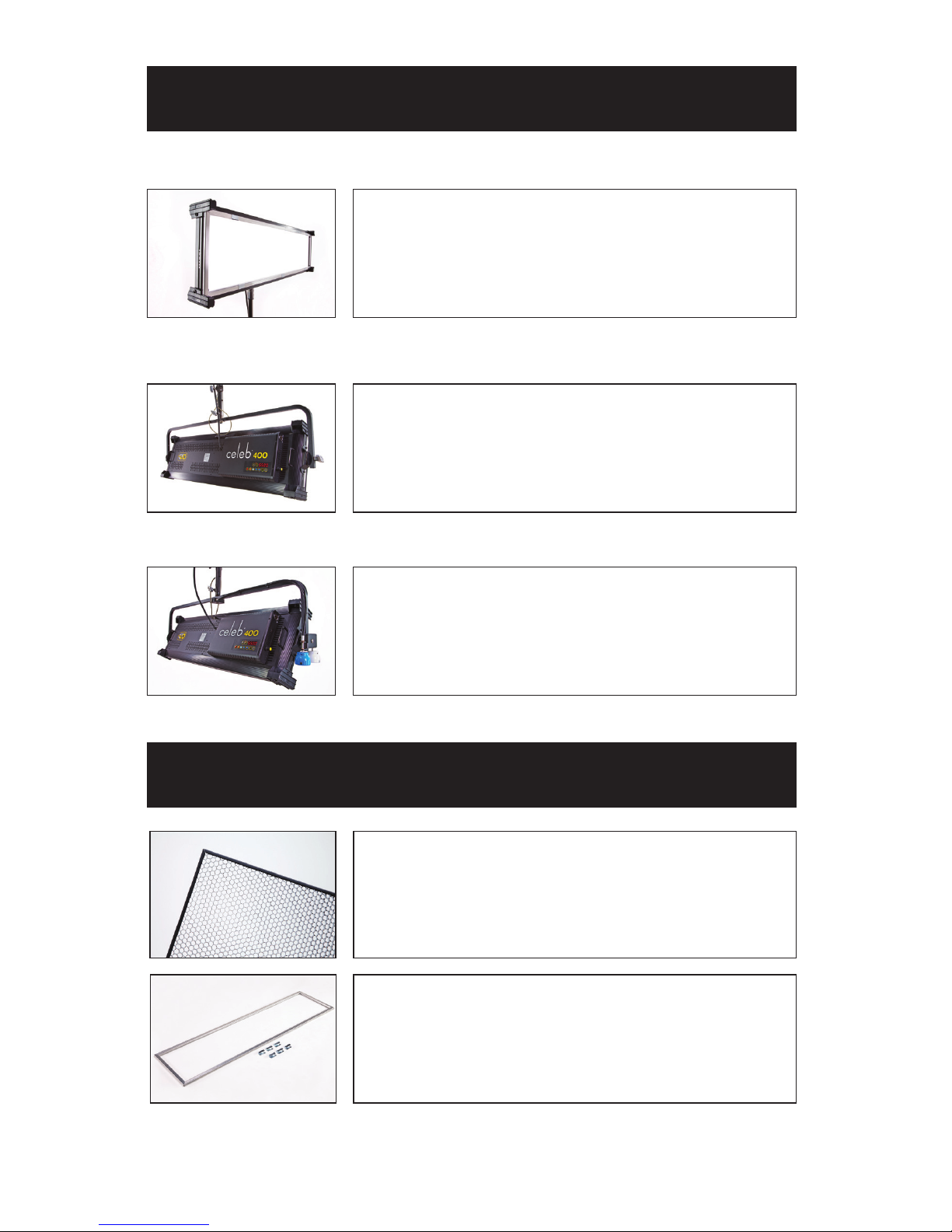

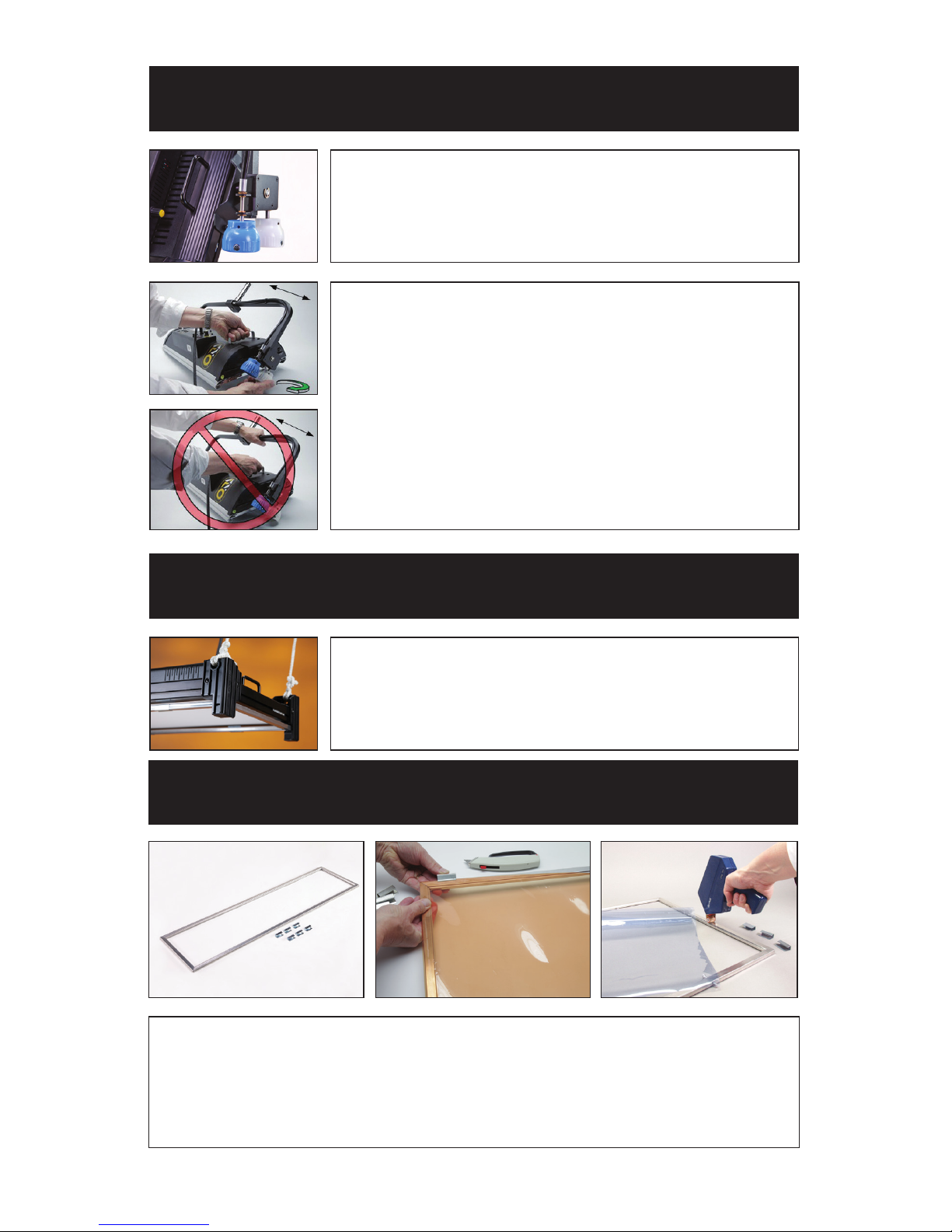

Applying Gel to Frame
Option 1 - The Gel Frame comes with gel clips. Cut the gel to size and use
the clips to fasten the gel to the frame.
Option 2 – Apply transfer tape directly to the Gel Frame. The clips are not
necessary when taping the gel.
Operating Pole-Op
Mount Option/Rope Hang
The Blue cup alters the Pan (left or right).
The White cup alters the Tilt (up or down).
Accessory holders are also designed to enable 4-point
rope hangs for specialty rigging applications.
Warning!
Do not pull yoke to adjust tilt. Turn the white knob
counter clockwise to angle the yoke 90°.
(ParaBeam shown for illustration purposes only.)

15
Inserting Gel Frame and Louver
The Celeb includes spring loaded accessory holders and two channels to
hold the Gel Frame and Honeycomb Louver.
Place the long edge of the Gel Frame or Honeycomb Louver into the lower
channel. Press down on the left and right corners of the Gel Frame or
Louver and slip the upper edge into the upper channel of the xture.
To remove, reverse the procedure.
Note: Do not press down along the top center portion of the Gel Frame or
Louver. Doing so may deform the Gel Frame or Louver over repeated usage.
Inserting Barndoors
Position the barndoors
alongside the extruded
edge of the xture. Align
the thumbscrews with the
adjustable receptacle holes
in the xture and insert into
place. Lock the barndoors by
turning the silver thumbscrew.
To remove, reverse the
procedure.
For replacement screws,
use M5 Metric size screws.
Note: To adjust the
placement of the receptacle
holes, use a pointed tool
(such as a pen) to slide the
holes within the extruded
edge.
BRD-CE4

16
Troubleshooting
Display Protection Condition Description Normal Condition Cause/Solution
OCP Over Current Protection Shut down current 2.45A
in excess of 20%
2.04A @ 100% dim Repair Service
Center
OVP Over Voltage Protection Shut down voltage @
excess 30V
Below 28V Wrong Battery
or 24V Battery
w/ too high
Open Voltage
UVP Under Voltage Protection Shut down voltage @
below 17V
Excess 18V Dead Battery
OTP Over Temperature
Protection
Shut down temp @
120°C (LDM board side)
Below 120°C @
LED array
Cool Down
OPP Open Protection Open circuit No open Repair Service
Center
SCP Short Circuit Protection Short circuit No short Repair Service
Center
Troubleshooting continued
Can’t set the DMX address.
You must Press and Hold the DMX Address button for 3 seconds in order to
select an address. The display will ash while in edit mode. Select a valid
address from 1-512. (Note: 0 or 513 and higher are invalid addresses.)
Can’t operate the xture manually with the DMX cable plugged in.
Two Options:
Set DMX address to “0” or disconnect cable and turn power off and on.

LVR-CE460-P Celeb 400 Louver/HP, 60°
17
Accessories
BRD-CE4 Celeb 400 Barndoors (Set of 4)
MTP-LM Kino 81 Lollipop w/ Junior Pin (28mm)
KAS-CE4-S Celeb 400 Center Ship Case
KAS-CE4-Y Celeb 400 Yoke Ship Case
MTP-I80 Junior Pin Assembly for Yoke (28mm)
7010045 Celeb 400 Yoke Assembly
7010046 Celeb 400 Pole-Op Assembly
KAS-CE4 Celeb 400 Center Flight Case
KAS-CE4-C Celeb 400 Center Travel Case

18
Fixture Specications
Celeb 400 DMX
Center Mount
Celeb 400 DMX
Yoke Mount
CEL-400C-120U
Celeb 400 DMX Center Mount, Univ 120U
AC Input Voltage: 100~240VAC 50/60Hz, 210W
Amperage VAC: 1.8A at 120VAC
DC Input Voltage: 18~28VDC, 198W
Amperage VDC: 8.25A at 24VDC
Kelvin Range: 2700K~5500K
Dimming Range: 100% ~ 1%
Weight: 26 lb (12kg)
Dimensions: 45 x 14 x 5”
(114.5 x 36 x 13cm)
CEL-400C-230U
Celeb 400 DMX Center Mount, Univ 230U
AC Input Voltage: 240~100VAC 50/60Hz, 207W
Amperage VAC: 1.0A at 230VAC
DC Input Voltage: 18~28VDC, 198W
Amperage VDC: 8.25A at 24VDC
Kelvin Range: 2700K~5500K
Dimming Range: 100% ~ 1%
Weight: 26 lb (12kg)
Dimensions: 45 x 14 x 5”
(114.5 x 36 x 13cm)
CEL-400Y-120U
Celeb 400 DMX Yoke Mount, Univ 120U
AC Input Voltage: 100~240VAC 50/60Hz, 210W
Amperage VAC: 1.8A at 120VAC
DC Input Voltage: 18~28VDC, 198W
Amperage VDC: 8.25A at 24VDC
Kelvin Range: 2700K~5500K
Dimming Range: 100% ~ 1%
Weight: 26 lb (12kg)
Dimensions: 50 x 16.5 x 5”
(127 x 42 x 13cm)
CEL-400Y-230U
Celeb 400 DMX Yoke Mount, Univ 230U
AC Input Voltage: 240~100VAC 50/60Hz, 207W
Amperage VAC: 1.0A at 230VAC
DC Input Voltage: 18~28VDC, 198W
Amperage VDC: 8.25A at 24VDC
Kelvin Range: 2700K~5500K
Dimming Range: 100% ~ 1%
Weight: 26 lb (12kg)
Dimensions: 50 x 16.5 x 5”
(127 x 42 x 13cm)

19
Celeb 400 DMX
Pole-Op
CEL-400P-120U
Celeb 400 DMX Pole-Op, Univ 120U
AC Input Voltage: 100~240VAC 50/60Hz, 210W
Amperage VAC: 1.8A at 120VAC
DC Input Voltage: 18~28VDC, 198W
Amperage VDC: 8.25A at 24VDC
Kelvin Range: 2700K~5500K
Dimming Range: 100% ~ 1%
Weight: 26 lb (12kg)
Dimensions: 50.5 x 16.5 x 5”
(128.5 x 42 x 13cm)
CEL-400P-230U
Celeb 400 DMX Pole-Op, Univ 230U
AC Input Voltage: 240~100VAC 50/60Hz, 207W
Amperage VAC: 1.0A at 230VAC
DC Input Voltage: 18~28VDC, 198W
Amperage VDC: 8.25A at 24VDC
Kelvin Range: 2700K~5500K
Dimming Range: 100% ~ 1%
Weight: 26 lb (12kg)
Dimensions: 50.5 x 16.5 x 5”
(128.5 x 42 x 13cm)

20
For latest Warranty information and Certications,
see Kino Flo website at www.kinoo.com.
Environmental: Disposal of Old Electrical & Electronic Equipment.
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. This product is made
of recyclable materials and should be disposed of in accordance with
governmental regulations.
Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA
Tel: [phone] website: www.kinoo.com
