KINZE Manufacturing, Inc. 3110 User manual

This manual is applicable to: Model 3110 Mounted Planter
2015 Production Year and on
Record the model number and serial number of your planter along with date purchased:
Model Number ____________ 3110_________________
Serial Number ___________________________________
Date Purchased__________________________________
Monitor Serial Number _______________________________________________
Measured Pulses Per Mile/Km (Radar Distance Sensor) ____________________
Measured Pulses Per Mile/ Km (Magnetic Distance Sensor) _________________
SERIAL NUMBER
The serial number plate is located on the planter frame to be readily available. It is suggested that your serial number
and purchase date also be recorded above.
The serial number provides important information about your planter and may be required to obtain the correct
replacement part. Always provide the model number and serial number to your Kinze Dealer when ordering parts or
anytime correspondence is made with Kinze Manufacturing, Inc.
Kinze®and the Kinze®logo are registered trademarks of Kinze Manufacturing, Inc.

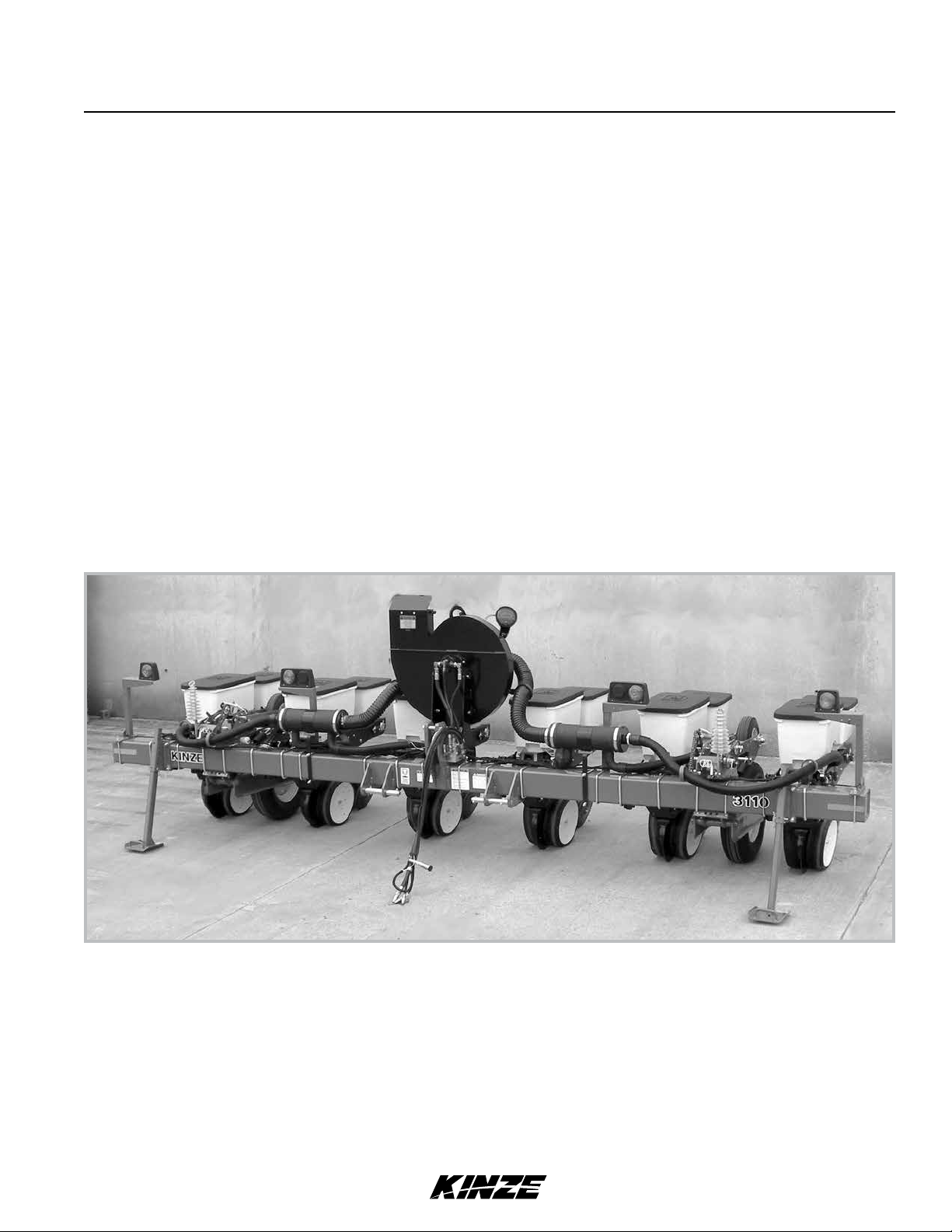

MODEL 3110
RIGID MOUNTED PLANTER
M0255-01 Rev. 6/19

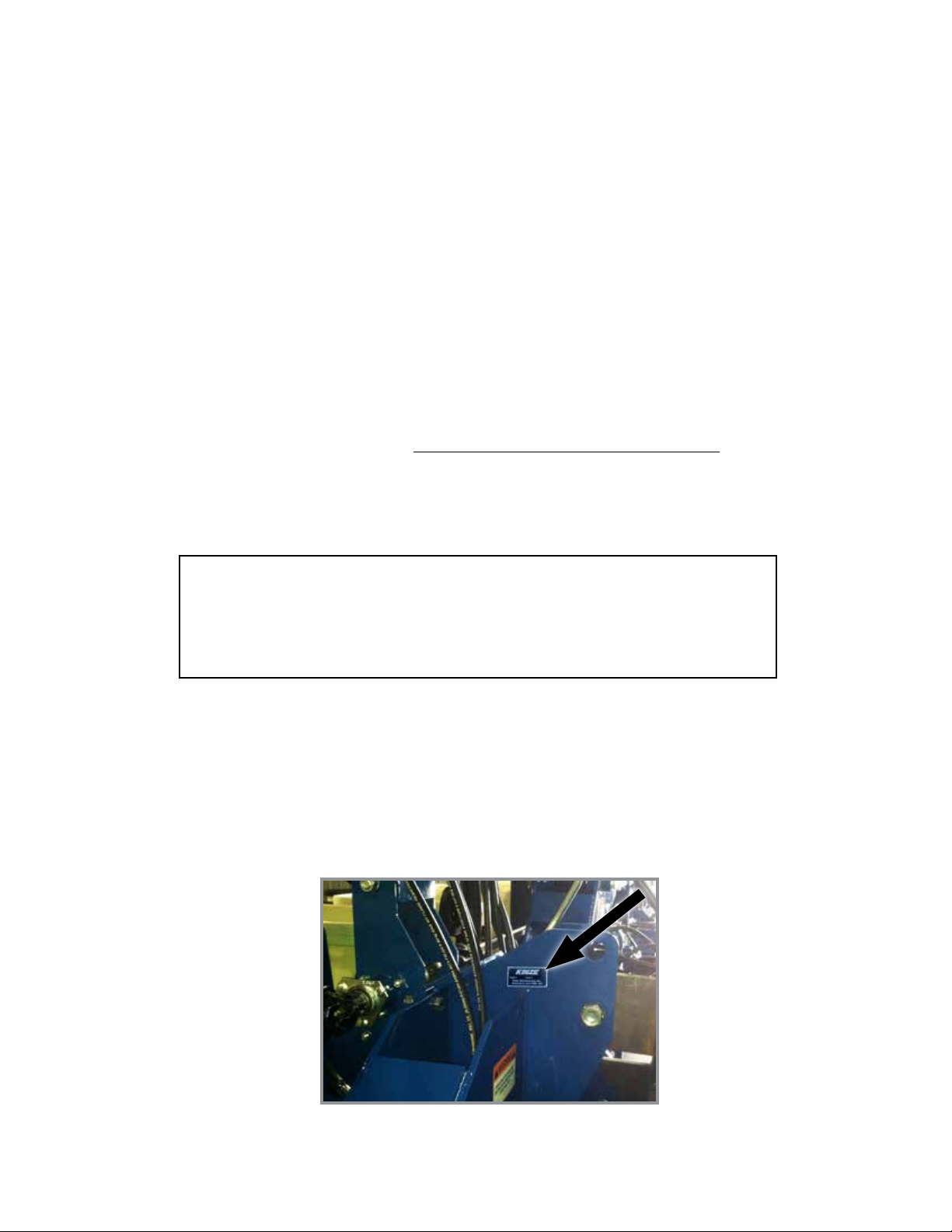

Serial number plate location - R.H. side of 3-point mount
OPERATOR’S MANUAL

This page left blank intentionally.

TM
Model 3110M0255-01
Rev. 9/17 1
Predelivery/Delivery Checklist
TO THE DEALER
Predelivery service includes assembly, lubrication, adjustment, and test. This service makes sure planter is delivered to
the retail customer/end user ready for field use.
PREDELIVERY CHECKLIST
Use the following checklist and inspect planter after it is completely assembled. Check off each item found satisfactory
or after proper adjustment is made.
Row units properly spaced and optional attachments correctly assembled.
Vacuum components properly installed (as applicable).
All grease fittings in place and lubricated.
All working parts move freely, bolts are tight, and cotter pins are spread.
Check all drive chains for proper tension and alignment.
Check for oil leaks and proper hydraulic operation.
Hydraulic hoses correctly routed to prevent damage.
Inflate tires to specified air pressure and torque wheel lug bolts and lug nuts as specified in the manual.
All safety decals correctly located and legible. Replace if damaged.
All reflective decals and SMV sign correctly located and visible when the planter is in transport position.
Safety/warning lights correctly installed and working properly.
Paint all parts scratched in shipment or assembly.
All safety lockup devices on the planter and correctly located.
Auxiliary safety chain properly installed and hardware torqued to specification.
This planter has been thoroughly checked and to the best of my knowledge is ready for delivery to the retail
customer/end user.
(Signature Of Set-Up Person/Dealer Name/Date)
RETAIL CUSTOMER/END USER
Name Delivery Date
Street Address Model No. 3110 Serial No.
City, State/Province Dealer Name
ZIP/Postal Code Dealer No.

M0255-01Model 3110
2 Rev. 1/18
TM
Predelivery/Delivery Checklist
DELIVERY CHECKLIST
Use the following checklist at time planter is delivered as a reminder of very important information which should be
conveyed to retail customer/end user. Check off each item as it is fully explained.
Check for proper operation of vacuum fan (If applicable) with tractor to be used with planter.
Life expectancy of this or any other machine is dependent on regular lubrication as directed in the Operator Manual.
All applicable safety precautions.
Along with retail customer/end user, check reflective decals and SMV sign are clearly visible with planter in transport
position and attached to tractor. Check safety/warning lights are in working condition. Tell retail customer/end user
to check federal, state/provincial, and local regulations before towing or transporting on a road or highway.
Give Operator Manual, Parts Manual, and all Instruction Sheets to retail customer/end user and explain all operating
adjustments.
Read warranty to retail customer/end user.
Complete Warranty and Delivery Report form.
To the best of my knowledge this machine has been delivered ready for field use and customer has been fully
informed as to proper care and operation.
(Signature Of Delivery Person/Dealer Name/Date)
AFTER DELIVERY CHECKLIST
The following is a list of items we suggest to check during the first season of use of the equipment.
Check planter performance with retail customer/end user.
Check performance of vacuum or mechanical seed metering system with retail customer/end user.
Review importance of proper maintenance and adherence to all safety precautions with retail customer/end user.
Check for parts that may need to be adjusted or replaced.
Check all safety decals, reflective decals, and SMV sign are correctly located as shown in the Parts Manual and that
decals are legible. Replace if damaged or missing.
Check safety/warning lights are working properly.
(Signature Of Follow-Up Person/Dealer Name/Date)
All registrations must be submitted online at “business.kinze.com” within 5 business days of delivery.
Retain a copy of this form for auditing purposes.
Tear Along Perforation

TM
Model 3110M0255-01
Rev. 6/19 1-1
Table of Contents
MACHINE OPERATION
Row Marker Lockups
(Conventional Row Markers Only). . . . . . . . . . . . . . . . . 2-1
Initial Preparation................................2-2
Tractor Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Tractor Preparation and Hookup ....................2-4
Cylinder Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Hydraulic Hose Information ........................2-8
Leveling the Planter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Toolbar Height Adjustment. . . . . . . . . . . . . . . . . . . . . . . . 2-10
Parking Stand Adjustment . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Seed Rate Transmission Adjustment . . . . . . . . . . . . . . . . 2-12
Contact Wheel Drive Sprockets . . . . . . . . . . . . . . . . . . . . 2-12
Contact Wheel Spring Adjustment . . . . . . . . . . . . . . . . . . 2-13
Shear Protection ...............................2-13
Wrap Spring Wrench ............................2-13
Vacuum System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Digital Vacuum Readout. . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Analog Vacuum Gauge ..........................2-14
Vacuum Fan Motor Valve Block Assembly . . . . . . . . . . . . 2-14
Row Marker Operation...........................2-15
Row Marker Speed Adjustment . . . . . . . . . . . . . . . . . . . . 2-16
Row Marker Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . 2-17
Point Row Clutches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
Front Mounted Drive Wheel Option .................2-19
Planting Speed ................................2-19
Field Test .....................................2-19
Check Seed Population ..........................2-20
Determining Pounds Per Acre (Brush-Type Meter) .....2-21
Determining Bushels Per Acre. . . . . . . . . . . . . . . . . . . . . 2-21
Field Check Granular Chemical Application ..........2-22
ROW UNIT OPERATION
Planting Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
“V” Closing Wheel Adjustment (Rubber or Cast Iron) ....3-1
Closing Wheel Shield
(Rubber or Cast Iron “V” Closing Wheels) . . . . . . . . . . . 3-2
Drag Closing Attachment. . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Covering Discs/Single Press Wheel Adjustment ........3-3
Brush-Type Seed Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Brush-Type Seed Meter 2.0 ........................3-5
Finger Pickup Seed Meter . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Vacuum Settings ................................3-7
Seed Meter Cleanout. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Additives .....................................3-12
Bayer Fluency Agent ............................3-13
Seed Hoppers .................................3-14
Seed Meter Drive Release. . . . . . . . . . . . . . . . . . . . . . . . 3-14
Row Unit Extension Brackets. . . . . . . . . . . . . . . . . . . . . . 3-14
Row Unit Chain Routing. . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Quick Adjustable Down Force Springs Option ........3-16
Frame Mounted Coulter (Pull Row Only) . . . . . . . . . . . . . 3-17
Residue Wheels (for Frame Mounted Coulter). . . . . . . . . 3-17
Row Unit Mounted Disc Furrower (Pull Row Only) .....3-18
Row Unit Mounted Bed Leveler (Pull Row Only) .......3-18
Row Unit Mounted Residue Wheel .................3-19
Row Unit Mounted No Till Coulter ..................3-20
Coulter Mounted Residue Wheels . . . . . . . . . . . . . . . . . . 3-20
Dual Gauge Wheels ............................3-21
Spiked Closing Wheel ...........................3-21
Granular Chemical Hopper and Drive ...............3-22
Spring Tooth Incorporator ........................3-22
Granular Chemical Banding Options . . . . . . . . . . . . . . . . 3-23
Granular Chemical Bander Shield . . . . . . . . . . . . . . . . . . 3-23
RATE CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
LUBRICATION AND MAINTENANCE
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Sealed Bearings ................................5-1
Drive Chains ...................................5-2
Bushings ......................................5-4
Wrap Spring Wrench Assembly . . . . . . . . . . . . . . . . . . . . . 5-5
Wheel Bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Grease Fittings .................................5-6
Mounting Bolts and Hardware ......................5-8
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Model 3110 Operating Tire Pressure. . . . . . . . . . . . . . . . 5-10
Chain Tension Adjustment . . . . . . . . . . . . . . . . . . . . . . . . 5-11
Finger Pickup Seed Meter Inspection/Adjustment. . . . . . 5-12
Cleaning Finger Pickup Seed Meter For Storage ......5-13
Brush-Type Seed Meter Maintenance ...............5-14
Cleaning Brush-Type Seed Meter For Storage ........5-15
Vacuum Manifold Maintenance ....................5-15
Vacuum Seed Meter Maintenance. . . . . . . . . . . . . . . . . . 5-16
Seed Meter Cleanout. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16
Drag Closing Attachment ........................5-17
Gauge Wheel Adjustment ........................5-17
Gauge Wheel Arm Bushing/Seal Replacement . . . . . . . . 5-18
Gauge Wheel Arm Pivot Spindle Replacement . . . . . . . . 5-18
15" Seed Opener Disc Blade/Bearing Assembly .......5-19
Seed Tube Guard/Inner Scraper ...................5-21
Frame Mounted Coulter .........................5-21
Residue Wheels
(For Use With Frame Mounted Coulter) ...........5-21

M0255-01Model 3110
1-2 Rev. 6/19
TM
Table of Contents
Row Unit Mounted Disc Furrower ..................5-22
Row Unit Mounted Bed Leveler . . . . . . . . . . . . . . . . . . . . 5-22
Row Unit Mounted No Till Coulter ..................5-22
Coulter Mounted Residue Wheels . . . . . . . . . . . . . . . . . . 5-23
Row Unit Mounted Residue Wheel .................5-23
Granular Chemical Attachment ....................5-23
Spring Tooth Incorporator ........................5-24
Spiked Closing Wheel ...........................5-24
Single Point Row Clutch Maintenance...............5-25
Row Marker Sequencing/Flow Control Valve Inspection . . . . 5-26
Row Marker Bearing Lubrication or Replacement . . . . . . 5-27
Wheel Bearing Repack or Replacement .............5-28
Vacuum Check Valve Inspection ...................5-29
Vacuum Relief Valve Cartridge Inspection ...........5-29
Preparing Planter for Storage .....................5-29
Electrical Wiring Diagram for Light Package ..........5-30
Electrical Wiring Diagrams for Point Row Clutches .....5-31
Hydraulic Hose Life .............................5-32
Hydraulic Diagram - Vacuum Fan Motor System .......5-33
TROUBLESHOOTING
Brush-Type Seed Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Closing Wheel ..................................6-1
Vacuum Seed Meter .............................6-2
Finger Pickup Seed Meter . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Point Row Clutch ................................6-5
Row Marker Operation............................6-6

TM
Model 3110M0255-01
Rev. 1/18 1-3
To the Owner
Kinze Manufacturing, Inc. would like to thank you for your patronage. We appreciate your confidence in Kinze farm
machinery.Your Kinze planter has been carefully designed to provide dependable operation in return for your investment.
This manual has been prepared to aid you in planter operation and maintenance. It should be considered a
permanent part of the machine and remain with the machine when you sell it.
It is the responsibility of the user to read and understand this Operator Manual before operating this equipment. It
is the user’s responsibility to inspect and service the machine routinely as directed in this Operator Manual. We have
attempted to cover all areas of safety, operation, lubrication and maintenance; however, there may be times when special
care must be taken to fit your conditions.
Throughout this manual the symbol and the words DANGER,WARNING, and CAUTION are used to call attention
to safety information that if not followed, will or could result in death or injury. NOTICE and NOTE are used to call your
attention to important information. The definition of each of these terms follows:
NOTE: Special point of information or machine adjustment instructions.
Indicates an imminently hazardous
situation that, if not avoided, will
result in death or serious injury. This
signal word is to be limited to the most
extreme situations, typically for machine
components which, for functional
purposes, cannot be guarded.
DANGER
Indicates a potentially hazardous
situation that, if not avoided, could result
in death or serious injury, and includes
hazards that are exposed when guards
are removed. It may also be used to alert
against unsafe practices.
WARNING
Indicates a potentially hazardous
situation that, if not avoided, may result
in minor or moderate injury. It may also
be used to alert against unsafe practices.
CAUTION
Used to address safety practices not
related to personal injury.
NOTICE

M0255-01Model 3110
1-4 Rev. 1/18
TM
Improperly operating or working on
this equipment could result in death
or serious injury. Read and follow all
instructions in Operator Manual before
operating or working on this equipment.
WARNING
Some photos in this manual may show
safety covers, shields, or lockup devices
removed for visual clarity. NEVER
OPERATOR OR WORK ON machine
without all safety covers, shields, and
lockup device in place as required.
WARNING
NOTE: Some photos in this manual may have been taken of prototype machines. Production
machines may vary in appearance.
NOTE: Some photos and illustrations in this manual show optional attachments installed. Contact
your Kinze Dealer for purchase of optional attachments.

TM
Model 3110M0255-01
Rev. 1/18 1-5
The Kinze Limited Warranty for your new machine is stated on the retail purchaser’s copy of the Warranty And Delivery
Receipt form. Additional copies of the Limited Warranty can be obtained through your Kinze Dealer.
Warranty, within the warranty period, is provided as part of Kinze’s support program for registered Kinze products which
have been operated and maintained as described in this manual. Evidence of equipment abuse or modification beyond
original factory specifications will void the warranty. Normal maintenance, service and repair is not covered by Kinze
warranty.
To register your Kinze product for warranty, a Warranty And Delivery Receipt form must be completed by the Kinze
Dealer and signed by the retail purchaser, with copies to the Dealer, and to the retail purchaser. Registration must be
completed and submitted to Kinze Manufacturing, Inc. within 5 business days of delivery of the Kinze product to the retail
purchaser. Kinze Manufacturing, Inc. reserves the right to refuse warranty on serial numbered products which have not
been properly registered.
If service or replacement of failed parts which are covered by the Limited Warranty are required, it is the user’s responsibility
to deliver the machine along with the retail purchaser’s copy of the Warranty And Delivery Receipt to the Kinze Dealer
for service. Kinze warranty does not include cost of travel time, mileage, hauling or labor. Any prior arrangement made
between the Dealer and the retail purchaser in which the Dealer agrees to absorb all or part of this expense should be
considered a courtesy to the retail purchaser.
Kinze warranty does not include cost of travel time, mileage, hauling or labor.
Warranty

M0255-01Model 3110
1-6 Rev. 1/18
TM
Specifications
SPECIFICATIONS
Planter Size 6 Row 30" 6 Row 36"/40" 8 Row 30" 8 Row 36"/40"
Width - Transport
(Includes Markers)
17'-8" (5.4M) 21'-0" (6.4M) 21'-10" (6.7M) 27'-8" (8.4M)
Width - Planting 17'-8" (5.4M) 21'-0" (6.4M) 21'-10" (6.7M) 27'-8" (8.4M)
Weight (Mechanical) 2483 lb. (1105.86 kg) 2560 lb. (1161.2 kg) 3092 lb. (1402.5 kg) 3494 lb. (1584.85 kg)
Weight (Vacuum) 2763 lb. (1253.28 kg) 2854 lb. (1294.55 kg) 3407 lb. (1545.4 kg) 3830 lb. (1737.26 kg)
Toolbar 7" x 7" x ¼" wall 7" x 7" x ¼" wall 7" x 7" x ¼" wall 7" x 7" x ¼" wall
Seed Capacity 1.75 bu. (62 liters) (Vacuum/Hopper); 1.90 bu. (67 liters) (Mechanical/Hopper)
Tires Two 7.60" x 15" 8 ply - adjustable height
Drive System Two 4.10" x 6" spring-loaded contact drive tires with no. 40 chain
Seed Transmission Two wheel module-mounted, quick-adjust with machined sprockets and no. 40 chain
Drive/Drill Shafts ' hex drive/drill shafts
TRACTOR HYDRAULIC REQUIREMENTS
Configuration Requirements Description
Base machine with mechanical meters 0 SCV 0 gpm
(0 L/min) No hydraulic requirements
Base machine with mechanical meters
and optional row marker package 1 SCV 10 gpm (38 L/min)
#1 SCV: row markers with sequencing/flow
control valve
Base machine with vacuum meters
(external case drain required for
vacuum hydraulic circuit)
1 SCV 15 gpm
(57 L/min) #1 SCV: Vacuum metering
Base machine with vacuum meters
and optional row marker option
(external case drain required for
vacuum hydralulic circuit)
2 SCV 25 gpm
(95 L/min)
#1 SCV: Vacuum metering
#2 SCV: row markers with sequencing/flow
control valve
GENERAL INFORMATION
The Model 3110 Mounted Planter is available with vacuum or mechanical meters, conventional hoppers, and various
other options. Contact your Kinze dealer for additional options which may be available for your specific model year planter.
Information in this manual was current at time of printing.However, due to Kinze’s ongoing product improvement, production
changes may cause your machine to appear slightly different in detail. Kinze Manufacturing, Inc. reserves the right to
change specifications or design without notice and without incurring obligation to install the same on machines previously
manufactured. To obtain the most recent version of your publication, please contact your Kinze dealer.
Right hand (R.H.) and left hand (L.H.), as used throughout this manual, are determined by facing in the direction the
machine will travel when in use, unless otherwise stated.
TOOLS REQUIRED
Hardware Size / Tool Required
/" = /"/" = /"
(nut for /" hardware uses /" tool)
/" = 1/" 1/" = 1/"
/" = /"/" = /"/" = 1/" 1/" = 2/"
/" = /"/" = /" 1" = 1/"

TM
Model 3110M0255-01
Rev. 1/18 1-7
1. Read and understand instructions provided in this
manual and warning labels. Review these instructions
frequently!
2. This machine is designed and built with your safety
in mind. Do not make any alterations or changes to this
machine. Any alteration to design or construction may
create safety hazards.
3. A large portion of farm accidents happen from fatigue
or carelessness. Safe and careful operation of tractor and
planter will help prevent accidents.
4. Never allow planter to be operated by anyone
unfamiliar with operation of all functions of the unit.
Operators must read and thoroughly understand all
instructions given in this manual before operating or
working on equipment.
5. Be aware of bystanders, particularly children! Always
look around to make sure it is safe to start tow vehicle
engine or move planter. This is particularly important with
higher noise levels and quiet cabs, as you may not hear
people shouting.
6. Make sure planter weight does not exceed towing
capacity of tractor, or bridge and road limits. This is critical
to maintain safe control and prevent death or injury, or
property and equipment damage.
7. Never ride or allow others to ride on planter.
8. Store planter in an area away from human activity. DO
NOT permit children to play on or around the stored unit.
9. Keep hands, feet, and clothing away from moving parts.
Do not wear loose-fitting clothing which may catch in
moving parts.
10. Always wear protective clothing, shoes, gloves,
hearing, and eye protection applicable for the situation.
11. Do not allow anyone to stand between tongue or hitch
and towing vehicle when backing up to planter.
13. Prevent electrocution, other injuries, or property
and equipment damage. Watch for obstructions such as
wires, tree limbs, etc. when operating machine. Be aware
of clearances during turns and when folding/unfolding
planter.
14. Reinstall all guards removed for maintenance
activities. Never leave guards off during operation.
15. Use of aftermarket hydraulic, electric, or PTO drives
may create serious safety hazards to you and people
nearby. If you install such drives, follow all appropriate
safety standards and practices to protect you and others
near this planter from injury.
16. Follow all federal, state/provincial, and local
regulations when towing farm equipment on a public
highway. Use safety chain (not an elastic or nylon/plastic
tow strap) to retain connection between towing and
towed machines in the event of primary attaching system
separation.
17. Make sure all safety/warning lights, SMV sign, and
reflective decals are in place and working properly before
transporting the machine on public roads.
18. Limit towing speed to 15 MPH. Tow only with farm
tractor of a minimum 90 HP. Allow for unit length when
making turns.
19. Reduce speed prior to turns to avoid the risk of
overturning. Always drive at a safe speed relative to local
conditions and ensure your speed is slow enough for a
safe emergency stop.
20. Chemical application is often an integral part of
planting. Follow label instructions for proper chemical
mixing, handling and container disposal methods.
21. Be familiar with safety procedures for immediate first
aid should you accidentally contact chemical substances.
22. Use the proper protective clothing and safety
equipment when handling chemicals.
23. Chemicals are supplied with Material Safety Data
Sheets (MSDS) that provide full information about the
chemical, its effects on exposure, and first aid needs
in the event of an emergency. Keep your MSDS file
up-to-date and available for first responders in case of
emergency.
24. When servicing ground engaging components such
as opening disks and firming points, use special care to
avoid points and edges worn sharp during use.
25. Use professional help if you are unfamiliar with
working on hydraulic systems. Pressurized hydraulic fluid
can penetrate body tissue and result in death, serious
infection, or other injuries.
26. Disposing of waste improperly can threaten the
enviroment. To dispose of your equipment properly
contact your local environmental or recyling center.
Never pour waste onto the ground, down a drain, or into
any water source.
When disposing of waste such as oil, use leakproof
containers. Be sure to use containers that do not
resemble food or beverage which may mislead someone
into consuming them. Dispose of oil per your local,
regional requirements.
When disposing of any fertilizer chemicals used, contact
the supplier of the chemicals.
Model 3110 planter consists of 85% recyclable metals,
10% recyclable plastic and rubber, and 5% waste.
General Safety Rules

M0255-01Model 3110
1-8 Rev. 1/18
TM
Safety Instructions, Signs, and Decals
Following are some common hazard warnings associated with this equipment. Pay close attention to all safety,
operating, and maintenance information in this manual and decals applied to your equipment.
Contacting or coming close to power
lines or other high energy sources will
cause death or serious injury.
Keep away from power lines or high
energy sources at all times.
DANGER
Improperly operating or working on
this equipment could result in death
or serious injury. Read and follow all
instructions in Operator Manual before
operating or working on this equipment.
WARNING
Falling equipment can cause death or
serious injury. Install all lockup devices
or lower planter to ground before
working on equipment.
WARNING
Explosive separation of rim and tire
parts can cause death or serious injury.
Overinflation, rim and tire servicing,
improper use of rims and tires, or worn
or improperly maintained tires could
result in a tire explosion.
WARNING

TM
Model 3110M0255-01
Rev. 1/18 1-9
Safety signs and decals are placed on the machine to warn of hazards and provide important operating and maintenance
instructions. Information on these signs are for your personal safety and the safety of those around you. FOLLOW ALL
SAFETY INSTRUCTIONS!
• Keep signs clean so they can be easily seen. Wash with soap and water or cleaning solution as required.
• Replace safety signs if damaged, painted over, or missing.
• Check reflective decals and SMV sign periodically. Replace if they show any loss of of reflective properties.
• When replacing decals, clean machine surface thoroughly with soap and water or cleaning solution to
remove all dirt and grease.
NOTE: Safety sign and decal locations are shown in the Parts Manual for this machine.
NOTE: Style and locations of SMV sign, reflective decals, and safety/warning lights conform to
ANSI/ASABE S279.14 JUL 2008 and ANSI/ASABE S276.6 JAN 2005.
SAFETY SIGNS AND DECALS
All safety/warning lights, reflective
decals, and SMV sign must be in place
and visible before transporting machine
on public roads or death, serious injury,
and damage to property and equipment
may result. Check federal, state/
provincial, and local regulations before
transporting equipment on public roads.
WARNING

This page left blank intentionally.

TM
Model 3110M0255-01
Rev. 1/18 2-1
Machine Operation

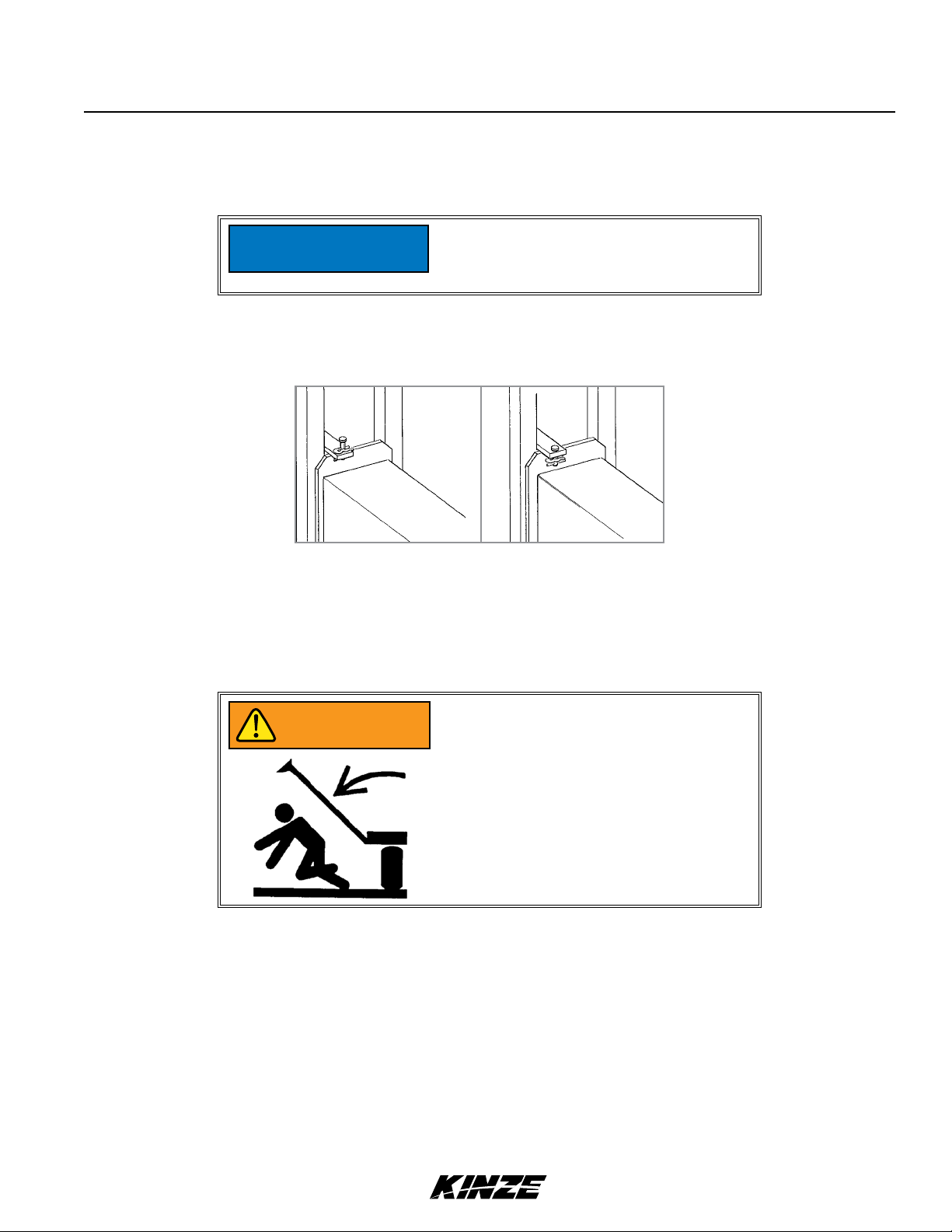

ROW MARKER LOCKUPS (CONVENTIONAL ROW MARKERS ONLY)
When lockups are not in use, store lockup pin in raised position with hair pin clip on upper side of tab. Install marker
lockups when transporting the planter or working around the planter.
The following information is general in nature and was written to aid the operator in preparation of the tractor and
planter for use, and to provide general operating procedures. The operator’s experience, familiarity with the machine
and the following information should combine for efficient planter operation and good working habits.
Pin Stored In Raised
Position For Marker
Operation
Row Marker Locked
Up For Transport Or
Working Around The
Machine
Always raise planter out of ground when
making sharp turns or backing up or
tractor and equipment may be damaged.
NOTICE
Row marker can lower at any time and
could cause death or serious injury. Stay
away from row markers! Install safety
lockup device when not in use.
WARNING

M0255-01Model 3110
2-2 Rev. 1/18
TM
Machine Operation
INITIAL PREPARATION
Following information is general in nature to aid in preparation of tractor and planter for use, and to provide general
operating procedures. Operator experience, familiarity with the machine, and the following information should combine
for efficient planter operation and good working habits.
Lubricate the planter and row units per the lubrication information in this manual. Make sure all tires have been properly
inflated. See “Tire Pressure”. Check all drive chains for proper tension, alignment and lubrication.
Improperly operating or working on
this equipment could result in death
or serious injury. Read and follow all
instructions in Operator Manual before
operating or working on this equipment.
WARNING
Explosive separation of rim and tire
parts can cause death or serious injury.
Overinflation, rim and tire servicing,
improper use of rims and tires, or worn
or improperly maintained tires could
result in a tire explosion.
WARNING
Loose transport wheel lug bolts can
result in wheel separation from planter
and cause death, serious injury, and
damage to property and equipment.
Torque transport wheel "- 18 lug bolts
to 90 ft-lb (122 N-m) before operating
planter for the first time and periodically
after.
WARNING

TM
Model 3110M0255-01
Rev. 1/18 2-3
Machine Operation
TRACTOR REQUIREMENTS
Approximate required minimum tractor horsepower (HP) required for field work is listed below:
NOTE: The tractor must have adequate 3 point hitch lift capacity to lift the weight of the machine, attachments,
seed and dry chemicals. Shipping weights do not include seed, dry chemicals or additional optional attachments.
Tractor front end stability is necessary for safe efficient operation. Therefore, it may be necessary to add front ballast to
your tractor for satisfactory field operation, as well as adequate transport stability. Refer to your tractor operator’s manual
for front ballast recommendations.
A quick-attaching coupler (quick hitch) is recommended for safe and easy attaching and detaching.
A 12 volt DC electrical system is required for operate planter safety/warning lights, digital vacuum gauge.
One SCV remote hydraulic outlet is required to operate optional row markers and one SCV plus a zero pressure case
drain is required to operate the seed metering system vacuum fan.
Maximum hydraulic flow rate of 13 GPM (49 L/min) @ 2000 PSI (13789.5 kPa) is required to operate the vacuum fan motor.
IMPORTANT: Connect hydraulic motor case drain to a case drain return line with zero PSI (kPa) on the tractor.
Failure to connect to a return with zero PSI (kPa) will cause damage to the hydraulic motor shaft seal. Warranty
will not apply on damaged motors resulting from improper hydraulic line connection. DO NOT connect hydraulic
motor case drain to a SCV outlet or motor return circuit connection. Contact tractor manufacturer for specific
details on “zero pressure return”.
Row Sizes Horsepower
6 Row 55 - 85 HP
8 Row 75 - 110 HP

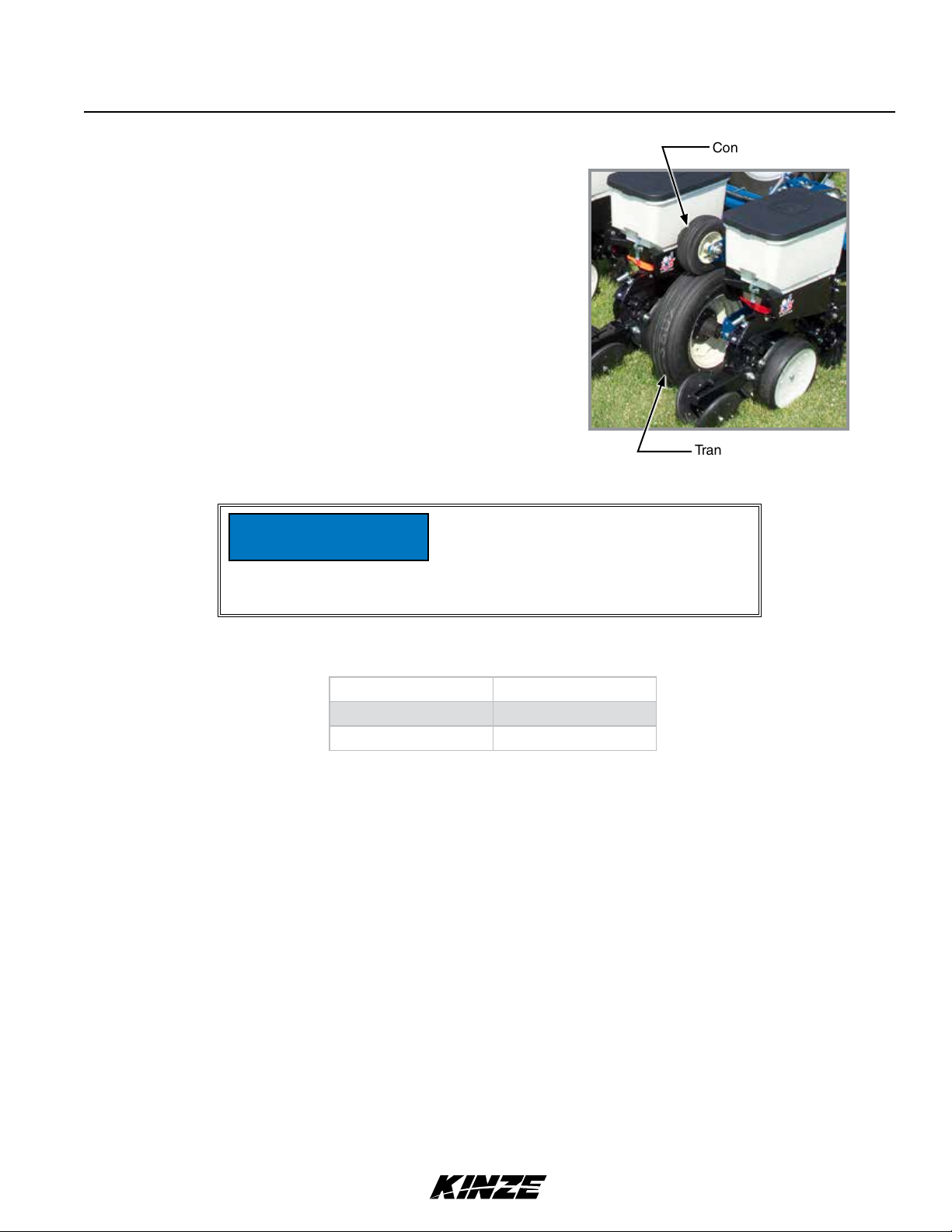

1. Torque transport wheel "- 18 lug bolts to 90 ft-lb (122 N-m).
2. Inflate transport/ground drive tires to 40 psi (275.7 kPa).
3. Inflate contact drive tires to 50 psi (344.7 kPa).
Contact drive
Transport/ground drive
All Hydraulic Requirements: Minimum
Pressure 2350 PSI (16202.6 kPa); Maximum
Pressure 3000 PSI (20684.2 kPa). Check
tractor hydraulics to ensure that maximum
pressure cannot be exceeded.
NOTICE

M0255-01Model 3110
2-4 Rev. 1/18
TM
Machine Operation

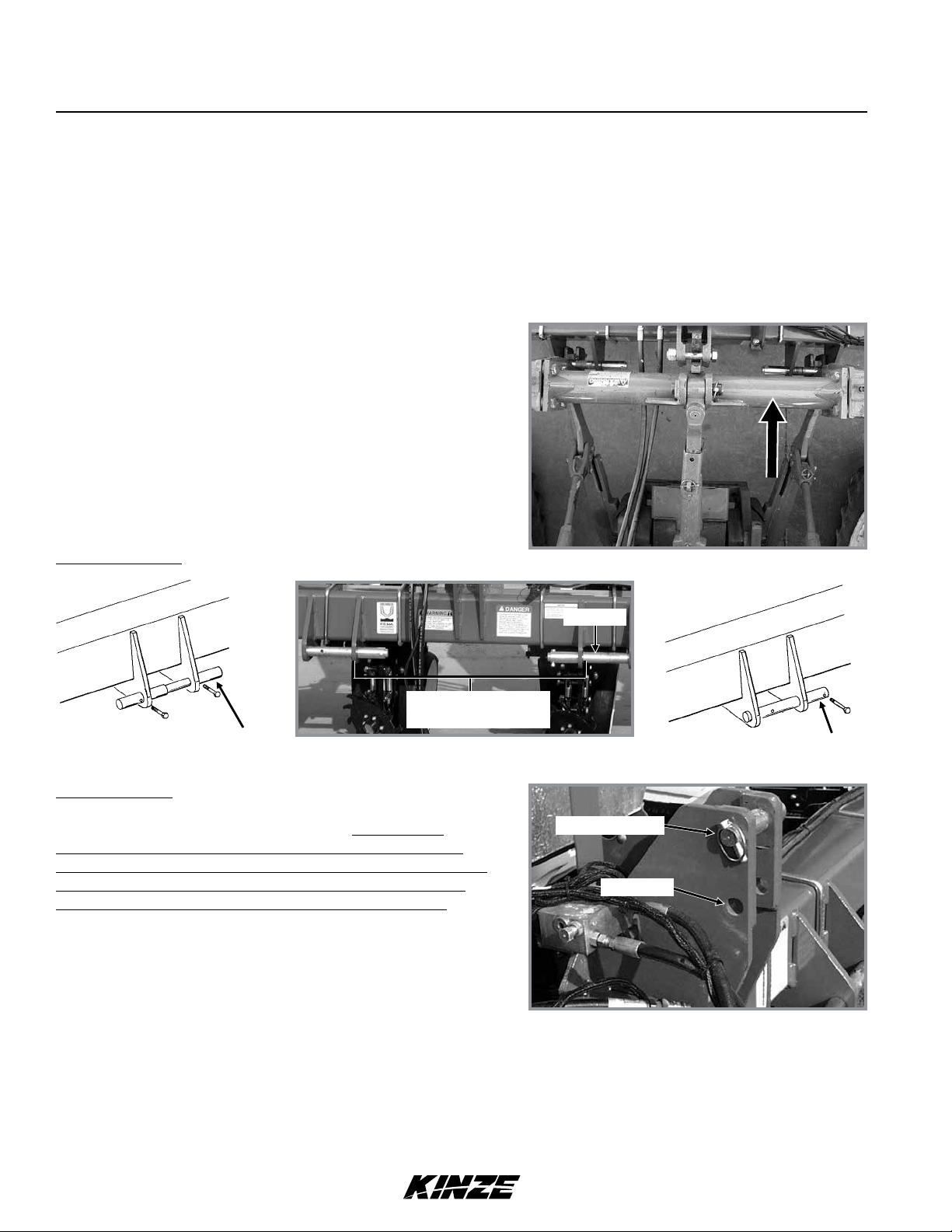

Lower Hitch Pins
Category 3N & 3
Category 2
TRACTOR PREPARATION AND HOOKUP
1. Set tractor rear wheel spacing at double the planter row spacing. For example: On a planter set for 36" rows, set
the tractor wheel spacing at 72" (183 cm) center-to-center. On wide front end tractors set front wheel spacing equal
to rear wheel spacing. Check tractor operator’s manual for correct front and rear tire pressure.
2. Adjust lift links on tractor so planter will lift level from side to side and raise high enough for planter transport
clearance. Set the sway blocks on the tractor in position to prevent side sway. Be sure the individual lift link arms
are in the float position.
3. Back tractor up to planter. Position lower hitch pins and
bushings as shown in the following diagrams for your type
of tractor hitch. Line up holes and insert hitch pins and lock
in place with pins provided. It may be necessary to change
the length of the tractor upper link with the adjusting
handle.
NOTE: When using a quick-attaching coupler (customer supplied),
match pin location to pin spacing in quick-attaching coupler.
Bushing
32" - Category 2 & 3N
38" - Category 3
Category 2 Requires Pin Only
Category 3 And 3N Requires Pin And Bushing
Category 2 Bushing Position Category 3 And 3N
Bushing Position
Upper Hitch Pin
The upper hitch point has two sets of holes. The hitch pin
must be positioned in lower set of holes for use with tractors
equipped with Category 2 quick-attaching coupler. The hitch pin
must be positioned in upper set of holes for use with tractors
equipped with Category 3N and 3 quick-attaching coupler.
NOTE: Always use top hole when not using quick-
attaching coupler.
4.
Connect ASAE Standards 7 terminal connector for safety/warning lights on planter to ASAE Standards receptacle on
tractor. If your tractor is not equipped with an ASAE Standards receptacle, check with your tractor manufacturer for
availability. Check to be sure safety/warning lights on planter are working in conjunction with safety/warning lights on
tractor.
Connect harness on planter to digital vacuum gauge console on tractor. Connect power lead to power source. A
power lead adapter may be required.

TM
Model 3110M0255-01
Rev. 1/18 2-5
Machine Operation
5. Connect hydraulic hoses to tractor ports in a sequence familiar and comfortable to the operator. Before attaching
hoses, move tractor control levers back and forth to relieve any pressure in the tractor hydraulic system.
Pressurized hydraulic fluid can penetrate
body tissue and result in death, serious
infection, or other injuries. Fluid injected
under skin must be IMMEDIATELY
removed by a surgeon familiar with this
type of injury. Make sure connections
are tight and hoses and fittings are
not damaged before applying system
pressure. Leaks can be invisible. Keep
away from suspected leaks. Relieve
pressure before searching for leaks or
performing any system maintenance.
WARNING
Wipe hose ends to remove any dirt
before connecting couplers to tractor
ports or contamination may cause
equipment failure.
NOTICE

M0255-01Model 3110
2-6 Rev. 1/18
TM
Machine Operation
NOTE: A Flow Control Needle Valve Kit, to provide a flow control option for tractors that are not
equipped with a method for fine adjustment of hydraulic flow, is available from Kinze Repair Parts
through your Kinze Dealer.
6. Raise planter slowly and watch for any interference. Remove pin from each parking stand and raise each to the
transport position. Secure stands in raised position with pin in lowest hole.
7. For proper operation of the planter and row units, it is important that the planter frame and row unit parallel arms be
level side-to-side and front-to-rear. The toolbar should operate at a 20"-22" (51-56 cm) height from planting surface.
Tire pressure must be maintained at pressures specified and toolbar height must be adjusted equally. Check to be
sure planter toolbar is level and at correct operating height. See “Leveling The Planter”.
NOTE: As a general safety practice and to avoid damage to the tractor hydraulic system, always lower the
planter when not in use.
Vacuum fan motor hydraulic hoses and
case drain must be installed correctly.
Motor can be damaged or equipment will
not operate properly.
NOTICE
Return
Case Drain
Pressure
G1K426 Needle Valve Kit
The vacuum fan motor operation hydraulic hoses are as follows:
" hose from motor - Case Drain (CD - Orange or CD - Green)
¾" hose from motor - Return
½" hose to motor - Pressure
