Kirkland Signature PTH106A-SS Manual

GAS-FIRED INFRARED
OUTDOOR PATIO HEATER
INSTALLATION, OPERATION
MAINTENANCE INSTRUCTIONS
FOR MODEL PTH106A-SS
TABLE OF CONTENTS PAGE
IMPORTANT …………………………………………………………………… 1
TOOLS & PARTS ……………………………………………………………….. 2
PRECAUTIONS………………………………………………………………….. 3
ASSEMBLY INSTRUCTIONS …………………………………………………. 4
GAS REQUIREMENTS & LEAK TESTING ………………………………….. 7
SAFETY CHECKS ………………………………………………………………. 8
LOCATING HEATER FOR USE ………………………………………………. 9
LIGHTING / SHUTDOWN ………………………………………………………. 10
STORAGE / BURNER REMOVAL………………………………..……………. 12
BURNER INSTALLATION / PILOT CLEANING ……………………………… 13
BURNER REMOVAL ……………………………………………………………. 14
TROUBLE SHOOTING .………………………………………………………… 15
PARTS LIST ……………………………………………………………………… 16
WARRANTY ……………………………………………………………………… 17
READ THE FOLLOWING INSTRUCTIONS CAREFULLY AND BE SURE YOUR PATIO HEATER IS
PROPERLY INSTALLED, ASSEMBLIED AND CARED FOR. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN SERIOUS BODILY INJURY AND/OR PROPERTY DAMAGE. IF
YOU HAVE QUESTIONS CONCERNING ASSEMBLY OR OPERATION, CONSULT YOUR
DEALER, GAS APPLIANCE SERVICE REPRESENTATIVE OR YOUR GAS COMPANY.
NOTE TO INSTALLER:
LEAVE THESE INSTRUCTIONS WITH THE CONSUMER AFTER INSTALLATION.
NOTE TO THE CONSUMER:
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
STOP PLEASE CONTACT 1-800-913-8999 FOR ASSISTANCE
DO NOT RETURN TO PLACE OF PURCHASE

IMPORTANT NOTICE:
DO NOT return to place of purchase!!!
Please contact Customer Service hotline at 800-913-8999 for help.
IMPORTANT
* * * WARNING * * *
For outdoor use only (outside any enclosure)
Improper operation, installation, adjustment, alteration,
servicing or maintenance can cause severe property
damage or serious injury or death. Please read the
installation, operation & maintenance instructions
thoroughly before installing or servicing this equipment.
* * * FOR YOUR SAFETY * * *
If you smell gas:
zShut off gas to appliance.
zExtinguish any open flame.
zIf odor continues, immediately call your gas
supplier.
For your safety:
Do not store or use gasoline or other flammable vapor
and liquids in the vicinity of this or any other appliance.
Page 1

TOOLS AND PARTS NEEDED FOR ASSEMBLY
NOTE: 20 pound (7.87kgs), 5 Gallon ( 18.9 litres ) LPG Tank is not supplied
Tools Needed:
Phillips Head Screwdriver
Adjustable Opening Wrench
Spray Bottle of Soapy Water (To check for leaks)
Parts Supplied:
Reflector (3)
Dome Cap (1)
Reflector Plate (1)
Square Table (1)
Table Leg (4)
Heater Head With PVC Hose Assembly (1)
Post Assembly (1)
Gas Tank Enclosure Assembly (1)
LPG Gas regulator with Hose (1)
Hardware Bag
Page2
Post Socket 1/4” Acorn-cap (4)
Post Socket 1/4”Flat Washer (4)
Reflector 5/32”Truss Head Screw (3)
Reflector Plate 1/4”Truss Head Screw (3)
Heater Head 3/16”Truss Head Screw (4)
Reflector Nut (1)
1/4” X 2-1/4” Long Thread Ends Stud (1)
Tank Hook (1)
Table Leg 5/32”Truss Head Screw (4)
Table Flat 5/32”Truss Head Screw (8)
For Service Questions Replacement parts or other assistance, Please call Nexgrill Customer Service Hotline at:
Nexgrill Industries, Inc
145 Brea Canyon Road
Walnut, CA 91789
[phone]

IMPORTANT NOTICE:
DO NOT return to place of purchase!!!
Please contact Customer Service hotline at 800-913-8999 for help.
PRECAUTIONS
NOTE: PLEASE READ THE FOLLOWING SAFETY
zDo not use this space heater in an
explosive atmosphere. Keep heater away
from areas where gasoline or other
flammable liquids or vapors are stored.
zPrior to use, check for damaged parts
such as hoses regulators, pilot or burner.
zDo not attempt to alter unit in any manner.
EXAMPLE: using the heater without the
top canopy reflector or radiant screen. Do
not shorten the burner post assembly.
zHeater must always be placed on a solid
and level surface.
zAlways maintain proper clearance to
combustible materials. Top 36"(91cm)
Side 36"(91cm).
zAlways assure there is ample fresh air
ventilation for outdoors use ONLY.
zNever replace or substitute the regulator
with any regulator other than the factory
suggested replacement.
zDo not clean heater with cleaners that are
combustible or corrosive.
zDo not paint radiant screen, control panel
or top canopy reflector.
zAll leak tests should be done with a soapy
solution. NEVER USE AN OPEN
FLAME TO CHECK FOR LEAKS.
zThe LP tank should be turned off when
the heater is not in use.
zAt least once a year, the unit should be
inspected for the presence of spiders,
spider webs or other insects. The burner
area is a common spider haven and can
damage the heater and render it unsafe
for use, Check the heater immediately if
any of the following exists:
1. The smell of gas in conjunction with
extreme yellow tipping of the burner
flames.
2. The heater does not reach temperature.
3. The burner makes a popping noise during
use (a slight popping noise is normal when
the burner is extinguished).
zThe LP regulator/hose assembly should
be located out of pathways where people
may trip over it or in area where the hose
will not be subject to accidental damage.
zChildren and adults should be aware of
hazards of high surface temperature and
should stay away to avoid burns of
clothing ignition.
zYoung children should be carefully
supervised when they are in the area of
the heater.
zClothing or other flammable material
should not be hung from the heater, or
placed on or near the heater.
zAny guard or other protective device
removed for servicing the heater must be
replaced prior to operating the heater.
zInstallation and repair should be done by
a qualified service person. The heater
must be inspected before use and at least
annually by a qualified service person.
More frequent cleaning may be required
as necessary. It is imperative that the
control compartment, burner and
circulating air passageways of the heater
be kept clean.
zKeep the appliance area clear and away
from combustible material, gasoline and
other flammable vapors and liquids.
zDo not obstruct the flow of combustion
and ventilation air.
zKeep the ventilation opening of the
cylinder enclosure free and clear of
debris.
Page 3

IMPORTANT NOTICE:
DO NOT return to place of purchase!!!
Please contact Customer Service hotline at 800-913-8999 for help.
ASSEMBLY INSTRUCTIONS
Page4
STEP 1. Attach Table Legs
zAttach the post socket to the top of the tank
enclosure using four 1/4”(M6) flat washers and
four 1/4” (M6) acorn-caps.
zSecure the four table legs with four of 5/32”
(M4) truss head screws.
STEP 2. Secure The Table
zPut the square table onto the legs and secure
with eight of 5/32”(M4) truss head screws.

IMPORTANT NOTICE:
DO NOT return to place of purchase!!!
Please contact Customer Service hotline at 800-913-8999 for help.
ASSEMBLY INSTRUCTIONS
Page5
STEP 2. Attach Reflector
zCombine the three pieces of the reflector together
zTighten up with three 5/32”(M4) screws.
zPut the reflector plate on reflector then tighten up
with three 1/4”(M6) truss head screws from the
bottom up.
STEP 2
STEP 3: Attach The Reflector nut & Post
.
zScrew the 1/4”x 2-3/4”(M6x60mm) dual threade
d
end-stud into the emitter top.
zAttach the reflector, dome cap and nut onto the
emitter top. It screws onto one end of the dual
threaded end stud screwed into the emitter top.
zInsert the gas hose from the heater down through
the pedestal post.
zAttach the pedestal post onto the heater head with
four 3/16”(M5) truss head screws.
STEP 3

IMPORTANT NOTICE:
D
O NOT return to place of purchase!!!
P
lease contact Customer Service hotline at 800-913-8999 for help.
ASSEMBLY INSTRUCTIONS
STEP 4: Gas Tank
 Open tank enclosure door.
 Secure the gas tank with the tank hook
by
attaching to the bracket of tank enclosure, as
show in diagram.
STEP 5: Attach Regulator
 Attach flare adapter on hose end of the regulato
r
assembly to the flare fitting on the intake hose.
 Secure the other end of regulator onto gas tan
k
until tight.
 The LP-Gas supply cylinder must be
disconnected when this appliance is not in use.
Disconnect the gas tank by turning the regulato
r
counterclockwise.
ONLY CYLINDERS MARKED “PROPANE” MUST BE USED.
Page6

IMPORTANT NOTICE:
DO NOT return to place of purchase!!!
Please contact Customer Service hotline at 800-913-8999 for help.
Page7
GAS REQUIREMENTS & LEAK TESTING
NEVER CONNECTAN UNREGULATED GAS SUPPLY TO THE HEATER
PRECAUTIONS
zPeriodically check the whole gas system for
leaks or immediately check if the smell of
gas is detected
zExtinguish all open flames.
zNever leak test while smoking.
zIf you cannot stop a leak, turn off the gas
supply and call the Customer Service hotline,
the dealer where you made the purchase or
your gas supplier.
zThe heater must be checked with a full
cylinder.
zDo not use the heater until all connections
have been leak tested and do not leak.
zOnly those parts recommended by the
manufacturer should be used. Substitution
will void the warranty.
GAS REQUIRMENTS
zMaximum inlet pressure to propane
regulator must not exceed 100 PSI.
zA minimum supply pressure of 11.0 W.C. is
required for the purpose of input adjustment
for propane gas.
zThe pressure regulator and hose assembly
supplied with the appliance must be used.
Replacement pressure regulator and hose
must be specified by the appliance
manufacturer.
zThe installation must conform with local
codes or in the absence of local codes, with
National Fuel Gas Code, ANSI
Z223.1-1996.
zThe heater comes equipped with a hose
assembly for hook-up to a standard
zA dented, rusted or damaged propane tank
may be hazardous and should be checked by your
tank supplier. Never use a propane tank with a
damaged valve connection.
zThe propane tank must be constructed and
marked in accordance with the specifications for
LP gas cylinders of the US Department Of
Transportation (DOT)
zThe propane tank must be arranged to provide
for vapor withdrawal from the operating
cylinder
zNever connect an unregulated propane tank
to the heater
LEAK TESTING
zGas connections on the heater are leak tested at
the factory prior to shipment. A complete gas
tightness check must be performed at the
installation on site due to possible miss handing
in shipment or excessive pressure being applied
to the heater.
TO LEAK TEST
zMake a soap solution of one part liquid detergent
and one part water. The solution can be applied
with a spray bottle brush or rag. Soap bubbles
will appear where a leak is present
zMake certain the safety control valve is in the
‘OFF’position
zTurn the gas supply ‘ON’.
zIf a leak is present turn ‘OFF’ the gas supply,
tighten any leaking fitting, turn gas supply ‘ON’
gas tank. The propane tank is not included. and recheck.
p
ropane

IMPORTANT NOTICE:
DO NOT return to place of purchase!!!
Please contact Customer Service hotline at 800-913-8999 for help.

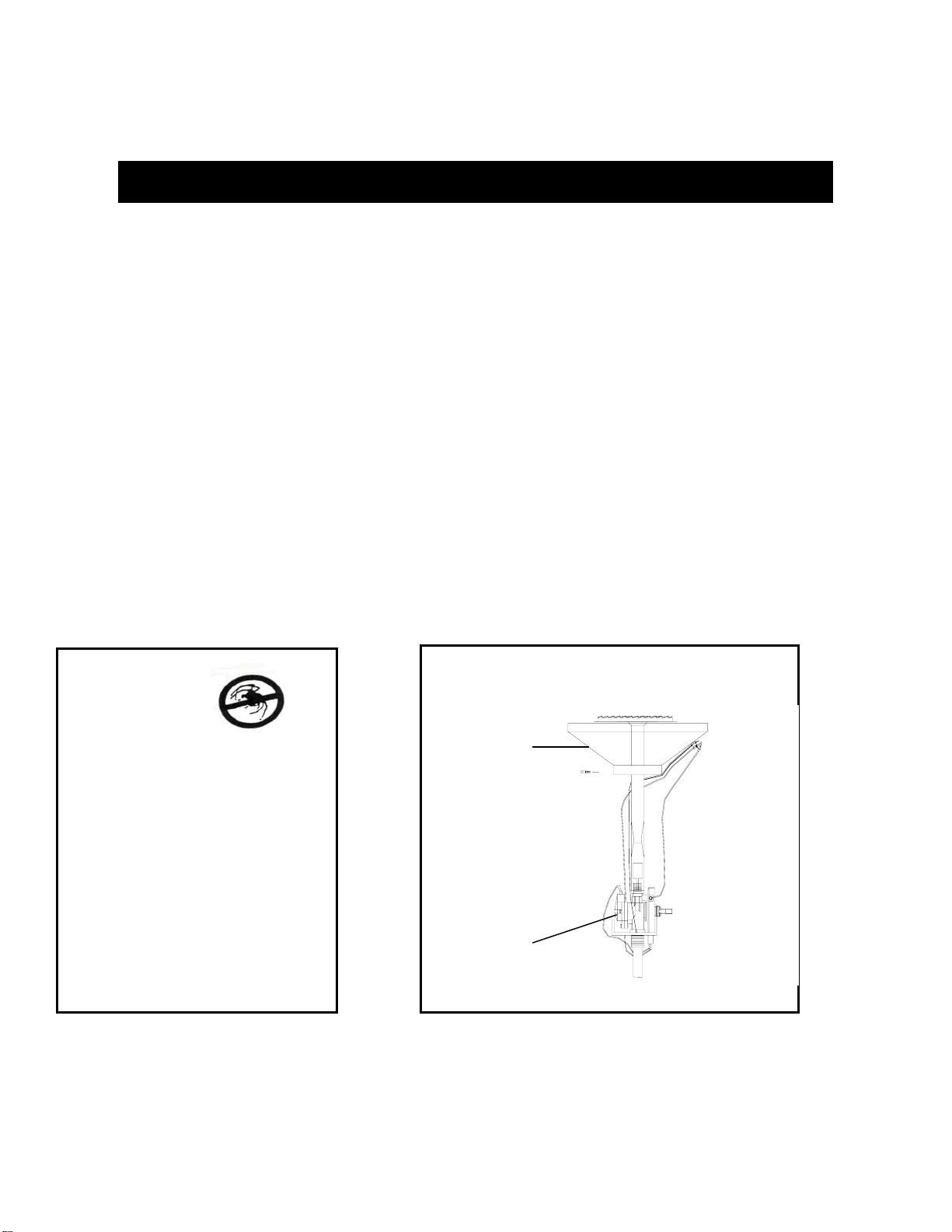

SAFETY CHECKS
STEP 1:
1. Check connection of the regulator to the propane tank
3
1
2
STEP 1.
connection. Remember, the POL adapter is a left-hand
thread. (See diagram for Step 1)
2. Check all connections on the hose regulator assembly
(See diagram for Step 1)
3. Check the intake hose to make certain that
it is not kinked or in a position that could cause it to
kink. Hand tighted and then make a 1/2 turn with the
adjustable wrench. (See diagram for Step 1)
NOTE: The remaining connections are to be tested after
the heater has been lit.
STEP 2:
4. Light the heater following instructions on page 10
and page 11.
6
8
7
9
STEP 2.
5. Using spray bottle with soapy water, spray each of
the areas listed below to visually inspect for leaks.
leaks will be indicated by bubbles.
6. Intake hose fitting at the bottom of safety control
valve. (See diagram for Step 2)
7. Pilot tubing to safety control valve. (See diagram for Step 2)
8. Orifice fitting and the safety control valve. (See diagram for
Step 2)
9. Pilot tubing and pilot. (See diagram for Step 2)
NOTE: After leak testing is completed and all leaks
are sealed, close the door to the tank enclosure and
your patio heater is ready to use.
Page 8

IMPORTANT NOTICE:
DO NOT return to place of purchase !!!
Please contact Customer Service hotline at 800-913-8999 for help
LOCATING HEATER FOR USE
BE CAREFUL: When certain materials or items are left under this heater, while in use, they will be
subjectok to radiant heat and could be seriously damaged.
●The unit is designed for heating outdoor patios, decks, spas, pool and working areas.
●Always ensure that adequate fresh air ventilation is provided. Follow the spacing tolerances in Figure 1.
●The minimum clearances to combustible construction shown in Figure 1 must be maintained at all times
●The installation must conform to local codes or in the absence of local codes with the standard for the
storage and handling of liquid petroleum gases:
In the US use : ANSI/NFPA58 on National Fuel Gas Code ANSI Z223-1998
In Canada use: National Standards of Canada. CAN/CGA B149.1 & 2-M86
●The heater must be placed on level firm ground.
●Never operate in an explosive atmosphere. Keep away from areas where gasoline or other flammable
liquids or vapors are stored or used.
Page9
36” (91cm)
36” ((91cm)
WALL
Figure 1.
CELING / OVERHANG
CAUTION
During strong and windy weather, turn off the
heater and the gas cylinder valve. Remove
the heater reflector hood then move the heater
to a sheltered location. Caution do not move
heater while it is still hot.

IMPORTANT NOTICE:
DO NOT return to place of purchase !!!
Please contact Customer Service hotline at 800-913-8999 for help
LIGHTING/SHUTDOWN
BEFORE TURNING THE GAS SUPPLY ‘ON’:
Visually inspect the hose assembly for evidence of excessive abrasion cuts or wear. If the hose leaks it must
be replaced prior to use. The hose replacement shall be that specified by the manufacturer. See parts list or
details, then call Customer Service hotline.
Is the surrounding area free of combustible materials, gasoline and other flammable vapors or liquids?
BEFORE LIGHTING:
For your safety, if re-lighting a hot heater.
Always wait at least five (5) minutes.
TO LIGHT:
(A)Open tank enclosure door.
(B) Make certain hose is connected to the heater intake hose and regulator is connected to the propane tank.
Check both connections to ensure they are tight and leak proof.
(C) Turn supply tank valve in a counter clockwise direction. Check for leaks by applying soapy water to the
tank and hose connections.
(D)Push and turn the gas control knob to ‘PILOT’ position. The igniter will spark at the same time. Firmly
press-down the knob for 15 seconds until the pilot remain lit. It might need 2 or 3 trials to light the pilot
burner. If the pilot fails to remain lit or becomes extinguished. Repeat steps B-D.
(E) Once the pilot is lit continue to hold in the control knob for 15seconds or the until pilot remains lit after
knob is released.
(F) The burner may now be turned to the full on position and then reduced to the desired heat range.
Caution: Avoid inhaling fumes emitted from the heater’s first use. Smoke and odor from the burning
of oils used in manufacturing will appear. Both smoke and odor will dissipate after approximately
30 minutes. The heater should NOT produce thick black smoke.
NOTE: The burner may be noisy when initially turned on. To eliminate excessive noise from the burner,
turn the Control Knob to the pilot position. Then turn the knob to the level of heat desired.
Page 10

IMPORTANT NOTICE:
DO NOT return to place of purchase !!!
Please contact Customer Service hotline at 800-913-8999 for help
LIGHTING/SHUTDOWN
WHEN HEATER IS ON:
●The emitter screen will become bright due to intense heat. The color is more visible at night.
●The burner will display tongues of blue flame. These flames should not be all yellow or produce thick
black smoke, indicating an obstruction of airflow through the burners. The flame should be blue with
straight yellow tops.
●The flame pattern at the emmitter grid should be visually checked whenever heater is operated (see
figure 2). If flames extend more than 1/2 inch (12.7mm) beyond surface of the emitter grid or
reflector the heater should be turned off immediately and the heater should not be operated again until
repairs are made
FIGURE 2
NORMAL FLAME POSITION
2” (50.8mm)
1” (25.4mm)
0” (0mm)
RELIGHTING
(A) Turn the control knob to off position.
(B) Wait five (5) minutes for gas to dissipate before attempting to relight the pilot.
(C) Repeat steps beginning with step (D) on the previous page (Pg. 10).
SHUT DOWN INSTRUCTIONS:
(A) Turn control knob clockwise to ‘OFF’ position. The burner may make a slight popping sound
when extinguished. This is normal.
(B) Turn propane tank gas valve clockwise to ‘OFF’position when heater is not in use
Caution: This patio Heater contains a Tilt Safety Switch which is designed to provide safe use of the
patio heater. The tilt safety switch will automatically shut-off the heater when it tilts in the tip angle
over 45-60 degrees from vertical position.
Page11

IMPORTANT NOTICE:
DO NOT return to place of purchase !!!
Please contact Customer Service hotline at 800-913-8999 for help
STORAGE/BURNER REMOVAL
WHEN STORING THE HEATER THE CONNECTION BETWEEN THE PROPANE TANK AND THE
HEATER MUST BE DISCONNECTED AND THE PROPANE TANK REMOVED FROM THE
ENCLOSURE AND STORED INDOORS IN A WELL VENTILATED AREA OR IN ACCORDANCE
WITH CHAPTER 5 OF THE STANDARD FOR THE STORAGE AND HANDLING OF LIQUEFIED
GASES, ANSI/NFPA 58-1998.
CLEANING:
Your heater will last longer if maintained properly. It is important that the flow of combustion air must
never be obstructed. Orifice and air openings must be kept free of dirt and spider webs. Never use a
cleaning agent which is flammable or corrosive.
It is recommended that the heater body components; from the burner head down, are periodically protected
with a coat of automobile wax .
If repainting is necessary, paint only the post/base assembly. Never paint the reflector, emitter assembly
the safety control valve cylinder, valve panel or instruction plate on post.
The posts of the burner must remain clean so that the gas flow is unrestricted. The air inlet of the venturi
tube must also be kept clean for combustion air supply if the heater is not performing properly it may be
necessary to clean the burner (see burner removal).
BURNER REMOVAL:
1. Remove reflector and emitter assembly by removal of the screws that fasten the
emitter assembly to the lower screen cone .
2. Remove the burner by unscrewing the burner from the top of the valve body.
Any debris in the opening of the burner assembly can be cleared with a straightened piece of coat hanger.
Any rust can be removed carefully with a wire brush. Never use a piece of wood or other materials that
might break off and block the ports.
Caution: Bugs and small insects easily get into the burner, gas orifice and pilot. Check the unit before
using after extended storage.
Tips: Lighting the Patio Heater once a month will ensure your heater remains in good working condition.
Page12

IMPORTANT NOTICE:
DO NOT return to place of purchase !!!
Please contact Customer Service hotline at 800-913-8999 for help
BURNER INSTALLATION/PILOT CLEANING
BURNER INSTALLATION:
Install the burner assembly by reversing the four (4) steps used for disassembly making certain the
burner assembly stands centered when complete.
After reassembly, the heater should be test fired. Observe the burner flame. The flame should be
blue with a slight yellow tipping.
PILOT CLEANING:
The pilot burner provides a flame to light the main burner. It also heats a thermocouple which must
be hot before allowing the main burner to come on.
If the pilot is blocked by debris, spider webs, etc., the pilot flame may be small and the thermocouple may not
heat up enough for the main burner to come on. If this occurs it will be necessary to clean the pilot.
Lower Cone
Cylinder
Safety Valve
Cylinder
BEWARE
OF
SPIDERS
CAUTION : BURNER TUBES MUST BE
INSPECTED AND CLEANED BEFORE FIRST
USE
Spiders and small insects occasionally spin webs
or make nests in the burner tubes and orifices during
warehousing and transit these webs or nests can lead
to a gas flow obstruction which could result in
afire on and around the burner tubes. This type of
fire is known as FLASH BACK and can cause
serious damage to your patio heater and create an
unsafe operating condition for the user Although an
obstructed burner tube is not the only cause of
FLASH BACK it is the most common cause and
frequent inspections and cleaning of the burner
tubes is necessary .
Page 13

IMPORTANT NOTICE:
DO NOT return to place of purchase !!!
Please contact Customer Service hotline at 800-913-8999 for help
BURNER REMOVAL

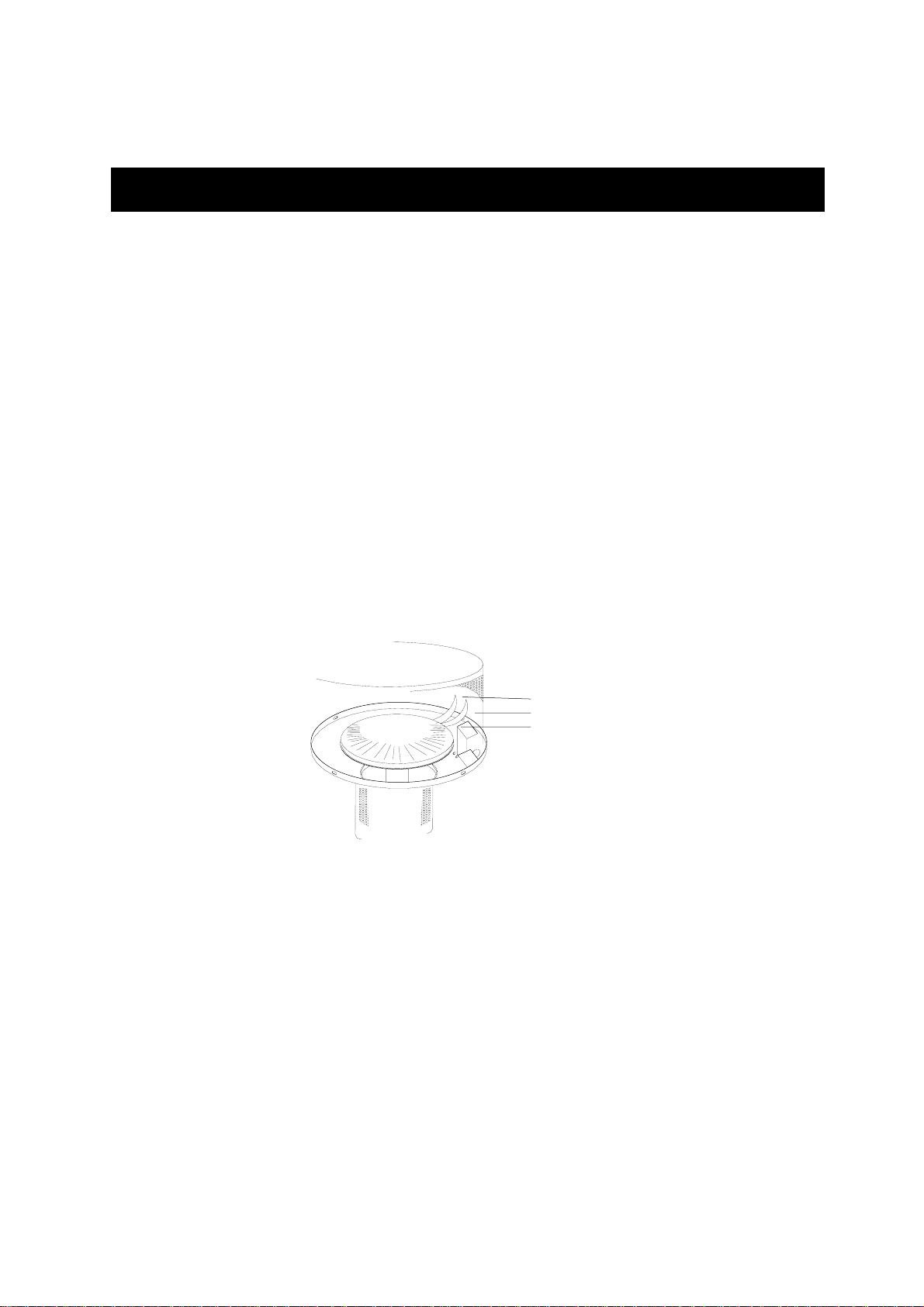

START DISASSEMBLY FOR CLEANING BY:
Pilot
Thermocouple
Igniter
STEP 1
1. Remove the valve panel to gain access to the pilot.
2. Remove screw that fastens the pilot assembly to
the lower screen cone.
3. Hold the pilot assembly with slip joint pliers,
loosen and remove the nut at the base of the pilot.
4. Inspect the pilot and tubing for blockage, you
should be able to see through the pilot. If it is
obstructed by debris clear with a piece of wire.
5. The cap-like pilot orifice can be cleared with a
Pilot Tubing
Pilot Orifice
STEP 2
pin. Use the pin gently on the inside of the orifice
to clear debris. Never enlarge the opening of the
pilot orifice.
Page 14

IMPORTANT NOTICE:
DO NOT return to place of purchase!!!
Please contact Customer Service hotline at 800-913-8999 for help.
TROUBLE SHOOTING
Problem PossibleCauses Correction
Pilot won’t Air in gas line
Lowe gas pressure
Gas line turned ‘OFF’
Blockage in gas line
Pilot orifice is clogged
Control knob not in pilot position
Control knob not pressed in while in
pilot position
Igniter electrode positioned wrong
Igniter electrode broker
Igniter cable pinched or broken
Igniter cable not connected to gas control
Tilt switch in trip angle/OFF position
Bad thermocouple
Corrosion of thermocouple contact
Safety interlock is triggered
Bad gas valve
Control knob not pressed in long
enough
Thermocouple connection loose at gas
control or damaged
Pilot flame not touching the
thermocouple
Low gas pressure
Blockage in burner orifice
Control knob not in ‘ON’position
Purge gas line and repeat ignition operation
Check gas pressure
Turn ‘ON’ gas supply
Check gas passage way
Call a qualified person
Turn control knob to pilot position
Press in control knob while in pilot position
Correct electrode position
Replace electrode
Free igniter cable, if damaged replace assembly
Connect cable to igniter
Reset the Heater keep in vertical position
Replace thermocouple
Clean thermocouple contact
Wait a minute repeat ignition operation
Replace gas valve
After pilot lights, keep control knob pressed in
for 60 seconds
Tighten connection or replace thermocouple
Contact a qualified service person
Check gas supply pressure
Clean burner orifice
Turn control knob to ‘ON’ position
light
Igniter did not
spark
Pilot won’t
stay lit
Main burner
won’t light
Page 15

IMPORTANT NOTICE:
DO NOT return to place of purchase !!!
Please contact Customer Service hotline at 800-913-8999 for help
27
30
29
28
22
14
13
25
26
24
23
19
21
20
17
18
6
16
7
8
15
11
12
10
9
5
3
4
1
2
PARTS LIST
Parts List
Description
Reflecotor Nut
Reflecotor Dome Cap
Threaded Ends Stud
Reflector
Emitter Grid
Main Burner Assembly
Emitter base
Pilot Assembly
Control Housing Front Panel
Lighting Instruction Plate
Logo Plate
Control Knob
Control Housing
Gas Valve
Control Husing Base
Post
Square Table
Post Socket Plate
Table Leg
Gas Hose
Tank Cover
Tank Enclosure
Regulator
Tank Hook
Tank Enclosure Door
Door Handle
Wheels
Base Assembly
Base Plate
Weighted Base
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Qty
1
1
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
Page 16

LIMITED WARRANTY
FOR MODEL PTH106A-SS
GAS-FIRED INFRARED OUTDOOR PATIO HEATER
Nexgrill Industries, Inc warrants to the original consumer purchaser of each Outdoor Patio Heater
that when subject to normal residential use, it is free from defects in workmanship and materials
under normal conditions of use in a commercial application for a period of 90 days from purchase
and in a residential application for a period of 1 year. Any work or repair of the heater must be
performed by qualified service personal. There will be a shipping and handling charge for the
delivery of the warranty part(s).
Component Warranty Period
Burner: 3Years
Valve: 1Year
PilotKit: 1Year
AllOtherParts 1Year
Our obligation under this warranty is limited to repair or replacement at our option of the product
during the warranty period. The extent of any liability of Nexgrill Industries, Inc. under this warranty
is limited to repair or replacement. This warranty does not cover normal wear of parts, damage
resulting from any of the following: negligent use or misuse of the product, use on improper fuel/gas
supply, use contrary to operating instructions, or alteration by any person other than our factory
service center. The warranty period is not extended by such repair or replacement.
Warranty claim procedure: If you require service or parts for your Patio Heater, please contact
our Warranty Service Center for factory direct assistance. Our hours of operation are 8 AM to 5 PM
PST. Our number is 1-800-913-8999 and our FAX number is 1-909-598-7699. Please direct all
correspondence to: Nexgrill Industries, Inc. 145 Brea Canyon Road, Walnut, CA 91789 ATTN:
Warranty Service Center.
Product repair as provided under this warranty is your exclusive remedy. Nexgrill Industries, Inc.
shall not be liable for any incidental or consequential damages for breach of any express or implied
warranty on its products. Except to the extent prohibited by applicable law, any implied warranty or
merchantability or fitness for a particular purpose on this product to the duration of the above
warranty. Some states do not allow the exclusion or limitation of incidental or consequential
damages or allow limitations on how long an implied warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights, and you may have
other rights which vary from state to state.
Page 17
