CORDLESS HAND BLENDER INSTRUCTIONS
Table of ConTenTs
HAND BLENDER SAFETY
Important safeguards.......................................................................................... 6
Electrical requirements ..................................................................................... 7
Electrical equipment waste disposal................................................................... 7
Disposing of KitchenAid Lithium-Ion (Li-Ion) battery......................................... 7
PARTS AND FEATURES
Parts and accessories.......................................................................................... 8
Attachment guide ............................................................................................. 10
OPERATING THE HAND BLENDER
Before rst use: charging the battery ............................................................... 11
Assembling the Hand Blender .......................................................................... 12
Using the LED display panel............................................................................. 13
Using the blending arm..................................................................................... 14
Using the whisk attachment ............................................................................. 15
Using the chopper attachment......................................................................... 16
Chopper processing guide................................................................................ 17
TIPS FOR GREAT RESULTS
Techniques for better blending and crushing.................................................... 18
Operating tips................................................................................................... 18
CARE AND CLEANING
Cleaning the Hand Blender .............................................................................. 20
SERVICE AND WARRANTY
KitchenAid Hand Blender warranty ................................................................. 21
Customer service ............................................................................................. 21
W10529667A_01_EN.indd 5 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

6

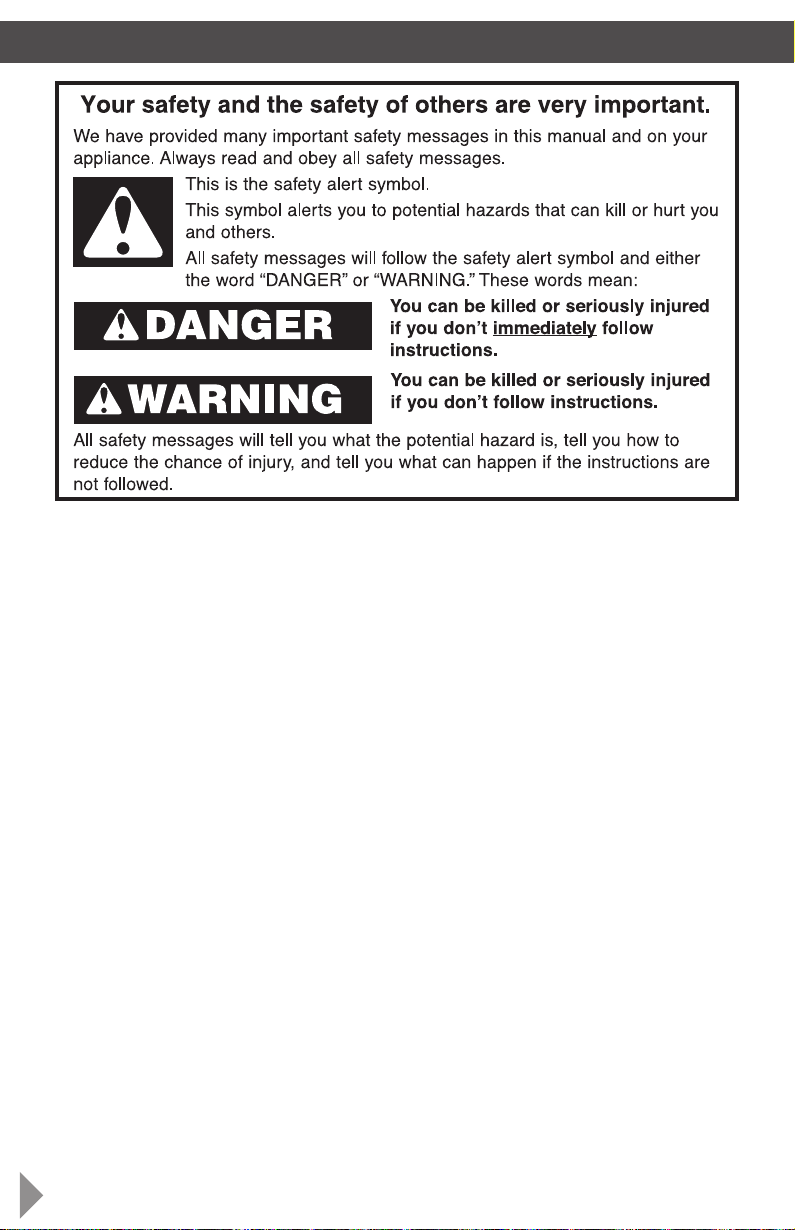

HAND BLENDER SAFETYHAND BLENDER SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
1. Read all instructions.
2. To protect against risk of electrical shock, do not put motor body of Hand Blender,
battery, charger, charger’s cord or plug in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
4. Children should be supervised to ensure that they do not play with the appliance.
5. Avoid contact with moving parts.
6. Do not operate any appliance or charger with a damaged cord, or plug, or after the
appliance or charger malfunctions, or is dropped, or damaged in any manner. Return
appliance or charger to the nearest Authorized Service Facility for examination, repair,
or electrical or mechanical adjustment.
7. The use of attachments not recommended or sold by KitchenAid may cause re,
electric shock, or injury.
8. Do not let power cord on charger hang over edge of table or counter. Excess cord
may be wrapped on the underside of the charger.
9. Do not let power cord on charger contact hot surfaces, including the stove.
10. When mixing liquids, especially hot liquids, use a tall container, or make small quantities
at a time to reduce spillage.
11. Keep hands and utensils out of the container while blending to prevent the possiblity
of severe injury to persons, or damage to the unit. A scraper may be used, but must
be used only when the unit is not running.
SAVE THESE INSTRUCTIONS
W10529667A_01_EN.indd 6 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

7
English
HAND BLENDER SAFETYHAND BLENDER SAFETY
Electrical requirements
Disposing of KitchenAid Lithium-Ion (Li-Ion) battery
Always dispose of your battery according to
local regulations. Contact a recycling agency
in your area for recycling locations.
Even discharged batteries contain some
energy. Before disposing, use electrical
tape to cover the terminals to prevent
the battery from shorting, which could
cause a re or explosion.
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed
of correctly, you will help avoid potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product.
The symbol on the product, or on the
documents acompanying the product,
indicates that this appliance may not be
treated as household waste. Instead it shall
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment.
Disposal must be carried out in accordance
with local environmental regulations
for waste disposal.
For more detailed information about
treatment, recovery, and recycling of this
product, please contact your local city ofce,
your household waste disposal service, or
the shop where you purchased the product.
Electrical equipment waste disposal
12. Blades are sharp. Handle carefully.
13. Be certain chopper adapter is securely locked in place before operating appliance.
14. Always remove the battery from the Hand Blender if it is left unattended and before
assembling, disassembling or cleaning.
15. This product is designed for household use only.
SAVE THESE INSTRUCTIONS
Battery Voltage: 12 V Lithium-Ion (Li-ion) / 1.5 Ah / 16 Wh
Battery Model No.: 5KCL12IBOB
Charger
Input : 18 V / 660 mA
Output : 12 V / 550 mA
Charger Model No.: 5KCL12CSOB
Charger Adapter
Input : 220-240 V / 50/60 Hz / 18 W
Output : 18 V / 660 mA
Charger Adapter Model No.: W10533411
W10529667B_01_EN.indd 7 1/11/13 9:11 AM
Downloaded from www.vandenborre.be

8
PARTS AND FEATURESPARTS AND FEATURES
Parts and accessories
20 cm (8") Stainless
steel blending arm*
Front of
motor body
Battery location
Unlock button
Speed control
buttons
Pulse button
Back of motor body
Battery release
lever /
Hanging loop
Grip
Battery
Charger base
LED charge
indicator/ Lid
release
LED display
speed selection
indicator
LED display
battery life
indicator
* Shown with
S-Blade attached
W10529667A_01_EN.indd 8 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

9
English
PARTS AND FEATURESPARTS AND FEATURES
Parts and accessories
Chopper attachment
Blending pitcher
Star blade
Frother/Beater
1 Cup
1/2 Cup
1 1/2 Cup
2 Cup
2 1/2 Cup
3 Cup
4 Cup
3 1/2 Cup
BELL BLADESGUARDS
33 cm (13")
Blending arm
Storage case
Whisk attachment
Bell guard
Pan guard
S-Blade
W10529667A_01_EN.indd 9 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

10
PARTS AND FEATURES
Attachment guide
Attachment Best used to
S-Blade Blend, Crush, Puree
Soups, Cooked vegetables, Sauces, Baby food,
Smoothies, Milk shakes, Frosting, Crushed ice
Star Blade Shred, Mince
Cooked meats, Beef gravy, Minces
Frother/Beater Froth, Mix
Milk (for Latte, Cappuccino...), Cake batter,
Pancake batter, Mufn batter
Whisk Whip, Emulsify, Aerate
Egg whites, Whipped cream, Mayonnaise,
Vinaigrette, Mousse, Hollandaise sauce,
Pudding
Chopper Chop
Vegetables, Parmesan cheese, Peanuts,
Salsa, Hard boiled eggs, Bread crumbs,
Herbs, Cooked meats, Beef gravy, Minces
OPERATING THE HAND BLENDER
W10529667A_01_EN.indd 10 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

11
English
PARTS AND FEATURES OPERATING THE HAND BLENDER

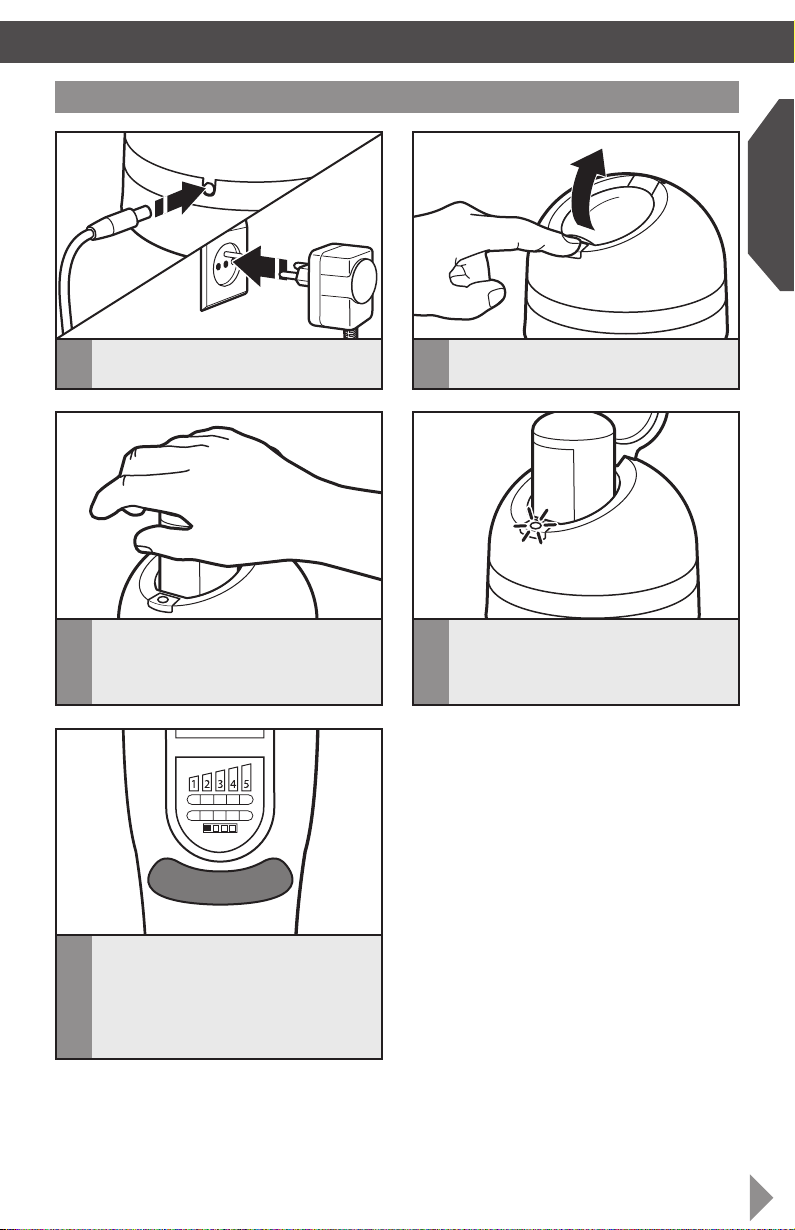

Before rst use: charging the battery
1Plug in the charger.
3Slide the battery into the charger,
aligning the flat side of the battery to the
flat side of the port, and push down to
click into place.
4The LED indicator will begin to flash
slowly and continuously as it charges.
When the battery is fully charged, the
LED will display a continuous light.
NOTE: If the charger quickly flashes three
times after inserting the battery, there is
a battery error. Check that the battery is
placed properly in the charger. If the light
continues to flash rapidly, the battery may be
extremely cold, hot, wet or damaged. Allow
the battery to cool down, warm up or dry
out, then reinsert. If the problem persists,
see the “Service and Warranty” section.
5Charge the battery after each use, when
the battery indicator lights show less
than 25% battery life remaining (only
one light displays on the LED battery
life indicator), or when the battery is
completely drained.
2Push the lid release button to open
the lid.
NOTE: Batteries do not develop a
“memory” when charged after only a partial
discharge. It is not necessary to run down
the battery before placing it on the charger.
W10529667A_01_EN.indd 11 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

12
OPERATING THE HAND BLENDER OPERATING THE HAND BLENDER
Before First Use
Before using the Hand Blender for the
first time, wipe the motor body, the whisk
adapter, and chopper adapter with a clean,
damp cloth to remove any dirt or dust.
Mild dish soap may be used. Do not use
abrasive cleansers. Dry thoroughly with a
soft cloth. Wash all accessories, see “Care
and Cleaning” section for more information.

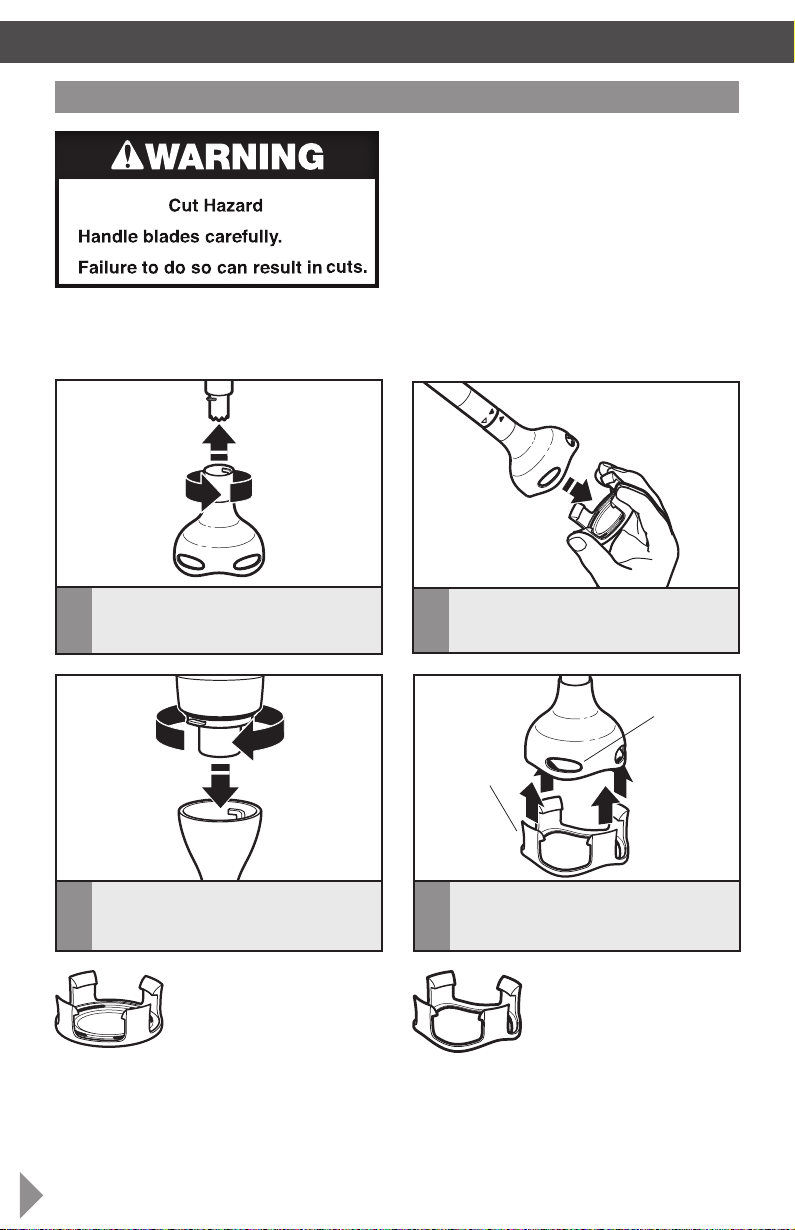

Assembling the Hand Blender
4If using a pan guard, place it on a flat
surface and position with mounting clips
between the ports of the blade.
3Insert blending arm into motor body
and twist until it clicks to lock in place.
Port
Mounting
grips
2Remove the bell guard from the blade.
Use the pan guard to
avoid damage to cookware
while using Hand Blender.
Bell guard Pan guard
1Insert blending arm into bell blade (see
“Attachment guide”). Twist to lock until
it clicks.
Use the bell guard to
avoid damage to blade
when Hand Blender is
not in use.
NOTE: Do not put whisk adapter or chopper adapter in dishwasher.
W10529667A_01_EN.indd 12 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

13
English
OPERATING THE HAND BLENDER OPERATING THE HAND BLENDER
5Snap pan guard into place with an even,
downward motion.
IMPORTANT: The unlock button must be pressed before the Hand Blender will operate.
6Slide the charged battery into the top
of the Hand Blender motor body. Make
sure it latches securely.
Pulse button
Speed control
buttons
Speed selection
indicator
Battery life
indicator
Unlock
button
LED display

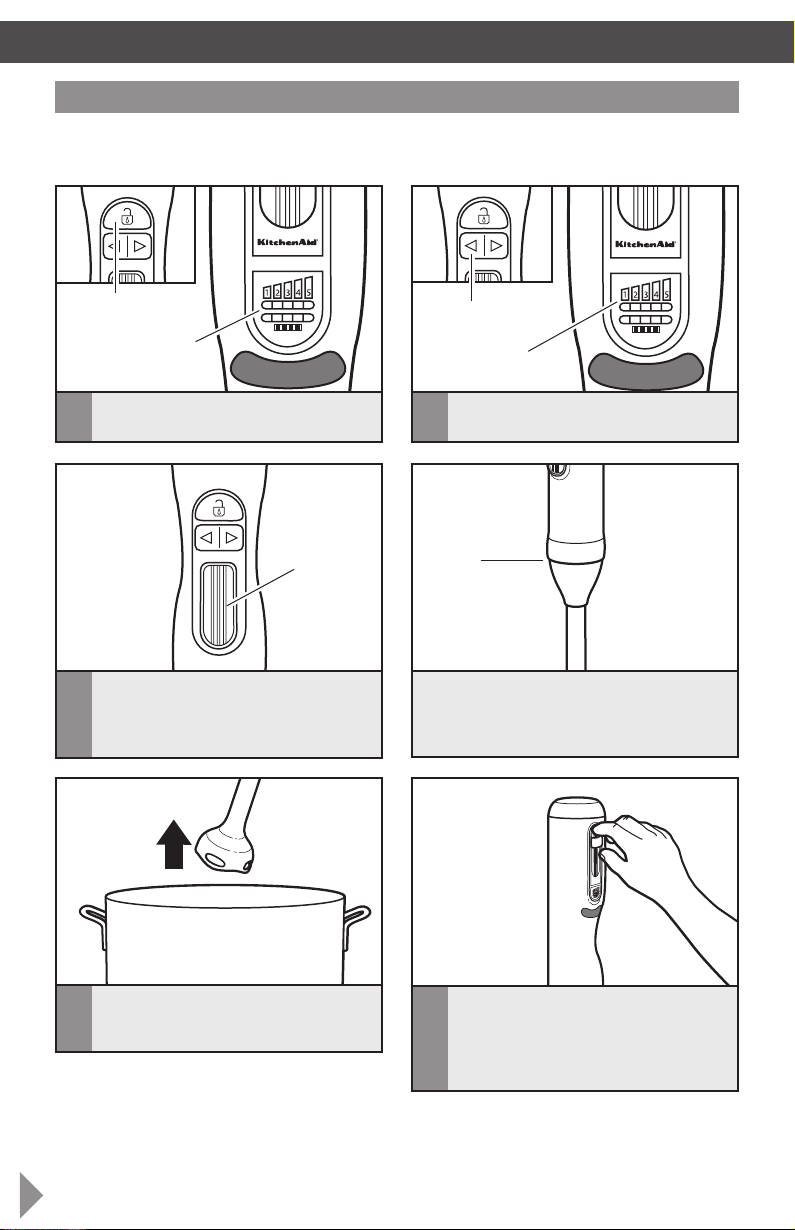

Using the LED display panel
1When operating the controls on the
Hand Blender, always make sure the
LED display is facing toward you. Grip
the handle with your thumb on the
back of the unit, and your fingers on the
controls in front, as shown.
2The bottom bar on the LED display
panel is the battery life indicator. Hold
the Hand Blender so that you can see
the LED display light up when you
press the UNLOCK button with your
index finger.
3The top bar on the LED display panel is
the speed selection indicator. To adjust
speeds, operate the arrow buttons
with your index finger, while viewing
the speed indicator on the LED display.
When the LED faces you, the right
button will increase the speed and the
left button will decrease the speed.
4After selecting desired speed, press
the PULSE button to begin blending.
See “Using the blending arm” section
for more information.
NOTE: The Hand Blender will automatically
power down after 60 seconds of not
operating or being manually unlocked.
W10529667A_01_EN.indd 13 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

14
OPERATING THE HAND BLENDER OPERATING THE HAND BLENDER
Seam
Pulse button
Speed control
buttons
Speed selection
indicator
LED display
Unlock
button
Using the blending arm
The blending arm is ideal to use for blending, crushing, or puréeing. It is best used for soups,
cooked vegetables, sauces, baby food, smoothies, milk shakes, frosting, or crushed ice.
TIP: To avoid splashing, insert the Hand
Blender into the mixture before pressing
the pulse button, and release the pulse
button before pulling the Hand Blender
out of the mixture.
1Press the UNLOCK button. LED display
will light up when unit is ready. 2Use the arrow buttons to adjust the
speed, using the LED display as a guide.
3Insert Hand Blender into mixture. Then
press the PULSE button to activate. NOTE: Do not immerse hand blender
in liquids deeper than the seam of the
attachment. Do not immerse motor body
into liquids or other mixtures.
4After blending is complete, release the
pulse button; then remove Hand Blender
from mixture.
5Remove the battery by placing your
finger on the battery release lever and
pulling the lever away from the motor
body. The battery will release from the
top of the unit.
OPERATING THE HAND BLENDER
IMPORTANT: Always wait to insert
battery into Hand Blender until accessories
are attached. After using, always remove
battery before disassembling Hand Blender.
W10529667A_01_EN.indd 14 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

15
English
OPERATING THE HAND BLENDER OPERATING THE HAND BLENDER
2Use the arrow buttons to adjust the
speed, using the LED display as a guide.
OPERATING THE HAND BLENDER

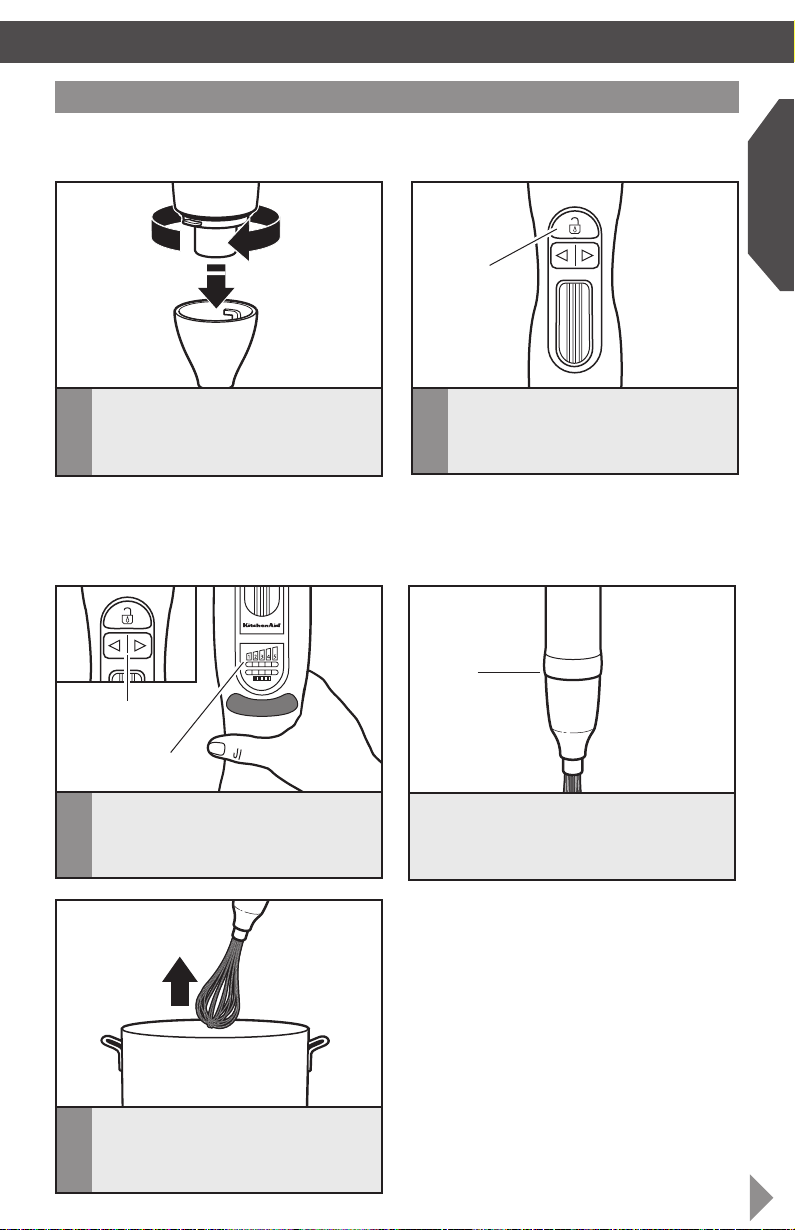

Using the whisk attachment
1Insert the whisk adapter into the motor
body and twist to lock until it clicks.
Speed control
buttons
Speed selection
indicator
3Set Hand Blender on Speed 1 and press
PULSE button to activate.
2Slide the battery into the Hand Blender
motor body. Insert Hand Blender into
mixture. Then press the UNLOCK
button.
Seam
TIP: To avoid splashing, insert the Hand Blender into the mixture before pressing the pulse
button, and release the pulse button before pulling the Hand Blender out of the mixture.
The stainless steel whisk may scratch or mark non-stick coatings; avoid using the whisk in
non-stick cookware.
NOTE: Do not immerse hand blender
in liquids deeper than the seam of the
attachment. Do not immerse motor body
into liquids or other mixtures.
4When whisking process is complete,
release the Pulse button before
removing Hand Blender from the
mixture.
Use the whisk to whip cream, beat egg whites, mix instant puddings, vinaigrettes, mousse, or
for making mayonnaise.
Unlock
button
IMPORTANT: Always wait to insert
battery into Hand Blender until accessories
are attached. After using, always remove
battery before disassembling Hand Blender.
W10529667A_01_EN.indd 15 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

16
OPERATING THE HAND BLENDER

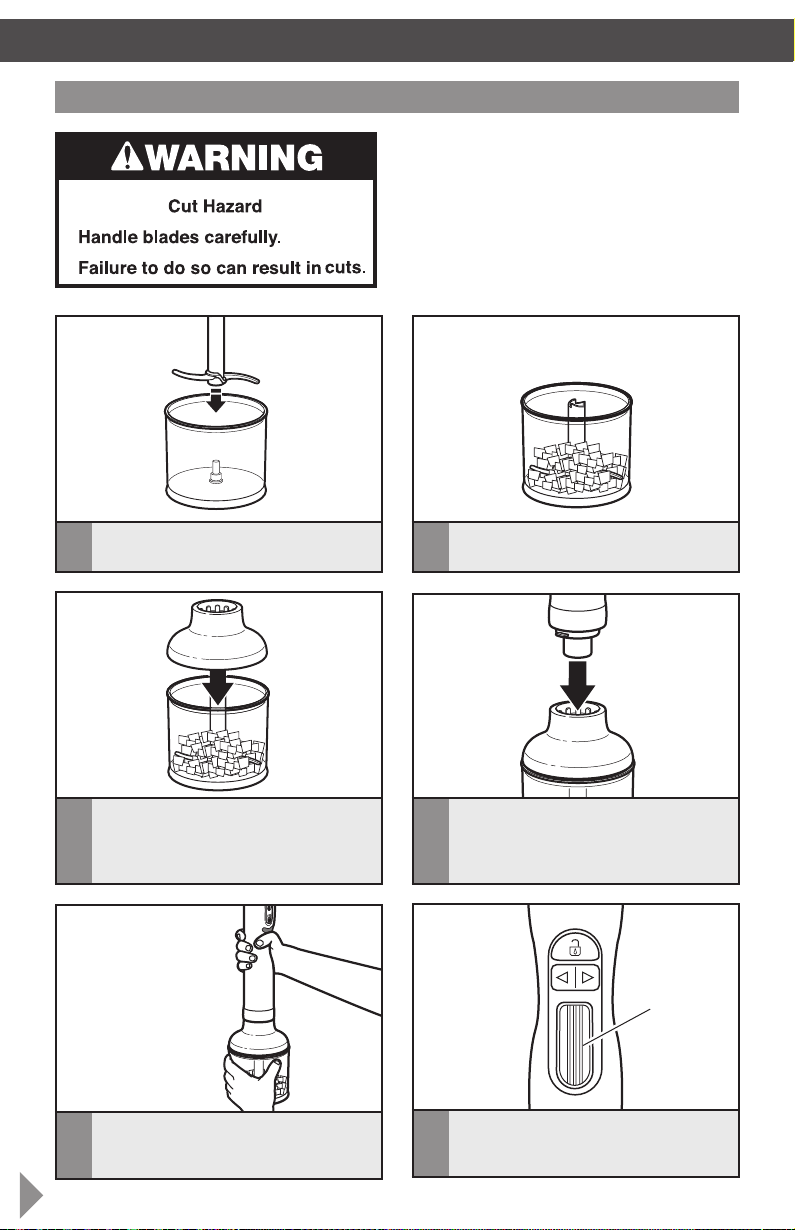

Using the chopper attachment
Use the chopper attachment to chop small
amounts of food such as cooked meat,
cheese, vegetables, herbs, crackers, bread,
and nuts.
IMPORTANT: Always wait to insert
battery into Hand Blender until accessories
are attached. After using, always remove
battery before disassembling Hand Blender.
2Add small food items to be chopped to
the bowl.
4Align the chopper bowl with the motor
body and press together. Then, slide the
battery into the Hand Blender motor
body and press the UNLOCK button.
1Insert the chopper blade into the
chopper bowl.
3Attach the chopper adapter to the
chopper bowl. Place the adapter
straight down. Do not try to twist
the adapter into place.
5Hold the motor body with one hand
and the chopper bowl with the other
while processing.
Pulse button
6For best results, press and release the
Pulse button until ingredients reach
desired consistency.
OPERATING THE HAND BLENDER
W10529667A_01_EN.indd 16 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

17
English
*Processing times and speeds are approximate.
Actual usage may vary depending on quality of food and desired chop size.
Chopper processing guide
Food Quantity Preparation Speed Time*
Meats 200 g (7 oz) Cut into 2 cm (3/4") Cubes 5 15 Seconds
Almonds/Nuts 200 g (7 oz) Place in Whole Nuts 3 25 Seconds
Garlic 10–12 Cloves Place in Whole Cloves 3 15 Seconds
Onions 100 g (3.5 oz) Cut into Quarters 3 15 Seconds
Cheese 100 g (3.5 oz) Cut into 1 cm (3/8") Cubes 5 30 Seconds
Hard Boiled Eggs 2 Place in Whole Eggs 4 3 Pulses
Carrots 200 g (7 oz) Cut Average Carrot
into Quarters 3 15 Seconds
Herbs 50 g (2 oz) Remove Stalks 4 15 Seconds
OPERATING THE HAND BLENDER
6For best results, press and release the
Pulse button until ingredients reach
desired consistency.
OPERATING THE HAND BLENDER
NOTE: To remove chopper adapter
from chopper bowl, lift it straight up.
Do not try to twist chopper adapter
to remove.
7Wait for LED to power down before
removing motor body from chopper
adapter.
Using the chopper attachment (continued)
W10529667A_01_EN.indd 17 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

18
TIPS FOR GREAT RESULTS
Drawing up Wrist
movement

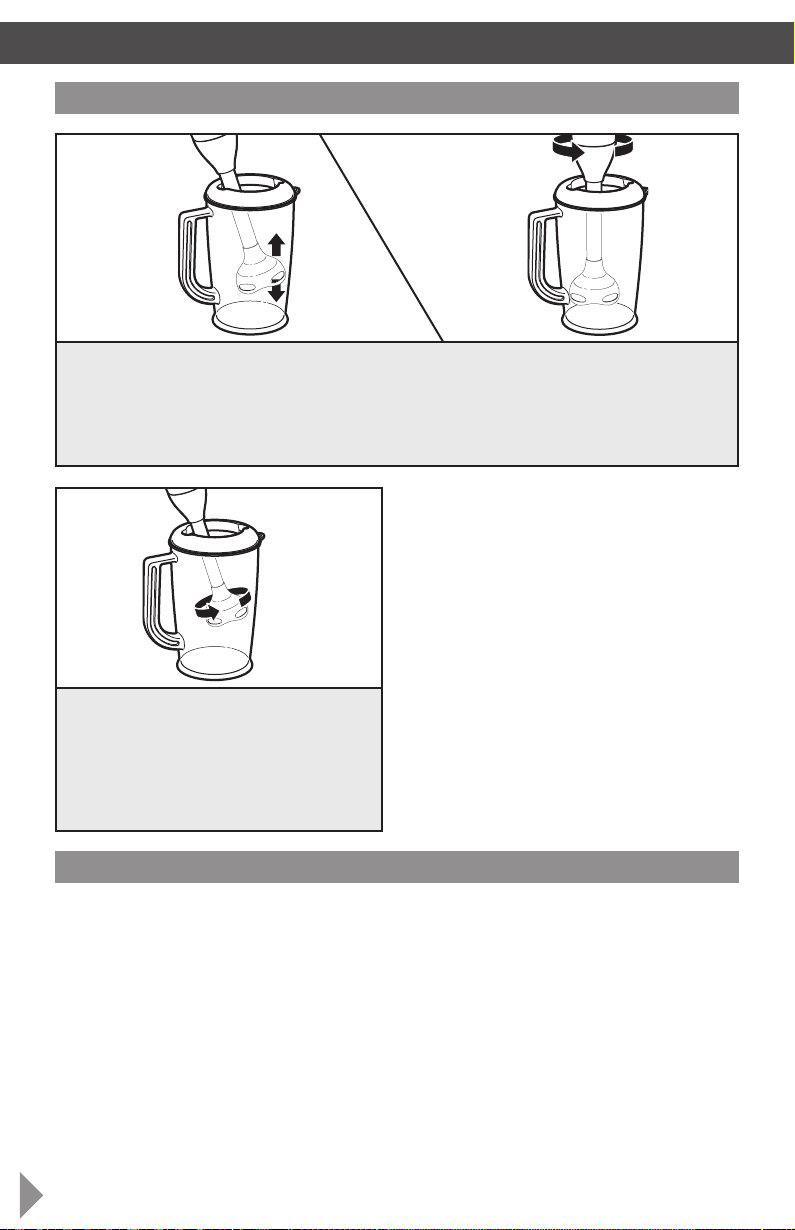

Techniques for better blending and crushing
For better blending: Rest the Hand Blender on the bottom of the container momentarily, then
hold at an angle and using a light circular motion, slowly draw it upwards against the side of the
container. Allow your wrist motion and the weight of the Hand Blender to do the work. As you
draw up the Hand Blender, you will notice the ingredients from the bottom of the container rising
up. When the ingredients are no longer rising from the bottom, return the Hand Blender to the
bottom of the container and repeat until mixture is at the desired consistency.
For better crushing: Insert Hand Blender
with blending arm attached into the
container. For hard, frozen fruits or ice,
add a small amount of liquid to where the
S-blade is submerged. Remember to stop
the Hand Blender before removing it from
the container to avoid splashing.
TIP: To prevent overow, allow room
in the container for the mixture to rise
when blending.
TIPS FOR GREAT RESULTS
Operating tips
• Cut solid foods into small pieces for
easier blending or chopping.
• The Hand Blender is equipped with
thermal protection from high operating
temperatures. Should the Hand Blender
suddenly stop during use, press the
UNLOCK button once, then press
the PULSE button. If the unit does not
operate, but shows information on the
battery indicator bar, allow 10 minutes
to automatically reset. If the unit does
not display information on the battery
indicator bar, charge the battery. If the
battery is already fully charged, and the
unit fails to operate, contact KitchenAid.
• To avoid splashing, insert the Hand
Blender into the mixture before
pressing the power button, and release
the power button before pulling the
Hand Blender out of the mixture.
• When blending in a saucepan on a
cooktop, remove the pan from the heating
element to protect the Hand Blender
from overheating.
W10529667A_01_EN.indd 18 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

19
English
TIPS FOR GREAT RESULTS TIPS FOR GREAT RESULTS
• For best blending, hold the Hand Blender
at an angle and gently move up and down
within the container. Do not pound down
on the mixture with the Hand Blender.
• To prevent overow, allow room in the
container for the mixture to rise when
using the Hand Blender.
• Do not let the Hand Blender sit in a hot
pan on the cooktop while not in use.
• Remove hard items, such as fruit pits
or bones, from the mixture before
blending or chopping to help prevent
damage to the blades.
Operating tips (continued)
• Do not use your Hand Blender to process
coffee beans or hard spices such as
nutmegs. Processing these foods could
damage the blades of the Hand Blender.
• Do not use the pitcher or the chopper
bowl in the microwave oven.
• The stainless steel whisk may scratch or
mark non-stick coatings; avoid using the
whisk in non-stick cookware.
• To prevent splattering, use the whisk
attachment in deep containers or pans.
W10529667A_01_EN.indd 19 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

20
CARE AND CLEANING
1Remove the adapters and attachments.
3Wipe the motor body with a damp
cloth. Mild dish soap may be used, but
do not use abrasive cleansers.
1 Cup
1/2 Cup
1 1/2 Cup
2 Cup
2 1/2 Cup
3 Cup
4 Cup
3 1/2 Cup
2Wash blending arms, pitcher and lid, whisk, chopper bowl, blades, and pan guard in hot,
soapy water, or in the top rack of the dishwasher. Dry thoroughly.
NOTE: Always remove the battery from
the Hand Blender if it is left unattended
and before assembling, disassembling
or cleaning.
Do not immerse the motor body or
the adapters in water. Do not put whisk
adapter or chopper adapter in dishwasher.
4Wash chopper adapter and whisk
adapter by hand in hot, soapy water.
Mild dish soap may be used, but do not
use abrasive cleansers.
Cleaning the Hand Blender
SERVICE AND WARRANTY
W10529667A_01_EN.indd 20 1/4/13 9:14 AM
Downloaded from www.vandenborre.be

21
English
CARE AND CLEANING SERVICE AND WARRANTY
Length of
Warranty: KitchenAid Will Pay For: KitchenAid Will Not Pay For:
Europe, Middle
East and Africa:
For Model
5KHB3581:
Three years Full
Warranty from
date of purchase.
The replacement parts
and repair labor costs to
correct defects in materials
or workmanship. Service
must be provided by an
Authorized KitchenAid
Service Center.
A. Repairs when Hand Blender
is used for operations other
than normal household
food preparation.
B. Damage resulting from
accident, alterations,
misuse, abuse, or
installation/operation
not in accordance with
local electrical codes.
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT DAMAGES.
KitchenAid Hand Blender warranty
www.KitchenAid.eu
Customer service
© 2012. All rights reserved.
Specications subject to change without notice.
In U.K. and Ireland:
For any questions, or to nd the nearest KitchenAid Authorized Service Center, please nd
our contact details below.
NOTE: All service should be handled locally by an Authorized KitchenAid Service Center.
Contact number for U.K. and Northern Ireland:
Tollfree number 0800 988 1266 (calls from mobile phones are charged standard
network rate)
Contact number for Ireland:
Tollfree number [phone]
E-mail contact for U.K. and Ireland:
Go to www.kitchenaid.co.uk, and click on the link “Contact Us” at the bottom of the page.
Address for U.K. and Ireland:
KitchenAid Europa, Inc.
PO BOX 19
B-2018 ANTWERP 11
BELGIUM
In other countries:
For all product related questions and after sales matters, please contact your dealer
to obtain the name of the nearest Authorized KitchenAid Service/Customer Center.
W10529667A_01_EN.indd 21 12/28/12 12:51 PM
Downloaded from www.vandenborre.be

W10529667B 01/13
© 2013. All rights reserved.
Specications subject to change without notice.
W10529667B_BackCover.indd 1 1/11/13 10:44 AM
Downloaded from www.vandenborre.be
