Klein Tools TI290 User manual

Dwg Name: TI290-1390506ART
Dwg No: 1390506
ECO No: 44944 Rev: A
Pkg Dwg Ref: 1290186
Finish Coat Requirements: N/A
FRANÇAIS p. 21
ESPAÑOL pg. 11
ENGLISH
INSTRUCTION MANUAL
Rechargeable
Pro Thermal Imager
• 49,152 (256 × 192)
PIXELS TO
TROUBLESHOOT
HOT AND COLD
SPOTS
• ADJUSTABLE
EMISSIVITY
FROM 0.01
TO 0.99
• TRANSFER PHOTOS
WIRELESSLY
USING INTEGRATED
WI-FI HOTSPOT
• RECHARGEABLE
LITHIUM ION
BATTERY
T
I
I
290
-4° – 752°F
-20° – 400°C
2 m
ENERGY
PERFORMANCE
VERIFIED
RENDEMENT
ÉNERGÉTIQUE
VÉRIFIÉ
EP XXXXXXX
ENERGY
PERFORMANCE
VERIFIED
RENDEMENT
ÉNERGÉTIQUE
VÉRIFIÉ
EP XXXXXXX
EP 5016393
5001748
TI290-1390506ART.indd 1TI290-1390506ART.indd 1 6/29/2022 5:24:05 PM6/29/2022 5:24:05 PM

Dwg Name: TI290-1390506ART
Dwg No: 1390506
ECO No: 44944 Rev: A
Pkg Dwg Ref: 1290186
Finish Coat Requirements: N/A
2
GENERAL SPECIFICATIONS
The Klein Tools TI290 is a high resolution, USB rechargeable professional
Thermal Imager; power on to view unseen hot and cold spots for instant
troubleshooting. The meter provides high and low temperature points, crosshairs
to pinpoint specific temperatures, and options for temperature alarms. Wi-Fi
setting allows the meter to transfer and share images for reporting.
• Environment: Indoor: DO NOT expose to moisture rain or snow.
• Operating Altitude: 6562 ft. (2000 m)
• Relative Humidity: <85% non-condensing
• Operating Temp: 32°to 113°F (0°to 45°C)
• Storage Temp: -4° to 140°F (-20° to 60°C )
• Sensor: VOx Microbolometer
• Sensor Resolution: 49152 pixels (256 × 192)
• Field of View (FOV): 55.6 +/- 2.8 degrees
• Frame Rate: 9 Hz
• Sensitivity: ≤50 mK
• Temperature Range: -4°to 752°F (-20°to 400°C)
• Temperature Resolution: 0.1°F/0.1°C
• Temperature Accuracy: ±2°C (±2°F) or 2% (whichever greater)
NOTE: Not calibrated below -10°C (14°F)
• Temperature Display: High, Low, and Center point
• Temperature Settings: °F / °C
• Emissivity: 0.01 to 0.99 adjustable (0.95 default)
• Display Type: 3.5" (89 mm) TFT LCD
• Color Palettes: Ironbow, Rainbow, Grayscale
• Image Format: JPG
• Image Storage: Up to 10000 thermal images
• Image Transfer: USB, or Wi-Fi using the Klein Tools App
• Dimensions: 4.48" × 3.10" × 1.06" (113.7 × 78.7 × 26.9 mm)
• Weight: 7.5 oz. (213 g)
• Power: Lithium polymer battery (USB rechargeable)
3.7V / 2000mAh (7.4 Wh)
• Required Charger Voltage / Current : 5V DC, 2A
• Charging Current / Time: 900mA / 3 hours
• Auto Power Off: User-selectable for 5, 10, or 30 minutes
• Pollution degree: 2
• Drop Protection: 6.6' (2 m)
• Standards: Conforms to UL STD. 61010-1
Certied to CSA STD. C22.2 No. 61010-1
Specifications subject to change.
ENGLISH
WARNINGS
Read, understand, and follow these instructions to ensure safe
operation. Failure to observe these warnings can result in risk of
re or electric shock. Keep these instructions for future reference.
• DO NOT use the product if it is damaged or modified. Damaged or
modified batteries may exhibit unpredictable behavior resulting in fire,
explosion, or injury.
• Risk of fire and burns. DO NOT open, crush, heat above specified
maximum temperature or incinerate. Prolonged exposure to
direct sunlight can result in elevated temperatures
.
• If the battery’s internal temperature gets too high, the unit will shut
down until the internal temperature is lowered.
• DO NOT expose to moisture, rain, or snow.
• DO NOT subject to impacts or drops greater than 6.6 ft. (2 m). Drops
larger than this may not show signs of damage, but internal components
may have been compromised. It is advisable to replace the unit if any
such severe events occur.
• There are no user-serviceable parts inside. DO NOT open or attempt to repair.
WARNING SYMBOLS ON TESTER
OTHER SYMBOLS ON TESTER
5001748
CAUTION
• BURN HAZARD. Reflective materials may have a higher actual
temperature than the measured temperature. Set emissivity to
match the object being measured (see Emissivity section).
• Do not point the camera at the sun or any other strong energy source.
This can affect the accuracy of the camera or cause damage to the sensor.
TI290-1390506ART.indd 2TI290-1390506ART.indd 2 6/29/2022 5:24:05 PM6/29/2022 5:24:05 PM

3
Dwg Name: TI290-1390506ART
Dwg No: 1390506
ECO No: 44944 Rev: A
Pkg Dwg Ref: 1290186
Finish Coat Requirements: N/A
WARNINGS
Read, understand, and follow these instructions to ensure safe
operation. Failure to observe these warnings can result in risk of
re or electric shock. Keep these instructions for future reference.
• DO NOT use the product if it is damaged or modified. Damaged or
modified batteries may exhibit unpredictable behavior resulting in fire,
explosion, or injury.
• Risk of fire and burns. DO NOT open, crush, heat above specified
maximum temperature or incinerate. Prolonged exposure to
direct sunlight can result in elevated temperatures
.
• If the battery’s internal temperature gets too high, the unit will shut
down until the internal temperature is lowered.
• DO NOT expose to moisture, rain, or snow.
• DO NOT subject to impacts or drops greater than 6.6 ft. (2 m). Drops
larger than this may not show signs of damage, but internal components
may have been compromised. It is advisable to replace the unit if any
such severe events occur.
• There are no user-serviceable parts inside. DO NOT open or attempt to repair.

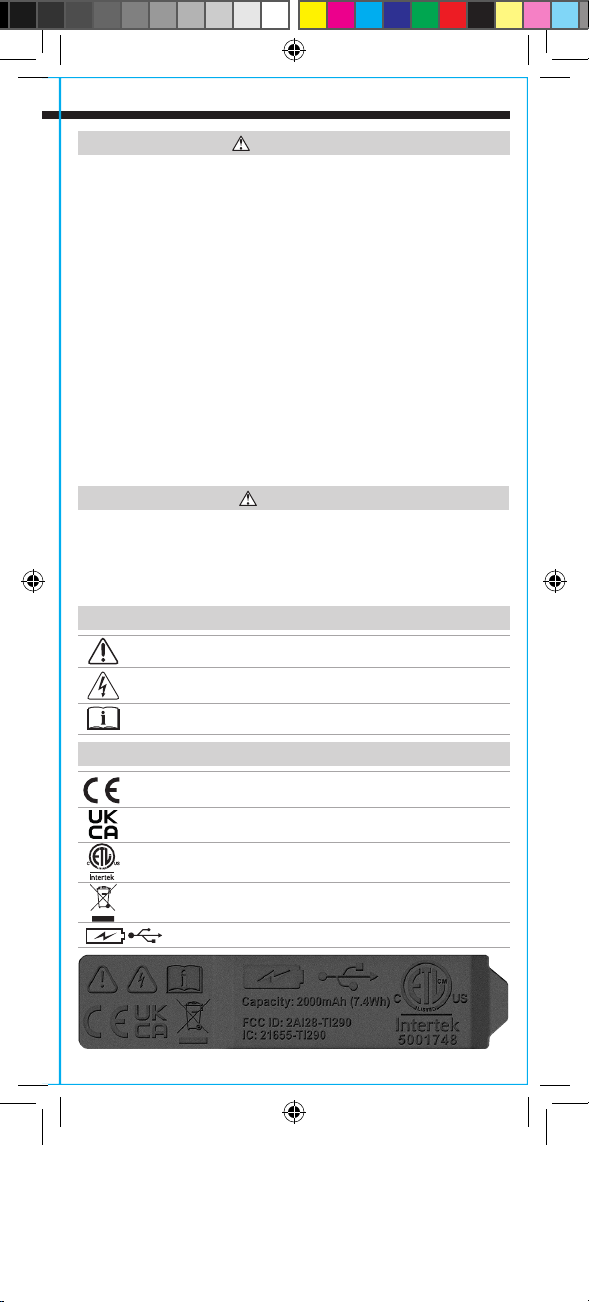

WARNING SYMBOLS ON TESTER
Warning or caution
Risk of Electrical Shock
Read instructions before using
OTHER SYMBOLS ON TESTER
Conformité Européenne: Conforms with European
Economic Area directives
UKCA: UK Conformity Assessment
This product has been independently tested by Intertek
and meets applicable published standards.
WEEE: Electronics disposal
USB rechargeable
USB-C Port Cover (bottom of unit)
CAUTION
• BURN HAZARD. Reflective materials may have a higher actual
temperature than the measured temperature. Set emissivity to
match the object being measured (see Emissivity section).
• Do not point the camera at the sun or any other strong energy source.
This can affect the accuracy of the camera or cause damage to the sensor.
TI290-1390506ART.indd 3TI290-1390506ART.indd 3 6/29/2022 5:24:05 PM6/29/2022 5:24:05 PM

Dwg Name: TI290-1390506ART
Dwg No: 1390506
ECO No: 44944 Rev: A
Pkg Dwg Ref: 1290186
Finish Coat Requirements: N/A
4
ENGLISH
COMPLIANCE
FCC COMPLIANCE
This device complies with part 15 of the FCC RULES. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received,including interference that may cause
undesired operation.
NOTE: Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
FCC RF EXPOSURE STATEMENTS:
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment and meets the FCC RF
Exposure Guidelines.
This device must not be co‐located or operated in conjunction with
any other antenna or transmitter.
COMPLIANCE
IC COMPLIANCE
This device contains license-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic Development
Canada’s license-exempt RSS(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation
of the device.
This device complies with RSS-247 of Industry Canada. Operation
is subject to the condition that this device does not cause harmful
interference. This Class B digital apparatus complies with Canadian
ICES-003.
IC RADIATION EXPOSURE STATEMENT:
The equipment complies with SAR limits set forth for an
uncontrolled environment and meets the RSS-102 of the IC
RF Exposure Rules. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
EU DECLARATION OF CONFORMITY
Hereby, Klein Tools declares that this product is in compliance with
Directive 2014/53/EU and all other applicable EU requirements. The
complete declaration of conformity can be found on this product’s
page at www.kleintools.com.
UKCA DECLARATION OF CONFORMITY
Hereby, Klein Tools declares that this product is in compliance
with the relevant statutory requirements. The complete
declaration of conformity can be found on this product’s page
at www.kleintools.com.
TI290-1390506ART.indd 4TI290-1390506ART.indd 4 6/29/2022 5:24:06 PM6/29/2022 5:24:06 PM

5
Dwg Name: TI290-1390506ART
Dwg No: 1390506
ECO No: 44944 Rev: A
Pkg Dwg Ref: 1290186
Finish Coat Requirements: N/A
COMPLIANCE
IC COMPLIANCE
This device contains license-exempt transmitter(s)/receiver(s)
that comply with Innovation, Science and Economic Development
Canada’s license-exempt RSS(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation
of the device.
This device complies with RSS-247 of Industry Canada. Operation
is subject to the condition that this device does not cause harmful
interference. This Class B digital apparatus complies with Canadian
ICES-003.
IC RADIATION EXPOSURE STATEMENT:
The equipment complies with SAR limits set forth for an
uncontrolled environment and meets the RSS-102 of the IC
RF Exposure Rules. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
EU DECLARATION OF CONFORMITY
Hereby, Klein Tools declares that this product is in compliance with
Directive 2014/53/EU and all other applicable EU requirements. The
complete declaration of conformity can be found on this product’s
page at www.kleintools.com.
UKCA DECLARATION OF CONFORMITY
Hereby, Klein Tools declares that this product is in compliance
with the relevant statutory requirements. The complete
declaration of conformity can be found on this product’s page
at www.kleintools.com.
TI290-1390506ART.indd 5TI290-1390506ART.indd 5 6/29/2022 5:24:06 PM6/29/2022 5:24:06 PM
