Klimawent WPA-E-N Series User manual

1
04.06.2019 stand radial fans WPA-E-N
Use and Maintenance Manual

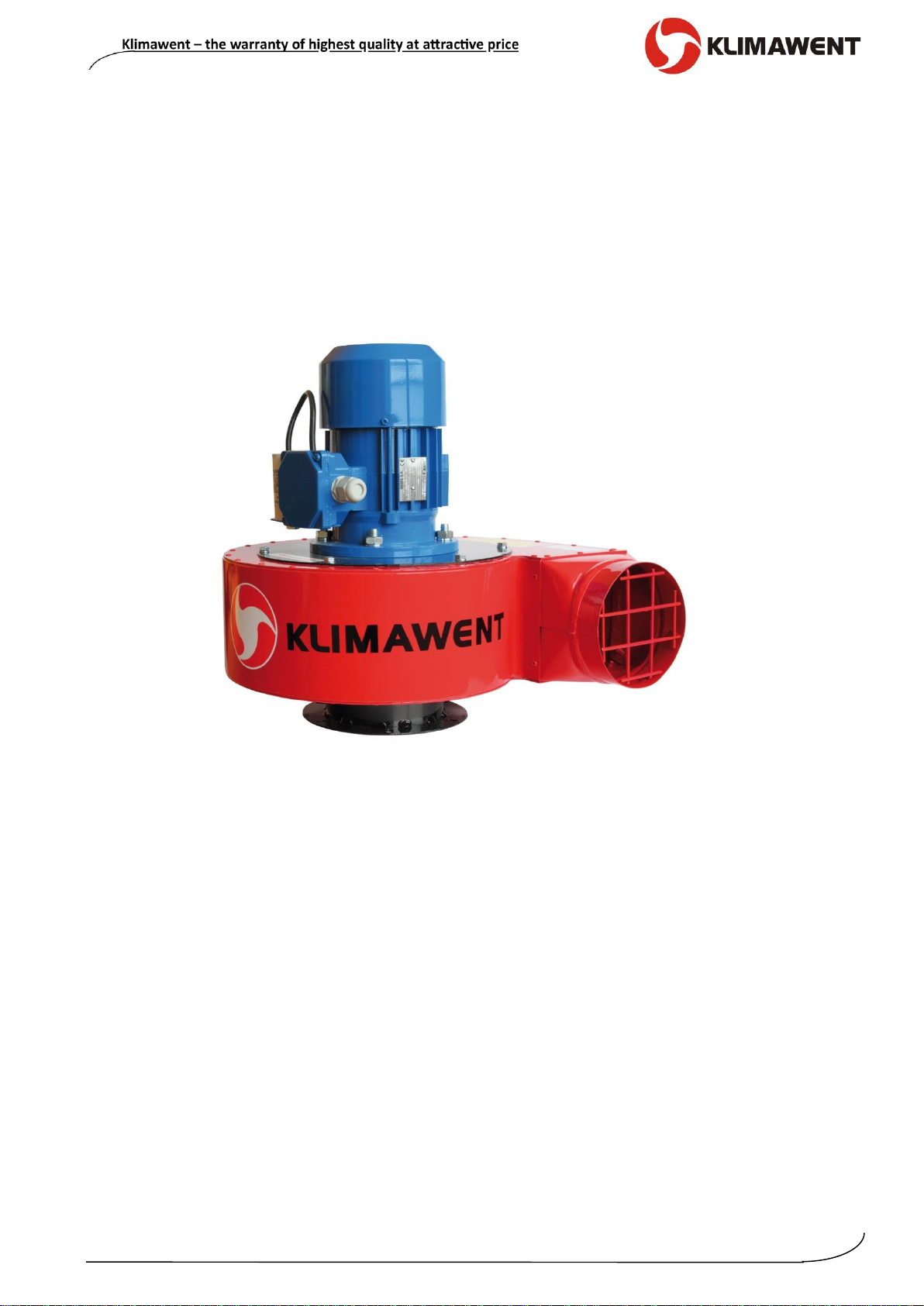

Stand radial fans
WPA-E-N

2
stand radial fans WPA-E-N 04.06.2019
Contents:
1. Introductory Remarks......................................................................... 3
2. Application ......................................................................................... 3
3. Reservations of Producer .................................................................... 4
4. Technical Data.................................................................................... 4
5. Structure and Function....................................................................... 7
6. Assembly and Start-up ........................................................................ 8
7. Operational Use .................................................................................. 9
8. Troubleshooting Guide ........................................................................ 9
9. Maintenance and Control.................................................................... 9
10. Occupational Health and Safety .......................................................... 9
11. Transport and Storage ........................................................................ 10
12. Terms of warranty .............................................................................. 10
13. Sample of Declaration of Conformity .................................................. 11

3
04.06.2019 stand radial fans WPA-E-N
1. Introductory Remarks
The purpose of the present User’s Manual is to supply User with directions within the range of
application, installation, start-up and the operational use of the WPA-E-N stand radial fans.
Installing, start up and operational use are exclusively admissible after getting acquain-
ted with the contents of the Use and Maintenance Manual.
With regard to continuity of work carried on improvement of our products, we reserve for our-
selves the revision possibility of the draft and technological changes improving their functional
features and safety.
The construction of the WPA-E-N stand radial fans meets the requirements of the current state
of technology as well as the safety and health assurances included in:

2006/42/EC Machinery Directive of the European Parliament and of the Council of 17 May,
2006 on machinery –amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of 26 February, 2014
on the harmonisation of the laws of the Member States relating to the making available on the
market of electrical equipment designed for use within certain voltage limits.
/Journal of Laws EC L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council of October 21th,
2009 establishing a framework for the setting of ecodesign requirements for energy-related
products /Journal of Laws L285 of 31.10.2009/

327/2011 (EU) Commission Regulation of March 30th, 2011 on implementing the 2009/125
/EC Directive of the European Parliament and of the Council with regard to ecodesign requi-
rements for fans driven by motors with an electric input power between
125W and 500 kW /Journal of Laws L90 of 06.04.2011/
The device has been constructed and produced on the basis of following harmonized standards:

EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general princi-
ples for design. Risk assessment and risk reduction”.

EN 60204-1:2018-12
–
“Safety of machinery –Electrical equipment of machi-
nes. Part 1: General requirements”.

EN 60034-1:2011
–
“Rotating electrical machines –Part 1: Rating data
and parameters”.

EN ISO 5802:2008/A1:2015-07
–
“Industrial Fans – Performance testing in situ of instal-
ling”

EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent ha-
zard zones being reached by upper and lower limbs”.
2. Application
In general, WPA-E-N fans have been developed for local ventilation. They have to be installed
on wall brackets inside buildings (indoor application). As they can overcome significant flow re-
sistances, they are especially appropriate for application in systems with local exhausts.
Radial stand fans are designed for conveying the air of dustiness not exceeding 0,3 g/m³, without
viscous impurities, without aggressive pollutants or substances creating explosion hazard.

4
stand radial fans WPA-E-N 04.06.2019
3. Reservations of Producer
A.
Manufacturer accepts no liability for any consequences following from the operational use
that is in contradiction to the purpose of application.
B.
It is unacceptable to install on the device structure any additional elements not belonging to
its normal construction or accessory set.
C.
Any structural changes or modification of the device, carried out by User on one’s own are
not permitted.
D.
Protect the housing from mechanical damage.
E.
Prior to installing check the load capacity of the building structure where the device will be
mounted. Unsure mounting could cause risk to personnel / people in vicinity and effect in
damage of the device.
F.
The fan cannot be used for conveying the air contaminated with a mixture of flamma-
ble substances in form of gas, vapour, mist and dust that in connection with the air
create the explosive atmosphere.
G.
Do not use the fan for conveying the air containing viscous impurities that could accumulate
on the device surface, especially on the impeller.
H.
Neither use it for forwarding the air with aggressive pollutants which will destructively effect
the device structure.
I.
During operation, the maximum impeller rotations should not exceed the nominal rotations.
J.
Manufacturer is not responsible for wounds, injuries, body laceration experienced by User or
personnel during the improper operational use.
4. Technical Data
Table No.1
Type of the fan
Synchro-
Supply
Motor
Ingress
Acoustic
Maximum
Maximum
Weight
nous
voltage
rate
protection
pressure level
volume
vacuum
rotations
IP
from distance
flow
1m
5m
[r.p.m]
[V]
[kW]
[dB (A)]
[m³/h]
[Pa]
[kg]
WPA-3-E-1-N
3000
230
0,25
54
78/70*
64/56*
1160
940
12,0
WPA-3-E-3-N
3x400
WPA-5-E-1-N
3000
230
0,37
54
76/67*
62/53*
1900
1250
16,5
WPA-5-E-3-N
3000
3x400
0,37
54
76/67*
62/53*
1900
1250
WPA-6-E-1-N
3000
230
0,75
54
83/75*
69/61*
2500
1700
21,0
WPA-6-E-3-N
3000
3x400
0,75
54
83/75*
69/61*
2500
1700
WPA-7-E-1-N
3000
230
1,1
54
86/74*
72/60*
3100
1800
23,0
WPA-7-E-3-N
3000
3x400
1,1
54
86/74*
72/60*
3100
1800
WPA-8-E-3-N
3000
3x400
1,5
54
88/78*
74/64*
3900
2050
29,0
WPA-9-E-3-N
3000
3x400
2,2
54
91/82*
77/68*
4500
2400
36,0
WPA-10-E-3-N
3000
3x400
3,0
54
91/81*
77/67*
6200
2450
50,0
WPA-11-E-3-N
3000
3x400
5,5
54
97/88*
83/74*
8050
2950
64,0
WPA-13-E-3-N
3000
3x400
7,5
54
99/90*
85/76*
10800
3300
85,0
*
Measurement has been carried out –with the additional TK L=500 mm silencer installed at the fan at the inlet
and outlet. (For the fan WPA-3-E-N apply a silencer TK L=370 mm)
1.
Maximum temperature of the conveyed air is +60ºC. Maximum temperature in the work area +40ºC.
2.
Maximum dustiness of the conveyed air must not exceed 0,3 g/m³.

5
04.06.2019 stand radial fans WPA-E-N

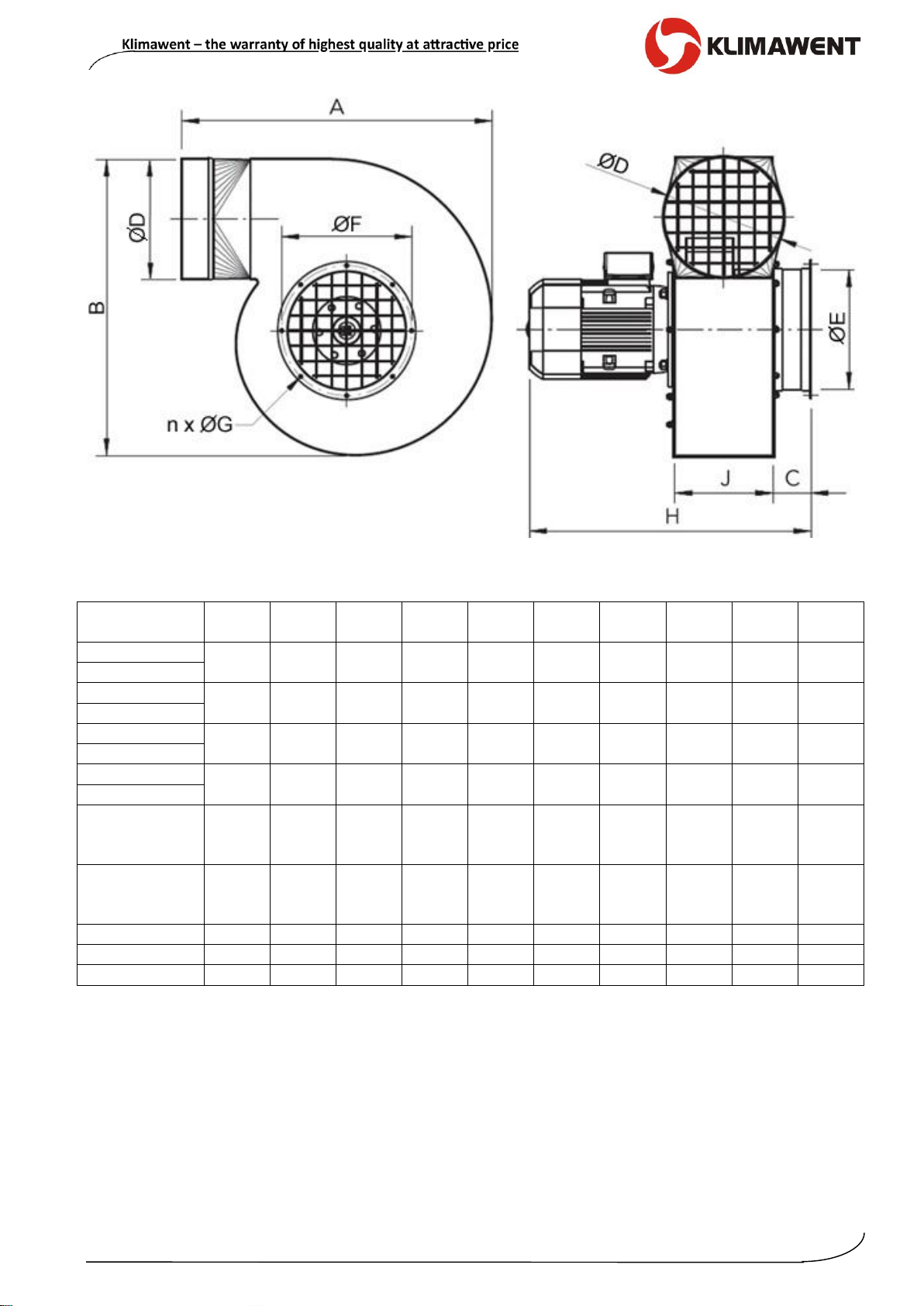

Fig. No.1 –Stand radial fans of series WPA-E-N –Structure and Dimensions
Table No.2 –Dimensions
Type
A
B
C
D
E
F
n
G
H
J
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[szt.]
[mm]
[mm]
[mm]
WPA-3-E-1-N
415
385
50
125
125
155
6
7,0
370
130
WPA-3-E-3-N
WPA-5-E-1-N
485
480
60
160
160
194
6
7,0
420
140
WPA-5-E-3-N
WPA-6-E-1-N
500
505
60
160
160
194
6
7,0
445
140
WPA-6-E-3-N
WPA-7-E-1-N
550
520
60
200
160
194
6
7,0
460
155
WPA-7-E-3-N
WPA-8-E-3-N
570
550
60
200
200
224
234
246
8
6
8
9,0
7,0
9,0
490
155
WPA-9-E-3-N
615
615
60
200
200
224
234
246
8
6
8
9,0
7,0
9,0
510
155
WPA-10-E-3-N
655
625
80
250
250
274
8
9,0
670
232
WPA-11-E-3-N
675
645
80
250
250
274
8
9,0
680
232
WPA-13-E-3-N
805
780
90
315
315
344
8
9,0
735
258

6
stand radial fans WPA-E-N 04.06.2019
Fig. No.2 –Flow Charts

7
04.06.2019 stand radial fans WPA-E-N
4.1
Information pertaining to energetic efficiency for fans
–according to Regulation of Committee (EU) No. 327/2011
Table No.3
Product information
requirements
WPA-
3-1
WPA-
3-3
WPA-
5-1
WPA-
5-3
WPA-
6-1
WPA-
6-3
WPA-
7-1
WPA-
7-3
WPA-
8-3
WPA-
9-3
WPA-
10-3
WPA-
11-3
WPA-
13-3
1
Overall efficiency (%)
51
50
67,6
70
54,1
61,1
65,1
65,6
62,2
67
66,1
67,1
65,3
2
Measurement category
(A-D)
C
3
Efficiency category
static
4
Efficiency grade at opti-
mum energy efficiency
point (%)
43,9
44,5
47,9
48,1
50,6
48,7
50,5
51,4
52,2
53,3
55,9
56,9
59,4
5
Did the efficiency
calculation use VSD?
no
6
Year of manufacture
see nominal data plate
7a
Manufacturer’s name
see nominal data plate
7b
Commercial registration
number
see nominal data plate
7c
Place of manufacturing
see nominal data plate
8
Model number
see nominal data plate
9a
Rated motor power input
(kW)
0,25
0,25
0,37
0,37
0,75
0,75
1,1
1,1
1,5
2,2
3,0
5,5
7,5
9b
Flow rate at the optimum
Energy efficiency
(m3/h)
700
600
1430
1180
1580
1250
2000
1870
2030
2230
3750
4250
6800
9c
Pressure at the optimum
Energy efficiency (Pa)
620
770
970
1000
1270
1360
1400
1400
1595
2000
1700
2376
2440
10
Rotations per minute at
the optimum efficiency
point (r.p.m.)
2760
2800
2770
2790
2800
2870
2770
2870
2880
2880
2880
2900
2930
11
Specific ratio
1,007
12
Fan disassembly,
recycling and disposal at
the end of operational life
see the sections concerning the maintenance and recycling
13
To minimalize the
environmental impact and
ensure the optimal live
expectancy of the fan
follow maintenance instructions of the fan
14
Description of additional
items applied for
determining the energe-
tic efficiency of the fan
not supplied with the fan
5. Structure and Function
The fan consists of a spiral steel housing and a motor with directly mounted (on its shaft) radial
aluminium impeller. Its impeller with profiled blades provides low acoustic pressure level. The
fan Inlet is equipped with a mounting flange to install the fan on a wall bracket or on a filtering
unit. Whereas, the fan outlet is ended with a round connection fitting piece, for a safe attach-
ment of the rigid seam spiral ducts or for flexible connections. For safety reasons, both, the fan
inlet and outlet are equipped with protective grills. It is recommended to install silencers type
TK on the inlet and outlet (see acoustic data in Table No.1).
ADDITIONAL EQUIPMENT –delivery on separate order:
●
motor protective switches WS –with short-circuit- and overload protection,
●
isolating switches (safety switches),
●
wall brackets,
●
silencers.

8
stand radial fans WPA-E-N 04.06.2019
6. Assembly and Start-up
The appliance has been developed for use in industrial rooms. Manufacturer suggests instal-
ling the fan on a wall bracket (delivery on separate order).
Prior to connection, make sure whether the parameters of the hitherto existing electri-
cal installation are matching the values on the nominal plate. In case of inconsistence
the connection cannot be executed.
Any activities related to connection to the power supply line has to be carried out by User on
one’s own. Additionally, important is to select the appropriate sort and section of the power
supply cable, according to the regulations, and selecting the short-circuit- and overload pro-
tection, with reference to the local conditions.
Any activities related to connection to the power supply system ought
to be executed by an authorized person with electrical qualifications and according to
the being in force regulations and to the information in Fig. No.3.
Fig. No.3 –Connection Diagram –WPA-E-N
Before the start-up check the connection between the motor and the PE protection cable and
the correctness of the electrical connections (impeller rotation sense has to be according
to the arrow on the housing –if opposite –change the phase connection sequence).

9
04.06.2019 stand radial fans WPA-E-N
7. Operational Use
Construction of the device provides reliable function, directly after its start-up without conti-
nuous technical supervision. If the place of operational use is changed –repeat the steps as
mentioned in Section 6, according to the installing and adapting the ventilation system to the
to the new conditions.
In case when any failure or defective function of the device is visually or by noise noticed, take
steps as stated in the Section 8.
8. Troubleshooting Guide
Table No.4
Problem
Possible reason
Corrective action
1.
Sudden and significant
Pollutants, foreign objects (being
Remove the pollutants;
drop in intake volume flow.
obstacle / barrier do the air flow)
clean the ventilation conduits.
have deposited at the inlet grill.
2.
Sudden vibrations of the fan
Obstacle objects reducing the
Disconnect the fan from the
are occurring.
air flow got stack at the impeller.
power supply system, and
remove the obstacle.
The impeller is defective.
Replace the impeller with motor
for a new one.
3.
Noisy work of the fan
Incorrect impeller rotation sense.
Change the impeller rotation
along with small volume flow.
sense by changing the phase
connection sequence
(three-phase fans only).
9. Maintenance and Control
During the operational use,the fan construction guarantees its efficient function without conti-
nuous everyday technical supervision. Nevertheless, in the course of operational use, remem-
ber to undertake systematic maintenance steps.
Once a year the fan should undergo technical revision –the electrical motor ought to be exa-
mined according to the instructions of the motor manufacturer.
Every several years, check the mechanical and electrical connections. The electrical installa-
tion must be examined according to the PN-HD 60364-6 “Electrical installations of low voltage
–Part 6: Verification”.
If faulty function of the system is noticed, undertake additional control. The inlet grills must be
kept in clean state.
Any maintenance activities ought to be executed exclusively by an autho-
rized person with adequate qualifications, and after disconnection from the power sup-
ply system.
10. Occupational Health and Safety
Start up and the operational use is only admissible exclusively after getting acquainted
with the contents of the present manual. The fan will not cause any hazard to User/person-
nel, if it is stably installed to the supporting structure or fastened within the ventilation system.
Connect the fan to the power supply system, strictly according to the enclosed Connection Dia-
gram and the guidelines shown in Section 6 of the present Use and Maintenance Manual.

10
stand radial fans WPA-E-N 04.06.2019
Any activities connected with energizing ought to be executed exclusive-
ly by an authorized person with adequate qualifications and in accordance with the valid
safety regulations.
The motor ought to be protected from the short-circuit- and overload effects. During the opera-
tional use, check the connection between the fan and the PE protective cable.
Any technical revisions and activities connected with repair, have to be
executed, necessarily after disconnection from the power supply system (isolating switch).
11. Transport and Storage
WPA-3-E, WPA-5-E, WPA-6-E, WPA-7-E, WPA-8-E and WPA-9-E are placed in cardboard
(weight is written on the cardboard surface), whereas large fans WPA-10-E, WPA-11-E and
WPA-13-E are wrapped in foil and placed on palettes.
Silencers and elbows should be forwarded in separate cardboard packages.
During the loading, re-loading and transport the package should not be thrown neither knocked
down or charged with a load on the top. Do not place one package on top of another and during
the transport protect the device from atmospheric factors and from damage, indents.
The device ought to be stored in dry and well ventilated rooms.
12. Terms of warranty
The period of warranty for the purchased device is indicated in the “Card of Warranty”. The war-
ranty does not comprise:
●
mechanical damage and dysfunctions caused by User,
●
device failures caused during use which was in contradiction with the purpose of the opera-
tional use and the present Use and Maintenance Manual,
●
damages / malfunctions being caused during improper transport, storage or incorrect main-
tenance,
Infringement of the Section 3 “Reservations of Producer” of the Use and Maintenance Ma-
nual and especially modifications undertaken by User on one’s own shall cause the loss
of warranty validity.
