Klimawent WET-5000 User manual

1
08.11.2019 wet filtering unit WET-5000
Use and Maintenance Manual
Wet Filtering Unit
WET-5000
Manufacturer:
KLIMAWENT S.A.
81-571 Gdynia;ul. Chwaszczyńska 194
phone [phone]
phone [phone]
e-mail: [e-mail]
www.klimawent.com.pl
804U11
WET-5000
08.11.2019/EN
Contents:
1. Introductory Remarks.......................................................................................................2
2. Application.........................................................................................................................2
3. Reservations of Producer.................................................................................................2
4. Technical Data...................................................................................................................3
5. Structure and Function.....................................................................................................3
6. Operational Use.................................................................................................................4
7. Operational Use.................................................................................................................5
8. Troubleshooting Guide.....................................................................................................10
9. Maintenance ......................................................................................................................10
10. Occupational Health and Safety.......................................................................................11
11. Transport and Storage......................................................................................................11
12. Terms of warranty.............................................................................................................11
13. Sample of the Declaration of Conformity ........................................................................12

2
wet filtering unit WET-5000 08.11.2019
1. Introductory Remarks
The purpose of the present Use and Maintenance Manual is to supply User with directions wi-
thin the range of application, installation, start-up and the use of the WET-5000 wet filtering
unit.
Installing, start up and operational use are exclusively admissible after getting acquaint-
ted with the contents of the Use and Maintenance Manual.
With regard to continuity of work carried on improvement of our products, we reserve for oursel-
ves the revision possibility of the draft and technological changes improving their functional fea-
tures and safety.
Construction of the WET-5000wet filtering unit meets the requirements of the current state of tech-
nology as well as the safety and health assurances included in:

2006/42/EC Machinery Directive of the European Parliament and of the Council of May 17th,
2006 on machinery –amending the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of 26 February, 2014
on the harmonisation of the laws of the Member States relating to the making available on the
market of electrical equipment designed for use within certain voltage limits. /Journal of Laws
EC L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council of October 21th,
2009 establishing a framework for the setting of ecodesign requirements for energy-related
products / Journal of Laws L 285 of 31.10.2009 /
327/2011 (EU) Regulation of March 30th, 2011 on implementing the 2009/125/EC Directive
of the European Parliament and of the Council with regard to ecodesign requirements for fans
driven by motors with an electric input power between 125W and 500 kW
/ Journal of Laws L No. 90 of 06.04.2011 /
Additionally, the appliance meets following harmonized standard:
●
EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general principles
for design. Risk assessment and risk reduction”
●
EN 60204-1:2018-12
–
“Safety of machinery –Electrical equipment of machines
Part 1: General requirements”
●
EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent hazard
zones being reached by upper and lower limbs”
●
EN ISO 12499:2008
“Industrial fans – Mechanical safety of fans; Protections”
●
EN ISO 13349:2010
“Fans – Vocabulary and definitions of categories”
●
EN 61439-1:2011
“Low-voltage switchgear and controlgear assemblies”
Part 1: General resolutions”
●
EN 61439-2:2011
“Low-voltage switchgear and controlgear assemblies”
Part 2: Power switchgear and controlgear assemblies
for conversion and distribution of electric energy”
2. Application
WET-5000 filtering units have been engineered for cleaning the dust-laden air from the impuri-
ties a during the manufacturing processes. It is irreplaceable in extraction of dry dust particles,
as well as wet, viscous dusts. Additionally, the appliance is appropriate for capturing the dust
with large amounts of sparks, arising during various production processes, such as grinding
or in chemical industry, pharmaceutics and food industry.
The appliance should be used in rooms where the temperature is higher than +5ºC, whereby
the temperature of the cleaned air must not be lower than +5ºC.
3. Reservations of Producer
Manufacturer is not responsible for damages that are caused by subsequent below
mentioned reasons:

Operational use that is in contradiction with the instructions, or the installing of the device is
incorrect.

3
08.11.2019 wet filtering unit WET-5000

The device is incorrectly connected to the electrical power supply or to the water installation.

Use that is in incompatibility with the present Use and Maintenance Manual or with the being
valid regulations.

Installing on the device structure additional elements not belonging to the device composition.

Changes or modifications introduced within the device by User on one’s own, or use of spare
parts that are not original.

The principles of maintenance and technical supervision are not observed, according to the
present Use and Maintenance Manual.

Conveying the air containing viscous contamination, aggressive substances or of temperature
lower than +5ºC or higher than +40ºC.
4. Technical Data
Table No.1
Type
Maximum
volume flow
Fan motor
rate
Supply
voltage
Capacity of
the water
chamber
Optimum of flow
resistance
Weight
[m³/h]
[kW]
[V/50Hz]
[m3]
[Pa]
[kg]
WET-5000
6000
11
3x400+PE
1,1
1800-2000
1400
Necessarily connect the WET-5000 filtering unit to the water installation and drainage of sludge.
Make the connection to the water supply system through a manual and electromagnetic valve by
means of a pipe of diameter minimum 1”.
Connection to the sludge discharge –a pipe minimum 3”.
5. Structure and Function
WET-5000 consists of subsequent elements:
●
mixing chamber –there are installed guide plates to create whirls of the dust-water mixture
●
hopper –to collect the waste after the filtration; in the lowest point (in the bottom) is loca-
ted a release of diameter 3”
●
fan chamber with a fan –brand MZ Aspiratori Spa, model GF500/2, type 5, fig.D, serial No.
G15014879
●
system to control the water level and water re-fill state (in the mixing chamber)
●
catcher section
●
control switchgear
Fig. No.1 –Wet filtering unit WET-5000 –Structure

4
wet filtering unit WET-5000 08.11.2019
Key
1 dripping device
2mixing chamber
3 fan chamber
4inlet for the contaminated air
5 water supply, water level control container
6clean air outlet
7revision glass
8sludge discharge
5.2 Function
WET-5000 filtering unit works in the mode of a wet filtration, within the vacuum part of the in-
stallation, i.e. at the suction side of the fan. The polluted air, while passing through the set
of guide plates immersed in the water (so called backfall), is getting mixed with the water,
creating an aerated “dust-water” mixture.
The particles that are captured in the dust separator, create sludge with the water. The slu-
dge accumulates in the hopper and collects the waste.
It is important to empty the sludge through a drainage valve. When the air passes the back-
fall, it gets additionally cleaned from the rest of water particles, in the outdropping device.
The water level is controlled by a minimum level probe and maximum level probe.
Subsequently, the water decrease (which evaporated from the system) is re-filled through
the water supply electromagnetic valve –as a water supply control element.
Fig. No. 2 –WET-5000 wet filtering unit –Function
6. Operational Use
Before the appliance is placed on the floor, prepare the foundation adapted to the weight of
the device filled up with water. It must be placed stably on the floor, as the device vibrations
(during the function) should be foreseen.
Because of large dimensions, the device is delivered in two assemblies: the lower element
is the collecting hopper along with the supporting structure; the upper part consisting of a
mixing chamber and a fan chamber.
At the beginning, put the lower part on the foundation. Important is levelling of this assembly
and screwing up its legs to the floor. The levelling is important for the correct function of the
whole filtering unit.
Before assembling of the two parts, put the sealing on the lower flange (when the sealing is
not glued up by manufacturer).
During the assembling of the upper part, handle with care, as the sealing and the flanges are
fragile and would get damaged. Having matched and assembled together the mounting holes,
crew up tightly the external flanges (using the contact washers to attach the grounding cables
of both parts). Finally, carry out the grounding of the whole device, and examine the correct-
ness of the grounding connections (between the screwed together parts), subsequently check
the grounding of the whole device itself.

5
08.11.2019 wet filtering unit WET-5000
Make connection to the water supply system, through a manual- and electromagnetic valve,
through a pipe of minimum 1” diameter. Additionally, the sludge discharge must be carried out
by a pipe of minimum 3” diameter. During the installing, pay attention that the pipes would not
charge the device. Before the start-up of the fan, the device must be filled up with water up to
the level of overflow, i.e. to the lower line of the water backfall (see Fig. No. 2).
This level shall be indicated by the maximum level probe. The minimum and maximum levels
should be adjusted in such way, that the flow resistances is in the range 1800 and 2000 Pa.
During the first filling up with water, examine if the device is correctly levelled and the water
level is even with the water backfall line.

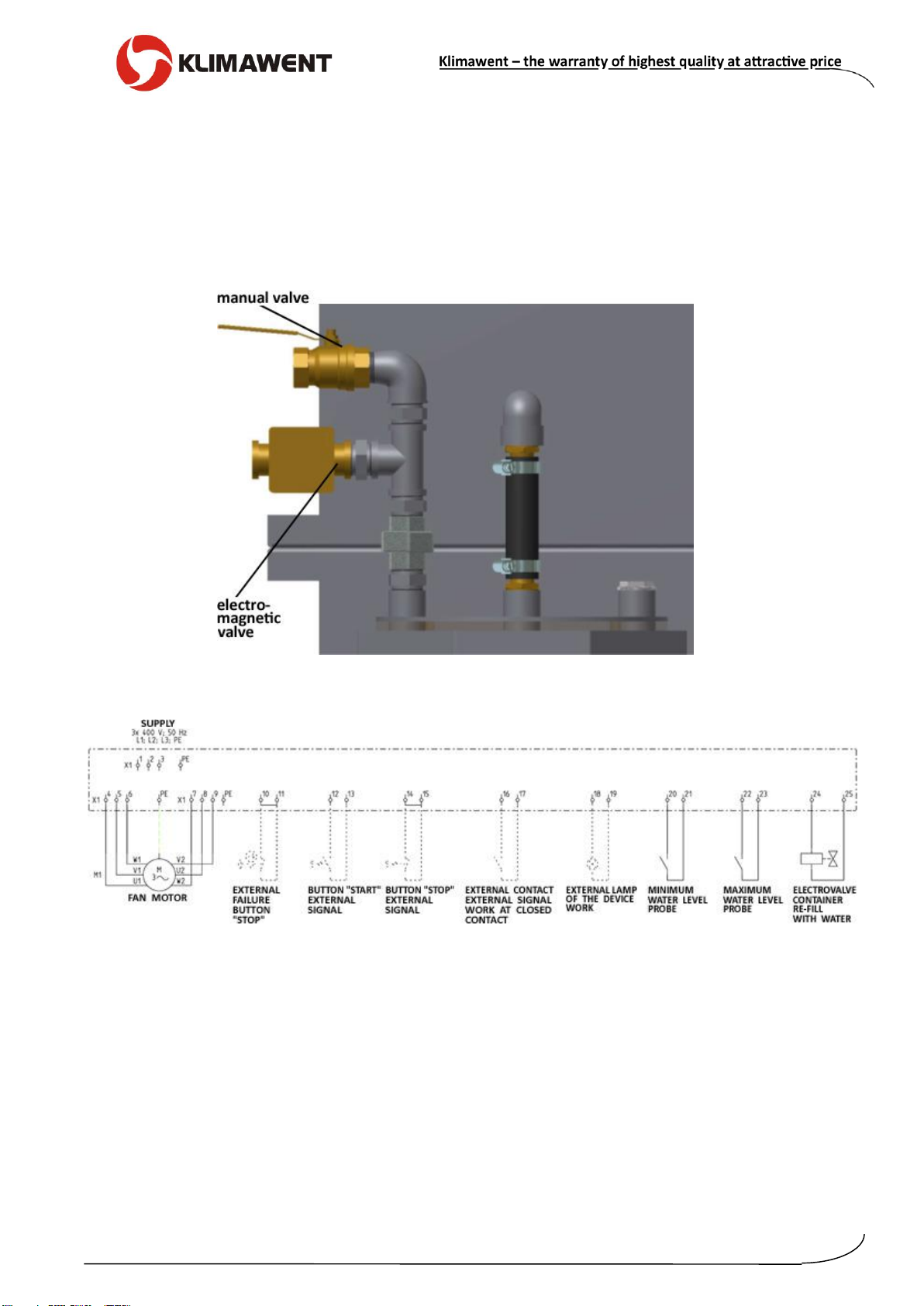

Fig. No.3 –Connection to the water supply
Before the start-up of the fan, close tightly the cover of the container for controlling the water
level. Otherwise it is difficult to maintain the correct water level.
Fig. No.4 –Flow chart of the electrical connections
7. Operational Use
Designations
QS1
–supply application
HL1
–supply
HL2
–thermal relay
HL7
–high difference of pressures
HL4
–maximum water level
HL5
–filling up with water
SA1
–manual / remote
SH2
–fan start / stop
HL6
–low differences of pressures
HL3
–minimum water level
SH1
–failure stop.

6
wet filtering unit WET-5000 08.11.2019

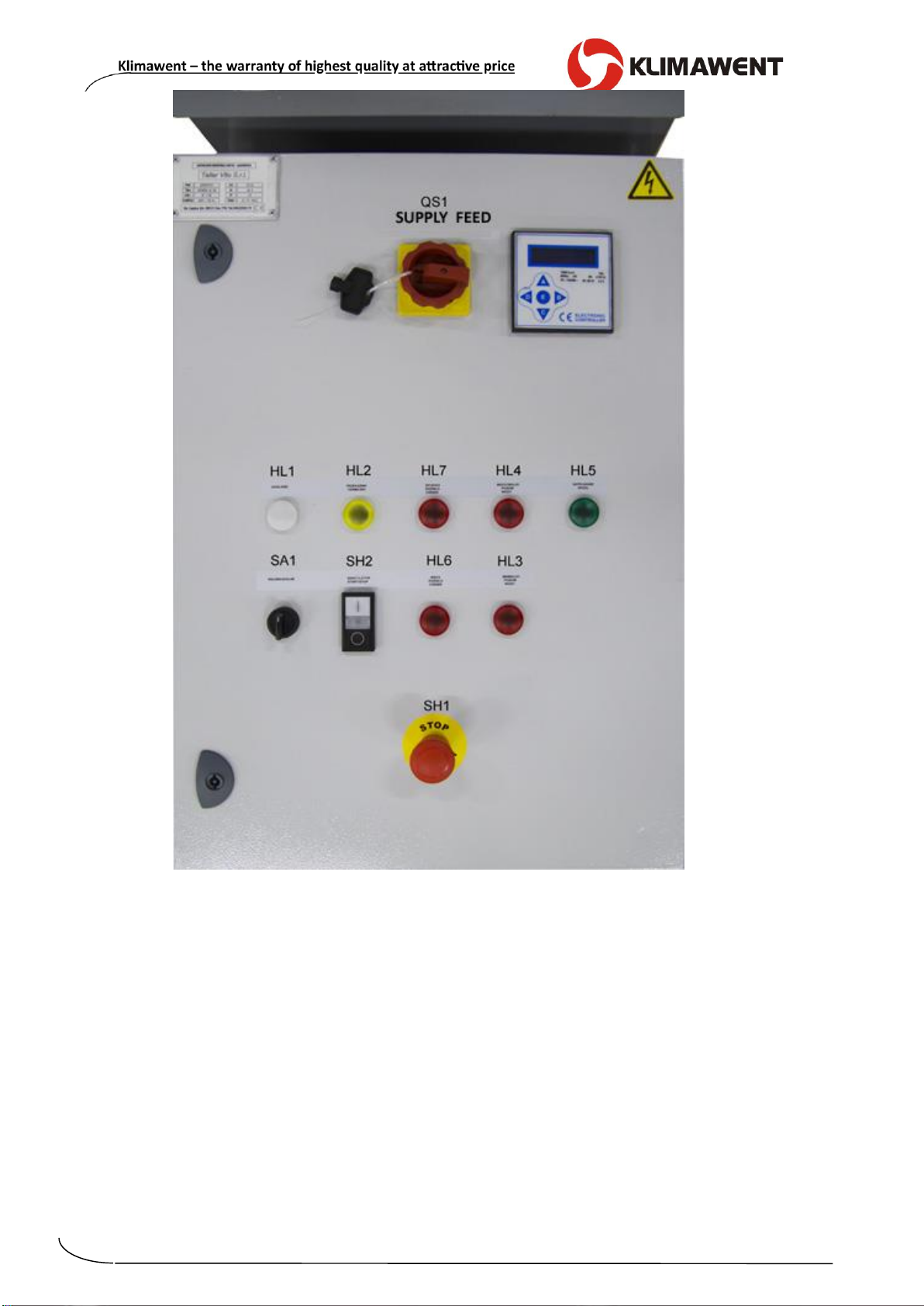

Fig. No.5 –Switchgear
7.1 Description of function
To start up the device, make sure if the safety disconnector is unlocked, the main disconnector
QS1 set into position ON. After the voltage is applied (through the main disconnector), the
white HL1 lamp goes on. The red lamp HL3 –means minimum level, HL4 –maximum level –
both indicate the current level of the water.
When the water level is below the minimum level, the device cannot be started. In this case
the electro-valve gets opened and the device will be filled up with water, until it reaches
the maximum level. The state of the opened electro-valve is indicated by a green lamp HL5.
During the time when the device is automatically refilled with water, it cannot be switched on.
When the water reaches the maximum level, the electro-valve closes.
Prior to starting the device, select the control mode by switch SA1:
M –manual –the system is controlled form the switchgear or from the terminals on the terminal
strip X1 or
A –automatic.
Having selected the manual mode –to start the device press the SH2 button “START”,
or –to the terminals 12-13 fasten the mono-stable pushbutton with the terminal NO and

7
08.11.2019 wet filtering unit WET-5000
subsequently, press the button.
The fan will have a soft start-up through “delta-star” mode. At the moment, when it is
switched into “star” –the white lamp SH2 (built in the button) will go on, indicating the “RUN”
state of the fan.
It is possible to observe the signalling beyond the switchgear –in this case, to the terminals
18-19 must be connected a lamp supplied with 110VAC.
To stop the device, press the button SH2 “STOP” –or, when (in the circuit) there is plugged-
in a mono-stable button with a terminal NC, this must be pressed.
The device with an adjusted time delay 10s will switch off after 10 seconds. After the device
is disconnected, the automation checks the water level and fills it automatically up, when
necessary.
Automatic mode –first plug in the terminal NO (of the external device) to the terminals 16-17.
The external device will appoint the work mode of the appliance. This terminal must be
closed, so the device can operate. When the terminals get opened –the device switches off,
after time delay 10 seconds.

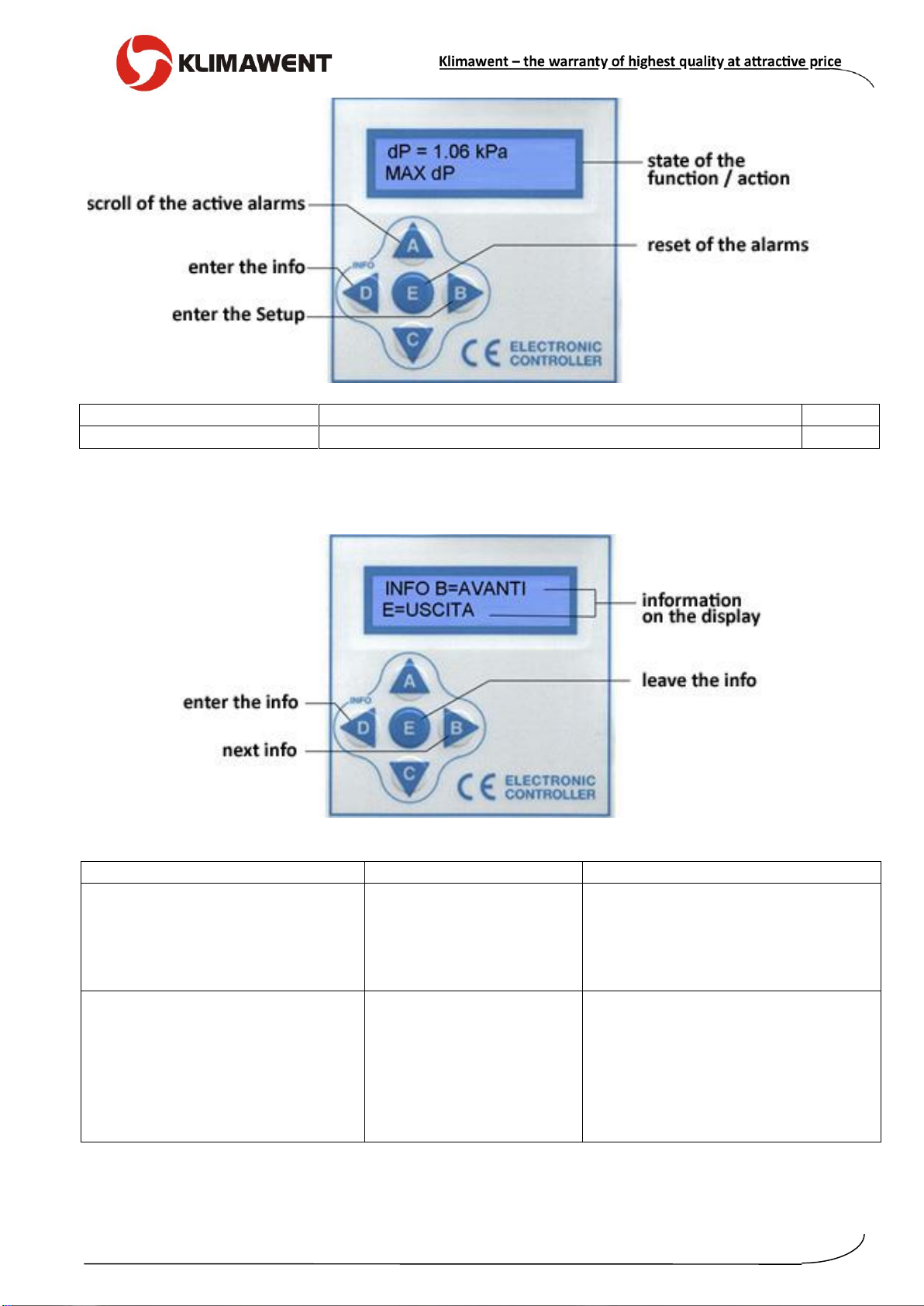

In the switchgear, there is installed a digital pressure control (pressostat).

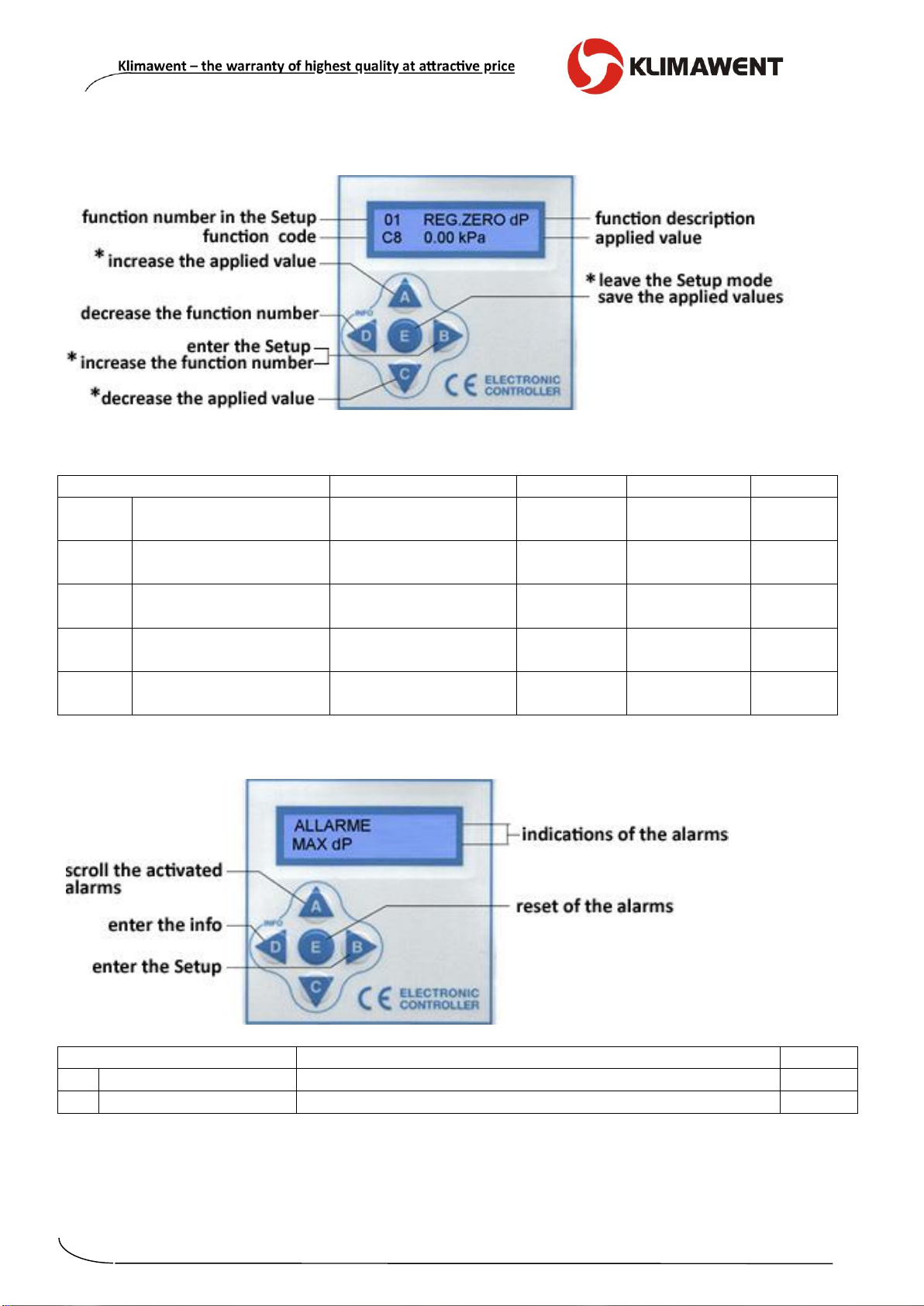

7.2 Description of the parameters on the display
A1a
Alarms of the minimum and maximum pressure dP on the relays K1 and K2.
Relay K1 means the alarm of minimum dP, relay K2 alarm of the maximum dP.
C3
Readout of the pressure difference –pressure difference converter (maximum 10k Pa).
C7c1
Alarm of the minimum vacuum dP. The terminal is closed in the alarm state, the
resetting proceeds automatically. While observing the dP readout as a value below the
threshold adjusted in the Setup, User activates the alarm of minimum dP.
The display indicates the state of alarm as a code E8 (see the description of alarms),
the alarm is being reset automatically, when the displayed dP value exceed above the
threshold.
C7d1
The alarm of maximum dP. The terminal is opened during the state of alarm, reset
proceeds automatically. While observing the dP readout as a value above the
threshold adjusted in the Setup, User activates the alarm of maximum dP.
The display indicates the state of alarm as a code E7 (see the description of alarms),
the alarm is being reset automatically, when the displayed dP value decreases below
the threshold.
C8
Readout of the zero value dP (reference value), this can be corrected with buttons
Aand C.
C13_10
The scale of the dP background 10.00 Pa = 100.0 mbar = 1012 mmH2O.
Maximum value of the differential pressure, (measured at the device), is 10.00 kPa =
100.0 mbar = 1012 mmH2O. In case of other indications and of 10 kPa –the display
will show “E” instead of the numeric value dP.
C11a
Signal 420 mA in the readout of dP output (proportionally to the vacuum value)
–terminals 10-11. 4 mA = value dP amounts 0.00 kPa, 20 mA = value dP –takes
the value with reference to the background of the requested scale .
D14c
Counter of the work hours. In the Setup can be displayed the hours counter of the
device work. The counting proceeds all the time when the device is working
and stops automatically.
SL
The display is multi-language. In the Setup User can choose the language of
descriptions appearing on the display: Italian, French, German, Spanish.

8
wet filtering unit WET-5000 08.11.2019
7.3 Introduction of the functional parameters
When, after 5 minutes User do not press any button, the device will leave the Setup mode,
passing into a normal function.
*This function is active only after entering the Setup mode (button B)
Descriptions of the screens:
Setup / Display
Description
Range
Code
Default
00
SL
select the language
Italian
select the language
on the display
SL
10
C8
set zero dP
0.00 kPa
setting the zero
for the dP
C8
0.00
02
C7c1
alarm minimum dP
OFF kPa
alarm threshold
–minimum dP
0.019.99
C7c1
OFF
03
C7d1
alarm maximum dP
3.00 kPa
alarm threshold
–maximum dP
0.019.99
C7d1
3.00
04
D14a
counter of work hours
000000 hours
counts the hours
of the device work
0+6535
D14c
7.4 Indications of the display in the state of alarm
Setup / Display
Description
Code
E7
alarm of maximum dP
activated alarm of maximum dP supremely SET 03
C7d
E8
alarm of minimum dP
activated alarm of minimum dP subordinately SET 02
C7c
7.5 Indications of the display during the RUN of the device
While switching on the device, the indications appear on the display and the pressostat
control too.

9
08.11.2019 wet filtering unit WET-5000
Display
Description
Code
dP = 1.06 kPa
accurate differential indications (dP = xxx)
C3
7.6 Information and guide on the display
When after 5 minutes User do not press any button, the device passes into the state of “info”
taking normal function.
7.7 Solving the problems with the display
Failure
Possible reason
Solution
The display is not switching on.
The fuse is burnt out.
Lack of supply.
Check the fuse in the power supply
module.
Examine whether the device is
under power supply –according to
the requirements for the device.
The displayed value of the
pressures difference is incorrect.
The pneumatic
connections are clogged.
The connections (hoses)
are damaged.
Check, if (after the connection of
the cables (+/-) the displayed value
matches the zero setting
(reference value),
if this is not the case, check
whether the hoses are not clogged
(stuffed) and their state.
During the operational use, the water level should be maintained in such level, that
the air flow resistances (through the device) are in the range of 1800 and 2000 Pa.
The readout of the differential manometer is in the switchgear.

10
wet filtering unit WET-5000 08.11.2019
8. Troubleshooting Guide
Problem
Possible reason
Corrective action
1.
High water level
The drainage pipe of the
Unclog the passage/flow.
level control container is clogged.
The passage (under the hopper)
Unclog the passage.
through the drainage valve
valve is clogged.
The valve (of the manual water
Close the valve.
re-fill) is closed incorrectly.
The electro-magnetic valve
Correct the failure or replace
is functioning incorrectly.
the electro-valve into a new
The hatch is sealed incorrectly.
Tighten up the hatch.
The out-flow of the drainage
Unclog the drainage pipe.
is clogged.
2.
Decreased cleaning
The guide plates (in the mixing
Replace the guide plates.
chamber) are corroded or worn
out.
The drainage valve (in the
Close the drainage valve.
overflow container or under the
hopper) is open.
Insufficient water outflow.
Remove the reason/cause.
The water (within the device)
Refill the water.
is evaporating at the high ambient
temperature.
3.
There is some water
The water passed through
Remove the water from the fan.
in the fan
during the assembly/installing
activity or during the device rest.
The dripping out is mounted
Check and install it correctly.
incorrectly.
Too high air flow through the
Check the vacuum in the mixing
device.
chamber and reduce the flow.
9. Maintenance
9.1 Container of the water level control
Once a week, (when the device is disconnected) open the hatch in the water level control
container. Check whether the container, the level probe and the discharge are not polluted –
eventually clean them when necessary. Clean the viewer and close it tightly.
In the first months of operational use, repeat those steps every week and subsequently
arrange reasonable checks in adequate intervals.
9.2 Drainage valve
Check the drainage valve and clean it –after each cleaning of the device.
The way of cleaning should be suitable to the sort of pollution (existing in the cleaned air),
normally cleaning with water is sufficient.
9.3 WET-5000 Wet Filtering Unit
After one month of the device function –let out the water, if necessary, clean it with water,
and check all the surfaces of the mixing chamber, of the hopper and the guide plates.
The next checks and cleaning ought to be arranged, depending on the intensity
of operational use of the device and on the sort of contamination in the air.
9.4 Fan GF500/2, Type 5, Fig. D, serial No. G15014879, Producer MZ Aspiratori Spa
Follow the steps as in the Use and Maintenance Manual of the manufacturer.
9.5 Spare parts
Periodically, replace the elements of the guide plates in the mixing chamber.
Depending on the wear out, arrange the order of the element at the manufacturer.

11
08.11.2019 wet filtering unit WET-5000
10. Occupational Health and Safety

Assembly, start-up and maintenance of the filtering unit is admitted exclusively after
getting acquainted with the contents of the present Use and Maintenance Manual.

For safety reason, the device has to be connected to the power supply in accordance
with the being in force regulations within the range personal protection from electrical
shock.

Connection to the power system can be carried out exclusively by a person of adequa-
te electrical qualifications.

Any activities connected with repair and technical revisions, as well as troubleshooting
can be carried out after the device is switched off and disconnected from the power
supply.

The fan, as a rotary machine, constitute a potential source of hazard, therefore its
installing, start-up and servicing should be executed by qualified personnel.
11. Transport and Storage
The WET-5000 wet filtering unit is transported in two assemblies, protected with foil and pla-
ced on pallets. For the transport time, the assemblies should be placed vertically (upright)
and protected from overturn and displacement / slide.
As the device is a thin-wall construction, handle with care while the subsequent assemblies
are lifted during the transport, unloading and assembly. The device ought to be stored in dry
and well ventilated rooms.
12. Terms of warranty
The period of warranty for the purchased device is indicated in the “Card of Warranty”. The
warranty does not comprise:
●
mechanical damage and malfunctions caused by User,
●
device failures caused during the use which is in contradiction with the purpose of appli-
cation and with the present Use and Maintenance Manual,
●
malfunctions resulting from the improper transport, storage or incorrect maintenance.
Infringement of the Section 3 “Reservations of Producer” of the present Use and Maintenance
Manual and,especially modifications undertaken by User on one’s own or use in contradiction
with the purpose of application –shall result in the loss of warranty validity.

12
wet filtering unit WET-5000 08.11.2019
13. Sample of the Declaration of Conformity
Declaration of conformity EC No. ……………..
Manufacturer (eventually the authorized representative / importer):
name: KLIMAWENT S.A.
address: 81-571 Gdynia, Chwaszczyńska 194
A person, authorized for issuing the technical documentation: Teodor Świrbutowicz, KLIMAWENT S.A.
hereby declares that the appliance:
name: wet filtering unit
type/model: WET-5000
serial number: …………………………….. year of production: ………………………..
meets the requirements of the subsequent European Directives:

2006/42/EC Machinery Directive of the European Parliament and of the Council of May 17th, 2006 on machinery –amen-
ding the 95/16/EC (recast) /Journal of Laws EC L157 of 09.06.2006, page 24/

2014/35/EC Directive of the European Parliament and of the Council of 26 February, 2014 on the harmonisa-
tion of the laws of the Member States relating to the making available on the market of electrical equipment de-
signed for use within certain voltage limits. /Journal of Laws EC L96 of 29.03.2014/
The appliance meets the requirements included in:

2009/125/EC (ErP) Directive of the European Parliament and of the Council of October 21th, 2009 establishing
a framework for the setting of ecodesign requirements for energy-related products
/ Journal of Laws L 285 of 31.10.2009 /

327/2011 (EU) Guideline of March 30th, 2011 on implementing the 2009/125/EC Directive of the European Par-
liament and of the Council with regard to ecodesign requirements for fans driven by motors with an electric in-
put power between 125W and 500 kW /Journal of Laws L No. 90 of 06.04.2011/
The appliance meets following harmonized standard:
●
EN ISO-12100:2012
–
“Safety of machinery –Basic concepts, general principles
for design. Risk assessment and risk reduction”
●
EN 60204-1:2018-12
–
“Safety of machinery –Electrical equipment of machines
Part 1: General requirements”
●
EN ISO 13857:2010
–
“Safety of machinery –Safe distances to prevent hazard
zones being reached by upper and lower limbs”
●
EN ISO 12499:2008
“Industrial fans – Mechanical safety of fans; Protections”
●
EN ISO 13349:2010
“Fans – Vocabulary and definitions of categories”
●
EN 61439-1:2011
“Low-voltage switchgear and controlgear assemblies”
Part 1: General resolutions”
●
EN 61439-2:2011
“Low-voltage switchgear and controlgear assemblies”
Part 2: Power switchgear and controlgear assemblies
for conversion and distribution of electric energy”
……………………………
……………………………
……………………………
place, date
signature of authorised person
name, surname, function
of the signatory
KLIMAWENT S.A.
District Court Gdańsk-Północ
NIP: 958 159 21 35
Supported Employment Enterprise
in Gdańsk, VII Wydział Gospodarczy
REGON: 220631262
81-571 Gdynia, ul. Chwaszczyńska 194
of the National Register of Court
Bank Account: Santander Bank Polska S.A.
phone: [phone]
KRS 0000308902 company stock
56 1500 1025 1210 2007 8845 0000
email: [e-mail]
13.779.200 zł paid in total
www.klimawent.com.pl
