Portavo® 902 PH
Kurzübersicht....................21
Instructions succinctes..39
Início rápido ......................57
Quickstart guide.................3
Guida rapida......................75
Inicio rápido ......................93

TA-209.2PH-KNX03 20170920 Softwareversion: 1.x
093228
2017 Änderungen vorbehalten
Version: 1.0
Diese Betriebsanleitung wurde zuletzt aktualisiert am 20.9.2017
©
Aktuelle Betriebsanleitungen nden Sie zum Herunterladen auf der
Webseite unter dem entsprechenden Produkt.
Knick
Elektronische Messgeräte GmbH & Co. KG
Beuckestraße 22
14163 Berlin
Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: www.knick.de

3
Basics
Warranty
Defects occurring within 3 years from delivery date shall be remedied free of charge
at our plant (carriage and insurance paid by sender).
Sensors and accessories: 1 year
Subject to change
Return of products under warranty
Please contact our Service Team before returning a defective device.
Ship the cleaned device to the address you have been given.
If the device has been in contact with process uids, it must be decontaminated/
disinfected before shipment. In that case, please attach a corresponding certicate,
for the health and safety of our service personnel.
Registered trademarks
The following names are registered trademarks. For practical reasons they are shown
without trademark symbol in this manual.
•
•
•
•
•
•
Disposal
Please observe the applicable local or national regulations concerning
the disposal of“waste electrical and electronic equipment”.

4Start-Up
Inserting the Batteries
With four AA batteries, the Portavo has an
operating time of over 1000h.
Open the battery compartment on the
rear of the device. Be sure to observe the
correct polarity when inserting the batter-
ies (see markings in the battery chamber).
Close the battery compartment cover and
screw it handtight.
Check the shipment for transport damage and completeness (see Package
Contents).
Caution!
Do not operate the device when one of the following conditions
applies:
• the device shows visible damage
• the device fails to perform the intended function
• prolonged storage at temperatures above 70 °C
• severe transport stresses
In this case, a professional routine test must be performed.
This test should be carried out by the manufacturer.
A battery icon in the display indicates the battery power level:
Icon fully lled Batteries at full capacity
Icon partially lled Battery capacity is sucient
Icon empty Battery capacity not sucient;
calibration is possible
Icon blinks Max. 10 operating hours remaining,
measurement is still possible
Caution! It is absolutely necessary to replace
the batteries.

5
Start-Up
Connecting a Sensor
The Portavo 902 PH provides several connections so that many types of sensors
can be used for measurement. Note that only one sensor may be connected to the
meter at a time. The meter automatically recognizes a connected Memosens sensor
and switches accordingly. Memosens is signaled in the display.
Separate temperature probe
After power-on, a separate temperature probe is automatically recognized.
When you want to replace the temperature probe, you must switch o the meter
and then switch it on again.
a b c d Connections
a - M8, 4 pins for Memosens sensors
b - Temperature probe GND
c - Temperature probe
d - pH socket (DIN 19 262)
Caution!
Always make sure that a sensor is connected to the meter before
starting measurement.
Explanation: The analog pH input of the Portavo is an electrometer
amplier with an extremely high-impedance. When the sensor is not
in contact with the medium or not connected to the meter, electric
charges on the input can generate arbitrary, stable pH or mV values
which will be shown in the display.
Memosens sensors have a cable coupling, which allows convenient replacement
of sensors while the cable remains connected to the meter. The connecting cable is
connected to socket a(M8, 4 pins for Memosens sensors).

6
Switching On the Meter
When you have connected the sensor, you can switch the meter on
by pressing the on/o or meas key.
When the meter is switched on with the on/o key, rst a self test is
performed and then the calibration data and settings are displayed
before the meter switches to measuring mode.
When the meter is switched on with the meas key, it immediately
switches to measuring mode.
Depending on the connected sensor and the specic measuring
task, several steps for conguration and calibration must be
performed as described on the following pages.
Start-Up
Icons
Important information about the state of the device:
Error message
Battery
charging level
Sensor
condition
Memosens sensor
Temperature
detection
(sensor,
separate or
manual)
Date
Process
variable
Time

7
Start-Up

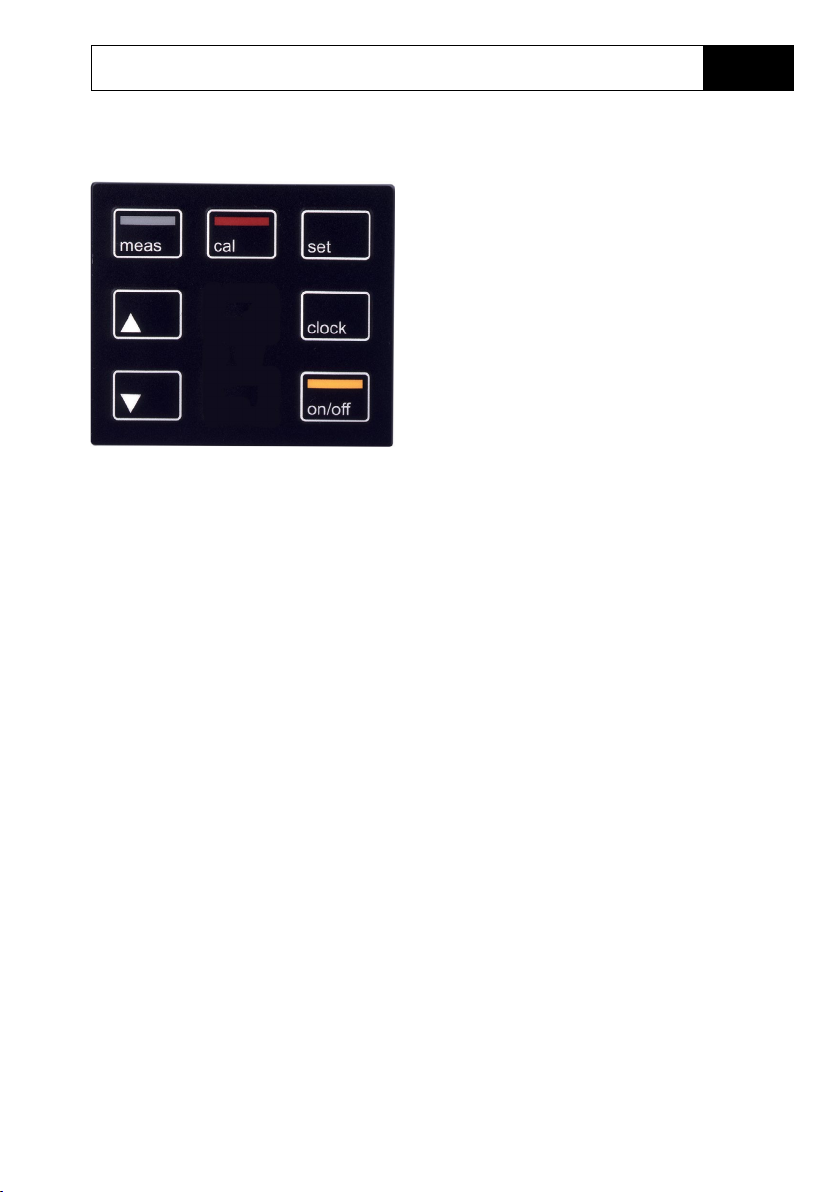

Keypad
The keys of the membrane keypad have a
noticeable pressure point.
They have the following functions:
on/o Switches the meter on and
displays the device and
calibration data
(see Start-Up)
meas Switches the meter on /
Activates measuring mode
cal Starts calibration
set Activates conguration/
Conrms entries
clock Displays time and date, allows
setting the clock using set
▲
▼
When this icon is displayed,
you can use the arrow keys
for navigation.

8
pH Conguration
Prior to measurement, a conguration should be performed to match
the connected sensor and the desired measurement performance.
Furthermore, you can select the suitable calibration method.
The following table gives you an overview. Factory settings are
shown in bold print.
Measurement
“Setup” display
set
Select using arrow keys, conrm by pressing set.
Display 1 pH x.xx / pH x.xxx / mV / (°C for analog pH only)
Display 2 OFF / date + time / date / time
CAL Timer OFF / 1 ... 99 days
CAL CALIMATIC/Manual/DATA INPUT/(ISFET-Zero)/FREE CAL
CAL POINTS 1 / 2 / 3 / 1-2-3 (for CALIMATIC, Manual, FREE CAL)
BUFFER SET
(CALIMATIC,
FREE CAL)
-01- Mettler Toledo 2.00/4.01/7.00/9.21
-02- Knick CaliMat 2.00/4.00/7.00/9.00/12.00
-03- Ciba (94) 2.06/4.00/7.00/10.00
-04- NIST technical 1.68/4.00/7.00/10.01/12.46
-05- NIST standard 1.679/4.006/6.865/9.180
-06- HACH 4.01/7.00/10.01/12.00
-07- WTW techn. buers 2.00/4.01/7.00/10.00
-08- Hamilton 2.00/4.01/7.00/10.01/12.00
-09- Reagecon 2.00/4.00/7.00/9.00/12.00
-10- DIN 19267 1.09/4.65/6.79/9.23/12.75
Auto OFF OFF/ 0.1h / 1h / 6h / 12h
Temp Unit °C / °F
Time Format 24h / 12h
Date Format dd.mm.yy / mm.dd.yy
Default NO / YES (reset to factory settings)
This icon prompts you to select a menu item using the arrow keys –
the selection is conrmed by pressing set.
Conguring

9
Calibrating
Measurement
Calibration method, the number of calibration points and
the buer set have been selected in the conguration
menu.
Dip sensor in 1st/2nd/3rd buer solution.
It does not matter which buer solution is taken rst.
pH, mV value,
temperature
Depending on the number of calibration points, the
procedure described for CAL 1/2/3 is repeated.
mV value blinks until calibration is completed, then successive display of:
Then the meter switches to measuring mode.
CALIMATIC Calibration
(Calibration with automatic buer recognition)
The calibration method is selected in the conguration menu.
Calibration is required to adjust the sensor to the meter. It is indis-
pensable for achieving comparable and reproducible measurement
results.
Note: To abort calibration, you can press meas at any time. This will be conrmed
by the display message“CAL ABORTED”. Exception: When you have selected“CAL
POINTS 1-2-3”and the rst calibration step has been completed, the calibration
process cannot be stopped any more.

10 Calibrating
Measurement
Use ▲▼ to select the value for the zero point.
Use ▲▼ to select the value for the slope.
The calibration data will be displayed successively:
Date and time
Then the meter switches to measuring mode.
DATA INPUT Calibration
(Calibration by entering known sensor values)
The calibration method is selected in the conguration menu.
Note: To abort calibration, you can press meas at any time.

11
Calibrating
Measurement
The number of calibration points has been
selected in the conguration menu.
pH display blinks Use ▲▼ to set the temperature-corrected pH
value taken from the buer table.
mV display blinks
Depending on the number of calibration points,
the procedure described above for CAL 1/2/3 is
repeated.
mV value blinks until calibration is completed, then successive display of:
Then the meter switches to measuring mode.

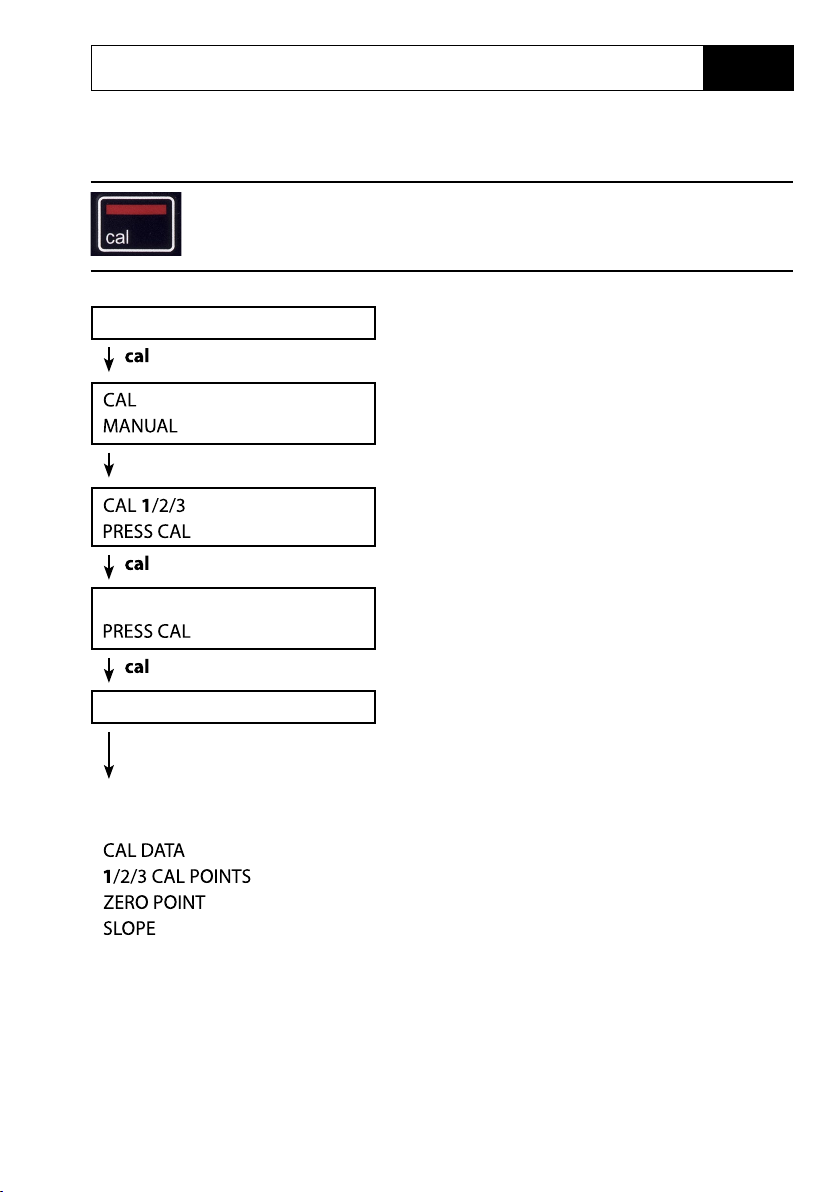

MANUAL Calibration
(Manual calibration)
The calibration method is selected in the conguration menu.
Note: To abort calibration, you can press meas at any time. This will be conrmed
by the display message“CAL ABORTED”. Exception: When you have selected“CAL
POINTS 1-2-3”and the rst calibration step has been completed, the calibration
process cannot be stopped any more.

12 Calibrating
Measurement
CAL
CALIMATIC blinks
Use ▲▼ to select the required calibration
method (CALIMATIC, DATA INPUT or
MANUAL).
Perform the selected calibration (see CALIMATIC, DATA INPUT or MANUAL
calibration).
FREE CAL Calibration
(Free selection of calibration method)
FREE CAL calibration is selected in the conguration menu.

13
Error Codes and Device Messages
Error messages are indicated as “ERROR …” on the display. Information on the sensor
condition is indicated by the“Sensoface” icon (friendly, neutral, sad) possibly accom-
panied by an info message (“INFO …”).
Sensoface (the“smiley”icon) provides
information on the sensor condition (main-
tenance request). Measurement can still be
performed. After a calibration, the corre-
sponding Sensoface icon (friendly, neutral,
sad) is shown together with the calibration
data. Otherwise, Sensoface is only visible in
measuring mode.
The most important error messages and
“Sensoface” info messages are shown on the
inside of the protective cover.
A complete list of messages and their mean-
ings is provided in the following tables.
Example of a“Sensoface”message:
INFO 1 (cal timer expired)
Example of an error message:
ERROR 8 (identical calibration media)

14 Error Codes and Device Messages
“Sensoface” Messages
The“Sensoface” icon provides information on the sensor condition:
Sensoface Meaning
Sensor is okay
Calibrate the sensor soon
Calibrate or replace the sensor
The“neutral” and “sad”Sensoface icons are accompanied by an“INFO …”message
to give a hint to the cause of deterioration.
Sensoface Message Cause
INFO 1 Calibration timer
INFO 3 Sensocheck
INFO 5 Zero / Slope
INFO 6 Response time
INFO 7 ISFET: Operating point (asymmetry potential)
INFO 8 ISFET: Leakage current
INFO 9 ORP oset

15
Error Codes and Device Messages
Error Messages
The following error messages can be shown in the display.
blinks
Battery empty Replace batteries
ERROR 1 pH value out of range Check whether the measurement
conditions correspond to the adjusted
measuring range.
ERROR 2 ORP value out of range
ERROR 3 Temperature value out of
range
ERROR 4 Sensor zero point
too high/low
Thoroughly rinse the sensor and re-
calibrate. If this does not help, replace
the sensor.
ERROR 5 Sensor slope too high/low
ERROR 8 Calibration error:
Identical buers
Use a buer solution with a dierent
nominal value before starting the next
calibration step.
ERROR 9 Calibration error:
Buer unknown
Make sure that you use the same
buer set as congured.
ERROR 10 Cal media interchanged Repeat calibration.
ERROR 11 Measured value unstable
Drift too high
Leave the sensor in the liquid until the
temperature is stable. If this does not
help, replace the sensor.
ERROR 14 Time and date invalid Set time and date
ERROR 18 Conguration invalid
Restart,reset to factory settings
(Setup: DEFAULT YES), congure and
calibrate.
If this does not help, send in the
device for repair.
ERROR 19 Factory settings error Device defective, send it in.
ERROR 21 Sensor error (Memosens) Connect operational Memosens
sensor.

16
pH/mV input pH socket, DIN 19 262 (13/4 mm)
pH range -2 … 16
Decimal places *)2 or 3
Input resistance 1 x 1012 Ω (0 … 35 °C)
Input current 1 x 10-12 A (at RT, doubles every 10 K)
Measuring cycle Approx. 1 s
Measurement error1,2,3) < 0.01 pH, TC < 0.001 pH/K
mV range -1300 … +1300 mV
Measuring cycle Approx. 1 s
Measurement error1,2,3) < 0.1 % meas. val. + 0.3 mV, TC < 0.03 mV/K
Temperature input 2 x 4 mm dia. for integrated or separate temperature detector
Measuring ranges NTC30 temp detector -20 … +120 °C
Pt1000 temp detector -40 … +250 °C
Measuring cycle Approx. 1 s
Measurement error1,2,3) < 0.2 K (Tamb = 23 °C); TC < 25 ppm/K
Specications
*) User-defined
1) According to EN 60746-1,
at nominal operating conditions
2) ± 1 count
3) Plus sensor error
4) Ranges depending on Memosens sensor
Memosens pH input M8 socket, 4 pins, for Memosens lab cable
Display ranges 4) pH -2.00 … +16.00
mV -2000 … +2000 mV
Temperature -50 … +250 °C
Memosens pH input
ISFET
M8 socket, 4 pins, for Memosens lab cable
Display ranges 4) pH -2.00 … +16.00
mV -2000 … +2000 mV
Temperature -50 … +250 °C
Memosens ORP input M8 socket, 4 pins, for Memosens lab cable
Display ranges 4) mV -2000 … +2000 mV
Temperature -50 … +250 °C
Sensor standardization *) ORP calibration (zero adjustment)
Permissible calibration range ΔmV (offset) -700 … +700 mV

17
Specications
Sensor standardization *) pH calibration
Operating modes *)CALIMATIC Calibration with automatic buffer recognition
MANUAL Manual calibration with entry of individual
buffer values
DATA INPUT Data entry of zero and slope
Calimatic buffer sets *)-01- Mettler-Toledo 2.00/4.01/7.00/9.21
-02- Knick CaliMat 2.00/4.00/7.00/9.00/12.00
-03- Ciba (94) 2.06/4.00/7.00/10.00
-04- NIST technical 1.68/4.00/7.00/10.01/12.46
-05- NIST standard 1.679/4.006/6.865/9.180
-06- HACH 4.01/7.00/10.01 /12.00
-07- WTW techn. buffers 2.00/4.01/7.00/10.00
-08- Hamilton 2.00/4.01/7.00/10.01/12.00
-09- Reagecon 2.00/4.00/7.00/9.00/12.00
-10- DIN 19267 1.09/4.65/6.79/9.23/12.75
Permissible calibration range Zero point pH 6 … 8
With ISFET:
Operating point
(asymmetry)
-750 … +750 mV
Slope approx. 74 … 104 %
(possibly restricting notes from Sensoface)
Calibration timer *) Interval 1 … 99 days, can be switched off
Sensoface Provides information on the sensor condition
Evaluation of zero/slope, response, calibration interval
*) User-defined

18 Specications
Connections 1 x pH socket, DIN 19 262
2 x 4-mm socket for separate temperature detector
1 x M8 socket, 4 pins, for Memosens lab cable
Display LCD STN 7-segment display with 3 lines and icons
Sensoface Status indication (friendly, neutral, sad)
Status indicators Battery power level
Notices Hourglass
Keypad [on/off], [cal], [meas], [set], [▲], [▼], [clock]
Diagnostics functions
Sensor data
(Memosens only)
Manufacturer, sensor type, serial number, operating time
Calibration data Calibration date, zero, slope
Device self-test Automatic memory test (FLASH, EEPROM, RAM)
Device data Device type, software version, hardware version
Data retention Parameters, calibration data > 10 years
EMC EN 61326-1 (General Requirements)
Emitted interference Class B (residential area)
Immunity to interference Industry
EN 61326-2-3
(Particular Requirements for Transmitters)
RoHS conformity According to directive 2011/65/EC
Power supply
Portavo 902 4 x AA alkaline batteries
Operating time Approx. 1000 h (alkaline)
Nominal operating
conditions
Ambient temperature -10 … +55 °C
Transport/
Storage temperature
-25 … +70 °C
Relative humidity 0 … 95 %, short-term condensing allowed
Housing
Material PA12 GF30 (silver gray RAL 7001) + TPE (black)
Protection IP 66/67 with pressure compensation
Dimensions Approx. (132 x 156 x 30) mm
Weight Approx. 500 g

19
Index
A
AA batteries 4
Analog pH input 5
Arrow keys 7
Automatic calibration (Calimatic) 9
B
Battery capacity 4
Battery charge indicator 4
Battery compartment 4
Battery icon 4
Battery replacement 4
Buttons 7
C
Calibration (pH), Calimatic 9
Calibration (pH), data input 10
Calibration (pH), manual 11
Calibration (pH), method selected in measuring
mode 12
Calimatic automatic calibration 9
cal key 7
Charge level of batteries 4
clock key 7
Conguration (pH) 8
Connecting a sensor 5
Connecting cable for Memosens 5
Connections 5
Control elements 7
D
Data input (pH calibration) 10
Data of the meter 16
Device conguration 8
Device messages 13
Display icons 6
Disposal 3
E
ERROR (error codes) 15
Error messages 13
Error messages, overview 15
F
FREE CAL 12
I
Icons in display 6
INFO messages 14
Inserting the batteries 4
K
Keypad 7
M
Manual calibration 11
meas key 7
Memosens connecting cable 5
Menu structure of conguration 8
Messages 13
O
on/o key 7
Overview of conguration 8
Overview of error messages 15
P
Parameter settings (conguration) 8
pH conguration 8
pH input, analog 5
pH socket, DIN 19 262 5
Ports 5
Power-on 6
R
Registered trademarks 3
Replacing the batteries 4
Return of products under warranty 3
S
Sensoface messages 14
Sensor connection 5
set key 7
Setting the conguration data 8
Setup (conguration) 8
Specications 16
Start-up 4
Switching on the meter 6
Symbols in the display 6

20 Index
T
Table of error messages 15
Table view of conguration 8
Technical data 16
Trademarks 3
Triangle icons 7
W
Warranty 3
