Kobold HND-PS19 PS33 Series User manual

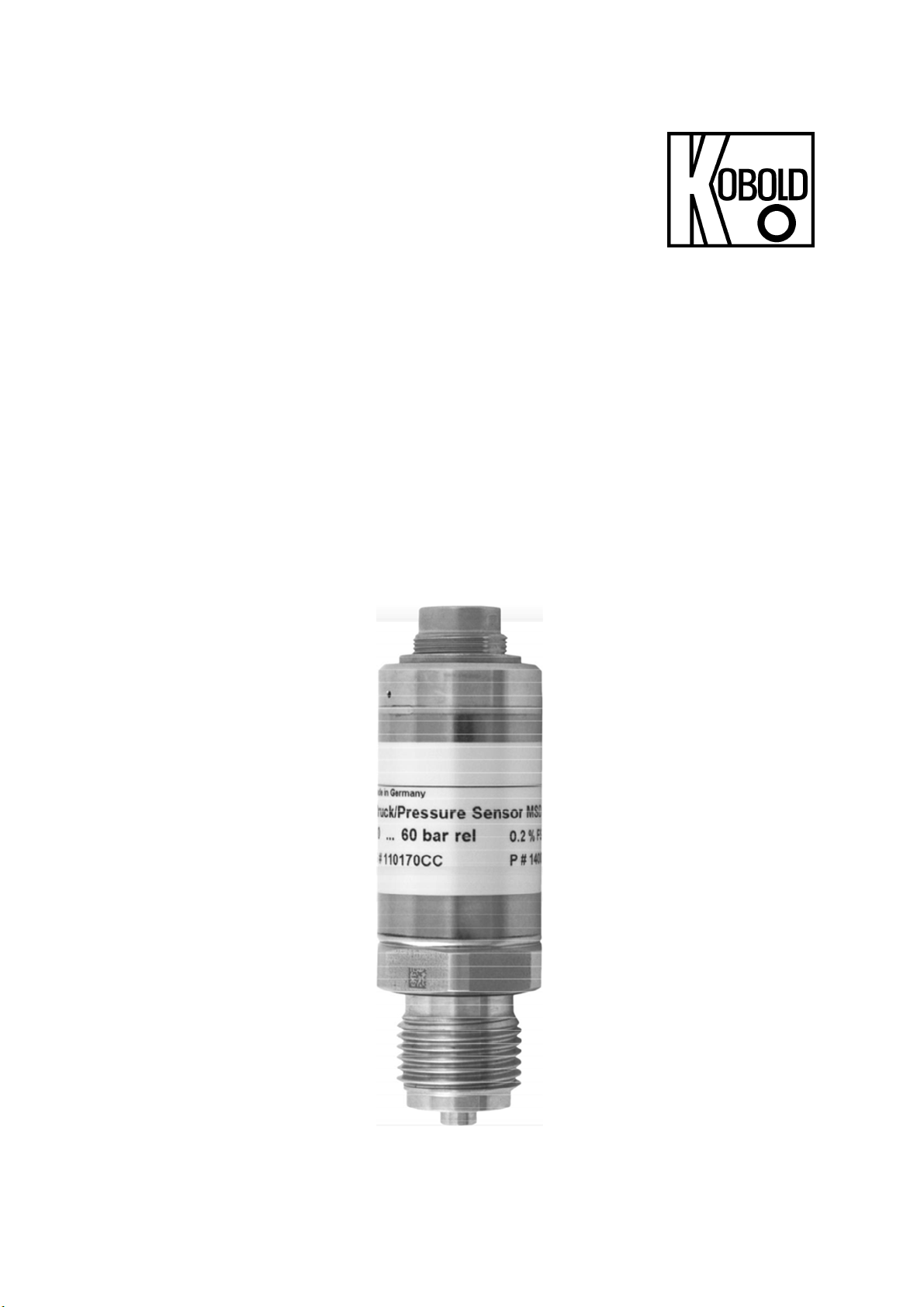

Digital Pressure Sensors
Model HND-PS19…PS33, HND-PA20…PA23
for
HND-P105, HND-P210, HND-P215

HND-PS-PA
page 2 HND-PS-PA K04/0323
We don’t accept warranty and liability claims neither upon this publication nor in
case of improper treatment of the described products.
The document may contain technical inaccuracies and typographical errors. The
content will be revised on a regular basis. These changes will be implemented in
later versions. The described products can be improved and changed at any time
without prior notice.
© Copyright
All rights reserved.
1. Contents
1.Contents ........................................................................................................ 2
2.Note .............................................................................................................. 3
3.Instrument Inspection .................................................................................... 3
4.Regulation Use ............................................................................................. 4
5.Operating and Maintenance Advice .............................................................. 4
6.General Safety requirements ........................................................................ 6
7.Technical Information .................................................................................... 7
8.Order Codes ................................................................................................. 7
9.Dimensions ................................................................................................... 7
10.Disposal ........................................................................................................ 8
11.EU Declaration of Conformance ................................................................... 9
Manufactured and sold by:
Kobold Messring GmbH
Nordring 22-24
D-65719 Hofheim
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Internet: www.kobold.com

HND-PS-PA
HND-PS-PA K04/0323 page 3
2. Note
Please read these operating instructions before unpacking and putting the unit into
operation. Follow the instructions precisely as described herein.
The instruction manuals on our website www.kobold.com are always for currently
manufactured version of our products. Due to technical changes, the instruction
manuals available online may not always correspond to the product version you
have purchased. If you need an instruction manual that corresponds to the
purchased product version, you can request it from us free of charge by email
([email protected]) in PDF format, specifying the relevant invoice number and
serial number. If you wish, the operating instructions can also be sent to you by
post in paper form against an applicable postage fee.
Operating instructions, data sheet, approvals and further information via the QR
code on the device or via www.kobold.com
The devices are only to be used, maintained and serviced by persons familiar with
these operating instructions and in accordance with local regulations applying to
Health & Safety and prevention of accidents.
When used in machines, the measuring unit should be used only when the
machines fulfil the EC machinery directive.
3. Instrument Inspection
Instruments are inspected before shipping and sent out in perfect condition.
Should damage to a device be visible, we recommend a thorough inspection of the
delivery packaging. In case of damage, please inform your parcel service /
forwarding agent immediately, since they are responsible for damages during
transit.
Scope of delivery:
The standard delivery includes:
 Digital Pressure Sensors model: HND-PS/PA

HND-PS-PA
page 4 HND-PS-PA K04/0323
4. Regulation Use
Any use of the device, which exceeds the manufacturer’s specification, may
invalidate its warranty. Therefore, any resulting damage is not the responsibility of
the manufacturer. The user assumes all risk for such usage.
The pressure sensors are designed for the connection to a hand-held instrument
of the following types: HND-P105, HND-P210, HND-P215 The sensors have
following application areas:
 Air, aggressive gases
 Water, aggressive media, etc.
5. Operating and Maintenance Advice
a) You must only use the sensor with suitable devices! Usage of other devices may
result in destruction of sensor and device.
b) Treat sensor and device carefully. Use only in accordance with above
specification (do not throw, hit against, etc.). Protect plug from soiling.
c) To disconnect pressure sensor adapter cable from the device do not pull at the
cable but at the plug (to open lock). When connecting the sensor make sure that
arrows are pointing upwards and that plug is entered into device socket
centrally. Do not twist plug when entering socket. If plug is entered correctly, it
will slide in smoothly. If plug is twisted or entered incorrectly the connection pins
of the plug can be spoilt by bending or broken => Plug can no longer be used
and connecting cable needs to be replaced.
d) HND-PS… = relative pressure sensor.
Caution: The pressure compensation hole has to be kept clean! It is placed at
the back part of the housing. Do not cover with stickers or similar things!

HND-PS-PA
HND-PS-PA K04/0323 page 5
e) Instructions for mounting:
 When mounting the instrument, ensure that the sealing
faces of the instrument and the measuring point are clean
and undamaged.
 Screw in or unscrew the instrument only via the flats using a
suitable tool (fixed spanner, wrench size 27 mm) and the
prescribed torque. The appropriate torque depends on the
dimension of the pressure connection and on the sealing
element used (form / material). A maximum torque of 50 Nm
must not be exceeded. Do not use the case as working
surface for screwing in or unscrewing the instrument.
 When screwing the transmitter in, ensure that the threads
are not jammed.
 As described in the installation example the sealing must be
made at the face surface of the pressure connection.

HND-PS-PA
page 6 HND-PS-PA K04/0323
6. General Safety requirements
This device has been designed and tested in accordance with the safety
regulations for electronic devices. However, its trouble-free operation and reliability
cannot be guaranteed unless the standard safety measures and special safety
advices given in this manual will be adhered to when using the device.
1. Trouble-free operation and reliability of the device can only be guaranteed of the
device is not subjected to any other climatic conditions than those stated under
“specification”.
2. If the device is transported from a cold to a warm environment condensation my
result in a failure of the device. In such a case make sure the device temperature
has adjusted to the ambient temperature before trying a new start-up.
3. If there is a risk whatsoever involved running it, the device has to be switched
off immediately and to be marked accordingly to avoid restarting.
Operator safety my be at risk if:
 There is visible damage to the device.
 The device is not working as specified.
 The device has been stored under unsuitable conditions for a longer time.
In case of doubt, please return the device to manufacturer for repair or
maintenance.
4. Warning: Do not use this product as safety or emergency stop device or in any
other application where failure of the product could result in personal injury or
material damage. Failure to comply with there instructions could result in death
or serious injury and material damage.
5. Any changes or repair of the device is not allowed. Please return the
device to the manufacturer for repair or maintenance.


HND-PS-PA
HND-PS-PA K04/0323 page 7
7. Technical Information
Operating instructions, data sheet, approvals and further information via the QR
code on the device or via www.kobold.com
8. Order Codes
Operating instructions, data sheet, approvals and further information via the QR
code on the device or via www.kobold.com
9. Dimensions
Operating instructions, data sheet, approvals and further information via the QR
code on the device or via www.kobold.com

HND-PS-PA
page 8 HND-PS-PA K04/0323
10. Disposal
Note!
 Avoid environmental damage caused by media-contaminated parts
 Dispose of the device and packaging in an environmentally friendly manner
 Comply with applicable national and international disposal regulations and
environmental regulations.
Batteries
Batteries containing pollutants are marked with a sign consisting of a crossed-out
garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that
is decisive for the classification as containing pollutants:
Cd1 Hg2 Pb3 Li4
1. „Cd" stands for cadmium
2. „Hg" stands for mercury
3. „Pb" stands for lead
4. „Li" stands for lithium
Electrical and electronic equipment

HND-PS-PA
HND-PS-PA K04/0323 page 9
11. EU Declaration of Conformance
We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole
responsibility that the product:
Digital Pressure Sensors model: HND-PS19…PS23 and PA20…PA23
to which this declaration relates is in conformity with the standards noted below:
EN 61326-1:2013 Electrical equipment for measurement, control and laboratory
use - EMC requirements - Part 1: General requirements
EN 61326-2-3:2013 Electrical equipment for measurement, control and
laboratory use - EMC requirements - Part 2-3: Particular requirements - Test
configuration, operational conditions and performance criteria for transducers with
integrated or remote signal conditioning
EN 50581:2012 Technical documentation for the assessment of electrical
and electronic products with respect to the restriction of hazardous substances
Also, the following EC guidelines are fulfilled:
2014/30/EU EMC Directive
2014/68/EU PED (Module A, internal control of production)
2011/65/EU RoHS (category 9)
2015/863/EU Delegated Directive (RoHS III)
Hofheim, 11 May 2022
H. Volz M. Wenzel
General Manager Proxy Holder
