Koch ALDUP/40 Series User manual

User manual
René Koch AG 044 782 6000
Seestrasse 241 044 782 6001 Fax
8804 Au/Wädenswil [e-mail] 1/4 BA ALDUP/40 ..e 06.16

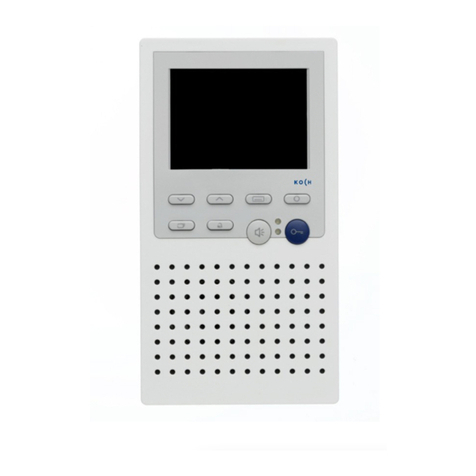

Indoor Video Intercom Station ALDUP/40 ..
Ring tones
Differentiation of calls when ringing from the Entrance, the Landing door and an Internal call.
The green LED lights up for 60 sec. when there is a call from the entrance of the house or an
internal call.
..ws (aluminium white painted)
..ef (anodized aluminum)

User manual
2/4
Overview of the device
Green LED (right):
Call at door,
Talk mode active
Display button □
Unlock button
Talk button
Control button
DOWN 
Loudspeaker
Red LED (left):
Mute, Additional
functions
Microphone
Function button ○
Control button UP 
Green LED (right):
Call at door,
Talk mode active
Display button □
Unlock button
Talk button
Control button
DOWN 
Loudspeaker
Red LED (left):
Mute, Additional
f
unctions
Microphone
Function button ○
Control button UP 
ALDUP
/
40e
f
ALDUP
/
40ws

User manual
3/4
Instructions for use
Answer a call Hands-free
Press the Talk button briefly; you can now talk without any
further action
Push-to-talk
Press the Talk button for more than 1 sec.
Press the button: Talk to the external station
Release the button: Listening from the external intercom
station
End a call Manually
Press the Talk button briefly
After the door is unlocked
Automatic shut-off 4 sec. after pressing the Unlock button
Automatically
Automatic shut-off after 60 sec.
To unlock the door Briefly press the Unlock button
Display image Manually
Press the Display button □briefly
Automatically
Switches on automatically with call at door
Switch off monitor display Automatically
Shuts down automatically 80 sec. or 4 sec. after pressing
the Unlock button
Call volume During a call use the Control DOWN or UP button
to select the volume required
Selecting ring tone volume When in idle mode use the Control DOWN or UP button to
set the volume of the ring tone; a beep will sound
to confirm the setting
Turn off the external station Press the Control button DOWN ; until the red LED lights up
Activate the external station Press the Control button DOWN ; the red LED goes out
Function button ○■Special function (Control function 8) - Default setting
□Internal call
□Call forwarding
□Doormatic

User manual
4/4
Settings
Switch on Press the Function button ○for approx. 8 until you hear
Programming mode a brief beep
The red and green LEDs will flash on the monitor
Programming mode switched on
Setting the ring tones Switch on the programming mode (see above)
Press Talk button
The red and green LEDs will flash on the monitor
Ring tone for Entrance 1 (AS 0) Press the Unlock door repeatedly until you hear the ring
tone you require
Ring tone for a Landing call Press the Function button ○repeatedly until you hear the
ring tone you require
Ring tone for Internal call Press the Display button□repeatedly until you hear the ring
tone you require
Ring tone for Entrance 2 (AS 1-63) Press the Talk button repeatedly until you hear the ring tone
you require
Note The ring tones can be set in succession once the
programming mode has been activated
Switch off If a button has not been pressed for 8 sec, the
Programming mode programming mode will switch off automatically
A beep sounds; the red and green LEDs go out
Programming mode switched off
