Kogan KAINDTNCTPA Specification sheet

60cm Induction
Cooktop
INSTRUCTION MANUAL / INSTALLATION MANUAL
MODEL: KAINDTNCTPA

THIS PAGE IS INTENTIONALLY LEFT BLANK

3
CONTENTS
General Safety Warnings 4
Product Overview 6
Before You Start 7
Using Your Induction Cooktop 8
Cooking Guidelines 10
Care & Cleaning 10
Hints & Tips 12
Failure Display & Inspection 13
Technical Data 12
Installation Instructions 14
Warranty 16

4
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
Read this manual thoroughly before first use, even if
you are familiar with this type of product. The safety
precautions enclosed herein reduce the risk of fire,
electric shock and injury when correctly adhered
to. Make sure you understand all instructions and
warnings.
Keep the manual in a safe place for future reference,
along with the completed warranty card and
purchase receipt. If you sell or transfer ownership of
this product, pass on these instructions to the new
owner.
Always follow basic safety precautions and accident
prevention measures when using an electrical
appliance, including the following:
INSTALLATION
Electrical Shock Hazard
WARNING.
All electrical work associated with the installation
of this cooktop must be carried out by a licensed
electrician.
WARNING.
This cooktop must be installed by a suitably qualified
person in strict accordance with all instructions in
this manual.
• Disconnect the appliance from the mains
electricity supply before carrying out any work or
maintenance on it.
• Failure to follow this advice may result in electrical
shock or death.
Cut Hazard
• Take care: panel edges are sharp.
• Failure to use caution could result in injury or cuts.
Important safety instructions
• Read these instructions carefully before installing
or using this appliance.
• No combustible material or products should be
placed on this appliance at any time.
• Please make this information available to the
person responsible for installing the appliance as it
could reduce your installation costs.
• In order to avoid a hazard, this appliance must
be installed according to these instructions for
installation.
• This appliance is to be properly installed and
earthed only by a suitably qualified person.
• This appliance should be connected to a circuit
which incorporates an isolating switch providing
full disconnection from the power supply.
• Failure to install the appliance correctly could
invalidate any warranty or liability claims.
OPERATION AND MAINTENANCE
Electrical Shock Hazard
• Do not cook on a broken or cracked cooktop. If
the cooktop surface should break or crack, switch
the appliance off immediately at the mains power
supply (wall switch) and contact a qualified
technician.
• Switch the cooktop off at the wall before cleaning
or maintenance.
• Failure to follow this advice may result in electrical
shock or death.
Health Hazard
• This appliance complies with electromagnetic
safety standards.
• However, persons with cardiac pacemakers or
other electrical implants (such as insulin pumps)
must consult with their doctor or implant
manufacturer before using this appliance to make
sure that their implants will not be affected by the
electromagnetic field.
• Failure to follow this advice may result in death.
Hot Surface Hazard
• During use, accessible parts of this appliance will
become hot enough to cause burns.
• Do not let your body, clothing or any item other
than suitable cookware contact the Induction glass
until the surface is cool.
• Metallic objects such as knives, forks, spoons and
lids should not be placed on the cooktop surface
since they can get hot
• Keep children away
• Handles of saucepans may be hot to touch. Check
saucepan handles do not overhang other cooking
zones that are on. Keep handles out of reach of
children.
• Failure to follow this advice could result in burns
and scalds.
Cut Hazard
• The razor-sharp blade of a cooktop scraper is
exposed when the safety cover is retracted. Use
with extreme care and always store safely and out
of reach of children.
• Failure to use caution could result in injury or cuts.
Important safety instructions
• Never leave the appliance unattended when in use.
Boilover causes smoking and greasy spillovers that
may ignite.
• Never use your appliance as a work or storage
surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects
(e.g. credit cards, memory cards) or electronic
devices (e.g. computers, MP3 players) near
the appliance, as they may be affected by its
electromagnetic field.
General Safety Warnings

5
General Safety Instructions Continued
• Never use your appliance for warming or heating
the room.
• After use, always turn off the cooking zones and
the cooktop as described in this manual (i.e. by
using the touch controls). Do not rely on the pan
detection feature to turn off the cooking zones
when you remove the pans.
• Do not allow children to play with the appliance or
sit, stand, or climb on it.
• Do not store items of interest to children in cabinets
above the appliance. Children climbing on the
cooktop could be seriously injured.
• Do not leave children alone or unattended in the
area where the appliance is in use.
• Children or persons with a disability which limits
their ability to use the appliance should have a
responsible and competent person to instruct
them in its use. The instructor should be satisfied
that they can use the appliance without danger to
themselves or their surroundings.
• Do not repair or replace any part of the appliance
unless specifically recommended in the manual.
All other servicing should be done by a qualified
technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your
cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans
across the Induction glass surface as this can
scratch the glass.
• Do not use scourers or any other harsh abrasive
cleaning agents to clean your cooktop, as these can
scratch the Induction glass.
• If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• This appliance is intended for indoor domestic use
only and is not intended for commercial, industrial
or trade use.
• WARNING.
The appliance and its accessible parts become hot
during use.
• Care should be taken to avoid touching heating
elements.
• Children less than 8 years of age shall be kept away
unless continuously supervised.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
• WARNING.
Unattended cooking on a cooktop with fat or oil
can be dangerous and may result in fire. NEVER try
to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a
fire blanket.
• WARNING: Danger of fire: do not store items on
the cooking surfaces.
• WARNING: If the surface is cracked, switch off the
appliance to avoid the possibility of electric shock,
for cooktop surfaces of glass-ceramic or similar
material which protect live parts
• A steam cleaner is not to be used.
• The appliance is not intended to be operated
by means of an external timer or separate
remote-control system.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special
treatment is necessary.
This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic
Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage
to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
The symbol on the product indicates that it may not be treated as normal household waste.
It should be taken to a collection point for the recycling of electrical and electronic goods.
This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling
of this product please contact your local council, your household waste disposal service, or the shop where you
purchased it.
For more detailed information about treatment, recovery and recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased the product.

6
Product Overview
Key 1. max. 1800/2200 W zone
2. max. 1800/2200 W zone
3. max. 2300/3000 W zone
4. max. 1200/1500 W zone
5. Zone controls
6. Timer controls
7. Booster control
8. Keylock
9. On/Off control
1 3
4
5 56 7 8 9
2

7
Before You Start
A Word on Induction Cooking
Induction cooking is a safe, efficient, and economical
cooking method. It works by electromagnetic vibrations
generating heat directly in the pan, rather than indirectly
through heating the glass surface. The glass becomes
hot only because the pan eventually warms it up.
Before using your New Induction Hob
• Read this guide, taking special note of the ‘Safety
Warnings’ section.
• Remove any protective film that may still be on your
Induction hob.
iron pot
magnetic circuit
ceramic glass plate
induction coil
induced currents
Using the Touch Controls
• The controls respond to touch, so you don’t need to
apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that
there is no object (e.g. a utensil or a cloth) covering
them. Even a thin film of water may make the controls
difficult to operate.
Choosing the right Cookware
• Only use cookware with a base suitable for induction
cooking. Look for the induction symbol on the
packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by
carrying out a magnet test. Move a magnet towards
the base of the pan. If it is attracted, the pan is
suitable for induction.
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is
heating, the pan is suitable.
• Cookware made from the following materials is not
suitable: pure stainless steel, aluminum or copper
without a magnetic base, glass, wood, porcelain,
ceramic, and earthenware.
Size of cooktop Minimum cooktop(diameter)
160mm > 120mm
180mm > 140mm
210mm > 160mm
• Do not use cookware with jagged edges or a curved
base.
• Make sure that the base of your pan is smooth, sits
flat against the glass, and is the same size as the
cooking zone. Use pans whose diameter match
the graphic of the zone selected. Use a pot which
is slightly wider for maximum efficiency. If you use
smaller pot, efficiency could be less than expected.
Always centre your pan on the cooking zone.
• Always lift pans off the Induction hob – do not slide,
or they may scratch the glass.

8
Using Your Induction Cooktop
To Start Cooking
1. Touch the ON/OFF control .
After power on, the buzzer beeps once, all displays
show “–” or “+”, indicating that the induction hob has
entered the state of standby mode.
2. Place a suitable pan on the cooking zone that you
wish to use.
• Make sure the bottom of the pan and the surface
of the cooking zone are clean and dry.
3. Select a heat setting by touching the “–” or “+”
control.
• If you don’t choose a heat setting within 1 minute,
the Induction hob will automatically switch off.
You will need to start again at step 1.
• You can modify the heat setting at any time
during cooking.
If the display flashes alternately
with the heat setting
• You have not placed a pan on the correct cooking
zone; or,
• The pan you’re using is not suitable for induction
cooking or; or,
• The pan is too small or not properly centered on the
cooking zone.
No heating takes place unless there is a suitable pan
on the cooking zone.
The display will automatically turn off after 1 minute if
no suitable pan is placed on it.
When you have finished cooking
1a. Turn the cooking zone off by scrolling down to “0” or
touching “-” and “+” control together. Make sure the
display shows “0”
1b. Turn the whole cooktop off by touching the ON/OFF
control.
2. Beware of hot surfaces: H will show which cooking
zone is hot to touch. It will disappear when the
surface has cooled down to a safe temperature. It
can also be used as an energy saving function if you
want to heat further pans, use the hotplate that is still
hot.
Using the Boost function
Activate the boost function
1. Select the heating zone by touching the “–” or “+”
control.
2. Touching the boost control ,the zone indicator show
“P.” and the power reach Max.
Cancel the Boost function
1a. Touching the “Boost” control or the “-” button to
cancel the Boost function, then the cooking zone will
revert to its original setting.
OR
1b. Touching “-” and “+” control together. the cooking
zone switch off and the boost function cancel
automatically
• The function can work in any cooking zone.
• The cooking zone returns to 9 automatically after
10 minutes.
• If boost function on the 1st cooking zone is
activated, the 2nd cooking zone is limited to
15 level 9 automatically. Vice versa
• If the boost function of 3rd zone is activated,
the 4th cooking zone is limited under level 9
automatically. Vice versa
THE CONTROL PANEL
SYMBOL DESCRIPTION
Front left zone controller
Back left zone controller
Back right zone controller
Front right zone controller
Timer controller
SYMBOL DESCRIPTION
Power/Timer decrease control
Power/Timer increase control
Boost controller
Keylock
ON/OFF control

9
Using Your Induction Cooktop Continued
Locking the Controls
• You can lock the controls to prevent unintended
use (for example children accidentally turning the
cooking zones on).
• When the controls are locked, all the controls except
the ON/OFF control are disabled.
To lock the controls
Touch the keylock control. The timer indicator will show
“Lo” To unlock the controls
1. Make sure the Induction hob is turned on.
2. Touch and hold the keylock control for 3-5 seconds
3. You can now start using your Induction hob.
When the hob is in the lock mode,all the controls are
disabled except the ON/OFF, you can always turn
the induction hob off with the ON/OFF control in an
emergency, but you shall unlock the hob first in the next
operation.
Over-Temperature Protection
A temperature sensor equipped can monitor the
temperature inside the Induction hob. When an
excessive temperature is monitored, the Induction hob
will stop operation automatically.
Detection of Small Articles
When an unsuitable size or non-magnetic pan (e.g.
aluminium), or any other small item (e.g. knife, fork, key)
has been left on the hob, the hob will automatically
go into standby in 1 minute.
Auto Shutdown Protection
Auto shut down is a safety protection function for your
induction hob. It will shut down automatically if ever you
forget to turn off your appliance. The default working
times for various power levels are shown in the below
table:
Power level 1 2 3 4 5 6 7 8 9
Default working timer (hour) 8 8 8 4 4 4 2 2 2
When the pot is removed, the induction hob can stop
heating immediately and the hob automatically switch
off after 2 minutes.
Note. People with a heart pace maker should consult
with their doctor before using this unit.
Using the Timer
You can use the timer in two different ways:
• You can use it as a minute minder. In this case, the
timer will not turn any cooking zone off when the set
time is up.
• You can set it to turn one or more cooking zones off
after the set time is up.
• You can set the timer up to 99 minutes.
Using the Timer as a Minute Minder
If you are not selecting any cooking zone
1. Make sure the cooktop is turned on.
Note: you can use the minute minder even if you’re
not selecting any cooking zone.
2. Touch “+” the controls of the timer. The minder
indicator will start flashing and “10” will show in the
timer display.
3. Set the time by touching the “-” or “+” control of the
timer.
Hint: Touch the “-” or ”+” control of the timer once to
decrease or increase by 1 minute.
Touch and hold the “-” or “+” control of the timer to
decrease or increase by 10 minutes.
4. Touching the “-” and “+” together, the timer
is cancelled, and the “00” will show in the minute
display.
5. When the time is set, it will begin to count down
immediately. The display will show the remaining
time and the timer indicator will flash for 5 seconds.
6. Buzzer will sound for 30 seconds and the timer
indicator shows “- -” when the setting time finished.
Setting the timer to turn one or more cooking zones off
If the timer is set on one zone:
1. Touch the”-“ or ”+” of the corresponding cooking
zone you want to set the timer for.
2. Set the time by touching the “-“ or “+” control of the
timer
Hint: Touch the “-” or “+” control of the timer once
will decrease or increase by 1 minute.
Touch and hold the “-” or “+”control of the timer will
decrease or increase by 10 minutes.
3. Touching the “-” and “+” together, the timer is
cancelled, and the “00” will show in the minute
display.
4. When the time is set, it will begin to count down
immediately. The display will show the remaining
time and the timer indicator flash for 5 seconds.
Note: The red dot next to power level indicator will
illuminate indicating that zone is selected.
5. When cooking timer expires, the corresponding
cooking zone will be switch off automatically. Other
cooking zone will keep operating if they are turned
on previously.
If the timer is set on more than one zone:
1. When you set the time for several cooking zones
simultaneously, decimal dots of the relevant cooking
zones are on. The minute display shows the min.
timer. The dot of the corresponding zone flashes.
2. Once the countdown timer expires, the
corresponding zone will switch off. Then it will show
the new min. timer and the dot of corresponding
zone will flash.

10
Cooking Guidelines
Take care when frying as the oil and fat heat up very
quickly, particularly if you’re using PowerBoost. At
extremely high temperatures oil and fat will ignite
spontaneously and this presents a serious fire risk.
COOKING TIPS
• When food comes to the boil, reduce the
temperature setting.
• Using a lid will reduce cooking times and save energy
by retaining the heat.
• Minimize the amount of liquid or fat to reduce
cooking times.
• Start cooking on a high setting and reduce the
setting when the food has heated through.
Simmering, cooking rice
• Simmering occurs below boiling point, at around
85°C, when bubbles are just rising occasionally to the
surface of the cooking liquid. It is the key to delicious
soups and tender stews because the flavours
develop without overcooking the food. You should
also cook egg-based and flour thickened sauces
below boiling point.
• Some tasks, including cooking rice by the absorption
method, may require a setting higher than the lowest
setting to ensure the food is cooked properly in the
time recommended.
Searing steak
To cook juicy flavorsome steaks:
1. Stand the meat at room temperature for about 20
minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small
amount of oil into the hot pan and then lower the
meat onto the hot pan.
4. Turn the steak only once during cooking. The exact
cooking time will depend on the thickness of the
steak and how cooked you want it. Times may vary
from about 2–8 minutes per side. Press the steak to
gauge how cooked it is—the firmer it feels the more
‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few
minutes to allow it to relax and become tender
before serving.
For stir-frying
1. Choose an induction compatible flat-based wok or a
large frying pan.
2. Have all the ingredients and equipment ready.
Stir-frying should be quick. If cooking large
quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of
oil.
4. Cook any meat first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still
crisp, turn the cooking zone to a lower setting, return
the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are
heated through.
7. Serve immediately.
Heat Settings
The settings below are guidelines only. The exact setting
will depend on several factors, including your cookware
and the amount you are cooking. Experiment with the
induction hob to find the settings that best suit you.
Heat setting Suitability
1 - 2 • Delicate warming for small amounts
of food
• melting chocolate, butter, and foods
that burn quickly
• gentle simmering
• slow warming
3 - 4 • reheating
• rapid simmering
• cooking rice
5 - 6 • pancakes
7 - 8 • sautéing
• cooking pasta
9• stir-frying
• searing
• bringing soup to the boil
• boiling water

11
Care & Cleaning
13
CARE AND CLEANING
Suitability
1-2 •delicate warming for small amounts of food
•melting chocolate, butter, and foods that burn quickly
•gentle simmering
•slowwarming
3-4 •reheating
•rapid simmering
•cooking rice
5-6 •pancakes
7-8 •sautéing
•cooking pasta
Heat setting
9•stir-frying
•searing
•bringing soup to the boil
•boiling water
What? How? Important!
Everyday soiling on
glass (fingerprints,
marks, stains left by
food or non-sugary
spillovers on the
glass)
1. Switch the power to
the cooktop off.
2. Apply a cooktop cleaner while
the glass is still warm (but not
hot!)
3. Rinse and wipe dry with a
clean cloth or paper towel.
4. Switch the power to the
cooktop back on.
•When the power to the cooktop is
switched off, there will be no ‘hot
surface’ indication but the cooking zone
may still be hot! Take extreme care.
•Heavy-duty scourers, some nylon
scourers and harsh/abrasive cleaning
agents may scratch the glass. Always
read the label to check if your cleaner or
scourer is suitable.
•Never leave cleaning residue on the
cooktop: the glass may become
stained.
Boilovers, melts, and
hot sugary spills on the
glass
Remove these immediately with a
fish slice, palette knife or razor blade
scraper suitable for Induction glass
cooktops, but beware of hot cooking
zone surfaces:
1. Switch the power to thecooktop
off at the wall.
2. Hold the blade or utensil at a
30° angle and scrape the
soiling or spill to a cool area of
the cooktop.
3. Clean the soiling or spill up with
a dish cloth or paper towel.
4. Follow steps 2 to 4 for
‘Everyday soiling on glass’
above.
•Remove stains left by melts and
sugary food or spillovers as soon as
possible. If left to cool on the glass,
they may be difficult to remove or
even permanently damage the
glass surface.
•Cut hazard: when the safety cover
is retracted, the blade in a scraper is
razor-sharp. Use with extreme care
and always store safely and out of
reach of children.
Spillovers on the
touch controls
1. Switch the power to the
cooktop off.
2. Soak up the spill
3. Wipe the touch control area
with a clean damp sponge or
cloth.
4. Wipe the area completely dry
with a paper towel.
5. Switch the power to the
cooktop back on.
•The cooktop may beep and turn
itself off, and the touch controls
may not function while there is
liquid on them. Make sure you
wipe the touch control area dry
before turning the cooktop back
on.

12
Hints & Tips
14
HINTS AND TIPS
Problem Possible causes What to do
The induction hob
cannot be turned
on.
No power. Make sure the induction hob is
connected to the power supply
andthatitisswitched on.
Check whether there is a power outage
in your home or area. If you’ve checked
everything and the problem persists, call
a qualified technician.
The touch controls
are unresponsive.
The controls are locked. Unlock the controls. See section ‘Using
your induction cooktop’ for instructions.
The touch controls are
difficult to operate.
There may be a slight film of water
over the controls or you may be
using the tip of your finger when
touching the controls.
Make sure the touch control area is dry
and use the ball of your finger when
touching the controls.
The glass is being
scratched.
Rough-edged cookware.
Unsuitable, abrasive scourer or
cleaning products being used.
Use cookware with flat and smooth
bases. See ‘Choosing the right
cookware’.
See ‘Care and cleaning’.
Some pans make
crackling or clicking
noises.
This may be caused by the
construction of your cookware
(layers of different metals vibrating
differently).
This is normal for cookware
and does not indicate a fault.
The induction hob makes
a low humming noise
when used on a high heat
setting.
This is caused by the technology of
induction cooking.
This is normal, but the noise should
quieten down or disappear completely
when you decrease the heat setting.
Fan noise coming from the
induction hob.
A cooling fan built into your induction
hob has come on to prevent the
electronics from overheating. It may
continue to run even after you’ve
turned the induction hob off.
This is normal and needs no action. Do not
switch the power to the induction hob off at
the wall while the fan is running.
Pans do not become hot
and appears in the display.
The induction hob cannot detect the
pan because it is not suitable for
induction cooking.
The induction hob cannot detect
thepan becauseitistoo small for the
cooking zone or not properly centred
on it.
Use cookware suitable for induction
cooking. See section ‘Choosing the right
cookware’.
Centre the pan and make sure that its
base matches the size of the cooking
zone.
The induction hob or a
cooking zone has turned
itself off unexpectedly, a
tone sounds and an error
code is displayed
(typically alternating with
one or two digits in the
cooking timer display).
Technical fault. Please note down the error
letters and numbers, switch the
power to the induction hob off
at the wall, and contact a
qualified technician.

13
Failure Display & Inspection
Technical Specifications
15
FAILURE DISPLAY AND INSPECTION
If an abnormality comes up, the induction hob will enter the protective state automatically and display
corresponding protective codes:
Problem Possible causes What to do
E4/E5 Temperature sensor failure Please contact the supplier.
E7/E8 Temperature sensor of the IGBT
failure.
Please contact the supplier.
E2/E3Abnormal supply voltage Please inspect whether power supply
is normal.
Power on after the power supply is
normal.
E6/E9 Bad induction hob heat
radiation
Please restart after the
induction hob cools down.
The above are the judgment and inspection of common failures.
Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob.
TECHNICAL SPECIFICATION
Cooking Hob IP64-72N02T
Cooking Zones 4Zones
Supply Voltage 220-240V~ 50/60Hz
Installed Electric Power 7200W
Product Size L×W×H(mm) 590×520×64
Building-in Dimensions A×B (mm) 560×490
Weight and Dimensions are approximate. Because we continually strive to improve our products we may
change specifications and designs without prior notice.
INSTALLATION
Selection of installation equipment
Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5cm space shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface
material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:
If an abnormality arises, the induction hob will cut out automatically and display corresponding error codes:
Cooking Zones 4 Zones
Supply Voltage 220-240V~ 50/60Hz
Electric Power 7200W (installed)
Product Size 590 x 520 x 64 (L x W x Hmm)
Built-in Dimensions 560 x 490 (A x Bmm)
Note: Weight and Dimensions are approximate. Because we continually strive to improve our products we may
change specifications and designs without prior notice.

14
Installation Instructions
Cut out the work surface according to the sizes shown
in the drawing.
For the purpose of installation and use, a minimum of
50mm space shall be preserved around the hole. Be
sure the thickness of the work surface is at least 30mm.
Please select heat-resistant work surface material to
avoid damage caused by the heat radiation from the
hotplate. As shown below:
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
590 520 64 60 560 490 50 min.
Please ensure the Induction cooker hob is well
ventilated and the air inlet and outlet are not blocked.
Ensure the induction cooker hob is in a good working
state. As shown below.
Note: The safety distance between the hotplate and the
cupboard above the hotplate should be at least 760mm.
A (mm) B (mm) C (mm) D E
760 50 min. 20 min. Air intake Air exit 5mm
Before you install the hob, make sure that:
• The work surface is square and level, and space
requirements have been adhered to
• The work surface is made of a heat-resistant material
• If the hob is installed above an oven, the oven has a
built-in cooling fan
• The installation will comply with all clearance
requirements and applicable standards and
regulations
• A suitable isolating switch providing full
disconnection from the mains power supply is
incorporated in the permanent wiring, mounted and
positioned to comply with the local wiring rules and
regulations.
The isolating switch must be of an approved type and
provide a 3mm air gap contact separation in all poles
(or in all active [phase] conductors if the local wiring
rules allow for this variation of the requirements):
• The isolating switch will be easily accessible to the
customer with the hob installed
• You consult local building authorities and by-laws if
in doubt regarding installation
• You use heat-resistant and easy-to-clean finishes
(such as ceramic tiles) for the wall surfaces
surrounding the hob.
When you have installed the hob, make sure that:
• The power supply cable is not accessible through
cupboard doors or drawers
• There is adequate flow of fresh air from outside the
cabinetry to the base of the hob
• If the hob is installed above a drawer or cupboard
space, a thermal protection barrier is installed below
the base of the hob
• The isolating switch is easily accessible by the
customer
Before locating the fixing brackets
The unit should be placed on a stable, smooth surface
(use the packaging). Do not apply force onto the
controls protruding from the hob.

15
Installation Instructions Continued

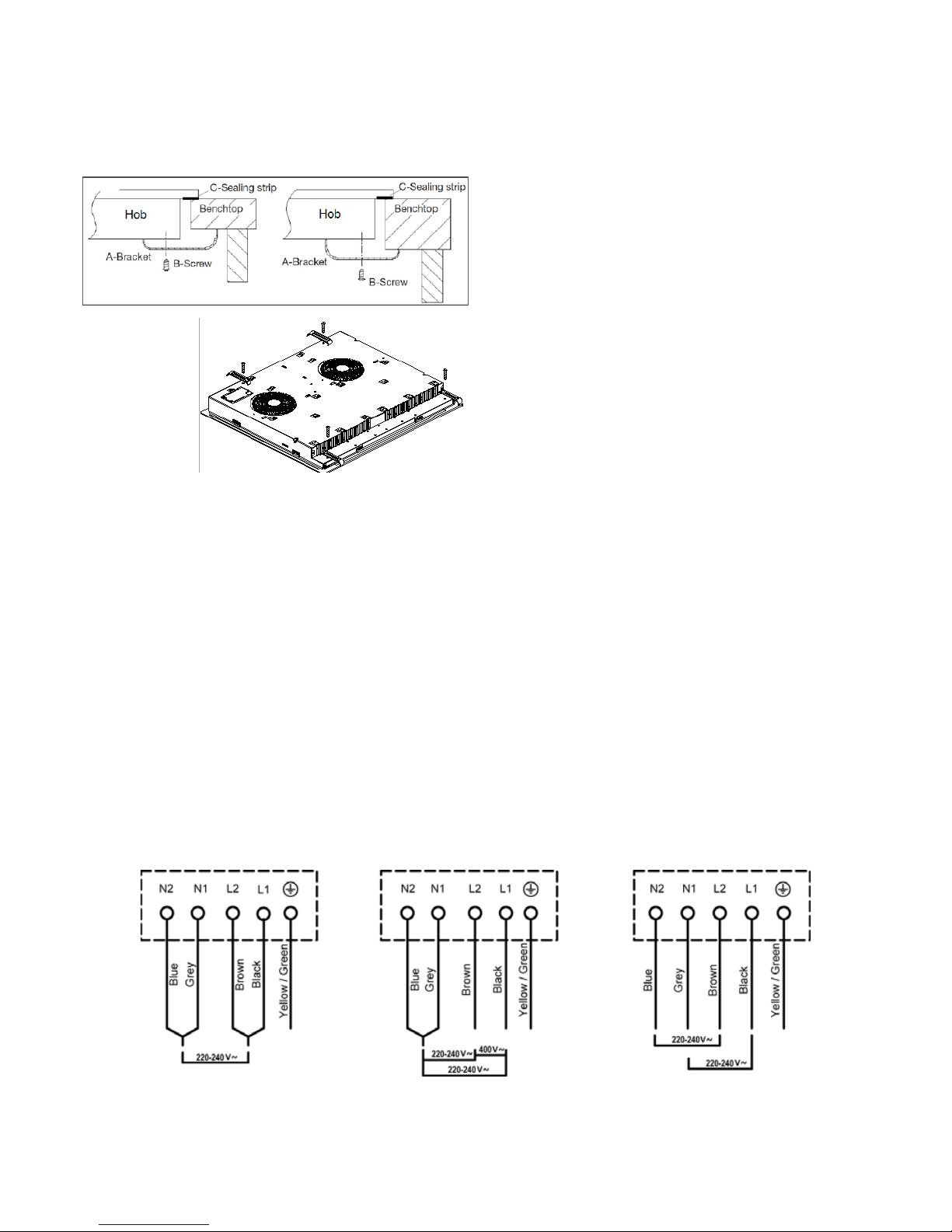

Adjusting the bracket position
Fix the hob on the work surface by screw 2 brackets on
the bottom of hob (see picture) after installation.
Adjust the bracket position to suit for different table top
thickness.
A. Bracket
B. Screw
C. Sealing Strip
Cautions
1. The induction hotplate must be installed by qualified
personnel or technicians. Please never conduct the
operation by yourself.
2. The hob will not be installed directly above a
dishwasher, fridge, freezer, washing machine or
clothes dryer, as the humidity may damage the hob
electronics
3. The induction hotplate shall be installed such that
better heat radiation can be
ensured to enhance its reliability.
4. The wall and surrounding areas affected by heat
above the table surface shall withstand heat.
5. To avoid any damage, all cabinetry, work surfaces
and adhesives must be resistant to heat.
Connecting the hob to the mains power supply
This hob must be connected to the mains power supply
only by a suitably qualified person.
Before connecting the hob to the mains power supply,
check that:
1. The domestic wiring system is suitable for the power
drawn by the hob.
2. The voltage corresponds to the value given in the
rating plate
3. The power supply cable sections can withstand the
load specified on the rating plate.
To connect the hob to the mains power supply, do not
use adapters, reducers, or branching devices, as they
can cause overheating and fire.
The power supply cable must not touch any hot parts
and must be positioned so that its temperature will not
exceed 75°C at any point.
Check with an electrician whether the domestic wiring
system is suitable without alterations.
See diagram below.
Any alterations must only be made by a qualified
electrician.
• If the cable is damaged or to be replaced, the
operation must be carried out the by after-sale agent
with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the
mains an omnipolar circuit-breaker must be installed
with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical
connection has been made and that it is compliant
with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced
by authorised technicians only.

16
WARRANTY TERMS & CONDITIONS
APPLIANCES: DISHWASHERS, LAUNDRY, REFRIGERATION, COOKING
This document sets out the terms and conditions of the product
warranties for Kogan Australia Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should you require service for
your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Kogan Australia product purchased by
you accompanied by this document;
(d) ‘ASR’ means Kogan Australia authorised service
representative;
(e) ‘Kogan Australia’ means Kogan Australia Pty Ltd of 139
Gladstone St, South Melbourne VIC 3205, ABN 53 152 570
351 (“Kogan Australia”) in respect of Appliances purchased in
Australia;
(f) ‘major failure’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL and includes
a situation when an Appliance cannot be repaired or it is
uneconomic for Kogan Australia, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or
household use (i.e. normal single family use) as set out
in the instruction manual, the Appliance is warranted
against manufacturing defects in Australia for 24
months following the date of delivery of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased and used in
Australia and is in addition to (and does not exclude, restrict, or
modify in any way) any non-excludable statutory warranties in
Australia.
3. During the Warranty Period Kogan Australia or its ASR will, at no
extra charge if your Appliance is readily accessible for service,
without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be
defective. Kogan Australia or its ASR may use remanufactured
parts to repair your Appliance. You agree that any replaced
Appliances or parts become the property of Kogan Australia. This
warranty does not apply to light globes, batteries, filters or similar
perishable parts.
4. Parts and Appliances not supplied by Kogan Australia are not
covered by this warranty.
5. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from
Kogan Australia’s ASR, in all instances, unless the Appliance
is transported by Kogan Australia or its ASR, the Appliance is
transported at the owner’s cost and risk while in transit to and
from Kogan Australia’s ASR.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect
claimed is due to faulty or defective parts or workmanship. Kogan
Australia is not liable in the following situations (which are not
exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain
or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect
power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions
supplied with the Appliance;
(b) the Appliance is modified without authority from Kogan
Australia in writing;
(c) the Appliance’s serial number or warranty seal has been
removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Kogan Australia, an authorised repairer or ASR.
8. This warranty, the contract to which it relates and the relationship
between you and Kogan Australia are governed by the law
applicable where the Appliance was purchased.
9. To the extent permitted by law, Kogan Australia excludes
all warranties and liabilities (other than as contained in this
document) including liability for any loss or damage whether
direct or indirect arising from your purchase, use or non use
of the Appliance.
10. For Appliances and services provided by Kogan Australia in
Australia, the Appliances come with a guarantee by Kogan
Australia that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the Appliance repaired
or replaced if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure. The benefits to you
given by this warranty are in addition to your other rights and
remedies under a law in relation to the Appliances or services to
which the warranty relates.
11. At all times during the Warranty Period, Kogan Australia shall, at
its discretion, determine whether repair, replacement or refund will
apply if an Appliance has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please follow these
steps:
(a) carefully check the operating instructions, user manual and
the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim, Kogan Australia
and its ASR may exchange information in relation to you to enable
Kogan Australia to meet its obligations under this warranty.
IMPORTANT
Before calling for service or spare parts, please ensure that the steps
in point 12 have been followed.
Contact
Please call 1300 2 KOGAN (56426)
Warranty
The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with guarantees that
cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
WARRANTY TERMS & CONDITIONS
APPLIANCES: DISHWASHERS, LAUNDRY, REFRIGERATION, COOKING
This document sets out the terms and conditions of the product
warranties for Kogan Australia Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should you require service for
your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Kogan Australia product purchased by
you accompanied by this document;
(d) ‘ASR’ means Kogan Australia authorised service
representative;
(e) ‘Kogan Australia’ means Kogan Australia Pty Ltd of 139
Gladstone St, South Melbourne VIC 3205, ABN 53 152 570
351 (“Kogan Australia”) in respect of Appliances purchased in
Australia;
(f) ‘major failure’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL and includes
a situation when an Appliance cannot be repaired or it is
uneconomic for Kogan Australia, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or
household use (i.e. normal single family use) as set out
in the instruction manual, the Appliance is warranted
against manufacturing defects in Australia for 24
months following the date of delivery of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased and used in
Australia and is in addition to (and does not exclude, restrict, or
modify in any way) any non-excludable statutory warranties in
Australia.
3. During the Warranty Period Kogan Australia or its ASR will, at no
extra charge if your Appliance is readily accessible for service,
without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be
defective. Kogan Australia or its ASR may use remanufactured
parts to repair your Appliance. You agree that any replaced
Appliances or parts become the property of Kogan Australia. This
warranty does not apply to light globes, batteries, filters or similar
perishable parts.
4. Parts and Appliances not supplied by Kogan Australia are not
covered by this warranty.
5. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from
Kogan Australia’s ASR, in all instances, unless the Appliance
is transported by Kogan Australia or its ASR, the Appliance is
transported at the owner’s cost and risk while in transit to and
from Kogan Australia’s ASR.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect
claimed is due to faulty or defective parts or workmanship. Kogan
Australia is not liable in the following situations (which are not
exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain
or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect
power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions
supplied with the Appliance;
(b) the Appliance is modified without authority from Kogan
Australia in writing;
(c) the Appliance’s serial number or warranty seal has been
removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Kogan Australia, an authorised repairer or ASR.
8. This warranty, the contract to which it relates and the relationship
between you and Kogan Australia are governed by the law
applicable where the Appliance was purchased.
9. To the extent permitted by law, Kogan Australia excludes
all warranties and liabilities (other than as contained in this
document) including liability for any loss or damage whether
direct or indirect arising from your purchase, use or non use
of the Appliance.
10. For Appliances and services provided by Kogan Australia in
Australia, the Appliances come with a guarantee by Kogan
Australia that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the Appliance repaired
or replaced if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure. The benefits to you
given by this warranty are in addition to your other rights and
remedies under a law in relation to the Appliances or services to
which the warranty relates.
11. At all times during the Warranty Period, Kogan Australia shall, at
its discretion, determine whether repair, replacement or refund will
apply if an Appliance has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please follow these
steps:
(a) carefully check the operating instructions, user manual and
the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim, Kogan Australia
and its ASR may exchange information in relation to you to enable
Kogan Australia to meet its obligations under this warranty.
IMPORTANT
Before calling for service or spare parts, please ensure that the steps
in point 12 have been followed.
Contact
Please call 1300 2 KOGAN (56426)
Warranty
The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with guarantees that
cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.

17
WARRANTY TERMS & CONDITIONS
APPLIANCES: DISHWASHERS, LAUNDRY, REFRIGERATION, COOKING
This document sets out the terms and conditions of the product
warranties for Kogan Australia Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should you require service for
your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Kogan Australia product purchased by
you accompanied by this document;
(d) ‘ASR’ means Kogan Australia authorised service
representative;
(e) ‘Kogan Australia’ means Kogan Australia Pty Ltd of 139
Gladstone St, South Melbourne VIC 3205, ABN 53 152 570
351 (“Kogan Australia”) in respect of Appliances purchased in
Australia;
(f) ‘major failure’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL and includes
a situation when an Appliance cannot be repaired or it is
uneconomic for Kogan Australia, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or
household use (i.e. normal single family use) as set out
in the instruction manual, the Appliance is warranted
against manufacturing defects in Australia for 24
months following the date of delivery of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased and used in
Australia and is in addition to (and does not exclude, restrict, or
modify in any way) any non-excludable statutory warranties in
Australia.
3. During the Warranty Period Kogan Australia or its ASR will, at no
extra charge if your Appliance is readily accessible for service,
without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be
defective. Kogan Australia or its ASR may use remanufactured
parts to repair your Appliance. You agree that any replaced
Appliances or parts become the property of Kogan Australia. This
warranty does not apply to light globes, batteries, filters or similar
perishable parts.
4. Parts and Appliances not supplied by Kogan Australia are not
covered by this warranty.
5. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from
Kogan Australia’s ASR, in all instances, unless the Appliance
is transported by Kogan Australia or its ASR, the Appliance is
transported at the owner’s cost and risk while in transit to and
from Kogan Australia’s ASR.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect
claimed is due to faulty or defective parts or workmanship. Kogan
Australia is not liable in the following situations (which are not
exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain
or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect
power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions
supplied with the Appliance;
(b) the Appliance is modified without authority from Kogan
Australia in writing;
(c) the Appliance’s serial number or warranty seal has been
removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Kogan Australia, an authorised repairer or ASR.
8. This warranty, the contract to which it relates and the relationship
between you and Kogan Australia are governed by the law
applicable where the Appliance was purchased.
9. To the extent permitted by law, Kogan Australia excludes
all warranties and liabilities (other than as contained in this
document) including liability for any loss or damage whether
direct or indirect arising from your purchase, use or non use
of the Appliance.
10. For Appliances and services provided by Kogan Australia in
Australia, the Appliances come with a guarantee by Kogan
Australia that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the Appliance repaired
or replaced if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure. The benefits to you
given by this warranty are in addition to your other rights and
remedies under a law in relation to the Appliances or services to
which the warranty relates.
11. At all times during the Warranty Period, Kogan Australia shall, at
its discretion, determine whether repair, replacement or refund will
apply if an Appliance has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please follow these
steps:
(a) carefully check the operating instructions, user manual and
the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim, Kogan Australia
and its ASR may exchange information in relation to you to enable
Kogan Australia to meet its obligations under this warranty.
IMPORTANT
Before calling for service or spare parts, please ensure that the steps
in point 12 have been followed.
Contact
Please call 1300 2 KOGAN (56426)
Warranty
The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with guarantees that
cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
WARRANTY TERMS & CONDITIONS
APPLIANCES: DISHWASHERS, LAUNDRY, REFRIGERATION, COOKING
This document sets out the terms and conditions of the product
warranties for Kogan Australia Appliances. It is an important
document. Please keep it with your proof of purchase documents
in a safe place for future reference should you require service for
your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Kogan Australia product purchased by
you accompanied by this document;
(d) ‘ASR’ means Kogan Australia authorised service
representative;
(e) ‘Kogan Australia’ means Kogan Australia Pty Ltd of 139
Gladstone St, South Melbourne VIC 3205, ABN 53 152 570
351 (“Kogan Australia”) in respect of Appliances purchased in
Australia;
(f) ‘major failure’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL and includes
a situation when an Appliance cannot be repaired or it is
uneconomic for Kogan Australia, at its discretion, to repair an
Appliance during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal, domestic or
household use (i.e. normal single family use) as set out
in the instruction manual, the Appliance is warranted
against manufacturing defects in Australia for 24
months following the date of delivery of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased and used in
Australia and is in addition to (and does not exclude, restrict, or
modify in any way) any non-excludable statutory warranties in
Australia.
3. During the Warranty Period Kogan Australia or its ASR will, at no
extra charge if your Appliance is readily accessible for service,
without special equipment and subject to these terms and
conditions, repair or replace any parts which it considers to be
defective. Kogan Australia or its ASR may use remanufactured
parts to repair your Appliance. You agree that any replaced
Appliances or parts become the property of Kogan Australia. This
warranty does not apply to light globes, batteries, filters or similar
perishable parts.
4. Parts and Appliances not supplied by Kogan Australia are not
covered by this warranty.
5. If you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from
Kogan Australia’s ASR, in all instances, unless the Appliance
is transported by Kogan Australia or its ASR, the Appliance is
transported at the owner’s cost and risk while in transit to and
from Kogan Australia’s ASR.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect
claimed is due to faulty or defective parts or workmanship. Kogan
Australia is not liable in the following situations (which are not
exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain
or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect
power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions
supplied with the Appliance;
(b) the Appliance is modified without authority from Kogan
Australia in writing;
(c) the Appliance’s serial number or warranty seal has been
removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Kogan Australia, an authorised repairer or ASR.
8. This warranty, the contract to which it relates and the relationship
between you and Kogan Australia are governed by the law
applicable where the Appliance was purchased.
9. To the extent permitted by law, Kogan Australia excludes
all warranties and liabilities (other than as contained in this
document) including liability for any loss or damage whether
direct or indirect arising from your purchase, use or non use
of the Appliance.
10. For Appliances and services provided by Kogan Australia in
Australia, the Appliances come with a guarantee by Kogan
Australia that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the Appliance repaired
or replaced if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure. The benefits to you
given by this warranty are in addition to your other rights and
remedies under a law in relation to the Appliances or services to
which the warranty relates.
11. At all times during the Warranty Period, Kogan Australia shall, at
its discretion, determine whether repair, replacement or refund will
apply if an Appliance has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please follow these
steps:
(a) carefully check the operating instructions, user manual and
the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim, Kogan Australia
and its ASR may exchange information in relation to you to enable
Kogan Australia to meet its obligations under this warranty.
IMPORTANT
Before calling for service or spare parts, please ensure that the steps
in point 12 have been followed.
Contact
Please call 1300 2 KOGAN (56426)
Warranty
The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with guarantees that
cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
THIS PAGE IS INTENTIONALLY LEFT BLANK

18
THIS PAGE IS INTENTIONALLY LEFT BLANK

19
THIS PAGE IS INTENTIONALLY LEFT BLANK

20
