Kogan KAMTGASCTPA User manual

60cm Gas Cooktop
INSTRUCTION MANUAL / INSTALLATION MANUAL
MODEL: KAMTGASCTPA

2
THIS PAGE IS INTENTIONALLY LEFT BLANK

3
General Safety Instructions 4
Product Overview 6
Using Your Cooktop 7
Installation Instructions 8
Technical Data 15
Cleaning & Maintenance 16
Troubleshooting 17
Warranty 18
Contents

4
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
Read this manual thoroughly before first use, even if you are familiar with this type of product.
The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when
correctly adhered to. Make sure you understand all instructions and warnings. Keep the manual
in a safe place for future reference, along with the completed warranty card and purchase receipt.
If you sell or transfer ownership of this product, pass on these instructions to the new owner.
Always follow basic safety precautions and accident prevention measures when using an
electrical appliance, including the following:
Installation
This appliance must be correctly installed by a GASSAFE registered installer, strictly in accordance
with the manufacturer’s instructions and the relevant British Standards. Please see the specific
section of this booklet that refers to installation.
• declines any responsibility for injury or damage, to person or property, as a result of improper
use or installation of this appliance.
• If the appliance is being used in a Leisure Accommodation Vehicle, the requirements of
N 721 MUST be followed.
• DO NOT recommend that this appliance is installed on any type of marine vessel.
Declaration of conformity: This appliance complies with the following European Directives:
- 2006/95/CE General regulations / Low tension
- 2009/142/CE Concerning gas appliances
- 1935/2004/CE 90/128/EEC This appliance is suitable to come in contact with food
- 2004/108/CE Electromagnetic compatibility
• Any electrical work required for installation must be carried out by a licensed electrician.
Comprehensive installation instructions can be found in this manual.
• Cut hazard: Installation of stainless steel cooktops involves handling sharp edges. Hence take
care to avoid injury or cuts.
• Electric shock hazard: This appliance must be earthed. Ensure the connection is to a good earth
wiring system. Before carrying out any work on the electrical section of the appliance, or any
maintenance work or repairs, the appliance must be disconnected from the mains. If accessible,
always switch off the cooktop at the wall before cleaning the appliance. Failure to follow this
advice may result in death or electric shock.
• Hot surface hazard: While in use, direct contact with the cooktop surface may cause burns!
Take utmost care when the equipment is in use. Do not touch the cooktop components (hob,
burners, caps and trivets) when hot. It is recommended to use oven gloves when handling
cookware.
• Fire hazard: Never leave items on top of the cooktop as this can be a re hazard when switched
on. In case of a re, never try to extinguish it with water. Switch off the burner and cover the
flame(s) with a metallic lid or flame-blanket.
• Explosion hazard: Do not store flammable materials such as petrol, mentholated spirits near the
cooktop.
• Do not spray aerosols near the cooktop when it is in use. Do not modify the appliance. Failure to
follow this advice may result in death or serious injury.
General Usage Conditions and Restrictions
• This cooktop is designed for indoor domestic use only: it is not intended for commercial,
industrial or trade use. The cooktop can be built into a standard kitchen cabinet or housing unit.
• Intended purpose: Only use this cooktop for its intended purpose, in its intended environment
and as described in this instruction manual. Any other use may cause fire, electric shock or
injury, and invalidate the warranty.
General Safety Instructions

5
• No space heating: Do not use this cooktop for space heating purposes.
• Ventilation: Heat, steam and moisture will be created when the cooktop is in use. Take care to
avoid injury and ensure the kitchen is adequately ventilated.
• Follow instructions: Make sure to observe all rules and provisions in this instruction manual. Do
not allow anybody who is not familiar with the contents of this manual to operate the cooktop.
These instructions are not intended to cover every possible condition and situation. As with any
electrical household appliance, use common sense and caution when installing, operating and
maintaining the cooktop.
• Power cord: Do not allow the power cord to come into contact with areas on the cooktop that
get hot. Check the cord regularly for damage. Do not use the appliance if the cord, or any other
part of the appliance, has been damaged. If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Usage restriction: This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children and pets: Cooking appliances become very hot in use, therefore ensure children and
pets are kept away. If it is necessary for younger family members to be in the kitchen, ensure
that they are kept under close supervision at all times. Do not allow children to operate or play
with any part of the appliance.
• Pots and pans: Do not use unstable cookware, plastic cookware or aluminium foil containers on
the cooktop.
• Do not let large cookware overhang the bench as this will direct heat onto the bench top, which
could damage the surface. Pot and pan handles may become hot during use; position handles
away from the edge of the cooktop and out of reach of children.
• Frying food: When frying food on the cooktop, check constantly and ensure the oil is not
overheating and becoming a re hazard. Do not ll deep frypans more than one third full of oil. Do
not leave unattended.
• Combustible materials: Do not cover the cooktop or place combustible materials on or near the
surface even when the hob is not in use.
• After use: Switch off all controls and allow the cooktop surface to cool before cleaning.
• Clean regularly: In the interest of safety and hygiene, ensure the cooktop is kept clean. Build-up
of grease could create a re hazard.
• Cleaning precautions: It is recommended to disconnect the appliance from the mains power
before cleaning, if your setup allows and the plug is accessible. Do not immerse the appliance or
power cord in water or any other liquid. Do not use steam cleaning equipment for cleaning the
cooktop.
• Disconnect: Do not disconnect the appliance with wet hands. Hold the plug firmly, do not pull
by the cord when disconnecting.
• Damage: Do not use the cooktop if any part has been damaged or does not work properly.
Repairs can only be carried out by authorised service centres. Incorrect repair could expose
you to the risk of electric shock, re or injury. Prolonged use of the unit in such conditions
could cause re or electrocution. In case of damage, contact our after sales support centre
on: 1300 2 KOGAN (56426).
• Do not modify: Do not attempt to modify the appliance.
• Do not use when faulty: Do not use the cooktop in the event of a technical fault. Any faults must
be fixed by an appropriately qualified and authorised person. Contact our after sales support
line for advice.
• Liability: We assume no liability for any eventual damages to property or injury to persons
caused by misuse of the product or noncompliance with these instructions.
IMPORTANT: The adjacent furniture and all materials used in the installation must be able to
withstand a minimum temperature of 85°C above the ambient temperature of the room it is
located in, whilst in use. Certain types of vinyl or laminate kitchen furniture are particularly prone to
heat damage or discolouration at temperatures below the guidelines given above.
• Any damage caused by the appliance being installed in contravention of this temperature limit,
will be the liability of the owner.

6
Gas Cooktop Layout
Product Overview
1
5
2
3
6
1 Semi Rapid Burner
2 Semi Rapid Burner
3 Wok Burner
4 Auxilliary Burner
5 Burner Controls
6 Cast Iron Trivet (x2)
Front control operation
Automatic ignition
Heavy duty cast iron pan stands
Flame failure safety device on each burner
Key: Features
Burners: Not shown but also included
1 x Auxiliary Burner: 3.8 MJ/h
2 x Semi Rapid Burner: 2 x 6.5 MJ/h
1 x Wok Burner: 14.4 MJ/h
LPG conversion jets (optional use)
Regulator
Sealing strip
4
6

7
Using Your Cooktop
CONTROLS
The following symbols will appear on the control
panel, next to each control knob:
Gas off
Large flame: maximum setting
Small flame: minimum setting
The minimum setting is at the end of the
anti-clockwise rotation of the control knob.
All operation positions must be selected between
the maximum and minimum position.
Never select a knob position between the
maximum and off position.
Burner indicator
The symbol above indicates which gas burner the
knob operates.
AUTOMATIC IGNITION WITH FLAME FAILURE
SAFETY DEVICE
Your cooktop is fitted with a flame failure safety
device on each burner, which is designed to stop
the flow of gas to the burner head in the event of
the flame going out.
To ignite a burner:
1 Press in the control knob of the burner that
you wish to light and turn it anti-clockwise to
the maximum position.
2 If you keep the control knob depressed, the
automatic ignition for the burner will operate.
3 You should hold down the control knob for 10
seconds after the flame on the burner has lit.
4 After this 10-second interval, turn the control
knob to your required setting between the
maximum and minimum setting symbols.
5 To switch the burner off, turn the control knob
fully clockwise to the gas off position.
6 In case of power failure, the burners can be lit
by carefully using a match.
SUITABLE PANS
Refer to the chart below and ensure that the pan
diameter falls within the minimum and maximum
diameters given for the burner to you using.
A pan base which is too small will be unstable
on the pan support. If the pan diameter is too
large, flames can spread out to the sides and
damage or burn the worktop, wall claddings or
surrounding units and also parts of the cooktop.
The manufacturer cannot be held liable for this
type of damage.
• Wide, shallow pans are preferable to tall,
narrow ones. They will heat up faster.
• Select pans which are suitable for the burner
they are to be used on. In general: use larger
diameter pans on the large burners, and
smaller diameter pans on the small burners.
• Pans with thick bases are preferable as these
distribute heat more evenly. With thin bases,
there is a danger of food overheating in places.
Stir the food frequently.
• Any heat-resistant pans can be used on a gas
burner.
• Always place the pan on the pan support
supplied with the cooktop. Do not place a pan
directly on top of the burner.
• Remember when purchasing new pans that
manufacturers usually refer to the diameter at
the top of the pan in their documentation.
• Use a lid whenever possible to minimise heat
loss.
• When using a wok make sure that the base
does not touch the burner. A distance of 1 cm
should be maintained between the burner and
the base of the wok pan above it.
WARNING:
Place pots and pans flat on the cooktop trivets to
ensure they do not tip over.

Burner 
Min.  pan  base  diameter  in  cm 
Small

burner
10
Medium

burner
12
Largeburner
14
Wok

burner
14

Max.  diameter  at  top  of  pan  in  cm 
Smallburner
22
Mediumburner
22
Largeburner
24
Wokburner
24

Burner 
Min.  pan  base  diameter  in  cm 
Smallburner
10
Mediumburner
12
Largeburner
14
Wokburner
14

Max.  diameter  at  top  of  pan  in  cm 
Small

burner
22
Medium

burner
22
Largeburner
24
Wok

burner
24

8

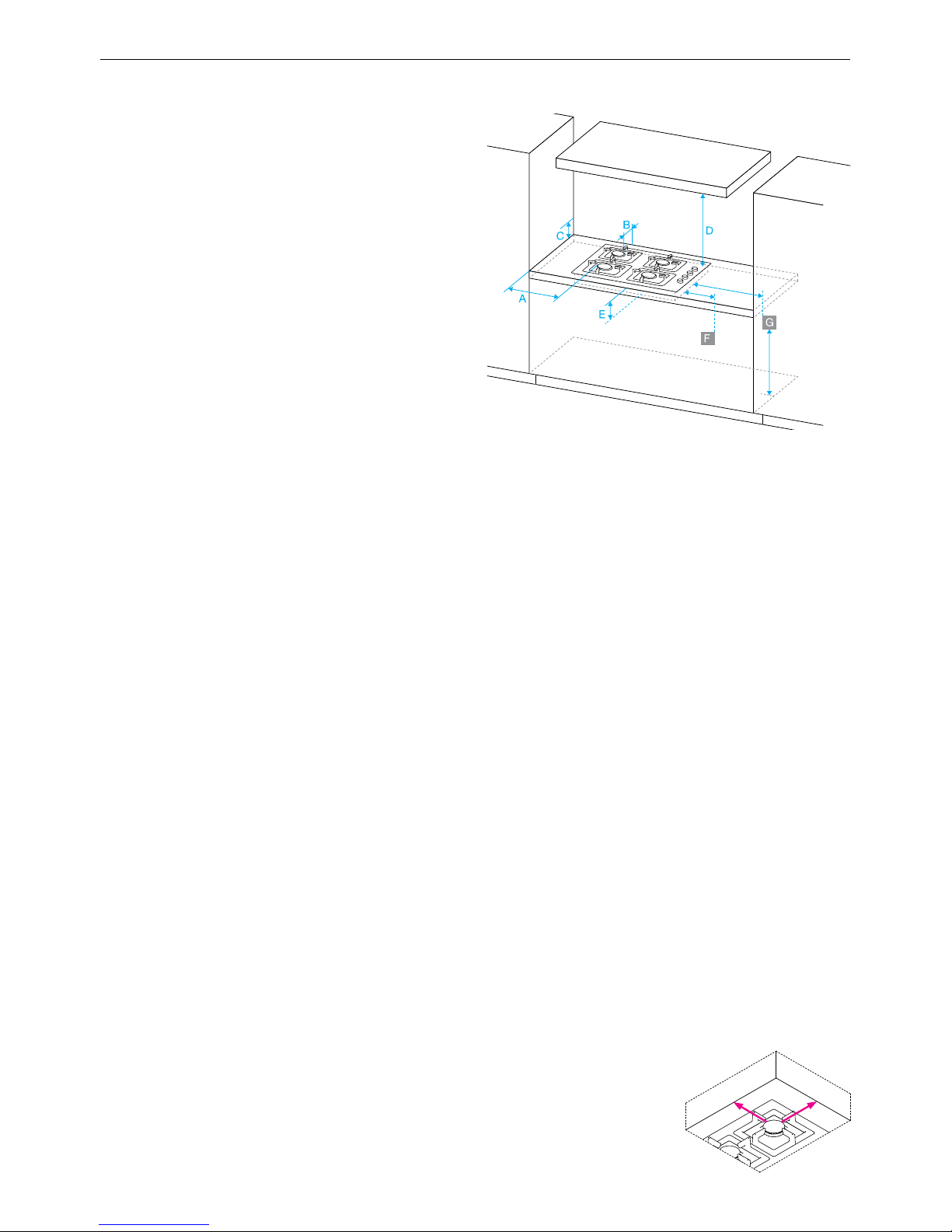

It’s important to carefully read the following
installation instructions before beginning the
installation of your cooktop.
Important! The installation must be carried out
by a suitably qualified and authorised person,
in accordance with the current version of the
following:
• Gas Safety Regulations (Installation & Use)
• Building Regulations (issued by the
Department of Environment)
• Building Standards (Issued by the Scottish
Development Department)
• IEE Wiring Regulations
• Electricity at Work Regulations BS 6172
• Installation of Domestic Gas Cooking
Appliances (if necessary, BS 5482 Installation
of Domestic LPG Appliances)
• BS 5440 Installation of Flues and Ventilation
for Gas Appliances
POSITIONING
The adjacent cabinetry and wall materials must
be able to withstand a minimum temperature
rise of 65° C above the ambient temperature
of the room.
• This appliance has been designed for use
within a kitchen.
Important! The adjacent furniture must be able
to withstand a minimum temperature rise of
85°C above the ambient temperature of the
room it is located in, during periods of use.
This appliance is classified as Class 3 and
therefore is to be built into a kitchen unit
(depending on size) or 600mm worktop,
providing the following minimum distances
are allowed:
• The edges of the hob must be a minimum
distance of 55mm from a side or rear wall.
• 600mm between the highest point of the
hob surface (including the burners) and the
underside of any horizontal surface directly
above it.
• If the underside of the horizontal surface
is lower than 400mm, then it must be at
least 50mm away from the outer edges
of the hob.
• 50mm clearance around the appliance
and between the hob surface and any
combustible materials.
A Minimum distance from the edge of the
closest burner (left and/or right side) to the
nearest vertical combustible surface: 200mm*
B Minimum distance from the edge of the
closest rear burner to the combustible vertical
surface: 200mm*
C Minimum height of noncombustible material
when used on adjacent walls: 200mm
D Minimum clearance from top of highest
burner cap to rangehood: 600mm**
E Minimum clearance below top of bench top to
nearest combustible surface: 70mm
F Ensure there is an earthed power outlet within
900mm of the rear right-hand corner of the
cooktop. The outlet should be accessible with
the cooktop installed.
G If connecting the cooktop to the gas supply
with a flexible hose, the connector on the
wall should be between 800–850mm
above the floor and to a distance of at least
250mm outside the width of the cooktop.
The connector should be accessible with the
cooktop installed.
* Where the clearance is less than 200mm
the surface must be protected by a non-
combustible material (I.e. ceramic tiles) for
a minimum height of 200mm (see Fig. 1).
** For any flammable objects (I.e. utensil rails, wall
cabinets, shelves, etc.) a minimum clearance
of at least 600mm above the burner cap must
be maintained between them and the cooktop
below.
Installation Instructions
FIG. 1

9
Installation Instructions Continued
Cut a hole in your bench top that corresponds
with the relevant cut-out size for your Kogan
Cooktop model. Refer to the “Your Kogan
Cooktop” section of this user manual.
IMPORTANT!
You must have a gap of at least 30mm between
the underside of the cooktop and any surface
below.
30mm Min.
• Carefully turn the cooktop upside down and
place it on a cushioned mat.
• Apply the sealing strip provided, around
the edge of the appliance, and remove the
protective covering.
Note: It’s important not to leave a gap in
the sealing strip, whilst at the same time
ensuring that no sections overlap.
Important! Don’t use a silicone sealant to seal
the appliance against the bench top. This will
make it difficult to remove the cooktop in the
future should it require servicing.
• With the cooktop still upside down, place the
clamps supplied over the holes that match
the size of the screws. There are a set of
screw holes in each corner of the cooktop.
Slightly tighten each screw through the
clamp, so that the clamp is attached to the
cooktop, but loose enough that you can still
adjust it’s position.
• Now carefully turn the cooktop back over
and gently lower it into the cut-out.
• On the underside of the cooktop, adjust
the clamps into a position that is suitable
to secure it to your bench top. Now you
can fully tighten the screws to secure the
cooktop into position.
(A) SEALING STRIP
(B) CLAMP(C) SCREW
Important! This appliance must be installed
by a licenced and authorised person and in
compliance with the current standards.
Important! This hob is supplied to run on
natural gas only and cannot be used on any
other type of gas without modification. Refer
to the LPG conversion section within this
manual.
• A regulator is required and supplied with the
Cooktop for natural gas.
• Conversion for use on LPG and other gases
must only be undertaken by a qualified and
authorised person.
For information on the use of other
gases, please contact the Customer Care
department. Test point adaptor is required
for LPG.
• The hob must be installed by a qualified and
authorised person, in accordance with the
current edition of the
AS/NZS5601.1 Gas Installations.
• Failure to install the appliance correctly
could invalidate guarantee and lead to
prosecution under the regulations quoted
above.

10
Installation Instructions Continued
VENTILATION REQUIREMENTS
• The room containing the hob should have an
air supply in accordance with AS/NZS5601.1
Gas Installations.
• The room must have opening windows or
equivalent; some rooms may also require a
permanent vent.
• It will require an air vent of 300mm2 per
MJ/h (effective area) to outside, or 600mm2
per MJ/h (effective area) to adjacent room.
(See total gas consumption in MJ/h on the
appliance rating plate).
• If there are any other fuel burning
appliances in the same room the standard
AS/NZS5601.1 Gas Installations: should
be consulted to determine air vent
requirements.
• Ensure that the room containing the hob
is well ventilated, keep natural ventilation
holes or install a mechanical ventilation
device (mechanical cooker hood).
• Prolonged intensive use of the appliance
may call for additional ventilation, either by
the opening of a window, or by increasing
the level of the mechanical ventilation
device (where present).
• This hob is not fitted with a device for
discharging the products of combustion.
Ensure that the ventilation rules and
regulations are followed.
• The walls behind and near the hob
should be resistant to heat, steam and
condensation.
GAS CONNECTION
Your gas cooktop comes configured for
Natural Gas. If you live in an area where there
is no Natural Gas then your cooktop can be
converted to LPG. Gas conversions can be
carried out by an authorised and licenced
gasfitter/plumber.
Install in accordance with relevant gas
standards and/or codes of practice applicable.
Connect the elbow fitting to the appliance
gas manifold connection, and check that seals
between the elbow and manifold connection
are in place and in good condition.
• For Natural gas: connect the natural gas
appliance regulator (pictured below) with
integral test point using approved gas
thread tape or compound to the elbow
fitting.
This product is a low-pressure pipeline
regulator valve for built-in gas appliances.
Natural gas and liquefied petroleum gas
conversion function, need to be set manually.
Operating temperature: -20 - 60
Inlet pressure setting: of natural gas 6 in.wc /
liquefied gas 11 in.wc of.

11
Installation Instructions Continued
THE PERFORMANCE PARAMETERS
OF THE FOLLOWING TABLE
Ensure the supply connection point, test point
and natural gas regulator adjustment screw
(for Natural gas installation) are accessible for
testing and/or adjustment with the hotplate in
the installed position.
INSTALLING THE GAS REGULATOR
When installing the gas regulator, ensure that
its valve outlet thread matches the thread
of the gas connector. Use an appropriate
sealant around the threads. Ensure that the
gas regulator valve installation location is
perpendicular. After installation, open the
gas source switch and check the valve body
connections with soap and water for leaks
CONVERTING THE GAS REGULATOR
FOR USE WITH LPG
This cooktop is fitted out for use with Natural
Gas (NG). If it is to be used with liquefied
petroleum gas (LPG), the gas regulator valve
has to be converted.
• Using special tools, open the cover of
the gas regulator valve by turning it
anticlockwise (Figure 1).
• Remove the adaptor from the top cover
(Figure 2). Pull out the adaptor, invert it and
replace the top cover (Figure 3).
• Invert the assembled adaptor’s top cover
and replace the regulator valve (Figure 4).
Note : Do not adjust the regulator valve body
piece in the above procedure, otherwise it will
affect the performance parameters set in the
factory.
WARNING:
1 Regulator valve outlet pressure is set at
the factory, please do not adjust in order to
avoid the occurrence of safety accidents.
2 Use gas with assessment remember to turn
off the gas source.
3 If you find any abnormality of the regulator
valve, stop using and contact your dealer or
manufacturer processing.

12
Installation Instructions Continued
Where a flexible hose assembly is used,
ensure it is approved to AS/NZS 1869, Class
B or D and the maximum length is 1.5m. Any
hose assembly used must be restrained from
accidental contact with the flue outlet of an
under bench oven. This hose assembly shall
be suitable for connection to a fixed consumer
piping outlet located as follows:
• Hotplates at a point 800mm to 850mm
above the floor and in the region outside
the width of the appliance to a distance
of 250mm. See diagram below.
• After connecting to gas, check for leaks
using soapy solution, never a naked flame.
• Gas pressure may be checked by test point
located on regulator or LPG test point
adaptor. Adjust regulator to the required
pressure as shown on data plate, check
burner ignition & and the flame is burning
correctly.
• If, after installation and checking the
appliance operation, the hotplate is not
working correctly, contact the Support team
on for assistance.
• Fit the duplicate data plate (supplied in
separate bag) on a surface adjacent to
the hotplate, for example, the inside of the
cupboard door so it is clearly visible for any
service technician.
CHECKING THE GAS SUPPLY
1 Check the manometer zero point is correct.
2 Connect the manometer to the cooktop
pressure point (located on the regulator).
3 Turn on the gas supply and electricity and
try to ignite the gas burner.
Note: It will take additional time to light
the gas for the first time as air needs to be
purged from the pipes.
4 With the appliance operating check the
outlet pressure:
• When all burners of the appliance are
operating at maximum
• When the smallest burner of the
appliance is operating at minimum.
— Under these conditions the outlet
pressure should not vary from the
nominal outlet pressure of 1.00kPa by
more than ±0.20kPa.
If the regulator appears to not be performing
satisfactorily, then check the following points:
1 If the outlet pressure is consistently too
low then the inlet pressure may be too low
and adjustment of an upstream regulator
may be needed, or an upstream regulator
or valve with insufficient flow capacity may
be present in the gas supply line. If this
is suspected then it may be necessary to
repeat the checks whilst measuring both the
inlet and outlet pressure to determine if the
inlet pressure is in the range 1.13 – 5kPa.
2 Check that the regulator has been fitted to
the gas supply line in the correct orientation,
the arrow on the base of the body indicates
the direction of gas flow.
Once these checks have been completed,
if the regulator still fails to perform in a
satisfactory manner it should be replaced.
Please contact the Support Team.

13
Installation Instructions Continued
GAS ADJUSTMENT (CONVERSION TO LPG)
Important! The conversion work must be carried
out by a registered gas fitter and in accordance
with the current standards.
WARNING
Always isolate the cooktop from the electricity
supply before changing the injectors and/or
adjusting the minimum flow of the burners.
• Remove the pan-stands, burners and flame
spreaders (A).
• Unscrew the injector (B) and replace it with the
stipulated injector for the new gas supply (see
table below).
GENERAL INJECTORS TABLE
KIND OF GAS NOZZLE
MM
BURNERS POWER (MJ/H)
MAX. MIN.
NATURAL 1.80
1.49
1.16
0.85
Wok
Rapid
Semi-rapid
Auxiliary
14.4
10.8
6.5
3.8
6.3
5.4
3.24
1.8
L . P. G .
BUTANE
PROPANE
1.07
0.93
0.72
0.53
Wok
Rapid
Semi-rapid
Auxiliary
14.7
11.0
6.6
3.7
6.3
5.4
3.24
1.8
• Reassemble all the burners carefully; in
particular you should make sure that the
flame spreader is correctly placed on the
burner.
Important! The minimum flow adjustment
process must be completed before the
appliance is next used.
MINIMUM FLOW ADJUSTMENT FOR COOKTOP
GAS TAPS
Important! All work must be carried out by a
registered gas fitter and in accordance with the
current standards.
WARNING
Always isolate the cooktop from the electricity
and gas supply before changing the injectors
and/or adjusting the minimum flow of the
burners.
• Switch the burner on and set the knob at the
minimum position.
• Remove the knob from the tap and place a
small bladed screwdriver in the centre of the
tap shaft.
• Unscrew the adjusting screw, in order to
increase the gas flow or tighten the adjusting
screw to decrease the gas flow.
• The correct adjustment is obtained when the
flame has a length of about 3–4 mm.
• For ULP gas, the adjusting screw must be
tightly screwed in.
• Refit the control knob.
• Make sure that the flame does not go out
by quickly turning from maximum flow to
minimum flow. If it does then remove the
control knob and make further adjustments
to the gas flow, testing it again once the
adjustment has been made.
• Repeat this process for each one of the gas
taps.
• When converting from Natural Gas to ULP
gas ensure that the NG regulator is removed
and replaced with the Test Point Assembly.
A gas regulator suitable for a supply
pressure of 2.75kPa should be at the inlet
to the appliance. Replace the old data plate
with one which is suitable for the type of gas
for which the appliance has been regulated.
Important! Where this appliance is installed in
marine craft or in caravans, it shall not be used
as a space heater.

14
Installation Instructions Continued
GAS TAP MAINTENANCE
Important!
The installation must be carried out by a
suitably qualified and licensed gas fitter and in
accordance with the current standards.
WARNING
Before carrying out any maintenance operations,
always isolate the cooktop from the electricity
and gas supplies.
If a gas tap becomes stiff to operate, then you
should proceed as follows:
• Remove the control knobs, pan supports,
burners, hob fixing screws and clamps.
• Remove the hob from the worktop and remove
any underside protective covers.
• Disconnect the fixings holding the tap to
the fascia panel and separate the assembly.
Then clean the cone and seating, with a cloth
dampened with solvent.
• Lightly smear the cone with high temperature
grease, reassemble into position and rotate a
few times.
• Remove the cone again and remove any excess
grease, making sure that the gas ducts are not
obstructed with grease.
• Carefully reassemble the components and
perform a gas soundness test.
If it becomes necessary to replace a gas tap, then
you should proceed as follows:
• Remove the control knobs, pan supports,
burners, hob fixing screws and clamps.
• Remove the hob from the worktop and remove
any underside protective covers.
• Disconnect the fixings holding the tap to the
fascia panel and separate the assembly.
• Disconnect the gas pipe from the gas tap, and
then disassemble them from the gas rail by
removing the fixing screws.
• When fitting a new tap, ensure that a new
gasket is used.
• Reconnect the gas tap, perform a gas
soundness test, and then reassemble the hob.
ELECTRICAL CONNECTION
Important! The installation must be carried out
by a suitably qualified and licensed person
and in accordance with the latest edition of
the AS/NZS 3000 Wiring Regulations and
in compliance with the instructions outlined
within this user manual.
WARNING
240 Volts. Disconnect power before servicing
the cooktop.
Before connecting the appliance, make sure
that the supply voltage marked on the rating
plate corresponds with your mains supply
voltage.
• Cable type: H05 RRF 3 core x 0.75 mm³
(Type RR-F <HAR> marked).
• The mains supply cable is supplied with this
product.
If the mains supply cable is damaged, then
it must be replaced by an appropriate
replacement, which can be obtained from our
After Sales Support, or an authorised service
agent.
The mains supply cable should be replaced in
accordance with the following instructions and
by suitably qualified and licenced person:
• Switch the appliance off at your mains
supply.
• Open the box of the supply board.
• Unscrew the clamp fixing the cable.
• Replace the cable with one of the same
length and in accordance with the
specification given above.
• The “green-yellow” earth wire must be
connected to the terminal marked . It must
be about 10 mm longer than the live and
neutral wires.
• The “blue” neutral wire must be connected
to the terminal marked with letter (N) - the
live wire must be connected to the terminal
marked with letter (L).
• Note: Electrical diagram on the following
page.

15
POWER CABLE: 220V–240V~ 50/60Hz
ELECTRICAL DETAILS Rated Voltage: 220 - 240 Vac 50 / 60 Hz
Supply Connection: 3A
Max Rated Inputs: 0.8 W
Mains Supply Lead: 3 core x 0.75mm³ (Type RR-F <HAR> marked)
GAS TYPE & OPERATING PRESSURE Connection: Rp ³ (ISO R7)
Type: Natural Gas (1.0 KPa)
ULPG (2.75 KPa)
Rating label
Technical Data
Installation Instructions Continued

16
By ensuring proper cleaning and maintenance of
your Kogan cooktop, you can ensure that it will
have a long and fault free operation.
WARNING!
Do not start cleaning the cooktop until it has
completely cooled.
• Typically you should only ever need to
clean your cooktop with warm soapy water,
or light cleaning products to assist with
the removal of fat or oil emulsions (such
as general cleaning sprays).
• Your cooktop should be cleaned after
every use.
• After cleaning the burners, you should
ensure they are dried properly before
replacing on the cooktop.
• Avoid any harsh scourer pads or steel wool,
as these can scratch the stainless steel.
OPERATION IN CASE OF EMERGENCY
In the event of an emergency you should:
• Switch off all cooktop controls.
• Switch the gas off at the isolation switch
or at the gas meter.
• Call the Support Team on:
1300 2 KOGAN (56426)
Some minor faults can be fixed by referring to
the instructions given in the Troubleshooting
section on page 16.
Important! If your appliance appears to
be operating incorrectly, then you should
disconnect it from your mains gas and
electrical supply and then contact the
Support team on 1300 2 KOGAN (56426).
WARNING!
DO NOT ATTEMPT TO REPAIR THE
COOKTOP YOURSELF.
Please note that if an engineer is asked to
attend whilst the product is under warranty
and finds that the problem is not the result
of an appliance fault, then you may be liable
for the cost of the call out charge.
The appliance must be accessible for the
engineer to perform any necessary repair. If
your appliance is installed in such a way that
an engineer is concerned that damage will be
caused to the appliance or your kitchen, then
they will not complete a repair. This includes
situations where appliances have been tiled
in or sealed in with sealant.
Please refer to the conditions of that appear
on the warranty card at the rear of this user
manual.
Responsible Disposal
At the end of its working life, do not throw the
appliance out with your household rubbish.
Electrical and electronic products contain
substances that can have a detrimental
effect on the environment and human health
if disposed of inappropriately. Observe any
local regulations regarding the disposal of
electrical consumer goods and dispose of it
appropriately for recycling. Contact your local
authorities for advice on recycling facilities in
your area.
Cleaning & Maintenance

17
Troubleshooting
Please read the issues below carefully and try all relevant steps.
If none of this helps, please contact us on 1300 2 KOGAN (56426) for further advice
or to schedule a technician to inspect your cooktop.
THE COOKTOP WON'T LIGHT
Please check...
That your cooktop is plugged in and
there is power to the wall socket.
That the gas supply valve is turned on
and the gas supply to your house is
working.
Hint: If you listen closely, you should
be able to hear the gas coming out
of a burner when it is turned on. Due
to flame failure safety, the knob must
be pressed down once it is turned
on — this initiates the ignition and
allows the gas to come out.
That the gas igniters are clean.
Hint: If in doubt, use a toothbrush and
a heavy duty cleaner or methylated
spirits to remove any potential build-
up or blockage.
That the cooktop has been installed
and assembled correctly and the
burner cap is sitting flat.
THE BURNER FLAMES ARE SLOW
OR YELLOW TO START
Please check...
That the cooktop has been installed
and assembled correctly and the
burner cap is sitting flat.
The burner parts may be blocked with
water or another substance. Please
contact our Support Team for advice.
If connected to a gas bottle, this may
be running low. Check and refill if
required.
The gas pressure may not be set at
the correct level. Please contact our
Support Team for advice.
THE COOKTOP IS DIRTY
AFTER COOKING
Please note...
Once it has cooled down, your cooktop
should be cleaned after every use.
Typically you should only ever need to
clean your cooktop with warm soapy
water, or light cleaning products to
assist with the removal of fat or oil
emulsions (such as general cleaning
sprays).
After cleaning the burners, you should
ensure they are dried properly before
replacing on the cooktop.
Avoid any harsh scourer pads or steel
wool, as these can scratch the stainless
steel.
THE BURNER GOES OUT WHEN
THE KNOB IS RELEASED
Please note...
All Kogan cooktops are fitted with
Flame Failure safety. This cuts the gas
when no heat is detected, and may not
have been activated.
Hint: Hold down the knob for five
seconds when lighting a burner to
ensure it is properly engaged.
ONE OF THE BURNERS
HAS AN UNEVEN FLAME
Please check...
That the cooktop has been installed
and assembled correctly and the
burner cap is sitting flat.
That the burners are clean.
Hint: Please ensure the burner parts
are dried properly before replacing on
the cooktop.
OPERATION IN CASE
OF EMERGENCY
Please note, in the event of an
emergency you should:
– Switch off all cooktop controls.
– Switch the gas off at the isolation
switch or at the gas meter.
– Call our Support Team.
Please note that if an engineer is asked to attend whilst the product is under warranty and finds that the problem
is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

18
WARRANTY TERMS & CONDITIONS
APPLIANCES: DISHWASHERS, LAUNDRY,
REFRIGERATION, COOKING
This document sets out the terms and conditions of the
product warranties for Kogan Australia Appliances. It is
an important document. Please keep it with your proof of
purchase documents in a safe place for future reference
should you require service for your Appliance.
1. In this warranty
(a) ‘acceptable quality’ as referred to in clause 10 of
this warranty has the same meaning referred to in
the ACL;
(b) ‘ACL’ means Trade Practices Amendment
(Australian Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’means any Kogan Australia product
purchased by you accompanied by this document;
(d) ‘ASR’means Kogan Australia authorised service
representative;
(e) ‘Kogan Australia’means Kogan Australia Pty Ltd of
139 Gladstone St, South Melbourne VIC 3205, ABN
53 152 570 351 (“Kogan Australia”) in respect of
Appliances purchased in Australia;
(f) ‘major failure’ as referred to in clause 10 of this
warranty has the same meaning referred to in the
ACL and includes a situation when an Appliance
cannot be repaired or it is uneconomic for Kogan
Australia, at its discretion, to repair an Appliance
during the Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal,
domestic or household use (i.e. normal single
family use) as set out in the instruction
manual, the Appliance is warranted against
manufacturing defects in Australia for 24
months following the date of delivery of the
Appliance;
(h) ‘you’means the purchaser of the Appliance not
having purchased the Appliance for re-sale, and
‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased
and used in Australia and is in addition to (and
does not exclude, restrict, or modify in any way) any
non-excludable statutory warranties in Australia.
3. During the Warranty Period Kogan Australia or its
ASR will, at no extra charge if your Appliance is readily
accessible for service, without special equipment and
subject to these terms and conditions, repair or replace
any parts which it considers to be defective. Kogan
Australia or its ASR may use remanufactured parts
to repair your Appliance. You agree that any replaced
Appliances or parts become the property of Kogan
Australia. This warranty does not apply to light globes,
batteries, lters or similar perishable parts.
4. Parts and Appliances not supplied by Kogan Australia
are not covered by this warranty.
5. If you reside outside of the service area, you will bear
the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to
and from Kogan Australia’s ASR, in all instances,
unless the Appliance is transported by Kogan
Australia or its ASR, the Appliance is transported
at the owner’s cost and risk while in transit to and
from Kogan Australia’s ASR.
6. Proof of purchase is required before you can make a
claim under this warranty.
Warranty

19
7. You may not make a claim under this warranty unless
the defect claimed is due to faulty or defective parts
or workmanship. Kogan Australia is not liable in the
following situations (which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly
maintain
or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or
incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate
operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional
instructions supplied with the Appliance;
(b) the Appliance is modied without authority from
Kogan Australia in writing;
(c) the Appliance’s serial number or warranty seal has
been removed or defaced;
(d) the Appliance was serviced or repaired by anyone
other than Kogan Australia, an authorised repairer
or ASR.
8. This warranty, the contract to which it relates and the
relationship between you and Kogan Australia are
governed by the law applicable where the Appliance
was purchased.
9. To the extent permitted by law, Kogan Australia
excludes all warranties and liabilities (other than as
contained in this document) including liability for any
loss or damage whether direct or indirect arising from
your purchase, use or non use
of the Appliance.
10. For Appliances and services provided by Kogan
Australia in Australia, the Appliances come with a
guarantee by Kogan Australia that cannot be excluded
under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the
Appliance repaired or replaced if the Appliance fails
to be of acceptable quality and the failure does not
amount to a major failure. The benets to you given by
this warranty are in addition to your other rights and
remedies under a law in relation to the Appliances or
services to which the warranty relates.
11. At all times during the Warranty Period, Kogan
Australia shall, at its discretion, determine whether
repair, replacement or refund will apply if an Appliance
has a valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please
follow these steps:
(a) carefully check the operating instructions, user
manual and the terms of this warranty;
(b) have the model and serial number of the Appliance
available;
(c) have the proof of purchase (e.g. an invoice)
available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim, Kogan
Australia and its ASR may exchange information in
relation to you to enable Kogan Australia to meet its
obligations under this warranty.
IMPORTANT
Before calling for service or spare parts, please ensure that
the steps in point 12 have been followed.
Contact
Please call 1300 2 KOGAN (56426)
The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with
guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

20
