Dual Freezone Induction Cooktop (60cm)
KAMDUALFZCA
Quick Start Guide
Table of Contents
Safety & Warnings.................................................................................................................................................... 2
Overview ......................................................................................................................................................................4
Installation ...................................................................................................................................................................5
Operation................................................................................................................................................................... 10
Cleaning & Care...................................................................................................................................................... 20
Specifications............................................................................................................................................................21
Troubleshooting.......................................................................................................................................................21

2
Safety & Warnings
•Read these instructions carefully before installing or using this appliance.
•No combustible material or products should be placed on this appliance at any
time.
•In order to avoid a hazard, this appliance must be installed according to these
instructions.
•This appliance is to be properly installed and earthed only by a qualified technician.
•This appliance should be connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
•Failure to install the appliance correctly could invalidate any warranty or liability
claims.
•Never leave the appliance unattended when in use. Boil-over causes smoking and
greasy spillages that may ignite.
•Never use your appliance as a work or storage surface.
•Never leave any objects or utensils on the appliance.
•Do not place or leave any magnetised objects (e.g. credit cards, memory cards) or
electronic devices (e.g. computers, MP3 players) near the appliance, as they may
get affected by its electromagnetic field.
•Never use your appliance for warming or heating the room.
•After use, always turn off the cooking zones and the cooktop as described in this
manual (i.e. by using the touch controls). Do not rely on the pan detection feature
to turn off the cooking zones when you remove the pans.
•Do not allow children to play with the appliance or sit, stand or climb on it.
•Do not store items of interest to children in cabinets above the appliance. Children
climbing on the cooktop could be seriously injured.
•Do not leave children alone or unattended in the area where the appliance is in use.
•Children or persons with a disability which limits their ability to use the appliance
should have a responsible and competent person to instruct them in its use. The
instructor should be satisfied that they can use the appliance without danger to
themselves or their surroundings.
•Do not repair or replace any part of the appliance unless specifically recommended
in the manual. All other servicing should be done by a qualified technician.
•Do not use a steam cleaner to clean your cooktop.
•Do not place or drop heavy objects on your cooktop.
•Do not stand on your cooktop.
•Do not use pans with jagged edges or drag pans across the induction glass surface
as this can scratch the glass.
•Do not use scourers or any other harsh abrasive cleaning agents to clean your
cooktop, as these can scratch the induction glass.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
•This appliance is intended to be used in household and similar applications such as:
staff kitchen areas in shops, offices and other working environments; farmhouses;
by clients in hotels, motels and other residential type environments; bed and
breakfast type environments.
•Warning: The appliance and its accessible parts become hot during use.
•Care should be taken to avoid touching heating elements.
•Children less than 8 years of age shall be kept away unless continuously
supervised.
•This appliance can be used by children aged 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the

3
appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
•Warning: Unattended cooking on a cooktop with fat or oil can be dangerous and
may result in fire. Never try to extinguish a fire with water. Switch off the appliance
and then cover flame e.g. with a lid or a fire blanket.
•Warning: Danger of fire, do not store items on the cooking surfaces.
•Warning: If the surface is cracked, switch off the appliance to avoid the possibility
of electric shock, as cooktop surfaces of glass-ceramic or similar material protect
live parts.
•The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
Electrical Shock Hazard
•Disconnect the appliance from the mains electricity supply before carrying out any
work or maintenance on it.
•Connection to a good earth wiring system is essential and mandatory.
•Alterations to the domestic wiring system must only be made by a qualified
electrician.
•Failure to follow this advice may result in electrical shock or death.
•Do not cook on a broken or cracked cooktop. If the cooktop surface is broken or
cracked, switch the appliance off immediately at the mains power supply (wall
switch) and contact a qualified technician.
•Switch the cooktop off at the wall before cleaning or maintenance.
Cut Hazard
•Take care - panel edges are sharp.
•Failure to use caution could result in injury or cuts.
•The razor-sharp blade of a cooktop scraper is exposed when the safety cover is
retracted. Use with extreme care and always store safely and out of reach of
children.
•Failure to use caution could result in injury or cuts.
Health Hazard
•This appliance complies with electromagnetic safety standards.
•Persons with cardiac pacemakers or other electrical implants (such as insulin
pumps) must consult with their doctor or implant manufacturer before using this
appliance to make sure that their implants will not be affected by the
electromagnetic field.
•Failure to follow this advice may result in death.
Hot Surface Hazard
•During use, accessible parts of this appliance will become hot enough to cause
burns.
•Do not let your body, clothing or any item other than suitable cookware contact
the induction glass until the surface is cool.
•Metallic objects such as knives, forks, spoons and lids should not be placed on the
cooktop surface since they can get hot.
•Keep children away from the appliance.
•Handles of saucepans may be hot to touch. Check saucepan handles and do not
hang over cooking zones that are on. Keep handles out of reach of children.
•Failure to follow this advice could result in burns and scalds.

4

5
Overview
Top View
1
Maximum 1800/3000W zone
2
Maximum 1800/3000W zone
3
Maximum 1800/3000W zone
4
Maximum 1800/3000W zone
5
Free induction zone. 3000/4000W
6
Free induction zone. 3000/4000W
7
Glass plate
8
Control panel
Control Panel
1
Power /Timer slider touch control
2
Heating zone selection controls
3
Pause control
4
Key lock control
5
ON/OFF control
6
Keep warm control
7
Boost control

6
Induction cooking works by electromagnetic vibrations generating heat directly in the pan,
rather than indirectly through heating the glass surface. The glass becomes hot only because
the pan eventually warms it up.
Installation
Cut out the work surface according to the sizes shown in the drawing below.
For the purpose of installation and use, a minimum of 5cm space shall be kept around the
hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant
and insulated work surface material (Wood and similar fibrous or hygroscopic material shall
not be used as work surface material) to avoid electrical shock and larger deformation caused
by the heat radiation from the cooktop.
Note: The safety distance between the sides of the cooktop and the inner surfaces of
the worktop should be at least 3mm.
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
F(mm)
590
520
60
56
560+4
+1
490+4
+1
50 (min)
3 (min)
Under any circumstances, make sure the induction cooker cooktop is well ventilated and the
air inlet and outlet are not blocked. Ensure the induction cooker cooktop is in good working
state. As shown below,

7

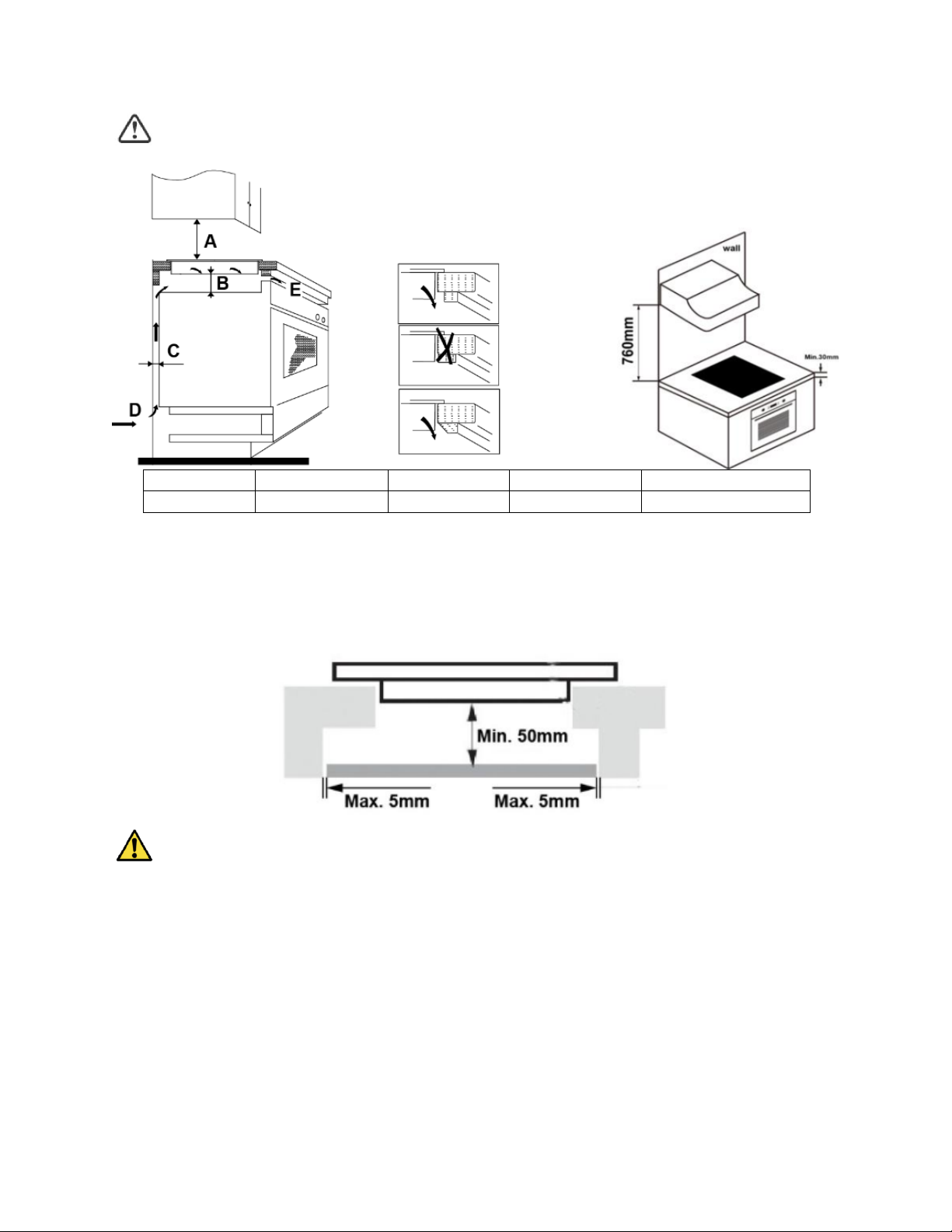

Note: The safety distance between the hotplate and the cupboard above the hotplate
should be at least 760mm.
A(mm)
B(mm)
C(mm)
D
E
760
50 (min)
20 (min)
Air intake
Air exit 5mm
Warning: Ensure adequate ventilation
Make sure the induction cooktop is well ventilated and that the air inlet and outlet are not
blocked. In order to avoid accidental touch with the overheating bottom of the cooktop or
getting an unexpected electric shock during working, it is necessary to put a wooden insert,
fixed by screws, at a minimum distance of 50mm from the bottom of the cooktop. Follow the
requirements below.
There are ventilation holes around the outside of the cooktop. You must ensure these
holes are not blocked by the worktop when you put the cooktop into position.
•Be aware that the glue that joins the plastic or wooden material to the furniture
must resist to temperature not below 150°C, to avoid failure of the adhesive.
•The rear wall, adjacent and surrounding surfaces must therefore be able to
withstand a temperature of 90°C.

8
Before Installing the Cooktop, Ensure:
•The work surface is square and level, and no structural members interfere with
space requirements.
•The work surface is made of a heat-resistant and insulated material.
•If the cooktop is installed above an oven, the oven has a built-in cooling fan.
•The installation will comply with all clearance requirements and applicable
standards and regulations.
•A suitable isolating switch providing full disconnection from the mains power
supply is incorporated in the permanent wiring mounted and positioned to comply
with the local wiring rules and regulations.
•The isolating switch must be of an approved type and provide a 3mm air gap
contact separation in all poles (or in all active [phase] conductors if the local wiring
rules allow for this variation of the requirements).
•The isolating switch is easily accessible to the customer with the cooktop installed.
•You consult local building authorities and by-laws if in doubt regarding installation.
•You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall
surfaces surrounding the cooktop.
After Installing the Cooktop, Ensure:
•The power supply cable is not accessible through cupboard doors or drawers.
•There is adequate flow of fresh air from outside the cabinetry to the base of the
cooktop.
•If the cooktop is installed above a drawer or cupboard space, a thermal protection
barrier is installed below the base of the cooktop.
•The isolating switch is easily accessible.
Before Locating the Fixing Brackets
The unit should be placed on a stable, smooth surface (use the packaging). Do not apply
force onto the controls protruding from the cooktop.
Adjusting the Bracket Position
Fix the cooktop on the work surface by screwing 4 brackets on the bottom of cooktop (see
picture) after installation. Adjust the bracket position to suit for different counter thicknesses.

9
Under any circumstances, the brackets cannot touch with the inner surfaces of the
worktop after installation. (See picture above)
Cautions:
1. The induction cooktop must be installed by a qualified personnel or technicians. Please
never conduct the operation by yourself.
2. The cooktop shall not be installed directly above a dishwasher, fridge, freezer, washing
machine or clothes dryer, as the humidity may damage the cooktop electronics.
3. The induction cooktop shall be installed such that better heat radiation can be ensured
to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.
Connecting the Cooktop to the Mains Power Supply
This cooktop must be connected to the mains power supply only by a qualified person.
Before connecting the cooktop to the mains power supply, check that:
1. The domestic wiring system is suitable for the power drawn by the cooktop.
2. The voltage corresponds to the value given in the rating plate.
3. The power supply cable sections can withstand the load specified on the rating plate.
4. To connect the cooktop to the mains power supply, do not use adapters, reducers or
branching devices, as they can cause overheating and fire.
5. The power supply cable must not touch any hot parts and must be positioned so that
its temperature will not exceed 75˚C at any point.
Check with an electrician whether the domestic wiring system is suitable without
alterations.
Any alterations must be made only by a qualified electrician.

10
If the total number of heating unit of the appliance you choose is not less than 4, then the
appliance can be connected directly to the mains by single-phase electric connection, as
shown below.
•If the cable is damaged or to be replaced, the operation must be carried out by a
qualified technician with dedicated tools to avoid any accidents.
•If the appliance is being connected directly to the mains, then an omnipolar circuit-
breaker must be installed with a minimum opening of 3mm between contacts.
•The installer must ensure that the correct electrical connection has been made and
that it complies with safety regulations.
•The cable must not be bent or compressed.
•The cable must be checked regularly and replaced by authorised technicians.
The bottom surface and the power cord of the cooktop are not accessible after installation.

11
Operation
Before using your new induction cooktop:
•Remove any protective film that may still be on your induction cooktop.
Touch Controls
•The controls respond to touch, so you don’t need to apply any pressure.
•Use the ball of your finger, not its tip.
•You will hear a beep each time a touch is registered.
•Make sure the controls are always clean, dry and that there is no object (e.g. a
utensil or a cloth) covering them. Even a thin film of water may make the controls
difficult to operate.
Choosing the Right Cookware
•Only use cookware with a base suitable for induction cooking.

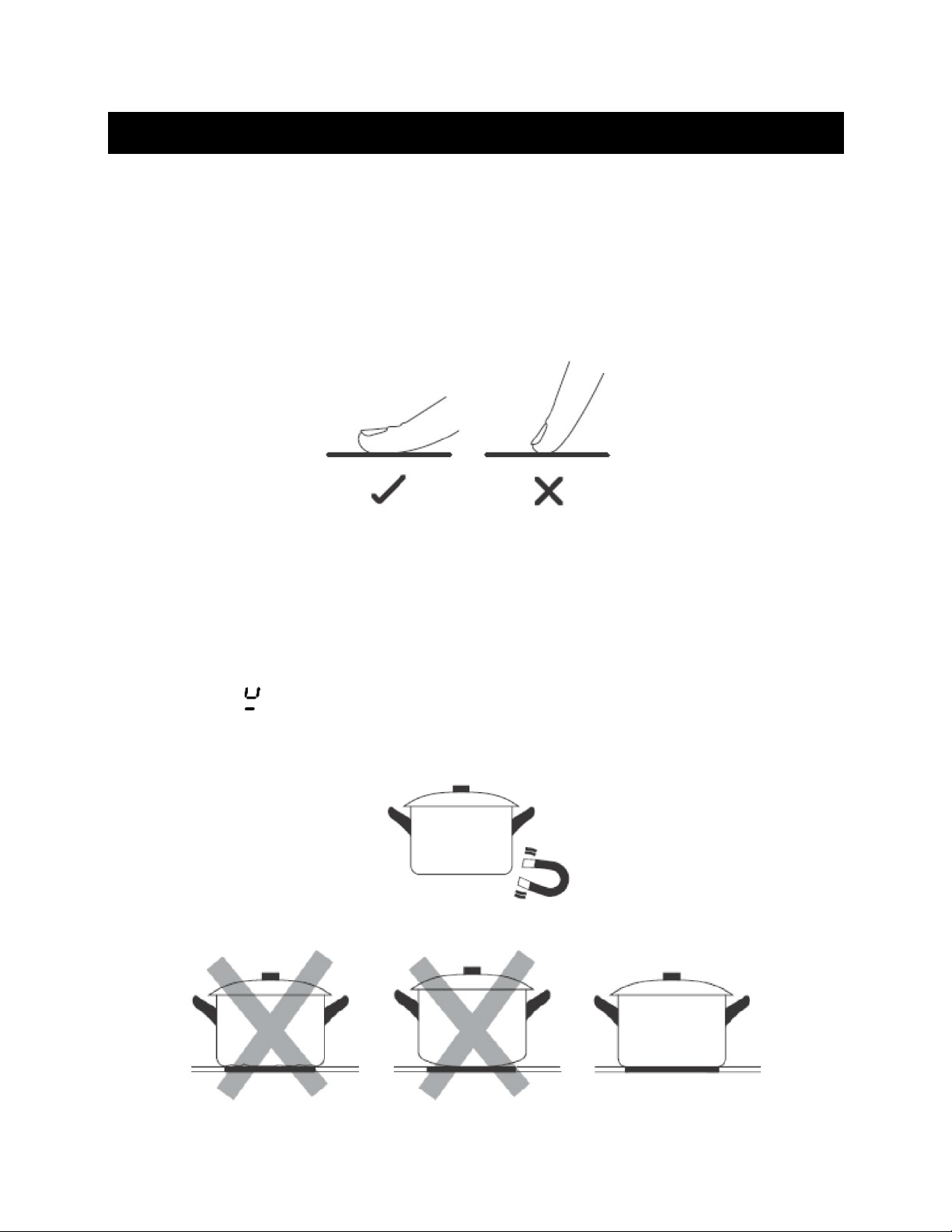

•Look for the induction symbol on the packaging or on the bottom of the pan.
•You can check whether your cookware is suitable by carrying out a magnet test.
Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for
induction.
•If you do not have a magnet
▪Put some water in the pan you want to check.
▪If does not flash in the display and the water is heating, the pan is suitable.
•Cookware made from the following materials is not suitable: pure stainless steel,
aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic and
earthenware.
Do not use cookware with jagged edges or a curved base.

12

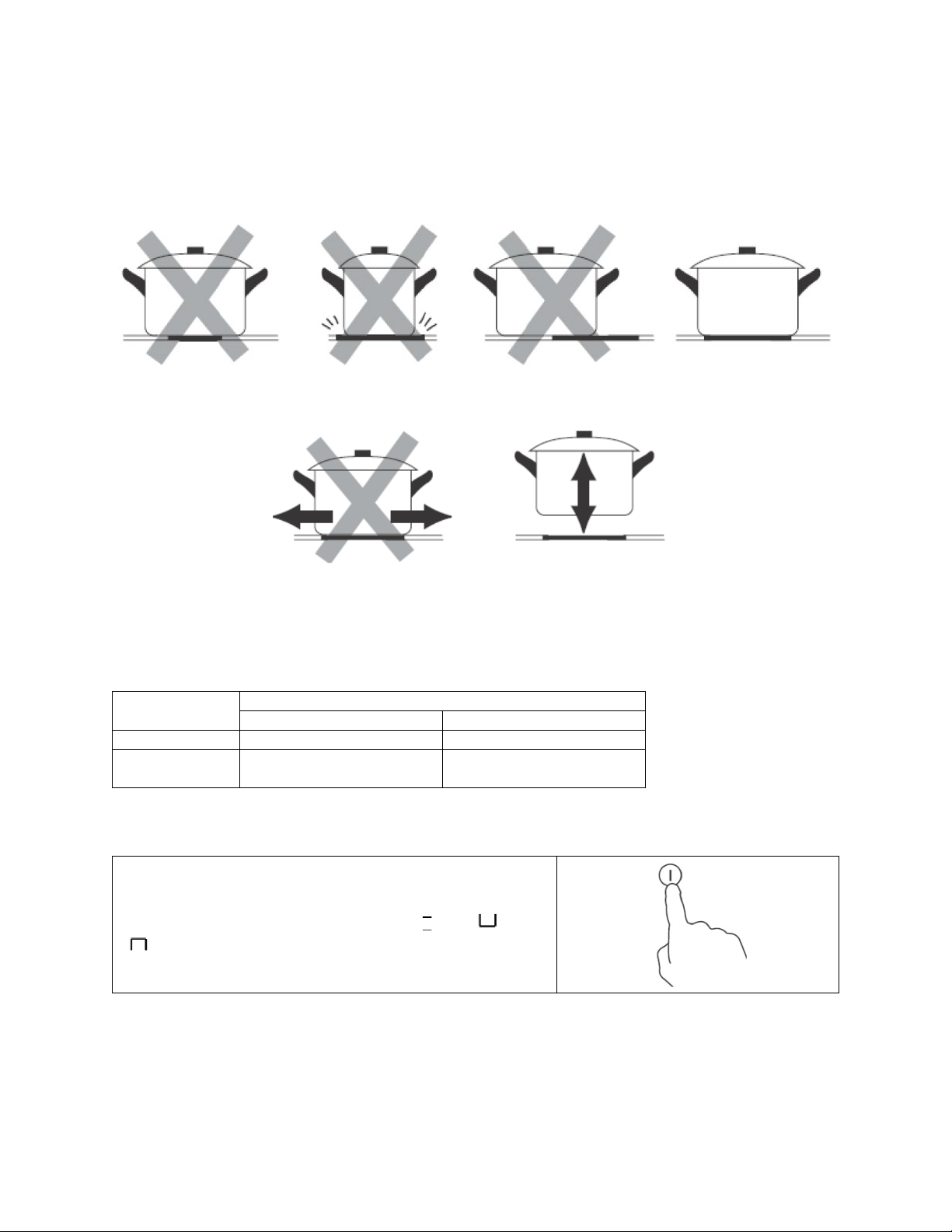

Make sure that the base of your pan is smooth, sits flat against the glass and is the same size
as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected.
If using a pot slightly wider, the energy will be used at its maximum efficiency. If you use a
smaller pot, efficiency could be less than expected. Pots less than 140mm could be
undetected by the cooktop. Always centre your pan on the cooking zone.
Always lift pans off the induction cooktop. Do not slide the pans or they may scratch the
glass.
Pan Dimension
The cooking zones are up to a limit, automatically adapting to the diameter of the pan.
However, the bottom of this pan must have a minimum diameter according to the
corresponding cooking zone. To obtain the best efficiency of your cooktop, please place the
pan in the centre of the cooking zone.
Cooking
zone
The base diameter of induction cookware
Minimum(mm)
Maximum(mm)
1,2,3,4
140
220
Free
induction
220
220x240
How to Use
Start cooking:
Touch the ON/OFF control. After powering on, the
buzzer beeps once, the timer controls show “00”, the
heating zone selection controls show “ ” or “” or
“”, indicating that the induction cooktop has entered
standby mode.

13
Place a suitable pan on the cooking zone that you wish
to use.
•Make sure the bottom of the pan and the surface of
the cooking zone are clean and dry.
To u c h the heating zone selection control and an
indicator where you touched will flash.
Adjust heat setting by touching the slider control.
•If you don’t choose a heat setting within 1 minute,
the induction cooktop will automatically switch off.
You will need to start again from step 1.
•You can modify the heat setting at any time during
cooking.
If the display flashes alternately with the heat setting,
This means that:
•You have not placed a pan on the correct cooking zone or,
•The pan you’re using is not suitable for induction cooking or,
•The pan is too small or not properly centred on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The display will automatically turn off after 1 minute if no suitable pan is placed on it.
Finish Cooking
Touch the heating zone selection control that you wish
to switch off.
Turn the cooking zone off by touching the slider to the
left. Make sure the display shows “0”.

14
Turn the whole cooktop off by touching the ON/OFF
control.
Beware of hot surfaces.

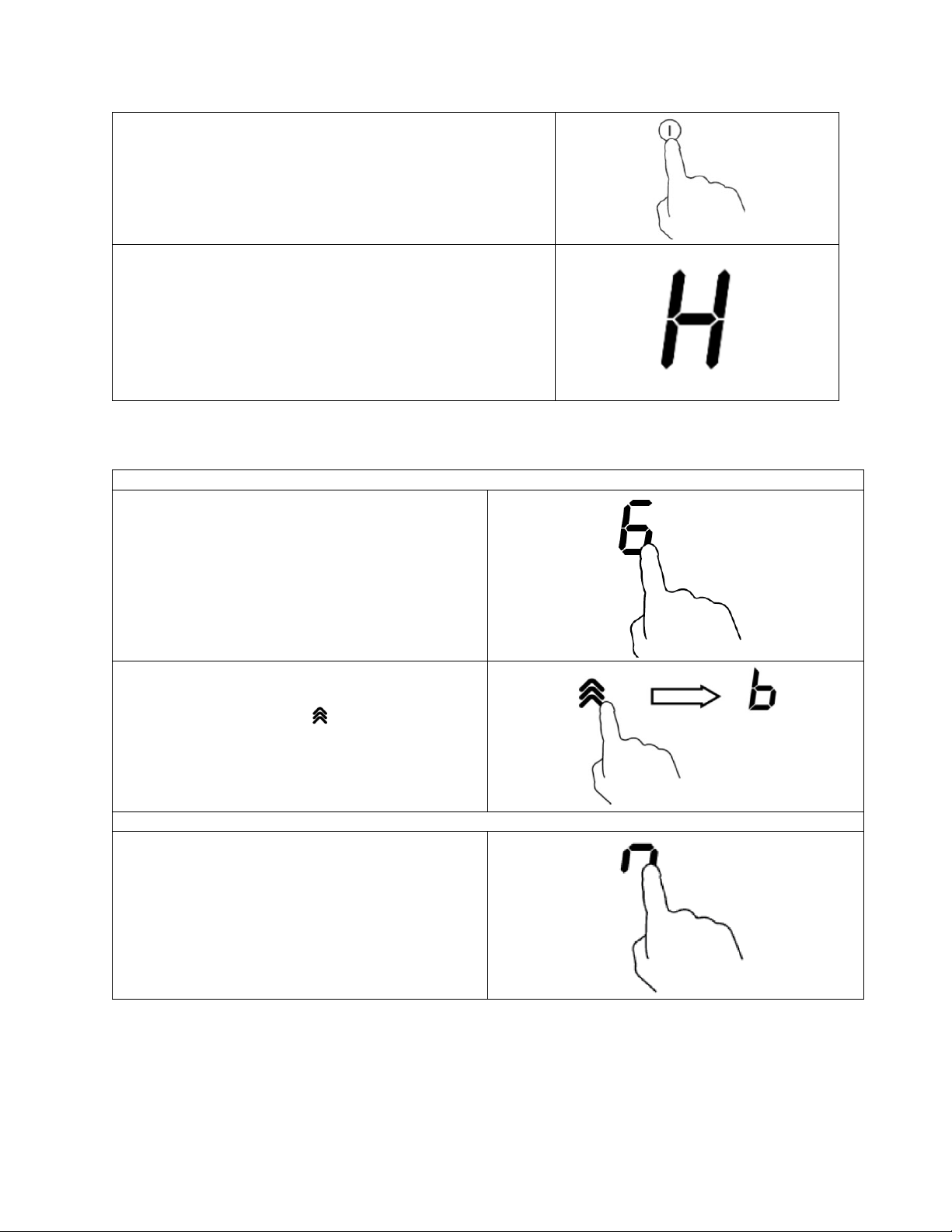

“H” will show which cooking zone is hot to touch. It will
disappear when the surface has cooled down to a safe
temperature. It can also be used as an energy saving
function if you want to heat further pans, use the
hotplate that is still hot.
Using the Boost Function
Activate the boost function
Touch the heating zone selection control.
Touch the boost control , the zone indicator
will show “b” and the power will rise to
maximum.
Cancel the boost function
To u c h the heating zone selection control that
you wish to cancel the boost function.

15
a: Touch the boost control , then the
cooking zone will revert to its original setting.
b: Touching the slider control, then the
cooking zone will revert to the level you
select.
Note:
•The function can work in all cooking zones.
•The cooking zone returns to its original setting after 5 minutes.
•When the boost function of the 1st cooking zone is activated, the 2nd cooking zone
is limited under level 2 automatically and vice versa.
•If the original heat setting is 0, it will return to 9 after 5 minutes.
Keep Warm

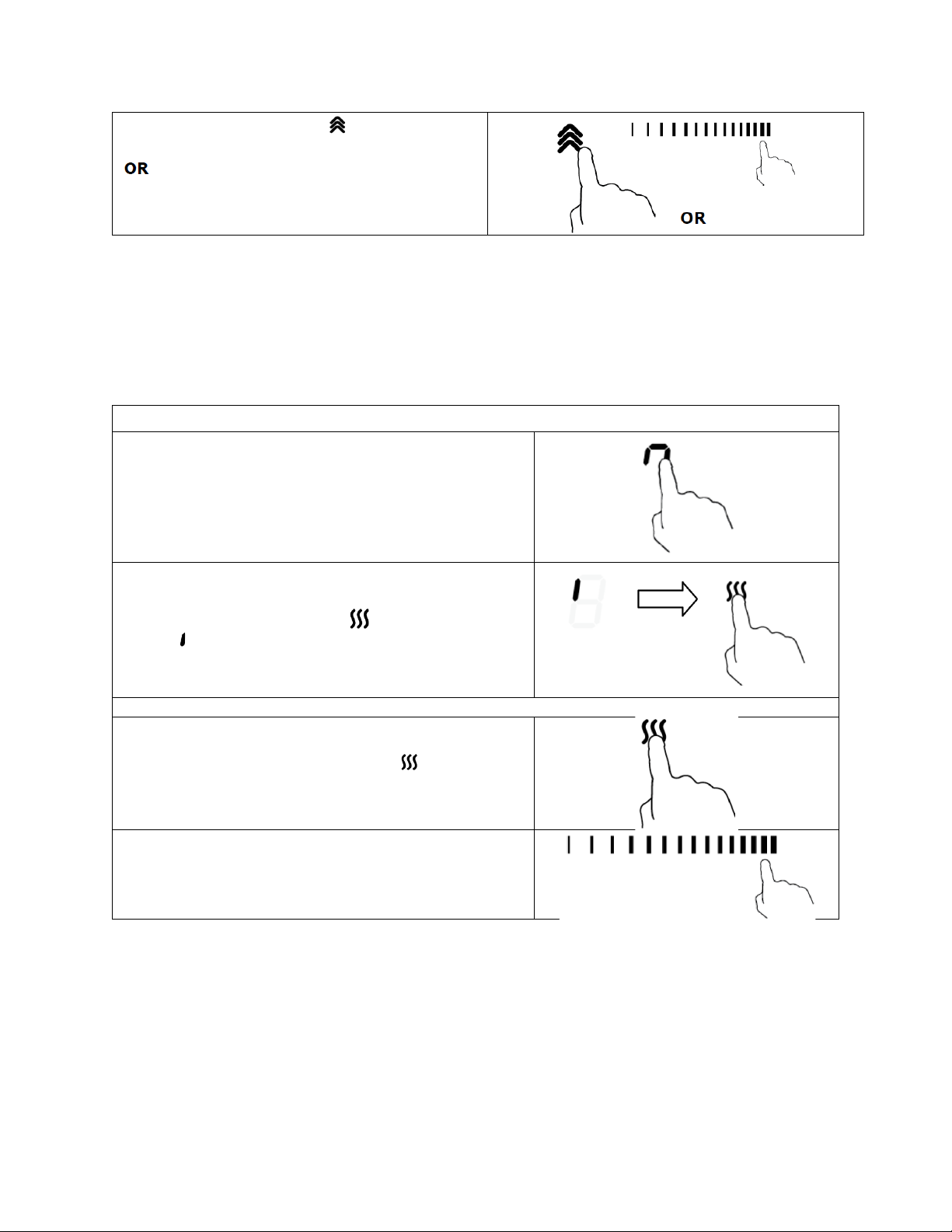

Activate the keep warm function
Touch the heating zone selection control.
Touch the keep warm control , the zone indicator
shows “ ”.
Cancel the keep warm function
a) Touching the keep warm control “”, then the
cooking zone will revert to its original setting.
b) Touching the slider control, then the cooking
zone will revert to the level you select.
Flexible Area
•This area can be used as a single zone or as two different zones, according to the
cooking needs.
•The flexible area is made of two independent inductors that can be controlled
separately. When working as a single zone, the part that is not covered by
cookware is automatically switched off after one minute.
•To grant a correct pan detection and an even heat distribution, the cookware
should be correctly placed in the front or rear side of the flexible zone when the
cookware is smaller than 22cm and anywhere with bigger cookware.

16
As big zone
To activate the flexible area as a single big
zone, simply press the dedicated keys.
The power settings work as any other normal area.
If the pot is moved from the front to the rear part (or vice versa), the flexible area detects
the new position automatically keeping the same power.
To add a pot, press the dedicated keys again in order to detect the cookware.
As two independent zones
To use the flexible area as two different zones with different power settings, press the
dedicated keys.
Locking the Controls
•You can lock the controls to prevent unintended use. (for example, children
accidentally turning the cooking zones on)
•When the controls are locked, all the controls except the ON/OFF control are
disabled.
To lock the controls
Touch the lock control
The timer indicator will show “Lo”
To unlock the controls
Touch and hold the lock control for a while.
When the cooktop is in the lock mode, all the controls are disabled except the ON/OFF
controls. You can always turn the induction cooktop off with the ON/OFF control in an
emergency, but you should unlock the cooktop before your next use.
Timer Control
You can use the timer in two different ways:
•You can use it as a minute minder. In this mode, the timer will not turn any cooking
zone off when the set time is up.
•You can set it to turn one or more cooking zones off after the set time is up. The
maximum duration of the timer is 99 minutes.

17
a) Using the timer as a minute minder.
Make sure the cooktop is turned on.
Note: you can use the minute minder even if you’re
not selecting any cooking zone.

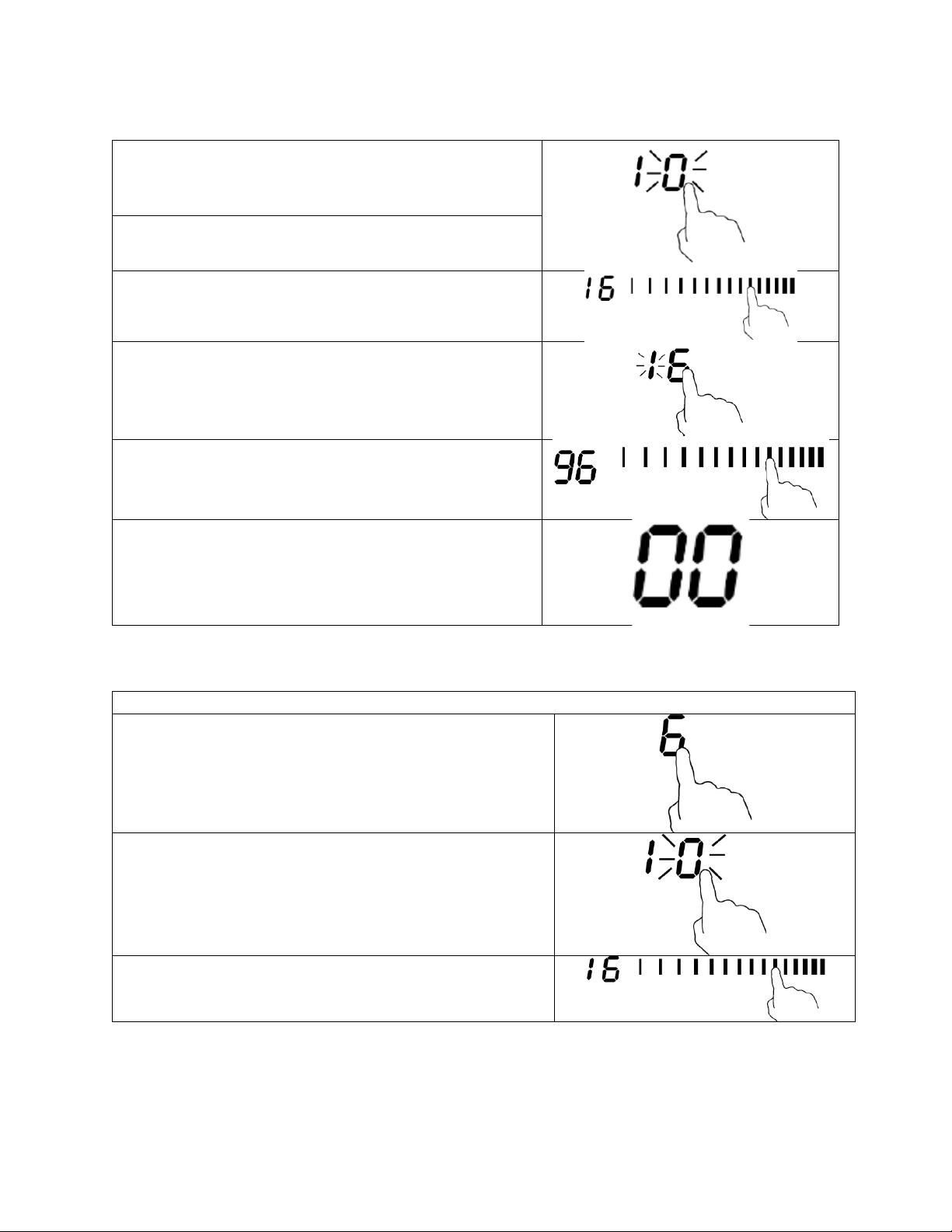

Touch the timer control, the “10” will show in the
timer display where touched and the “0” flashes.
Set the time by touching the slider control (e.g. 6)
Touch timer control again, the “1” will flash.
Set the time by touching the slider control (e.g.9),
now the timer you set is 96 minutes.
Buzzer will beep for 30 seconds and the timer
indicator shows “--” when the setting time is finished.
b) Setting the timer to turn one or more cooking zones off.
Cooking zones set for this feature will:
Set one zone
To u c h the heating zone selection control that you want
to set the timer for.
Touch timer control, the “10” will show in the timer
display and the “0” flashes.
Set the time by touching the slider control. (e.g. 6)

18
Touch timer control again, the "1" will flash.
Set the time by touching the slider control (e.g. 9),
now the timer you set is 96 minutes.
When the time is set, it will begin to count down
immediately. The display will show the remaining time
and the timer indicator will flash for 5 seconds.
When cooking timer expires, the corresponding
cooking zone will be switched off automatically.
1. Other cooking zone will keep operating if they are turned on previously.
2. The red dot next to power level indicator will illuminate indicating that zone is
selected.
Set more zones:
The steps for setting more zones are like the steps of setting one zone;
When you set the time for several cooking zones simultaneously, decimal dots of the
relevant cooking zones are turned on. The minute display shows the minimum timer. The dot
of the corresponding zone flashes. As shown below:
(set to 15 minutes)
(set to 45 minutes)
Once the countdown timer expires, the corresponding
zone will switch off. Then it will show the new
minimum timer and the dot of corresponding zone will
flash.
(set to
30
minutes)
Touch the heating zone selection control, the corresponding timer will be shown in the timer
indicator.

19
Using the Stop and Go Control

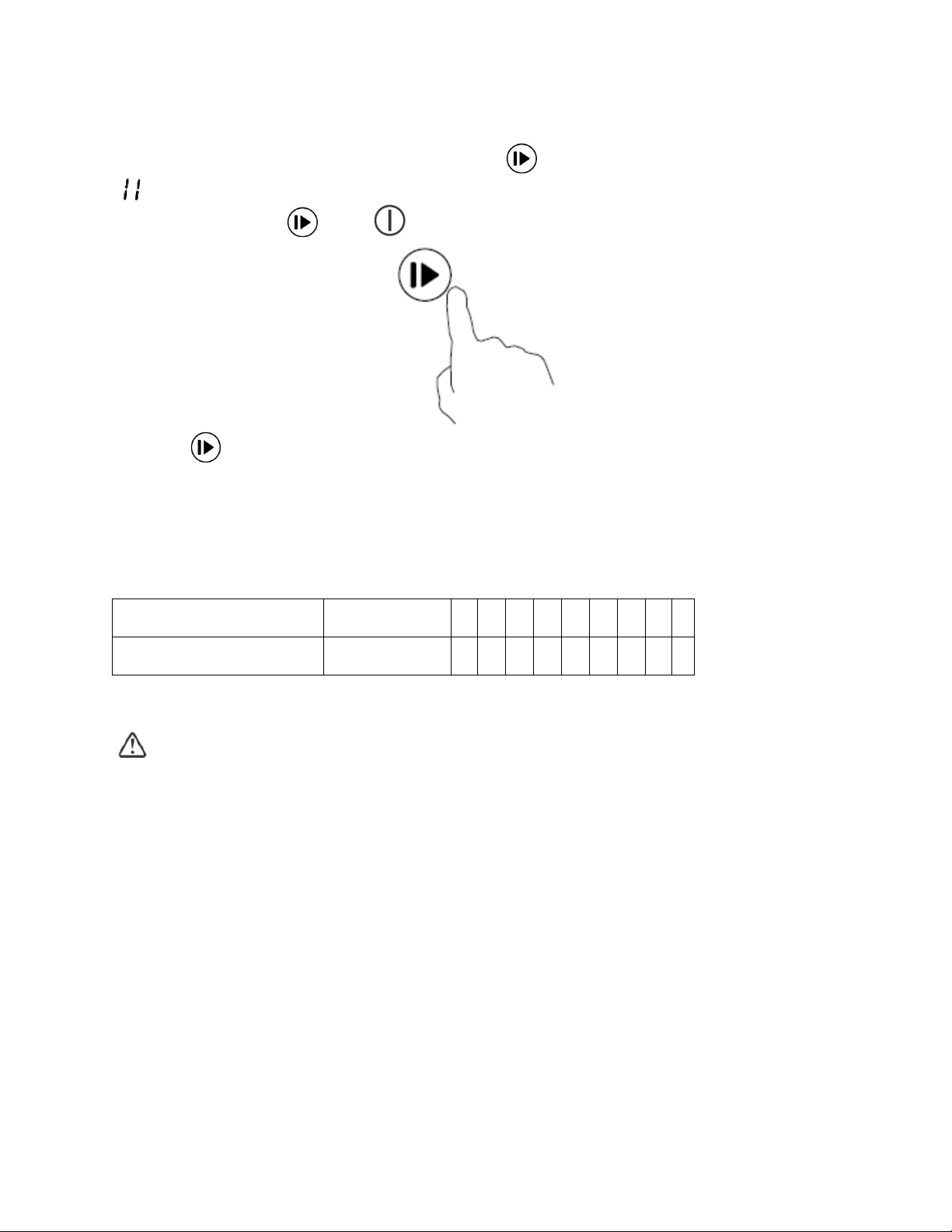

1. When the cooking zones are running, touch the “ ” control, all the displays will show
“ ” and stop heating.
During this time only “ ” and “ ” control can be operated.
2 . To u c h “ ” again, the display shows the original setting and the cooking zones continue
heating.
Default Working Times
Auto shut down is a safety protective function for your induction cooktop. It shuts down
automatically if ever you forget to turn off your cooking. The default working times for various
power levels are shown in the below table:
Power level
Keep warm
1
2
3
4
5
6
7
8
9
Default working timer
(hour)
8
8
8
8
4
4
4
2
2
2
When the pot is removed, the induction cooktop can stop heating immediately and the
cooktop automatically switch off after 2 minutes.
People with a heart pacemaker should consult with their doctor before using this unit.
Cooking Guidelines
Take care when frying as oil and fat heat up very quickly, particularly if you’re using Boost. At
extremely high temperatures oil and fat will ignite spontaneously and this presents a serious
fire risk.
Cooking tips:
•When food comes to the boil, reduce the temperature setting.
•Using a lid will reduce cooking times and save energy by retaining the heat.
•Minimise the amount of liquid or fat to reduce cooking times.
•Start cooking on a high setting and reduce the setting when the food has heated
through.
Simmering, cooking rice:
•Simmering occurs below boiling point, at around 85˚C, when bubbles are just rising
occasionally to the surface of the cooking liquid. It is the key to delicious soups and
tender stews because the flavours develop without overcooking the food. You
should also cook egg-based and flour thickened sauces below boiling point.

20
•Some tasks, including cooking rice by the absorption method, may require a
setting higher than the lowest setting to ensure the food is cooked properly in the
time recommended.
Searing steak:
To cook juicy flavoursome steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan
and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the
thickness of the steak and how cooked you want it. Times may vary from about 2 – 8
minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the
more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and
become tender before serving.
For stir-frying:
1. Choose an induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking
large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat at first, put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a
lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.
Detection of Small Articles
When an unsuitable size or non-magnetic pan (e.g. aluminium) or some other small item (e.g.
knife, fork, key) has been left on the cooktop, the cooktop automatically goes on standby in 1
minute. The fan will keep cooling down the induction cooktop for a further 1 minute.
Heat Settings
The settings below are guidelines only. The exact setting will depend on several factors,
including your cookware and the amount you are cooking. Experiment with the induction
cooktop to find the settings that best suit you.
Heat settings
Suitability
1-2
•delicate warming for small amounts of food
•melting chocolate, butter and foods that burn quickly
•gentle simmering
•slow warming
3-4
•reheating
•rapid simmering
•cooking rice
5-6
•pancakes
7-8
•sautéing
•cooking pasta
9/P
•stir-frying
•searing
•bringing soup to the boil
•boiling water
