Introduction
Thank you very much for purchasing your LED TV. It serves as a normal colour TV
and a PC monitor. To enjoy your set fully from the very beginning, read this manual
carefully and keep it handy for future reference.
INSTALLATION
①Locate the receiver in the room where direct light does not strike the screen. Total
darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect
lighting is recommended for comfortable viewing.
②Allow enough space between the receiver and the wall to permit ventilation.
③Avoid excessively warm locations to prevent possible damage to the cabinet or
premature component failure.
④This TV can be connected to AC 100-240V~ 50/60HZ.
⑤Do not install the TV in a location near heat sources such as radiators, air ducts,
direct sunlight, or in closed compartments and closed areas. Do not cover the
ventilation openings when using the TV.
6. The indicator light will last for about 30 seconds after the power has been turned
off. Wait until the indicator light goes out before repowering the TV.

3
Warning
This symbol is intended to alert the user to avoid the risk
of electric shock. This equipment may only be disassembled
by qualified service personnel.
This symbol is intended to alert the user to the presence
of important operation and maintenance instructions in
the literature accompanying the equipment.
An apparatus with Class I construction shall be connected to a
MAINS socket outlet with protcctive earthing connection.
Where the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER- SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

4
Caution
Caution
High voltages are used in the operation of this product.
-Do not open the product's casing. Refer servicing
to qualified service personnel .
Caution
To prevent fire or electrical shock hazard, do not expose
the main unit to moisture. do not place objects filled with
liquids, such as vases, on the apparatus.
Caution
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Caution
Avoid exposing the main unit to direct sunlight and other
sources of heat. Do not stand the television receiver
directly on other products which give off heat: e. g. video
cassette players and audio amplifiers. Do not block the
ventilation holes in the back cover. Ventilation is essential
to prevent failure of electrical components. Do not squash
power supply cord under the main unit or other heavy objects.

5
Caution
Caution
Never stand on, lean on or suddenly push the product
or its stand. You should pay special attention to
children.
Caution
Do not place the main unit on an unstable cart stand,
shelf or table. Serious injury to an individual, and
damage to the television, may result if it should fall.
Caution
When the product is not used for an extended period
of time, it is advisable to disconnect the AC power
cord from the AC outlet.
Caution
The LED panel used in this product is made of glass and
is therefore breakable. This product must not be dropped
or banged. If the LED Panel breaks be careful of being
injured by broken glass.

6

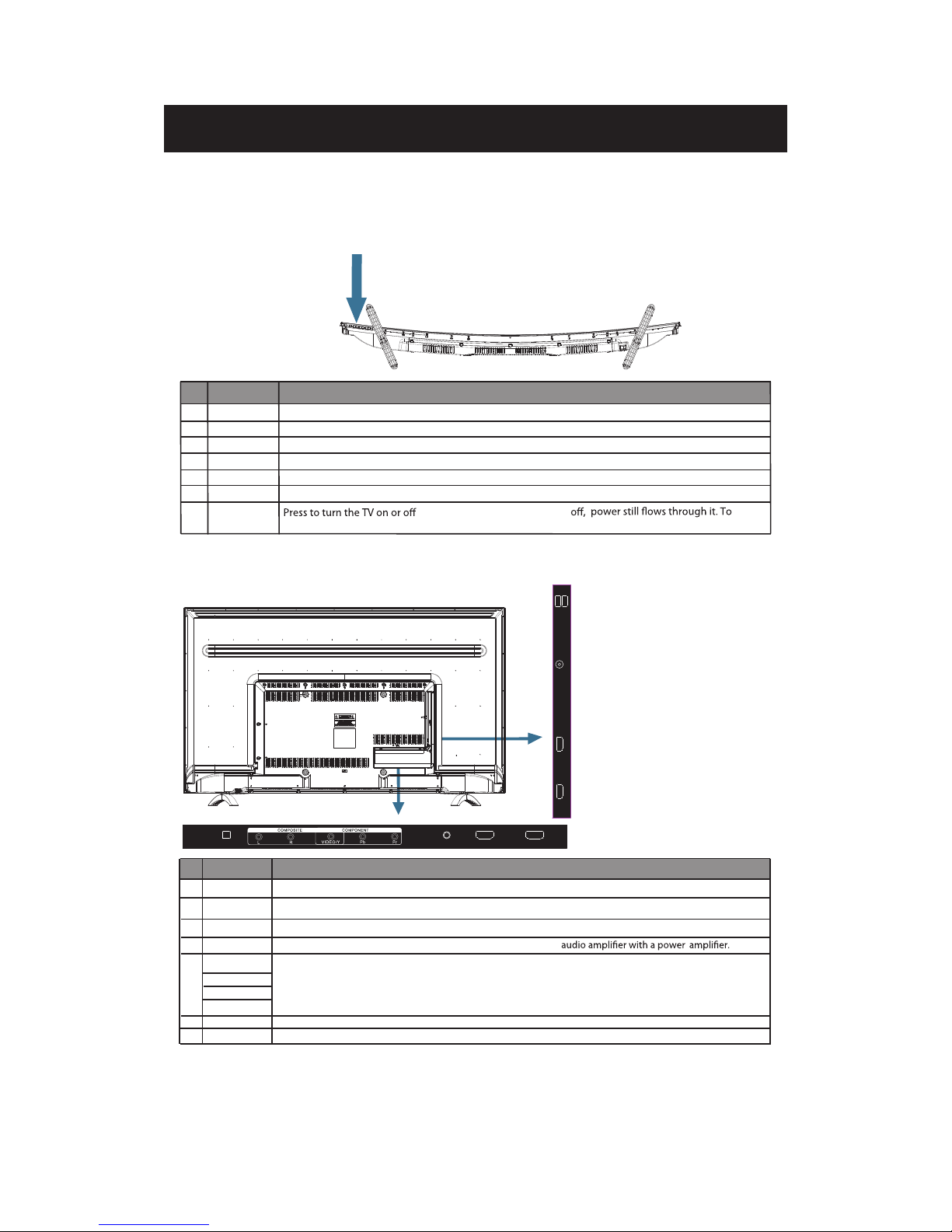

Main unit description
SOURCE MENU VOL+VOL- CH+ CH- POWER
# Item Description
1SOURCE Press to select the SOURCE source. Press the VOL+ button to change to the selected SOUCE source.
2MENU Press to open or close the on-screen menu.
3
VOL+ Press to increase the volume level.4
VOL- Press to decrease the volume level.
5
CH+ Press to go to the next channel in the channel list.6
CH- Press to go to the previous channel in the channel list.
7POWER (standby mode). When the TV is
completely disconnect power, unplug the power cord.
LORTNOCEDIS
NOITCENNOCLAREHPIREP
LINE OUT
OPTICAL HDMI2
HDMI1
ARC
HDMI4
USB2
USB1
RF
HDMI3
# Item Description
1OPTICAL
2
USB1/USB2 Insert a USB storage device to the USB port to view JPEG photos, and listen to MP3 music.
3
RF Connect an antenna or cable TV cable to this jack.
4
5
6
7
AV Connect the video and Video Audio output jack of DVD or VCR.
YPbPr
Line Out
Connect the video cables for a
The output can be connected to a loudspeaker box or an external
component device.
HDMI1(ARC)
HDMI2
HDMI3
HDMI4
Connect HDMI devices to these jacks. An HDMI cable carries both video and sound. You do not need to
make an audio connection for an HDMI device.
Connect a optical audio cable from a sound bar, stereo system, receiver, etc.

USING THE REMOTE CONTROL Item Descriptions
Power
OK Enter the selected option or perform the
selected operation.
AUDIO
INFO
FAV
ASPECT
Press to switch the audio mode.
Press to set the sleep timer.
0~9 /
number
Press to enter a TV channel number
(Press "." to choose the sub-channel).
SOURCE
P.MODE
S.MODE
PVR
FREEZE
RECALL
Press to open the input source list.
MENU
GUIDE
Press to open or close the on-screen menu.
MUTE
SLEEP
SUBTITILE
CH+/CH - Press CH+ or CH- to change TV channels.
VOL+/VOL- Press VOL+ or VOL- to adjust volume level.
EXIT
BACK
Press to exit the menu or on screen display
(OSD).
Press to display the Favorite List.
Use the arrow buttons to move around in
menus.
CH.LIST Press to display the Channel List.
disconnect power, unplug the power cord.
PVR
FREEZE RECALL
MUTE
SLEEP
ASPECT
Play the next le.
Play the previous le.
In TELETEXT mode, the colour buttons will
display the preferred pages.
Move fast backward.
Move fast forward.
Start or pause playing.
Stop playing.
Record program in DTV mode
Enable/disable subtitles.
Return to the previous channel.
Freeze the current teletext page.
Freeze a picture screen.
Switch the sound mode.
Press this button to enter the PVR.
Switch the picture mode.
Display information of the current program (DTV).
Press repeatedly to select the desired screen aspect ratio.
Return to the previous menu.
Display "Channel list”menu.
7

8
Press button to display the input source
list.
Press ▼ / ▲ or button to select input
source, then press button to enter.
Press button to quit.
DTV, ATV, AV , Component, HDMI 1,
HDMI 2,HDMI 3,HDMI 4,Media
Connect an RF cable from the TVs input called “RF-In” and to your TV Aerial socket.
Select the language to be used for menus and
message.
Select the time zone you want.
Select the tuning mode.(Option:DTV+ATV,
ATV,DTV)

9
CHANNEL
Press button to display the main menu.
Press ◄ / ► button to select in the main menu.
(Options: Auto Tuning, ATV Manual Tuning, DTV Manual Tuning, Programme Edit, Schedule List,
Signal Information to the following content.)
1. Press ▼/ ▲button to select the option that you want to adjust in the menu.
2. Press button to adjust.
Tuning the channel automatically.
Press ▼/ ▲button to select Auto Tuning, then press button to enter sub-menu.
Press ◄ / ► button to select the Country, then press button to start Auto Tuning.
Select the country
Select the tune type.
(Options: ATV, DTV, ATV+DTV)

10
Tuning the analogue channel manually.
Press ▼/ ▲button to select Analogue Manual Tuning, then press button to enter sub-menu.
Current CH 1
Set the channel number.
Color System
Select the color system.
(Available System: Auto, PAL, SCEAM)
Sound System
Select the Sound system.
Fine-Tune
Adjust the frequency of the channel finely.
Search
Start searching channel.
Press ▼/ ▲button to select Digital Manual Tuning,
then press button to enter sub-menu.
Press ◄ / ► button to select channel, then press Enter
button to search program.
Channel Edit
Press ▼ / ▲ button to select Program Edit, then press Enter
button to enter sub-menu.
First press ▼ / ▲ to highlight the channel you want to select,
then:
Press the Red button to delete the selected program in the list.
Press the Yellow button to move the channel in favorite list.
Press the Blue button to skip the selected channel.
Press Fav button to add or remote the channel to your favorite
list.
(Your TV set will skip the channel automatically when using
CH+/- to view the channels.)

11
Schedule List
Press ▼ / ▲ button to select Schedule List, press the Enter button to view the detailed information.
Signal information (only use in DTV)
Press “/” button to select “Signal information” and Press “MENU” button to return the previous
menu. Press “EXIT” button to exit the menu.

(Options: Native Standard Pro)
NOTE: backlight grade more higher, picture more light, and energy consumption more higher also.
(Options: 1-10 grade Backlight setup)
12

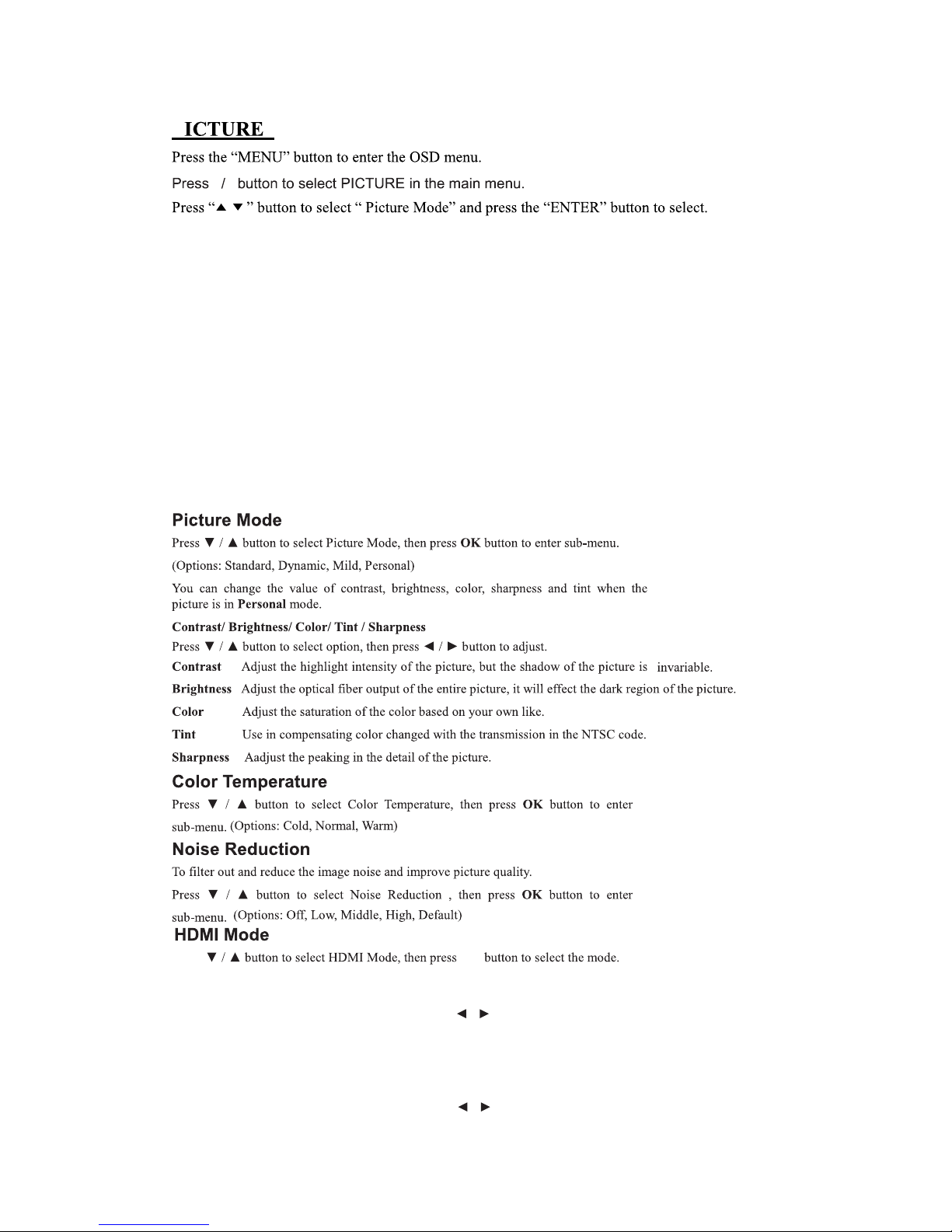

P
/
Press OK
Backlight
Press ▼ / ▲ button to select option, then press / button to adjust.
Advanced Image
Press ▼ / ▲ button to select option, then press / button to adjust.

13
SOUND
Press utton to display the main menu.
Press ◄ / ► button to select SOUND in the main menu.
Press “/” button to select “ Sound Mode” and press the “ENTER” button to select.
Sound Mode
Press ▼/ ▲button to select Sound Mode, then press Enter button to enter sub-menu.
(Options: Standard, Music, Movie, Sport, Personal)
Produces a balanced sound in all environments.
Preserves the original sound.Good for musical programs.
Enhances treble and bass for a rich sound experience.
Enhances vocals for sports.
Select to customize picture settings.
TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.
Balance
Adjust the speaker’s output, it enables you to listen to best at your position.
Press ▼ / ▲ button to select option, Press ◄ / ► button to adjust.
Auto Volume level
reducing the difference between channel and program’s volume automatically.
Press ▼ / ▲ button to select Auto Volume Level, then press ◄ / ► button to select On or Off.
SPDIF Mode
Press ▼ / ▲ button to select SPDIF Mode, then press ◄ / ► button to select Off / PCM / Auto.
AD Switch
Press ▼/ ▲button to select AD Switch, then press ◄ / ► button to select On or Off.
Amblyopia function for the blind, the tracks will be mixed describe the current screen .
It need codestream to support.

14
TIME
Press MENU button to display the main menu.
Press ◄ / ► button to select TIME in the main menu.
Press ▼ / ▲ button to select the option that you want to adjust in the TIME menu.
Time Zone
Press ▼ / ▲ button to select Time Zone, then press Enter button to enter
sub-menu.
Press ▼ / ▲ button to select.
Sleep Timer
Press ▼ / ▲ button to select Sleep Timer, then press Enter button to enter sub-menu.
Press ▼ / ▲ button to select.
(Available options are:Off,10min,20min,30min,60min,90min,120min,180min,240min).
Auto Standby
Press ▼ / ▲ button to select Auto Standby, then press Enter button to enter sub-menu.
Press ▼ / ▲ button to select.
Tips:The remote control does not make any operation in the hypothesis
time, it will close down automatically.If you do any operation, it will reset
the time.
OSD Timer
Press ▼ / ▲ button to select OSD Timer, then press Enter button to enter
sub-menu.
Press ▼ / ▲ button to select.

15
LOCK
Press MENU button to display the main menu.
Press ◄ / ► button to select Lock in the main menu.
Press ▼/ ▲button to select the option that you want to adjust in the LOCK SYSTEM menu.
Lock System
Press ▼/ ▲button to select Lock System,
hen press Enter button to make the following 3 options
and if forget what you set,
please call the service center.
Default password is 0000,
Set Password
Press ▼/ ▲button to select Set Password,
then press Enter button to enter sub-menu to set new password.

16
Channel Lock
Press ▼/ ▲button to select Channel Lock
then press Enter button to enter sub-menu to select.
Press Green button to lock or unlock the channel.
Parental Guidance
Press ▼/ ▲button to select Parental Guidance,
then press Enter button to enter sub-menu to select the number of
age
which is suitable for your children.
Key Lock
Press ▼/ ▲button to select Key Lock, then press ◄ / ► button to select Off or On.
When Key Lock’s statue is on, you can’t use the Key panel button.

17
SETUP
Press MENU button to display the main menu.
Press ◄ / ► button to select SETUP in the main menu.
Press ▼ / ▲ button to select the option that you want to adjust in the SETUP menuLanguage
Language Select the language which is displayed on the OSD
menu.Default language is English.
Press ▼/ ▲/ ◄ / ► button to select Menu Language.
TT Language
Press ▼/ ▲button to select TT Language, then press Enter
button to enter sub-menu.
Press ▼/ ▲/ ◄/ ► button to select TT language.

18
Audio Languages
Press ▼/ ▲button to select Audio Languages, then press Enter button to enter sub-menu.
Press ◄ / ► button to select the primary of Audio Languages.
Press ▼/ ▲/ ◄ / ► button to select the Audio Languages.
Subtitle Language
Press ▼/ ▲button to select Subtitle Language, then press Enter button to enter sub-menu.
Press ◄ / ► button to select the primary of Subtitle Language.
Press ▼/ ▲/ ◄ / ► button to select the Subtitle Language.
Hearing Impaired
Press ▼/ ▲button to select Hearing Impaired, then press Enter button to select On or Off.
PVR File System
Press ▼/ ▲button to select PVR File System, then press
Enter button to enter sub-menu.
Press ▼/ ▲button to select Check PVR File System ,
then press Enter button to enter. Then it will check the USB
speed.
Aspect Ratio
Press ▼/ ▲button to select Aspect Ratio, then press Enter
button to enter sub-menu.
Press ▼/ ▲button to select aspect ratio. (Available options
are: Auto, 4:3,16:9, Zoom1, Zoom2).

19
Blue Screen
Press ▼/ ▲button to select Blue Screen, then press Enter button to select On or Off.
First Time Installation
Press ▼/ ▲button to select First time installation, then press Enter button to enter.
Reset
Press ▼/ ▲button to select Reset, then press Enter button to enter sub-menu.
Software Update(USB)
Press ▼/ ▲button to select Software Update (USB), plug your USB device in the USB slot,
then press Enter button to update the right software
HDMI CEC
Press ▼/ ▲ button to select HDMI CEC, then press Enter button to enter
the sub-menu.
HDMI CEC Press ◄ / ► button to turn the HDMI CEC on or off.
Audio Receiver Press ◄ / ► button to turn the HDMI ARC on or off.
Auto Standby Press ◄ / ► button to turn the Auto Standby on or off.
Device List Press Enter button to open the main menu of device.
