Kogan KALCD39FHDXA User manual

USER MANUAL
KALCD39FHDXA

Contents
Important safety instructions 4
Usage conditions and restrictions 4
Electrical safety, power cord and plug 5
Position 5
Cleaning and maintenance 5
Remote Control 7
Accessories 10
Assembly 11
Assembling the stand 11
Wall mounting 12

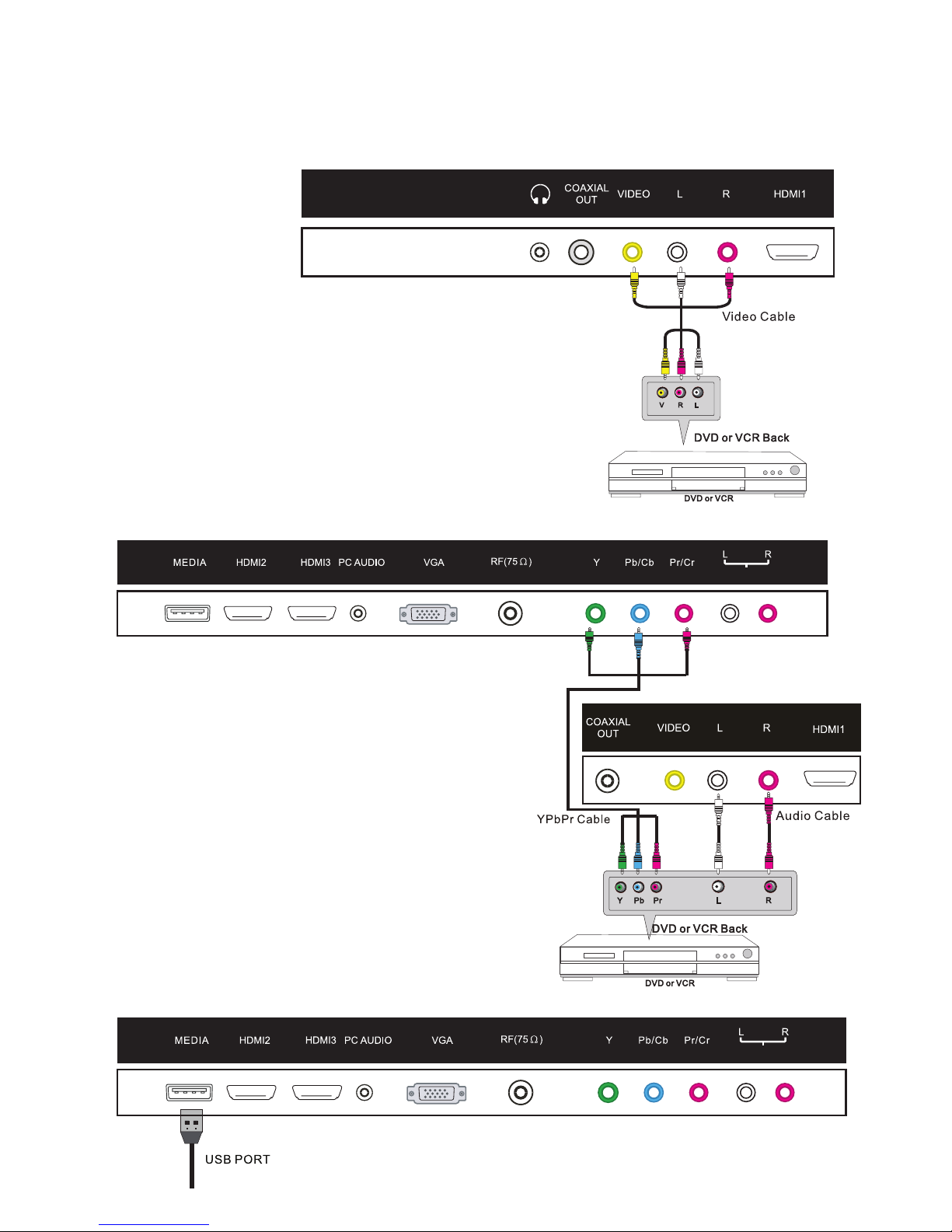

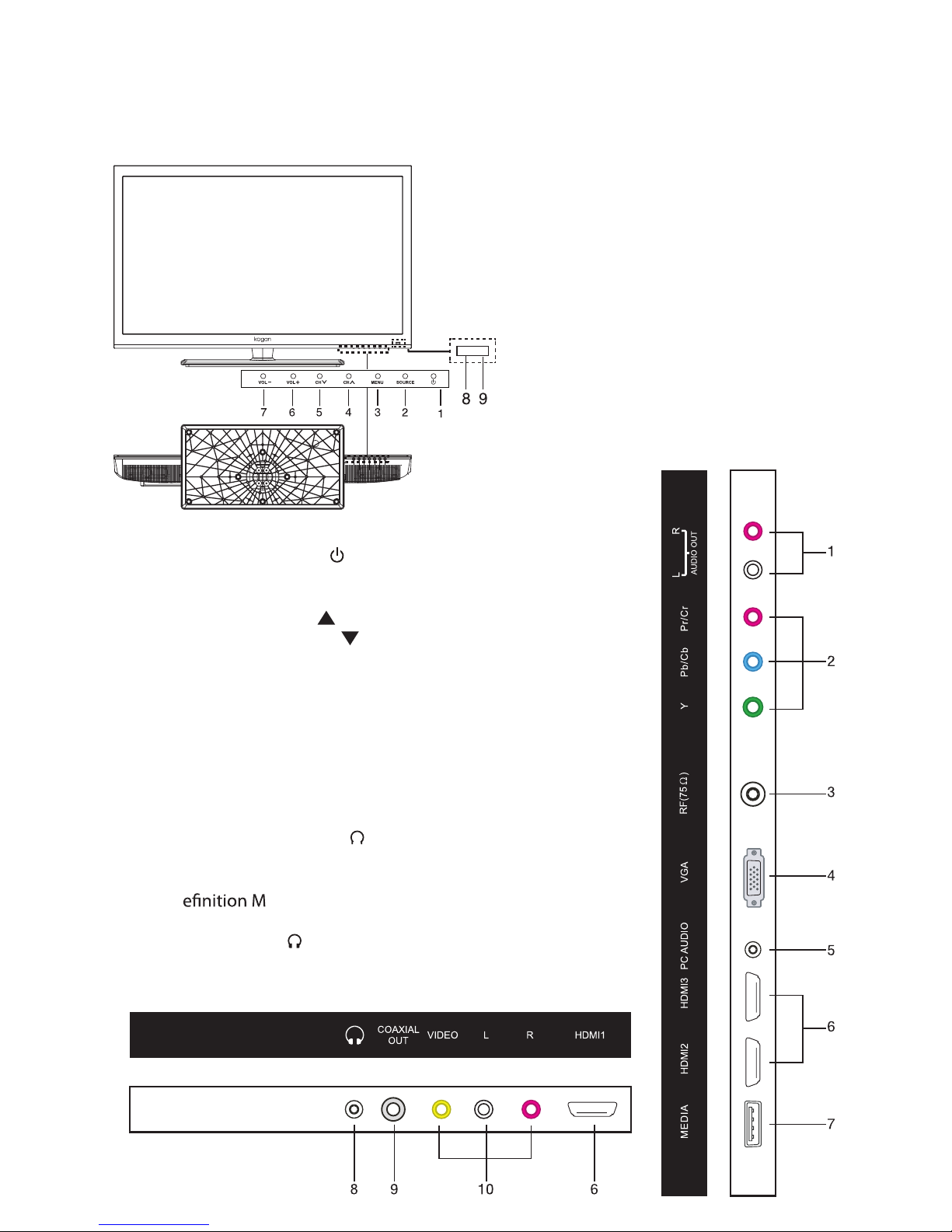

Controls and Connections 13

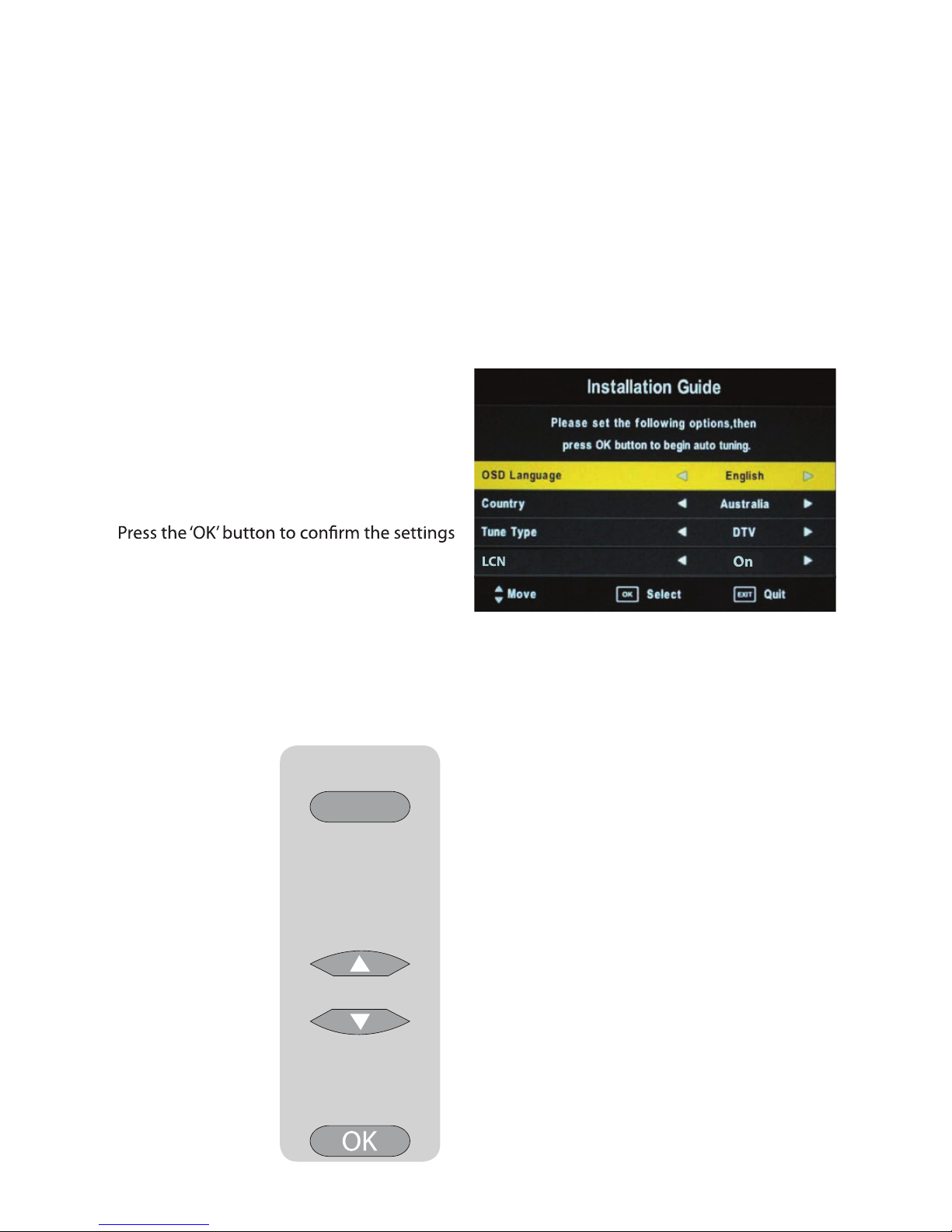

Getting Started 16
Basic Operation 17
Electronic Program Guide (EPG) 18

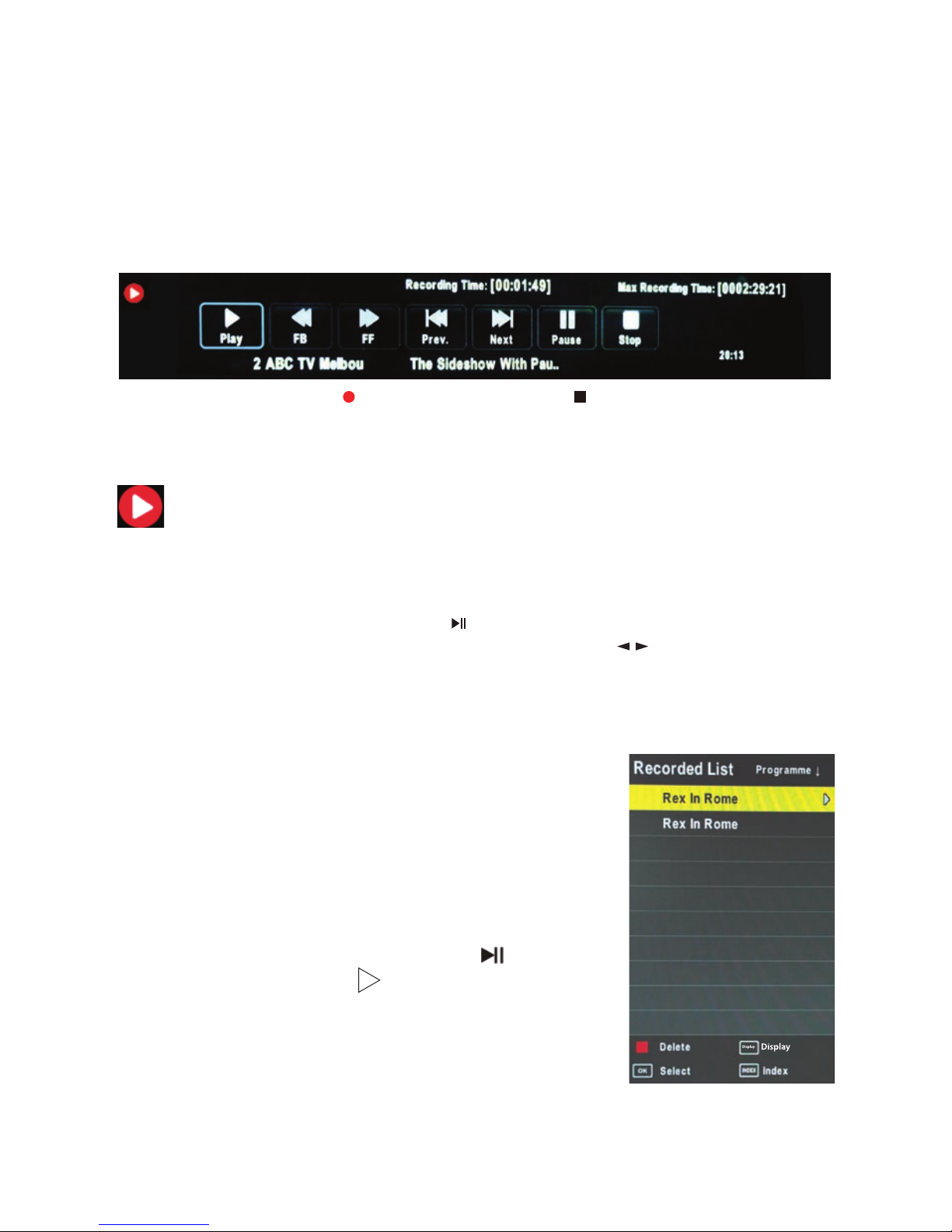

Recording - PVR Function 19
Menu Options in TV Mode 23
Channel menu 23
Picture menu 27
Time menu 30
Sound menu 29
Lock menu 33
Other menus 34
Multimedia menu 35
Text menu 35
Photo menu 36
Music menu 37
Movie menu 38
39
FAQ’s 40

4
Important Safety Instructions
along with the warranty card, purchase receipt and carton. The safety precautions enclosed
Usage conditions and restrictions
To prevent any injuries, the following safety precautions should be observed in the
installation, use, servicing and maintenance of equipment. Before operating this equipment,
please read this manual completely, and keep it nearby for future reference.
•Take notice of all the warnings.
• Do not use this TV near water.
• Clean only with a dry cloth.
• Do not block any of the ventilation openings.
• Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other TV’s
• Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the TV.
•
•
with the TV.
• Unplug this TV during lightning storms or when unused for long periods of time.
• The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
•Young children should be supervised to ensure they do not play with the appliance.
•
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the TV, the TV has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
NOTE:
liquids, such as vases, shall be placed on the TV.

5
Important Safety Instructions
Position
• If a television is not positioned in a suciently stable location, it can be potentially
hazardous due to falling. Many injuries, particularly to children, can be avoided by taking
simple precautions such as:
• Securely attaching the TV to the wall mount fastened on the wall.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the TV controls.
• Not standing the TV on cloth or other materials placed between the television and
supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases)
without anchoring both the furniture and the television to a suitable support.
• When deciding on where to put the TV set, make sure the place is:
• Well ventilated.
• Away from damp and cold.
• Protected from overheating and away from direct sunlight.
• Away from moisture drips or splashes.
• Protected from excessive dust.
• Do not install this equipment in a conned space such as a bookcase or similar unit.
• Do not put any objects lled with liquids, such as vases, on top of the TV set.
• Do not place any naked ame sources, such as lighted candles, on top of the TV set.
Cleaning and maintenance
• Dust the TV set by wiping the screen and cabinet with a soft, clean cloth.
• Do not apply excessive force to the screen when cleaning.
• Do not clean the screen with water or chemical cleaners as this may damage the LCD
screen surface.
Electrical safety, power cord and plug
• Before installing this TV set, make sure your outlet voltage corresponds to the voltage
stated on the appliance rating label.
• To reduce the risk of re or electric shock, do not expose this appliance to rain or moisture.
• Do not overload the power cord or power outlet.
• Do not let the cord hang over the edge of a table or counter, or touch any hot surface.
• Do not allow anything to rest on or roll over the power cord and signal cable.
• Protect the power cord and signal cable from being trampled.
• Do not expose the power cord and signal cable to moisture.

6
Important Safety Instructions
•Do not apply excessive force to the screen when cleaning.
•Do not clean the screen with water or chemical cleaners as this may damage the LCD
screen surface.
•Do not dismantle this product by yourself, as this may cause damage. There are no user-
serviceable parts contained in the TV set.
•If your TV set has been damaged, contact the after sales support line for advice or take
it to a local service centre or for inspection or repair. No liability can be accepted for any
damage caused by non-compliance with these instructions or any other improper use or
mishandling of appliance.
WARNING:
TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR AN ELECTRIC SHOCK HAZARD, DO
NOT EXPOSETHIS APPLIANCETO RAIN OR MOISTURE.
CAUTIONS: •
reduce the risk of electric shock, do not perform any servicing other than that
•
responsible for compliance could void the user’s authority to operate the
equipment.

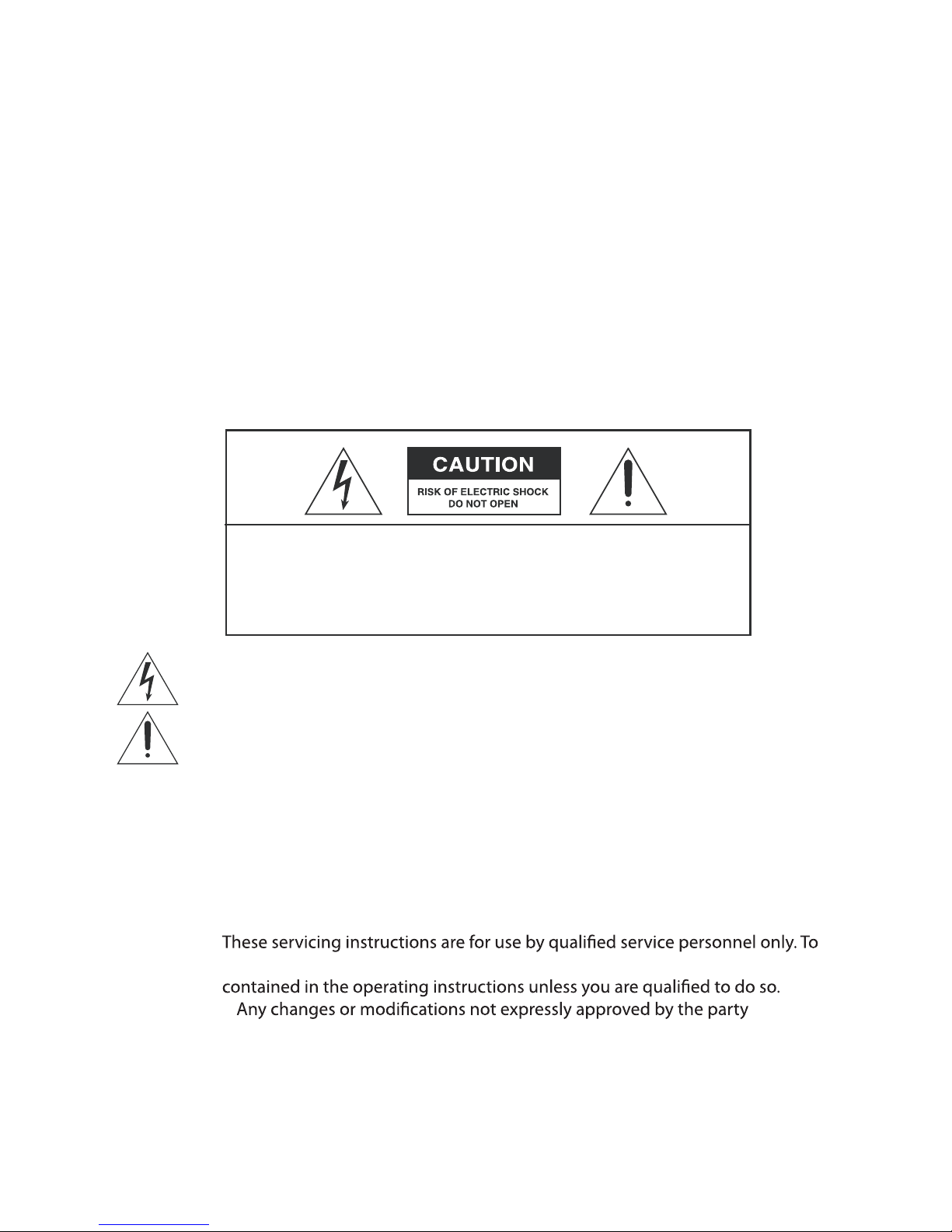

This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the documentation accompanying this unit.
CAUTION: TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

7
Remote Control
The buttons on the remote control and similarly marked ones on the main unit
perform similar functions.
Sound mode button
Favorite program button
Mute button
Multi-digits channel buttton
Recording buttton
Sleep function button
Picture frozen button
Information display button
Numeric buttons
Confirm button
Recording list / Teletext subpage button
Media play/pause / Teletext index button
Media stop / Teletext cancel button
Volume adjusting button Channel select button
0
123
456
7 8 9
A/DTV
+
RC-TFG019
0
1 2 3
4 5 6
7 8 9
OK
P.MODE S.MODE FREEZE SLEEP
SOURCE MENU
INFO
EXIT
HCLOV
I/II
X
REC.LIST
EPG FAV
ZOOM
TXT/MIX
-/--
SUBTITLE
Power/Standby button
Picture mode button
Remote control indicator
Return channel button
Menu button
Signal source select button
Navigation buttons (Up, Down, Left, Right)
Menu exit button
Media previous / Teletext hold button
Electronic program guide button
Media next / Teletext size button
Subtitle button
Media rewind / Teletext reveal button
Media forward / Teletext on/off / mix button
ATV: NICAM function button
DTV/DVD: Audio channel select button
TV: Display mode select button
Media: Zoom in/out button
GOTO REPEAT A-B
TV: RED button
Media: Goto button
TV: GREEN button
TV: BLUE button
Media: A-B repeat button
TV: YELLOW button
Media: Repeat playback button

8

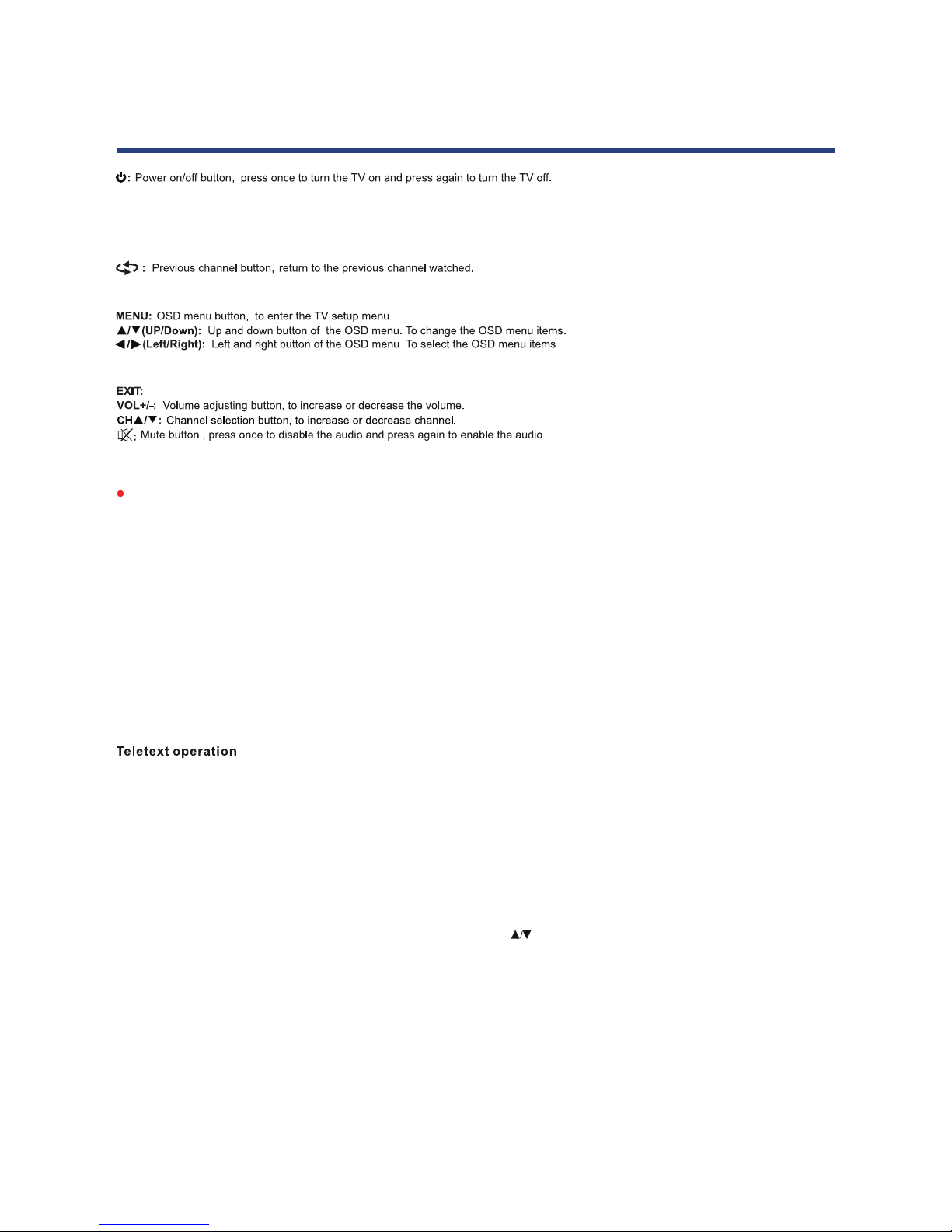

Remote Control (Cont.)
Press the SUBTITLE button to display the subtitle function.
INDEX: Press it once to display the index for all the teletext page.
CANCEL: Do not display the content of the page, but only the channel image. Press it again to display the content of the page again.
SIZE: Press it once to enlarge the content on the upper part of the page, and press it the second time to enlarge the content on the lower part of the
page, and the third time to resume normal display of all the contents on the page.
SUBPAGE: It is refer to the subpage of teletext page, i.e. subcode page. When it is pressed, the screen display the requirement of subpage code
entry. If there is no subpage, it will not be displayed. In most case, there is no subpage.
HOLD:
SUBTITLE:
Press it once to keep the display of the page, and press it again to exit hold state.
REVEAL: Press it once to display the hide text, press it again to close the display of hide text.
TXT/MIX: Press it to enter teletext state and display teletext page; press this button again, display both image and teletext page at the same time. If you
want to exit teletext state, press this button again.
Number buttons 0~9 on the remote control can be used to get to a certain page. “ ” button on the remote control can be used to display the content
of previous or next page. Press the RED, GREEN, YELLOW & BLUE buttons on the remote control, the page of relevant color displayed on the lower
part of the screen will be displayed.
FAST TEXT: The RED, GREEN, YELLOW & BLUE buttons are used for quick access to color coded pages transmitted by FAST TEXT broadcast.
Example:
RED selects CITY INFORMATION,
GREEN selects WEATHER INFORMATION,
YELLOW selects TV PROGRAMMING,
BLUE selects TRAVEL INFORMATION.
S.MODE: Sound mode button, setting the sound mode.
P.MODE: Picture mode button, setting the picture mode.
SLEEP: Sleep button, setting TV power off time.
FREEZE: Press the FREEZE button to freeze the picture on the screen at current frame.
I/II:
EPG:
FAV:
TV mode--Press to choose different audio languages; DVD mode--Press to choose a different audio channel.
INFO: Press the INFO button for information.
Press the EXIT button to exit the operation.
0,1-9: TV channel selection button.
SOURCE: Signal source selection button (ATV/DTV/Media/AV1/AV2/S-Video/PC/Component1/Component2/HDMI1/HDMI2).
OK:
-/--:
Confirm button, confirm all the changes and settings.
Press the EPG button for detailed information about the channel.
Press to select a channel number higher than 9.
: Press to start recording programme.
REC.LIST: Press the REC.LIST button to display the recording list.
Press the FAV button to start the “Favorite List” for selecting your favorite program.
Media operation
l:Press to play or pause the Media display.
d: Press to move backward.
c:Press to move forward.
n:Press to stop the Media display.
f: Press to play last item.
e:Press to play next item.
ZOOM: Press to zoom in the picture.
SUBTITLE: Press to display current sub-title.

9
1. Open the cover at the back of the remote control unit completely.
2. Insert two 1.5V AAA batteries, ensuring the polarities (+ / -) of the batteries are correctly
aligned and the batteries are properly pushed
into place so they can power the remote control unit.
3. Slide the cover back into position.
NOTE: When testing the remote control unit after replacing the batteries, make sure the TV is
properly connected to the mains power supply.
Precautions when using batteries
• Do not use old and new batteries together.
• Do not use different types of battery (for example, Manganese and Alkaline batteries)
together.
• Note that there are chargeable and non-chargeable batteries. Do not attempt to charge
non-chargeable batteries.
• Remove the batteries from the remote control unit if you do not intend to use the unit for
a long time.
• When disposing used batteries, follow any guidelines for recycling and disposal of
batteries that apply in your local area.
Using the remote control
To use the remote control, point it towards the remote sensor at the front of the television.
The remote control has a range of up to approximately ve metres from the TV at an angle of
up to 30 degrees each to the right and left of the sensor. The remote control will not operate
if its path is blocked.
Inserting batteries
Remote Control (Cont.)
Insert two AAA batteries.

10
Accessories
The configuration of the components may look different from the following
illustration.
Warranty
Card
Remote
control
Batteries

11
Assembly
Step 1:
Place a soft, cushioned
surface to prevent damaging
the LCD screen. Then place
with the screen side facing
support column, as illustrated
on the right.
Step 2:
Use the Four supplied
screws to fasten the stand
to the support column, as
illustrated on the right.
NOTE: Two of these screws
are already assembled on the
connecting part to hold it in
place during transportation.
You need to take them out
before assembling the stand.
There are a total of 4 screws
to fasten the base to the TV
support column.
The stand is now fully
assembled.
Assembling the stand

200
300
12

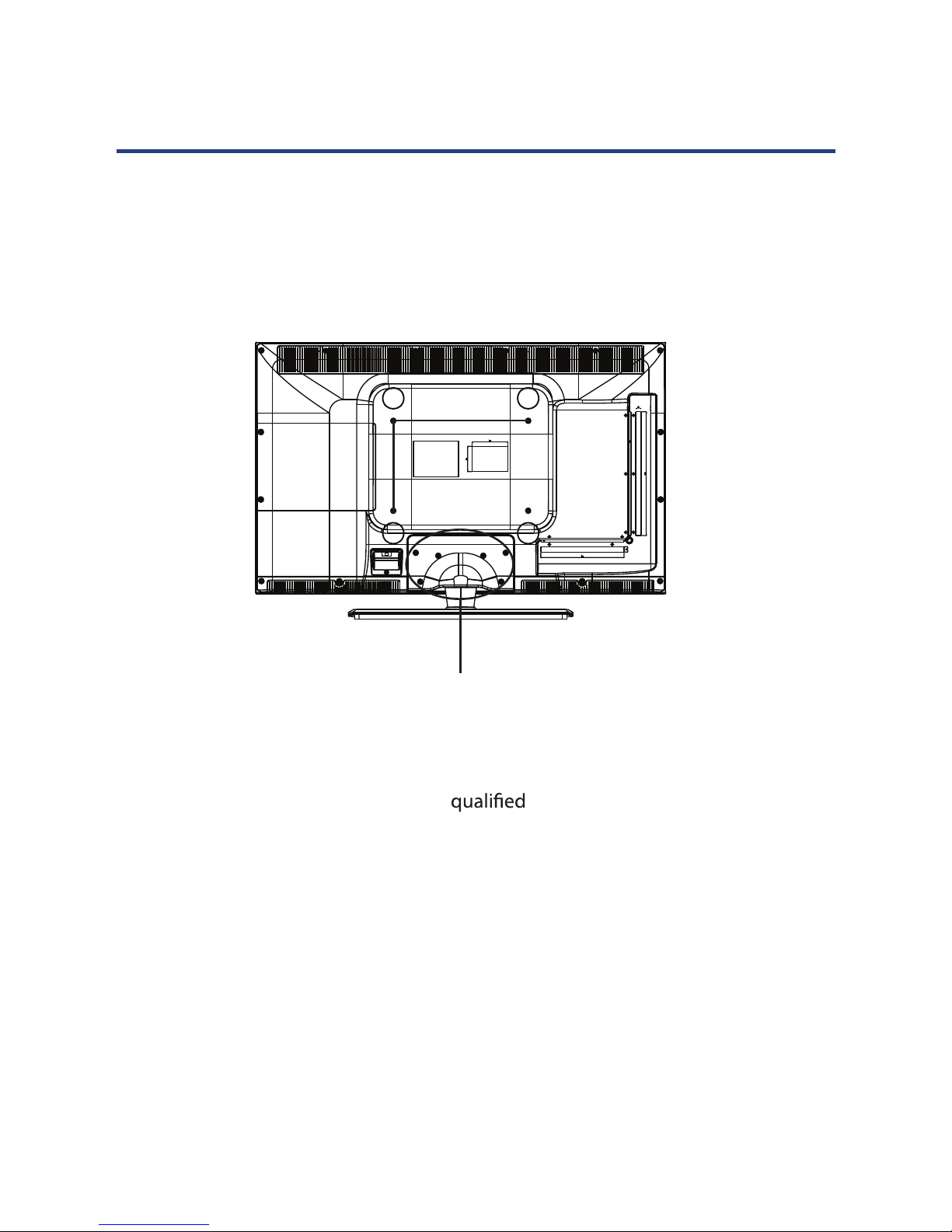

Wall-mounting
The television set is equipped with holes on the back panel for use with wall-
mounting brackets (not included). Please use the image below as a reference when
buying wall-mounting brackets.
NOTE: The distance between the holes is 300 x 200mm in width and height.
remove the entire stand assembly.
NOTE: The screws in the package are for securing the TV stand only. If you are
wall-mounting the TV, consult a installer for further instructions on
bracket support and wall support.
Assembly (Cont.)
For wall-mounting, remove all Six screws to

13
Controls and Connections
Power supply
Ensure your mains voltage and
frequency correspond with those
on the TV rating label.
General control buttons
1. Power/Stand-by button ( )
2. Input source select button (SOURCE)
3. Menu button (MENU)
5. Channel down button (CH )
4. Channel up button (CH )
7. Volume decrease button (VOL- )
6. Volume increase button (VOL+)
8. Remote sensor
9. Power indicator
Sockets (rear and side panel)
1. Audio out (L/R)
2. Component video input sockets (Y Pb/Cb Pr/Cr)
3. Antenna input socket (RF 75 )
4. VGA interface input socket (VGA)
5. PC audio input socket (PC AUDIO)
6. High D ultimedia Interface input sockets (HDMI1/2/3)
7. USB port (MEDIA)
8. Headphone socket ( )
9. S/PDIF Coaxial output socket (COAXIAL OUT)
10. Composite video & audio input sockets (VIDEO/L/R)

14
Controls and Connections (Cont.)
AV Connection
Component (YPbPr)
USB Connection
AUDIO OUT
AUDIO OUT

15
Controls and Connections (Cont.)
VGA (PC Connection)
NOTE (A): Only for PCs that have an audio terminal.
NOTE (B): Please refer to your computer’s documentation for instructions on how to enable
the video and sound output via these connections.
HDMI Connection
AUDIO OUT
AUDIO OUT

16
Getting Started
Powering the LCD LCD TV
•Plug the AC power cable into a suitable power point, then turn on the power at
the outlet.
•Press the POWER button on the remote control, making sure to aim it at the sensor at
the front of the TV.
First use
Before you have tuned and stored any
channels, the Installation Guide (right) will
appear on the screen when you switch on
the TV in DTV/ATV mode.
and start the channel search
You can select between the TV signal and the input signal of other equipment connected to
the TV.
Use this function to switch to the input source you wish to view.
Selecting an input source
Press the SOURCE button on the remote control.
Press the up/down navigation keys to move to the
desired input source.
Press the OK button to conrm your selection.
SOURCE
Make sure all necessary connections are correctly made before connecting the unit to the
wall socket and turning on the power.
then
then

17
Watching TV
1. Turn on the TV.
2. Press the SOURCE button and use the up/down navigation keys [ ]
to select analog (ATV) or digital (DTV) as input source, then press OK.
3. Choose the channel by pressing the [Ch+] or [Ch-] or by pressing [0, 1-9]
(combined [-/--] if necessary) to input the channel number directly.
Watching a video tape
1. Turn on the TV and your VCR (which must be connected to the TV).
2. Press the SOURCE button and use the up/down navigation keys [ ]
to select the appropriate source (e.g. AV, HDMI, YPbPr); then press OK.
4. Press the PLAY button on your VCR (or its remote control).
Watching cable/pay TV
1. Turn on the TV.
2. Press the SOURCE button and use the up/down navigation keys [ ] to
select the appropriate source (e.g. AV, HDMI, YPbPr); then press OK.
3. Turn your cable broadcasting receiver (set top box) on and select the channel you wish to
view.
Playing a DVD from an external DVD player
1. Turn on the TV and your DVD player (which must be connected to the TV).
2. Press the SOURCE button and use the up/down navigation keys [ ] to
3. Turn on your external DVD player, insert a DVD and press the PLAY button.
Using the TV as a PC monitor
1. Turn on the TV.
2. Press the SOURCE button and use the up/down navigation keys [
PC
] to
NOTE: Please see Note (B) on page 15.
Basic Operation

18
EPG stands for Digital Electronic Program Guide. It is supplied by the program providers and
oers information about the programs to be broadcast. You can access it in digital mode
by pressing the EPG button on the remote control, the menu will appear on the screen, as
below:
NOTE: When the TV is rst turned on (in DTV mode), no EPG information is displayed. If still
no EPG information is displayed after you have brought up the EPG menu, use the /
and /buttons to navigate to the channel you wish to display the information from
and when it is highlighted, press OK on the remote control to activate it.
Once you have activated a channel, use the /buttons to go to the top row (Channel), then
use the button to bring up the programs to be broadcast and the /buttons to move up
and down the dierent timeslots.
Index
Press this button to bring up the index, press the /buttons to select the time list or
channel list.
Record
To record a selected program, press the RECORD button and insert an appropriate USB
device (see pages 19-22 for more on recording).
Schedule
Press the YELLOW button to bring up a schedule of programmed recordings.
Remind
Press the GREEN button and use the /buttons to navigate between programs.
Electronic Program Guide (EPG)

19
This TV features a PVR recording and playback function which lets you:
• Instantly record a TV program (via the one-touch recording button on the remote control).
• Time-shift playback of a digital television program.
• Set a timer to record future television programs (via the EPG).
For details about these recording functions, see pages 20-22.
IMPORTANT: For any type of recording with this television, you must have inserted a USB
device into the appropriate USB port.
USB setup
PVR le system
In DTV mode, enter the Channel menu (see page
24) and select PVR File System.
Select the disk for storing the content you want to
record.
Check PVR le system
Select “Check PVR File System” and press OK
to check your USB device. If no USB device is
connected, a notice will advise you accordingly.
Recording - PVR Function

20
Recording - PVR Function (Cont.)
Format
If your USB device is recognised and
working, you can select Format.
Press OK to start Format (le system size).
IMPORTANT: If you select Format, all data
will be deleted!
Press the /keys to select PVR File System
Type, then press OK to format the USB
device. The Format Disk screen appears:
After formatting, the system will establish
a PVR le system according to the previous
conrmed PVR le system size.
Speed
After the PVR le system has been created and checked, an on-screen message will indicate
the available USB speed.
Storage capacity
Approximate storage capacity required when recording digital signals:
Time SD Channels HD Channels
30 minutes 1.4 GB 3.1 GB
60 minutes 2.8 GB 6.2 GB
90 minutes 4.3 GB 9.3 GB
120 minutes 5.7 GB 12.4 GB
150 minutes 7.2 GB 15.5 GB
180 minutes 8.6 GB 18.6 GB

21
Time-shift function
The time-shift function allows you to pause the live TV signal, then resume playback at your
convenience. While in DTV mode, press the PLAY/PAUSE button initiate time-shift mode
and pause the program. Press again to resume playback. Use the / keys, then press [OK]
to select a function such as Fast Forward from the on-screen toolbar. Press the EXIT button to
hide/display the on-screen toolbar. Press the STOP button to exit time-shift mode and return
to live TV signal.
NOTE: Using this function requires a formatted USB storage device be connected to the TV.
This function temporarily uses space on the attached
USB storage device, but is removed when time-shift
more is exited.
Recorded list
Display the list of recorded programs either via the Channel
menu or directly by pressing the INDEX button when in DTV
mode.
Play
Press OK to play the selected program, or press to play the
recorded program directly. The icon will appear when you
start playback.
Delete
Press the RED button to delete the selected program.
Recording
Select “Record Start” from the Channel menu and press the OK button to start recording.
To stop recording, select Stop in the operation menu (see the bar below) and press the OK
button to operate.
NOTE: You can also press the REC button to start (and the button to stop) recording
directly.
The system can record and play back DTV at the same time. Select the appropriate action
from the panel above and press OK to operate.
This icon will be appear when you start recording.
Recording - PVR Function (Cont.)
