Kohler K-1166 User manual

Installation Guide
Overflowing Bath
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-1166
1054216-2-A

Important Information
WARNING: When using electrical products, basic precautions should always be followed, including
the following:
DANGER: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
WARNING: Risk of electric shock. A licensed electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
NOTICE: Follow all local plumbing and electrical codes.
Install to permit access for servicing.
A green with yellow stripe lead wire is provided within the wiring compartment. To reduce the risk of
electrical shock, connect this wire to the grounding terminal of your electric service or supply panel with
copper wire equivalent in size to the circuit conductor supplying this equipment.
A pressure wire connector is provided on the exterior of the pump or control within this unit to permit
connection of a bonding conductor between this unit and all other exposed metal in the vicinity, as needed to
comply with local requirements.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Important Product Information
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of the
bath. Do not relocate the pump, or make other modifications to the circulating system, as this could
adversely affect the performance and safe operation of your bath. Kohler Co. shall not be liable under
its warranty or otherwise for personal injury or damage caused by any such unauthorized
modification.
Product Inspection
Carefully unpack the product, and inspect the unit for damage. Return the unit to the carton during
construction to prevent damage.
Factory-Assembled Features
Factory installed components include pump, level sensors, in-line heater, submerged chromatherapy lights
(optional), control and switch. The pump and piping are factory-assembled.
Connections and Service Access
NOTICE: Provide unrestricted service access to the pump and heater. Provide unrestricted service access
to the pump, in-line heater, adjustable feet, and control box. You must construct an access panel to provide
sufficient clearance for servicing the pump, in-line heater, and control box. The access panel must be
located immediately next to the pump and in-line heater. Study the roughing-in information.
1054216-2-A 2 Kohler Co.

Important Product Information (cont.)
Electrical Requirements
The installation must have two Class A Ground-Fault Circuit-Interrupters (GFCI’s) or Earth-Leakage
Circuit-Breakers (ELCB’s). The GFCI/ELCB protects against line-to-ground shock hazard. Use a 208-240 V, 20
A, 50/60 Hz dedicated service for the pump controls. Use a separate 208-240 V, 20 A, 50/60 Hz dedicated
service for the heater.
An equipment grounding terminal is provided in the field wiring compartment. To reduce the risk of
electrical shock, this terminal must be connected to the grounding means provided in the electrical supply
panel with a conductor equivalent in size to the circuit conductors supplying this equipment.
Install this unit in accordance with the Canadian Electric code, Part I.
Kohler Co. 3 1054216-2-A

Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before
you start installation. If you encounter any installation or performance problems, please don’t hesitate to
contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler
Company.

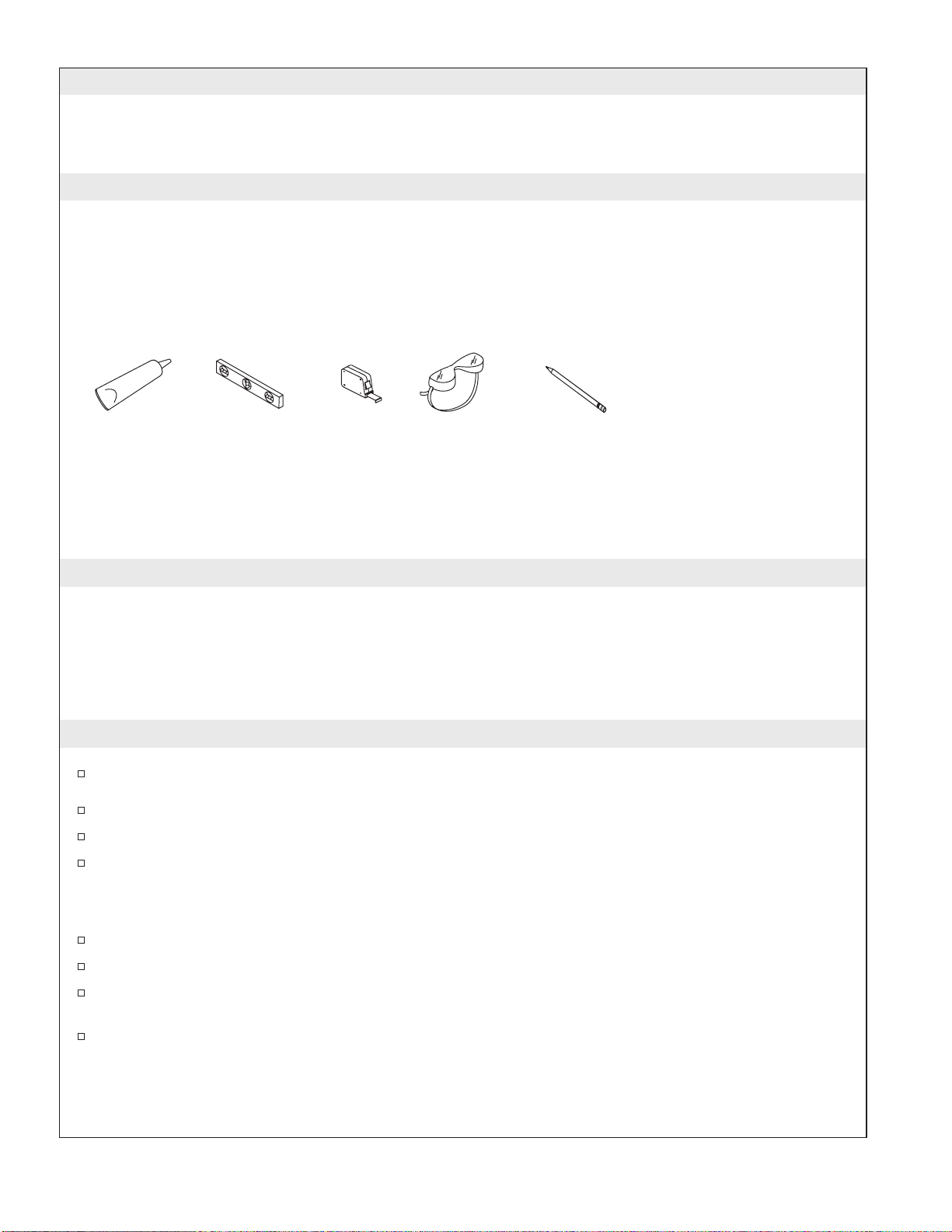

Tools and Materials
Introduction
Please read these instructions carefully to familiarize yourself with the required tools, materials, and
installation sequences. Follow the sections that pertain to your particular installation. This will help you
avoid costly mistakes. In addition to proper installation, read all operating and safety instructions.
All information in this manual is based upon the latest product information available at the time of
publication. At Kohler, we constantly strive to improve the quality of our products; we therefore reserve the
right to make changes in product characteristics, packaging, or availability at any time without notice.
Before You Begin
Your bath is designed for deck mount, undermount, or alcove installations.
You must install the bath onto an adequately supported, level subfloor.
Provide properly dimensioned framing.
Choose a fill spout which will provide adequate reach and a minimum 2″(5.1 cm) air gap above the
bathing well rim of the overflowing bath. You may need to build up the deck material to obtain
adequate air space because the outer rim may be lower than the bathing well rim depending on the
specific area of the bath.
Follow local plumbing codes.
The bath must be filled with water through the bathing well, not the overflow channel.
If you plan to install a deck-mounted, hand-held shower, the diverter vacuum breaker must
maintain a minimum 1″(2.5 cm) air gap above the bath rim.
When using the K-922 or K-923 Laminar Bath Spout with drip tray K-924, the distance from the
finished wall to the outside wall of overflow channel should not exceed 2″(5.1 cm).
• Conventional woodworking
tools and materials
• Drop cloth
• 2x4’s or 2x6’s
Silicon Sealant 4' (1.2 M)
Level Tape Measure Safety Glasses Pencil
1054216-2-A 4 Kohler Co.

List of New Terms
Bathing well - The deep portion of the overflowing bath used by the bather.
Bathing well rim - The high rim between the bathing well and the overflow channel. Water will
evenly cascade over the bathing well rim and into the overflow channel during operation.
Cavitation - When air is drawn into the pump instead of water to a point where it impairs or stops
the pump’s ability to circulate water.
Chromatherapy control switch - Turns the chromatherapy lights on and off (if equipped).
Chromatherapy lights - Lights provided in the basin of the bath (if equipped) to enhance your
bathing experience.
Heater - Designed to automatically help maintain the temperature of the water up to 104º F (40º C)
to enhance your hydro-massage experience. The heater turns on automatically when the whirlpool
is operating, and turns off when the pump motor is turned off.
Master control - This unit is located beneath the pump. It provides the ″brains″of the system,
interpreting all incoming and outgoing signals.
Metal suction screen - The removable metal screen located over the plastic suction cover in the
overflow channel. The suction screen must always be clean and in place when the overflowing bath
is running to prevent debris from entering the water intake port and to prevent cavitation and poor
operation.
Outer rim - The rim along the outside of the overflow channel.
Overflow channel - The overflow water collection channel surrounding the bathing well. The
overflow channel collects the water overflowing the bathing well rim during normal operation, and
channels the water back into the piping system for recirculation.
Overflow channel sensors - The two metal probes located in the wall of the overflow channel
beneath the drain overflow hood. These sensors prevent activation of the pump if insufficient water
is available, and will automatically shut off the pump if the water level drops below them. The
pump will only operate when these two sensors are completely submerged.
Pump control switch - Turns the pump on and off.
Plastic suction cover - The plastic guard attached over the water intake port located in the overflow
channel. The suction cover must always be installed during product use to ensure user safety.
Pump - The pump circulates the water.
Wire harness - The wire harness connects all powered peripheral components (valves, pump, heater,
switches, lights) to the master control.

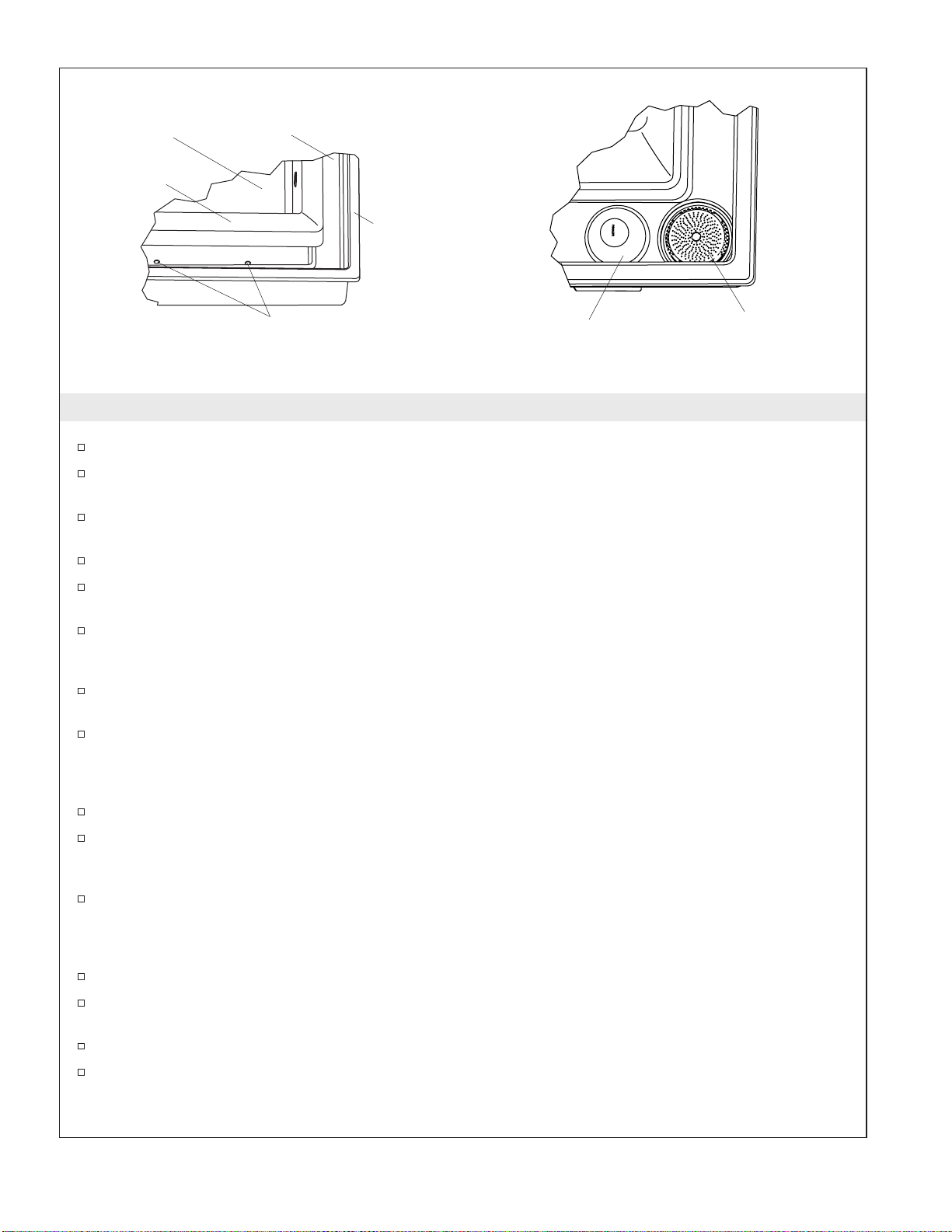

Overflow Channel
Sensors
Overflow
Channel
Bathing Well
Rim
Outer Rim
Bathing Well
Metal Suction
Screen Plastic
Suction Cover
Kohler Co. 5 1054216-2-A

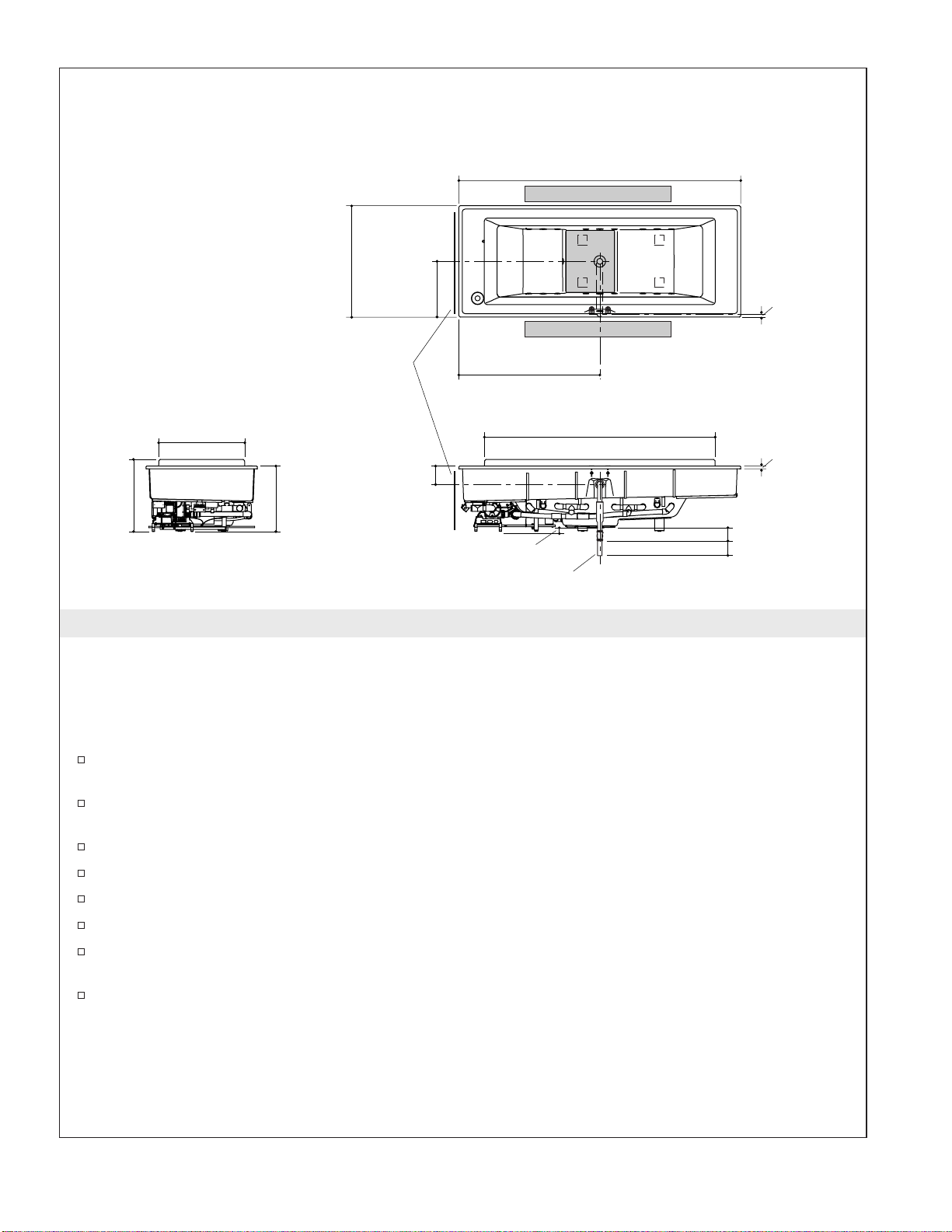

1. Roughing-In Information
NOTICE: The floor support under the whirlpool must provide for a minimum of 3500 lbs (1588 kg).
NOTICE: The areas labeled ″A″and ″B″are recommended installation locations for bath spouts. ″B″
applies to ceiling mounted bath spouts only. For a list of bath spouts for this product, see the specification
sheet.
Two separate 240 V electrical services are required: one for the pump/control, and one for the
heater.
Consult local and national codes for minimum air gap requirements when installing a spout on the
faucet deck.
The overflowing bath must be filled through the bathing well.
Hot water supply should be 70% of the capacity or greater.
The fixture conforms to ANSI Standard Z124.1. All dimensions are nominal.
There is no change in measurements if connected with the drain illustrated (K-7223, K-7223M).
An access panel is required. The recommended dimensions for this access panel are 40″(101.6 cm)
Wx15″(38.1 cm) H. Refer to the roughing-in diagram for suggested access panel location.
Make sure the flooring is in good condition and offers adequate support for your bath.
IMPORTANT! Verify that the subfloor is flat and level. This will help minimize the leveling adjustments
necessary for proper product performance.
A
A
B
51-7/8" (131.8 cm)
103-3/4" (263.5 cm)
41"
(104.1 cm) 20-1/2"
(52.1 cm)
85" (215.9 cm)
3" (7.6 cm)
2-7/8" (7.3 cm)
1" (2.5 cm)
31-13/16"
(80.8 cm)
26-1/2"
(67.3 cm) 23-11/16"
(60.2 cm)
1-1/2" OD
1" (2.5 cm)
1" (2.5 cm)
No change in measurements if connected with
drain illustrated. (K-7223 or K-7223M)
Cut-out: 102-1/4" (259.7 cm) x 40" (101.6 cm)
Pump/Control Access
40" (101.6 cm) W x
15" (38.1 cm) H Min
7" (17.8 cm)
1054216-2-A 6 Kohler Co.

2. Construct the Stud Framing
NOTICE: Provide unrestricted service access to the pump, in-line heater, adjustable feet, and control box.
You must construct an access panel to provide sufficient clearance for servicing the pump, in-line heater,
and control box.

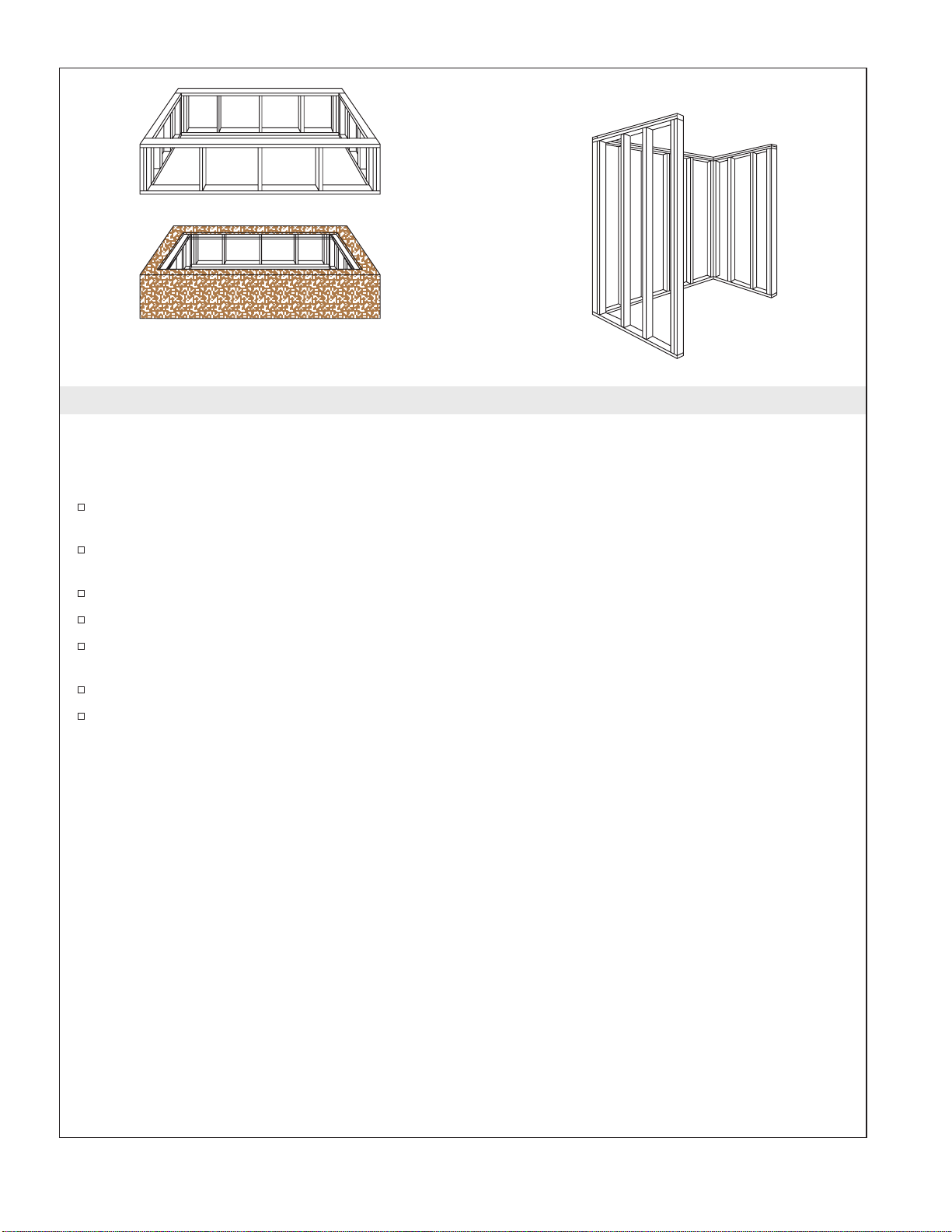

Construct stud framing designed for your particular installation. The overflowing bath can be
installed in a deck, undermount, or alcove installation.
Frame the floor, or construct a frame for a raised installation in accordance with the roughing-in
information.
When constructing the framing, allow for the thickness of sub and finished deck materials.
Framing should be of 2x4 construction.
For undermount installation, allow for the thickness of the planned deck material, and provide
proper support.
Do not support the bath by the rim.
When planning the stud framing, take into account the required 2″(5.1 cm) air gap between the end
of the fill spout and the top of the bathing well rim. Take into account the thickness of your planned
finished deck material, and construct the framing and deck material with this minimum air gap in
mind.
Deck
Undermount Alcove
Kohler Co. 7 1054216-2-A

3. Install the Rough Plumbing

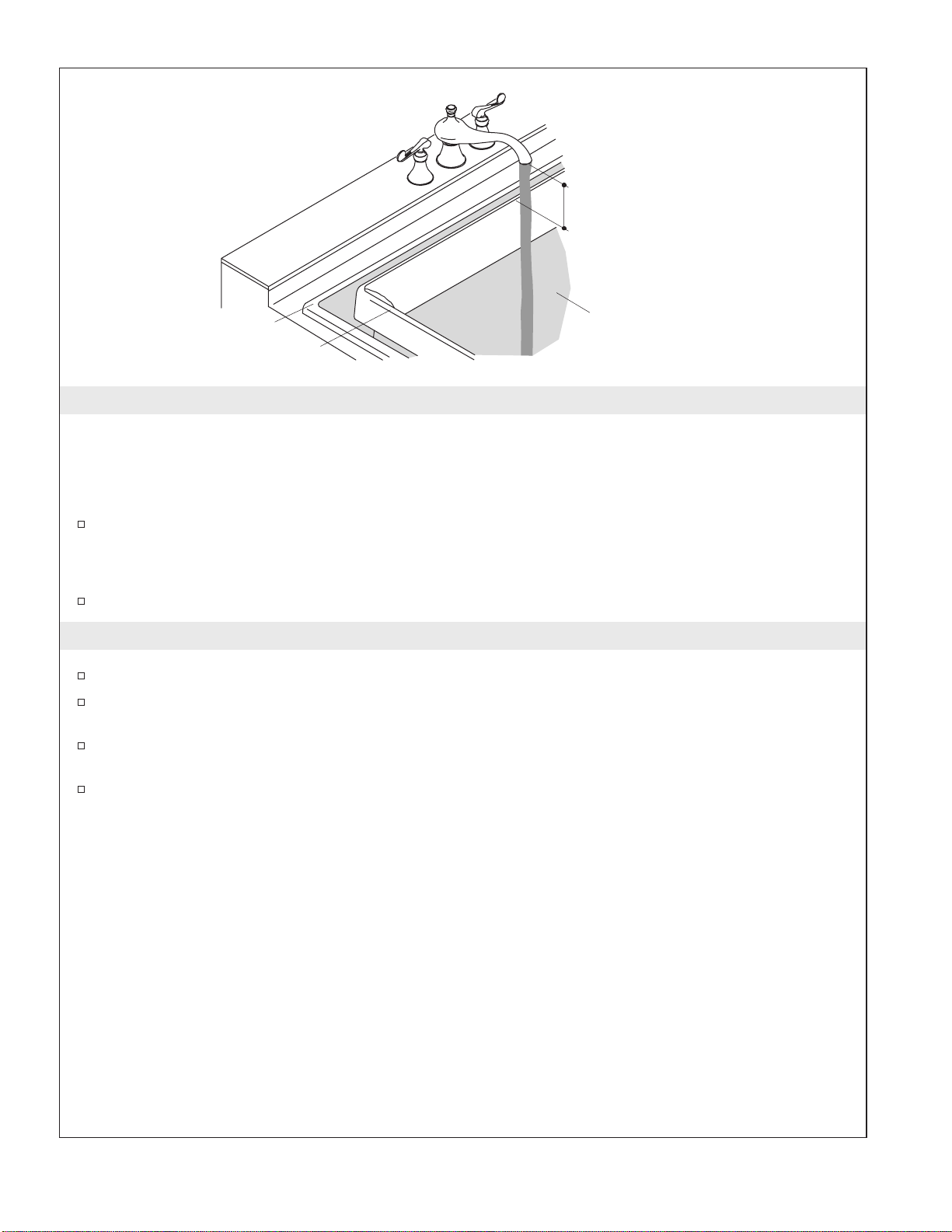

IMPORTANT! Choose a fill spout which will provide a minimum 2″(5.1 cm) air gap above the basin rim
of the overflowing bath. In addition, if you plan to install a deck-mounted, hand-held shower, the diverter
vacuum breaker must maintain a minimum 1″(2.5 cm) air gap above the bathing well rim of the
overflowing bath.
Position the plumbing. Position the fill spout supply so the spout will reach beyond both the outer
rim and the bathing well rim. Water from the fill spout must be directed into the bathing well to
fill the overflowing bath. The overflowing bath should never be filled by directing water into the
overflow channel.
Cap the supplies, and check for leaks.
4. Prepare the Unit
Carefully lift the overflowing bath out of the carton.
Identify the box located inside the overflow channel. This box contains the metal suction screen, and
must be saved for use with this product.
Install the drain according to the drain manufacturer’s instructions. Do not connect the trap at this
time.
Position a clean drop cloth or similar material in the bottom of the bath. Be careful not to scratch the
surface of the overflowing bath.

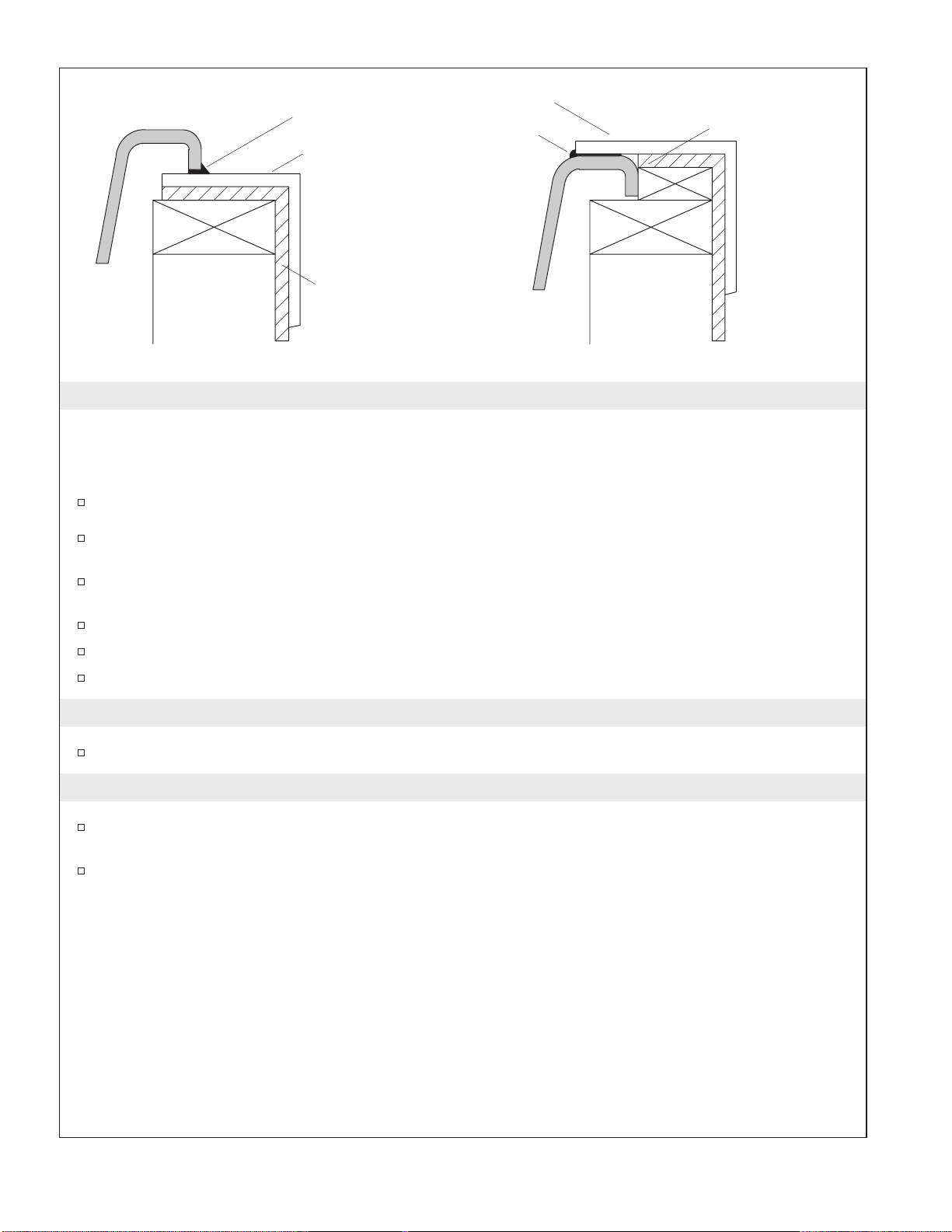

Bathing Well Rim
Bathing Well
2" (5.1 cm) Min
Outer Rim
1054216-2-A 8 Kohler Co.

5. Position the Unit
IMPORTANT! Risk of product damage. Do not lift or support the overflowing bath by the pump or
piping.
NOTE: Do not use adhesive or a cement or mortar bed to secure this product to the subfloor.

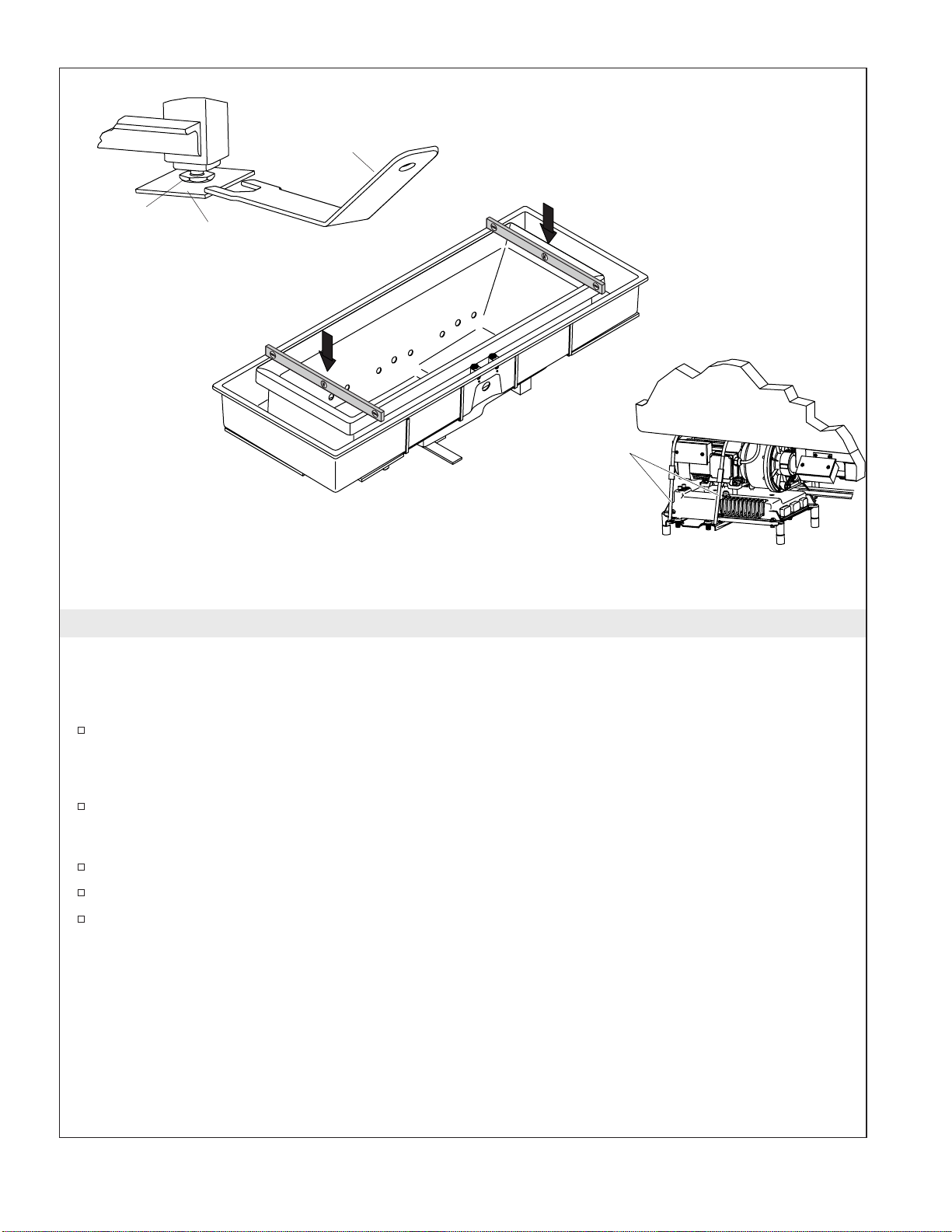

With help, carefully lift the overflowing bath into place. Using metal plates under the adjustable feet
is recommended and will make leveling the bath easier.
NOTE: If you do not have a 6’ (1.8 m) level, go to the next section.
Level by turning the adjustable feet up or down with the wrench (7/8″) attached to the harness near
the pump. Make sure all six adjustable feet rest directly on the subfloor, and make sure the bathing
well rim is level within 1/8″(3 mm) in all directions.
Cut and discard the banding straps from the pump.
Make sure the rubber isolation feet are in place.
Insert the drain tailpiece into the trap.
Pump Banding
Straps
Adjust Feet
Check Level
Cut Straps
Wrench
Metal Plate
Adjustable
Foot
Kohler Co. 9 1054216-2-A

6. Level the Overflowing Bath (without level)
NOTICE: You do not need electrical power for the unit for the following leveling procedure.
Insert the drain tailpiece into the trap, and connect the drain to the trap according to the drain
manufacturer’s instructions.
Close the drain, and plug or cover the suction cover to temporarily make them watertight.
Use a hose and fresh water supply to fill the bathing well to the bathing well rim.
Observe the water level (grey shading in illustration = water level) in relation to the bathing well
rim.
If the water evenly cascades over the entire rim of the overflowing bath, no adjustments are needed.
The overflowing bath is level.
If the water level is uneven and only cascades over sections of the rim, use the wrench to turn the
adjustable feet up or down as needed to obtain a uniform water level.
Open the drain, and unplug the suction cover to drain the bathing well.
IMPORTANT! Allow adequate access to each of the six adjustable feet until after you have test run your
bath.
7. Install the Plumbing
CAUTION: Risk of property damage. Ensure a watertight seal on the drain connections.
IMPORTANT! Choose a fill spout which will provide adequate air space above the bathing well rim of the
bath. You may need to build up the deck material to obtain adequate air space because the outer rim may
be lower than the bathing well rim. In addition, if you plan to install a deck-mounted, hand-held shower,
the diverter vacuum breaker must maintain a minimum 1″(2.5 cm) air gap above the outer rim.
NOTE: An access panel will simplify future maintenance.
If you have not yet done so, connect the drain to the trap according to the drain manufacturer’s
instructions.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed.
Make sure all butterfly valves and supply connections are tightened securely.
Open the hot and cold water supplies, and check the supply connections for leakage.
Run water into the bathing well, and check the drain connections for leakage.
Level
Bathing Well Rim
Not Level
Bathing Well Rim
1054216-2-A 10 Kohler Co.

8. Make the Electrical Connections
NOTE: The product model number is printed on a label on the pump side of the overflowing bath. This
label also identifies the electrical rating of the product. All whirlpools come equipped with a wiring
junction box and are designed to operate between 208 VAC and 240 VAC at either 50 HZ or 60 Hz.
WARNING: Risk of electrical shock. Make sure the power has been disconnected before performing
the following procedures. Refer to the “Important Information” section.
WARNING: Risk of electrical shock. To reduce the risk of electrical shock, connect the pump to a
properly grounded Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
This will provide additional protection against line-to-ground shock hazard. A 208-240 V, 20 A, 50/60
Hz dedicated circuit is required.
IMPORTANT! The load neutral is not used. There should be no connection to the load neutral terminal
on the Ground-Fault Circuit-Interrupter (GFCI) breaker. The green wire with the yellow stripes is the
equipment ground and needs to be connected to the neutral bus in the main circuit breaker box.
The overflowing bath control and system have been pre-wired at the factory. A licensed electrician
should make a routine service connection to the junction box.
Connect service to the junction box. The junction box contains blue, brown, and green with yellow
stripe colored wires.
Follow local electrical codes. Bond in accordance with national and local codes.
A wiring harness has been pre-wired at the factory, allowing communication between the keypad,
all features, and the control. No additional wiring is required, but ensure that all wires are securely
fastened.
NOTE: Your wiring harness included an antenna for the optional remote control. Do not alter or damage
this antenna during installation.
* Connections to be Made
at the Circuit Breaker
S/N
Neutral Bus (In
Breaker Box)
Typical Two-Pole
Circuit Breaker
with GFCI
* Line Neutral
(White Curly
Wire)
Ground (Green
withYellow Stripes)
*L1
No Connection
(Load Neutral)
Field Wiring (From
Junction Box to
GFCI Breaker)
Electrician to provide suitable
strain relief cable.
Blue (L1)
*L2
240 V
120 V
240 V
120 V
Bond in accordance with
national and local codes.
Open bonding lugs are
located at the top of the
junction box.
Typical Wiring Connection for North America
Wire Connector
From Control
Brown (L2)
Wire Connectors
* Equipment Ground
NL1L2
120/240 VAC Source
Breaker Box
In-line Heater
Control
Junction Box
Heater Electrical Cord
Pump Electrical Cord
Wiring Harness
Heater Junction Box
Kohler Co. 11 1054216-2-A

9. Test Run the Overflowing Bath
Check all electrical connections, and make sure the electrical power to the unit is turned on.
Make sure union connections to the pump, butterfly valves, and in-line heater are securely hand
tightened. Make sure the bathing well and overflow channel are clean and free of debris.
Position the metal suction screen over the plastic suction cover. The pump may cavitate if the metal
screen is not in place.
Fill the overflowing bath bathing well with water so it overflows the bathing well rim and flows
into the overflow channel. Continue filling the bathing well until both overflow channel sensors are
completely covered with water, and the water level is at the drain overflow.
Verify that the green light in the pump control switch starts to blink automatically within 1/2
minute after the overflow channel sensors are completely submerged.
10. Test the Control Switch
Press the pump control switch to start the pump/motor and begin the hydro-therapy cycle. As the
pump/motor turns on and the water begins to circulate, the light will turn to constant green, and
will stay on as long as the overflowing bath is running.
With the unit running, check all harness (piping) connections for leaks. Visually observe the
cascading water flow over the bathing well rim to verify that it is smooth and even along all four
sides and corners.
If the water is cascading uniformly over all four sides of the bathing well rim, you do not need to
make further leveling adjustments.
If further leveling is necessary, keep the overflowing bath running and turn the adjustable feet up or
down with the 7/8″wrench provided. Make sure the unit is resting on all six adjustable feet.
Verify that the chromatherapy lights (if applicable) are operating. Press the chromatherapy control
switch (located next to the power switch) to turn on the lights. Upon start-up, the lights should be
changing through the color sequence. Press the light control switch a second time. The lights should
stop sequencing and stay one color. Press the light control switch again and lights will deactivate.
Check the harness connections for leakage one more time.
Press the pump control switch again to turn off the bath. The green light in the pump control switch
will then start to blink automatically (after approximately 1/2 minute) until the overflowing bath is
drained or restarted.
NOTE: For additional information on operation of your bath, see the ″Using Your Bath″section.
IMPORTANT! Allow adequate access to each of the six adjustable feet until test run is complete.
Overflow
Channel Drain Pump Control
Switch
Chromatherapy
Control Switch
(Optional)
Water
Overflow Channel
Sensors
Bathing Well Rim
1054216-2-A 12 Kohler Co.

11. Using the Remote Control
NOTE: There are two types of remote controls available: a basic unit and a unit with controls for
chromatherapy and effervescence. Determine which unit you have and follow the corresponding
directions.
NOTE: Your remote requires two AAA batteries. To install or replace them, simply unscrew the base of the
remote.
Your overflowing bath is equipped with a waterproof remote.
To turn the pump and the chromatherapy lights on and off, press the power button.
To reheat the water in the overflowing bath as it circulates, turn the heater on by pressing the heater icon
(the heater defaults to ″On″when the pump is turned on). Press the heater icon again to turn the heater off.
The heater will not operate if the pump is off. If the heater is on, the pump switch will be dark green. If the
heater is off, it will be yellow-green.
To cycle the chromatherapy lights through the spectrum of colors, press the chromatherapy cycle icon.
To lock an individual chromatherapy color in, press the chromatherapy specific color icon.
Heater
On/Off Power
On/Off
Heater
On/Off
Power
On/Off
Effervescence
Mode
Chromatherapy
Specific Color
Selection
Chromatherapy
Cycle
Kohler Co. 13 1054216-2-A

12. Complete the Finished Wall or Deck
NOTICE: Provide unrestricted service access to the pump, in-line heater, adjustable feet, and control box.
You must construct an access panel to provide sufficient clearance for servicing the pump, in-line heater,
and control box.
Protect the product surface. Cover the framing with water-resistant wall material.
Keep the entire overflow channel area exposed to allow access to the drain overflow, and to permit
easy cleaning of the overflow channel surfaces.
Seal the joints between the rim edge and the water-resistant wall or deck material with silicone
sealant.
Tape and mud the water-resistant wall material.
Install the finished wall to the water-resistant wall material.
Seal the joints between the product rim and the finished wall material with silicone sealant.
13. Install the Faucet Trim
Install the faucet trim according to the instructions packed with the trim.
14. Clean-Up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the
bath surface. Use warm water and a liquid detergent to clean the surface.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners
containing petroleum distillates to remain in contact with any bath surfaces for long periods of
time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire
brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.

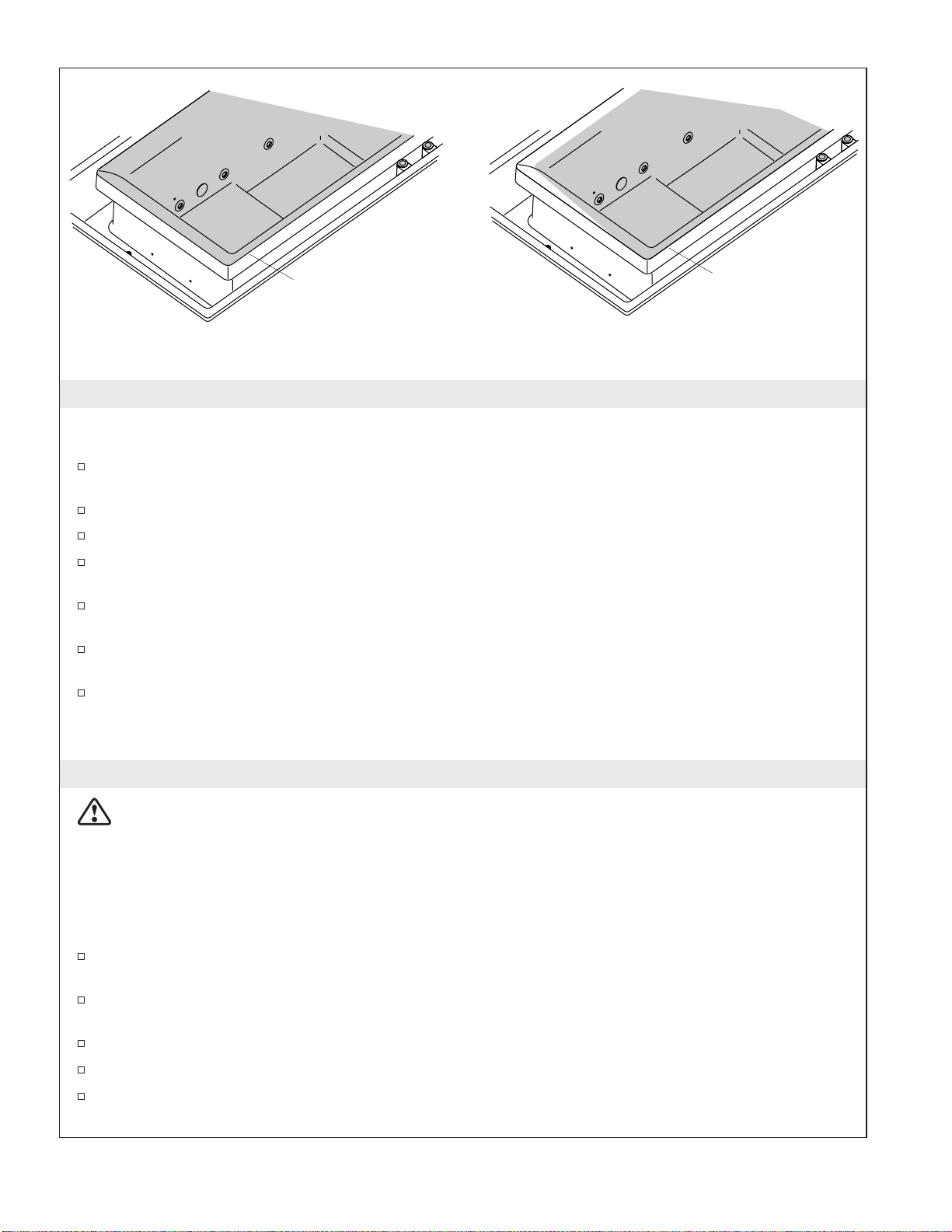

Deck Undermount
Silicone Sealant Silicone Sealant
Finished Deck
Finished Deck
2x4 Studding 2x4 Studding
Water-Resistant
Wall Material
Water-Resistant
Wall Material
1054216-2-A 14 Kohler Co.

15. Using Your Bath
Fill the Overflowing Bath
NOTE: Please read these steps carefully before you operate your bath.
Make sure the metal suction screen is clean, and is correctly in place over the plastic suction cover.
NOTE: The water temperature in the bath should not exceed 104°F (40°C) or the heater will not operate.
IMPORTANT! Like any other bath, prevent flooding the area around the unit by entering the filled
bathing well slowly. This will allow the system to properly drain excess water.
Fill the unit with water so the bathing well overflows into the overflow channel to the drain. The
channel sensors should be completely covered with water.
The green light in the pump control switch will start to blink automatically within 1/2 minute after
the sensors are submerged to let you know the unit is ready to start.
Operating Sequence
Press the pump control switch to start the pump/motor and begin operation.
As the pump/motor turns on and water begins to circulate, the light on the pump control switch
will change to solid green, and will stay on as long as the overflowing bath is running.
Verify that the indicator light for the heater is on when the overflowing bath is in operation. This
indicator light is located on the underside of the heater box, and is near the subfloor at the pump
end of overflowing bath. If the light is not on when the overflowing bath is running, try and reset
the GFCI/ELCB.
Press the pump control switch again to turn off the overflowing bath. The green light in the pump
control switch will then start to blink automatically for approximately 1/2 minute until the
overflowing bath is drained below the overflow channel sensors or restarted.
NOTE: A built-in timer automatically stops the bath after approximately 20 minutes of operation.
Control Switches
Bathing Well Rim
Kohler Co. 15 1054216-2-A

16. Chromatherapy Light Operation
NOTE: These directions pertain to the use of the mounted control switch only. For more information, see
the ″Using the Remote Control″section.
If the chromatherapy lights are turned off, press the button on the chromatherapy control switch
(located next to the pump control switch). The chromatherapy lights will begin to cycle through
each of the colors (sweep mode).
When the chromatherapy lights are in sweep mode, you can lock in one color light by pressing the
chromatherapy control switch.
When an individual color is locked in, press the chromatherapy control switch to turn the
chromatherapy lights off.
Troubleshooting Procedures
Troubleshooting Table
For warranty service, contact your dealer or wholesale distributor. This Troubleshooting Guide is for general
aid only. Contact a Kohler Authorized Service Representative or a qualified electrician to correct all electrical
problems. For warranty service, contact your dealer or wholesale distributor.
Symptoms Probable Causes Recommended Action
1. Green light in
″On/Off″control
switch flashes before
the bathing well is
full of water.
A. Spout fills directly into
overflow channel. a. Adjust/reinstall the spout to fill directly into the
bathing well. Refer to the
installer/dealer.
B. One or both butterfly
valves do not work. b. Check the butterfly valve wiring or replace the
butterfly valves. Refer to
the installer/dealer.
C. Control does not work. c. Check the wiring or
replace the control. Refer
to the installer/dealer.
2. Product does not
start. A. No power to unit. a. Turn on the power to the unit, or correct the source
of the power loss. Refer to
the installer/dealer.
B. Water does not cover the
overflow channel sensors. b. Fill the bathing well until water flows over the
bathing well rim, into the
overflow channel, and
covers the overflow
channel sensors.
Suggested fill level is to
the drain overflow.
C. ″On/Off″control switch
does not light up or flash
when the unit is running
or filled as required.
c. Check the wiring or
replace the ″On/Off″
control switch. Refer to
the installer/dealer.
D. Pump/motor does not
work. d. Rebuild or replace the pump/motor. Refer to the
installer/dealer.
E. Control does not work. e. Check the wiring or
replace the control. Refer
to the installer/dealer.
1054216-2-A 16 Kohler Co.

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
3. Water does not
cascade evenly over
the entire bathing
well rim.
A. Unit is not level. a. Level the unit by using
the wrench provided to
turn the adjustable feet up
or down as needed.
B. Bathing well ports are
blocked. b. Remove blockage.
C. Metal suction screen is
blocked. c. Clean the metal suction screen.
4. Unit stops
automatically before
18 minutes.
A. GFCI/ELCB trips. a. Identify the source of the
fault and correct. Refer to
the installer/dealer.
B. Motor overheated and
protection device activated. b. Check for blockage of the motor vent. Allow the
motor to cool, then
remove the blockage.
Check for a plugged metal
suction screen, and allow
the motor to cool before
restarting.
Check for blockage of the
bathing well ports.
Remove the blockage, and
allow the motor to cool
before restarting.
C. Water level drops below
the overflow channel
sensors during operation
(″yellow″ring will be
flashing on pump switch).
c. Fill the bathing well until
water flows over the
bathing well rim, into the
overflow channel, and
covers the overflow
channel sensors.
Suggested fill level is to
the drain overflow. Make
sure the bath drain seals
properly.
5. Noisy operation. A. Metal suction screen is not
in place over the plastic
suction cover.
a. Position the metal suction
screen over the plastic
suction cover to prevent
cavitation.
B. Insufficient water level in
the overflow channel. b. Fill the bathing well until water flows over the
bathing well rim, into the
overflow channel, and
covers the overflow
channel sensors.
Suggested fill level is to
the drain overflow. Make
sure the bath drain seals
properly.
C. Pump/motor rattles. c. Make sure the
pump/motor banding
straps have been cut.
6. Water temperature
drops significantly
over 20 minutes of
operation.
A. Heater limit switch
tripped. Indicator light
should be ″On″during
operation.
a. Reset the GFCI/ELCB.
B. Heater does not work. b. Check the wiring or
replace the heater. Refer to
the installer/dealer.
Kohler Co. 17 1054216-2-A

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
7. Chromatherapy
lights do not work. A. Damaged wiring harness. a. Check the wiring or replace the control. Refer
to the installer/dealer.
B. Control does not work. b. Replace wiring harness.
Refer to the
installer/dealer.
8. Remote control does
not work. A. Batteries improperly installed or dead. a. Replace the batteries.
B. Control does not work. b. Replace wiring harness.
Refer to the
installer/dealer.
C. Remote control is not
programmed correctly. c. See homeowners guide or service manual.
D. Remote control does not
work. d. Replace the remote control.
E. Control switch does not
work. e. Replace the control.
9. Water does not
reach bath rim upon
filling.
A. No power to the unit. a. Turn on the power.
B. Level probe wires loose. b. Check/reconnect wires.
C. Butterfly valves does not
work. c. Check wiring; replace butterfly valves if
necessary.
D. Control switch does not
work. d. Replace control.
1054216-2-A 18 Kohler Co.

Guide d’installation
Baignoire à déversement
Renseignements importants
AVERTISSEMENT : Lors de l’utilisation des produits électriques, des précautions de base devraient
toujours être observées, incluant ce qui suit:
DANGER : Risque d’électrocution. Raccorder uniquement à un circuit protégé par un Disjoncteur de
fuite de terre (GFCI) ou à un Disjoncteur de mise à la terre (ELCB).
AVERTISSEMENT : Risque d’électrocution. Tous les raccords électriques devraient être réalisés par un
électricien agréé.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à l’entretien.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez s’il vous plaît
lire avec attention toutes les instructions avant de commencer l’installation, y compris les conditions
suivantes:
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Installer de façon à permettre l’accès pour l’entretien.
Un câble électrique vert avec une rainure jaune est fournit dans le compartiment du câblage. Afin de réduire
les risques délectrocution, raccorder le câble de sortie à la borne de terre du panneau de service électrique,
avec un câble en cuivre ayant la même calibre que celui du fil conducteur qui alimente cet équipement.
Un connecteur à pression par câble est prévu à l’extérieur de la pompe ou de la commande de cet appareil
afin de permettre la connexion entre l’appareil et toutes autres surfaces de métal avoisinantes, tel que requis
par les normes locales.
Une mise à la terre est requise. L’appareil doit être installé et mis à la terre par un représentant qualifié.
Les matériaux de construction et le câblage devraient être acheminés loin du corps de la pompe et des autres
composants qui dégagent de la chaleur de l’unité.
Renseignements importants sur le produit
Notices du produit
AVERTISSEMENT : Des modifications non authorisées pourraient engendrer une opération
dangereuse et une pauvre performance de la baignoire. Ne pas relocaliser la pompe ou effectuer
d’autres modifications au système de circulation car celà pourrait affecter la performance la sécurité du
fonctionnement. Kohler Co. décline toute responsabilité sous ses garanties quant à toutes blessures ou
dommages causés par des modifications non autorisées.
Inspection du produit
Déballer avec précaution le produit et inspecter pour déceler tout dommage. Remettre l’unité dans le carton
durant la construction pour éviter tout dommage.
Kohler Co. Français-1 1054216-2-A

Renseignements importants sur le produit (cont.)
Pièces assemblées en usine
Les composants installés en usine comprennent la pompe, les capteurs de niveau d’eau, le chauffe-eau en
ligne, les lumières de chromathérapie immergées (en option), contrôle et l’interrupteur. La pompe et la
tuyauterie sont assemblées en usine.
Connexions et accès pour l’entretien
Branchements électriques requis
L’installation électrique doit être uniquement raccordée à un disjoncteur coupe-circuit (GFCI) ou disjoncteurs
de fuite à la terre (ELCB). Le GCFI/ELCB protège contre une électrocution par la mise à la terre. Utiliser une
alimentation dediée de 208-240 V, 20 A, 50/60 Hz pour les contrôles de la pompe. Utiliser une alimentation
séparée de 208-240 V, 20 A, 50/60 Hz dédiée au chaffeau.
Une borne de mise à la terre est incluse dans le boîtier du câblage. Afin de réduire le risque d’électrocution,
raccorder la borne de mise à la terre du panneau du service électrique, avec un câble ayant le même calibre
que celui du conducteur qui alimente cet équipement.
Installer l’unité conformément au code électrique Canadien, premiére partie.
1054216-2-A Français-2 Kohler Co.
