Kohler K-1365 Assembly instructions

1000153-5-B


RIVERBATH
QUADRANGLE
 

Kohler Co., Kohler WI U.S.A.
1000153-5-B2
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS
WARNING: When using this unit, always
follow basic precautions, including the
following:
DANGER: Risk of personal injury. Toreduce
the risk of injury, do not permit children to use
thisunitunlesstheyarecloselysupervisedatall
times.
DANGER: Risk of personal injury. Hot
whirlpool baths can put certain stresses on the
body, as does any hot bath, shower, sauna, or
steam bath. Prolonged immersions in hot
water may induce hyperthermia. Symptoms
of hyperthermia include an increase in the
internal body temperature, dizziness, lethargy,
drowsiness, and fainting. The effects of
hyperthermia include (1) failure to perceive
heat,(2)failuretorecognizetheneedtoexitthe
bath,(3)unawarenessofimpendinghazard,(4)
fetal damage in pregnant women, (5) physical
inability to exit the bath, and (6)
unconsciousness resulting in the danger of
drowning. Warning – The use of alcohol,
drugs, or other medication can greatly
increase the risk of fatal hyperthermia.
Use this unit only for its intended use as described
in this manual. Do not use attachments not
recommended by Kohler Co.
Do not operate this unit without the guards (covers)
on the suction fittings.
Never drop or insert any object into any opening.
IMPORTANT! Flush your whirlpool system twice a
month or more depending upon usage, as
described on Page 8.
Keep small objects such as bath toys and bathing
accessories out of the whirlpool while the whirlpool
is running.
Repeated use of personal care products containing
oils can damage plastic whirlpool components. Do
not use heavy, vegetable-based shampoos or bath
oils.
The unit must be connected only to supply circuits
that are protected by Ground-Fault
Circuit-Interrupters (GFCI’s). Such GFCI’s should be
provided by the installer and should be tested on a
routine basis.
To test the GFCI’s, push the test buttons. The
GFCI’s should interrupt power. Push the reset
buttons. Power should be restored.
If the GFCI’s fail to operate in this manner, there is a
ground current flowing, indicating the possibility of an
electric shock. DO NOT use this unit. Disconnect the
unit and have the problem corrected by a qualified
service representative before using.
To reduce the risk of electric shock, connect only to
properly grounded, grounding type receptacles,
protected by Ground-Fault Circuit-Interrupters
(GFCI’s). Do not remove the plugs’ ground pins. Do
not use grounding adapters.
A pressure wire connector is provided on the exterior
of the pumps or controls within this unit to permit
connection of bonding conductors between this unit
and all other exposed metal in the vicinity, as needed
to comply with local requirements.
Whirlpool hydro-massage action can cause even a
small amount of bubble bath, bath soap, shampoo,
or bath oil to foam excessively. Refrain from using
these products during whirlpool operation.
Exercise extreme caution if you walk or move around
in the whirlpool, particularly if the whirlpool is
running. Acrylic surfaces are inherently slippery
when wet.
Do not allow the water temperature in the whirlpool
to exceed 104F (40C).
Your new whirlpool has been listed by Underwriter’s
Laboratories, thus ensuring safety for you and your
family. Your new whirlpool also conforms to rigid
ANSI and IAPMO standards set within the plumbing
industry.
Identify and record the model and serial numbers below (found near the whirlpool pumps):
Model No. Serial No.

31000153-5-B
Kohler Co., Kohler WI U.S.A.
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 2. . . . . . . .
INTRODUCTION 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SERVICE AND WARRANTY INFORMATION 3. . . .
Call Us For Help 3. . . . . . . . . . . . . . . . . . . . . . . . . . .
Limited One-Year Warranty 3. . . . . . . . . . . . . . . . . .
LOOK AT THESE FEATURES 4. . . . . . . . . . . . . . . . .
LET’S GET STARTED 5. . . . . . . . . . . . . . . . . . . . . . . .
OPERATING INSTRUCTIONS 6. . . . . . . . . . . . . . . . .
CARE AND CLEANING INSTRUCTIONS 8. . . . . . .
Cleaning Your Acrylic Whirlpool 8. . . . . . . . . . . . . .
Cleaning Your Removable Pillows 8. . . . . . . . . . . .
Cleaning Your Faucet, Drain, and Trim 8. . . . . . . .
Flushing Your Whirlpool System 8. . . . . . . . . . . . . .
TROUBLESHOOT THE WHIRLPOOL SYSTEM 9.
1. INTRODUCTION
Thank you for choosing The Bold Look of Kohler with your whirlpool system. Kohler craftsmanship offers you a rare
combination of proven performance and graceful sophistication with the RiverBath. The dependability and beauty of
your new whirlpool will surpass your highest expectations. We’re very proud of the RiverBath here at Kohler Co., and
we know you will be, too.
Please take a few minutes to study this operating and maintenance guide before you use your whirlpool for the first
time. Pay special attention to the care and cleaning instructions on Page 8.
Allinformationinthismanualisbaseduponthelatestproductinformationavailableatthetimeofpublication.AtKohler,
we constantly strive to improve the quality of our products; we therefore reserve the right to make changes in product
characteristics, packaging, or availability at any time without notice.
2. SERVICE AND WARRANTY INFORMATION
A. CALL US FOR HELP – 1-800-4-KOHLER
Contact your dealer or plumbing contractor if you
encounter problems with your Kohler whirlpool. Ask
them to review the Installation Guide to be sure all the
installation steps have been followed exactly. If the
whirlpool still fails to operate correctly, contact Kohler
Co.eitherthroughyourdealerorplumbingcontractor,or
by writing: Kohler Co., Attn: Customer Service
Department, 444 Highland Drive, Kohler, WI 53044, or
by calling 1-800-4-KOHLER. Please be sure to provide
all pertinent information regarding your claim, including
a complete description of the problem, the product,
model number, color, finish, and the date the product
was purchased. Also include the name of your
contractor or distributor and your original invoice.
B. LIMITED ONE-YEAR WARRANTY
Kohler plumbing fixtures and fittings are warranted free
of manufacturing defects.
Kohler Co. will, at its election, repair, replace, or make
appropriate adjustment where Kohler Co. inspection
discloses any such defects occurring in normal usage
within one year after installation. Kohler Co. is not
responsible for installation or removal costs.
To obtain warranty service, contact Kohler Co. either
through your Dealer or Plumbing Contractor, or by
writing Kohler Co., Attn: Customer Service Department,
444HighlandDrive,Kohler, WI 53044USA,orbycalling
1-800-4-KOHLER from within the USA.
Implied warranties, including that of merchantabil-
ity or fitness for a particular purpose, are expressly
limited in duration to the duration of this warranty.
Kohler Co. disclaims any liability for special,
incidental, or consequential damages.
Some states do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of
special, incidental, or consequential damages, so these
limitations and exclusions may not apply to you. This
warranty gives you specific legal rights. You may also
have other rights which vary from state to state.
This limited warranty provides specific legal rights as
they apply within the USA, and other rights may be
available, but may vary from country to country.
This is our exclusive written warranty.
KOHLER CO., KOHLER, WISCONSIN 53044

44
1000153-5-BKohler Co., Kohler WI U.S.A.
3. LOOK AT THESE FEATURES
Your Kohler RiverBath is designed to stimulate,
invigorate, and energize your body for total
hydro-massage relaxation.
Select from the Waterfall mode or other distinct
hydro-massage experiences: River, Whitewater, or
Rapids. You can operate the Waterfall alone, or
pair it with one of the other functions to customize
each RiverBath adventure.
The Tidewater control lets you turn on and off the
air supply to the jets (River, Whitewater, or Rapids)
with the touch of a button. Turning off the air to the
jets creates a very soothing Tidewater effect you’ll
find most relaxing.
The extra-large basin area provides enough room
for two bathers.
RiverBath uses two quiet but powerful pumps so
you can use the Waterfall and any of the jet
functions at the same time to maximize your
whirlpool experience.
RiverBath includes a contoured Waterfall pillow to
act as a comforting headrest. You can remove this
pillow for occasional care and cleaning. In addition
to the Waterfall pillow, RiverBath includes two
small, removable pillows you can position for
maximum comfort.
The K-1360 RiverBath features an integral fill
system using dual fill ports at both sides of the
Waterfall, and pre-installed valving. The K-1365
and K-1365-F models allow you to use the fill
valving of your choice – you can use the
pre-installed dual fill ports or a separate fill spout if
you desire.
RiverBath features three easy-to-read electronic
controls. Use these controls to individualize your
hydro-massage experience by selecting Waterfall,
River, Whitewater, Rapids, or Tidewater functions.
You can vary the intensity of your hydro-massage
from gentle to vigorous with the touch of a finger.
The integral heater built right into each pump
housing helps maintain the temperature of the
water while your RiverBath is running.

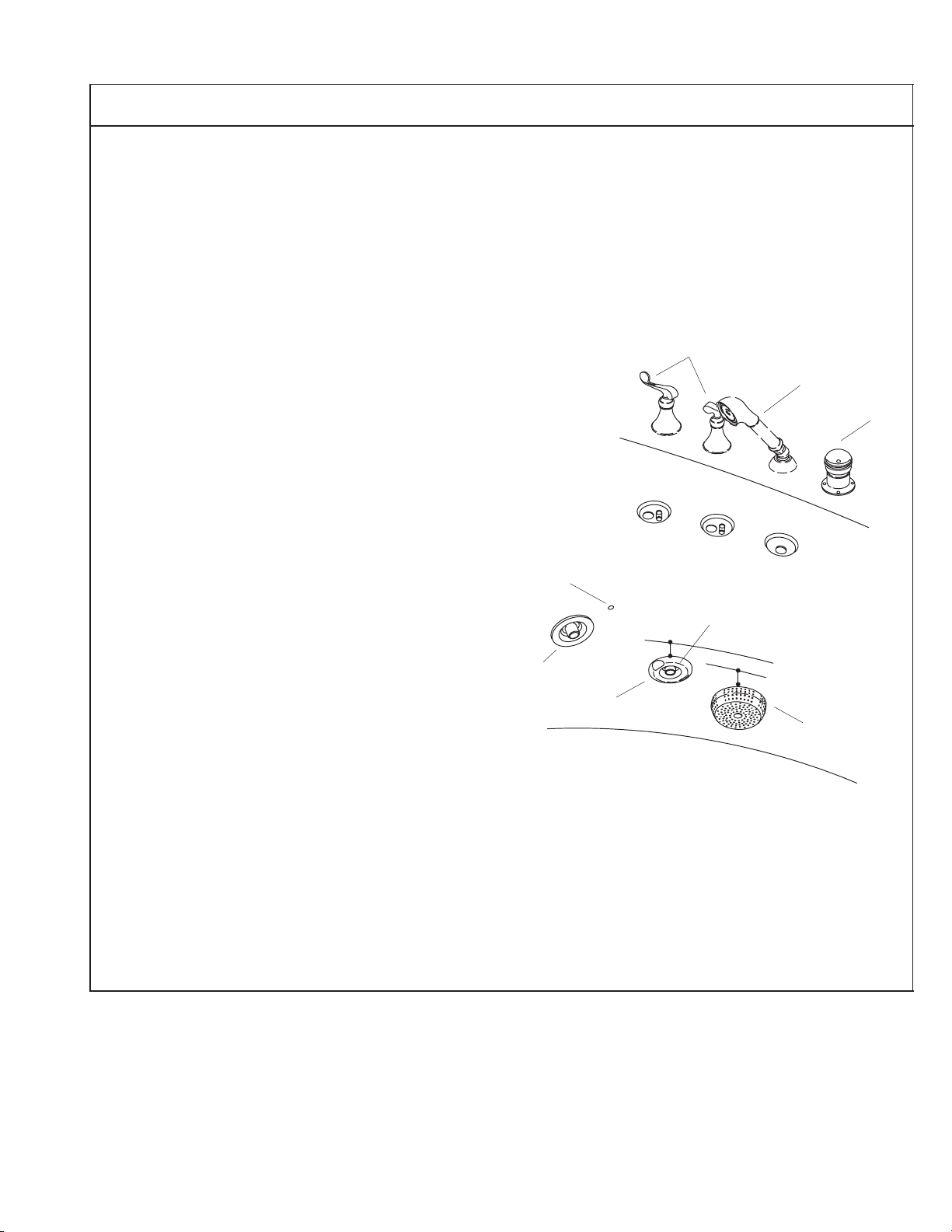

Pillow
Dual Fill
Ports
Waterfall River
RapidsWhitewater

1000153-5-B
Kohler Co., Kohler WI U.S.A. 5
4. LET’S GET STARTED
Please study the Important Safety Instructions on
Page 2 before proceeding.
If you’re like most people who install a Kohler
RiverBath, you can’t wait to get in and try it out. You’ll
soon find that the system features and controls are
very easy to use, and offer you a safe and exciting
personal care adventure. There are a few things you
should know before you start using your new
whirlpool. Please spend a few minutes with these
simple rules, and then you’ll be ready to go.
Remove all loose bathing items, such as soap
bars, shampoo bottles, and washcloths from inside
the whirlpool basin.
Don’t use shampoo, soap, or bubble bath while you
are using the whirlpool. Of course, you can freely
use shampoo and soap for showering before you
fill the whirlpool.
Close the drain.
NOTE: The water temperature in the whirlpool should
not exceed 104F (40C). If the water temperature
exceeds 104F (40 C), an automatic safety feature
will temporarily shut off the pump heaters. You can still
operate all the RiverBath functions when the heaters
are off.
For K-1360 Model Only:
With your handshower installed and connected to
the transfer valve, open the hot and cold water
valves. Make sure the transfer valve handle is
rotated fully clockwise so water enters the bath
from the fill ports under the large pillow.
You can choose to divert the water from the fill
ports to the handshower by simply rotating the
transfer valve handle position.
For All Models:
If you plan to use the Waterfall alone (no River,
Whitewater, or Rapids), fill the whirlpool basin to a
level about 2” (5.1cm) over the top of the suction
cover.
To use the Waterfall and River functions (no
Whitewater or Rapids), fill the whirlpool basin to a
level about 2” (5.1cm) over the top of the highest
Flexjet.
If you plan to use all the RiverBath functions
(Waterfall, River, Whitewater, and Rapids), fill the
basin to a level above the water-level sensors
located near the River Jets.
Flexjet
River Jet
Water-Level
Sensor
River
Jet
Suction Cover
2” (5.1cm)
2”
(5.1cm)
Flexjet
Trim Ring
Transfer
Valve
Handshower
Water Valves

66
1000153-5-BKohler Co., Kohler WI U.S.A.
5. OPERATING INSTRUCTIONS
NOTE: Exercise caution if you walk or move around in
the whirlpool, particularly if the unit is running. Acrylic
surfaces are inherently slippery when wet.
NOTE: The River Jets (Whitewater or Rapids) will
only operate if both water-level sensors are
completely covered with water. If the water level drops
below the sensors while the River Jets are running,
the River Jets will automatically turn off, and the eight
Flexjets (River) will start to run.
NOTE: The River Jets and Flexjets will not operate at
the same time. The Waterfall, however, will run in
conjunction with either the River Jets or the Flexjets.
To use the Waterfall: press the “Waterfall” control
button once. The Waterfall will start to flow at
maximum volume within several seconds.
Adjust the water flow volume by pressing and holding
down the volume control arrows () in the direction
desired.
Press the “Waterfall” control button a second time to
turn off the pump.
“Waterfall” Control Button
Activates Pump
Volume Control Arrows
Waterfall

1000153-5-B
Kohler Co., Kohler WI U.S.A. 7

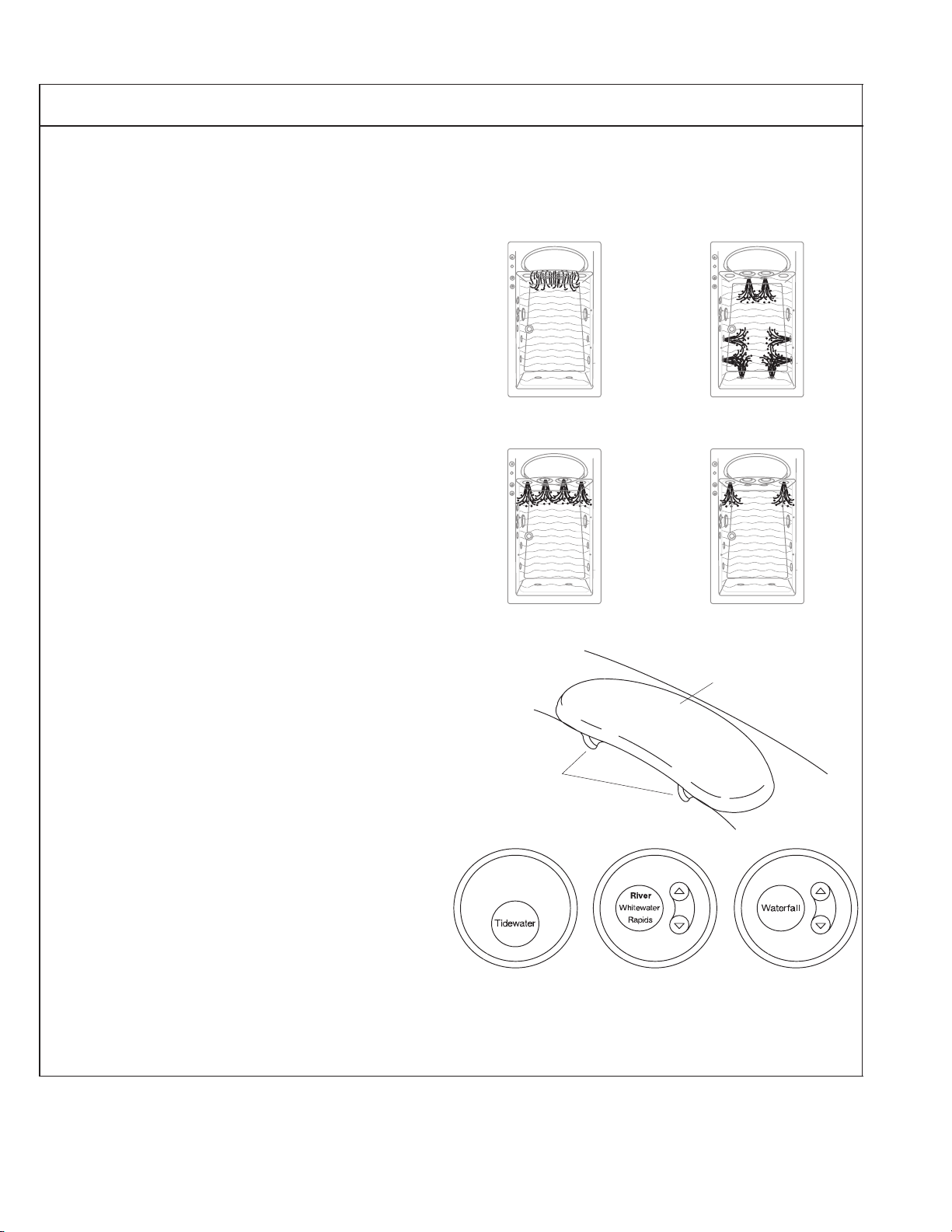

To use the jets: press the “River/Whitewater/Rapids”
control button to start the jet functions. The eight
Flexjets (River) will start to flow immediately at
maximum volume. Adjust the water flow volume by
pressing and holding down the volume control arrows
() in the direction desired.
Your Flexjet system adds air to the water stream to
increase the force of the water flow. Decrease the
force of the water flow by turning the Flexjet trim rings
clockwise until you obtain the desired water force.
Turn the trim rings counterclockwise to increase the
water flow force.
Press the “River/Whitewater/Rapids” control button
again to turn off the Flexjets and turn on all four River
Jets (Whitewater). Water will start to flow from the
River Jets within several seconds.
Press the “River/Whitewater/Rapids” control button a
third time to turn off the two center River Jets. The two
outermost River Jets will continue to run (Rapids).
Press the “Tidewater” control button any time the
“River/Whitewater/Rapids” functions are running to
turn off the air supply to the jets. Press the control
button a second time to toggle the air supply on again.
NOTE: Some air may continue to flow from one or
more of the jets for a short time after the air supply
has been turned off with the “Tidewater” control.
Press the “River/Whitewater/Rapids” control button a
fourth time to turn off the pump.
Press the “River/Whitewater/Rapids” control button
again to restart the jet functions.
NOTE: Built-in timers automatically stop the pumps
after approximately 20 minutes of operation.
Decrease the
Water Force
Increase the
Water Force
“River Whitewater Rapids”
Control Button Changes Mode Volume
Control
Arrows
“Tidewater”
Controls Air
Supply
(On–OFF)
River
RapidsWhitewater

88
1000153-5-BKohler Co., Kohler WI U.S.A.
6. CARE AND CLEANING INSTRUCTIONS
A. CLEANING YOUR ACRYLIC WHIRLPOOL
Do not use abrasive cleansers or solvents on acrylic
surfaces.
Wipe out your acrylic whirlpool with a soft cloth after
each use to prevent a build-up of soap and scum. If the
surface gets excessively dirty you can use a general
purpose cleaner such as: Cinch, Glass Plus, 409All
Purpose, Dow Soap Scum and MildewRemover, Scrub
FreeMildew Remover, Mr CleanLemon Fresh, or
Fantastik. You can also use an automotive-type
polishing compound, followed by an application of
good-quality paste wax.
Avoid cleaning products that contain the following
chemicals, as they will damage the finish of your acrylic
whirlpool: acetone, ethyl alcohol, amyl or ethyl acetate,
sodium hypochlorite, toluene, or phenol.
Extreme heat such as that generated by cigarettes or
portable heaters can damage acrylic surfaces; do not
use such items near your whirlpool.
B. CLEANING YOUR REMOVABLE PILLOWS
Clean your pillows twice a month or more, depending
upon usage.
Use mild soap and water on a clean, soft cloth for
routine cleaning. Remove more stubborn stains with a
high-quality cleaner recommended for vinyl. Remove
the pillows from the whirlpool before applying any
cleaners.
Periodically use a vinyl treatment product to
rejuvenate the appearance of your removable pillows.
Follow all cleaner manufacturer instructions.
C. CLEANING YOUR FAUCET, DRAIN, & TRIM
If available, follow the care and cleaning instructions
packed with your faucet and drain trim.
Gold Finishes: The best way to clean these finishes
is to use warm water and dab dry with a cotton ball.
All Other Finishes: Clean these finishes with a mild
soap and warm water. Wipe the entire surface
completely dry with a clean, soft cloth. Many cleaners
contain chemicals, such as ammonia, which could
adversely affect the finish, and are not recommended.
Do not use abrasive cleansers or solvents on Kohler
faucets and fittings.
D. FLUSHING YOUR WHIRLPOOL SYSTEM
Flush your whirlpool system twice a month or more,
depending upon usage, following the procedures
below.
Turn the Flexjet trim rings fully clockwise.
Fill the whirlpool with hot water to a level above the
River Jet water-level sensors.
Add 4 teaspoons of a low-foaming dishwasher
detergent, and 1 cup of household bleach to the water.
Run the whirlpool for 5 to 10 minutes in the Waterfall
and all Whirlpool modes. Then turn off the whirlpool,
and drain.
Fill the whirlpool with cold water to a level above the
River Jet water-level sensors, and run the whirlpool for
another 5 to 10 minutes in the Waterfall and all
Whirlpool modes. Turn off the whirlpool, and drain.
Wipe the surface dry with a clean, soft cloth.

1000153-5-B
Kohler Co., Kohler WI U.S.A. 9
7. TROUBLESHOOT THE WHIRLPOOL SYSTEM
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or a qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale distributor.
SYMPTOMS PROBABLE CAUSES RECOMMENDED ACTION
1. Whirlpool does not
start/stop. A. No power to pump motor. A. Set/Reset GFCI breaker; check wiring. If problem persists, refer to
installer/dealer.
B. Jets are blocked. B. Remove blockage. Refer to installer/
dealer.
C. Switch wire disconnected from motor. C. Reconnect switch wire to motor. Refer
to installer/dealer.
D. Control switch does not work. D. Replace switch. Refer to
installer/dealer.
E. Circuit board does not work. E. Replace circuit board. Refer to
installer/dealer.
F. Motor/pump assembly does not work. F. Replace motor and pump. Refer to
installer/dealer.
G. Auxiliary control does not work. G. Replace auxiliary control. Refer to
installer/dealer.
2. Motor starts, all jets
are not functioning. A. Whirlpool Flexjet is closed. A. Rotate Whirlpool Flexjet trim ring counterclockwise to open.
B. Trim kit installed incorrectly. B. Re-install trim kit, checking for
damage to O-ring. Refer to
installer/dealer.
C. Butterfly valve does not work. C. Replace butterfly valve. Refer to
installer/dealer.
D. Auxiliary control does not work. D. Replace auxiliary control. Refer to
installer/dealer.
3. Whirlpool stops
automatically
before 18 minutes.
A. GFCI trips. A. Identify source of fault and correct. If
problem persists, refer to
installer/dealer.
B. Suction blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage. Refer to
installer/dealer.
D. Motor overheated and protection
device activated. D. Check for blockage at motor vents. Remove blockage and allow motor to
cool.
Check for suction blockage. Remove
blockage and allow motor to cool.
Check for jet blockage. Remove
blockage and allow motor to cool.
E. Circuit board does not work. E. Replace circuit board. Refer to
installer/dealer.
4. Whirlpool does not
automatically stop
after 22 minutes.
A. Circuit board does not work. A. Replace circuit board. Refer to
installer/dealer.
CONTINUED ON NEXT PAGE

1010
1000153-5-BKohler Co., Kohler WI U.S.A.
TROUBLESHOOTINGCONTINUED
SYMPTOMS PROBABLE CAUSES RECOMMENDED ACTION
5. Pump does not
prime. A. Pump shimmed too high. A. Lower pump base to subfloor. Refer to installer/dealer.
6. Noisy operation. A. Pump straps have not been cut. A. Cut straps with tin snips. Refer to
installer/dealer.
B. Flexjet squeals due to dislodged
Flexjet O-ring. B. Remove Flexjet, replace and lubricate O-ring, and reinstall Flexjet. Refer to
installer/dealer.
7. Little/poor flow from
dual fill ports
(K 1360 model)
A. Water supply lines blocked. A. Remove blockage. Refer to
installer/dealer.
(K-1360 model). B. Transfer valve not fully open. B. Rotate transfer valve handle.
8. Little/poor water
flow from Waterfall
A. Suction or harness blocked. A. Remove blockage.
flow from Waterfall. B. Variable flow valve does not work. B. Replace variable flow valve. Refer to
installer/dealer.
9. Flexjets run, but
River Jets do not
operate as
A. Insufficient water in whirlpool basin. A. Fill whirlpool so water covers water
level sensors.
operate as
described. B. Control switch does not work. B. Check wiring. Replace control switch.
Refer to installer/dealer.
C. Butterfly valve does not work. C. Check wiring. Replace butterfly valve.
Refer to installer/dealer.
D. Auxiliary control does not work. D. Check wiring. Replace auxiliary
control. Refer to installer/dealer.
10.Volume control
arrows do not
change water flow
A. Control switch does not work. A. Check wiring. Replace control switch.
Refer to installer/dealer.
change water flow
as described. B. Variable flow valve does not work. B. Check wiring. Replace variable flow
valve. Refer to installer/dealer.
C. Circuit board does not work. C. Replace circuit board. Refer to
installer/dealer.
11.Air flow through jets
does not start or
stop when
A. Control switch does not work. A. Check wiring. Replace control switch.
Refer to installer/dealer.
stop when
Tidewater control
button is pressed. B. Butterfly valve does not work. B. Check wiring. Replace butterfly valve.
Refer to installer/dealer.
button
is
ressed
.C. Auxiliary control does not work. C. Check wiring. Replace auxiliary
control. Refer to installer/dealer.
12.Air continues to
flow through one or
more jets for
several seconds
after Tidewater
control button is
pressed.
A. Normal operation – air will stop
flowing in a short time. A. No action required.
