Kohler sok K-1188 Assembly instructions

Homeowners Guide
Overflowing Bath
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(e.j. K-12345M)
Français, page ″Français-1″
Español, pagina ″Español-1″
K-1188, K-1189
1019731-5-C

Important Safety Information
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRICAL SHOCK, OR INJURY TO PERSONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: When using this unit, always follow basic precautions, including the following:
DANGER: Risk of personal injury. To reduce the risk of injury, do not permit children to use this
unit unless they are closely supervised at all times.
WARNING: Risk of personal injury. To avoid injury, exercise care when entering or exiting the
whirlpool.
WARNING: Risk of electric shock. Do not permit electric appliances (such as a hair dryer, lamp,
telephone, radio, or television) within 5’ (1.5 m) of this whirlpool.
WARNING: Risk of hyperthermia. People using medications and/or having an adverse medical
history should consult a physician before using a whirlpool equipped with a heater.
WARNING: The use of alcohol, drugs, or medication can greatly increase the risk of fatal
hyperthermia. Prolonged immersions in hot water may induce hyperthermia. Hyperthermia occurs
when the internal temperature of the body reaches a level several degrees above the normal body
temperature of 98°F (37°C). The effects of hyperthermia include: (a) failure to perceive heat, (b)
failure to recognize the need to exit the bath, (c) unawareness of impending hazard, (d) fetal
damage in pregnant women, (e) physical inability to exit the bath, and (f) unconsciousness resulting
in the danger of drowning.
Use this unit only for its intended use as described in this manual. Do not use attachments not
recommended by Kohler Company.
Do not operate this unit without the guard (cover) on the suction fitting.
Never drop or insert any object into any opening.
IMPORTANT! Flush your recirculation system twice a month or more depending upon usage, as described
in the ″Flushing the Recirculation System″section.
Keep small objects such as bath toys and bathing accessories out of the unit while it is running.
Repeated use of personal care products containing oils can damage the unit’s plastic components. Do not use
heavy, vegetable-based shampoos or bath oils.
The unit must be connected only to a supply circuit that is protected by a Ground-Fault Circuit-Interrupter
(GFCI) or Residual Current Device (RCD). Such a GFCI or RCD should be provided by the installer and
should be tested on a routine basis.
To test the GFCI or RCD, push the test button. The GFCI or RCD should interrupt power. Push the reset
button. Power should be restored.
If the GFCI or RCD fails to operate in this manner, there is a ground current flowing, indicating the
possibility of an electric shock. Do not use this unit. Disconnect the unit and have the problem corrected by a
qualified service representative before using.
The water action of this product will cause bath soap or shampoo to foam. Bubble bath is not recommended
for this reason. Refrain from using these products excessively.
Exercise extreme caution if you walk or move around in the bathing well. Plastic surfaces are inherently
slippery when wet.
1019731-5-C 2 Kohler Co.

Important Safety Information (cont.)
Do not allow the water temperature in the unit to exceed 104°F (40°C) or the heater will not operate.
Your new bathing product has been listed by Underwriter’s Laboratories, thus ensuring safety for you and
your family. Your new fixture also conforms to rigid ANSI and IAPMO standards set within the plumbing
industry.
Product Identification
Identify and record the model and serial numbers below (found near the whirlpool pump):
Model No. _________________________
Serial No. __________________________
Table of Contents
Important Safety Information ......................................................... 2
Product Identification .............................................................. 3
Thank You For Choosing Kohler Company .............................................. 3
About Your Overflowing Bath ........................................................ 3
Using Your Overflowing Bath ........................................................ 4
Using Your Remote Control ......................................................... 6
Care and Cleaning ................................................................ 7
Flushing the Recirculation System .................................................... 7
One-Year Limited Warranty ......................................................... 7
One-Year Warranty ............................................................... 7
Troubleshooting Procedures ......................................................... 8

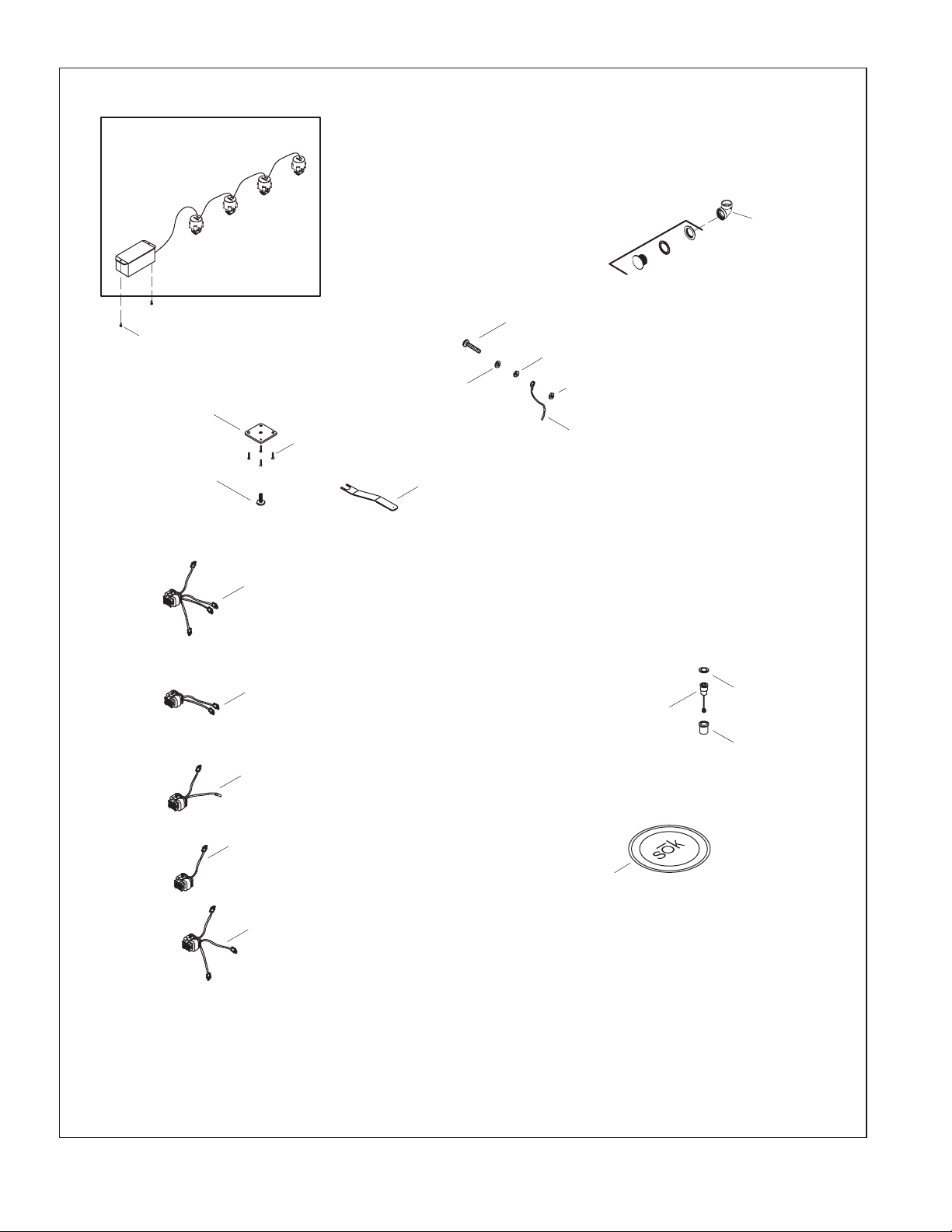

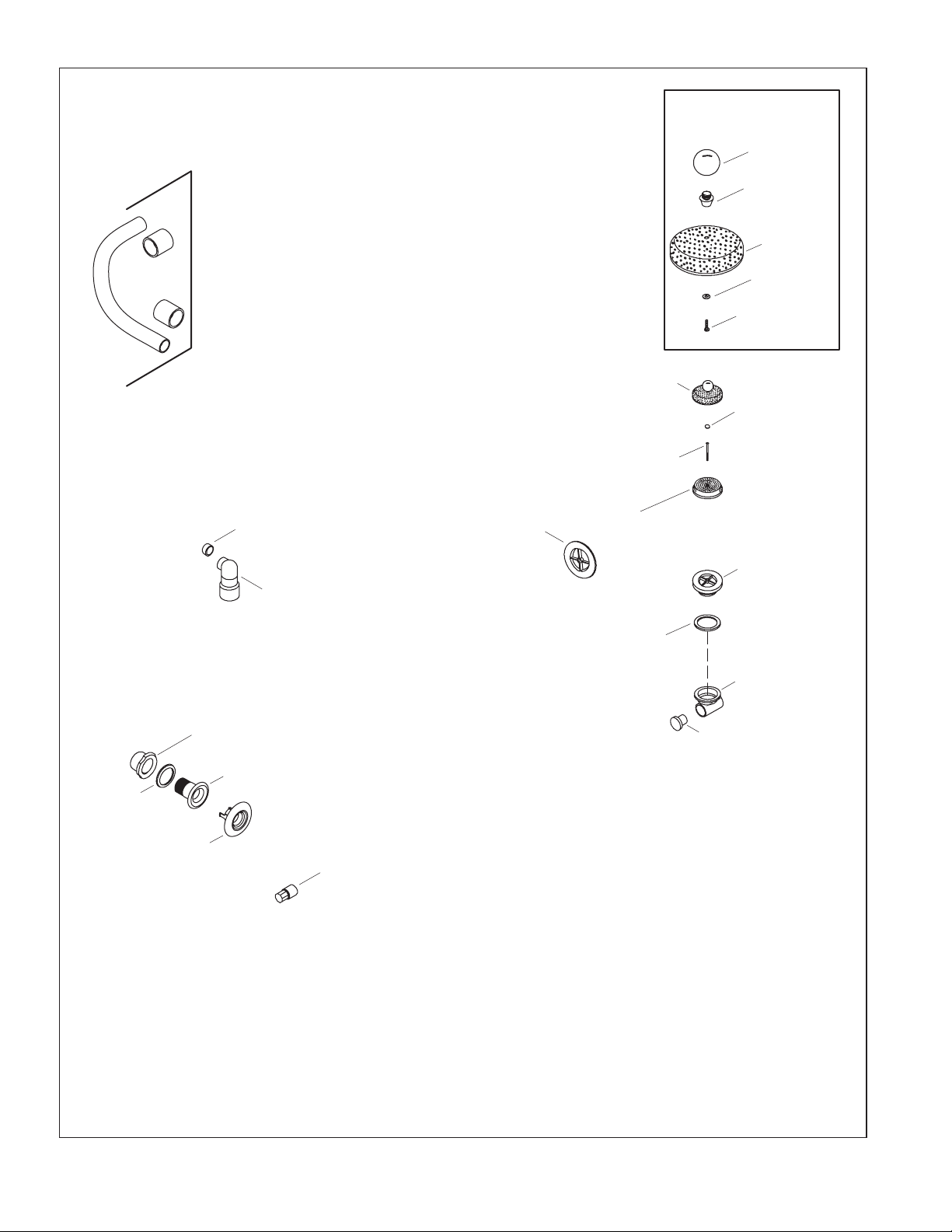

Service Parts ................................................................... 11
Thank You For Choosing Kohler Company
Thank you for choosing Kohler Company. Your Kohler Company product reflects the true passion for design,
craftsmanship, artistry, and innovation Kohler Company stands for. We are confident its dependability and
beauty will surpass your highest expectations, satisfying you for years to come.
All information in this guide is based upon the latest product information available at the time of
publication. At Kohler Company, we strive to fulfill our mission of improving the level of gracious living for
each person who is touched by our products and services. We reserve the right to make changes in product
characteristics, packaging, or availability at any time without notice.
Please take a few minutes to review this guide. Pay special attention to the care and cleaning instructions.
About Your Overflowing Bath
Your Kohler overflowing bath represents a renaissance in hydrotherapy pleasure unlike anything you’ve
experienced before. The overflowing bath will transform your bathroom or home spa into a place of
tranquility, of rejuvenation and gracious living you will enjoy for years to come. The overflowing bath will
elevate the spirit-enhancing ambiance of total body immersion, cascading water, and gentle water movement
into your bathroom or home spa. The warm, soothing flow of water and the gentle effervescent bubble action
combine with the enrapturing walls of cascading water to create a relaxing retreat from the cares and worries
of your day.
Kohler Co. 3 1019731-5-C

Using Your Overflowing Bath
If you’re like most people who install a Kohler overflowing bath, you can’t wait to get in and try it out.
You’ll soon find that the features and controls are very simple to use, and offer you a safe and totally
relaxing personal care experience. Please spend a few minutes with these simple operating instructions, and
then you’ll be ready to go.
Remove all loose bathing items, such as soap bars, shampoo bottles, and washcloths from inside the
unit.
Don’t use excessive amounts of shampoo or soap while you are operating the overflowing bath. Of
course, you can freely use shampoo and soap for showering before you fill the unit.
Make sure the metal suction screen is clean, and is correctly in place over the plastic suction cover.
Close the drain.
NOTE: The water temperature in the bath should not exceed 104°F (40°C) or the heater will not operate.
NOTE: The in-line heater will help maintain the water temperature while your overflowing bath is
running. Always fill the unit with water tempered to your desired comfort level.
Fill the unit with water so the bathing well overflows into the overflow channel to the drain. The
channel sensors should be completely covered with water.
The green light in the pump control switch will start to blink automatically within 1/2 minute after
the sensors are submerged to let you know the unit is ready to start.
Fill the unit 4″(10.2 cm) to 6″(15.2 cm) from the bathing well rim.
IMPORTANT! Like any other bath, prevent flooding the area around the unit by entering the filled
bathing well slowly. This will allow the system to properly drain excess water.
IMPORTANT! Exercise caution if you walk or move around in the bathing well. Plastic surfaces are
inherently slippery when wet.
Slowly enter the bathing well, then press the pump control switch to start the pump/motor and
begin operation.
As the pump/motor turns on and water begins to circulate, the light on the pump control will
change to solid green, and will stay on as long as the overflowing bath is running.
Press the pump control switch again to turn off the overflowing bath. The green light in the pump
control switch will then start to blink automatically until the overflowing bath is drained below the
overflow channel sensors, or is restarted.
A built-in timer automatically stops the bath after approximately 20 minutes of operation.

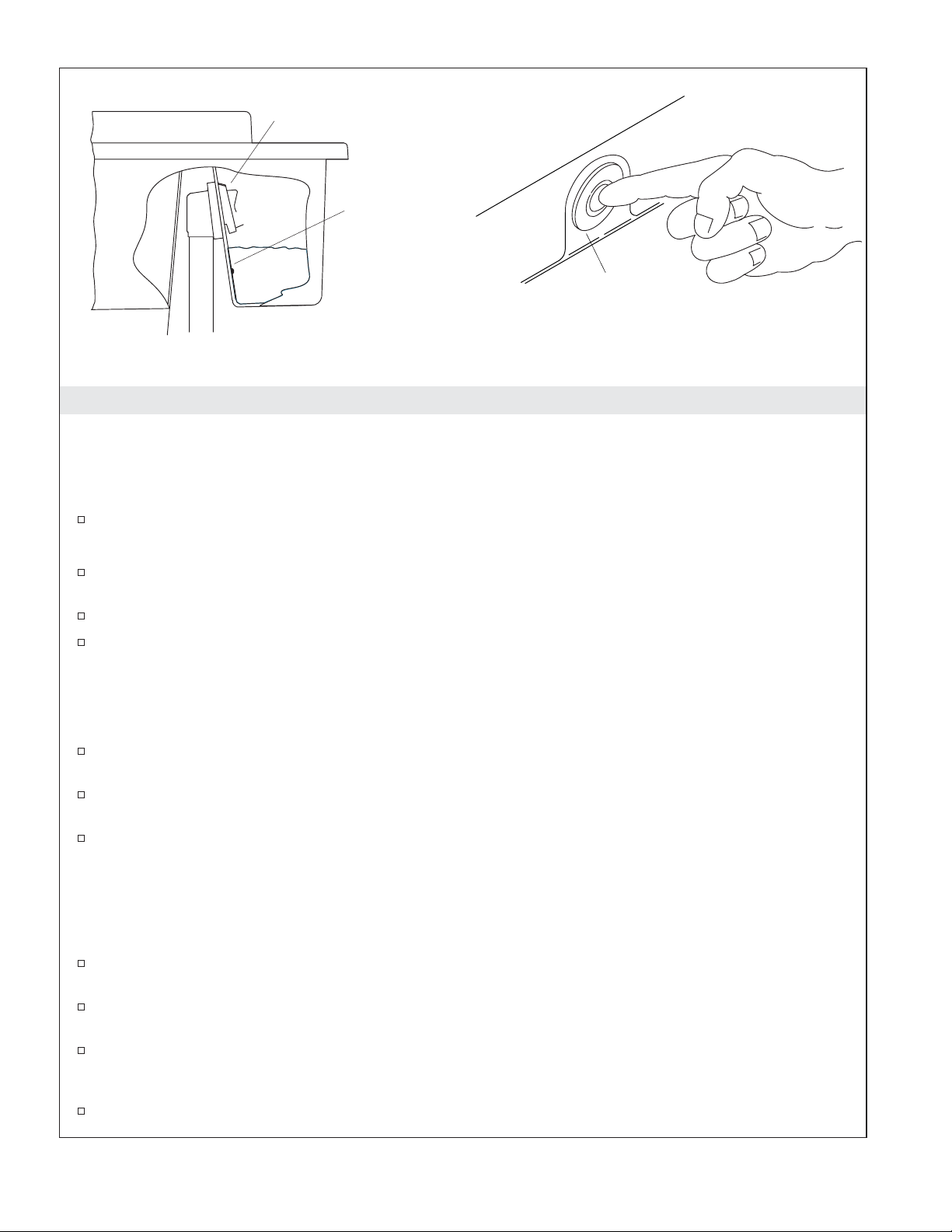

Overflow Channel
Drain
Overflow
Channel
Sensors
Water Pump Control
Switch
1019731-5-C 4 Kohler Co.

Using Your Overflowing Bath (cont.)
Chromatherapy Light Operation
If the chromatherapy lights are turned off, press the button on the light control switch (located next
to the pump control switch). The chromatherapy lights will begin to cycle through each of the colors
(sweep mode). The control switch flashes blue in the sweep mode.
When the chromatherapy lights are in sweep mode, you can lock in one color light by pressing the
control button. The light control switch is a constant blue in this mode.
When an individual color is locked in, press the control button to turn the chromatherapy lights
off.
Kohler Co. 5 1019731-5-C

Using Your Remote Control
NOTE: There are two types of remote controls available: a basic unit and a unit with controls for
chromatherapy and effervescence. Determine which unit you have and follow the corresponding
directions.
NOTE: Your remote requires two AAA batteries. To install or replace them, simply unscrew the base of the
remote.
NOTE: Your overflowing bath is equipped with a waterproof remote.
To turn the pump on and off, press the power button. The heater normally turns on with the pump.
Press the heater icon to turn the heater off. The indicator ring will appear light green or yellow
green in color. The heater will not operate if the pump is off. Press the heater icon again to turn the
heater on. The indicator ring will appear dark green when the heater is on.
Press the effervescence icon to turn the pump off. Press it again to turn the pump back on.
To cycle the chromatherapy lights through the spectrum of colors, press the chromatherapy cycle
icon.
To lock an individual chromatherapy color in, press the chromatherapy specific color icon.
Programming the Remote
IMPORTANT! Programming the remote control is required. Your whirlpool will not respond to any
remote control until you program the remote. If you replace the remote control or replace the pump
control, it will be necessary to program the remote control.
NOTE: To program the remote you must turn off the breaker controlling the power to the overflowing
bath. Perform the following steps within three minutes after restoring power.
When power to the overflowing bath is turned on, the pump control switch will flash for three
minutes. It flashes between yellow and green.
Press the pump control switch to enter the learn remote function. The pump control switch will
flash green.
Press any button on the remote. The overflowing bath will only respond to this remote.
NOTE: If you do not press any of the buttons on the remote within three minutes, the overflowing bath
will not respond to the remote control.
Heater
On/Off Power
On/Off
Heater
On/Off
Power
On/Off
Effervescence
Mode
Chromatherapy
Specific Color
Selection
Chromatherapy
Cycle
1019731-5-C 6 Kohler Co.

Care and Cleaning
For best results, keep the following in mind when caring for your KOHLER product:
•Use a mild detergent such as liquid dishwashing soap and warm water for cleaning. Do not use
abrasive cleaners that may scratch or dull the surface.
•Carefully read the cleaner product label to ensure the cleaner is safe for use on the material.
•Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
•Do not allow cleaners to sit or soak on the surface.
•Wipe surfaces clean and rinse completely with water immediately after cleaner application. Rinse
and dry any overspray that lands on nearby surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care &
Cleaning information, call 1-800-456-4537 and press 1 for Kohler Products and then 3 for Literature.
Flushing the Recirculation System
Flush the recirculation system twice a month or more, depending upon usage.
•Make sure the metal suction screen is clean, and is correctly installed over the plastic suction cover.
•Fill the bathing well with hot water so the bathing well overflows the bathing well rim and flows
into the overflow channel to the drain overflow, and so both overflow channel sensors are
completely covered with water. The green light in the pump control switch will start to blink
automatically within 1/2 minute after the overflow channel sensors are completely submerged.
•Add 2 teaspoons of a low-foaming dishwasher detergent, and 20 oz. (.6 L) of household bleach to
the water.
•Press the pump control switch button, and let the unit run for 5 to 10 minutes.
•Press the pump control switch button a second time to turn off the unit.
•Completely drain the unit.
•Wipe the surface dry with a clean, soft cloth.
One-Year Limited Warranty
KOHLER plumbing products are warranted to be free of defects in material and workmanship for one year
from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection
discloses any such defects occurring in normal usage within one (1) year after installation. Kohler Co. is not
responsible for removal or installation costs. Use of in-tank toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your Dealer, Plumbing Contractor, Home
Center or E-tailer, or by writing Kohler Co., Attn.: Customer Service Department, 444 Highland Drive,
Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the USA, 1-800-964-5590 from within
Canada and 001-877-680-1310 from within Mexico.
Implied warranties including that of merchantability and fitness for a particular purpose are expressly
limited in duration to the duration of this warranty. Kohler Co. and/or seller disclaims any liability for
special, incidental or consequential damages.
Some states/provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of special, incidental or consequential damages so these limitations and exclusions may not apply
to you. This warranty gives you specific legal rights. You may also have other rights which vary from
state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
One-Year Warranty
KOHLER CO.
It is recommended that at the time of purchase, you verify that all accessories and components are complete
in this package.
Kohler Co. 7 1019731-5-C

One-Year Warranty (cont.)
This Kohler product is warranted to be free of defects in material and workmanship for one (1) year from the
date of purchase as shown on the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its authorized distributors.
2. To obtain warranty service, please present the invoice and corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair the defective product or provide a new
replacement or an equivalent model (in those cases that the model has been discontinued) when the product
is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the date the product is received.
5. It is recommended that the consumer save the invoice or receipt as additional protection, as it may
substitute the warranty in the case that there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the instructions concerning use and operation set
forth in the owner’s manual or installation instructions, and when the recommendations and warnings
included are not observed.
2. When the product has been modified or dismantled partially or totally; or has been used in a negligent
fashion and as a consequence has suffered damages attributable to the consumer, individual, or hardware not
authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster such as fire or acts of God, including
flooding, earthquake, or electric storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Troubleshooting Procedures
For warranty service, contact your dealer or wholesale distributor. This Troubleshooting Guide is for general
aid only. Contact a Kohler Authorized Service Representative or a qualified electrician to correct all electrical
problems.
Symptoms Probable Causes Recommended Action
1. Green light in pump
control switch flashes
before the bathing well is
full of water.
A. Spout fills directly into overflow
channel. A. Adjust/reinstall the spout to fill directly into the bathing well.
Refer to the installer/dealer.
B. One or both butterfly valves do
not work. B. Check the butterfly valve wiring or replace the butterfly valves.
Refer to the installer/dealer.
C. Control does not work. C. Check the wiring or replace the
control. Refer to the
installer/dealer.
2. Product does not start. A. No power to unit. A. Turn on the power to the unit, or
correct the source of the power
loss. Refer to the installer/dealer.
1019731-5-C 8 Kohler Co.

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
B. Water does not cover the
overflow channel sensors. B. Fill the bathing well until water flows over the bathing well rim,
into the overflow channel, and
covers the overflow channel
sensors. Suggested fill level is to
the drain overflow.
C. Pump control switch does not
light up or flash when the unit is
running or filled as required.
C. Check the wiring or replace the
pump control switch. Refer to
the installer/dealer.
D. Pump/motor does not work. D. Rebuild or replace the
pump/motor. Refer to the
installer/dealer.
E. Control does not work. E. Check the wiring or replace the
control. Refer to the
installer/dealer.
3. Water does not cascade
evenly over the entire
bathing well rim.
A. Unit is not level. A. Level the unit by using the
wrench provided to turn the
adjustable feet up or down as
needed.
B. Bathing well ports are blocked. B. Remove blockage.
C. Metal suction screen is blocked. C. Clean the metal suction screen.
4. Unit stops automatically
before 18 minutes. A. GFCI/RCD trips. A. Identify the source of the fault and correct. Refer to the
installer/dealer.
B. Motor overheated and protection
device activated. B. Check for blockage of the motor vent. Allow the motor to cool,
then remove the blockage.
Check for a plugged metal
suction screen, and allow the
motor to cool before restarting.
Check for blockage of the
bathing well ports. Remove the
blockage, and allow the motor to
cool before restarting.
C. Water level drops below the
overflow channel sensors during
operation (″yellow″ring will be
flashing on pump switch).
C. Fill the bathing well until water
flows over the bathing well rim,
into the overflow channel, and
covers the overflow channel
sensors. Suggested fill level is to
the drain overflow. Make sure
the bath drain seals properly.
5. Noisy operation. A. Metal suction screen is not in
place over the plastic suction
cover.
A. Position the metal suction screen
over the plastic suction cover to
prevent cavitation.
B. Insufficient water level in the
overflow channel. B. Fill the bathing well until water flows over the bathing well rim,
into the overflow channel, and
covers the overflow channel
sensors. Suggested fill level is to
the drain overflow. Make sure
the bath drain seals properly.
C. Pump/motor rattles. C. Make sure the pump/motor
banding straps have been cut.
6. Water temperature drops
significantly over 20
minutes of operation.
A. Heater limit switch tripped.
Indicator light should be ″On″
during operation.
A. Reset the GFCI/RCD.
Kohler Co. 9 1019731-5-C

Troubleshooting Procedures (cont.)
Symptoms Probable Causes Recommended Action
B. Heater does not work. B. Check the wiring or replace the
heater. Refer to the
installer/dealer.
7. Chromatherapy lights do
not work. A. Damaged wiring harness. A. Check the wiring harness. Refer to the installer/dealer.
B. Control does not work. B. Check wiring or replace the
control. Refer to the
installer/dealer.
8. Remote control does not
work. A. Batteries improperly installed or dead. A. Replace batteries.
B. Antenna on wiring harness is
damaged. B. Replace wiring harness. Refer to the installer/dealer.
C. Remote control not programmed
correctly. C. See remote control Homeowners Guide or Service Manual.
D. Remote control does not work. D. Replace remote control. Refer to
the installer/dealer.
E. Control does not work. E. Replace control. Refer to the
installer/dealer.
9. Water does not reach bath
rim upon filling. A. No power to the unit. A. Turn on the power.
B. Level probe wires loose. B. Check/reconnect wires. Refer to
the installer/dealer.
C. Butterfly valves do not work. C. Check wiring; replace butterfly
valves if necessary. Refer to the
installer/dealer.
D. Control does not work. D. Replace control. Refer to the
installer/dealer.
1019731-5-C 10 Kohler Co.

Service Parts
**Finish/color code must be specified when ordering.
Kohler Co. 11 1019731-5-C

1019933
Chromatherapy Lights
93192
Screw
1003773
Leveling Plate
1004779
Screw
93192
Screw
1015025 (-C1 Models)
Plug/Wire Assembly
1015016 (-C1 Models)
Plug/Wire Assembly
1015010 (-C1,-RE Models)
Plug/Wire Assembly
(-RE Models)
Plug/Wire Assembly
1020079 (-RE Models)
Plug/Wire Assembly
1010618
Elbow
1012821
Light Housing
73519
Water Level Probe
60129
Nut 60129
Nut
63270
Washer
1021777
Wire Harness
1005259
Wrench
1017879 (Pump)
1017880 (Light)
Switch
1003771
Bezel
1003772
Housing
1007931
Medallion
**Finish/color code must be specified when ordering.
1020078
1019731-5-C 12 Kohler Co.

93836 (1/2")
93838 (1")
93839 (1-1/4")
94853 (1-1/2")
Tube (w/Couplings)
1005260
91967
Check Valve
1001878
Housing
1035480**
Flange
93552**
Flange Cap
93315
Gasket
96744
Flange Removal Tool
1004262**
Suction Screen
1004861**
Handle
1004243**
Base
1004263
Screen
69472
Washer
94822-D
Screw
65226**
Suction Plug
65054**
Screw
1003065
96895**
Suction Cover
96708
Flange
65886
Gasket 93685
Housing
73518
Plug
See above for suction
screen detail.
Suction Flange
Removal Tool
Cap
**Finish/color code must be specified when ordering.
Kohler Co. 13 1019731-5-C

60320
Screw
1017279
1.5 HP Pump
To Heater
1016954-A
Motor
1019722
Impeller
1005357
Cover
1005520
Screw
60985
Seal
1017278
Volute
1005359
O-Ring
1019446-E
Stud
1019444-E
Spacer
1018664
Control
73504
Adapter
1019447-B
Isolation Mount
93192
Screw
1001794
Locknut
1019720
Pump Bracket 1018964
Heater Bracket
1019433
Carriage Bolt
90153
Nut
**Finish/color code must be specified when ordering.
67065
Ground Lug
93003
Strain Relief
93892-A
Electrical Box
61776
Lock Washer
1033678
Screw
93893
Cover
61845-K
Copper Grounding Wire
60320
Screw
67065
Ground Lug
61776
Lock Washer
1019731-5-C 14 Kohler Co.

To Pump
1011679
Gasket
1018711
Heater
1012916
Nut w/Screws
94821
O-Ring
1012653
Adapter
1005363
Nut
1034673
Connector
1019733
Butterfly Assy
94821
O-Ring
94821
O-Ring
94821
O-Ring
1034673
Connector
1005363
Nut
Butterfly & Motor Service Parts Detail
96956
Butterfly Kit
63149
Screw
50506
Screw
1016466
Motor
See below for butterfly and
motor service parts detail.
**Finish/color code must be specified when ordering.
1022495
Nut Wrench
Kohler Co. 15 1019731-5-C

1013822-D** (-C1 Models)
Remote w/Stand
1013464-D
Decal
1023091**
Cap
1013471**
Stand
1022253-D**
Remote
1013822-E** (-RE Models)
Remote w/Stand
1013464-E
Decal
1023091**
Cap
1013471**
Stand 1022253-E**
Remote
**Finish/color code must be specified when ordering.
1019731-5-C 16 Kohler Co.

Guide du propriétaire
Baignoire à déversement
Informations de sécurité importantes
INSTRUCTIONS RELATIVES AUX RISQUES
D’INCENDIE, D’ÉLECTROCUTION OU DE
BLESSURES CORPORELLES
LIRE ET SUIVRE TOUTES LES INSTRUCTIONS
CONSERVER CES INSTRUCTIONS
AVERTISSEMENT : Les précautions de base seront observées pour l’utilisation de cette unité,
incluant :
DANGER : Risque de blessures corporelles. Afin de réduire les risques de blessures, ne jamais
permettre à un enfant d’utiliser cet appareil sans surveillance.
AVERTISSEMENT : Risque de blessures corporelles. Pour éviter les blessures corporelles, entrer et
sortir avec précaution de la baignoire à hydromassage.
AVERTISSEMENT : Risque d’électrocution. Ne pas raccorder d’appareils électriques (tels que
sèche-cheveux, lampe, téléphone, radio ou télévisions) dans les 5’ (1,5 m) de cette baignoire à
hydromassage.
AVERTISSEMENT : Risque d’hyperthermie. Les personnes sous médicaments ou qui sont en
observation médicale doivent consulter leur médecin avant d’utiliser des baignoires à hydromassage
équipées de chauffeau.
AVERTISSEMENT : La consommation d’alcool, de drogues ou de médicaments peuvent
augmenter considérablement le risque fatal d’hyperthermie. L’immersion prolongée dans l’eau
chaude peut provoquer hyperthermie. L’hyperthermie a lieu lorsque la température corporelle
interne atteint plusieurs degrés au dessus de la temperature normale de 98° F (37°C). Les effets de
l’hyperthermie comprennent: (a) défaut de percevoir la chaleur, (b) défaut de s’apercevoir du besoin
de sortir de la baignoire, (c) incapacité de reconnaître le danger, (d) dommages au foetus dans le cas
des femmes enceintes, (e) incapacité physique de sortir de la baignoire et (f) inconscience et danger
conséquent de noyade.
N’utiliser cet appareil que pour l’usage auquel il est destiné, et tel qu’indiqué dans ce manuel. Ne pas
utiliser de dispositifs de fixation non recommandés par Kohler Company.
Ne pas utiliser cette unité sans les protecteurs (couvercles) sur les raccords d’aspiration.
Ne jamais faire tomber ou insérer d’objet quelconque dans les ouvertures.
IMPORTANT! Purger le système de recirculation deux fois par mois ou plus souvent selon la fréquence
d’usage, tel que décrit dans la section ″Purger le système de recirculation″.
Ne pas laisser de petits objets ou des jouets pour le bains dans l’unité lorsque celle-ci est en marche.
L’utilisation régulière de produits d’hygiène et de beauté contenant des huiles peut endommager les
composants en plastique de votre unité. Ne pas utiliser de shampoings ou d’huiles de bains à bases
végétales.
L’unité doit être raccordeé uniquement à une prise de terre, protégée par un disjoncteur différentiel ou un
Kohler Co. Français-1 1019731-5-C

Informations de sécurité importantes (cont.)
appareil de courant résiduel (RCD). De tels disjoncteurs GFCI ou RCD devraient être fournis par
l’installateur et vérifiés régulièrement.
Pour tester le GFCI ou RCD, presser sur le bouton de test. Le GFCI ou RCD devraient couper le courant.
Appuyer sur le bouton de ré-initialisation. L’alimentation devrait être restituée.
Si le disjoncteur de mise à la terre GFCI ou RCD ne fonctionne pas de cette manière, ilyaducourant qui
circule indiquant la possibilité de choc électrique. Ne pas utiliser cette unité. Déconnecter l’unité et corriger le
problème par par un technicien qualifié avant de l’utiliser.
L’action de l’eau de ce produit peut faire mousser le savon ou le shampooing. Pour cette raison, il est
conseillé de ne pas utiliser des produits moussants. Nous vous conseillons de ne pas utiliser ces produits
excessivement.
Être très vigilant lors de déplacement autour du bassin de la baignoire. Les surfaces en plastique sont
glissantes lorsqu’elles sont humides.
Si la température de l’unité excède 104° F (40° C), le chauffe-eau ne fonctionnera pas.
Votre nouveau produit a été homologué par l’ULC, assurant par conséquent votre sécurité et celle de votre
famille. Ce nouvel appareil est conforme aux normes ANSI et aux normes IAPMO établies pour l’industrie
de la plomberie.
Identification du produit
Identifier et enregistrer les numéros de modèle et de série ci-dessous (localisés près de la pompe de la
baignoire à hydromassage):
Modèle No. _________________________
No. série __________________________
Sommaire
Informations de sécurité importantes .................................................. 1
Identification du produit ............................................................ 2
Merci d’avoir choisi la compagnie Kohler ............................................... 2
À propos de la baignoire à déversement ................................................ 3
Utilisation de la baignoire à déversement ............................................... 4
Utiliser votre télécommande ......................................................... 6
Entretien et nettoyage ............................................................. 7
Purge du système de re-circulation .................................................... 7
Garantie limitée d’un an ............................................................ 7
Procédures de dépannage .......................................................... 8
Pièces de rechange .............................................................. 11
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la compagnie Kohler. Votre produit de la compagnie Kohler reflète la véritable passion
du design, d’artisanat, d’art et d’innovation représentant la compagnie Kohler. Nous sommes confiants que
sa fiabilité et beauté surpasseront vos exigences les plus élevées, vous satisfaisant pendant les années à venir.
Toute information contenue dans ce guide est basée sur l’information la plus récente du produit disponible
au moment de la publication. A la compagnie Kohler, nous aspirons à remplir notre mission d’améliorer le
niveau de vie gracieux pour chaque individu affecté par nos produits et services. Nous nous réservons le
droit d’apporter toutes modifications aux caractéristiques, emballages ou disponibilités des produits, et ceci à
tout moment et sans préavis.
Veuillez prendre s’il vous plaît quelques minutes pour étudier ce guide. Prêter une attention toute
particulière aux instructions d’entretien et de nettoyage.
1019731-5-C Français-2 Kohler Co.

À propos de la baignoire à déversement
Votre baignoire Kohler à déversement représente la renaissance du plaisir de l’hydrothérapie, sans
comparaison aucune avec ce que vous avez expérimenté auparavant. La baignoire à déversement
transformera votre salle de bains en un espace de tranquillité et de rajeunissement et, remplira gracieusement
votre vie pour les années à venir. Cette baignoire à déversement élèvera l’ambiance spirituelle et l’expérience
de l’immersion corporelle totale, cascade d’eau et doux remous évolueront dans votre salle de bains ou spa à
domicile. Le débit d’eau chaud, l’action des bulles d’air chaud et la cascade vous détendront et de vous
éloigneront de vos soucis journaliers.
Kohler Co. Français-3 1019731-5-C

Utilisation de la baignoire à déversement
Si vous êtes comme la plupart des personnes qui installent une baignoire à déversement Kohler, il vous sera
difficile d’attendre avant de l’essayer. Vous allez rapidement constater que les caratéristiques et les
commandes du système sont très faciles à utiliser, et vous offrent une expérience de relaxation et de soins
personnels trés sains. Veuillez passer quelques minutes sur ces simples instructions d’opération et vous serez
prêt à l’utiliser.
Retirer tout objet de l’intérieur de l’unité, tel que savons, bouteilles de shampooing et gants de
toilette.
Ne pas utiliser de quantités excessives de shampoing ou de savon pendant le fonctionnement de la
baignoire à déversement. Bien sûr il est possible d’utiliser du shampooing et du savon avant de
remplir l’unité.
S’assurer que la grille d’aspiration métallique soit propre et correctement placée sur le couvercle
d’aspiration en plastique.
Fermer le drain.
REMARQUE : La température de la baignoire ne devrait pas excéder 104°F (40°C), sinon le chauffe-eau ne
fonctionnera pas.
REMARQUE : Le chauffe-eau en ligne maintient la température d’eau pendant le fonctionnement de la
baignoire à déversement. Remplir toujours l’unité avec une température désirée pour votre niveau de
confort.
Remplir l’unité avec de l’eau de façon à ce que le bassin déborde dans le canal de trop-plein vers le
drain. Les capteurs du canal devraient être complètement submergés d’eau.
La lumière verte de l’interrupteur de la pompe clignotera automatiquement 30 secondes après que
les capteurs soient submergés pour préciser que la baignoire est prête à l’utilisation.
Remplir l’unité de 4″(10,2 cm) à 6″(15,2 cm) du rebord du bassin de la baignoire.
IMPORTANT ! Comme pour toute autre baignoire, éviter de déborder l’eau de l’unité en entrant dans le
bassin lentement. Cela permettra au système d’évacuer correctement tout excès d’eau.
IMPORTANT ! Être vigilant lors des déplacements autour du bassin de la baignoire. Les surfaces en
plastique sont glissantes lorsqu’elles sont humides.
Entrer doucement dans la baignoire, et presser l’interrupteur de contrôle de la pompe pour activer
le moteur/pompe et commencer l’opération.
Quand la pompe/moteur s’active et l’eau commence à couler, la lumière du voyant de la pompe
deviendra verte foncée, et le restera pendant toute la durée du fonctionnement.
Drain du canal
de trop-plein
Capteurs de canal
de trop-plein
Eau
Interrupteur de
la Pompe
1019731-5-C Français-4 Kohler Co.
