Thank You For Choosing Kohler Company
Important Information ..................................................3
Function Operation..................................................... 4
Operating Your Bath with Airjets..................................6
.................2
Your Kohler Bath with Airjets ...................................... 4
Care and Cleaning Instructions ...................................8
Troubleshooting Procedures .......................................9
TABLE OF CONTENTS
THANK YOU FOR CHOOSING KOHLER COMPANY
Thank you for choosing The Bold Look of Kohler.
Kohler craftsmanship offers you a rare combination of
proven performance and graceful sophistication that
will satisfy you for years to come. The dependability
and beauty of your new bath with airjets will surpass
your highest expectations. We're proud of our bath
with airjets here at Kohler, and we know you will be too.
Please take a few minutes to study this Homeowners
Guide before you use your bath with airjets. Pay
special attention to the "Care and Cleaning"
instructions in this manual.
All information in this manual is based upon the latest
product information available at the time of
publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to
make changes in product characteristics, packaging, or
availability at any time without notice.
This manual is designed to help you troubleshoot any
problems that may develop with the operation of the
bath with airjets.
If a problem occurs, refer to the "Troubleshooting"
section to determine a probable cause.

113864-5-BB
31041246-T01-C-T01-B1200098
(GFCI)
(ELCB) GFCI ELCB
GFCI
ELCB GFCI ELCB
GFCI ELCB GFCI ELCB
GFCI ELCB
Never drop or insert any object into any opening.
The bath with airjets must be connected only to a
supply circuit that is protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-
Breaker (ELCB). Such a GFCI or ELCB should be
provided by the installer and should be tested on a
routine basis. To test the GFCI or ELCB, press the test
button. The GFCI or ELCB should interrupt power.
Press the reset button. Power should be restored. If
the GFCI or ELCB fails to operate in this manner, the
GFCI or ELCB is defective. If the GFCI or ELCB
interrupts power to the bath without the test button
being pressed, a ground current is flowing, indicating
the possibility of an electric shock. Do not use this bath.
Disconnect the bath and have the problem corrected by
a qualified service representative before using.

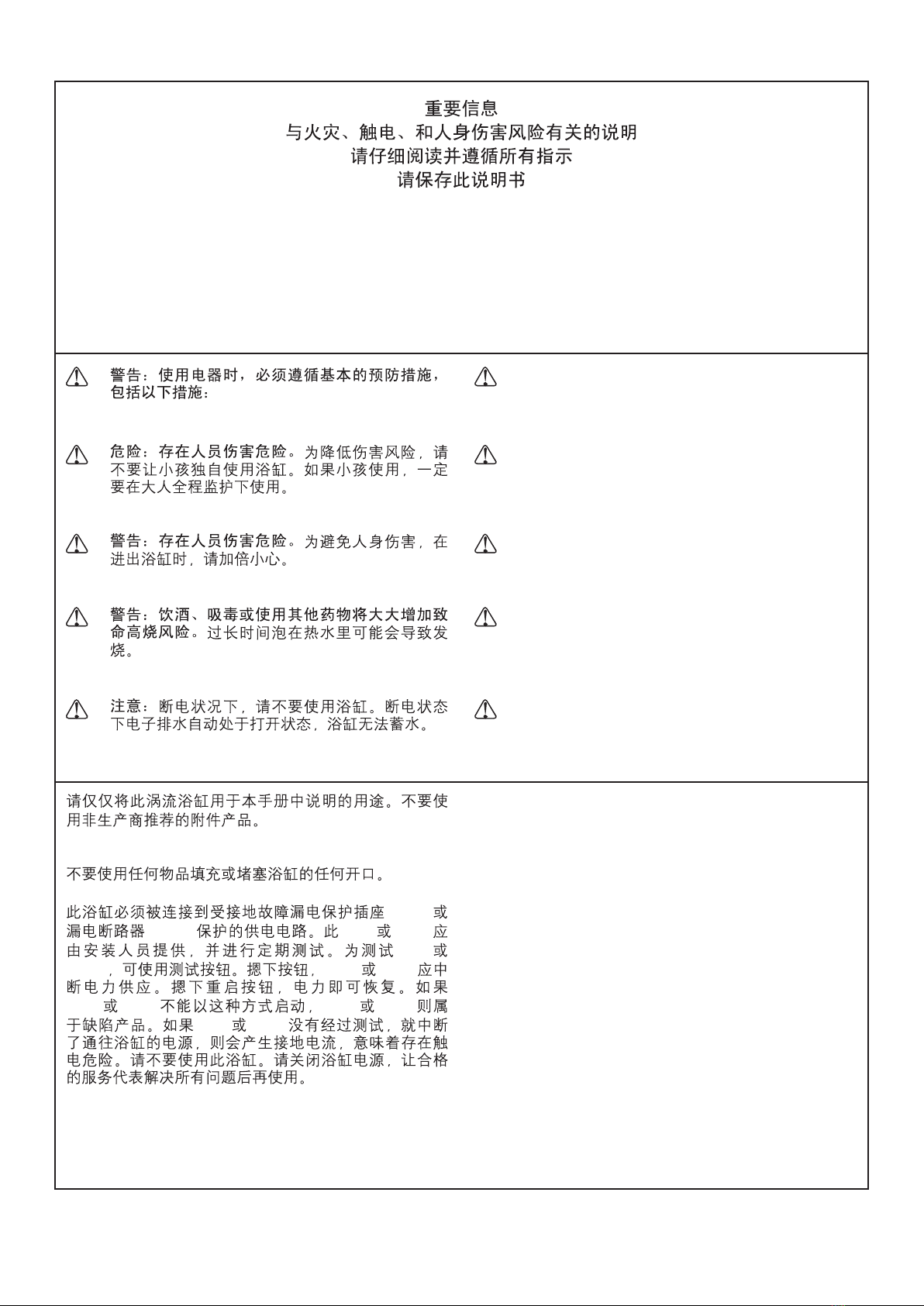

IMPORTANT INFORMATION
INSTRUCTIONS PERTAINING TO A RISK OF FIRE,
ELECTRICAL SHOCK, OR INJURY TO PERSONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: When using electrical products,
basic precautions should always be followed,
including the following:
DANGER: Risk of personal injury.
WARNING: Risk of personal injury.
WARNING: The use of alcohol, drugs, or
medication can greatly increase the risk of
fatal hyperthermia.
To reduce
the risk of injury, do not permit children to use
this unit unless they are closely supervised at all
times.
To avoid
injury, exercise care when entering or exiting the
bath with airjets.
Prolonged immersion in hot
water may induce hyperthermia.
NOTE: Please do not use the bath in case of
outage. In this case, the electronic drain
automatically opens and the bath can not be
filled with water.
Use this bath with airjets only for its intended purpose
as described in this manual. Do not use attachments
not recommended by the manufacturer.

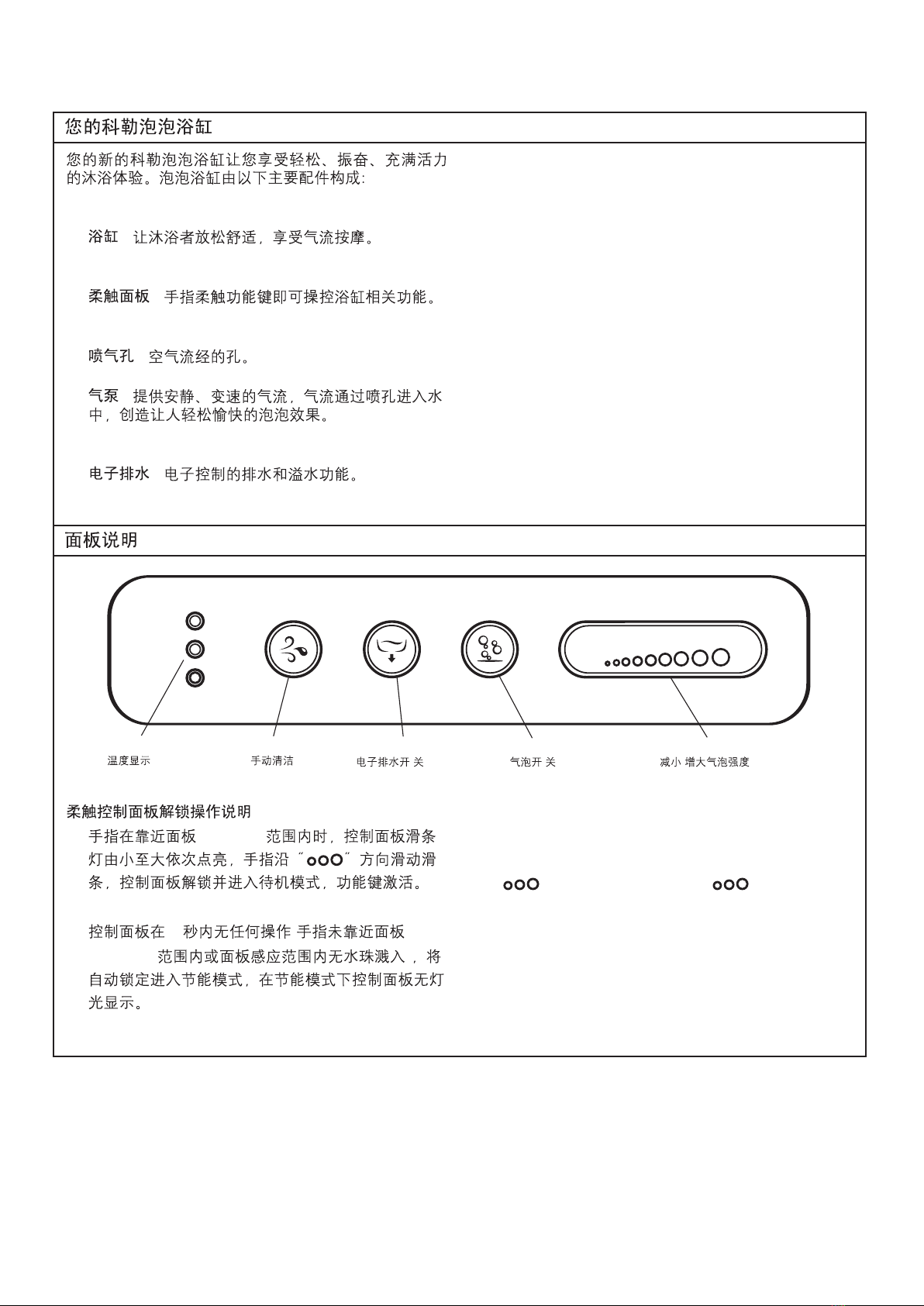

Your new bath with airjets is designed to stimulate,
invigorate, and energize your body. You will use the
following components:
Allows the bather to relax in comfort while
enjoying the air massage.
- Function control by touching
relevant buttons on the panel.
Holes through which the air flows.
Provides quiet, variable speed
power to force air through the airjets into the water
and create the soothing bubbling action.
- Controls the drain and overflow
functions electronically.
!
!
!
!
!
Bath -
Soft Touch Panel
Airjets -
Blower Motor -
Electronic drain
!
!
!
!
!
-
-
-
-
-
YOUR KOHLER BATH WITH AIRJETS
4-T01-B1200098
FUNCTION OPERATION
38
c
o
-
+
Manual Purge Electronic Drain On/Off
/
Pump On/Off
/
Water Temperature
/
Decrease/Increase Flow
!
!
10~30mm
30 (
10~30mm )
Unlock Soft Touch Panel
!
!
When the finger is within 10~30mm to the panel,
lights on the sliding slip will flash one by one along
" " direction. Slide along " " direction, the
panel will be unlocked and activated.
If the panel is not operated within 30 seconds (the
finger is not within 10~30mm to the panel or no
drops of water splash into the sensing range of the
panel), it will be automatically locked and enter
energy-saving mode with no light display.

FUNCTION OPERATION (CONT)
5
-T01-B1200098
!
!
!
Bubble Adjustment
Slide the sliding slip to unlock the panel.
When the blower motor is running, slide in " "
direction to increase the air flow and the light
gradually flashes from white to blue as the finger
moves along " " direction .Slide in " "
direction to decrease the air flow, the light gradually
dies out from white to blue as the finger moves
along " " direction.
Manual Cleaning
Slide the sliding slip to unlock the panel. Start the
blower motor by touching the button " " the
yellow light flashes. It will automatically stop after
running for about 2 minutes.
Automatic Cleaning
When the massage function is off, the blower motor
will automatically start and stop after running for
about 2 minutes if it detects the water level is below
the airjets.
!
!
!
2
2
!
!
!

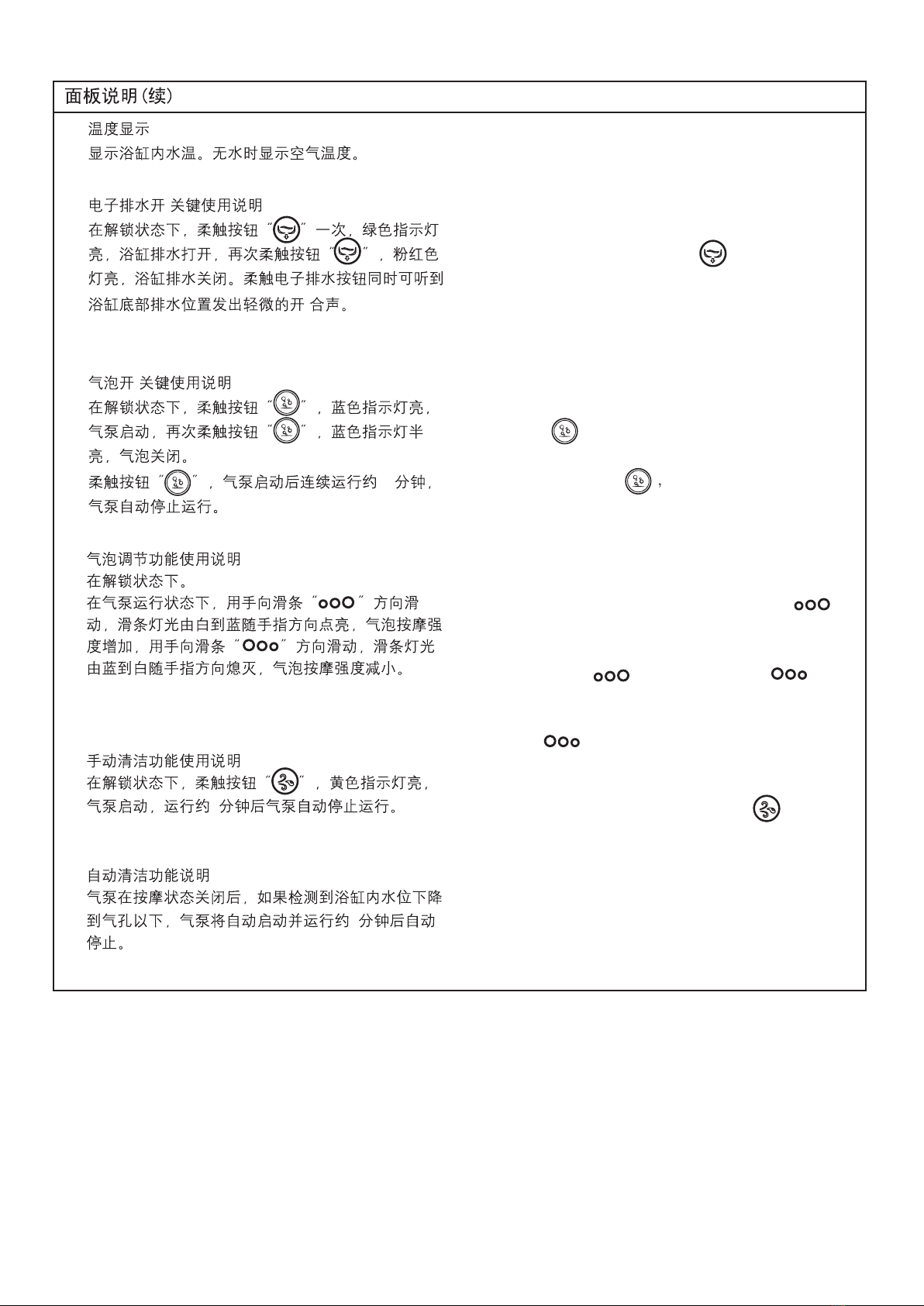

Temperature Display
Display water temperature in the bath and display
air temperature when the bath is empty.
Electronic Drain
Slide the sliding slip to unlock the panel. Start the
drain by touching the button " " once, the green
light flashes. Touch again to stop it, the pink light
flashes. When touching this button, a slight sound
can be heard from the drain at the bottom of the
bath.
Bubble Massage
Slide the sliding slip to unlock the panel. Touch the
button " " to start the blower motor, blue light
flashes. Touch again to stop it, blue light half flashes.
Touch the button " " The blower motor will
automatically stop after running for about 20
minutes.
!
!
!
/
/
/
20

STARTING THE UNIT
If the unit does not function properly, please refer to the
"Troubleshooting" section.
Touch the electronic drain on/off button " " on the
panel to close the drain, and the pink light flashes.
Fill the bath to a level at least 2" (5 cm) above the
bubble hole.
Observe water temperature displayed on the panel
for comfort and safety.
Carefully enter the bath basin.
Touch the pump on/off button " " on the user
keypad.
Observe that the air system starts and air begins to
flow to all zones.
If necessary, slide the sliding panel to adjust the
airflow.
!
!
!
!
!
!
!
NOTE: Before operating the panel, please
confirm that there is no obvious water stains on
the panel. If there is any, please first wipe it clean.
!
!
!
!
!
!
!
/
2"(5 )
/
OPERATING YOUR BATH WITH AIRJETS
38
c
o
-
+
Manual Purge Electronic Drain On/Off
/
Pump On/Off
/
Water Temperature
/
Decrease/Increase Flow
OVERFLOW STATUS
!
!
!
Water level reaches overflow level.
The electronic drain " " automatically opens.
Green light flashes and sound alarm starts.
Turn off the tap. When water level is below overflow
level, the electronic drain automatically closes.
Sound alarm stops and pink light flashes, (Refer to
"Roughing-in" for specific overflow level of each
bath.)
!
!
!
(
)
6-T01-B1200098

OPERATING YOUR BATH WITH AIRJETS(CONT)
7
-T01-B1200098

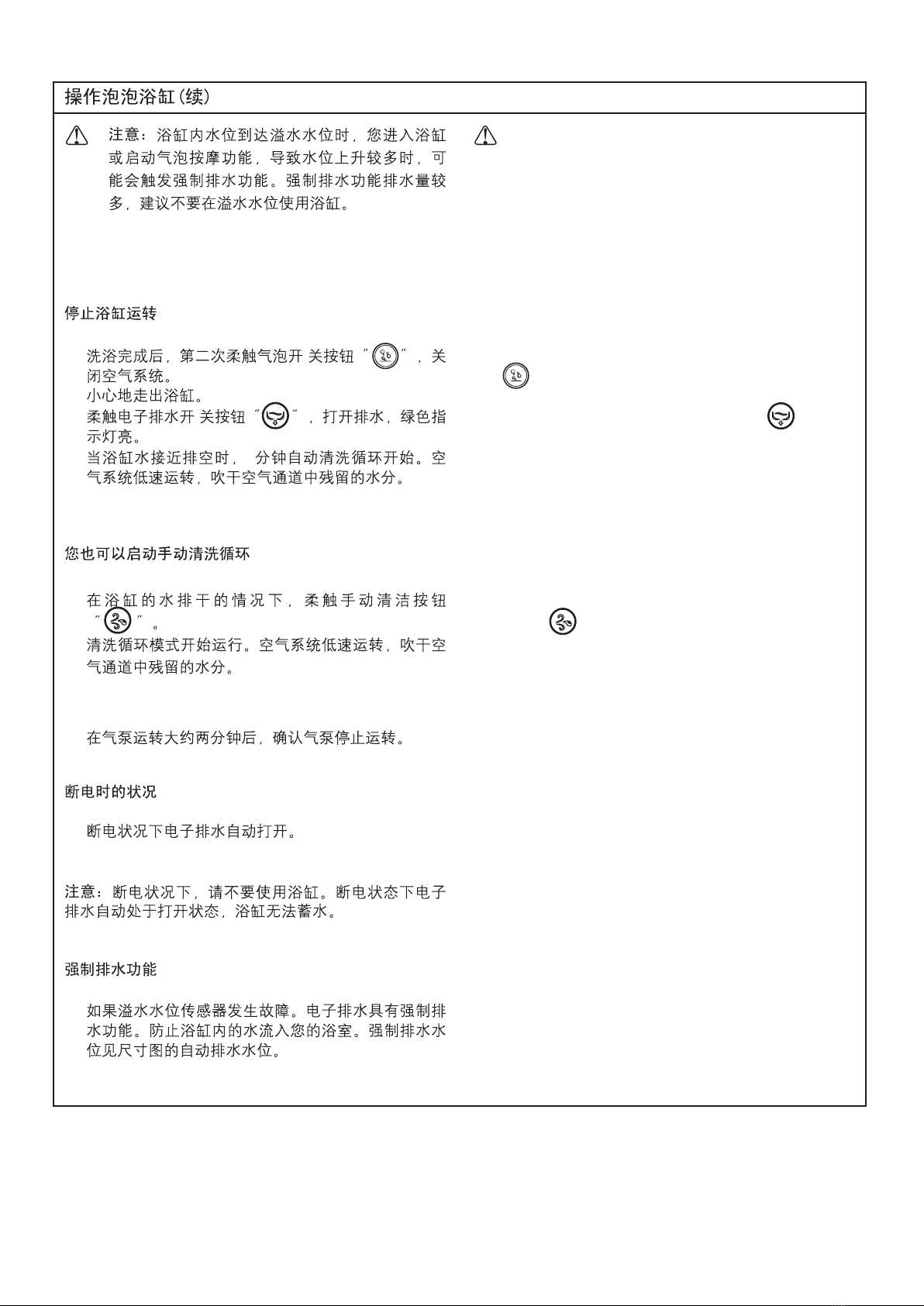

STOPPING THE BATH
!
!
!
!
After taking the bath, touch the pump on/off button
" " a second time to stop the air system.
Carefully exit the bath.
Touch the electronic drain on/off button" ". The
green light flashes.
When water in the bath is almost emptied, the
automatic two-minute purge cycle occurs. The air
system operates at a low speed to blow any residual
water out of the air channels.
!
!
!
!
/
/
2
INITIATING A MANUAL PURGE CYCLE
!
!
!
After the bath is drained, touch the manual purge
button " " once.
The purge icon flashes green and the mode is
implemented. The air system operates at a low
speed to blow any residual water out of the air
channels.
After about two minutes, the air pump stops
automatically.
!
!
!
NOTE: When the bath reaches overflow level,
water level may rise quickly if you enter the bath
or start the bubble massage function, which may
trigger the compelling drain function. Compelling
drain function will discharge lots of water, so it is
not recommended to use the bath when it
reaches overflow level.
COMPELLING DRAIN FUNCTION
!If the overflow level sensor does not work, you can
use the compelling drain function to prevent water
overflow to your bathroom. Please refer to the
automatic drain water level in the Roughing-in.
!
POWER OFF STATUS
!The electronic drain automatically starts under
power off status.
Please do not use the bath in case of outage. In
this case, the electronic drain automatically opens and
the bath can not be filled with water.
NOTE:
!

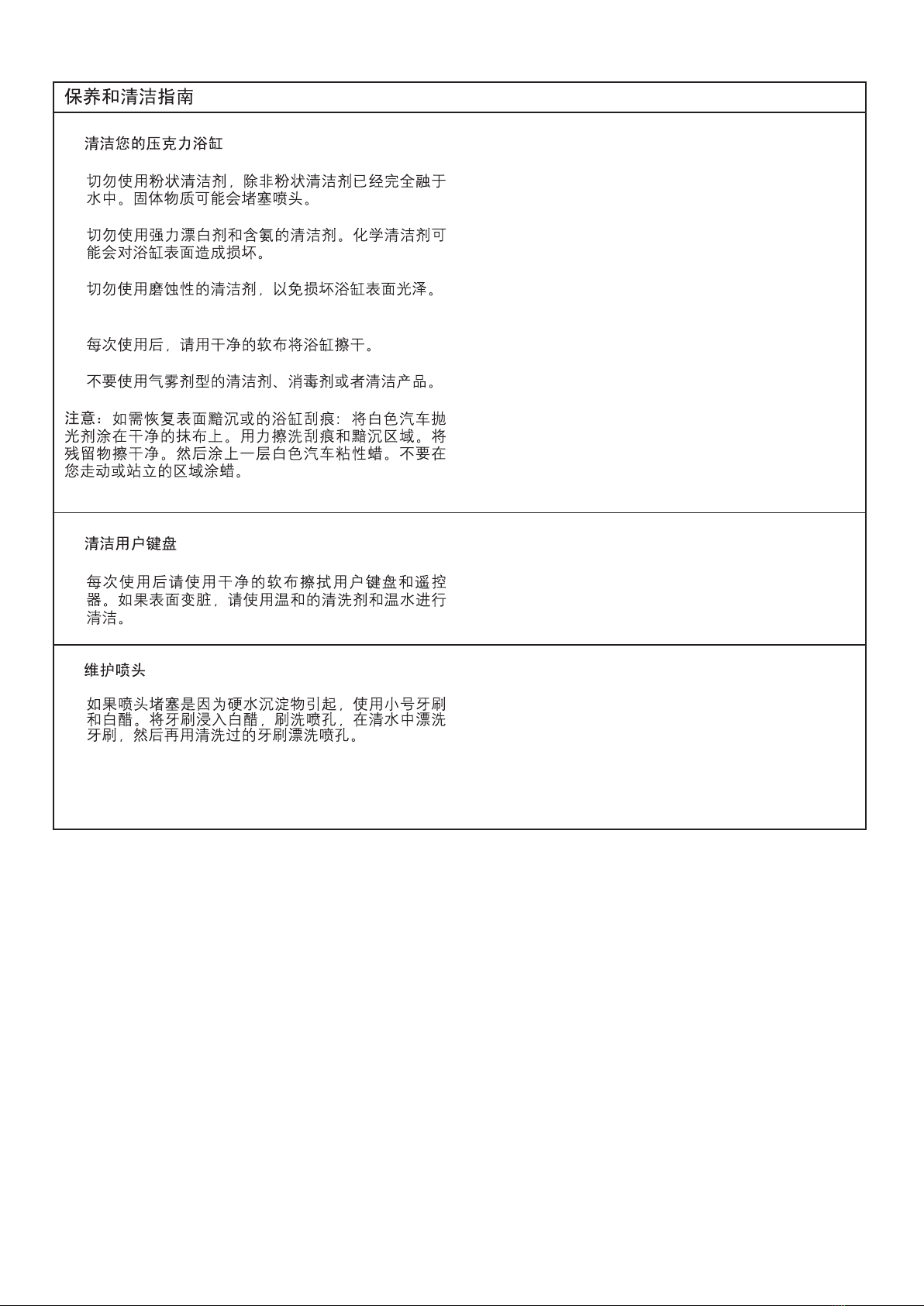

CARE AND CLEANING INSTRUCTIONS
A.
!
!
!
!
!
A. Cleaning Your Acrylic Bath
NOTE:
Do not use powdered cleaners unless the cleaner is
fully dissolved in water. Solid substances could
block the air jets.
Do not use full strength bleach or ammonia cleaning
solutions. Chemically active cleaning solutions can
damage the bath surface.
Do not use abrasive cleansers or solvents on acrylic
surfaces. Abrasive cleaners and solvents can
damage the bath surface.
Wipe out your acrylic bath with a soft cloth after
each use.
Avoid detergents, disinfectants, or cleaning products
in aerosol cans.
To restore dull or scratched units: Apply white
automotive polishing compound with a clean rag.
Rub scratches and dull areas vigorously. Wipe off
residue. Follow with a coat of white automotive paste
wax. Do not wax areas where you walk or stand.
!
!
!
!
!
B.
!
B. Cleaning Your User Keypad
Use a soft cloth to wipe the keypad and remote
control after each use. If the surface becomes dirty,
use a non-abrasive soap and warm water to clean.
!
C.
!
C. Maintaining the Airjets
If cleaning the airjets is required due to hard water
deposits, use a small between-the-teeth dental
Brush and white vinegar. Dip the brush in the
vinegar, brush the hole, rinse the brush in clean
water, and then use the wet rinsed brush to rinse the
hole.
!
8-T01-B1200098

8. A.
B.
C.
D.
A.
B.
C.
D.
1.
2.
3. 20
4. 20
5. /
6.
7.
A.
B.
C.
D.
A.
B.
A.GFCI ELCB
B.
A.
A.
B.
A.
B.
C.
A.
B.
A. / GFCI ELCB
B.
C.
D.
A.
B.
A. GFCI ELCB
B.
A.
A.
B.
A.
B.
C.
A.
B.
C. C.
D. D.
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.
TROUBLESHOOTING PROCEDURES
Troubleshooting The Bath System
9
-T01-B1200098

9. A.
B.
A.
B.

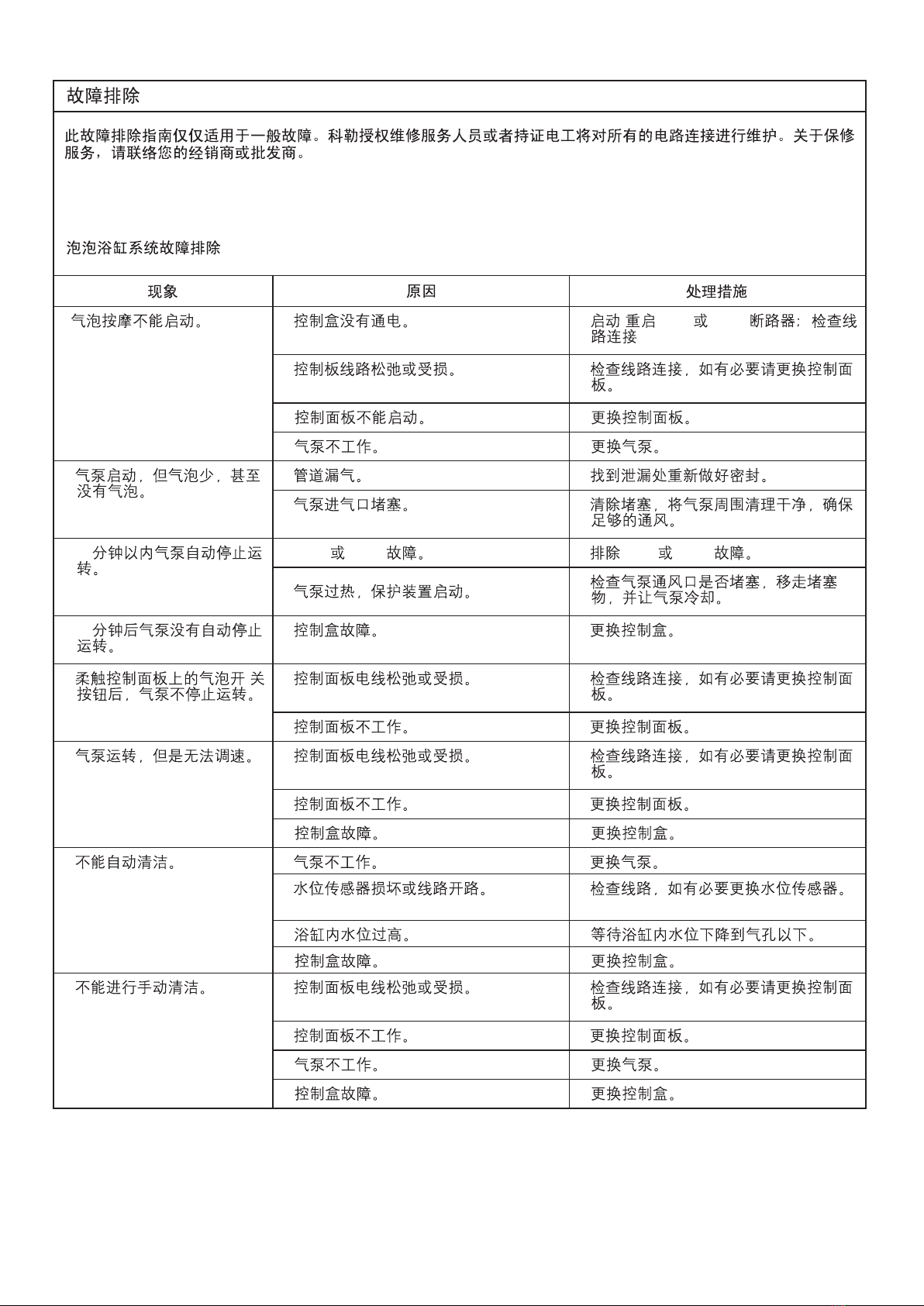

SYMPTOMS PROBABLE CAUSES RECORRECTIVE ACTION
1. Bath with airjets does not
start.
A. Controller is not power on.
2. Blower motor starts, but
there are few or no bubbles.
3. stops
automatically within 20
minutes.
Blower motor
B. User keypad cable loose or damaged.
C. User keypad does not work.
D. Blower motor does not work.
A. Set/reset GFCI or ELCB breaker;
check wiring.
B. Check wire connections. If necessary,
replace user keypad.
C. Replace user keypad.
D. Replace blower motor.
A. Pipeline leaking.
B. Pump inlet is blocked.
A. Apply silicone sealant to the leakage.
B. Clean the area around the blower
motor. Ensure adequate ventilation.
A. GFCI or ELCB trips.
B. Motor overheated and protection
device activated.
A. Correct GFCI or ELCB trips.
B. Check for blockage at motor vents.
Remove blockage and allow motor to
cool.
A. Replace controller.
A. Check wire connections. If necessary,
replace user keypad.
B. Replace user keypad.
C. Replace the controller.
A. Replace blower motor.
B. Check wire connections. If necessary,
replace water level sensor.
C. Operation after water level is below
the airjets.
D. Replace the controller.
4. does not stop
automatically after 20 minutes.
Blower motor
5. Blower motor does not stop
when pump on/off button
on user keypad is touched.
6. Blower motor operates but
speed timing does not work
7. Automatic purge does not
occur.
A. Controller trips.
A. User keypad cable loose or damaged.
B. User keypad does not work. B. Replace user keypad.
A. User keypad cable loose or damaged.
B. User keypad does not work.
C. Controller dose not work.
A. Check wire connections. If necessary,
replace user keypad.
A. Blower motor does not work.
B. Water level sensor trips or circuitry
plough.
C. Over-height of the water level.
D. Controller dose not work.
10. A.
B.
C.
A.
B.
C.
11. A. A.
B. B.
13.
14.
A.
A.
B.
A.
A.
B.
12. A.
B.
C.
A.
B.
C. Kohler
10 -T01-B1200098

12. Water level cannot be
maintained after the bath
is filled with water.
A. Water level protector functions.
B. Water level surpasses overflow level.
C. Overflow level is not correct.
A. Lower the water level in the bath.
B. Lower the water level in the bath.
C. Contact customer service personnel of
Kohler to readjust the water level.
13. Water temperature cannot
be shown.
14. Abnormity shown of water
emperature.
A. User keypad cable trips.
A. Temperature sensor of electronic drain
mechanism does not work.
B. User keypad trips.
A. Check wire connections, or replace
user keypad.
A. Replace electronic drain mechanism.
B. Replace user keypad.
8. Manual purge cycle does
not work.
10. Cannot operate or stop
electronic drain.
9. Massage pillow does not
work.
A. User keypad cable loose or damaged.
A. User keypad trips.
A. Malfunction of mechanism.
B. User keypad does not work.
B. Controller trips.
B. Malfunction of power supply.
C. Blower motor does not work.
D. Controller dose not work.
C. Electronic drain mechanism
.
does not
work
A. Check wire connections. If necessary,
replace user keypad.
A. Replace user keypad.
A. Replace massage pillow.
B. Replace user keypad.
B. Replace controller.
B. Replace power supply.
11. The bath cannot overflow. A. Water level sensor trips.
B.
.
Electronic drain mechanism does not
work
A. Replace water level sensor.
B. Replace electronic drain mechanism.
C. Replace blower motor.
D. Replace the controller.
C. Replace electronic drain mechanism.
11
-T01-B1200098
