Kohler K-4107X User manual

Installation Guide
C3-130 Toliet Seat with Bidet Functionality

3-130
1194357-X2-B ©2017 Kohler Co.
K-4107X

1194357-X2-B 2 Kohler Co.
Important Information
IMPORTANT NOTICE TO INSTALLERS!: Please leave these instructions for
the consumer. They contain important information.
In addition to installation procedures, this manual contains important care and
cleaning. Please retain for future reference.
NOTE: Some installation parts might not be provided.
NOTE: The product pictured in the installation steps may dier from the model
being installed.
Before You Begin
WARNING: Risk of electric shock, re, or personal injury.
This product must be ground. Connect to a dedicated 220-240 VAC,
50/60 Hz, 10 A circuit protected by Ground-Fault Circuit-Interrupter
(GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
WARNING: Risk of electric shock, product damage. Do not immerse
or ush the product with water.
CAUTION: Risk of product damage. Do not plug in the seat until all
other installation steps have been completed.
Thank You for Choosing Kohler Company
Thank you for choosing Kohler. Kohler craftsmanship oers you a rare
combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We’re very proud of our
products here at Kohler and we know you will be too.
Please take a few minutes to review this manual before you start installation. If
you encounter any installation or performance problems, please don’t hesitate
to contact us. Our phone numbers and website are listed on back cover.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
Thank you for choosing Kohler Company.

Kohler Co. 3 1194357-X2-B
Before You Begin (Cont.)
¨ Observe all local plumbing and building codes.
¨ All information in these instructions is base on the latest product information
available at the time of publication. Kohler Co. reserves the right to make
changes at any time without notice.
¨ Do not use an extension cord with the product.
¨ Connect to a cold water supply with a pressure of 0.7-7.4 Bar (0.07-0.74MPa)
¨ Connect only to a cold water supply line carrying direct tap water.
¨ Unplug the seat and drain the seat if functions of the seat will not be operated
for an extended period of time.

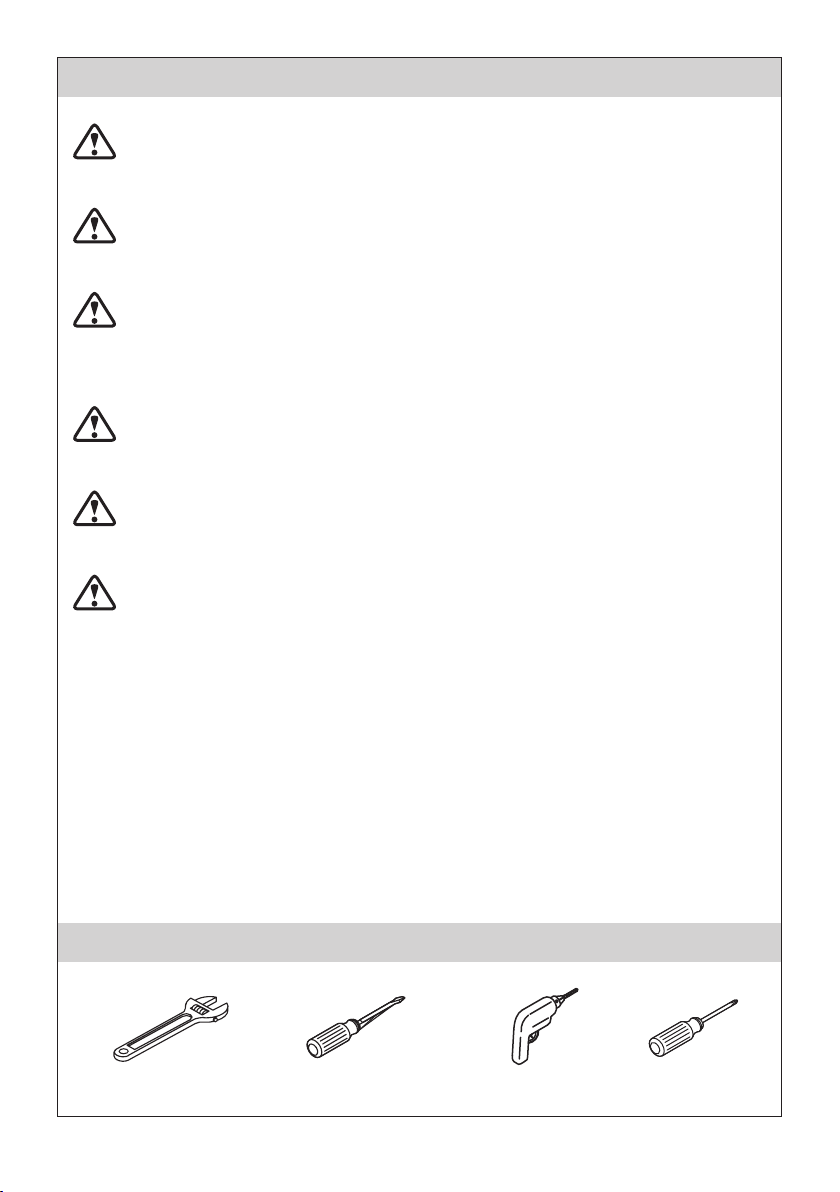

Tools and Materials
Adjustable
Wrench
Blade Screw driver Masonry Drill
Screw driver
CAUTION: Risk of product damage. Do not install this seat in a location
where water might be splashed on the product.
CAUTION: Risk of product damage. Do not install this seat in a location
exposed to excessive moisture where condensation might form on the
product surface. Please ensure sucient ventilation in your surroundings
to prevent possible damage to electronic components.
CAUTION: Risk of product damage. Pushing or pulling on the water
connection may cause water leakage.
CAUTION: Risk of product damage. Do not apply excessive force to
the spray wands. Product may break.
CAUTION: Risk of product damage. Take care to face right in position
to the thread while connecting seat inlet pipe, otherwise, the inlet pipe
thread may wear o and lead to water leakage.

1194357-X2-B 4 Kohler Co.

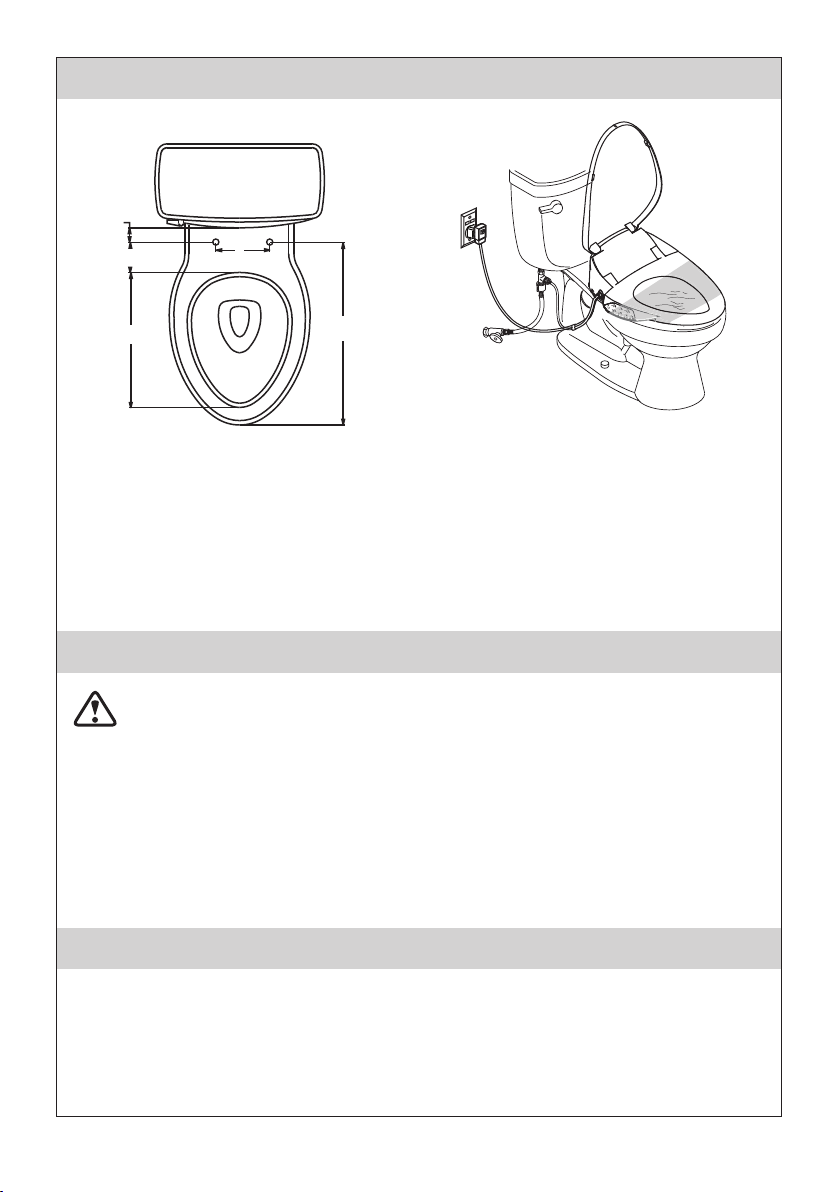

1. Match Toilet roughing-in requirement and Installation tips
2. Install an Electrical outlet
1 Distance between installation holes: 136-210 mm
2
Distance between instalaltion holes and tank front rim: > 20 mm
3 Distance between instalaltion holes and bowl inner rim: < 70 mm
4 Distance between installation holes and tank top rim: 460-490 mm
5 Bowl inner diameter: 370-390 mm
NOTE: The distance between the seat and the plug should be maximum 1 meter.
WARNING: Risk of electric shock, re, or personal injury.
This product must be ground. Connect to a dedicated 220-240 V, 50/60 Hz,
10A circuit protected by Ground-Fault Circuit-Interrupter(GFCI) or
Earth-Leakage Circuit-Breaker (ELCB).
¨It is recommended to use water-resistant socket. Do not use an extension
cord with the product.
NOTE: Follow local codes when determining the electrical outlet location.
¨ Route the electrical and install to a 220-240V GFCI-or ELCB-protected
receptacle.
3. Preparation
¨ Remove the existing toilet seat. Turn o the water supply to the toilet.
¨ Flush the toilet to relieve any pressure from the water supply hoses.
¨ Position a container under the ll valve to catch any excess water.
¨ Disconnect the water supply hose from the toilet ll valve.
1
2
3
4
5

Kohler Co. 5 1194357-X2-B

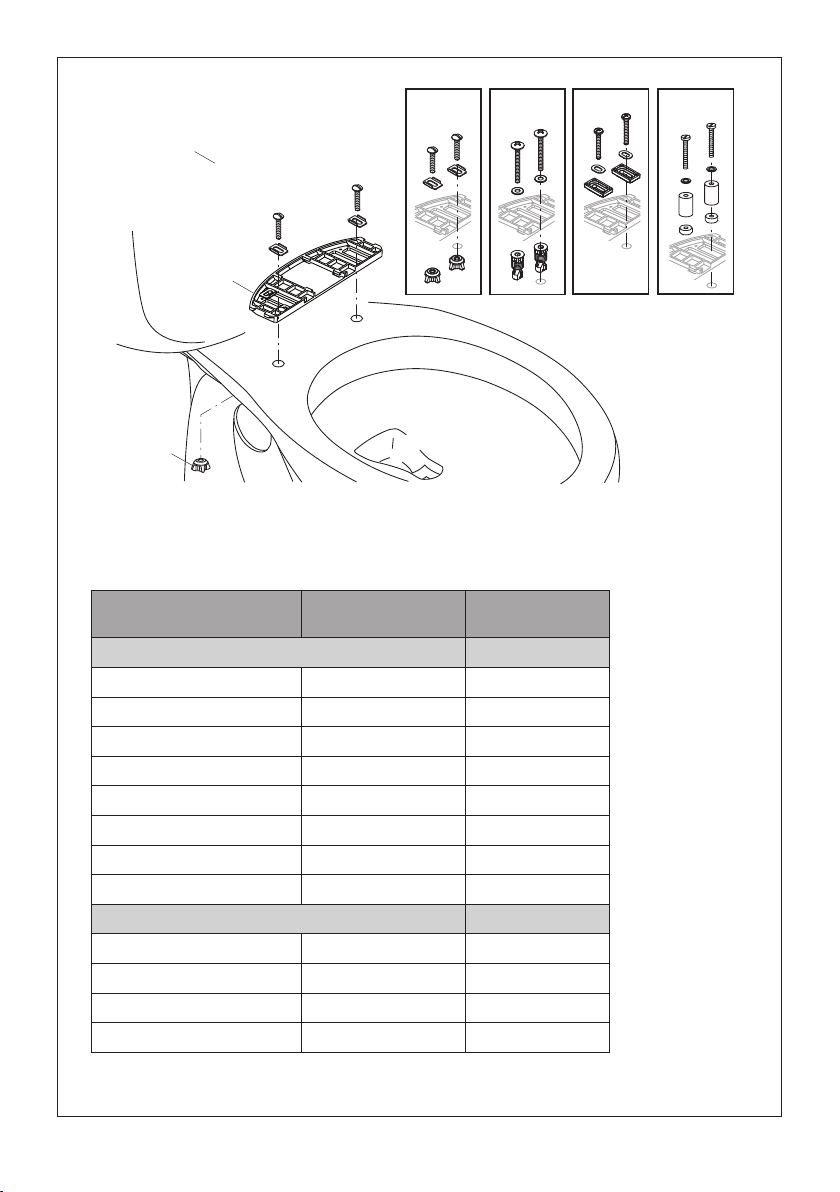

Nut
Mounting
Plate 1
Mounting
Plate 2
Type A Type B Type C Type D
Model Number Model Name Type of
Installation Kit
One-Piece Toilet
K-3323X, K-3323X-C Santa Rosa A
K-3466X, K-3466X-C San Raphael C
K-3489X-CW Cimarron A
K-3494X-S San Martine C
K-3722X San Raphael C
K-3869X-S Aerodyne B
K-3983X-S Reach A
K-23869X Aerodyne B
Two-Piece Toilet
K-3749X Archer A
K-11462X, K-11462X-C Serif A
K-12687X-W Cimarron A
K-72635X Wellworth Class 5 A

1194357-X2-B 6 Kohler Co.
4. Install the Mounting plate
Select the type of installation kit with your product according to above table
for reference.
NOTE: Select the appropriate mounting plate according to the instruction for
mounting distance on the mounting plate.
¨ Place the mounting plate in the mounting hole above the toilet.
¨ Screws should be inserted respectively into the washers.
NOTE: Some toilets come with threaded inserts pre-installed in the mounting
holes. For toilets with threaded inserts, the nut is not required.
For Toilets with Threaded Inserts:
¨ Insert a bolt through the mounting plate and position the washers so they rest
in the grooves of the mounting plates. Please pay aention to washer direction.
¨ Loosely thread the bolts into inserts. Do not overtighten for future adjustment.
For All Other Installation:
¨Position the mounting plate over the toilet mounting holes.
¨ Slide a washer onto each of the bolts. Please pay aention to washer direction.
¨ Insert a bolt through the mounting plate and the toilet mounting holes.
¨ Position the washers so they rest in the grooves of mounting plate.
¨ Thread a nut onto each of the bolts. Handtighten the nut.

Kohler Co. 7 1194357-X2-B

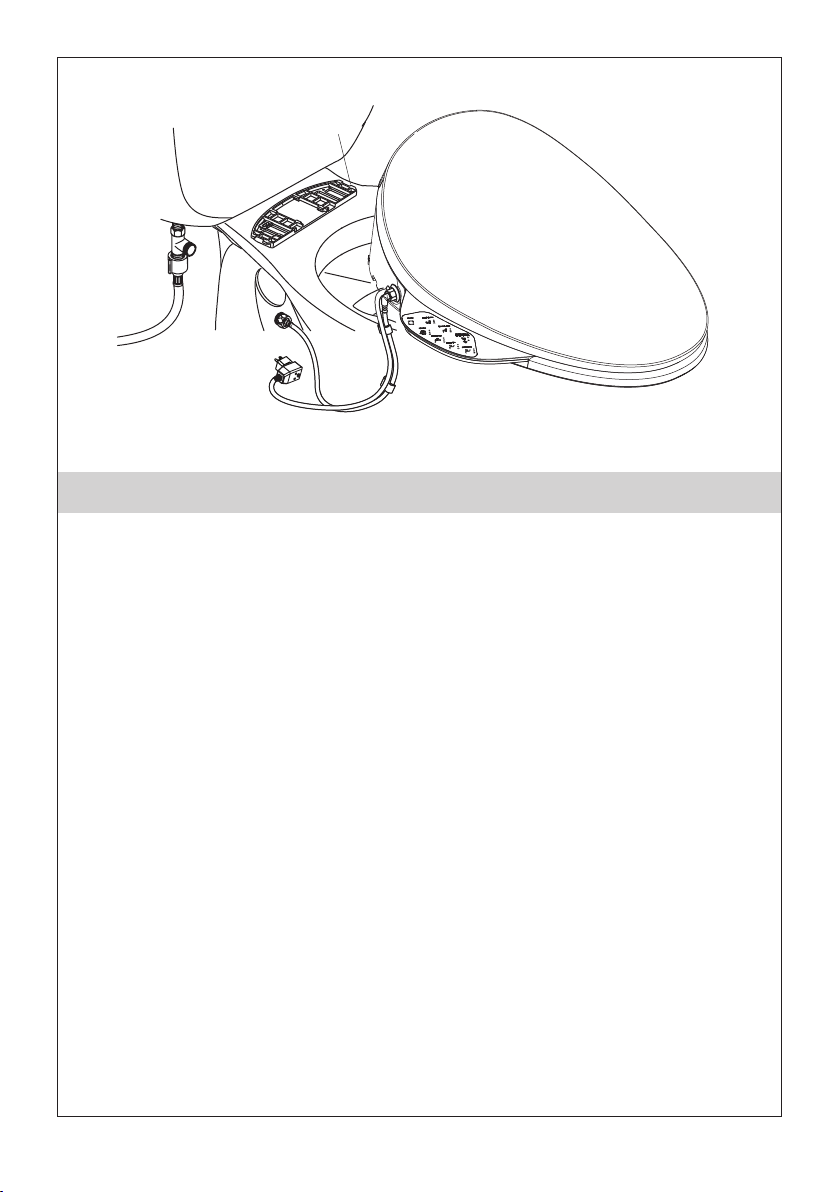

5. Install the Seat
¨ Align the slot on the mounting plate with the groove located below the
toilet seat. Slide the seat onto the mounting plate until you feel is snap into
place.
NOTE: The mounting plate may need to be adjusted to properly align with
the seat.
For Toilets with Threaded Inserts:
¨ To adjust the seat position, remove the seat (see Homeowners Guide) and
reposition the mounting plate needed.
¨ Reinstall the seat. Repeat the adjustment procedure as needed until seat is
properly aligned.
¨ Once the seat is positioned as desired, remove the seat and securely tighten
down the mounting plate.
¨ Reinstall the seat.
For All Other Installation:
¨ No need to remove the seat for seat position adjustment. Adjust the position
seat and mounting plate only by loosening nuts and tighten nuts when they
are adjusted to properly align with the seat.
Mounting Plate

1194357-X2-B 8 Kohler Co.

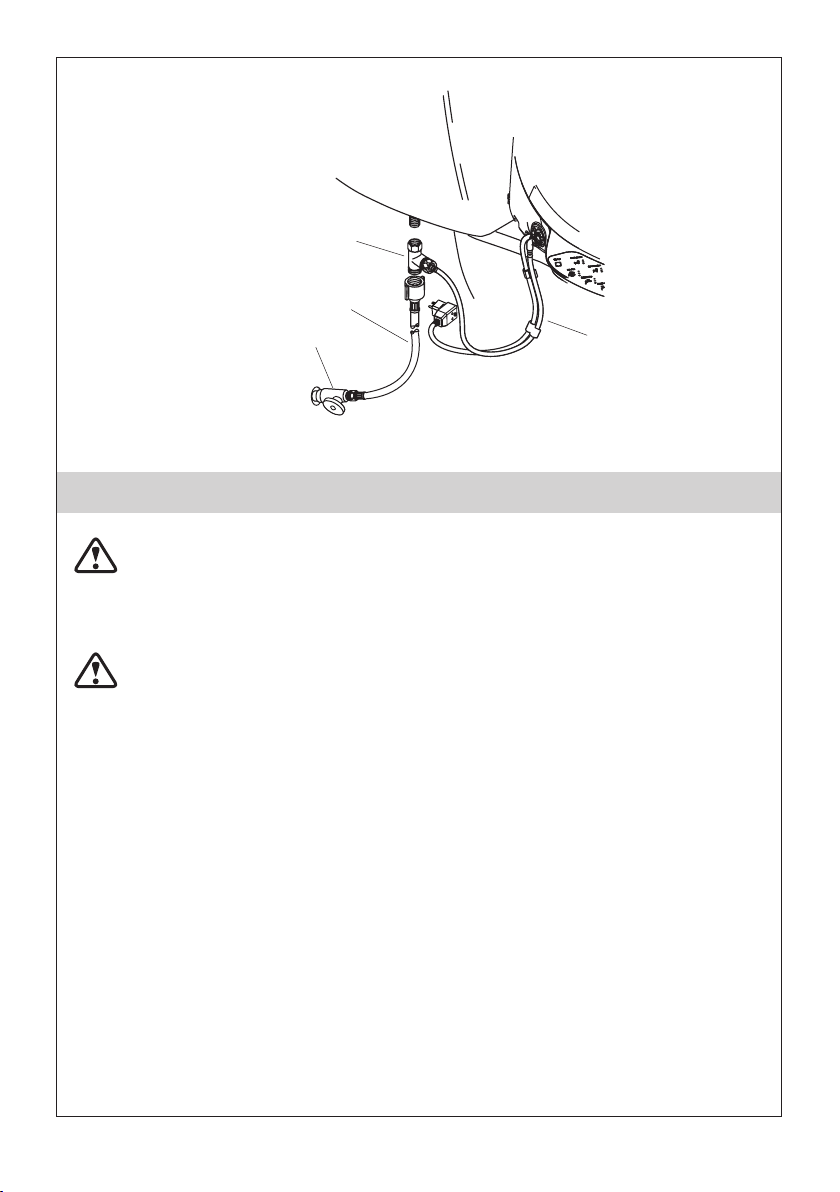

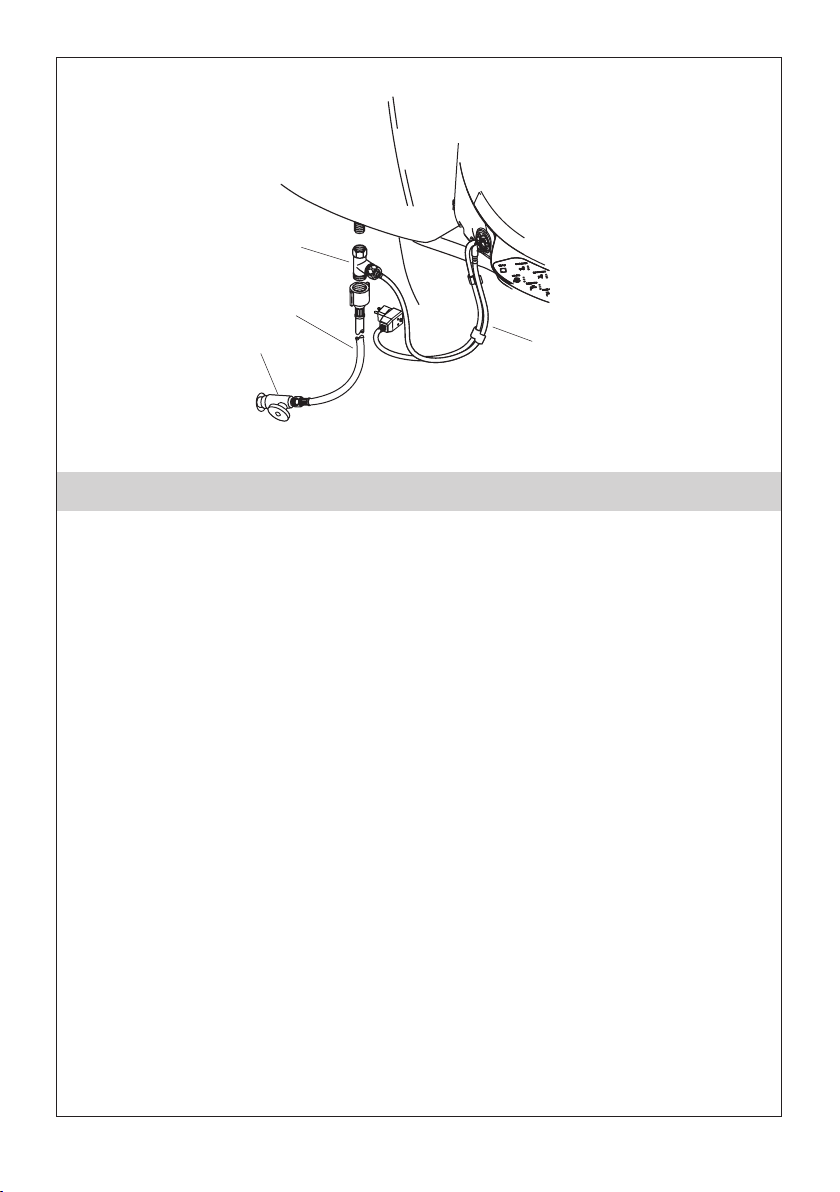

6. Connect the Water Supply
¨ Connect the T-valve directly to the toilet ll valve or shut o valve as per
appropriate.
NOTE: For new G 1/2 hose, take note to ush out dirt and debris from the
inner side of the hose for several seconds before connecting to the T-valve.
¨ Connect the T-valve to the toilet seat with the supplied hose.
NOTE: Please do not reuse the old hose.
¨ Connect the water supply to the T-valve.
¨ Turn on the water supply.
NOTE: Flush the water supply pipes thoroughly to remove debris. Theproduct
is designed for tap water. Make sure not to use industrial water/grey water/
black water/sea water for the water supply.
¨ Check all connections for leaks and make any adjustment as needed.
CAUTION: Risk of product damage. Take care to face right in position
to the inlet pipe thread and seat thread. Take care not to crossthreaded or
overtighten connections. Hand tighten plus one-quater turn is sucient
for tightening.
CAUTION: Risk of product damage. Be careful not to scratch the product
surfaces.
T-Valve
Inlet Hose
Supply Stop Hose

Kohler Co. 9 1194357-X2-B

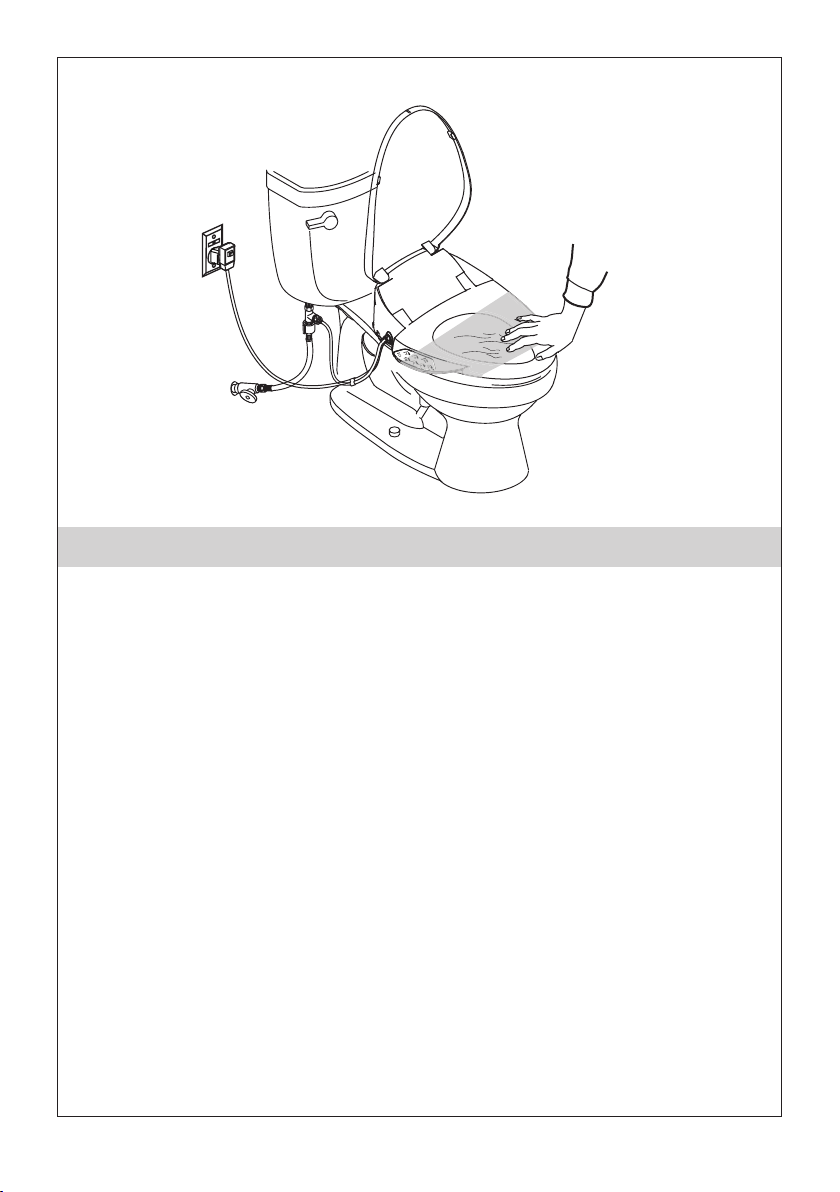

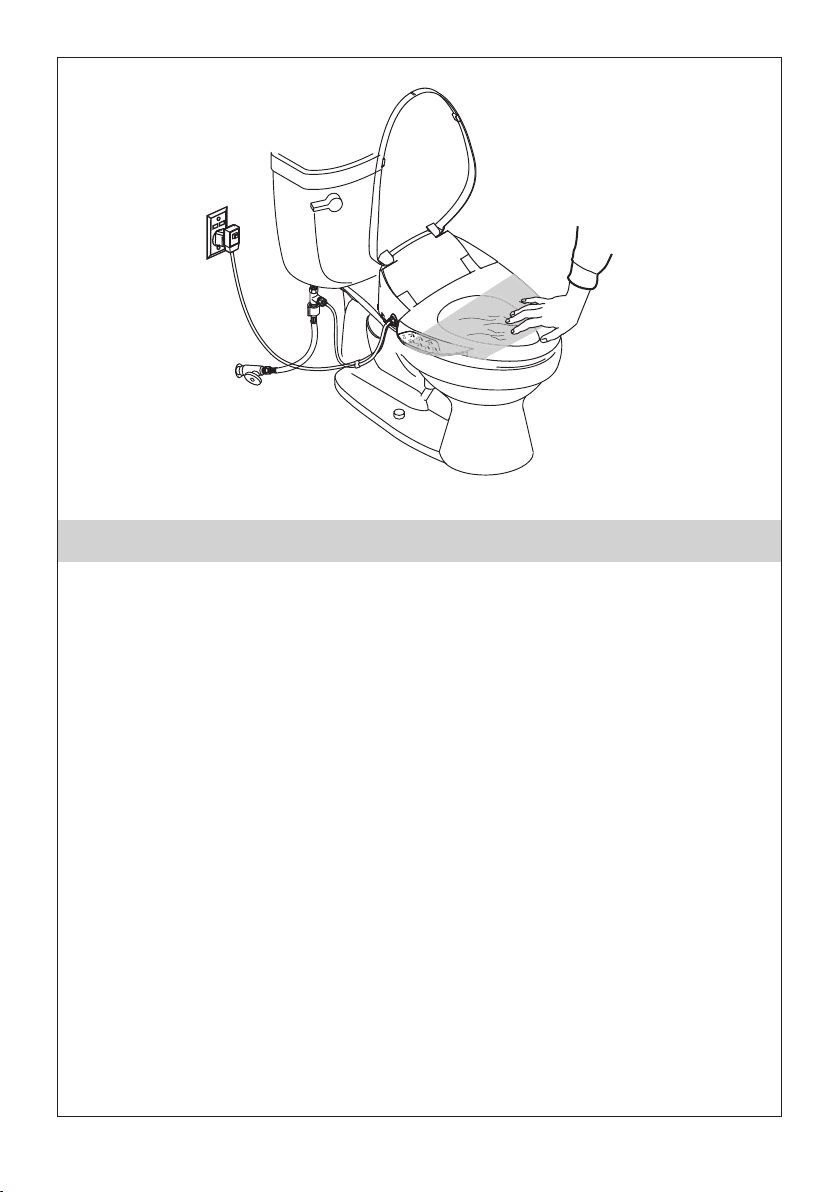

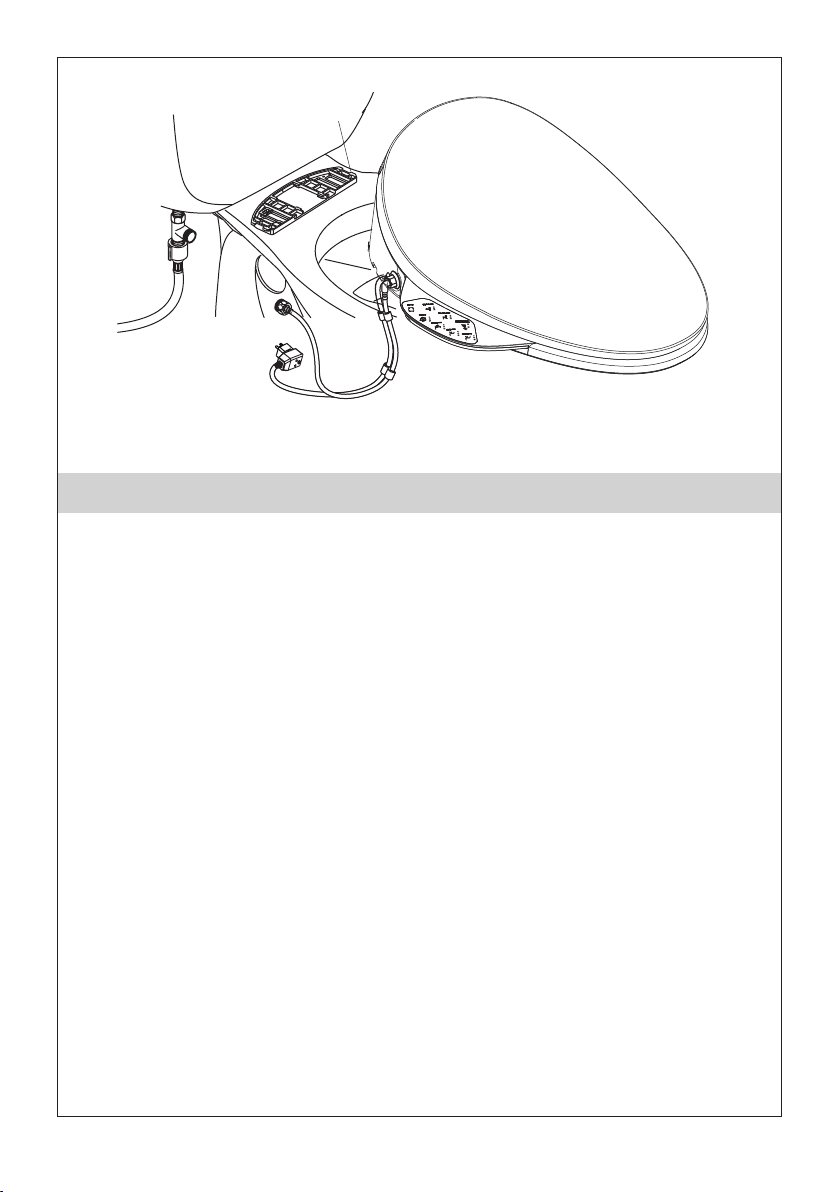

7. Installation Checkout
¨ Wrap the toilet seat with plastic wrap to prevent from spraying from the
toilet during testing.
¨ Toilet makes one short beep once it is plugged in. The nozzle stretches out
and draws back once. Backlight on the side keyboard lights up and the night
light ashes. All the actions last until the initialization process completes.
¨ Aach the clips evenly along the hose and power cord.
¨ The seat is activated by skin-to-seat contact. Unless otherwise stated, the seat
must be occupied to activate the functions. To activate the seat controls for
testing purposes, when facing the toilet, place your hand or a damp wash
cloth on the right side of the seat approximately 1/3 from the front of the seat
(sensor area).
¨ Proceed to the “Operation” section of the Homeowners Guide to test the
various seat functions.
1

1194357-X2-B 10 Kohler Co.

 
  

 
 


 

 
  


  
 
 
 
 

  

 


 

Kohler Co. 11 1194357-X2-B


¨ 
¨ 


¨  
¨ 
¨ 
¨ 
ประแจเลื่อน ไขควงปากแบน
สวาน ไขควงแฉก
 



 
 
 





 

1194357-X2-B 12 Kohler Co.

 
¨

¨       

 
 
 
 
 

 
    


¨ 
¨ 
¨ 
¨ 
1
2
3
4
5

Kohler Co. 13 1194357-X2-B
  


K-3323X, K-3323X-C  A
K-3466X, K-3466X-C  C
K-3489X-CW  A
K-3494X-S  C
K-3722X  C
K-3869X-S  B
K-3983X-S  A
K-23869X  B

K-3749X  A
K-11462X, K-11462X-C  A
K-12687X-W  A
K-72635X  A
ฐานยึด
ฝารองนั�ง 1
ฐานยึด
ฝารองนั�ง 2
นอต
แบบ A แบบ B แบบ C แบบ D

1194357-X2-B 14 Kohler Co.



¨ 
¨ 


¨ 

¨ 


¨ 
¨ 
¨ 
¨ 
¨ 

Kohler Co. 15 1194357-X2-B

¨  
 
 


¨ 

¨

¨ 
¨ 

¨  
  

ฐานยึดฝารองนั�ง

1194357-X2-B 16 Kohler Co.





¨ 

 

¨ 
¨ 
¨ 
¨ 


 

Kohler Co. 17 1194357-X2-B

¨  
¨ 


¨ 
¨ 


¨ 
1

1194357-X2-B 18 Kohler Co.

Kohler Co. 19 1194357-X2-B
