Kohler PATIO Series User manual

1070157-T01-E
·
·
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning, and
warranty information -
.
please leave instructions for the
consumer
·
·
·-
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Open end/adjustable wrenches
Tape measure
Basin wrench
Pipe wrench
Square
Level
Pliers
Socket wrench with sockets
Screw driver
Seal tape
Connection wire
Wire cutter
Insulation tape
Bushing
Drill
Sealant
/
RECOMMENDED TOOLS AND MATERIALSRECOMMENDED TOOLS AND MATERIALS
PATIO
INSTALLATION INSTRUCTIONS
VITREOUS CHINA TOUCHLESS URINAL
K-16320T-M/K-16321T-M(DC/ )
K-16320T-MC05/K-16321T-MC05(AC/ )
-1-
BEFORE YOU BEGINBEFORE YOU BEGIN
, 2009
Copyright Kohler China Ltd., 2009
528137

1070157-T01-E
Note: the sensing distance in the table is measured with a 30 30cm white board as the reflecting surface.
2
Model
Power
Liter per flushing
Temperature
Starting pressure
Testing time
Flushing mode
Sensing distance
16321T-M 16321T-MC05
220V AC 50/60Hz
Water pressure at 0.18~0.55 MPa:
No more than 1L
Environmental temperature: 1 to 55 C
0.05~0.86MPa
70cm away from sensing window (Automatic adjustiment range: 50~70cm)
About 2 seconds or 5 seconds (Automatic adjustment)
Flushing after used
2 "AAA" size alkaline batteries
16321T-MC05
0.18~0.55MPa. 1L
1~ 55 C
0.05~0.86MPa.
70cm ( 50~70cm)
25( )
220V 50/60Hz
16321T-M
2 7 (AAA 2)
30 30cm2
SENSOR SPECIFICATIONSSENSOR SPECIFICATIONS
-2-
Model
Power
Liter per flushing
Temperature
Starting pressure
Testing time
Flushing mode
Sensing distance
16320T-M 16320T-MC05
2 AAA size alkaline batteries""
220V AC 50/60Hz
Water pressure at 0.18~0.55 MPa:no more than 3.8L
Water pressure at 0.1 MPa:No more than 3L
Environmental temperature: 1 to 55 C
0.05~0.86MPa
70cm away from sensing window (Automatic adjustiment range: 50~70cm)
About 2 seconds or 5 seconds (Automatic adjustment)
Dual flushing
16320T-M 16320T-MC05
2 7 (AAA 2) 220V 50/60Hz
0.18~0.55MPa. 3.8L
0.1MPa. 3L
1~ 55 C
0.05~0.86MPa.
70cm ( 50~70cm)
25( )

1070157-T01-E

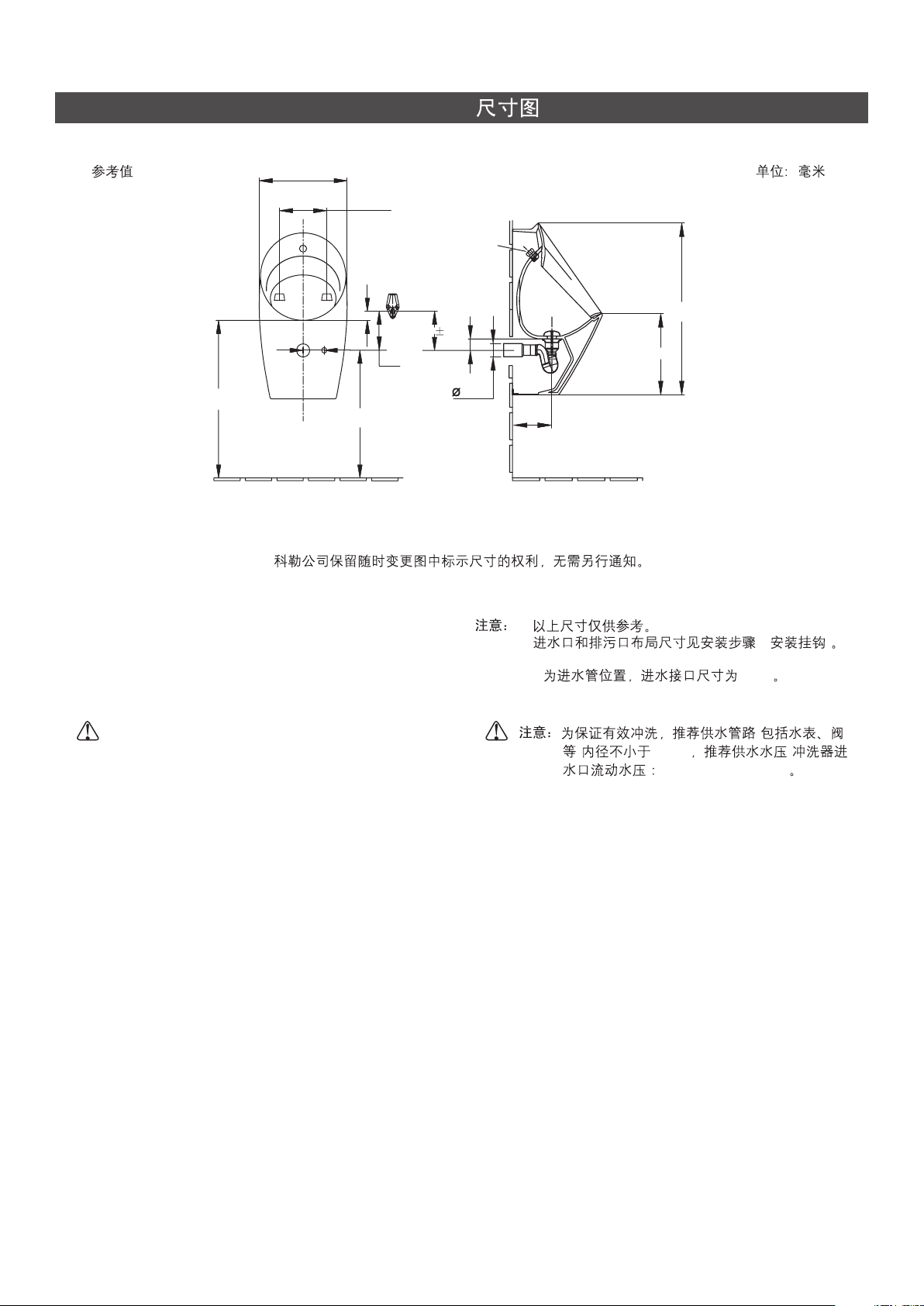

ROUGHING-IN
Notice: a. The dimensions above are just for reference.
b. The layout dimensions of water and outlet see
installation step B(Install the hook).
c. ** Indicates the location of inlet pipe, while inlet
connector size is G 1/2.
inlet
I
a.
b. B( )
c. ** G 1/2
-3-
Unit:mm
Notice: To ensure an effective flush performance,
strongly recommended inner diameter of
water supply (including water meter, valve,
etc.) is no less than 25mm, and supplied
water pressure (sensor inlet dynamic
pressure) is 0.18MPa ~0.55MPa.
(
) 25mm (
) 0.18MPa ~0.55MPa
Reference Value
Kohler reserves the right to change marked dimensions without prior notice.
332
180
35
80
600 50 ext
145
55 642
303
455
G1/2
180
180 5
**
K-16320T-M/K-16320T-MC05/K-16321T-M/K-16321T-MC05

1070157-T01-E -4-
Outlet Downwards
1. Please install 16320T-MC05/16321T-MC05(AC) as below:
Please directly reference to Step 2 when installing 16320T-M/
16321T-M (DC).
A.
CAUTION:
Please match 16306T-NA AC power unit when installing
16320T-MC05/16321T-MC05 (AC).
a. Outlet of AC power unit upward prohibited.
b. Do not connect 220V AC power supply to DC wiring
terminal.
c. Do not damage the covering of AC power unit or
remove screws to avoid leakage.
1. 16320T-MC05/ ( )
a.
b. 220V DC
c.
() 2
16320T-MC05/ ( ) 16306T-
NA
A.
16321T-MC05
16320T-M/16321T-M
16321T-MC05
C
CAUTION:
. When installing the power unit on the ceiling, please
chisel out a slot and layout bushing according to Fig., and
thread wire through the bushing.
One AC power unit can supply two
sensors at most.
C.
Outlet Upwards
Connect to
Sensor
Connect to
Sensor
Connect to AC
Power Supply
Connect to AC
Power Supply
B.
B
Notice:
. AC power unit connected to electric control box by
connection wire.
The length of the connection wire should keep
the connector out of the urinal. It s convenient
connect.
'
AC
16306T-NA
AC Power Unit
Connector
Connector
Wire Prepared
By Customer
Connect With
Control Box
Ceiling
Slot
Slot

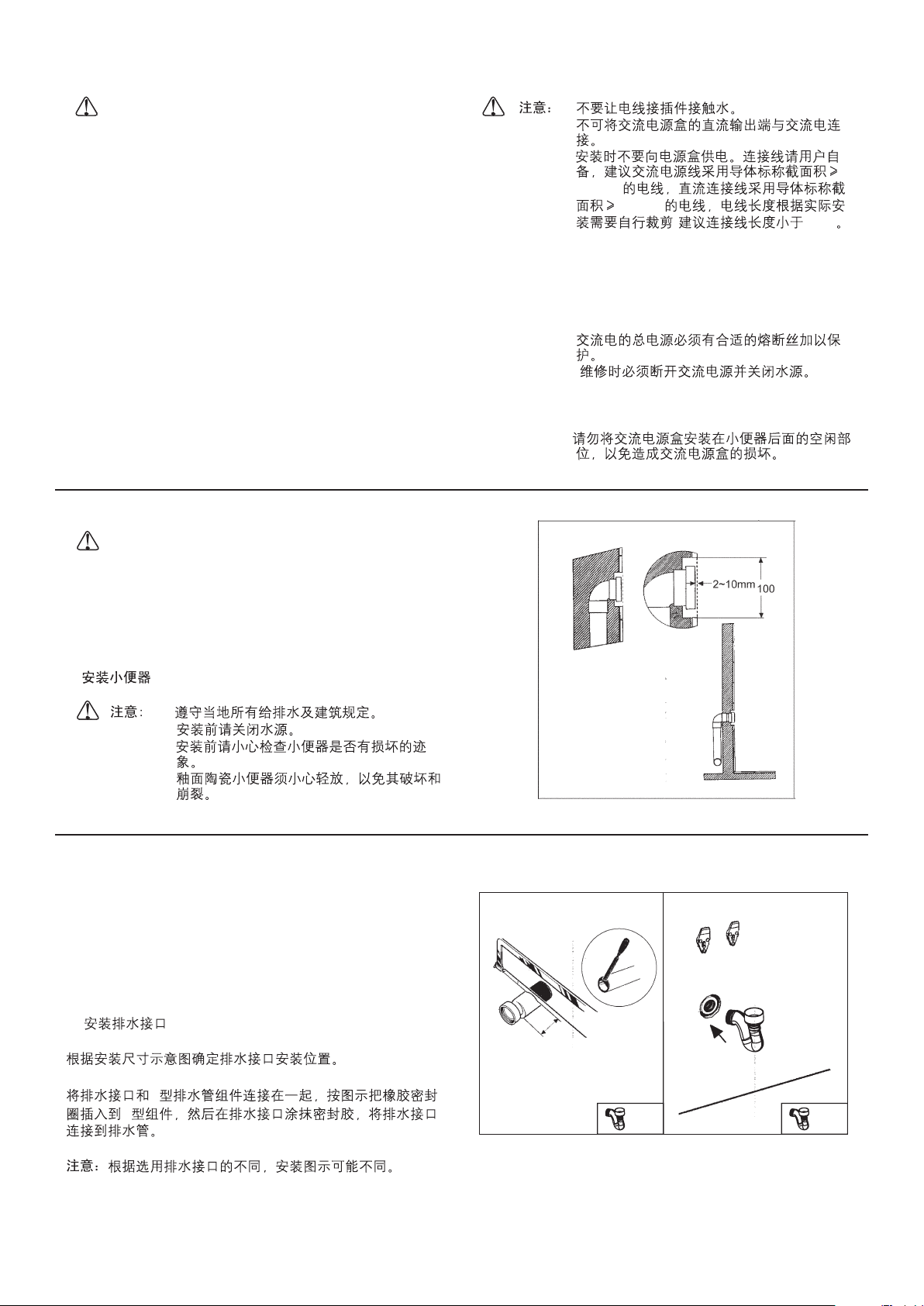

INSTALLATION
AC Power Unit
Bushing(In-wall)
()
Bushing
()
(In-wall)
Connect with the same color wire,
and protect connect area by insulation tape.

1070157-T01-E -5-
Notice:
f. Don't install the AC power unit in the free
space behind the urinal to avoid damaging
the AC power unit.
b. Do not connect the DC output of AC power
unit to AC power supply.
c. Do not connect to power supply while
installing. Connection line is not supplied.
AC connection wire with insulating sleeving
is recommended. Wire of which the
nominal section area of conductor is not
less than 0.5mm is also recommended.
DC connection line use wire of which the
nominal section area is not less than
0.3mm . It is cut according to acted
installation requirements(The length of cut
wire is recommended less than 10m).
d. The head AC power supply must be
protected with appropriate fuse.
e. Please confirm the AC power supply and
water supply should be shut off before
maintaining the products with AC power
related.
2
2
a. Keep the connector away from water. a.
b.
c.
0.5mm
0.3mm
( 10m)
d.
e.
f.
2
2
2. Install urinal
Notes: a. Observe all local plumbing and building
codes.
b. Shut off the water supply.
c. Carefully inspect the new fixture for any sign
of damage.
d. Be very careful while hand ling vitreous
china products.
2.
a.
b.
c.
d.
A.
Note:
Install outlet connection
Ascertain the position for outlet connection according to
rough-in dimension.
Connect the outlet connection with the S-trap way. Insert the
gasket into the S-trap way as shown. Apply sealant on outlet
pipe, connect the outlet connection with outlet pipe.
Maybe different for different outlet connections.
A.
S
S
30
X1 X1

1070157-T01-E
B.
B.
Install hook
Drill 2 mounting holes on the wall and install hook. Fix hook
on the wall by tightening screws.
-6-
Supply Pipe
C.
C.
Install the inlet hose of valve assy.
Take out the bracket of valve assy. Install the limited board (1).
Tighten the tighten screw (2).The inserting depth postion is
shown
Connect the inlet pipe with the water supply on the wall.
(1) (2)
(3)
as (3).
Limited Board
Tighten Screw
Bracket of Valve Assy.
(1)
Bracket of Valve
Tighten Screw
(2)
(3)
(600~700)
180

1070157-T01-E -7-
D.
D.
Install urinal
S
(S
)
a.
b.
c.
d.
S
Lift up the urinal, level the installing hole on the back of the
urinal with the hook. Level the outlet connection which is
installed together with the strainer and the gasket on the S-
trap way. Then insert the outlet connection into the gasket.
(While the outlet connection is inserted, the S-trap way can
be crutched by hard exterded via the gap in the bottom of the
urinal to install it decently.) Then fix the urinal on the hook.
a. Avoid the urinal fallen on the floor to
damage the urinal or hurt somebody.
b. Avoid damaging the valve assy and wires.
c. Confirm the wires bare out of urinal base.
Notice:
d. Set the inlet hose and the inlet hose of
valve assy respectively on the both sides of
the S-trap way before installing urinal.
Inlet Hose of Valve Assy
Inlet Hose
Inlet Hose of Valve Assy

1070157-T01-E
3. Install the bracket assy.
A.
Note:
Connect the outlet of valve assy, with the inlet hose.
The way of 16320T-M/ (DC) installation is as below:
Take out the battery box from the bracket assy. Loose the
screws of the battery box assy with a screw driver. Put 2
"AAA" size alkline batteries and tighten the battery box's
cover with the screws. Replace the battery box. Connect the
wires with the same color wires.
Don't mistake the polarity of the batteries and
don't mix the new and used batteries together.
Installing 16320T-MC05/ (AC) must connect the
AC power unit with control box assy with the same color wires.
16321T-M
16321T-MC05
3.
A.
()
27
()
16320T-M/16321T-M
16320T-MC05/16321T-MC05
B.
Note:
B.
Press the two sides spring hooks of bracket of valve assy
close to the center(1). Press the bracket up along the wall
and push it into arc gap of the urinal base(2) until the
spring hooks hangs on the urinal.
Please carefully handle the stainless steel plate
for its sharp edge will cause possible handcut.
(1)
(2)
When installing 16320T-MC05/16321T-MC05,
connect DC output
16320T-MC05/16321T-MC05
Inlet Hose
Connector
When installing 16320T-M/
16321T-M, connect battery box
16320T-M/16321T-M
Inlet Hose of Valve Assy.
Bracket of Valve
Outlet
Screw M2.5X20
M2.5X20
Cover of Battery Box
Battery Box
Bracket of Valve Assy
Spring Hook
(1)
Spring Hook
(2)
(1)
Urinal
-8-

1070157-T01-E
C.
C.
Push the bracket away from the wall(3), until the front hook
of the bracket hanging on the urinal.
(3)
D.
Note:
D.
Loose the tighten screw. Push the limited board to the
urinal withstanding the wall (4) and then tighten the tighten
screw (5).
a. When installing the 16320T-MC05/16321T-
MC05(AC), do not connect to power supply
until finish installation.
b. Taking out the bracket just need to athwort
the way of installations.
(5)
(4) (5)
a. 16320T-MC05/ ( )
220V
b.
16321T-MC05
Limited Board
(3)
(4)
(5) Tighten Screw
Front Hook
-9-

1070157-T01-E
USER S GUIDE
Don t use this system until the power is on for 10
minutes.
The sensing distance will be adjusted and the system
will not work during this time.
Working Status
Before powering the system on, chear the unwanted objects
in front of the sensor window lest shortening the sensing
distance.
Sensing Distance
During the first 10 minutes, when powered on, the system is
in the phase of automatic regulation, and no operation is
required.
Set Working Status (Only for 16320T-M/16320T-
MC05)
The product comes our factory with:
1. The working status is set as dual-flush. If you want to
cancel the first flushing function, place manual flush stick
adjacent to right side of sensing window for more than 1
second during the 10-minute standby period (Human
presence in sensing range would cause the indicator to
flash fast).The sensor would generate a flushing cycle to
indicate the setup of the sensor has been adjusted to
afteruse flushing. If the action is not completed during this
10 minute, or you need to restore the working status to
dualflush, plug off the power cord and reconnect the power
supply until the indicator stops flashing and repeat the
above procedures.
2. The diction time is set as 2s to avoid improper function in
narrow toilets, the detection time is automatically set from
2s to 5s.
10
( 16320T-M/16320T-MC05)
1.
10 (
)
1
10
2. 2
25
10
,
,
Deodorizing Flushing
The urinal will take a flush automatically when it’s used 3 or 4
times in 2 minutes.
2 3-4
Replacement of Batteries(Only for 16320T-
M/ )
When out of power, the indicator will flash every 2 seconds
and the sensor will not work until new batteries are supplied.
When replacing batteries, open the cover of battery box and
put in new batteries.
( 16320T-M/ )
2
16321T-M
16321T-M
Indicator
-10-

1070157-T01-E -11-
Manual Flushing
Approach the supplied special magnetic stick (flushing control
stick) to the sensor lens. The system is now at a manual
status and the indicator will flash every 1 seconds. Approach
the flushing control stick to the sensor lens once, it ll flush
once. This status will last for about 8 minutes until turns to the
normal working status.
If the flushing control stick keeps near to the
sensing window for 30 seconds, the manual
status will be terminated automatically and
reassume the normal working status.
()
1
8
30
Notice:
Used in places of low water pressure (Only
for 16321T-M/16321T-MC05)
If the flushing amount is limited due to low water pressure,
you can set a long time washing with flushing control stick.
Operate as follows: Ten minutes after power-on, you can
switch between two wash times by putting the flushing control
stick near the right side of sensing window. There will be a 2-
second rinse after you complete the setting. If you need to
reset the wash time, you must cut off the power and restart
the sensor and 10 minutes later, you're able to switch wash
time with flushing control stick.
Under the normal water pressure, it is not
recommended to use this flushing method in
order to prevent excessive flushing and water
spills out.
Note:
( 16321T-M/16321T-MC05)
10
()
2
10
,
,
1020016
Flushing Control Stick

1070157-T01-E
Urinal Repair
When repairing, you don t have to dismount the sensor.
Cover the sensing window with tape and work with ease.
: Don t use very adhesive tape in case the scar
will be hard to remove.
Notice
'
Clean the Filter Screen
If the flushing volume reclines sharply after installation or
used for a long time with no cause from water pressure, the
filter may need a wash. Please operate as following steps:
Remove the bracket of valve assy. Loose the inlet hose firstly.
Loose the inlet hose of valve assy. and then take out the filter.
Clean it with a brush and reinstall.
a. Turn off the water supply before cleaning
the filter, also power off when used the AC
power supply.
b. Avoid damaging or losing the filter during
cleaning.
Caution:
a.
b.
MAINTENANCE
,
Filter
Inlet Hose
Bracket of Valve
Connector
When installing 16320T-MC05/16321T-MC05,
connect DC output
16320T-MC05/16321T-MC05
When installing 16320T-M/
16321T-M, connect battery box
16320T-M/16321T-M
Inlet Hose of Valve Assy.
-12-
Care & Clean
Keep the sensing window clean. Wipe with soft cloth and mild
cleaner.
a. Do not use dust-removing powder, abrasive powder
or cleaner containing oil, acid or alkaline ingredient.
b. Do not spray air-refresher, disinfector, or other
deodorizing, cleaning solvent directly into the
sensing window.
c. Keep wire away from water.
d. Don t attack the sensor window.
Notice:
'
a.
b.
c.
d.

1070157-T01-E
TROUBLESHOOTING
No flushing
(Indicator not flashing).
1. No power or mistake connected.
2. There is an object within the sensing distance.
3. The sensing window needs cleaning.
1. Check the power connect.
2. Remove the object .
3. Clean the window.
Keep flushing indicator not
flashing.
Battery indicating light
keeps flashing and no
flushing.
1. The small hole of valve core is blocked.
2. The filter of valve core is blocked.
Out of electricity.
(Only for 16320T-M/16321T-M)
1. Clean the small hole of valve core with
thin steel wire.
2. Wash the filter of valve core with a brush.
Replace batteries.
Please make following checks before repair:
Symptoms Probable causes Corrective actions
If the trouble remains after above-mentioned actions are taken, please contact with us via distributor.
()
1.
2.
3.
1.
2.
3.
1.
2.
( 16320T-M/ )16321T-M
1.
2.
No flushing or poor
flushing while the indicator
can flash.
1. Still in the waiting status.
2. Adjusting bolt not fully open
3. Low water pressure.
4. Filter is obstructed.
5. The connector is not connected well.
1. Wait for 10 minutes.
2. Open the adjusting bolt.
3. Improve water supply.
4. Clean the filter.
5. Check the connector.
1.
2.
3.
4.
5.
1. 10
2.
3.
4.
5.
-13-

1070157-T01-E
IMPORTANT CONSUMER INFORMATION
Consumer Responsibilities
1. Do not attack the sensor.
2. Do not directly flush the sensor with water. The sensor is
an electronic instrument.
3. Do not let sunlight or other light source enter or be
reflected into Sensor Window.
4. Do not hang on the opposite wall any reflective items or
install light/electronic sensor such as toilet flushing sensor.
5. Do not make Sensor Window near strong ultraviolet or
electromagnetic field.
6. Keep the sensor window clean.
The sensor cover can be cleaned by soft rag with neutral
liquid detergent.
Do not use eradicator, abrasive powder or oil, acid or
alkali liquid detergent.
Do not spray air freshener, disinfectant or other kinds of
odious removing, cleaning organic liquid to the sensor
directly.
7. Urinal is designed for use with potable water. Avoid water
that includes a lot of contaminants or acid/alkali water and
impure water.
8. When AC power unit is connected to 220V AC power
supply, corresponding protective measures should be
taken.
9. Please confirm no water penetration at the connection
area of AC wire, and the connection area is not easy to
be affected by damp.
10. Don t connect power unit to AC power supply until the
sensor installation is finished.
11. The head AC power supply must be protected with
appropriate fuse.
12. Please confirm the AC power supply and water supply
should be shut off before maintaining the products with
AC power related.
13. All electrical connection must be compliance with related
regulation and codes.
14. All installation staff should be well familiar with
installation instruction.
'
1.
2.
3.
4.
()
5.
6.
7.
8. 220V
9.
10.
11.
12.
13.
14.
-14-
