Kohler Purist K-T14428 User manual

Installation Guide
Purist™
Bath/Deck Mount Faucet
Mproduct numbers are for Mexico (i.e.
K-12345M)
Los números de productos seguidos de M
corresponden a México (e.j. K-12345M)
Français, page “Français-1”
Español, pagina “Español-1”
K-T14428, K-T14428M K-T14429, K-T14429M
K-14430, K-14430M
1016271-2-A

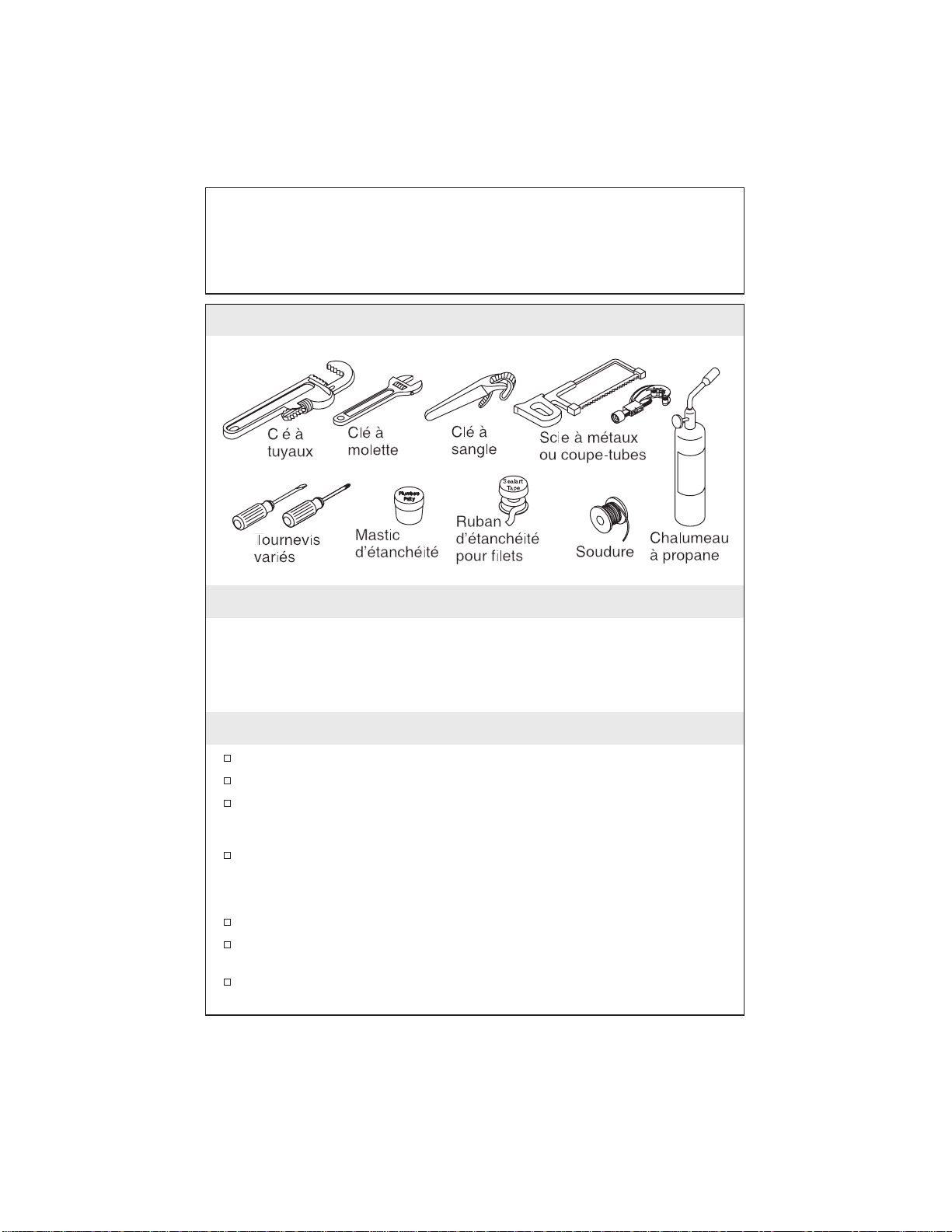

Tools and Materials
Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes
to review this manual before you start installation. If you encounter any
installation or performance problems, please don’t hesitate to contact us. Our
phone numbers and web site are listed on the back cover. Thanks again for
choosing Kohler Company.
Before You Begin
Please read all instructions before you begin.
Observe all local plumbing and building codes.
Before installation, unpack the new faucet and inspect it for damage. Return
the faucet to the carton until you are ready to install.
Leave the protective sleeve on the spout supply tube until the spout is
installed. The spout has an O-ring sealing surface which may be damaged if
unprotected.
Provide an access panel to the valves from under the deck.
Installer-supplied copper tubing is to be 5/8” O.D. (1/2” nominal).
Install water hammer arrestors in the supply lines near the valves.
These instructions cover two methods of installation; installation on finished
deck or rim, and installation on rough (unfinished) deck. Follow the sections
that pertain to your particular installation.
Instructions are given for installations with 8” (20.3cm) centers. For wider
installations, adjust all roughing-in dimensions and copper tubing lengths
accordingly.
Shut off the main water supply.
Kohler Co. reserves the right to make revisions in the design of faucets
without notice, as specified in the Price Book.
Adjustable
Wrench
SolderPropane
Torch
Assorted
Screwdrivers
Pipe
Wrench Strap
Wrench Hacksawor
TubingCutter
Plumbers
PuttyThread
Sealant
1016271-2-A 2 Kohler Co.

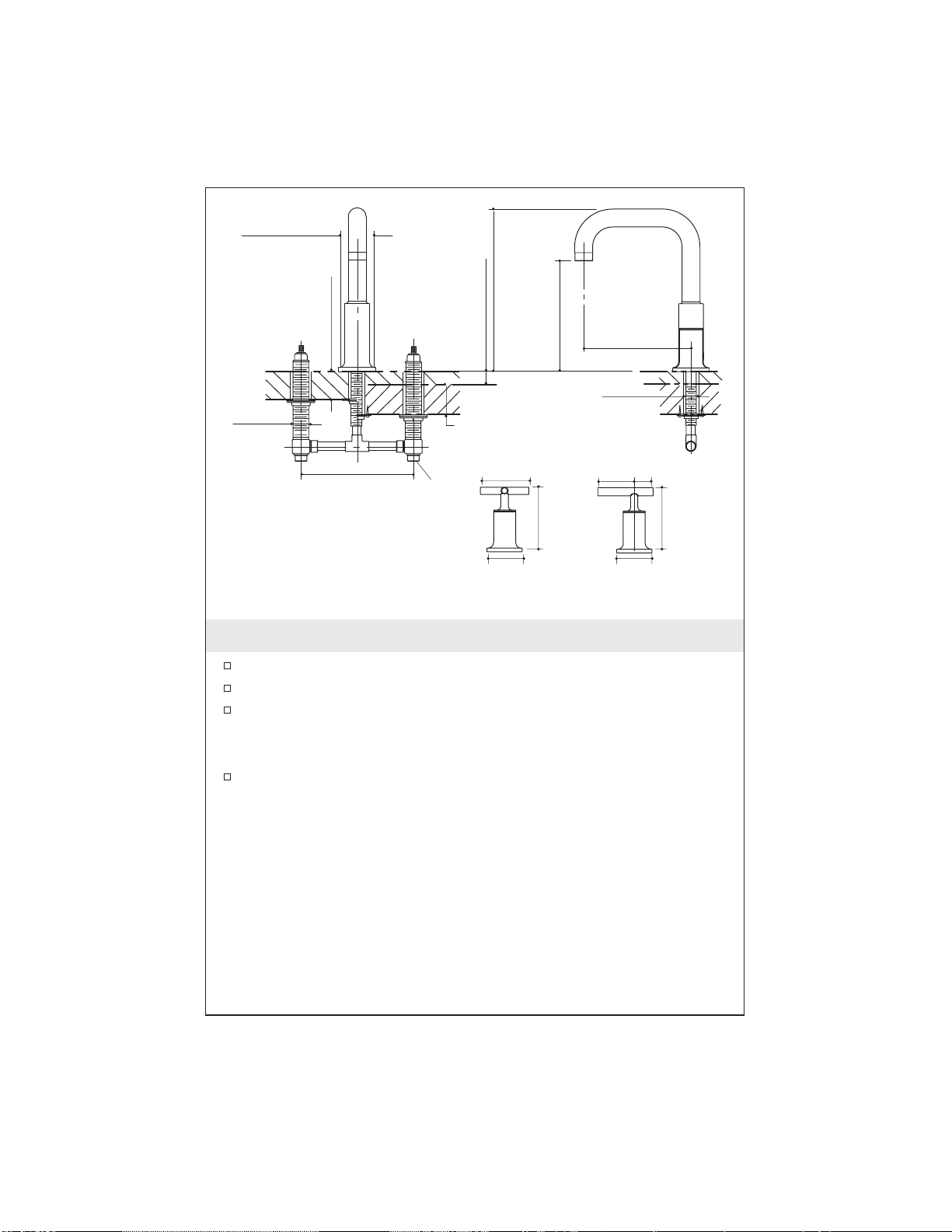

1. Prepare the Site
Install or relocate the water supplies as needed.
Protect the surfaces of the bath/deck during installation.
The diameter of the spout hole in the deck is 1” (2.5cm). The diameter of
the valve hole in the deck is 1–1/2” (3.8cm). Ensure that holes drilled into
the deck are not oversized. The spout and valves require adequate base
material strength and maximum contact area with the deck.
Plaster guard diameters are approximately 1–5/8” (4.1cm) for the valves
and 13/16” (2.1cm) for the spout.
NOTE: Reinforcing material may be required if the deck or rim is thin.
Install before proceeding.
NOTE: For installations to be covered with tile, the tile thickness must not
exceed 1–1/4” (3.2cm).
3-1/2” (8.9cm)
7/8” D.
(2.2cm)
2-1/2” (6.4cm)
1-5/16” D.
(3.3cm)
8” (20.3cm) Min.
2-1/8” (5.4cm) MAX.
ROUGH DECK
3/4”
I.D.
11-3/8”
(28.9cm)
7-1/2”
(19.1cm)
1/4” (6mm)
TO1-1/4”
(3.2cm) MAX.
FINISHED
DECK
ROUGH +
FINISHED
DECK MOUNT
INSTALLATION
RIMDECK
MOUNT
INSTALLATION
1-3/8”
(3.5cm)
2-5/8”
(6.7cm)
4-3/4”
(12.1cm)
1/4” (6mm) TO
2-1/8” (5.4cm)
MAX.RIMOR
DECK MOUNT
4-3/4”
(12.1cm)
2-1/2” D.(6.4cm)
CROSS 2-1/2” D.(6.4cm)
LEVER
7-3/4”
(19.7cm)
Kohler Co. 3 1016271-2-A

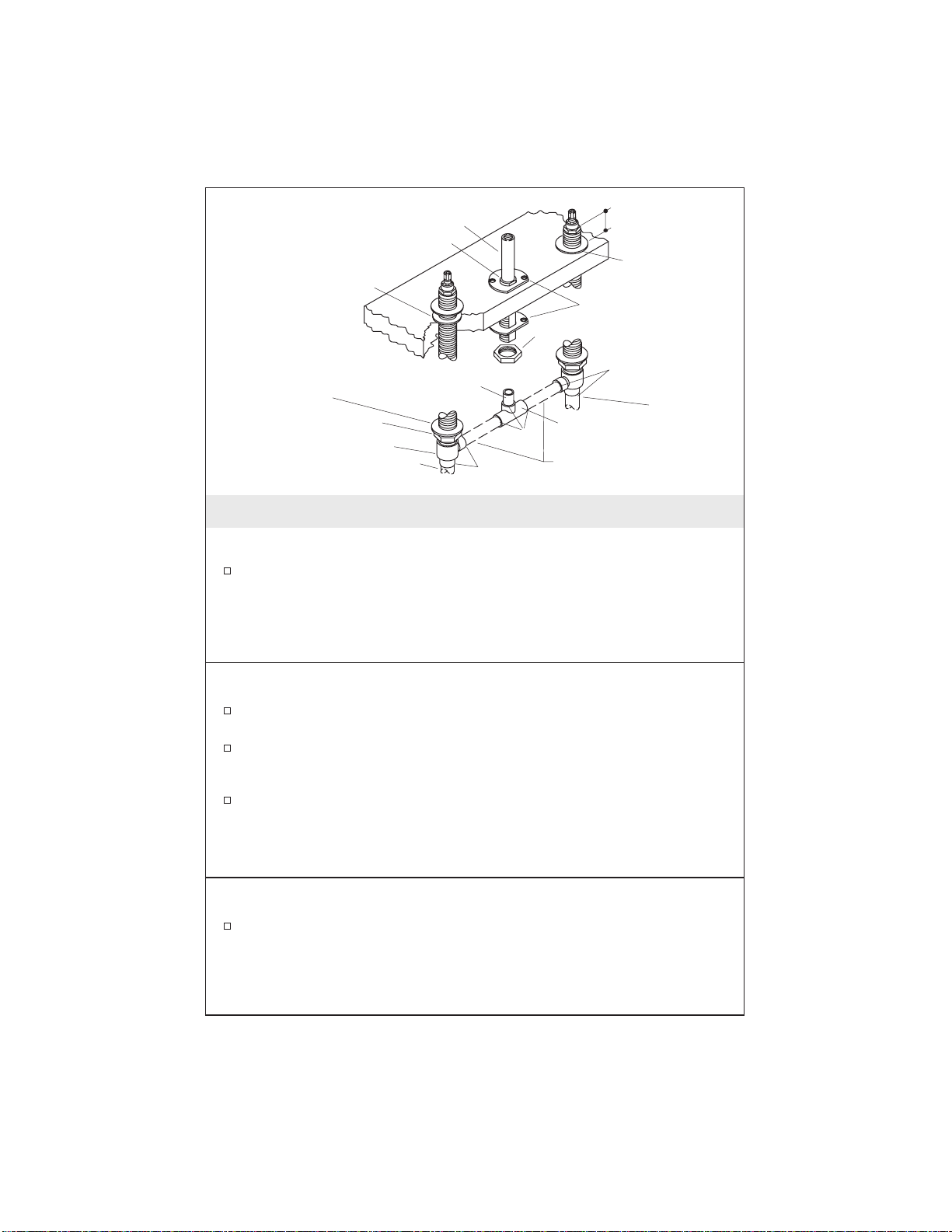

2. Installation on Finished Deck or Rim
NOTE: For installation on a rough (unfinished) deck, proceed to Installation
on Rough (Unfinished) Deck.
Use 1/2” nominal, 5/8” O.D. copper tubing. Cut two pieces of tubing to a
length of 2–7/8” (7.3cm). Cut one piece of tubing to a length of 2–3/8”
(6cm) for the spout supply.
IMPORTANT! Leave the protective sleeve on the spout supply tube until
the spout is installed to protect the O-ring sealing surface.

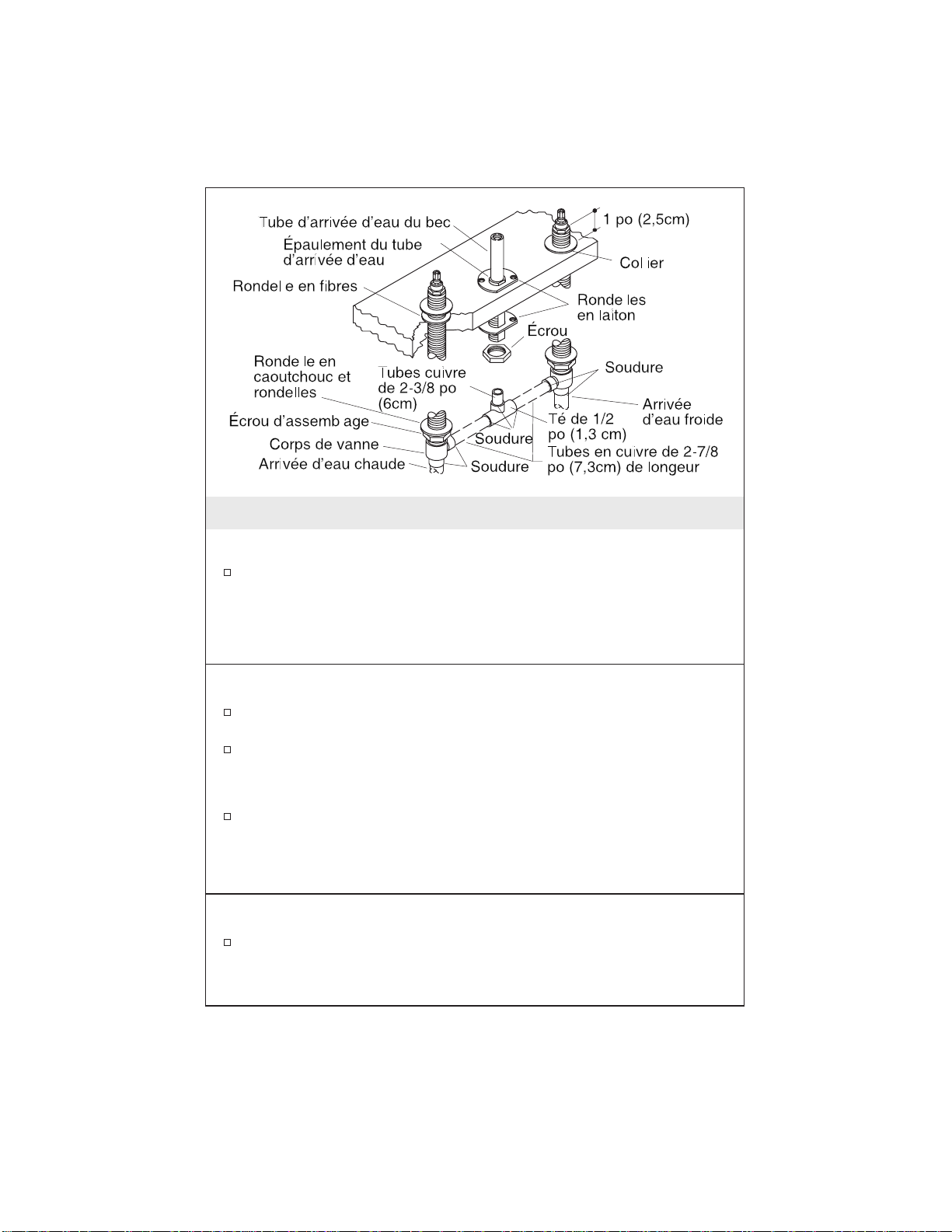

Install Spout Supply Tube
Slide a brass washer from the bottom of the spout supply tube over the
threads until the washer reaches the supply tube shoulder.
Insert the spout supply tube through the mounting hole from the top of the
deck/rim. Ensure that the flat portion of the washer faces forward. The
supply tube will be suspended by the washer.
Slide a brass washer onto the spout supply tube from the bottom and
thread the mounting nut. Tighten the nut.
NOTE: Do not use the supplied wood screws for installation on finished
deck or rim.
Install Valve Bodies
Thread one mounting nut, flange side up, onto each valve body.
NOTE: Rims less than 1/4” (6mm) thick require two rubber washers in the
following step; other installations require one rubber washer.
1” (2.5cm)
Collar
HotSupply
Cold
Supply
Solder2-7/8” (7.3cm)
CopperTubes
ValveBody
Mounting Nut
FiberWasher
RubberWasher
or Washers
Spout SupplyTube
SupplyTubeShoulder
Brass Washers
Nut
Solder
2–3/8” (6cm)
CopperTube
1/2” (1.3cm)
Tee
Solder
1016271-2-A 4 Kohler Co.

Installation on Finished Deck or Rim (cont.)
Slide one fiber washer, followed by one or two rubber washers, onto each
valve body.
Insert the 2–7/8” (7.3cm) long copper tubes between the valve bodies and
the 1/2” tee. Insert the 2–3/8” (6cm) long copper tube into the top of the
tee.
Do not solder the connections at this time.
NOTE: The valve body marked “Cold” must be on the right side when you
are facing the front of the faucet.
Insert the valve bodies through the mounting holes from the bottom of the
deck/rim. Match the copper tube from the tee with the spout supply tube.
Hold in place.
Place a collar with the flange side up, onto each valve body. Thread the
collar down to at least 1” (2.5cm) from the top thread on the valve body.
Tighten the mounting nuts on each valve body from underneath the
deck/rim.
Solder the copper tubes to the valve bodies, tee and spout supply tube.
Solder the hot and cold water tubes to the valve body inlets. Ensure that the
cold supply is on the right side.
Proceed to Check Operation of Valves.
Kohler Co. 5 1016271-2-A

3. Installation on Rough (Unfinished) Deck
Use 1/2” nominal, 5/8” O.D. copper tubing. Cut two pieces of tubing to a
length of 2–7/8” (7.3cm). Cut one piece of tubing to a length of 2–3/8”
(6cm) for the spout supply.
IMPORTANT! Leave the protective sleeve on the spout supply tube until
the spout is installed to protect the O-ring sealing surface.
Install Spout Supply Tube
Slide a brass washer from the bottom of the spout supply tube over the
threads until the washer reaches the supply tube shoulder. Ensure that the
countersunk holes in the washer are facing upward.
Insert the spout supply tube through the mounting hole from the top of the
deck. Ensure that the flat portion of the washer faces forward. The supply
tube will be suspended by the washer.
Slide a brass washer onto the spout supply tube from the bottom and
thread the mounting nut. Tighten the nut.
Secure the brass washer to the deck using the two supplied wood screws.
Install Valve Bodies
Thread one mounting nut, flange side up, followed by one fiber washer and
one rubber washer onto each valve body.
Insert the 2–7/8” (7.3cm) long copper tubes between the valve bodies and
the 1/2” tee.
Do not solder the connections at this time.
1” (2.5cm)
Collar
HotSupply
Cold
Supply
Solder2-7/8” (7.3cm)
CopperTubes
ValveBody
Mounting Nut
FiberWasher
RubberWasher
or Washers
Spout SupplyTube
SupplyTubeShoulder
Brass Washers
Nut
Solder
2–3/8” (6cm)
CopperTube
1/2” (1.3cm)
Tee
Solder
Screw
Screw
1016271-2-A 6 Kohler Co.

Installation on Rough (Unfinished) Deck (cont.)
NOTE: The valve body marked “Cold” must be on the right side when you
are facing the front of the faucet.
Insert the valve bodies through the mounting holes from the bottom of the
deck. Match the copper tube from the tee with the spout supply tube. Hold
in place.
Place a collar with the flange side up, onto each valve body. Thread the
collar down to at least 1” (2.5cm) from the top thread on the valve body.
Kohler Co. 7 1016271-2-A

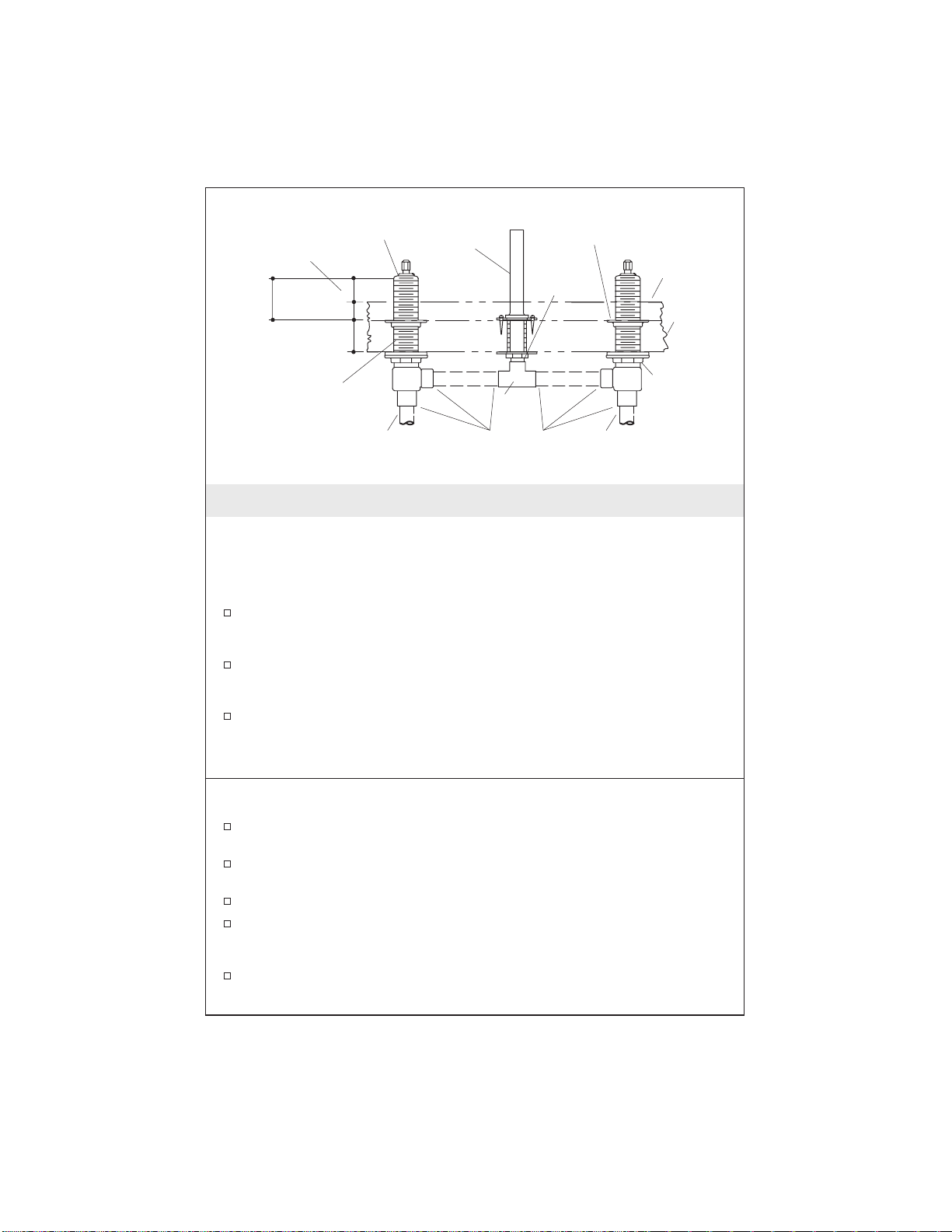

4. Complete Installation on Rough Deck
Set Valve Body Height
NOTE: Use one of the following two formulas to calculate the valve body
clearance required for the finish material at your site.
For tile that is less than 1” (2.5cm) thick, add 1–1/4” (3.2cm) to the tile
thickness. Example: Tile thickness is 3/4” + 1–1/4” = 2” (5cm) of clearance
required.
For tile that is between 1” (2.5cm) and 1–1/4” (3.2cm) thick, add only 1”
(2.5cm) to the tile thickness. Example: Tile thickness is 1–1/4” + 1” = 2–1/4”
(5.7cm).
Adjust the threaded collar until the dimension from the top of the valve
threads to the top of the rough deck equals the clearance requirement
needed. Make a note of this dimension. You will use it again after
connecting the supply tube.
Connect Supply Tube
Measure the distance from the bottom of the spout supply tube to the top of
the tee.
Add 1” (2.5cm) to this measurement and cut a piece of copper tubing to fit
into the supply tube and tee port.
Fully loosen the threaded collars but do not remove them.
Pivot the valve bodies enough to remove the tee and two pieces of tubing.
If the valve body holes are smaller than recommended, it may be necessary
to remove the entire valve body assembly.
Install the tubing into the tee. Match the copper tube from the tee with the
spout supply tube.
2-1/8”
(5.4cm)
Max.
2”
(5cm)
1-1/4”(3.2cm)
Top ofValve
Threads
3/4”(2cm)
Threaded
Collar
Rough
Deck
Tile
Spout
Supply
Tube
Solder
Tee
Copper
Tube
Hot
SupplyCold
Supply
Valve BodyMounting
Nut
1016271-2-A 8 Kohler Co.

Complete Installation on Rough Deck (cont.)
Pivot the valve bodies onto the two pieces of copper tubing.
Do not solder at this time.
Reset Valve Body Height
Adjust the threaded collars until the dimension from the top of the valve
threads to the top of the rough deck equals the clearance requirement
calculated earlier.
Solder Connections
Tighten the mounting nuts on each valve body under the deck.
Solder the copper tubes to the valve bodies, tee and spout supply tube.
Ensure that the cold supply is on the right side.
Solder the hot and cold water supply tubes to the valve body inlets.
Kohler Co. 9 1016271-2-A

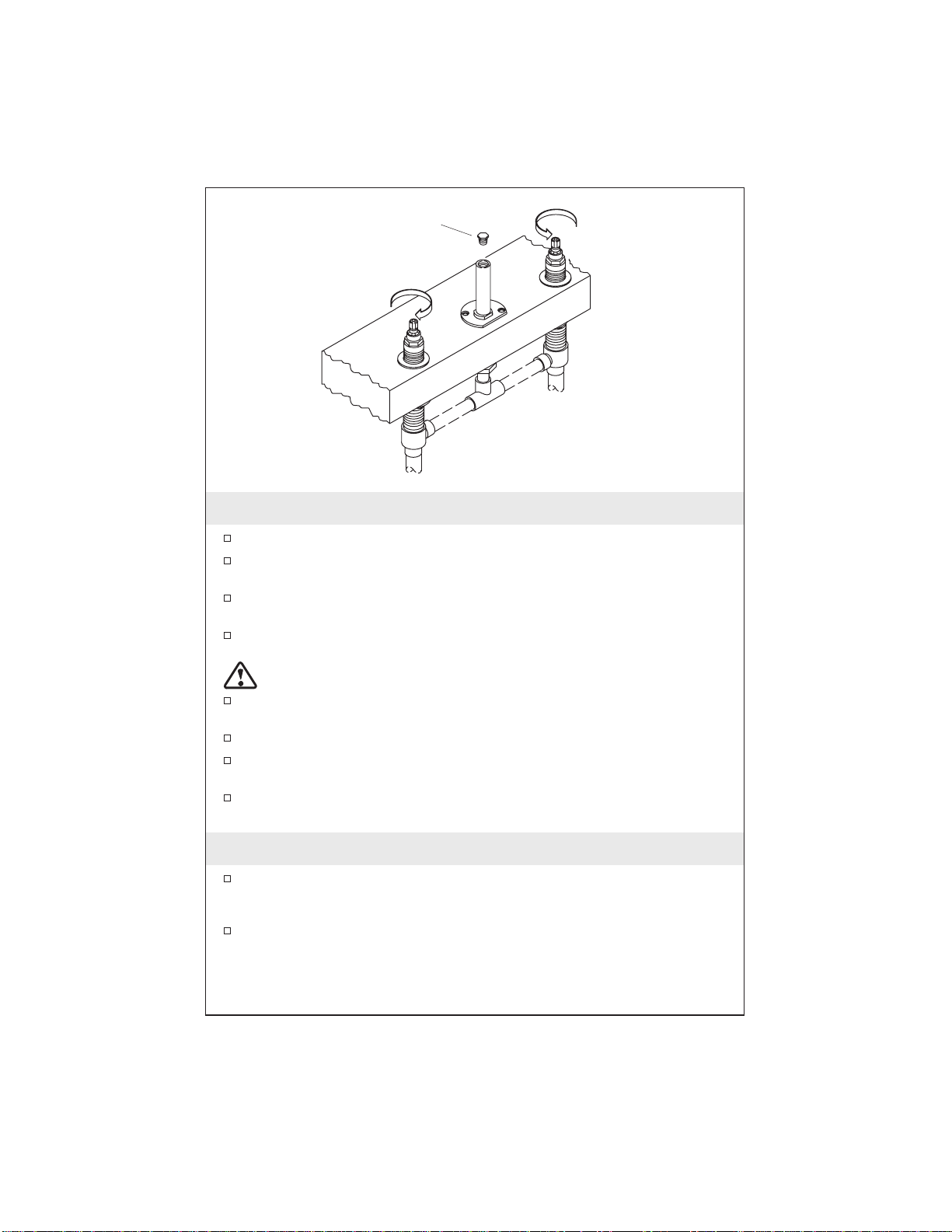

5. Check Operation of Valves
Thread a 1/4” pipe plug into the top of the spout supply tube.
Ensure that the valves are closed (cold — fully counterclockwise; hot —
fully clockwise).
Turn on the main water supply and check the complete installation for leaks
with the valves closed and open. Repair leaks as needed.
Close both valves and turn off the main water supply.
WARNING: Risk of personal injury. Lines will be pressurized. Do not
lean over pipe plug as you remove it.
Wrap a towel around the pipe plug to prevent water spray. Water will
purge from the supply tube when you remove the plug.
Carefully loosen the pipe plug to remove pressure.
Thread the pipe plug back into the spout supply tube. Leave the pipe plug
installed until the spout and handles are installed.
Install the cardboard plaster guards over both valves and the spout supply
tube. Leave in place until the spout and handles are installed.
6. Install Tile (If Applicable)
Verify that there will be a 1–1/4” (3.2cm) distance from the top of the sleeve
to the top of the tile. If there is not, correct the valve clearance as described
earlier.
Install tile up to the plaster guards on the valves and the spout supply tube.
1/4” Pipe Plug Close
Cold
Close
Hot
1016271-2-A 10 Kohler Co.

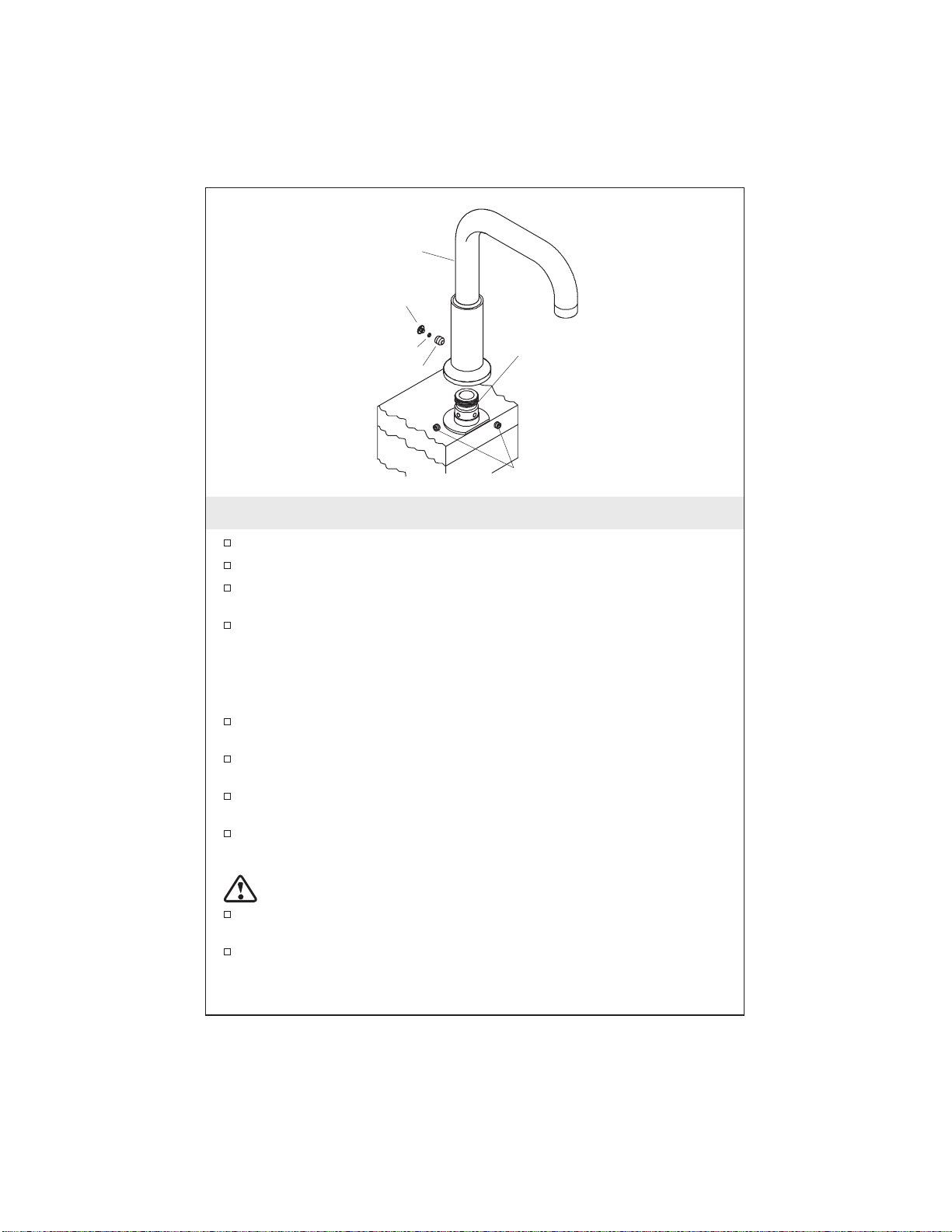

7. Install Spout
Wrap a towel around the pipe plug and carefully remove it.
Remove the plaster guard from the spout supply tube.
Cut off the spout supply tube 1–1/4” (3.2cm) above the rim, finished deck
or tile.
Ensure that all burrs are removed from the supply tube.
NOTE: If your installation is on a tile-covered rough deck, slide a brass
washer, flat side facing forward, onto the supply tube. The brass washer is
supplied with the spout. This washer is not needed for rim/finished deck
installations.
Loosen the setscrews in the sleeve. Use a twisting motion to install the
sleeve on the spout supply tube until it contacts the washer.
Align the sleeve so the setscrews are not facing directly forward or
backward and tighten the setscrews.
If supplied, position the decorative ring over the sleeve so it rests on the
washer.
Apply a ring of plumbers putty or other sealant around the underside of
the spout according to the manufacturer’s instructions.
CAUTION: Risk of product damage. Use care when installing the spout
to prevent damage to the O-ring seal on the sleeve.
Install the spout onto the sleeve and carefully press down until the spout
base contacts the deck, rim or tile.
Align the spout and tighten the setscrew. If included, press the plug button
into the setscrew hole.
Setscrew
Plug
Button
Setscrew
Sleeve
Spout
O-Ring
Kohler Co. 11 1016271-2-A

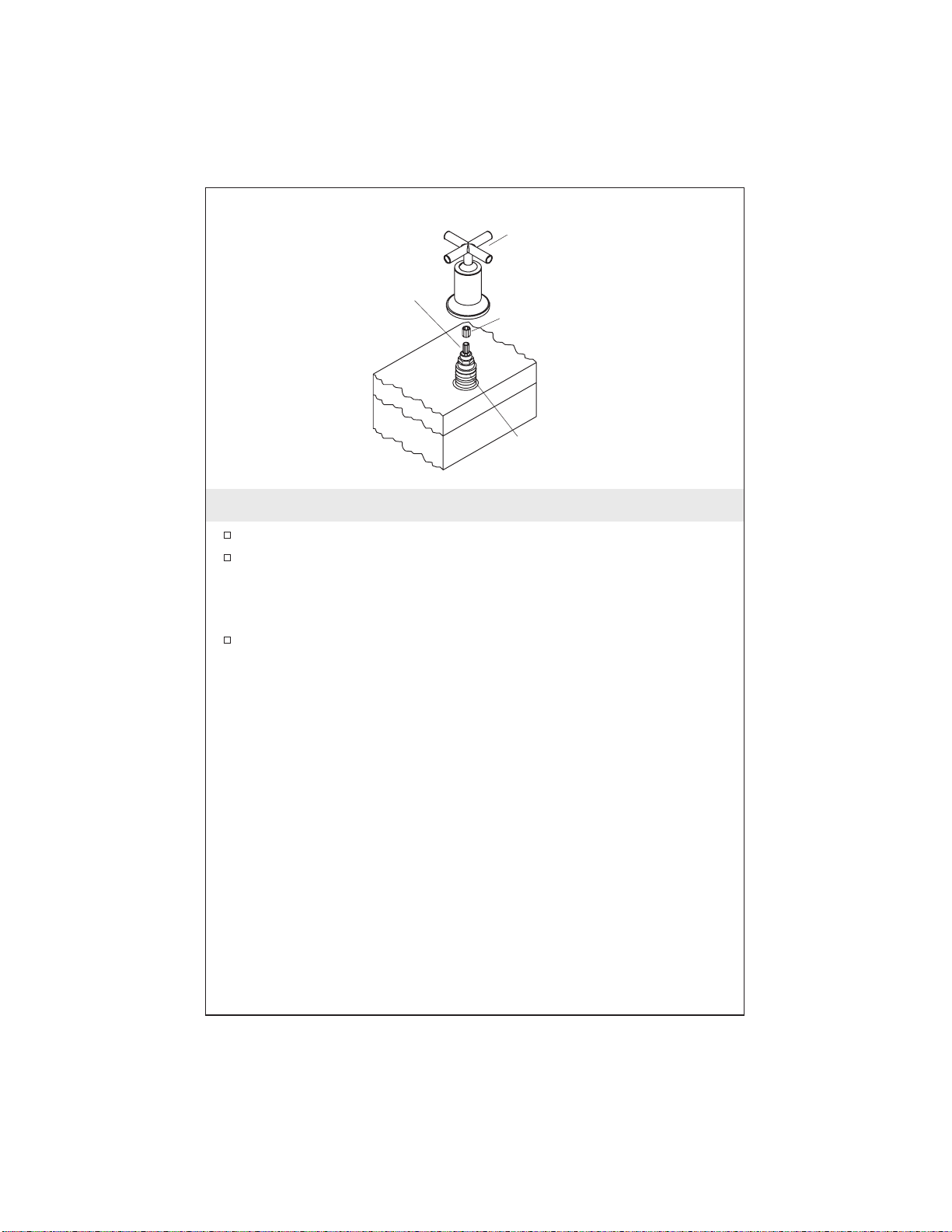

8. Install Handles
Remove the plaster guards from the hot and cold valves.
Install a stem extension onto each valve stem spline. Ensure that the splines
are properly aligned.
NOTE: There are different handle styles available for this product. Only the
cross handle is shown. Installation of all handle styles is identical.
Thread the handle onto the valve body. Ensure that the splines in the
handle and stem extension are engaged.
NOTE: The stem extension allows fine adjustment of the handle alignment.
To adjust, unthread the handle and reposition the stem extension. Rethread
the handle and check alignment. Repeat until handle alignment is
satisfactory.
Handle
Assembly
Stem
Extension
Valve
Body
ValveStem
Spline
1016271-2-A 12 Kohler Co.

9. Complete the Installation
Ensure that both faucet handles are turned off.
Remove the aerator assembly by turning it counterclockwise.
Turn on the main water supply and check for leaks.
Turn on the hot and cold valves and run water through the spout to remove
debris. Check for leaks.
Turn off the hot and cold valves.
Remove any debris from the aerator and reinstall.
Aerator
Kohler Co. 13 1016271-2-A

Guide d’Installation
Purist™
Robinet sur baignoire / plan
Outils et matériaux
Merci d’avoir opté pour les produits de la Société Kohler
Nous apprécions votre engagement envers la qualité de Kohler. Veuillez lire
attentivement ce guide avant de commencer l’installation. En cas de problèmes
d’installation ou de fonctionnement, n’hesitez pas à nous contacter. Nos
numéros de téléphone et site web sont contenues au plat verso. Merci encore
d’avoir choisi des produits Kohler.
Avant de commencer
Veuillez lire cette notice avant de commencer l’installation.
Respecter tous les codes de plomberie et de bâtiment locaux.
Avant l’installation, déballer le nouveau robinet et l’examiner soigneusement
pour déceler tout dommage. Remettre le robinet dans l’emballage de
protection en attendant de commencer l’installation.
Laisser le manchon de protection sur le tuyau d’arrivée d’eau du bec
jusqu’à ce que le bec soit installé. Ce bec est doté d’une surface qui assure
l’étanchéité par joint torique et doit être protégée pour éviter d’être
endommagée.
Prévoir un panneau d’accès aux robinets, par le dessous du plan.
Le tube cuivre fourni par l’entrepreneur aura 5/8 po dia. ext. (1/2 po
nominal).
Installer un antibélier dans l’arrivée d’eau, près des robinets.
Kohler Co. Français-1 1016271-2-A

Avant de commencer (cont.)
Cette notice comprends deux méthodes d’installation : installation sur plan
fini ou rebord de baignoire et installation sur plan non fini. Suivez les
étapes qui s’appliquent particulièrement à votre installation.
Ces directives de montage correspondent à un entr’axe de 8 po (20,3 cm). Si
l’entr’axe dépasse 8 po (20,3 cm), modifier les dimensions d’installation de
la plomberie et les longueurs du tube cuivre en conséquence.
Couper l’arrivée d’eau principale.
Kohler se réserve le droit d’apporter des modifications à la conception des
robinets sans avis, comme il est spécifié dans le Catalogue des prix
courants.
Kohler Co. Français-2 1016271-2-A

1. Préparer le site
Installer ou déplacer les robinets d’arrêt au besoin.
Protéger les surfaces de la baignoire et du plan pendant l’installation.
Diamètre du trou de bec sur le plan=1po(2,5 cm). Diamètre du trou de
robinet sur le plan = 1–1/2 po (3,8cm). S’assurer de ne pas surdimentionner
les trous sur le plan. Le bec et les vannes nécessitent d’un support adéquat
et d’un contact maximale avec le plan.
Le diamètre des renforts de plâtre est d’environ 1–5/8 po (4 cm) pour le
robinet et de 13/16 po (2cm) pour le bec.
REMARQUE: Prévoir un matériau de renfort si le rebord de baignoire ou le
plan de meuble est trop mince. Installer avant de poursuivre.
REMARQUE: Pour des installations carrelées, l’épaisseur des tuiles ne doit
pas dépasser de 1–1/4 po (3,2cm).
3-1/2 po (8,9cm)
7/8po D.
(2,2cm)
2-1/2 po (6,4cm)
1-5/16po
D. (3,3cm)
8po (20,3cm) Min.
2-1/8po (5,4cm)
MAX.PLANDE
MEUBLEBRUT
3/4po
dia.int.
11-3/8po
(28,9cm)
7-1/2 po
(19,1cm)
1/4po (6mm)
À1-1/4po
(3,2 cm)
MAX.PLAN
DEMEUBLE
FINI
POSESURPLAN
DEMEUBLE
BRUT+FINI
POSESUR
REBORDDE
PLAN
1-3/8po
(3,5cm)
2-5/8po
(6,7cm)
4-3/4po
(12,1cm)
1/4po (6mm) À
2-1/8po (5,4cm)
MAX.POUR
POSESUR
REBORDOU
PLANDE
MEUBLE
4-3/4po
(12,1cm)
2-1/2 po D. (6,4cm)
CRUCIFORME2-1/2 po D.
(6,4cm) LEVIER
7-3/4po
(19,7cm)
1016271-2-A Français-3 Kohler Co.

2. Installation sur plan ou rebord fini
REMARQUE: Pour des installations sur un plan brut, se reporter à la
Section correspondante.
Utiliser du tube cuivre de 1/2” nominal, 5/8” dia. ext. Couper deux
morceaux de tube de 2–7/8 po (7,3cm). Couper un morceau de tube de
2–3/8 po (6cm), pour l’arrivée d’eau du bec.
IMPORTANT! Laisser le manchon de protection sur le tuyau d’arrivée
d’eau du bec jusqu’à ce que le bec soit installé, pour protéger la surface.
Installer le tube d’arrivée d’eau du bec
Glisser une rondelle en laiton sur le filetage du tube d’arrivée d’eau du bec
et contre l’épaulement du tube d’arrivée d’eau.
Insérer le tuyau d’arrivée d’eau au bec à travers l’orifice de fixation à partir
du dessus du plan ou du rebord de baignoire. S’assurer que le plat de la
rondelle soit orienté vers l’avant. Le tube d’arrivée d’eau sera suspendu à
l’aide d’une rondelle.
Glisser une rondelle en laiton sur le tube d’arrivée d’eau de bec et visser
l’écrou d’assemblage. Serrer l’écrou.
REMARQUE: Ne pas utiliser les vis à bois fournies pour l’installation sur
un plan fini ou un rebord.
Poser les corps de robinet
Visser un écrou d’assemblage sur chaque corps de robinet en orientant
l’épaulement vers le haut.
Kohler Co. Français-4 1016271-2-A

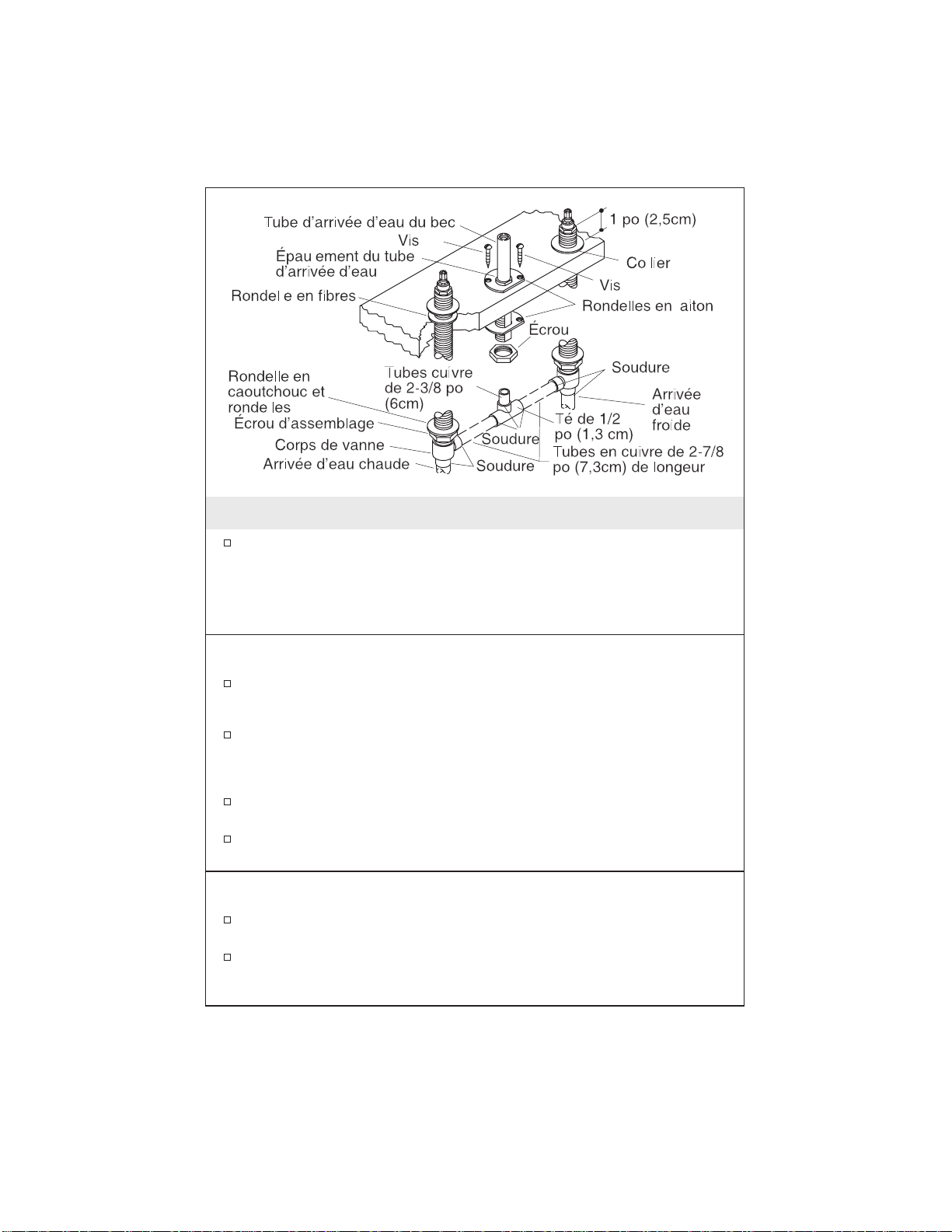

Installation sur plan ou rebord fini (cont.)
REMARQUE: À l’étape suivante, prévoir deux rondelles en caoutchouc
pour une épaisseur de rebord inférieure à 1/4 po (6 mm). Dans tout autre
cas, une seule rondelle suffit.
Enfiler une rondelle en fibres, puis une ou deux rondelles en caoutchouc,
sur chaque corps de robinet.
Loger les tubes cuivre de 2–7/8 po (7,3 cm) entre les corps de robinet et le
raccord en T de 1/2 po. Placer le tube en cuivre de 2–3/8 po (6 cm) dans
l’orifice supérieur du raccord en T.
Ne pas souder à ce moment.
REMARQUE: Orienter le corps de robinet marqué “COLD” (froid) de façon
à ce qu’il soit sur la droite lorsque l’on se trouve devant le robinet.
Introduire les corps des robinets par les trous de fixation à partir du
dessous du plan/rebord. Relier le tube en cuivre du raccord en Té au tube
d’arrivée d’eau de bec. Maintenir en place.
Poser un collier (épaulement vers le haut) sur chaque corps de robinet.
Visser sur au moins 1 po (2,5 cm) à partir du haut de filetage du corps de
robinet.
Sous le plan/rebord de baignoire, serrer les écrous d’assemblage de chaque
corps de robinet.
Souder les tubes en cuivre aux corps de robinet, au raccord en Té et au tube
d’arrivée d’eau de bec.
Souder les tuyaux d’arrivée d’eau chaude et d’eau froide aux corps de
robinet. S’assurer que l’arrivée d’eau froide soit sur la droite.
Vérifier le fonctionnement du robinet.
1016271-2-A Français-5 Kohler Co.

3. Pose sur plan brut (non fini)
Utiliser du tube cuivre de 1/2” nominal, 5/8” dia. ext. Couper deux
morceaux de tube de 2–7/8 po (7,3cm). Couper un morceau de tube de
2–3/8 po (6cm), pour l’arrivée d’eau du bec.
IMPORTANT! Laisser le manchon de protection sur le tuyau d’arrivée
d’eau du bec jusqu’à ce que le bec soit installé, pour protéger la surface.
Installer le tube d’arrivée d’eau du bec
Glisser une rondelle en laiton sur le filetage du tube d’arrivée d’eau du bec
et contre l’épaulement du tube d’arrivée d’eau. S’assurer que les orifices
fraisés dans la rondelle soient orientés vers le haut.
Insérer le tuyau d’arrivée d’eau au bec à travers l’orifice de fixation à partir
du dessus du plan de meuble. S’assurer que le plat de la rondelle soit
orienté vers l’avant. Le tube d’arrivée d’eau sera suspendu à l’aide d’une
rondelle.
Glisser une rondelle en laiton sur le tube d’arrivée d’eau de bec et visser
l’écrou d’assemblage. Serrer l’écrou.
Fixer la rondelle en laiton au plan de meuble à l’aide des deux vis à bois
fournies.
Poser les corps de robinet
Visser un écrou d’assemblage, côté profilé vers le haut, suivi d’une rondelle
en fibre et d’une rondelle en caoutchouc, sur chaque corps de robinet.
Loger les tubes cuivre de 2–7/8 po (7,3 cm) entre les corps de robinet et le
raccord en T de 1/2”.
Kohler Co. Français-6 1016271-2-A

Pose sur plan brut (non fini) (cont.)
Ne pas souder à ce moment.
REMARQUE: Orienter le corps de robinet marqué “COLD” (froid) de façon
à ce qu’il soit sur la droite lorsque l’on se trouve devant le robinet.
Introduire les corps des robinets par les trous de fixation à partir du
dessous du plan. Relier le tube en cuivre du raccord en Té au tube d’arrivée
d’eau de bec. Maintenir en place.
Poser un collier (épaulement vers le haut) sur chaque corps de robinet.
Visser sur au moins 1 po (2,5 cm) à partir du haut de filetage du corps de
robinet.
1016271-2-A Français-7 Kohler Co.
