•Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your particu-
lar installation. This will help you avoid costly mistakes. In
addition to proper installation, read all operating and safety
instructions.
•All information in these instructions is based upon the latest
product information available at the time of publication.
Kohler Co. reserves the right to make changes in product
characteristics, packaging, or availability at any time without
notice.
•These instructions contain important care, cleaning, and
warranty information-please leave instructions for the
consumer.
NOTES
•Observe all local plumbing and building codes.
•Shut off the water supply.
•Seat post holes are on 140mm (5-1/2”) centers.
•51mm (2”) passageway.
•Water depth from the rim is 157mm.
•Ensure that the new drain has the correct roughing-in
dimension.
•Be very careful while working with vitreous china products.
Vitreous china can break or chip if the bolts and nuts are
overtightened, or if carelessly handled.
• CarefullyinspectthenewxtureforanysignofDamage.
BEFORE YOU BEGIN / / 
VEIL TWO-PIECE TOILET
INSTALLATION INSTRUCTION


• 



• 


• 


• 
• 
• 
• 
• 
• 
• 


• 

1355511-B2-A 2 ©2021 Kohler Co.


•
•
•
•
•
•
•
•
•
•
•
•
•


• Fixturedimensionsandnominalandconformtotolerances
established by ASME Standards (A112.19.2-2018)
•This product complies with Q/KCI-006-2018 and GB 25502-
2017.WaterEfciencyGrade2.
WARNING: Risk of external leakage.Thellvalve
nuthasbeenfactory-tightenedtodesignspecications.
If re-tightening is required, wrench tighten 1/4 turn past
ngertight.
TOOLS AND MATERIALS REQUIRED
(Not supplied)
•254mm (10”) adjustable wrench.
•305mm (12”) pipe wrench.
• Metalle(lecut).
•Tape measure.
•Tubing cutter.
•Level.
•Hacksaw.
•Putty knife.
•Screwdriver.
• Toiletgasket(waxseal)
•Toilet installation flange.
•Toilet T-bolt (2), 8mm (5/16”) diameter.
•Toilet supply shut-off valve.
NOTICE:Iftheexistingtoiletdoesnothaveashut-offvalve
below the tank, install one before installing the new toilet.
*Flexiblehosearerecommendedtoconnectthesupplyline
tothellvalve.Ifyouusearigidconnection,takecarenotto
applysideforcestothebottomofthellvalve.
• 
• 



©2021 Kohler Co. 3 1355511-B2-A



TO REMOVE EXITING TOILET
Turn off the water supply. Flush the toilet, and use a sponge to
remove the remaining water from the tank and bowl.
Disconnectthesupplyshut-offvalve(ifpresent),andremove
the old tank and bowl.
Remove the old gasket from the floor and
the closet flange with a putty knife. Remove
the old T-bolts and discard them.
NOTICE: If the new toilet is not installed
immediately, temporarily stuff a rag into the
closet flange.
TO INSTALL SUPPLY
SHUT-OFF VALVE
Install the supply shut-off valve so it is
200mmabovethenishedfloorline,and
190mm to the left of the closet flange cen-
terline.
The centerline of the supply shut-off valve
outletshouldextend67mmfromthenished
wall. Install the supply shut-off valve with the
outlet vertical.
NOTICE:Donotusewhitecementorhighlimecontent
cementstoinstallthetoilet.Theexpansionofcementdue
to a rise in temperature may make the toilet crack or cause
damage. Kohler is not resposible for any damage caused by
installation with the use of cement.
INSTALLATION / / 
Closet Flange
หน้าแปลน






Supply Shut-Off Valve
Closet Flange
Centerline
190
305/400
200
  



1355511-B2-A 4 ©2021 Kohler Co.
TO INSTALL BOWL
Position the template and align with drain
hole.
Mark down the position of foot and 5 holes.
Drillholesongroundwiththedrillof10mm
(3/8”), then insert anchor to holes.
CAUTION: Please make sure there is no
water pipe or spool under the 5 holes to be
drilled.
ท่อระบายนํ�าทิ�ง
Drain Hole
3/8
10mm








Install bracket

Firmly press the toilet gasket onto the toilet
outlet of plastic.
NOTE 1:Waxringtypetoiletgasketshould
not be installed at temperatures less than
21°C.
NOTE 2: If you are using a toilet gasket with
an integral plastic sleeve, make sure the gas-
ket is positioned with the sleeve facing away
from the toilet.
Install plastic to ground and mounted with 3
setofbolts(notsupplied)rmly.
Plastic Trap Outlet
Toilet Gasket
ประเก็นยาง
ท่อนํ�าทิ�งพลาสติก


°






©2021 Kohler Co. 5 1355511-B2-A
Outlet
Plastic Trap
ข้อต่อท่อนํ�าทิ�ง
ท่อนํ�าทิ�ง
For Plastic Trap
Carefully align and lower the bowl. Apply
weight to the bowl rim to let the outlet insert
into plastic trap.
Carefully thread the screws into the brack-
ets, until toilet is secure. Alternately tighten
left and right sides to prevent pulling the
toilet off center. Install cap to cover screw.
Do not overtighten.
Carefully align and lower the bowl. Apply
weight to the bowl rim, insert into waste
trap.
For Ceramic Trap Outlet
Installthewaxringonthefloor.












Wax Ring
Waste Pipe
ท่อน้ำทิ�ง
Outlet
ท่อนํ�าทิ�ง
Cap Screw Bushing
ฝาครอบ สกรู บูช

1355511-B2-A 6 ©2021 Kohler Co.
Apply silicone around base.

Supply Shank*
Supply Shut-Off Valve
วาล์ว เปิด-ปิดนํ�า
ก้านวาล์วนํ�าเข้า
TO CONNECT WATER SUPPLY
*Flexiblehose(notprovided)arerecom-
mended to connect the supply line to the
llvalve.Ifyouusearigidconnection(not
provided), take care not to apply side forces
tothebottomofthellvalve.Besurethe
rigidconnectionmustbetwithsupplyline
complately to prevent damage shank by
forced connection.


IMPORTANT:Beforeturningonthesupplyvalvefortherst
time, follow the steps below to clear sand, debris and rust from
the system:
Makesurewatersupplyisoff.RemovevalveENDbyrotatingit
1/8 turn counterclockwise.
While holding a container over the uncapped VALVE to prevent
splashing, turn water supply on and off a few times. Leave water
supply off.
ReplaceENDbyengaginglugsandrotating1/8turnclockwise,
Make certain the top is turned to the locked position. Valve
may not turn on if top is not fully in the locked position.
Turn on water supply. Check that water level is at the marked
water line.



 

Install the tank lid and the seat. Use the
supplied hardware pack for seat. Periodically
check for leaks for several days following the
installation.




©2021 Kohler Co. 7 1355511-B2-A

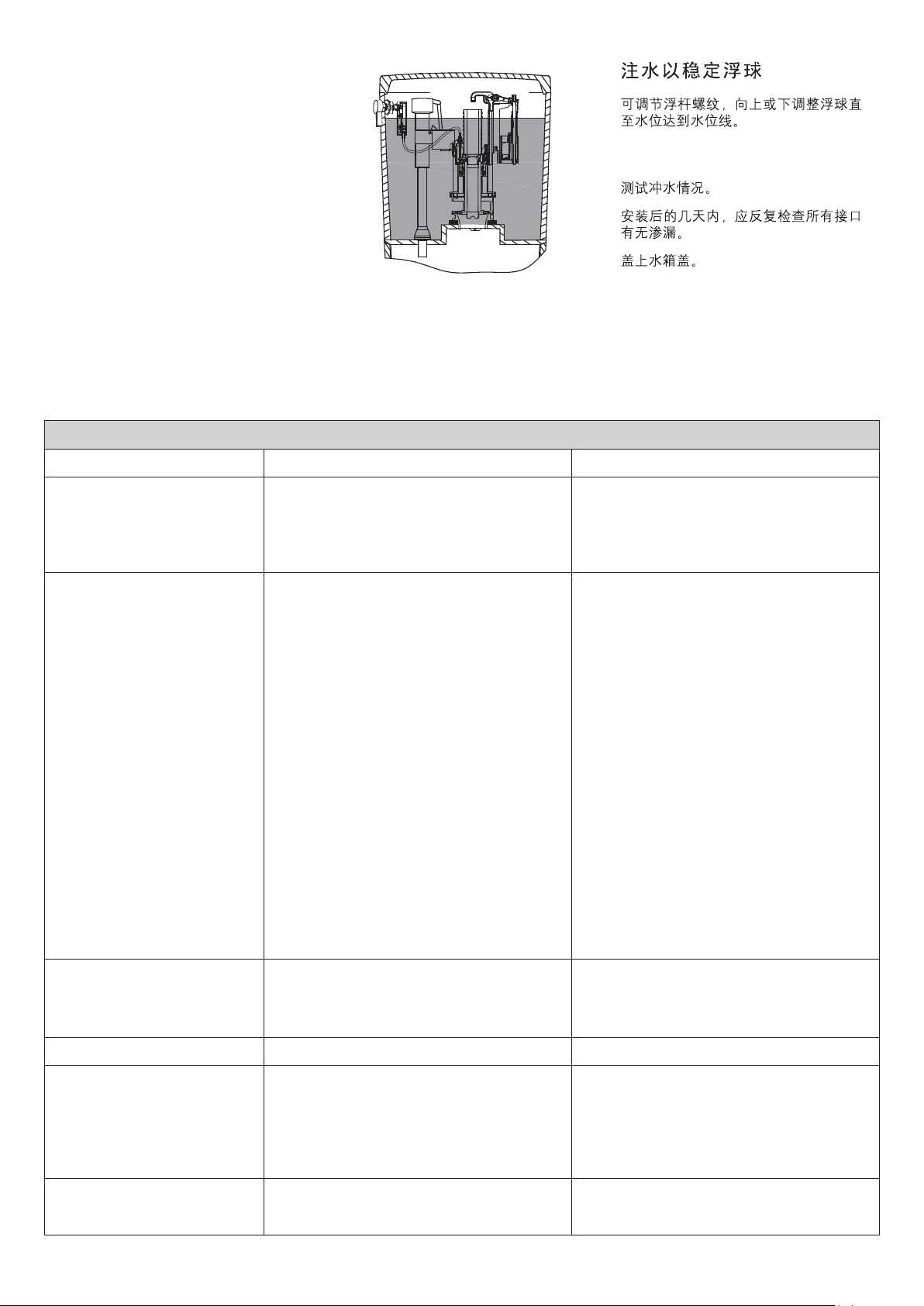

FILL FLOAT WITH BALLAST
Adjust the float by the cross-shaped thread
and sliding it up or down on the float rod
until the water level is at the marked water
line.
Test flush the toilet.
Check all connections for leakage for sev-
eral days.
Set the tank cover in place on the tank.





TROUBLESHOOTING CHART
SYMPTOMS PROBABLE CAUSES CORRECTIVE ACTION
1. Fill valve turns on/off by itself
without toilet being flushed.
A. No slack in flapper chain assembly, holding
flapper off seat.
A. Adjust flapper chain assembly for proper
slack.
B. Flush valve flapper ball worn, dirty or
misaligned with flush valve seat; or seat cor-
roded so flapper will not seat.
B. Inspect, clean and, if necessary, replace
flapper ball and/or seat.
2. Fill valve continues to run,
allowing water to enter tank.
A. Foreign particles lodged under the float
valveseal(locatedunderllvalvecap).
A.Shutoffwatersupply;removellvalve
cap assembly by rotating 1/8 turn counter-
clockwise. Cover uncappedlower valve unit
with an inverted cup (holding it to prevent
overspray), and turn water on and off a few
times.Cleanllvalvesealsurface(located
underoatvalvecap).Replacellvalvecap
assembly by engaging lugs and rotating 1/8
turnclockwise.Turnwateron.Installlterin
supply line to prevent recurring problems.
B. Fill valve seal (located under float valve cap)
may be cracked or split.
B. Replace seal.
C. Tank water level set above overflow level. C.Duringllcycle,holdfloatunderwaterafew
secondstoallowittollwithwaterballast.
Adjust float by adjust the cross-shaped
thread on float rod and sliding float up or
down on float rod until water level is at
marked water line.
D.Waterleakingpastflushball. D.Replaceflushball.
E. Trip lever binding, holding flush ball open. E. Turn trip lever nut clockwise to loosen until
trip lever on longer binds.
3. Incorrect water level height. A. Valve float cup does not contain enough
water to provide required ballast.
A.Duringllcycle,holdfloatunderwaterafew
secondstoallowittollwithwaterballast.
B. Float height incorrect. B. Adjust the cross-shaoed thread on float rod
until water level is at marked water line.
4.Longornoisytankllcycle. A. Plugged valve inlet or supply line. A. Perform Corrective Action 2.A.
5. Poor flush A. Water level is too low. A. Adjus tank waterlevel.
B. Trapway or rim holes are obstructed. B. Unclog trapway; clean rim holes.
C. Soil pipe or vent is obstructed. C. Clean obstruction from soil pipe or vent.
D.Supplyshut-offvalvenotfullyopen. D.Opensupplyshut-offvalve.
6. Toilet overflows. A. Toilet trapway is obstructed. A. Use plunger to unclog.
B. Soil pipe or vent is obstructed. B. Clear obstruction from soil pipe or vent pipe.

1355511-B2-A 8 ©2021 Kohler Co.

©2021 Kohler Co. 9 1355511-B2-A

   

























 



 
 

  

 


  
  
 
 
 
  
 

1355511-B2-A 10 ©2021 Kohler Co.
CONSUMER RESPONSIBILITIES
Cleantheoutsidesurfacesofyourvitreouschinaxturewith
mild soap and warm water. Wipe the entire surface com-
pletely dry with a clean, soft cloth. Many cleaners contain
harsh chemicals, such as ammonia, which can damage the
nish.Donotusethosecleaners.
If you live in a hard water area, make certain that the holes
in the toilet rim are kept clean to ensure proper bowl flush-
ing. Toilet bowl cleaners should be used at least once a
week. Use a long-handled brush to clean the rim holes, and
to clean as far into the trap as possible to provent mineral
deposits from forming.
Most toilet bowl cleaners are not harmful to the vitreous chi-
na surface of the bowl toilet. Please follow the bowl cleaner
manufacturer’s instructions carefully.
Donotuseabrasivecleanersorsolvents.
WARNING: Risk of property or product damage. Do
not use in-tank cleaners. Products containing chlorine
(calciumhypochlorite)canseriouslydamagettingsin
the tank. This damage can cause leakage and property
damage.
Kohler Company shall not be responsible or liable for any
damagetothesetankttingscausedbytheuseofcleaners
containing chlorine (calcium hypochlorite).
CAUTION: Don’t use any cement while installing the
toilet. Heatexpansionofthetoiletmaydamagethefeet
of the toilet. Kohler will not be responsible for any dam-
age because of using cement.
WARNING: Risk fo product damage.
Donotthrowintothetoiletwhatiseasytoblockit,such
asnewspaper,paperpilch,sanitarytowel.Donotbump
the vitreous china with great force to prevent it from
damaging and leaking.
Donotusetheproductinthewaterbelow0°C.
CAUTION: Please do not use hard materials (like
scouring pad) to clean product surface, especially the
product logo.

©2021 Kohler Co. 11 1355511-B2-A














°


1355511-B2-A ©2021 Kohler Co.

 

E-mail: [email protected]
KOHLERASIAPACIFICLIMITED
Asia Customer Service Centre
No.158,JiangChangSanRoad,ZhabeiDistrict,Shanghai,PRC.200436.
Tel:+862126062572Fax:+862161078900
KOHLER(THAILAND)PUBLICCOMPANYLIMITED
16th FL. Jasmine City Bldg., 2 Soi Sukhumvit 23, Sukhumvit Road, Wattana, Bangkok 10110 Thailand
Call Center Tel. +(66) 2204 6222
