English
2
SAFETY WARNINGS FOR CORDLESS CLEANER
WARNING
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.
1) Work area safety
a) Keep work area well lit.
Dark areas invite accidents.
b) Do not operate appliances in explosive atmospheres, such as in the presence
of flammable liquids, gases or dust.
Appliances create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating an appliance.
Distractions can cause you to lose control.
CONTENTS
SAFETY WARNINGS FOR CORDLESS CLEANER ......................................2
CAUTION ON LITHIUM-ION BATTERY .........................................................4
REGARDING LITHIUM-ION BATTERY TRANSPORTATION ........................6
USB DEVICE CONNECTION PRECAUTIONS ..............................................6
PRECAUTIONS FOR CORDLESS CLEANER ...............................................6
SYMBOLS ......................................................................................................8
NAME OF PARTS...........................................................................................8
SPECIFICATIONS..........................................................................................9
STANDARD ACCESSORIES .......................................................................10
APPLICATIONS............................................................................................10
BATTERY REMOVAL / INSTALLATION ......................................................11
CHARGING ..................................................................................................11
PRIOR TO OPERATION...............................................................................14
THE SWITCH PANEL...................................................................................16
HOW TO USE...............................................................................................17
EMPTYING THE DUST CASE......................................................................20
HOW TO RECHARGE USB DEVICE ...........................................................21
MAINTENANCE AND INSPECTION ............................................................22
TROUBLESHOOTING..................................................................................25
SELECTING ACCESSORIES.......................................................................26
000BookR36DAChS.indb2000BookR36DAChS.indb2 2021/04/1613:07:032021/04/1613:07:03
English
3
2) Electrical safety
a) Charger plugs must match the outlet.
Never modify the plug in any way.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Do not expose appliances to rain or wet conditions.
Water entering an appliance will increase the risk of electric shock.
c) Do not abuse the cord of charger. Never use the cord for carrying, pulling or
unplugging the charger.
Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating
an appliance.
Do not use an appliance while you are tired or under the influence of drugs,
alcohol or medication.
A moment of inattention while operating appliances may result in serious personal
injury.
b) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the appliance in unexpected situations.
4) Cleaner use and care
a) Do not force the appliance. Use the correct appliance for your application.
The correct appliance will do the job better and safer at the rate for which it was
designed.
b) Do not use the appliance if the switch does not turn it on and off.
Any appliance that cannot be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the battery pack from the appliance before making any
adjustments, changing accessories, or storing appliances.
Such preventive safety measures reduce the risk of starting the appliance
accidentally.
d) Store idle appliances out of the reach of children and do not allow persons
unfamiliar with the appliance or these instructions to operate the appliance.
Appliances are dangerous in the hands of untrained users.
e) Maintain appliances. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the applianceʼs
operation.
If damaged, have the appliance repaired before use.
Many accidents are caused by poorly maintained appliances.
f) Use the appliance and accessories etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed.
Use of the appliance for operations different from those intended could result in a
hazardous situation.
000BookR36DAChS.indb3000BookR36DAChS.indb3 2021/04/1613:07:032021/04/1613:07:03
English
4
5) Battery pack use and care
Power can only be supplied to this appliance using the included lithium battery or
one that is designated by our company.
a) Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a risk of fire when
used with another battery pack.
b) Use appliances only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid
contact. If contact accidentally occurs, flush with water. If liquid contacts eyes,
additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your appliance serviced by a qualified repair person using only identical
replacement parts.
This will ensure that the safety of the appliance is maintained.
CAUTION
Keep children and infirm persons away.
When not in use, appliances should be stored out of reach of children and infirm
persons.
CAUTION ON LITHIUM-ION BATTERY
To extend the lifetime, the lithium-ion battery equips with the protection function to stop
the output.
In the cases of 1 to 3 described below, when using this product, even if it is switched on,
the motor may stop. This is not the trouble but the result of protection function.
1. When the battery power remaining runs out, the motor stops.
In such case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this case, switch the tool offand
eliminate causes of overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the battery power may stop.
In this case, stop using the battery and let the battery cool. After that, you can use
it again.
Furthermore, please heed the following warning and caution.
000BookR36DAChS.indb4000BookR36DAChS.indb4 2021/04/1613:07:032021/04/1613:07:03
English
5
WARNING
In order to prevent any battery leakage, heat generation, smoke emission, explosion and
ignition beforehand, please be sure to heed the following precautions.
1. Make sure that swarf and dust do not collect on the battery.
○
During work make sure that swarf and dust do not fall on the battery.
○
Make sure that any swarf and dust falling on the appliance during work do not
collect on the battery.
○
Do not store an unused battery in a location exposed to swarf and dust.
○
Before storing a battery, remove any swarf and dust that may adhere to it and do
not store it together with metal parts (screws, nails, etc.).
2. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step
on, throw or subject the battery to severe physical shock.
3. Do not use an apparently damaged or deformed battery.
4. Do not use the battery in reverse polarity.
5. Do not use the battery for a purpose other than those specified.
6. If the battery charging fails to complete even when a specified recharging time has
elapsed, immediately stop further recharging.
7. Do not put or subject the battery to high temperatures or high pressure such as
into a microwave oven, dryer, or high pressure container.
8. Keep away from fire immediately when leakage or foul odor are detected.
9. Do not use in a location where strong static electricity generates.
10. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in
any way appears abnormal during use, recharging or storage, immediately remove
it from the equipment or battery charger, and stop use.
11. Do not immerse the battery or allow any fluids to flow inside. Conductive liquid
ingress, such as water, can cause damage resulting in fire or explosion. Store your
battery in a cool, dry place, away from combustible and flammable items. Corrosive
gas atmospheres must be avoided.
CAUTION
1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and
wash them well with fresh clean water such as tap water and contact a doctor
immediately.
If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well with clean water such as tap
water immediately.
There is a possibility that this can cause skin irritation.
3. If you find rust, foul odor, overheating, discolor, deformation, and/or other
irregularities when using the battery for the first time, do not use and return it to
your supplier or vendor.
000BookR36DAChS.indb5000BookR36DAChS.indb5 2021/04/1613:07:032021/04/1613:07:03
English
6
WARNING
If a conductive foreign matter enters in the terminal of
lithium ion battery, the battery may be shorted, causing
fire. When storing the lithium ion battery, obey surely
the rules of following contents.
○
Do not place conductive debris, nail and wires such
as iron wire and copper wire in the storage case.
○
Either install the battery in the appliance or store
by securely pressing into the battery cover until the
ventilation holes are concealed to prevent short-
circuits (See Fig. 1).
REGARDING LITHIUM-ION BATTERY TRANSPORTATION
When transporting a lithium-ion battery, please observe the following precautions.
WARNING
Notify the transporting company that a
package contains a lithium-ion battery,
inform the company of its power output and
follow the instructions of the transportation
company when arranging transport.
●
Lithium-ion batteries that exceed a
power output of 100 Wh are considered
to be in the freight classification of
Dangerous Goods and will require special application procedures.
●
For transportation abroad, you must comply with international law and the rules
and regulations of the destination country.
USB DEVICE CONNECTION PRECAUTIONS
When an unexpected problem occurs, the data in a USB device connected to this
product may be corrupted or lost. Always make sure to back up any data contained in
the USB device prior to use with this product.
Please be aware that our company accepts absolutely no responsibility for any data
stored in a USB device that is corrupted or lost, nor for any damage that may occur to a
connected device.
PRECAUTIONS FOR CORDLESS CLEANER
1. Always charge the battery at a temperature of 0°C – 40°C. A temperature of less
than 0°C will result in over charging which is dangerous. The battery cannot be
charged at a temperature higher than 40°C.
The most suitable temperature for charging is that of 20°C – 25°C.

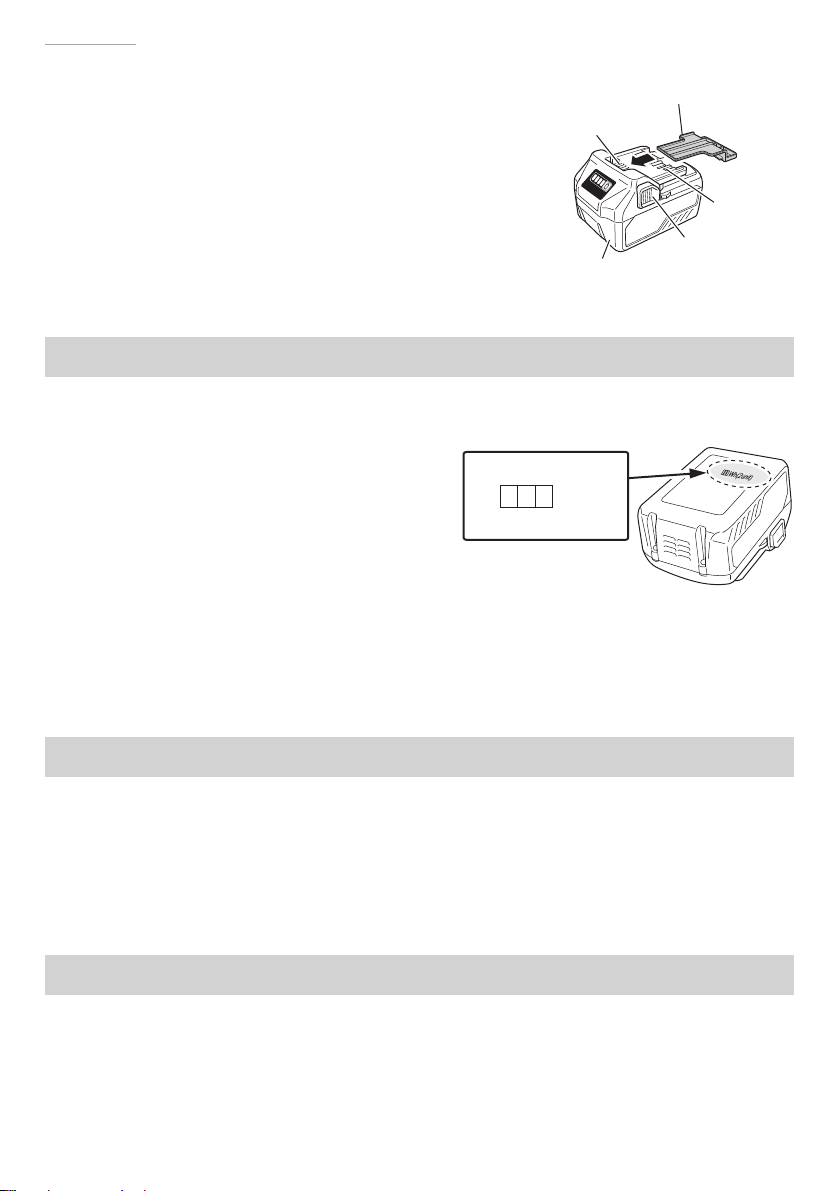

Fig. 1
Ventilation holes
Terminals
Battery cover
Latch
Battery
Wh
Power Output
2 to 3 digit number
Fig. 2
000BookR36DAChS.indb6000BookR36DAChS.indb6 2021/04/1613:07:032021/04/1613:07:03
English
7
2. Do not use the charger continuously.
When one charging is completed, leave the charger for about 15 minutes before
the next charging of battery.
3. Do not allow foreign matter to enter the hole for connecting the rechargeable
battery.
4. Never disassemble the rechargeable battery and charger.
5. Never short-circuit the rechargeable battery. Short-circuiting the battery will cause
a great electric current and overheat. It results in burn or damage to the battery.
6. Do not dispose of the battery in fire.
If the battery is burnt, it may explode.
7. Bring the battery to the shop from which it was purchased as soon as the post-
charging battery life becomes too short for practical use. Do not dispose of the
exhausted battery.
8. Using an exhausted battery will damage the charger.
9. Do not insert object into the air ventilation slots of the charger.
Inserting metal objects or inflammables into the charger air ventilation slots will
result in electrical shock hazard or damaged charger.
10. Prevent the appliance from sucking in the following: Fire or injury may result.
○
Liquids (e.g., water, oil) or damp debris.
○
Generated spark during metal grinding or cutting.
○
High temperature things, such as lighted cigarette.
○
Inflammable substances (gasoline, thinner, benzene, kerosene, paint, etc.),
explosive substances (nitroglycerine, etc.), combustible substances (aluminum,
zinc, magnesium, titanium, red phosphorus, yellow phosphorus, celluloid, etc.)
○
Sharp things, such as nails, razors or glass.
○
Solidification materials, such as cement powder and toner, and conductive fine
dusts, such as metal powder and carbon powder.
11. Set the filter correctly before use. Do not use the appliance without the filter or with
it set in a wrong position, or do not use a torn filter. May cause failures, such as
motor burnout.
12. This appliance is only used indoors. Never use it outdoors. Do not use in the rain.
Keep away from water or oil.
Malfunction may result as this appliance is not waterproof.
13. Do not use the appliance with its suction opening or exhaust opening obstructed.
The temperature of the motor may rise abnormally, causing troubles such as
deformation of parts or motor burnout.
14. Do not operate the appliance when the suction opening is blocked.
The motor may overheat, causing deformation of parts or malfunction of the motor.
15. When you drop or bump the appliance accidentally, check for breakage, crack, or
deformation in the appliance. Breakage, crack or deformation may cause injuries.
16. When the appliance is out of condition or emits abnormal sound during use,
immediately turn offthe switch and request repair from your local retailer or
authorized servicing agent. If you continue to use the appliance as it is, it may lead
to injuries.
000BookR36DAChS.indb7000BookR36DAChS.indb7 2021/04/1613:07:032021/04/1613:07:03
English
8
SYMBOLS
WARNING
The following show symbols used for the appliance. Be sure that you understand their
meaning before use.
To reduce the risk of injury, user must
read instruction manual. Direct current
V Rated voltage Warning
NAME OF PARTS
1. CLEANER
LED light
Housing
Dust Case
Nozzle
Holder
Extension
Pipe
Crevice
Nozzle
Intake
port
Motor
Name
plate
Strap
Indicator Lamp
Switch panel
Battery
Flooring
Nozzle
Fig. 3
2. Battery 3. Battery Charger
Ventilation holes
Terminals
Battery cover
Latch
Battery
<BSL36A18> <UC18YSL3>
Nameplate
Cord
Guide rail
Charge indicator lamp
Ventilation holes
Body
Fig. 4 Fig. 5
000BookR36DAChS.indb8000BookR36DAChS.indb8 2021/04/1613:07:032021/04/1613:07:03
English
9
SPECIFICATIONS
CLEANER
Model R36DA
Voltage 36 V
Motor DC motor
Continuous operating time
(Battery: using BSL36A18)
3 (HIGH) Approx. 15 min.
2 (MID) Approx. 30 min.
1 (LOW) Approx. 60 min.
Suction Work Rate
3 (HIGH) : Approx. 155 W
2 (MID) : Approx. 65 W
1 (LOW) : Approx. 35 W
Dust collecting capacity 560 mL
Battery*BSL36A18: Li-ion 36 V / 18 V
(2.5 Ah / 5.0 Ah 10 cells)
Charger UC18YSL3
Weight 1.6 kg
(BSL36A18 attached)
* Existing batteries (BSL3660/3626/3620, BSL18.... and BSL14.... series) cannot be used with this
appliance.
CHARGER
Model UC18YSL3
Charging voltage 14.4 V – 18 V
Weight 0.6 kg
000BookR36DAChS.indb9000BookR36DAChS.indb9 2021/04/1613:07:042021/04/1613:07:04
English
10
STANDARD ACCESSORIES
In addition to the main unit (1 unit), the package contains the accessories listed in the below.
Table 1
R36DA
(XC)
R36DA
(NN)
Charger (UC18YSL3) 1—
Battery (BSL36A18) 1—
Battery cover 1—
Flooring Nozzle 11
Crevice Nozzle 11
Extension Pipe
(With Nozzle Holder) Nozzle Holder 11
Standard accessories are subject to change without notice.
APPLICATIONS
○
Light-duty vacuuming of dry surfaces
000BookR36DAChS.indb10000BookR36DAChS.indb10 2021/04/1613:07:042021/04/1613:07:04
English
11
BATTERY REMOVAL / INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latches to
remove the battery (see Fig. 6).
CAUTION
Never short-circuit the battery.
2. Battery installation
Match the battery with the unit's groove and firmly press
the battery in until you hear a click (see Fig. 6).
CHARGING
Before using the appliance, charge the battery as follows.
1. Connect the charger’s power cord to the
receptacle.
When connecting the plug of the charger to a
receptacle, the charge indicator lamp will blink in red
(At 1- second intervals).
2. Insert the battery into the charger.
Firmly insert the battery into the charger as shown in
Fig. 7.
Latch
Battery
Handle
Pull out
Insert
Push
Fig. 6
Battery
Guide rail
Charge indicator
lamp
Fig. 7
000BookR36DAChS.indb11000BookR36DAChS.indb11 2021/04/1613:07:042021/04/1613:07:04
English
12
3. Charging
When inserting a battery in the charger, the charge indicator lamp will blink in blue.
When the battery becomes fully recharged, the charge indicator lamp will light up in green.
(See Table 2)
(1) Charge indicator lamp indication
The indications of the charge indicator lamp will be as shown in Table 2, according to the
condition of the charger or the rechargeable battery.
Table 2
Indications of the charge indicator lamp
Charge
indicator
lamp
(RED /
BLUE /
GREEN /
PURPLE)
Before
charging
Blinks
(RED)
Lights for 0.5 seconds. Does
not light for 0.5 seconds. (offfor
0.5 seconds)
Plugged into power
source
While
charging
Blinks
(BLUE)
Lights for 0.5 seconds. Does
not light for 1 second. (offfor
1 second)
Battery capacity at less
than 50%
Blinks
(BLUE)
Lights for 1 second. Does not
light for 0.5 seconds. (offfor
0.5 seconds)
Battery capacity at less
than 80%
Lights
(BLUE)
Lights continuously Battery capacity at more
than 80%
Charging
complete
Lights
(GREEN)
Lights continuously
(Continuous buzzer sound:
about 6 seconds)
Overheat
standby
Blinks
(RED)
Lights for 0.3 seconds. Does
not light for 0.3 seconds. (offfor
0.3 seconds)
Battery overheated.
Unable to charge.
(Charging will commence
when battery cools)
Charging
impossible
Flickers
(PURPLE)
Lights for 0.1 seconds. Does
not light for 0.1 seconds. (offfor
0.1 seconds)
(Intermittent buzzer sound:
about 2 seconds)
Malfunction in the battery
or the charger
000BookR36DAChS.indb12000BookR36DAChS.indb12 2021/04/1613:07:052021/04/1613:07:05
English
13
(2) Regarding the temperatures and charging time of the rechargeable battery
The temperatures and charging time will become as shown in Table 3.
Table 3
Charger UC18YSL3
Battery
Type of battery Li-ion
Temperatures
at which the
battery can be
recharged
0 oC – 40 oC
Charging
voltage V 14.4 18
Charging
time,
approx.
(At 20oC)
BSL14xx series BSL18xx series Multi volt
series
(4 cells) (8 cells) (5 cells) (10 cells) (10 cells)
min.
BSL1415S : 15
BSL1415 : 15
BSL1415X : 15
BSL1420 : 20
BSL1425 : 25
BSL1430C: 30
BSL1430 : 20
BSL1440 : 26
BSL1450 : 32
BSL1460 : 38
BSL1815S : 15
BSL1815 : 15
BSL1815X : 15
BSL1820 : 20
BSL1825 : 25
BSL1830C: 30
BSL1850C: 32
BSL1830 : 20
BSL1840 : 26
BSL1850 : 32
BSL1860 : 38
BSL36A18 : 32
BSL36B18 : 52
USB
Charging
voltage V5
Charging
current A2
NOTE
○
The recharging time may vary according to the ambient temperature and power source
voltage.
○
USB recharging function is not equipped with Taiwan model.
4. Disconnect the charger’s power cord from the receptacle.
5. Hold the charger firmly and pull out the battery.
NOTE
Be sure to pull out the battery from the charger after use, and then keep it.
Regarding electric discharge in case of new batteries, etc.
As the internal chemical substance of new batteries and batteries that have not been used
for an extended period is not activated, the electric discharge might be low when using
them the first and second time. This is a temporary phenomenon, and normal time required
for recharging will be restored by recharging the batteries 2 – 3 times.
000BookR36DAChS.indb13000BookR36DAChS.indb13 2021/04/1613:07:052021/04/1613:07:05
English
14
How to make the batteries perform longer.
(1) Recharge the batteries before they become completely exhausted.
When you feel that the power of the tool becomes weaker, stop using the tool and recharge
its battery. If you continue to use the tool and exhaust the electric current, the battery may
be damaged and its life will become shorter.
(2) Avoid recharging at high temperatures.
A rechargeable battery will be hot immediately after use. If such a battery is recharged
immediately after use, its internal chemical substance will deteriorate, and the battery life
will be shortened. Leave the battery and recharge it after it has cooled for a while.
CAUTION
○
If the battery is charged while it is heated because it has been left for a long time
in a location subject to direct sunlight or because the battery has just been used,
the charge indicator lamp of the charger lights for 0.3 seconds, does not light for
0.3 seconds (offfor 0.3 seconds). In such a case, first let the battery cool, then
start charging.
○
When the charge indicator lamp flickers (at 0.2-second intervals), check for and
take out any foreign objects in the charger’s battery connector. If there are no
foreign objects, it is probable that the battery or charger is malfunctioning. Take it
to your authorized Service Center.
○
Since the built-in micro computer takes about 3 seconds to confirm that the battery
being charged with UC18YSL3 is taken out, wait for a minimum of 3 seconds before
reinserting it to continue charging. If the battery is reinserted within 3 seconds, the
battery may not be properly charged.
○
When disposing of the battery, remove it from the appliance and dispose of it safely.
○
When not using the appliance for long period of time, detach the battery from the
appliance.
○
Do not allow the charging terminals to become short-circuited.
○
When inserting the battery, ensure that the polarity direction is correct.
PRIOR TO OPERATION
1. Setting up and checking the work environment
Check if the work environment is suitable by following the precautions.
2. Mounting and dismounting the filter
Before using the appliance, check that the filter is securely mounted.
(1) Remove the dust case (Fig. 8)
Looking at the dust case from the intake port, turn it counterclockwise for
approximately 120 degrees to align the protruding marks on the dust case and the
housing, and then pull it off.
(2) Remove the filter. (Fig. 9)
Turn the filter clockwise to remove it from the housing.
(3) Check the filter (Fig. 10)
Check the filter for damage and contamination.
000BookR36DAChS.indb14000BookR36DAChS.indb14 2021/04/1613:07:052021/04/1613:07:05
English
15
Fig. 10
Filter
free of
debris
and dust
Rubber not
deteriorated
Connector
free of
damage
Filter
Fig. 9
Turn clockwise
Remove
Housing
Filter holder
Filter
Hold here
Fig. 8
Tighten
Protruding marks
Dust
Case
Intake Port
Housing
Remove
(4) Install the filter (Fig. 11)
When installing the filter, press the housing on with the projections in a horizontal
position. Then, turn the filter until the projections are fixed in the grooves of the
housing.
Filter
Projections
Filter holder
Projection
Fig. 11
Push in
Turn to
secure
Housing
Grooves
Housing Grooves
(5) Install the dust case (Fig. 12)
Place the dust case over the housing, making sure that the protruding marks on both
are aligned. Then, turn the dust case clockwise for approximately 120 degrees.
* The dust case can also
be installed with the
nozzle facing upwards.
Fig. 12
Protruding Marks
Align the
protruding
marks
Dust Case
Housing
Turn clockwise
for approximately
120 degrees
Dust Case
NOTE
If the filter is not properly fitted, dirt or grime can enter the fan unit and cause damage or
malfunction.
000BookR36DAChS.indb15000BookR36DAChS.indb15 2021/04/1613:07:052021/04/1613:07:05
English
16
THE SWITCH PANEL
CAUTION
Do not subject the switch panel to shock or damage.
1. Switch operation (Fig. 13)
The vacuum of the appliance can be switched
between three stages of operation, depending on
your need.
When the power is off, pressing the 3 button or
the 2 / 1 button will switch the appliance on. At the
same time, the LED light will switch on. To switch
between MID mode and LOW mode, press the 2 / 1
button.
To suppress noise when using the appliance, switch
to 1 mode.
To shut offthe appliance, press the
Ø
button. This will also switch offthe LED light.
Mode Continuous operating time
BSL36A18
3 (HIGH) Approx. 15 min.
2 (MID) Approx. 30 min.
1 (LOW) Approx. 60 min.
∗
Continuous operating time will vary according to battery condition.
Please use the table as a guideline.
2. The Indicator Lamp (Fig. 14)
Notice about filter cleaning
If the filter becomes clogged and suction power decreases, the
indicator lamp will flash.
And the main unit will make a pulsing sound. However, this is not a sign of a fault.
If this happens, promptly empty the dust case and clean the filter. (See “EMPTYING THE
DUST CASE” on page 20.)
Notice about intake port blockage
If the intake port becomes blocked during use - for example while vacuuming carpets - the
main unit will make a pulsing sound, the indicator lamp will flash. However, this is not a sign
of a fault.
Clear the blockage from the intake port if this happens.
NOTE
If running continuously when the filter becomes clogged or the intake port becomes
blocked, the appliance will stop running by temperature protection of the motor.
OFF Button
Fig. 13
Switch Panel
Indicator Lamp
HIGH Mode
MID/LOW Mode
LED light
Indicator
Lamp
3
2
1
Ø
Fig. 14
000BookR36DAChS.indb16000BookR36DAChS.indb16 2021/04/1613:07:062021/04/1613:07:06
English
17
HOW TO USE
WARNING
To prevent accidents when installing or removing the rechargeable battery, make
sure that the appliance is switched off.
CAUTION
○
Make sure that the rechargeable battery
is properly installed. If not properly
installed, the battery may fall out,
causing injury.
○
Make sure the filter is installed when
operating the appliance. Failure to do so
may result in injury or malfunction.
1. Verify the filter (Fig. 15)
Check to make sure the filter is installed.
At the same time, check to make sure the filter is not damaged or dirty. (See "Check the
filter" on page 14.)
2. Attach the nozzle (Fig. 16)
Depending on the operation, insert the nozzle to the intake port of the appliance. The
appliance can be used without a nozzle.
NOTE
When attaching the nozzle or extension pipe, insert as you twist in the direction indicated by
the arrow. (Fig. 17)
Twist in the direction indicated by the arrow when detaching as well.
Twisting in the opposite direction could result in detaching the dust case from the housing.
Fig. 17
Housing
Nozzle and
Extension Pipe
Detach
Twist
Direction
Insert
Dust Case
Extension Pipe
Nozzle
Fig. 16
Fig. 15
Filter
Filter holder
Dust Case Housing
000BookR36DAChS.indb17000BookR36DAChS.indb17 2021/04/1613:07:062021/04/1613:07:06
English
18
3. Install the battery (Fig. 18)
As shown in the diagram below, firmly insert until a click is heard.
4. Switch on the appliance (Fig. 19)
Press the button for the mode you wish to operate.
(See "THE SWITCH PANEL" on page 16.)
Firmly insert Battery
Fig. 18
Switch
LED light
Fig. 19
CAUTION
○
Do not expose directly your eye to the light by looking into the LED light.
If your eye is continuously exposed to the LED light, your eye will be hurt.
○
If the intake port becomes blocked during use -for example while vacuuming
carpets -the main unit will make a pulsing sound, the indicator lamp will flash.
However, this is not a sign of a fault.
Clear the blockage from the intake port if this happens.
○
When using 3 mode on certain surfaces, such as carpets, the suction force may
make the action feel heavy. If this occurs, switch to 2 or 1 mode instead.
5. Remaining battery indicator
(1) Battery
You can check the battery’s remaining capacity
by pressing the remaining battery indicator
switch to light the indicator lamp. (Fig. 20,
Table 4)
The indicator will shut offapproximately
3 seconds after the remaining battery indicator
switch is pressed.
It is best to use the remaining battery indicator
as a guide since there are slight differences
such as ambient temperature and the condition
of the battery.
NOTE
Also, the remaining battery indicator may vary from that equipped to a charger.
Fig. 20
Remaining battery
indicator switch
Remaining battery
indicator lamp
Display panel
000BookR36DAChS.indb18000BookR36DAChS.indb18 2021/04/1613:07:062021/04/1613:07:06
English
19
Table 4
State of lamp Battery Remaining Power
Lights ;
The battery remaining power is over 75%.
Lights ;
The battery remaining power is 50% – 75%.
Lights ;
The battery remaining power is 25% – 50%.
Lights ;
The battery remaining power is less than 25%.
Blinks ;
The battery remaining power is nearly empty. Recharge the battery
soonest possible.
Blinks ;
Output suspended due to high temperature. Remove the battery
from the tool and allow it to fully cool down.
Blinks ;
Output suspended due to failure or malfunction. The problem may
be the battery so please contact your dealer.
As the remaining battery indicator shows somewhat differently depending on ambient
temperature and battery characteristics, read it as a reference.
NOTE
Do not give a strong shock to the switch panel or break it. It may lead to a trouble.
000BookR36DAChS.indb19000BookR36DAChS.indb19 2021/04/1613:07:072021/04/1613:07:07
English
20
EMPTYING THE DUST CASE
CAUTION
○
To prevent accidents, make sure the power is switched offand remove the
rechargeable battery from the appliance.
○
Do not subject the dust case to strong impacts
as this may cause deformation or damage.
○
Empty the dust case frequently and keep
the appliance, filter, etc. clean. Failure to
do so may reduce vacuuming efficiency or
cause malfunction of the motor or odor.
1. Turn the dust case and pull it from the housing.
(Fig. 21)
NOTE
Point the intake port downward as dust can spill
when removing the dust case.
2. Dispose the dust in the dust case.
3. If the suction does not recover after disposing
the dust, clean the filter.
4. Attach the filter and dust case to the housing.
Effectively removing dust (Fig. 22)
The appliance has a built-in mechanism for
scraping offdust attached to the filter when
removing the dust case.
To even more effectively scrape offthe dust,
repeatedly turn the dust case back and forth
(2 to 3 times or more).
Holding the unit so that the dust case does not
detach from the housing, slightly and repeatedly
turn the dust case in the indicated directions.
Fig. 21
Point the intake port downward
Remove
Housing
Dust Case
Dust Case
Dust
Fig. 22
Dust Removal Blades (3)
(Fixed to the inside of the
dust case)
Filter
Dust
Dust Case
Turn the dust case back and
forth for 2 or 3 times
000BookR36DAChS.indb20000BookR36DAChS.indb20 2021/04/1613:07:072021/04/1613:07:07
Table of contents
Other Koki Holdings Ultrasonic Jewelry Cleaner manuals
