bizhub 423/363/283/223
Monochrome multifunction devices
for lower cost of ownership

bizhub 423/363/283/2232bizhub 423/363/283/2232
Konica Minolta has developed a multifunction device
with the user in mind. The bizhub 423/363/283/223 cuts
your costs of ownership and reduces your impact on the
environment while you do business.
Plus the new bizhub 423/363/283/223 black-and-white multifunction device boasts
colour scanning, enabling you to easily share your colour and monochrome documents.
The multifunction device designed
to cut more than your costs

3
Q) How do I incorporate colour documents in my
monochrome workflow?
Colour Scanning – You can digitise, save, share and
reuse colour documents easily by scanning them and
printing in monochrome.
Q) How do I streamline my office’s document
management needs?
Smart Output Management and Unified Firmware –
You can choose between biometric* and non-contact
IC* card authorisation to suit your application, and
energy and paper usage can be controlled by several
copy number, print and fax output functions. Universal
management of all your multifunction devices is easy
on your network because the 423 series uses the same
firmware as colour models in the bizhub range of products.
* Option
Q) How do I minimise my environmental impact
and total product lifecycle costs?
Total Design Philosophy – Using less materials in
construction, the 423 series complies with environmental
regulations, offers low energy use, respects the environment
and helps your bottom line.
The bizhub 423 Series
has the answer

bizhub 423/363/283/2234
Toner Recycling Mechanism
With the bizhub 423/363/283/223 you can recycle
untransferred toner to reduce the generation
of toner waste.
The cleaning blade removes all toner that is not
transferred from the photoconductor and carries
it through the recycle duct to the developing unit.
Environmentally Kind Toner
In 2000, Konica Minolta introduced the revolutionary new
Simitri toner, the world’s first polymerised toner for digital
monochrome multifunction devices, made from biomass,
a plant-based resource. The result is perfect images
printed with minimal environmental impact.
It’s Quiet
The bizhub 423 series is the quietest multifunction
device in its class in standby mode. High performance
doesn’t mean high noise levels, with the ADF featuring
noise reduction to minimise interference in your working
environment.

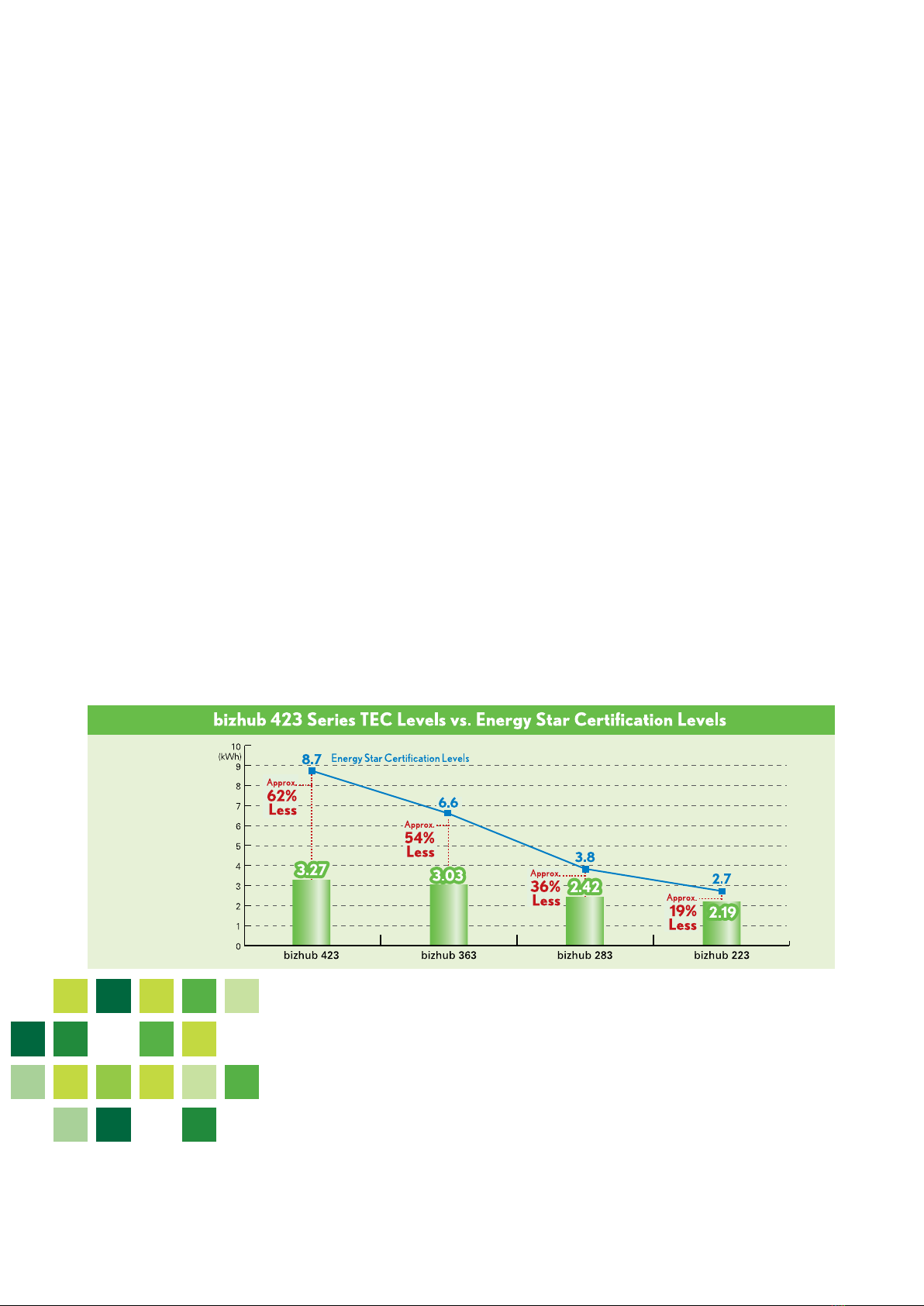

Save Your Energy
You can save on energy costs with the bizhub 423
series. Its TEC* values gain Energy Star certification
with ease, surpassing them by up to 62% in the case
of the bizhub 423.
* TEC (Typical Electricity Consumption) is the method used by Energy Star.
Consider the
environment
You can save the world’s resources while you work, and at the same
time ensure that your office is a pleasant working environment.

5
The bizhub 423 series brings many
of the features of colour multifunction
devices together with monochrome
output to keep running costs as low
as possible.
Colour Scanning
You can store and share colour documents using the
inbuilt colour scanner, while reducing costs by printing
in monochrome.
High Quality Monochrome Output
You can print high quality monochrome output without having
to worry about gradation shifts. Optimised screens ensure
that the print engine minimises gradations and graininess.
Image Processing Engine
A new ASIC image processing engine ensures high quality
monochrome prints.
Open API
Workflows can be customised using Konica Minolta’s
proprietary API system.
Integration with Colour multifunction devices
Colour devices can be completely integrated through
newly developed firmware.
Simitri HD Toner with Biomass
The bizhub 423 series boasts Simitri HD Toner
with biomass. Simitri HD Toner ensures brilliant
image quality every time.

Exceptional
document handling
High Speed Network Scanning
Your office can experience the benefits of a colour workflow
without the costs. The bizhub 423 series can scan at a speed
of 70 opm, in colour or monochrome, and automatically
detect mixed colour/monochrome and mixed size
documents without pre-scanning, saving you more time.
Multi-Method Send
This time-saving function enables you to scan a
document and send the data to several destinations
at once, including PCs, email addresses, and more.
You can also send documents to numerous contacts
with varying network environments.
Scan to SMB
Send scanned data directly to a shared folder on a PC.
Scan to FTP/WebDAV
Send large or multiple documents to a server
to make saving and sharing easier and quicker.
Scan to Box
Send documents to the Box, from which they can
be sent or shared.
Scan to USB Memory
Scan documents directly to an attached USB device
for even greater convenience and security.
Scan to E-mail
Send documents to e-mail addresses as attachments.
This function is compatible with S/MIME encryption
and LDAP to retrieve addresses easily.
6bizhub 423/363/283/223
The bizhub 423 series delivers the kind of high performance
you expect to find on more costly multifunction devices.

For a Smoother Workflow
PageScope Web Connection
Information on the device’s status and settings
can be found on a web based network utility.
PageScope Workware
This manages data as PDF files to enable easy
editing, processing and searching.
Box Function
Saves scan, copy, print or fax data to the Box,
making information sharing easier than ever.
PageScope Box Operator
This function lets you view, download, reprint,
rename and delete files stored in the User Box.
7

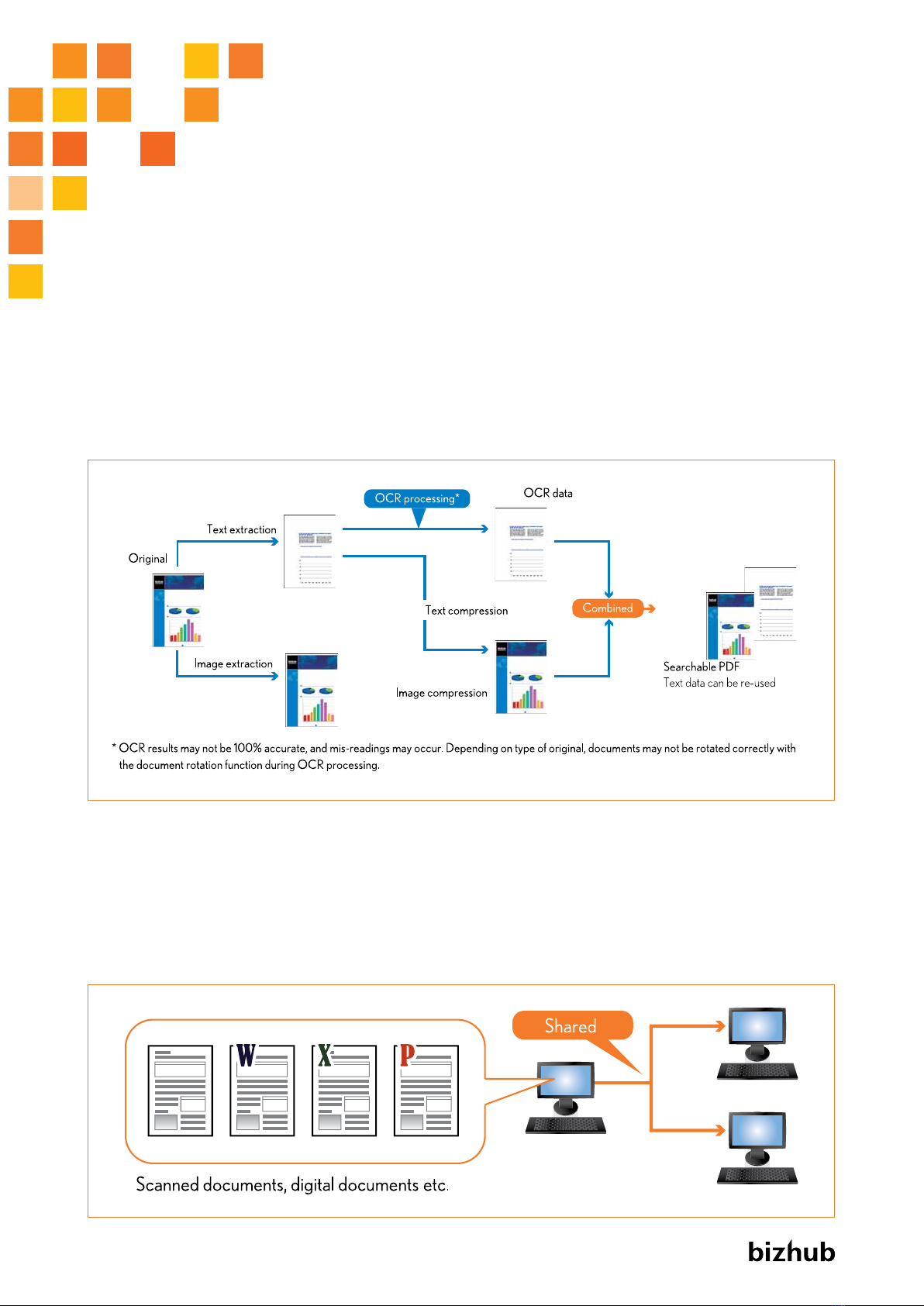

Searchable PDF*
You can save scanned documents as PDF files
with selected text and data using Optical Character
Recognition (OCR) processing. You can also search
for keywords in the PDF text, and copy and paste the
desired text into other applications.
* Optional.
Compact PDF
The Compact PDF function can automatically separate
a large file into text and photo areas, to reduce the size
of PDF files for easier saving and sending. Image quality
is preserved as per the original.

bizhub 423/363/283/2238
Better performance,
easier to use
Konica Minolta makes complex
processes easy to accomplish by
focusing on the needs of every
user and addressing them directly.

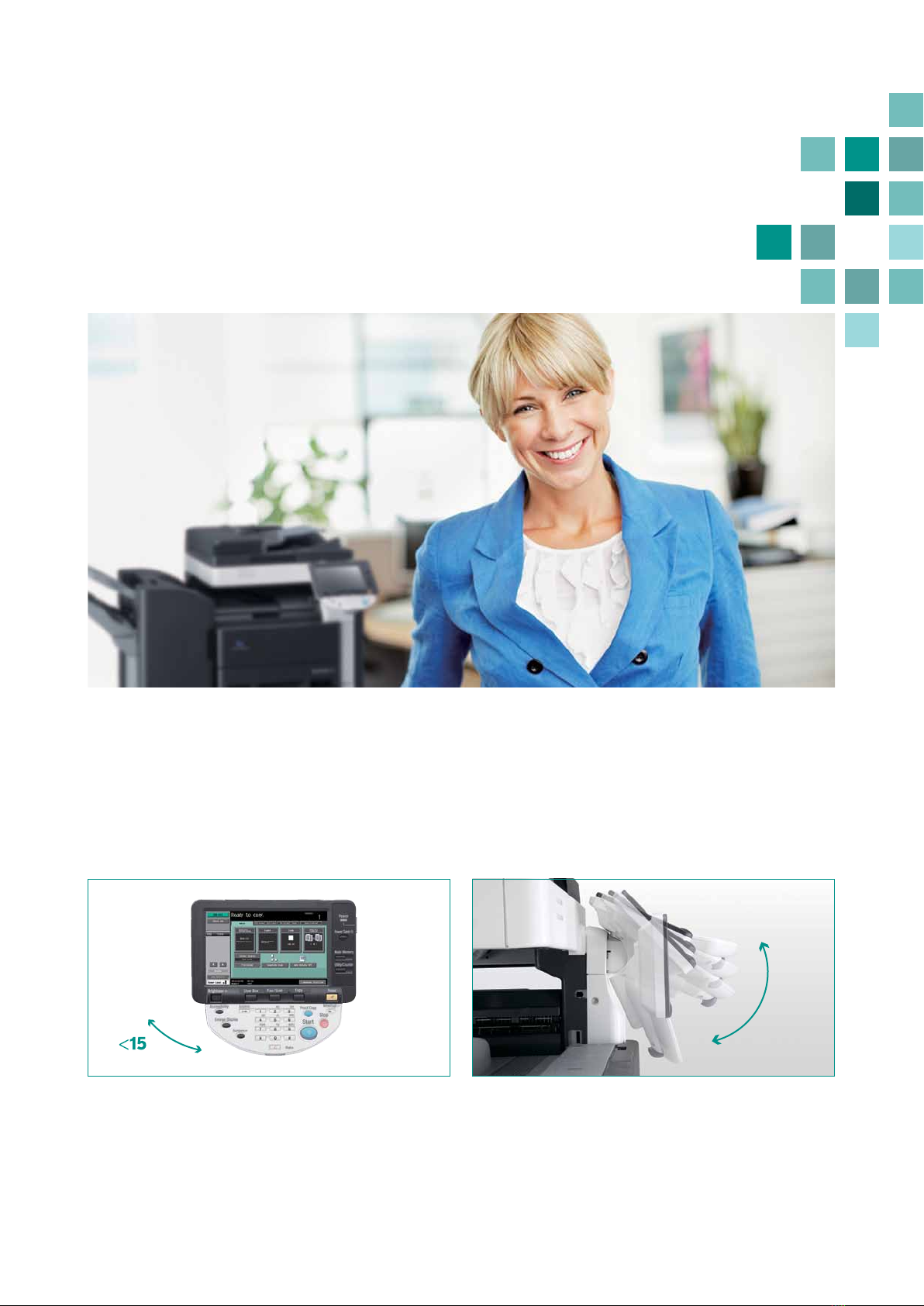

Colour LCD Panel
The new bizhub 423 series uses a large 216 mm colour
LCD screen with four adjustable tilt angles for easy
viewing. The intuitive layout and easy-to-read interface
promises hassle free navigation.
°

9
Guide Functions
Two Guide functions make it easier than ever to use features.
The Guidance function shows information for the feature
currently being used, and the Animation Guidance takes
users through the process of removing paper jams.
Easy Setting Keys
Easy access to as many as four common functions
can be set up and displayed on the main menu.
Universal Design
Everyone in your office can open, close and replenish
the paper trays with the easy-to-use overhand and
underhand grips.
Stylish Design
The new bizhub 423 series will make a stylish statement
in your office with its stylish infoline design.

bizhub 423/363/283/22310
FS-527 Floor Finisher
The FS-527 offers stapling, optional saddle-stitching
and hole punching for easy preparation of high quality
presentation materials and reports. The optional JS-603
Job Separator can divide finished documents between
three trays to suit different delivery destinations.
FS-529 Inner Finisher
This is situated inside the main body to save floor space,
and offers stapling and separating functions.
JS-505 Job Separator
The optional JS-505 Job Separator can divide finished
documents to suit different delivery destinations.
Comprehensive
output solutions
Fold
Tri-Fold
(SD-508 only)
Centre staple
and folding
Booklet Function
& Folding
Function
Finisher FS-527 +
Saddle Sticher
SD-509
Up to 15 sheets
4-hole2-hole top
Hole Punching
Function
2-hole
Finisher FS-527 +
Punch Kit PK-5178
Punch Paper
Up to 256g/m2
Finishing Tasks and Necessary Options
2-point staple
(Side)
Corner
staple
FS-527
Stapling Function
Finisher FS-527
Up to 50 sheets
2-point staple
(Side)
Corner
staple
FS-529
Stapling Function
Finisher FS-529
Up to 50 sheets
The bizhub 423 series enables you to be more productive. At the same time
it can reduce valuable time and resources saving you money.
Diverse Finishing Options
Whatever your demands in finishing options, the bizhub 423 series provides a solution to suit.
Choose the floor finisher for a wide range of features, or the internal finisher to save floor space.

11
Quick Start
The bizhub 423 series is capable of a warm-up time of
just 12 seconds or less when in Sleep Mode, and a first
copy output time of just 3.6 seconds or less. This ensures
greater productivity and reduced energy consumption.
Duplex/n-in-1 Copy & Print
Save paper and reduce print costs by using the n-in-1
function to print up to 16 pages on one sheet, or 8 pages for
copying. The optional Reverse ADF makes duplex copying
and printing a breeze, again saving on costs and paper.
Network Print
Konica Minolta’s proprietary Emperon print controller
enables standard network printing, whatever the combination
of operating systems you may have on your network.
Paper Capacity
There are two 500-sheet universal trays and a 150-page
multi-bypass tray as standard, for a maximum paper capacity
of 3,650 sheets with the PC-409 Paper Feed Cabinet.
The multi-bypass tray can handle stocks up to 210gm/m,
providing even greater choice in finished document options.
Maximum Capacity: 3,650 (80gm/m) with the optional
PC-409 Paper Feed Cabinet
Compatible Media: 60-90gm/m (main unit); 60-210gm/m
(Multiple Bypass tray)
More Copy and Print Functions
•Booklet Copy & Print
•Direct Print from USB
memory device
•Print & Save Files from mobile
devices (Bluetooth)
•Card Copy •IPv6 Compatible

bizhub 423/363/283/22312
IP Address Fax
Send a colour or monochrome fax to any SMTP-compatible
device or bizhub on the network that supports IP Fax,
by simply selecting an IP address. This feature uses existing
network systems and does not incur additional costs.
TSI Routing
Transmitting Subscriber Identification (TSI) recognises
and sorts faxes by sender, whether they are individuals
or organisations. All faxes from each sender can be
automatically received and stored in a folder in the Box.
Faxes can be sent separately to an e-mail, FTP or SMB
server, providing extra convenience for users absent
from the office.
Colour Internet Fax
This standard feature enables cost-efficient
transmission of colour and monochrome faxes to any
multifunction device that supports Profile C standard,
including those outside the intranet. This method takes
advantage
of your pre-existing internet infrastructure, helping
to reduce costs even further.
PC Fax*
The bizhub 423 series enables users to send data
directly from a PC to any fax, cutting paper waste
and reducing total cost of ownership because it is
not necessary to print before faxing.
* Optional
Extra Fax Functions
Super G3 Fax (optional) – Send high-speed, high
quality images by fax, with exceptional cost performance.
Spam Fax Protection – Incoming faxes can
be stored temporarily on the HDD as thumbnails
and checked before printing.
Memory Reception – Documents can be received,
stored in memory and printed as required.
Multi-Port Fax (optional) – Send faxes to two
destinations at once.
Address Registration – Store up to 2,000 individual
and 100 group addresses and fax numbers for quick
access and easy sending.
Cost effective
fax solutions
The bizhub 423 series keeps information flowing with a range
of advanced fax features, while keeping costs to a minimum.

13
Biometric Authentication*
This authentication process scans
the unique finger veins of users so
that only registered users may operate
the multifunction device. This means
that cards and passwords are no
longer required, making the job of
administrators much easier and
simplifying the process for users.
* Optional
Non-Contact IC Card Authentication*
Pre-existing employee cards can be used
with this security method so extra cards
are not necessary. IC cards may also be
used to authenticate or restrict entry to
certain rooms or floors for added security.
* Optional
User Authentication
There is a standard authentication system in the body of the
bizhub 423 series. For situations where there are no servers,
users and departments can set permission for greater control
of output and reductions in costs.
Copy Security*
(Copy Guard and Password Copy)
Documents can be copied or printed with a special
security pattern when Copy Guard is used, to prevent
unauthorised copies. This function can be cancelled
with the use of a password to allow the document
to be copied again.
* Optional
Total security

bizhub 423/363/283/22314
Total security (continued)
Device Management
PageScope Enterprise Suite
The web-based PageScope Enterprise Suite was developed
to streamline the management and administration of the
device, thereby controlling costs. Five optional modules
simplify tasks that were once time consuming.
1. PageScope Authentication Manager
This enables simple and efficient setting of authentication
data for each user for multiple multifunction devices on a
network. User management is integrated and streamlined.
2. PageScope Account Manager
This simplifies aggregate analysis and management
of network devices. Analysing detailed usage conditions,
estimating costs and graphing the aggregate results help
to reduce unnecessary costs and to manage costs on
a group basis.
3. Pagescope My Panel Manager
The control panel setting desired by each user can be
customised and simultaneously stored in multiple bizhubs.
4. PageScope Net Care Device Manager
System administrators can create initial settings for devices
managed by PSES for streamlined device control.
5. Pagescope My Print Manager
Documents can be released from any managed device
to facilitate printing, so it is not necessary to check for
the nearest device when sending a print job.
More Security Features
• FaxSecurity*
• NDSAuthenticationoverTCP/IP
• HDDLock
• ScantoMeandScantoHome
• IEEE802.1XCompatibility
• HDDEncryption
• RandomEraseFormatting
• JobLog
• POPbeforeSMTP
• HDDAutoDeletion
• EncryptedPDFFunction*
* Optional

15
Technical
specifications
6 PCL 5e/c
gsm
gsm
gsm
gsm
Console

New South Wales
4 Drake Avenue
Macquarie Park NSW 2113
[phone]
Victoria
21-29 Moray Street
Southbank VIC 3006
[phone]
Queensland
64 Brookes Street
Bowen Hills QLD 4006
[phone]
ACT
78 Barrier Street
Fyshwick ACT 2609
[phone]
South Australia
255 Gilbert Street
Adelaide SA 5000
[phone]
Western Australia
50 Belgravia Street
Belmont WA 6104
[phone]
Konica Minolta
Business Solutions Australia Pty Ltd
Free Call 1800 789 389
konicaminolta.com.au
The Konica Minolta logo and the symbol mark, are registered trademarks or trademarks of
Konica Minolta Holdings, Inc. bizhub, PageScope, Simitri and the Emperon logo are registered
trademarks or trademarks of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
Windows is registered trademark of Miscrosoft Corporation in the United States and other countries.
Adobe and PostScript are registered trademarks or trademarks of Adobe Systems Incorporated.
All other brand and product names are registered trademarks or trademarks of their respective owners.
