Konica Minolta bizhub C650 Series User manual

Issued by BT-CSO Ver 1.03 1
2008/05/27
Ver.1.03
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
CS Operations
bizhub C203/C253/C353/C451/C550/C650
LK-101 LK-102 LK-103
License Authentication Operation Guide

Issued by BT-CSO Ver 1.03 2
Contents
About this guidebook ...................................................................................... 4
Outlines of Functions ...................................................................................... 4
Input/ Display confirmation procedure when operation the license
management..................................................................................................... 8
About upgrade of firmware.............................................................................. 9
Upgrade Instruction and instruction when using functions added from
i-Option.............................................................................................................. 9
Instruction for part replacement ..................................................................... 9
Activation........................................................................................................ 10
•Overview of Activation Operation.......................................................................10
•Necessary Hardware............................................................................................10
•Necessary Information ........................................................................................ 11
•Relation of Hardware, Requirement/ Condition, and Information ................... 11
•Flow chart for Activation.....................................................................................12
•Activation using [License Install Utility]............................................................13
•Activation Procedure...........................................................................................14
Deactivation.................................................................................................... 31
•Overview of Deactivation operation...................................................................31
•Necessary Hardware............................................................................................31
•Necessary Information ........................................................................................32
•Relation of Hardware, Requirement/ Condition, and Information ...................32
•Flow chart for Deactivation.................................................................................33
•Deactivation Procedure.......................................................................................35
Repair .............................................................................................................. 45
•Overview of Repair Operation.............................................................................45
•Necessary Hardware............................................................................................46

Issued by BT-CSO Ver 1.03 3
•Necessary Information ........................................................................................46
•Relation of Hardware, Requirement/ Condition, and Information ...................46
•Flow chart for Repair ...........................................................................................47
Initialization..................................................................................................... 56
•Overview of Initialization operation....................................................................56
•Necessary Hardware............................................................................................56
•Necessary Information ........................................................................................56
•Relation of Hardware, Requirement/Condition, and Information ....................57
•Flow chart for Initialization..................................................................................58
Operation procedure when executing particular operation........................ 67

Issued by BT-CSO Ver 1.03 4
About this guidebook
From Mosel/ Thames i-Option firmware, the license activation system is newly adopted. Some
additional functions will be available after the license activation. This guidebook explains
outline and operation procedure of License Management.
¾i-Option firmware is also including some additional functions that can be used without
the authentication. For the explanation of those functions. Please refer to the PRI for
the firmware.
Outlines of Functions
¾New “LicenseActivation Base Functions” are included in Mosel/ Thames i-Option
firmware. Activation Base Functions have several types of functions. (Please refer to
the functions listed below.) Those functions are included in the firmware. If you
purchase the license and activate the LicenseActivation Base Functions, the functions
will be available. Also, the function enhancements do not necessaryActivation are
included in the firmware.About those functions, please refer to not this guidebook but
PRI distributed with the firmware or the following chapter.
¾ License Activation Base Functions
In this guidebook, the functions like “LK-101, LK-102, LK-103” (You need to purchase
the license when using these functions.) are called “LicenseActivation Base
Functions”.
LK-101
Web browser function, Image panel, and it is possible to register the picture
(thumbnail) in the address book on the image panel.
LK-102
Enhancement of PDF encryption (response to public key and AES, function that
can write title/ creator when sending PDF file, etc.)
LK-103 LK-103 Includes “LK-101” and “LK-102”.
License Operations
When you start, stop or repair using the license activation base functions, those operations,
Activation, Deactivation, Repair or Initialization, have to be made as you intended. There
are 4 types of License Operations.
License Operations
zActivation
This is the operation to enable License Activation Base Functions and make
the functions operational.

Issued by BT-CSO Ver 1.03 5
It is possible to execute this operation inAdministrator Mode or Service
Mode.
zDeactivation
This is the operation to invalidate the activated License Activation Base
Functions.
It is possible to execute this operation in Service Mode.
zRepair
It is necessary to execute this operation when the error of license
management state is displayed on the control panel. If it occurs, the License
Activation Base Functions are temporarily disabled. To recover the condition,
Repair operation has to be performed.
It is possible to execute this operation in Service Mode.
zInitialization
Execute this operation when the error state is not resolved after performing
Repair. Basically, execute Initialization only when the error of license
management state occurs after performing Repair.
When performing the operation, please confirm that the error of license
management state occurs under what conditions (executed operations, parts
replacement, setting change and so on).
It is possible to execute this operation in Service Mode.

Issued by BT-CSO Ver 1.03 6
Necessary information to perform License operation
You need to get necessary information for each operation and send it to MFP and LMS to
execute the license operations.
Following chart shows necessary information for each operation.
Activation Deactivation Repair Initialization To LMS From LMS
Serial Number X X X X X
Token Number X X X(*1) X(*2) X
Request Code X X X X
License Code X X(*1) X(*2) X
Deactivation code X X
Deactivation Complete Code X X
Repair Request Code (Repair
Demand Code)
X X
Repair Code
(Repair Permission Code)
X X
Initialization Code X X(*3)
*1 If you exchange NVRAM when performing Repair, you need this information.
*2 Require when re-activate the functions after the initialization.
*3 Necessary to contact the support to acquire the code.
Explanation of those Numbers used on those operations/ Codes are as follows.
Serial Number
Serial Number for MFP body.
Token Number
Token Number is printed on the Token Kit, or will be informed when purchasing the
license. You need this number to enable LicenseActivation Base Functions.
Request Code
This is ID Number to recognize the individual MFP. Serial Number information is
also included in the Request Code.
License Management Server (LMS)
The Server performs license management. When you activate/ deactivate or make
other operations for License Activation Base Functions, you need to access the
License Management Server (Web site).

Issued by BT-CSO Ver 1.03 7
License Code
Use this code to MFP when you activate License Activation Base Functions.
License Management Server (LMS) issues this code.
Deactivation Code
This code is issued from LMS. This code is prepared on LMS when the necessary
information is entered in LMS.After receiving the code, you need to enter it in MFP
through the control panel to perform the deactivation.
Deactivation Complete Code
The information indicates to let LMS know the deactivation operation has been
complete properly. MFP issues this code.
Repair Request Code (Repair Demand Code)
On the Service activates the error of license management state may be detected,
and it is displayed on the control panel. At this time, you need to issue Repair
Request to LMS. The information issued to request the Repair Code (Repair
Permission Code).
Repair Code (Repair Permission Code)
When you enter the Repair Request Code (Repair Demand Code) to LMS,
information to solve the error of license management state is issued from LMS.
This information is Repair Code (Repair Permission Code).
Initialization Code
In the event that the error of license management state is not resolved, the license
has to be reset to the initial condition forcibly. The information used to do it is the
initialization code and issued from LMS.
After that, it is necessary to activate the license again, to use the functions.

Issued by BT-CSO Ver 1.03 8
Input/ Display confirmation procedure when operation the license
management
Details about the procedure are described from the next page. You need to execute the
license operation on the LMS/ PC (Web browser)/ MFP panel.
(Image)
It is possible to input/ display information in the following ways.
zUse the printing from MFP.
zDisplay the information on the panel or input the information from panel.
zDisplay the information on the PC. Input the information from (PageScope
Web Connection) or Web browser screen.
* Actual screen may be different from the operation procedure screen in this
guidebook.
LMS
MFP PC

Issued by BT-CSO Ver 1.03 9
Requirements for using License Activation Base Functions
¾You must prepare the followings to use the LicenseActivation Base Functions.
zFirmware for i-Option
zAdditional Memory: Additional Memory is included in Upgrade Kit (UK-201).
zToken Certificate: Token Certificate is included in License Kit (LK-101/102/103).
About upgrade of firmware
¾You need to upgrade to firmware for i-Option to use functions of i-Option.
C650: DLBT0800064*
C550: DLBT0800065*
C451: DLBT0800066*
C353/C253/C203: DLBT0800114*
zAbout firmware version for i-Option and upgrade procedure, please refer to
“Upgrade Procedure to i-Option” in PRI of above CSES numbers.
zWithout upgrade of firmware for i-Option, operation screen for activation is not
displayed on operation panel even if you purchase Token Certificate. Therefore,
you cannot use LicenseActivation Base Functions.
zAfter upgrade is completed, please refer to “Activation Procedure” and perform
Activation of License Activation Base Functions.
Upgrade Instruction and instruction when using functions added from
i-Option
¾Please refer to “Cautions” in the PRI of above CSES numbers.
Instruction for part replacement
¾If you need replacement of NVRAM or Service EEPROM, please exchange it for new
one.

Issued by BT-CSO Ver 1.03 10
Activation
You need to perform Activation to use License Activation Base Functions. The following
is the explanation about theActivation.

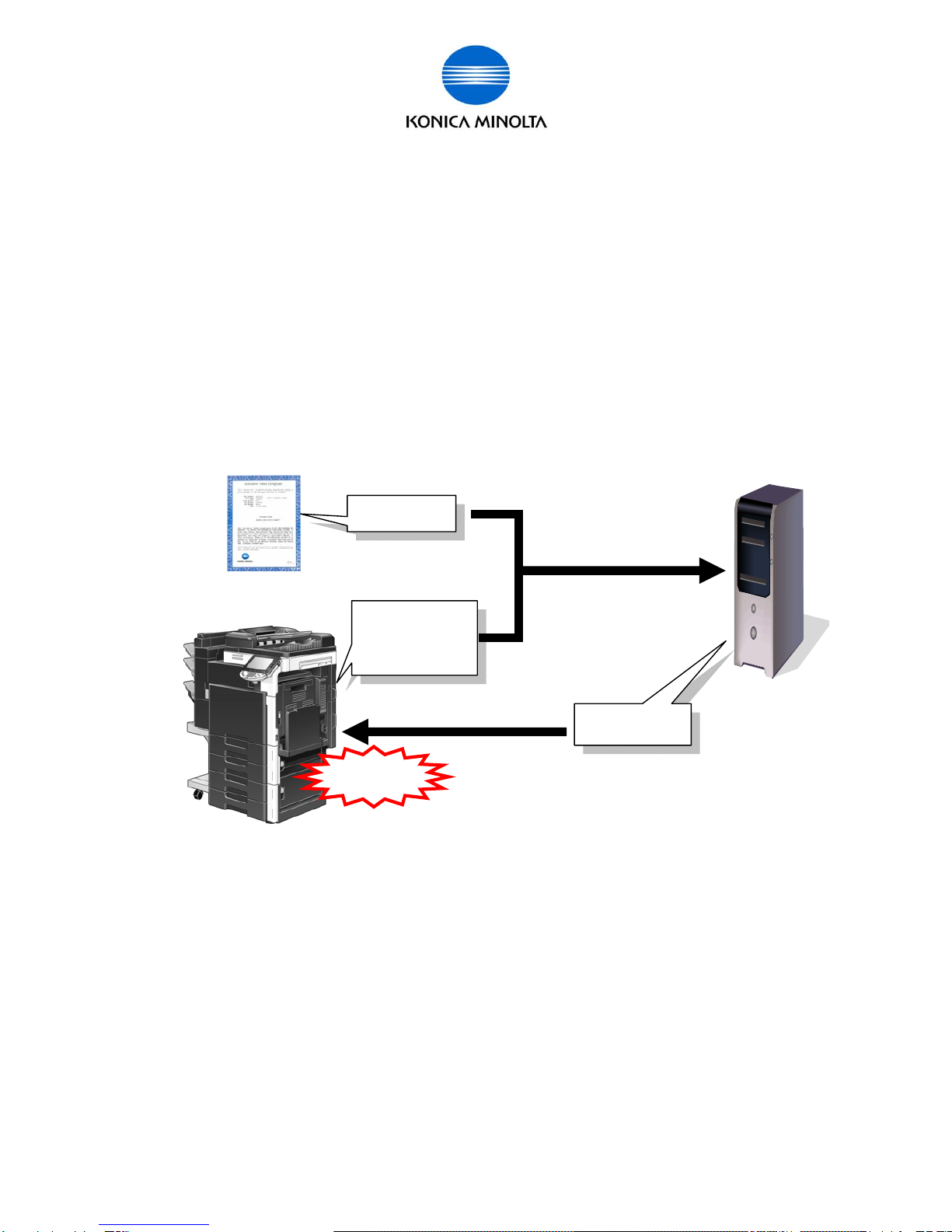

Overview of Activation Operation
Find Token Number on Token Certificate, and get Serial Number and Request
Code from MFP. From PC, access to LMS using Web browser, and input Token
Number, Serial Number and Request Code to LMS. License Code is output from
LMS. If you input the code to MFP, Activation will be completed.
Who to perform the operation
zMFPAdministrator
zCustomer engineer (Sales person)
Necessary Hardware
MFP
Upgrade Kit (UK-201 additional memory etc.)
License Kit (LK-101/LK-102/LK-103, Token Certificate)
PC
License Management Server (LMS) (BT manages this server.)
MFP
Token Certificate
[Serial Number]
[Request Code]
[Token Number]
[License Code]
Activation
Input
Output
Input
LMS

Issued by BT-CSO Ver 1.03 11
Necessary Information
Serial Number (13 digits)
Request Code (30 digits)
Token Number (20 digits)
License Code (30 digits)
Relation of Hardware, Requirement/ Condition, and Information
Necessary Hardware Requirement/ Condition Information
MFP FW for i-Option is installed to
the MFP.
Additional memory (UK-201)
is installed.
[Serial Number]
[Request Code]
License Kit
(LK-101/LK-102/LK-103)
Token Certificate [Token Number]
Upgrade Kit
(UK-201)
Additional memory
Pen etc.
None
PC Web browser
Internet Access environment
None
License Management Server
(LMS)
BT manages this Server. [License Code]

Issued by BT-CSO Ver 1.03 12
Flow chart for Activation
There are 3 steps to perform Activation.
1. Gather Information from MFP/ Kit
2. Access to LMS
3. MFPActivation
The following is the flow chart for theActivation.
4.
Light blue
Yello
w
Pink
Access to LMS using Web browser.
Get the [License Code] from LMS.
Confirm that access to LMS using
Web browser is possible.
Prepare PC
Prepare the MFP
(FW for i-Option)
(additional memory)
Get the
[Serial Number]
[Request Code]
from MFP
Prepare License Kit.
Input the following information to LMS.
[Serial Number]
[Request Code]
[Token Number]
Input [License Code] to MFP and
activate the function (Activation).
Com
p
lete Activation
Find the
[Token Number]
on Token Certificate.

Issued by BT-CSO Ver 1.03 13
Activation using [License Install Utility]
It is possible to issue the License Code from LMS, and activate the MFP function using
License Install Utility. Please refer to the Users Guide of License Install Utility for the
detailed procedure.
Caution:
When you issue the License Code and activate the MFP function, you need to use the
same PC that installed “License Install Utility”.

Issued by BT-CSO Ver 1.03 14
Activation Procedure
The following is the step by step procedure to activate License Activation Base Functions.
1. Gather information from MFP/ Kit
1-1. Find [Token Number] from License Kit.
1-2. Get [Request Code] and [Serial Number] from MFP.
2. Access to LMS
2-1. Access to LMS and get [License Code].
3. MFP Activation
3-1. Input [Function needs Activation] and [License Code] and activate the function.
When use each code, please pay attention “U” and “V”, “0 (number)” and “O (alphabet)”.
“0 (Number)” is not used in [Request Code] and [License Code].
Here are necessary information (operation) and acquisition procedure in the above steps.
Information (operation) Acquisition Procedure Note
Token Number Token Certificate (License Kit) 20 digits alphanumeric
Request Code a) MFP panel
- Administrator Mode
- Service Mode
b) PSWC (Administrator Mode)
30 digits alphanumeric
Serial Number Get Serial number when taking
Request Code.
Serial Number Label
13 digits alphanumeric
EG.) A00H020012345
License Code LMS (Web browser) 30 digits alphanumeric
Activation
(Input License Code)
a) MFP panel
- Administrator Mode
- Service Mode
b) PSWC (Administrator Mode)
*If it is possible to access MFP and LMS from the PC, you can perform the procedure (from
getting Token Number to performing activation) from “License Install Utility”.
(About the detailed procedure, please refer to “License Install Utility” of Users Guide.)

Issued by BT-CSO Ver 1.03 15
1. Gather information from MFP/ Kit
1-1. Find [Token Number] from License Kit.
1-2. Get [Request Code] and [Serial Number] from MFP.
2. Access to LMS
3. MFP Activation
a) Purchase License Kit and get Token
Certificate. •License Kit
(LK-101/ LK-102/ LK-103)
•Token Certificate
b) Token Number is described in Token
Certificate.
20 digits alphanumeric
EG.)1234-5678-90ab-1234-5678

Issued by BT-CSO Ver 1.03 16
1. Gather information from MFP/ Kit
1-1. Find [Token Number] from License Kit.
1-2. Get [Request Code] and [Serial Number] from MFP.
Acquisition procedure: MFP panel <Administrator Mode> •MFP panel <Service Mode> •PSWC
2. Access to LMS
3. MFP Activation

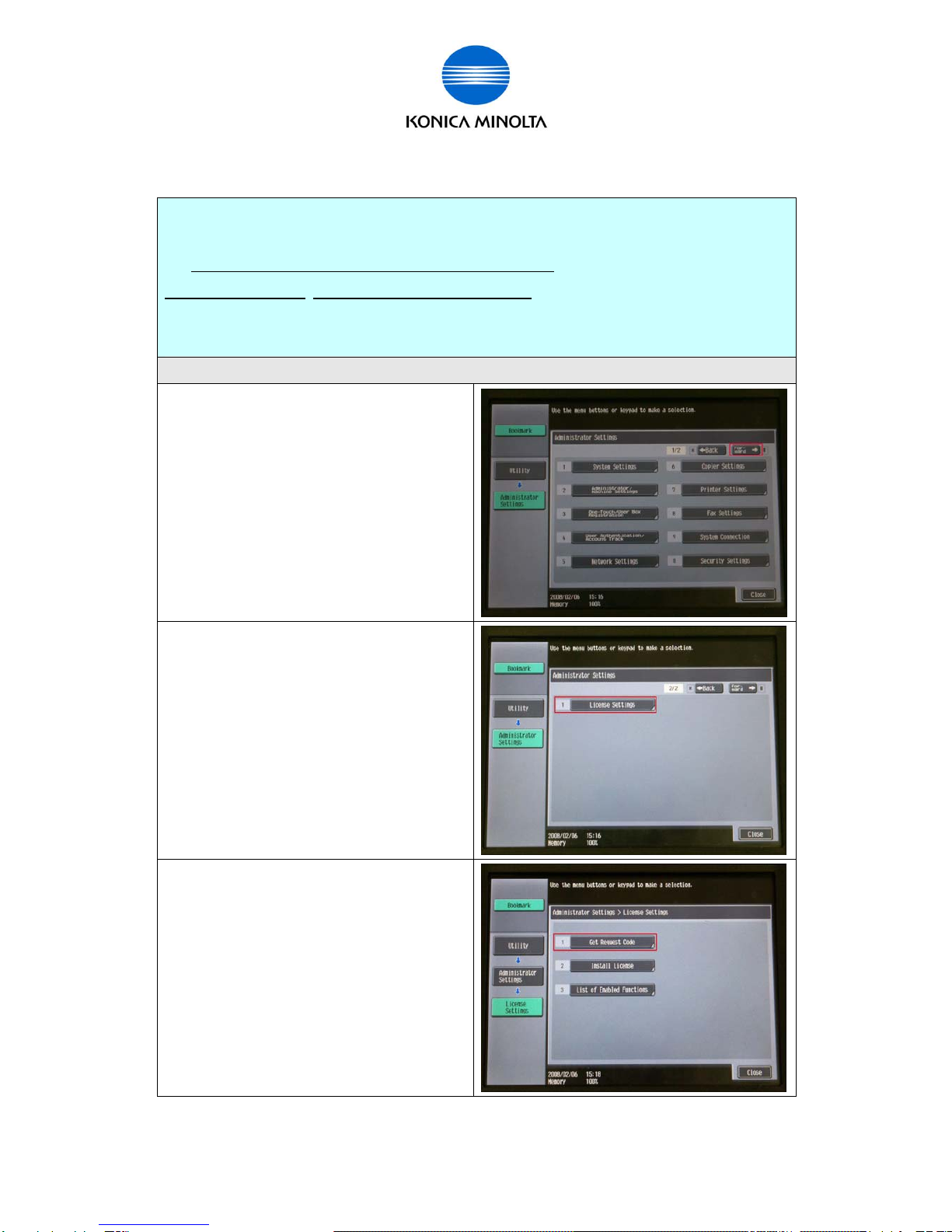

•Get [Request Code] and [Serial Number] from MFP panel <Administrator Mode>.
a) Login to Administrator Mode and press
[Forward].
b) Select [License Settings].
c) Select [Get Request Code].

Issued by BT-CSO Ver 1.03 17

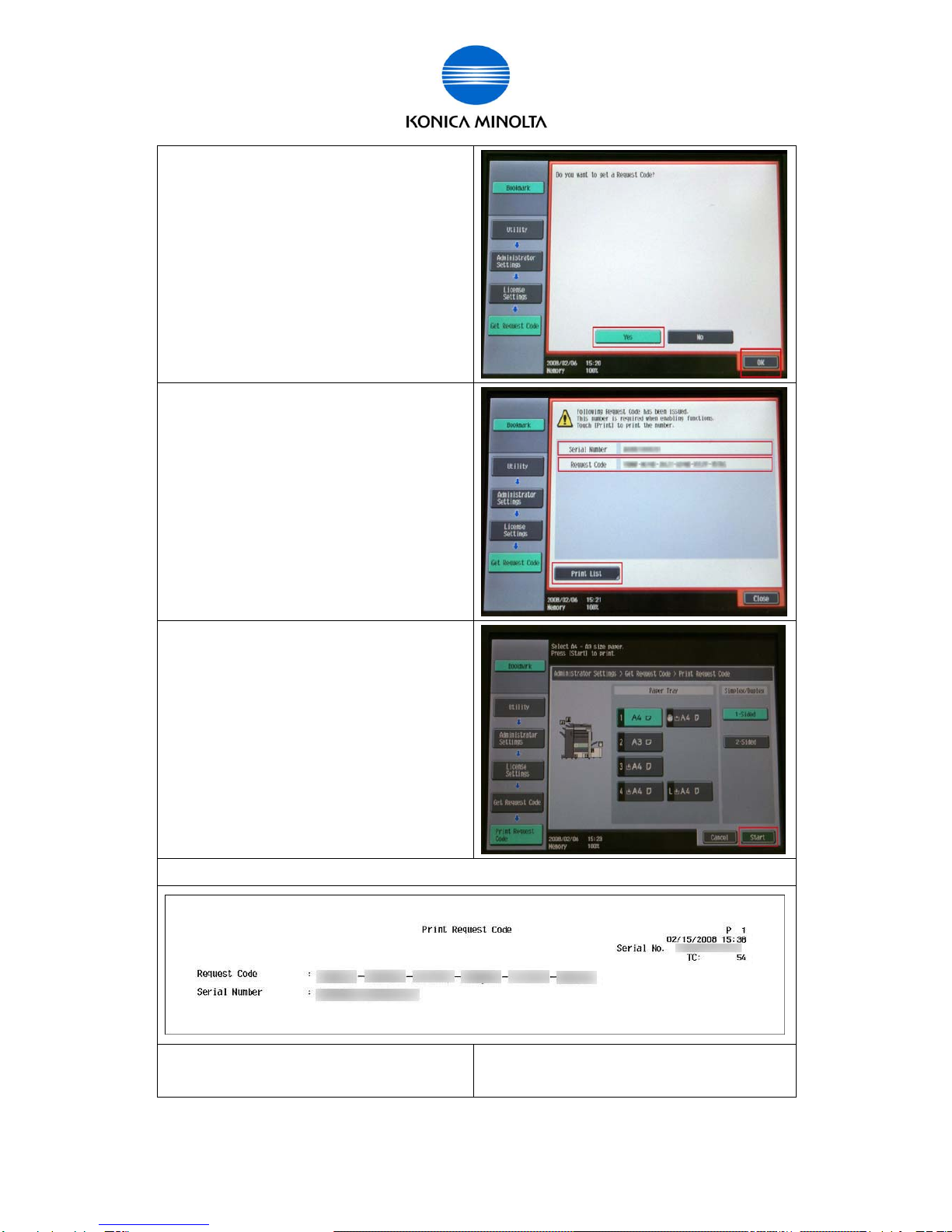

d) Select [Yes] and press [OK].
e) Press [Print List] and print displayed
[Request Code] and [Serial Number].
Or write down [Request Code] and [Serial
Number].
*Please pay attention “U” and “V”, “0
(number)” and “O (alphabet)”. “0 (Number)” is
not used in [Request Code].
e’) When selecting [Print List], please press
[Start] or Start button after selecting the paper
tray.
When printing it, [Request Code] and [Serial Number] will be printed as sample below.
f) Exit from Administrator Mode and go on to
the next step [2. Access to LMS].

Issued by BT-CSO Ver 1.03 18
1. Gather information from MFP/ Kit
1-1. Find [Token Number] from License Kit.
1-2. Get [Request Code] and [Serial Number] from MFP.
Acquisition procedure: MFP panel <Administrator Mode> •MFP panel <Service Mode> •PSWC
2. Access to LMS
3. MFP Activation
•Get [Request Code] and [Serial Number] from MFP <Service Mode>.
a) Enter in Service Mode, and then press
“Stop”,”9”. The “Billing Setting” screen will
appear.
Select [License Management].
b) Select [Request Code].
c) Print displayed [Request Code] and [Serial
Number], or write them down.
Press Start button to print the information.
*Please pay attention “U” and “V”, “0
(number)” and “O (alphabet)”. “0 (Number)” is
not used in [Request Code].
d) Exit from Service Mode and go on to the
next step [2. Access to LMS].

Issued by BT-CSO Ver 1.03 19
1. Gather information from MFP/ Kit
1-1. Find [Token Number] from License Kit.
1-2. Get [Request Code] and [Serial Number] from MFP.
Acquisition procedure: MFP panel <Administrator Mode> •MFP panel <Service Mode> •PSWC
2. Access to LMS
3. MFP Activation
•Get [Request Code] and [Serial Number] from PSWC.
a) Login to PSWC in the Administrator mode.
b) Select [Maintenance] > [License Settings] >
[Get Request Code] and click [OK].
c) Write down displayed [Request Code] and
[Serial Number], or print this page.
*Please pay attention “U” and “V”, “0
(number)” and “O (alphabet)”. “0 (Number)” is
not used in [Request Code].
(If you access LMS using the same PC that
access to PSWC, you can input Request Code
using Copy-and-Paste.)
d) Go on to the next step [2. Access to LMS].

Issued by BT-CSO Ver 1.03 20
1. Gather information from MFP/ Kit
2. Access to LMS
2-1. Access to LMS and get [License Code].
3. MFP Activation
a) Access to the following URL from PC connected to the internet.
https://lms.konicaminolta.com/license/KM/support.aspx
*During the procedure with LMS, when you need to return the previous screen, press the back
icon on the web browser.
b) Click [Administrator Menu].
c) Click [License Registration].
