SERVICE MANUAL
KONICA CORPORATION
No. 26-2, Nishishinjuku 1-chome, Shinjuku-ku, Tokyo 163-0512, Japan
MEDICAL FILM PROCESSOR
CODE NO. 1051/1052

SERVICE MANUAL
SRX-101A Medical Film Processor
Code No. 1051/1052
Contents
■Precautions...................................................................................................................................1
■Tools and Instrument...................................................................................................................1
■Caution Labels .............................................................................................................................2
1. Specifications...............................................................................................................................4
2. Dimensions...................................................................................................................................5
3. Name of Parts...............................................................................................................................6
4. Time Chart..................................................................................................................................20
5. Troubleshooting.........................................................................................................................21
6. CPU Board DIP Switches ..........................................................................................................46
7. Checking Circuit Boards Sensors and Electrical Loads........................................................47
8. Developer Temperature Correction..........................................................................................51
9. Electrical Components Diagram...............................................................................................52
10. Wiring Diagram of Main Unit...................................................................................................53
11. Circuit Board Diagram.............................................................................................................55
12. Pre-Installation Instructions ...................................................................................................63
13. Installation Instructions and Precautions .............................................................................70
14. Changing Processing Conditions..........................................................................................82
15. SRX-101A Customer Presentation Guide..............................................................................83
16. SRX-101A Light Shield Installation Manual...........................................................................89
17. Installation Procedure.............................................................................................................91

PRECAUTIONS
1
SERVICE MANUAL
■ PRECAUTIONS
Before shipment from the factory, the procedure has already been inspected according to local
safety regulations.
However, the following precautions must be taken when servicing this equipment.
aBefore servicing, disconnect the automatic processor's power plug from is AC outlet.
If it is absolutely necessary to repair the processor while the power is on, be sure to take
precautions to avoid electrical shock and keep your fingers away from rollers, gears and
other moving parts.
sUse only the types of fuses specified in this manual.
dUse only the replacement parts specified in this manual.
fWhen unplugging connectors, disconnect them at the socket. Do not pull on the wire bundle.
gWhen carrying or shipping circuit boards, place them in static-proof bags, or containers
made of conductive material to prevent damage from static electricity.
hDo not touch the wiring patterns, connector contacts or solder on the circuit boards.
jTake care to prevent washers, bolts or other metal objects from failing into the machine and
causing short circuit or damage to gears. etc.
kRemodeling of processor components or systems which is not described in this operation
manual is forbidden.
lAfter repairs, make sure all parts and wiring have been correctly replaced and reconnected.
■ TOOLS AND INSTRUMENT
In addition to your standard service-use tool kit. the following special tools and equipment will
be necessary.
aPush-pull Gauge (Max. 500g)

2SERVICE MANUAL
CAUTION LABEL
● Caution labels imply the degree of the risk which may arise from incorrect use of this
product.
● There are 3 degrees of caution labels, and each is used depending on the level of risk
and damage caused by incorrect use and mishandling.
DANGER : If failed to avoid the risk, this implies the imminent danger level which may
lead to serious injury including a loss of life.
WARNING : If failed to avoid the risk, this implies the danger level which may lead to
serious injury including a loss of life.
CAUTION : If failed to avoid the risk, this implies the danger level which may lead to
moderate damage or light injury. Also it is used when a physical damage
alone is expected.
Risk of the damage
High Low
Loss of life or
DANGER WARNING
Bodily injury
serious injury
(and damage to property)
(Damage is serious)
Moderate damage or WARNING
light injury or CAUTION
(Damage is light) CAUTION
Damage to property only CAUTION
Should this manual become not readable due to any reason,
replace it with a new one which is available at charged basis.
1. EXPLANATION OF CAUTION LABELS
■ CAUTION LABELS

3
SERVICE MANUAL
q
CAUTION
Make sure that the initial chemicals are filled after the completion of rack setting. To prevent cross–contamination
tilt rack to rear of processor when removing.
If chemicals have been filled. Make sure that chemicals are not exceeding the indicate level. Rack setting should be done with care so it does not cause a spill.
Indicate level
1
2
2. WARNING LABELS AND THEIR LOCATIONS
UL
VORSICHT
Lösen Sie des automatishe Befüllen der Tanks erst aus,
wenn die Rollensätze korrekt eingesetzt worden sind. *Um ungewollte Chemikalienvermischungen
zwischen den Bädem zu vermeiden, neigen
Sie einen Rollensatz nach hintern in Richtung Tank, wenn Sie ihn aus der Maschine entnehmen wollen.
Einsetzen der Rollensätze in gefüllte Tanks: Stellen Sie sicher, daßder Füllstand in den Tanks nicht den angezeigten . Die Rollensätze langsam einsetzen, ohne diese fallen zu lassen.
Indicate level
Maximulwert übersteigt
1
2
CAUTION
Make sure that the initial chemicals are filled after the completion of rack setting. To prevent cross–contamination
tilt rack to rear of processor when removing.
If chemicals have been filled. Make sure that chemicals are not exceeding the indicate level. Rack setting should be done with care so it does not cause a spill.
1
2
TÜV
w
w
q
t

4SERVICE MANUAL
SPECIFICATIONS
Model name : SRX-101A
Film transport method : Continuous roller transport.
Film type and sizes : Sheet film, 10 x 10 cm~ 35 x 43 cm(14 x 17 inch) sizes.
Processing capacity :
Process cycle switching : Available by a service engineer.
Processing solution volumes : DEV tank : 3.9 liters(1.03 gallons)
FIX tank : 1.8 liters(0.47 gallons)
WASH tank : 1.4 liters(0.37 gallons)
Temperature control : Processing solution temperature;
Controlled by the temperature control tank, with the thermistor monitoring,
and with the heater heating.
Drying temperature;
Controlled automatically according to a fixed temperature setting.
Replenishing system : Replenishing volume for the film sheet is calculated exchanging with
24 x 30 cm or 10 x12 inch film
Circulation system : Continuous pumping of developer and fixer solutions.
Wash water : Ordinary tap water 5 ~ 30:(41 ~ 86<)
Water pressure 29.4 ~ 784 kPa(0.3 ~ 8kgf/cm
2
, 98 ~ 112psi)
Water supply : 0.8 liters(0.22 gallons)/min.
Standby functions : 10min./30min./Continuous operation. (Selectable by a service engineer)
Power source : AC 115/120V, single phase, 12A, 60 Hz.
AC 200/230/240V, single phase, 6A, 50Hz.
Dimensions(W x D x H) : 610 x 680(900 incl. feed table) x 453 mm
24.0 x 26.8(35.4 incl. feed table) x 17.8 inch.
Weight : CE 40kg (47kg with processing tank full)
UL 37kg (44kg with processing tank full)
81 lb (97 lb with processing tank full)
Certification : Conforms to UL, FDA, TÜV
Applied standard : FCC/CE
Heat generation : Approx.3135kJ/hr max.
Noise level : Approx.55dB(A) max.
Operating condition : 15 ~ 30:(59 ~ 86<), 30 ~ 75%RH(no condensation)
Storage and transport condition : -20 ~ 60:(--4 ~ 140<), 20 ~ 95%RH(no condensation)
Accessories : Measuring cup, Funnel, Installation parts kit, Replacement parts kit,
Replenisher tanks, and Operation manual.
Optional equipment : Light shield panel, Stand, Splash guard,
DEV Temp. Control kit.(CE only)
Remarks for CE Version : This equipment is the CE marking product conformable to the directive
MDD93/42/EEC and the harmonized standard EN60601-1, EN60601-1-2.
*The above specifications are subject to change without prior notice.
Size
Cycle
24 x 30 cm or 10 x 12 inch 35 x 43 cm(14 x 17 inch)
90sec. 75 60
120sec. 70 55
180sec. 55 40
(sheets/hr)
1. Specifications

5
SERVICE MANUAL
DIMENSIONS
2. Dimensions
2-1. Main Unit and Support
2-2. 25 Liter Replenisher Tank (Standard Equipment)
900 610
500
600
611
676
500
453
750
430
600
623
Main Unit
Support (Optional)

6SERVICE MANUAL
NAME OF PARTS
3-2. Main Unit (Left Side View)
™Power Breaker
™Power Cord
™Wash Water Drainage Hose
(larger diameter than other hoses)
™Fixer Drainage Hose
(red) ™Fixer Supply Hose (red)
™Binding Tape
™Electrical Components
Housing
™Developer Supply Hose
(yellow)
™Developer Drainage Hose
(yellow)
™Overflow Drainage Hose
™Right Side Panel
™Film Exit
™Top Cover
™Level Adjustable Leg
™Control Panel
™Feed Tray
™Feed Tray Cover
™Fixer Drainage Valve ™Developer Drainage Valve
™Water Supply Hose
™Wash Water Drainage Valve
™Left Side Panel

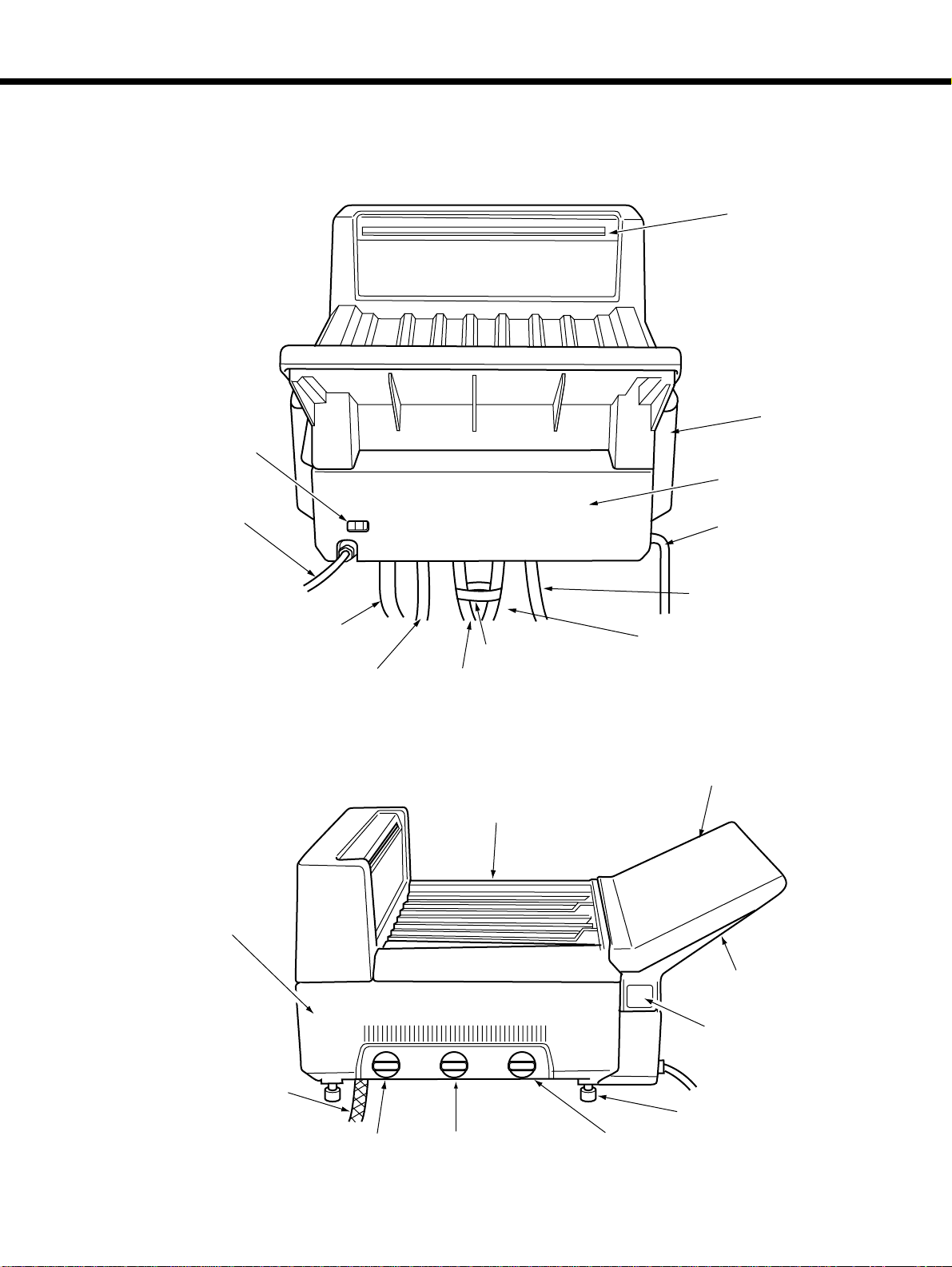

3-1. Main Unit (Front View)
3. Name of Parts

NAME OF PARTS
7
SERVICE MANUAL
3-4. Control Panel
3-3. Main Unit (Rear View)
RUN
READY
RUN
™Drier Section Cover
™Back Panel
™RUN Lamp
Lights up when the RUN button is
pressed. Will automatically go out if
no film has been inserted for 8 hours
after the READY lamp went on. Will
light up again when the RUN button
is pressed.
™READY Lamp
Lights up when the temperatures of
the processing chemicals and heater
are at their preset values. Film may
be inserted for processing whenever
this lamp is on.
™Replenishment Button
Press and hold down this button for
about 5 seconds to begin the supply
of processing chemicals to the tanks
at a rate of 3Pper second. During
replenishment, READY lamp will
change to flashing.
™RUN Button
Press this button to start and stop
film processing.
™RUN Button Lamp
Indicates that the SRX-101A is
electrically powered.

When errors occur, be sure to turn off the power
breaker.(S1)
(Refer to 5. TROUBLESHOOTING page 21.)
8SERVICE MANUAL
NAME OF PARTS
Different ON-OFF patterns shown by the RUN and READY lamps on the control panel indicate different operating
conditions. The following is a listing of all the possibilities and the conditions they indicate.
RUN and READY Lamps ON-OFF Patterns
OFF
OFF
ON
ON
ON
OFF
OFF
Flashing(Pattern 1)
OFF
Flashing(Pattern 2)
ON
Flashing(Pattern 1)
OFF
Flashing(Pattern 1)
ON
RUN
READY
RUN
READY
RUN
READY
RUN
READY
RUN
READY
RUN
READY
RUN
READY
RUN
READY
Flashing(Pattern 2)
ON-OFF Pattern Operating Condition Note(1)
All operations shut down
Normal operation
(Operating temperature LOW)
Normal operation
(Operating temperature OK)
Preparing for supplying chemical
solutions
(Repl. switch ON for 5 sec.)
Supplying chemical solutions
Manual replenishment
Drive motor error
Temperature error
Pattern 1
0.5
0.5
Pattern 2
0.7
0.10.1
0.1
Pattern 2
0.7
0.10.1
0.1
Pattern 1
0.5
0.5
Pattern 1
0.5
0.5
: ON time(in seconds)
: OFF time(in seconds)
(1)

NAME OF PARTS
9
SERVICE MANUAL
3-5. Main Unit (Top View)
™ Wash Water Tank
™Drive Shaft
™Fixer Tank
™Developer Tank
™Rack Handles ™Rack Handles
™Developing Rack
™Starter Solution Inlet
™Fix/Wash Rack

10 SERVICE MANUAL
NAME OF PARTS
™Dry Rack
™Drying Heater Unit
™Duct ™Nozzle
™Overheat Switch
™Recycle Duct ™Dry Fan ™Recycle Duct
™Dry Sensor Unit
3-6. Drying Unit

NAME OF PARTS
11
SERVICE MANUAL
Springs Type Parts No.
L=74 1361013050 L=80 103014027A
Worm Gear Parts No.
Right 1050-13003A
Left 1050-13004A
3-7. Film Transport
1) Rollers

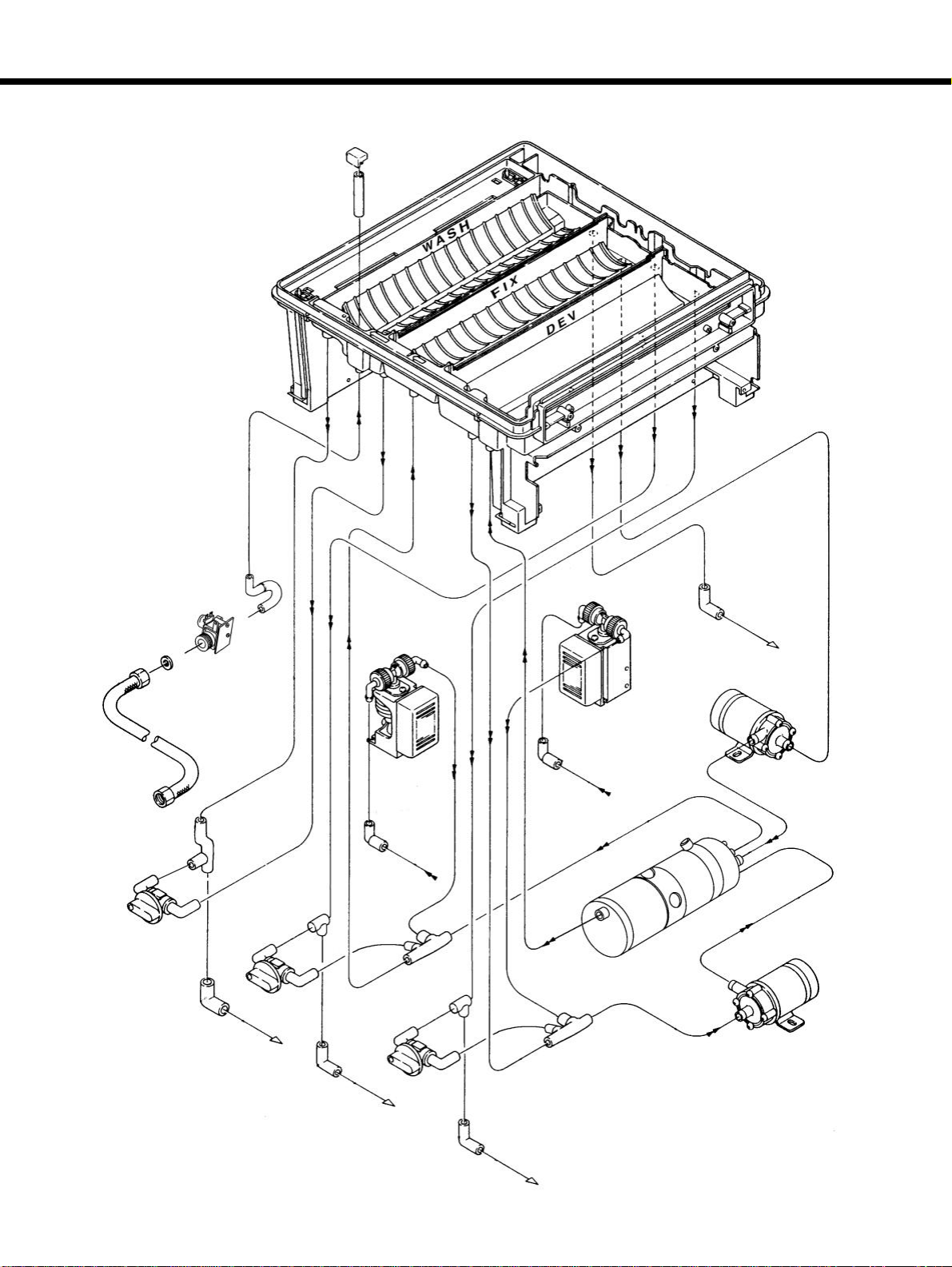

(1) Components Diagram

12 SERVICE MANUAL
NAME OF PARTS
(2) Roller Component Listing
NOTE :
In the processing tanks, the "upper" rollers are vertically higher rollers in the solution. In the drying
unit, the "upper" rollers are the rollers closer to the feed tray side of the main unit. the rollers on the
other side are the "lower" rollers.
(3) Capability
The SRX-101A is capable of processing film ranging in size from 10 x 10 cm to 35 x 43cm
(14x17 inch). The feed tray has an insertion slot that will feed film up to 17" in width.
Processing
Unit
DEV
FIX
WASH
DRY
Upper roller material
Silicon (H)
Bakelite (A)
EPDM (D)
Bakelite (A)
Bakelite (B)
Bakelite (B)
Bakelite (A)
Wipe-down (E)
Silicon (H)
Wipe-down (E)
Bakelite (A)
Bakelite (A)
Lower roller material
Bakelite (A)
Bakelite (A)
Bakelite (A)
Bakelite(lead surface) (C)
Bakelite (A)
Bakelite (B)
Bakelite (A)
Wipe-down (F)
Wipe-down (E)
Silicon (H)
Bakelite (A)
Bakelite (A)
Roller No.
q
w
e
r
t
y
u
i
o
!0
!1
!2
Spring
length
74mm
80mm
74mm
80mm
74mm
74mm
74mm
74mm
74mm
74mm
74mm
74mm
Spring pressure
in grams
410~480
110~170
410~520
180~270
490~530
450~530
330~530
610~860
590~720
470~620
410~520
460~560

NAME OF PARTS
13
SERVICE MANUAL
2) Drive Mechanism
(1) Components Diagram
(2) Capability
Timing Belt
Timing Belt
Drive Motor
Gear Type
Worm Gear
Worm Gear
Idler Gear
Roller Gear
Symbol
13003A
13004A
13007B
13008B
13002A
13011A
13001B
13010B
A
B
C
D
E
F
G
H
Parts No. Name
Worm Gear (Right)
Worm Gear (Left)
Worm Wheel (Right)
Worm Wheel (Left)
Idler Gear (small)
Idler Gear (Large)
Gear
Gear
Module
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
No. of Teeth
3
3
18
18
16
26
12
12
Note
CW
CCW
CW
CCW
Processing Cycle Time(Sec.) 90 120 180
Transporting Speed( mm/min) 460 350 236
Capability
24 x 30cm(10 x 12 inch) 75 70 55
(sheets/hour)
35 x 43cm(14 x 17 inch) 60 55 40

14 SERVICE MANUAL
NAME OF PARTS

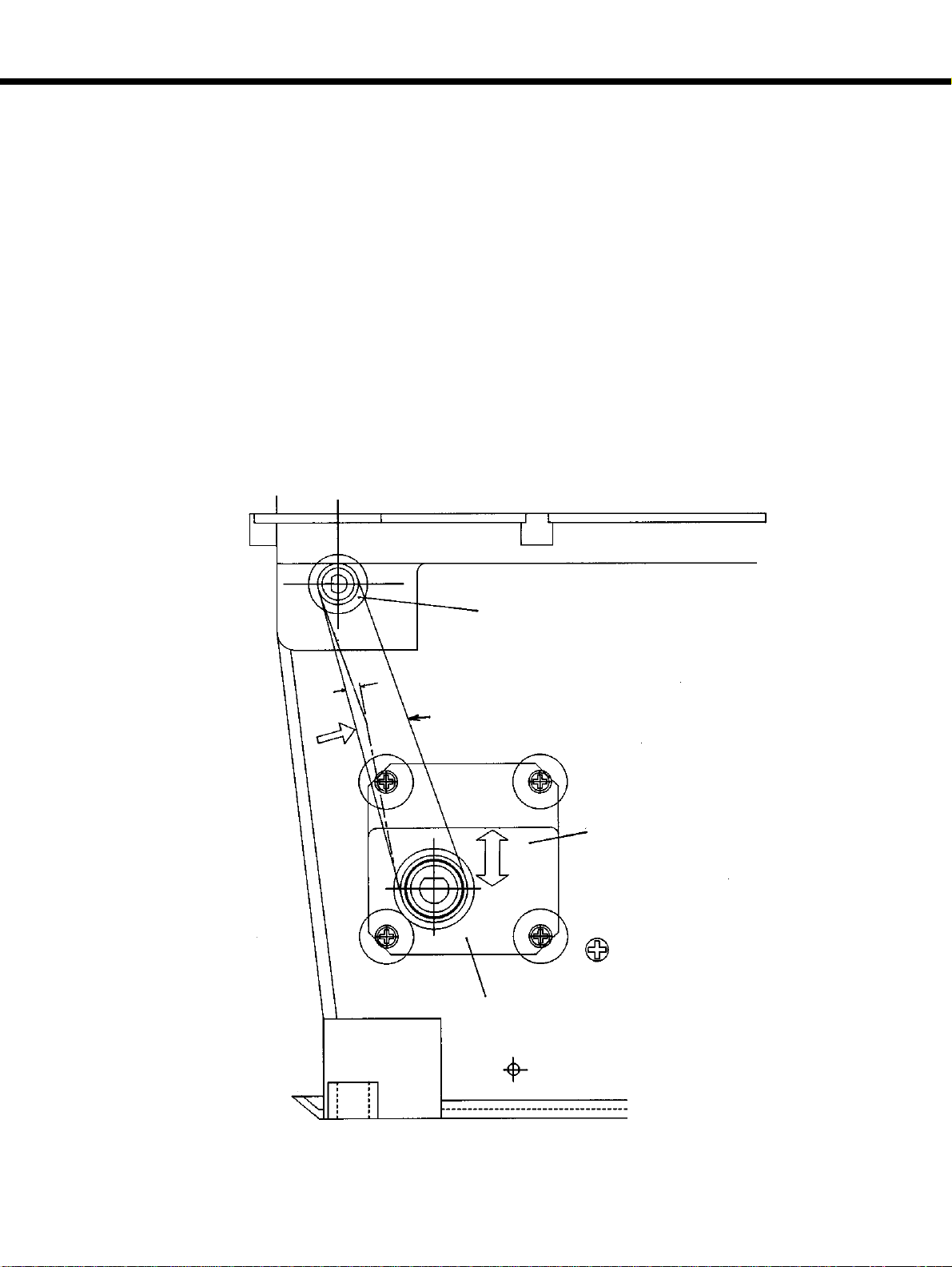

3) Adjusting the Drive Timing Belt
qRemove the Top Cover, the Right Side Panel and the Back Panel.
wTest the tension in the timing belt with a push-pull gauge at a point half way between the main
drive shaft pulley and the drive motor pulley. Adjust the belt tension by loosing the drive motor
and moving it up or down. Proper timing belt tension is in a range between loads of 75 and
125 grams with approximately 2 mm of slack in the belt. Refer to the diagram below.
eWind the rotor located on the back side of the motor mounting 3 times, then check the belt
tension once more to make sure that it is still in a range between loads of 75 and 125 grams
with approximately 2mm of slack in the belt.
rRepeat the same step of (3) eight times. If the tension falls in the above range eight times in a
row, the adjustment has been successfully completed. If even one test result falls that range,
the whole adjustment procedure must be repeated from the beginning.
Main Drive Shaft
Timing Belt
Drive Motor
Drive Motor Pulley
2mm
75~
125g
From the rear side of the processor

NAME OF PARTS
15
SERVICE MANUAL

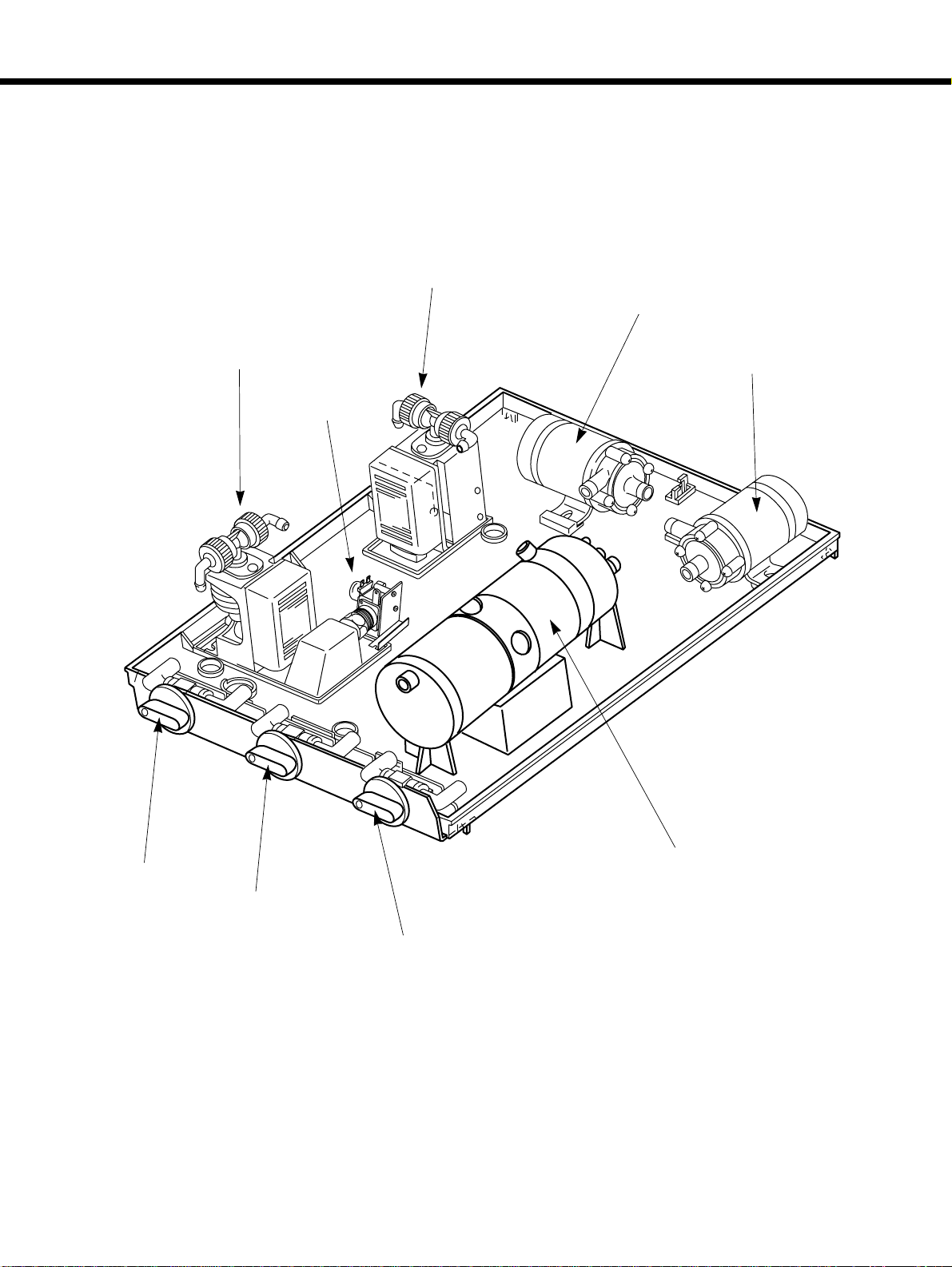

1) Components Diagram (Bottom of the Main Unit)
Temperature
Control Tank
Developer
Drainage Valve
Electromagnetic
Valve
Fixer Drainage
Valve
Wash Water
Drainage Valve
Fixer Circulation Pump
Developer Supply Unit
Fixer Supply Unit Developer Circulation Pump
3-8. Solution Supply and Drainage Unit

16 SERVICE MANUAL
NAME OF PARTS
2) Piping Diagram
Body
Electromagnetic
Valve
Fixer Supply
Pump
Developer Supply
Pump
Fixer circulation
Pump
Temperature
Control Tank
Developer Circulation
Pump
Developer Drainage
Valve
Wash Water
Drainage
Valve
Drainage Tank
Fixer Supply
Tank
Drain Outlet
Fixer Drainage
Tank Developer
Drainage Tank
Developer
Supply Tank
Fixer
Drainage
Valve

NAME OF PARTS
17
SERVICE MANUAL
3) Solution Temperature Control Tank
(1) Components Diagram
(2) Capabilities
qDeveloper temperature control is carried out by warming with a heater and by natural
cooling.
wFixer temperature is maintained by means of heat transferred from the developer
temperature control tank.
eCirculation volumes :
At 50 Hz : Developer 4.0 liters ; Fixer 4.0 liters/minute
At 60 Hz : Developer 4.8 liters ; Fixer 4.8 liters/minute
rRates of Temperature Rise :
Developer : approx. 1.07:/minute
Fixer : approx. 0.75:/minute
tSensor Precision :
Developer : ±0.5:at settings between 32:and 34:.
From the Fixer
Circulation Tank
FIX Tank
From the Developer
Circulation Pump
Temperature Control Tank
To the DEV Tank
Thermometer
Heater

18 SERVICE MANUAL CE
NAME OF PARTS
Transformer(PT1)
Terminal
Block
Power Breaker (S1)
CPU Board(unified with
Temperature Control)
Circuit Protector
CB 1 : 15A
CB 3 : 15A
SSR(DEV)
Switching Power source
SSR(DRY)
Noise Filter (F1)
Motor Control Board
3-9. Electrical Components Unit
