MOUNTING INSTRUCTIONS
19722 iPad holder
- Flexible and stable! Put your iPad at centre stage.
- The holder is an effective and secure bracket for holding your iPad.
- Suitable for the stage, home and studio.
- The generously dimensioned clamp is fits tube sections max. ø 30 mm.
- The iPad is simply clipped into the special cradle.
- Adjustment options:
-angle of inclination - direction - vertical or horizontal format can all be freely adjusted
SAFETY INSTRUCTIONS
- suitable for iPad 2nd, 3rd or 4th Generation,
-not suitable for iPad 1st Generation
- use a suitable stand - one that is stable, right for
-the weight and with a max. tube section of 30 mm,
-e.g. K&M stands 118/1 ff, 11888, 11889, 199, 200,
-21020, 21090, 210/6, 210/8, etc.
- clip the iPad carefully into the cradle and check it
-is held correctly
- handle the holder carefully when changing
-the position of the iPad (tilt, format or
-direction), and make sure the iPad is
-safely clipped in the cradle
Thank you for choosing this product. This instruction manual informs you about the important steps to set up an handle the product.
We recommend to keep the manual in a separate place for a possible later use.
Material
articulated joint, cradle: polyamide (PA-6)
holding arm, screws, nuts, discs, springs: steel
clamp: aluminium profile
Max. load iPad 2nd, 3rd or 4th Generation
Size cradle: 252.1 x 195.4 mm
box: 300 x 102 x 230 mm
Gewicht net 0.8 kg, gross 1.14 kg
USER GUIDE / FUNCTIONS / DIMENSIONS
(FF) FAULT FINDING and (R) REPAIR
FF: Holder wobbles
FF: R: Check tightness of the screws and tighten if necessary
FF: iPad is not held correctly
FF: R: Place the iPad in the cradle correctly while listening
FF: R: for the audible "click" in place 4
FF: R: NOTE! Not suitable for iPad 1st Generation
Setting up the iPad holder is very easy.
A suitable stand is required
(see SAFETY INSTRUCTIONS above)

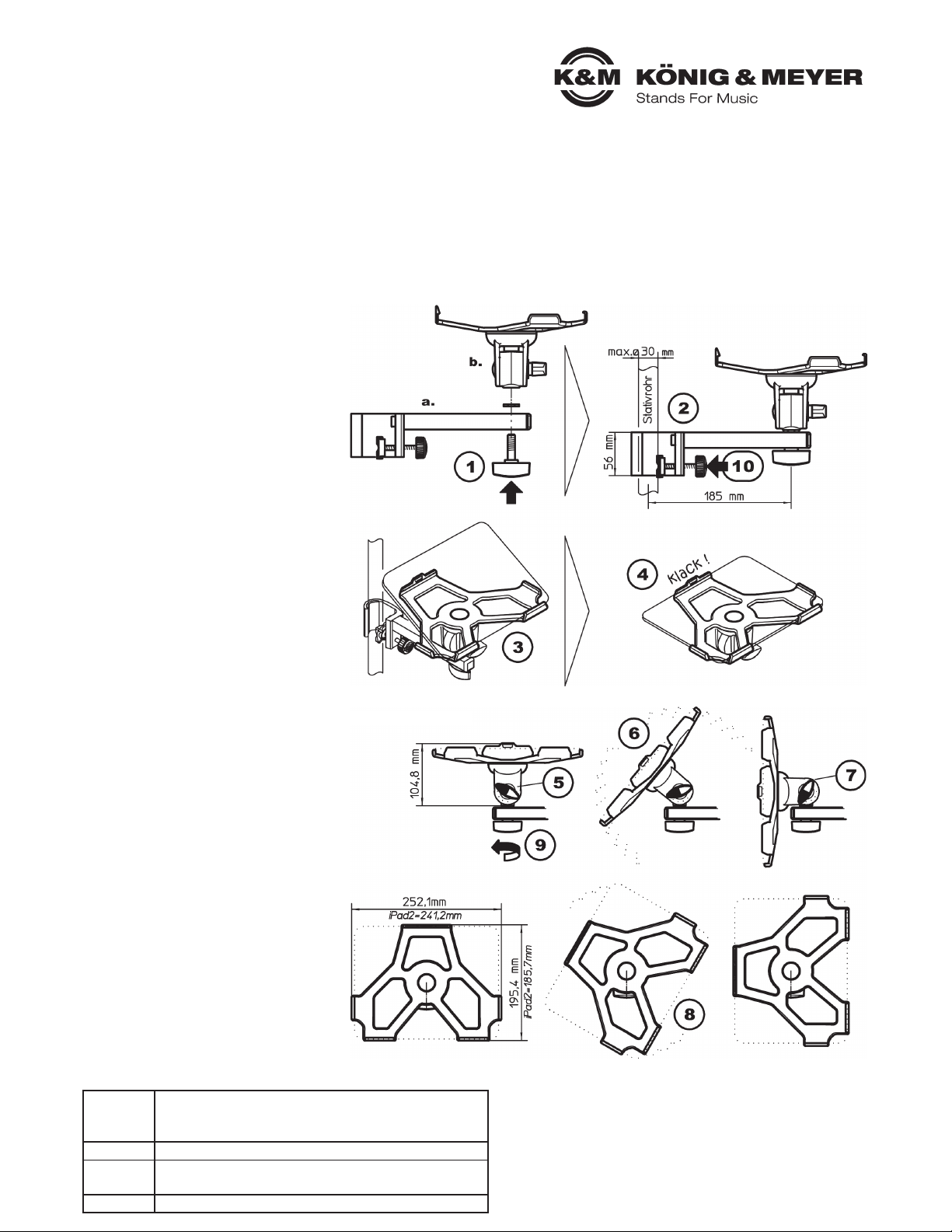

1The holder consists of two components:
1a. Holding arm with clamp,
1b. iPad cradle with an articulated connector.
1The two components are joined together with
1a wing bolt
2The clamp is placed around the tube section
2and then fixed in position using the screw 10
3Place the iPad in the cradle and ...
4clip in place
TECHNICAL DATA
The tilt, format and direction of the iPad holder can be adjusted.
There is no need to remove the iPad from the cradle when
repositioning – as long as you take sufficient care.
TILT
The iPad can be positioned to any angle between
horizontal and vertical.
5Take hold of the iPad and loosen the wing nut slightly
6Move the iPad into the required position and
7tighten the wind nut again
FORMAT
The holder can be turned 90 °.
8Take hold of the cradle and move
8it horizontally or vertically or diagonally!
8Invisible stoppers in the cradle restrict twisting
DIRECTION
19Loosen the wing nut slightly, turn the
19 iPad holder, re-tighten the wing nut
10 Hold the cradle, loosen the clamp screw,
10 turn the holding arm to the required direction,
10 tighten the clamp screw.

19722
iPad holder
Product variant
19722-000-55 - black
Data
Bearing plate 252.1 x 195.4 mm
Material plastic
Max. load capacity 0.75 kg
Screw-on to tube diameter up to 30 mm
Special features to be attached to tubes up to 30 mm diameter;
iPad is easily clipped into the holder;
dock-connector and headphone jack are accessible;
freely rotates 90°;
alternatively: can be screwed on to 3/8? thread
connectors;
suitable for iPad 2nd, 3rd or 4th generation
Swivel 90 º
Type black
Weight 0.698 kg
The clever way to display your iPad. The connector holds an iPad securely and comfortably. Whether on stage, in the rehearsal room
or at home - the strong prismatic element with its ergonomic clamping screw allows the iPad holder to be attached quickly and
easily to any tubes up to 30 mm diameter. The iPad snaps in and out of the holder effortlessly. The pivoting range is second to
none, allowing the user the iPad position of their choice. The swivel movement can be adjusted from free to resistant. The iPad
switches rapidly between the vertical and horizontal format without slipping.
