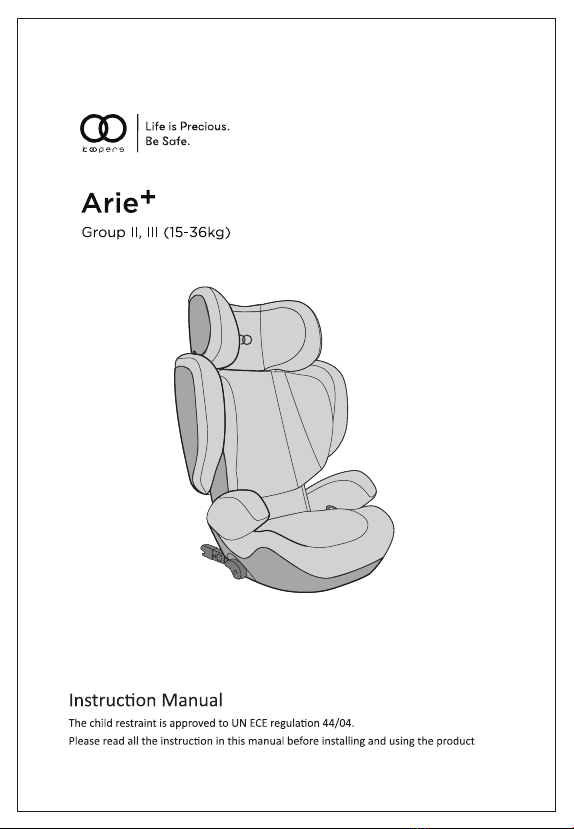

Koopers Arie+ User manual

Noces
GETTING STARTED
Before Starng
Read Carefully Before Aempng to Fit the Child Car Seat
Which is the safest passenger seat to fit your child car seat to?
THE CENTRE REAR PASSENGER SEAT
01
1. The child car seat must only be used in vehicles which are fied with a three point seat
belt system that has been approved by regulaon ECE-16 or similar.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle hand book that
the vehicle is capable of accepng a ‘Universal ’child restraint for this group.
3. The child car seat is a ‘Universal’ child restraint; it conforms to regulaon ECE-R44/04 for
general use in vehicles.
4. This child car seat has been declared ‘Universal’ under more stringent condions than
those applied to earlier designs, which do not carry the ‘Universal’ mark.
5. Child car seats can mark vehicle seat upholstery. The manufacturer cannot be held
responsible for damage or marking to vehicle seats.
6. The following situaons could be illegal and will void the warranty: 1) Any modificaons or
change of use of the child car seat that have not been authorised or advised by the
manufacturer. 2) Any failure to fit the child car seat in strict accordance with the instrucons.
The manufacturer accepts no liability for issues arising from unauthorised modificaons, uses
or fing.
7. Please keep this manual safe for any possible queries you may have in the future.
8. You will need to keep your proof of purchase. We recommend you keep them together.
Warning: NEVER leave your child unaended – your child’s safety is your responsibility.
Warning: The child car seat must be fied in accordance with the manufacturer’s instrucons.
Incorrect installaon could be dangerous.
Warning: This installaon must only be performed by a competent adult. Don’t try to install the
seat when intoxicated or very red.
Warning: Always ensure that new or occasional users [e.g. grandparents] have read the
instrucons or been taught the correct installaon by someone who has read and understood
the instrucons.
Warning: Always keep this instrucon manual with the child car seat, or in the vehicle in which
you are carrying the child car seat. Some models of child car seat have a pocket to store the
instrucons.
Warning: Do not fit the child car seat on a side or rear facing vehicle seat.
Warning: Before installing the child car seat ensure that the passenger seat you are using is
locked in the upright posion.
Warning: Do not use the child car seat in the home - it has only been designed to be used in
the car.
Warning: Do not leave loose/unsecured objects on the back seat of your car or the parcel shelf.
They may be dangerous to your child if you are forced to brake suddenly.
If your centre rear passenger seat is fied with a three point seat belt system then you should
use it.
If your centre rear passenger seat does not have a three point seatbelt system (i.e. no seatbelt
at all, or only a lap belt)
- then you should use the rear le passenger seat or the rear right passenger seat.
The front passenger seat can only be used if it DOES NOT have an airbag and IS fied with a
three point seat belt system.

02
When Using the Child Car Seat
Warning: Make sure that the child car seat is placed somewhere so that rigid items and plasc
parts do not become trapped in doors or movable seat units when the seat is in everyday use.
Warning: Always use the child safety lock system, if one is available, to make it impossible for
the child to open the car doors from inside.
Warning: Allow the child a break during long car journeys and make sure they don’t get out of
the car unaided and without supervision.
Warning: Ensure that the child car seat is secured to the car seat at all mes - even when not in
use.
Warning: The child car seat must not be used without its original cover. The original cover is
essenal for the safe operaon of the child car seat.
Warning: Stop the car at regular intervals to check that the child car seat is in the correct
posion and that the car seatbelt is sll taut and latched.
Warning: In the event of an emergency it is important to be able to release the child quickly (as
defined by Brish Standards). This means that the seat buckle cannot be fully tamper proof and
you should acvely discourage your child from playing with or using the buckle.
Warning: If you travel with passengers using both the front and the rear passenger seats, the
lighter occupants should be in the rear and the heavier occupants in the front.
Warning: If you have no opon other than to put your child car seat on a rear passenger seat
next to side airbags:
- Consult with your vehicle manufacturer for side airbag details. It may not be safe.
- Make sure your child does not lean into the area immediately around the airbag.
Warning: Do not place anything under the child car seat (e.g. a towel or cushion) as this could
affect the performance of the seat in an accident.
Warning: Avoid winter clothing bundling - Bulky clothing can lead to incorrect harness
ghtening. In an accident, the child can slip right out of the extra padding - and thus out of the
seat. Let the car warm up or cool down prior to placing your child in there if possible. If your
child is cold, place a blanket over the top of the harness.
Warning: In the event of an emergency it is important to be able to release the child quickly.
This means that the seat buckle cannot be fully tamper proof and you should acvely
discourage your child from playing with or using the buckle.
Important: Ensure your child knows the harness is there to keep them safe.
Important: Do not start the engine unl you are sure that your child is securely harnessed in
their seat AND that you have also correctly fastened your seatbelt. Ask your child if everyone is
safely belted up and whether it is okay to drive off.
EXTREME HAZARD
NEVER USE IN FRONT PASSENGER SEATS EQUIPPED WITH AIRBAGS (SRS)
THIS CAN INCLUDE REAR PASSENGER SEATS THAT ARE EQUIPPED WITH AIRBAGS*
*Consult car manufacturer for suitability. Children’s bodies are not able to withstand the
forces exerted on them by a deploying air-bag

03
Seatbelt
Warning: NEVER use any load bearing contact points other than those described in these
instrucons or marked on the child car seat.
Warning: Ensure that the lap secon of the seatbelt or harness is worn low down, so that the
pelvis is firmly engaged.
Warning: Make sure that ALL the passengers in your vehicle have their seat belts fastened, as
unrestrained people can be very dangerous to the child in an accident. Warning: NEVER use a
seatbelt roung scheme that differs from these instrucons.
Warning: The lap and diagonal seat belt (and harness if fied) must be used at all mes when
your child is in the child car seat.
Warning: Make sure that there are no twists in the seatbelt.
Sunlight/Hot days
Warning: Don’t leave your child in the child car seat while parked in direct sunlight or on a hot
day.
Warning: Do not subject the child car seat to prolonged direct sunlight as this may be
dangerous for your child (the metal and plasc fings could become hot) and may cause the
fabric to fade. You can reduce this problem by covering the child car seat with a sheet when not
in use.
Back of the Seat/Headrest
Warning: Ensure that the child car seat is as close as possible to the backrest of the car seat.
Warning: REMOVE the headrest of the passenger seat being used if it obstructs the proper
installaon of the child car seat. REMEMBER to refit the headrest when the child car seat has
been removed.
Second Hand or Damaged Child Car Seats and Seat belts
Warning: Never buy a second hand child car seat. It may have unseen damage.
Warning: The manufacturer only guarantees this product when the original owner uses it.
Warning: You MUST replace the child car seat and your vehicles seat belts if they becomes
badly worn or damaged.
Warning: You MUST replace the child car seat if it is involved in an accident – it may have
unseen damage and may not protect your child as well as it should. At the very least send the
child car seat to the manufacturers for inspecon, together with the incident report.

04
Thank you for purchasing the child car seat. Please read these instrucons carefully before use
to ensure safe and sasfactory operaon of this product.
Your child’s safety is your responsibility. If you have a query with this product or require
replacement parts, please contact your nearest retailer.
Welcome
Parts checklist
Posioning the seat
Installing the child car seat
Removing the seat cover
Replacing the seat cover
Maintenance and cleaning
4
4
5
6-9
10
11
12
Contents
Welcome
Parts checklist
1 Headrest
2 Side Protecon Part
3 Armrest
4 Base
5 Adjust Lever
6 Diagonal Belt Guide
7 High Backrest
8 Lap Belt Guide
9 Isofix Connector
10 Isofix Adjuster Buon
11 Instrucons Storage
(under base)
1
2
3
4
5
6
7
8
9
10
11

05
The child car seat can only be used with an
automac 3-point safety belt (A) and NOT
with a 2-point lap belt (B).
The child car seat can be secured in a
forward-facing posion in the rear seats of
the vehicle by using the exisng seat belts.
However, on some seats, if the installaon
is not properly secured, we suggest you try
another seat in your vehicle.
Although not recommended, the child car
seat can be used on a passenger side front
seat, so long as there is no acve airbag in
place.
WARNING: Never use in a seat with an
acve airbag.
• The child is secured with the car’s safety
belt.
• The infant car seat is only tesng against
the car seat.
• The child is secured with the vehicle's seat
belt.
• The infant car seat is secured to the
vehicle with the two rear Isofix connectors.
Posioning the seat
USE CATEGORY
A B
Universal category
Installation with the vehicle's seat belt
Installation with the vehicle's seat belt and
Isox connectors

06
Installing with vehicle's seat belt
1. Place your child in the car seat and make
sure they are sing well back.
2. Thread the vehicle’s seat belt through
the belt guide under the headrest and the
belt guide under the armrest.
2. 1. Pass the diagonal secon of the seat
belt through the belt guide under the
headrest.
2. 2. Pass the lap secon of the seat belt
through the seat belt guide under the
armrest next to the seat belt buckle.
2. 3. Ensure that no part of the seat belt
has become twisted or trapped and that
the car seat’s fabric cover is not impeding
the movement or correct fing of the seat
belt.
Click!
3. Ensure that the diagonal belt lies gently
on the child’s shoulder and the lap belt is
worn over the hips Tighten the diagonal
secon of the seat belt by pulling it
upwards unl there is no slack and the belt
holds the child firmly in place.
4. To take the child out of the seat, simply
unfasten the seat belt and undo the
shoulder belt guide.
Installing the child car seat

07
If your vehicle is equipped with Isofix
anchor points, these should be used to
obtain a more stable installaon.
These cars will have plasc elements that
guide the seat’s Isofix anchors into their
correct posions. If your vehicle does not
have these guide elements, you can use the
plasc guides provided with the car seat.
Cauon: When the seats of your car are
equipped with Isofix anchor points, install
your car seat using your vehicle’s ISOFIX
anchor points ALWAYS and ONLY in
combinaon with the car’s safety belts. See
the vehicle list.
Match the back rest hook to the rear side
of base from lying posion to upright
posion, to make sure the back rest is fully
matched into the base.
1. Place the car seat in the appropriate
posion on the vehicle’s seat, facing in the
direcon of travel.
2. Rotate the adjuster buon in an-clock
wise direcon, and simultaneously pull the
isofix connectors outwards as far as it goes,
make sure it cannot be push backwards.
3. Posion the car seat facing forwards on
the vehicle seat with ISOFIX points.
4. Match the ISOFIX connectors to the
vehicle’s anchoring point unl hear a “click”.
5. Rotate the adjuster buon in an-clock
wise direcon, and simultaneously push the
seat against the vehicle to eliminate the gap
between car seat and vehicle’s seat.
Use the isofix system if your vehicle's seat has addional isofix anchor
plasc guider
Click!
ATTENTION!
ISOFIX connectors are an addional fing system for securing the car seat and not suitable for
securing a child.
Child must always be secured by means of the car’s three-point safety Belt.

08
REMOVING THE CAR SEAT.
To remove the car seat, pull the grey buon
backwards on the Isofix anchors to release
the car seat from vehicle’s Isofix anchor
points.
ATTENTION!
If you have difficulty to release the Isofix
connectors. Try to give a bit more force to
the carseat against the vehicle’s seat and
simultaneously to pull the grey buon
backwards on the Isofix connectors to
release the carseat. This may help, if not,
please consult manufacturer or your retail
stores.
1. Place your child in the car seat and make
sure they are sing well back.
2. Thread the vehicle’s seat belt through
the belt guide under the headrest and the
belt guide under the armrest.
2. 1. Pass the diagonal secon of the seat
belt through the belt guide under the
headrest.
2. 2. Pass the lap secon of the seat belt
through the seat belt guide under the
armrest next to the seat belt buckle.
2. 3. Ensure that no part of the seat belt
has become twisted or trapped and that
the car seat’s fabric cover is not impeding
the movement or correct fing of the seat
belt.
Installing the child car seat
Securing your child in the car seat
Click!

09
3. Ensure that the diagonal belt lies gently
on the child’s shoulder and the lap belt is
worn over the hips Tighten the diagonal
secon of the seat belt by pulling it
upwards unl there is no slack and the belt
holds the child firmly in place.
4. To take the child out of the seat, simply
unfasten the seat belt and undo the
shoulder belt guide.
To adjust the height of the car seat’s
headrest, pull upwards on the buon
situated behind the headrest, and slide the
headrest in the desired direcon.
When you reach the correct height, release
the buon and move it unl it reaches the
closest blocking posion When done
correctly, you should hear a ‘click’.
To ensure the best protecon for
your child, the shoulder belt must
be guided so that it passes gently
over their shoulder You will need
to adjust this posion as the child
grows.
Installing the child car seat
Adjusng the headrest height
Checking the height of the shoulder belt
Too low Right posion Too high

10
Removing the headrest covers by pulling
the cover forward and off.
Removing the wings by pulling the cover
forward and off.
Deparng the backrest from the base by
making the seat flat and detach the
connecon opint of the two parts.
Removing the base by pulling the cover
forward and off.
Removing the seat cover
A
B
C
D

11
Sliding the base cover onto each armrest,
and then pull the cover over the front and
down around the back of the base.
Mounng the backrest by connecng opint
of the two parts.
Sliding the cover down, over each side
impact system to secure the edge of cover
is in the gap of the wings.
Sliding the headrest cover over the
headrest to secure the edge of cover is in
the gap of the headrest.
Replacing the seat cover
A
B
C
D

12
Storage
1) Store this child car seat in a safe place when not in use.
2) DO NOT place heavy objects on top of it.
3) Always store the child car seat in a dry environment.
4) DO NOT store the child car seat near a direct heat source such as a radiator.
Covers
1) The seat cover is easily removable and should be handwashed with a pH neutral soap and
cold water.
2) Do not press, iron, dry clean, tumble dry or wring the covers.
3) Do not use solvents, causc or abrasive cleaning materials.
4) Dry flat, away from direct heat and sunlight.
5) If the seat covers need to be replaced only use cerfied parts. They are the only ones that
are guaranteed to have been safety tested and designed to fit this seat.
Plasc/Metal Parts
1) Wipe clean using a mild soap and warm water.
2) You must not remove, dismantle or alter any part of the seat shell.
3) You must not oil or lubricate any part of the seat shell.
Inspecon
1) Check your child car seat regularly for wear and tear.
2) The child car seat may have a slight rale when not in use, this is normal. If in any doubt,
contact us immediately.
3) Check the adjustable parts of your child seat at intervals of about 6 months to ensure it is
sll fits correctly for your growing child.
Maintenance and cleaning

01

01

01

01

01

01
