CONTROL COMPONENTS
DIGITAL COUNTERS
KCN-S / KCN-W
Merits
Single / Dual Preset Counters for Addition and Subtraction.
With the DIN standard size of only 48 mm by 48 mm, the full featured counter
incorporates an easy to read LCD display.
Integrating the latest technologies, the counter can be used for many purposes
as measuring quantities, length and time. Other options include single preset for
general purpose models, and dual preset setting for multifunction counters.

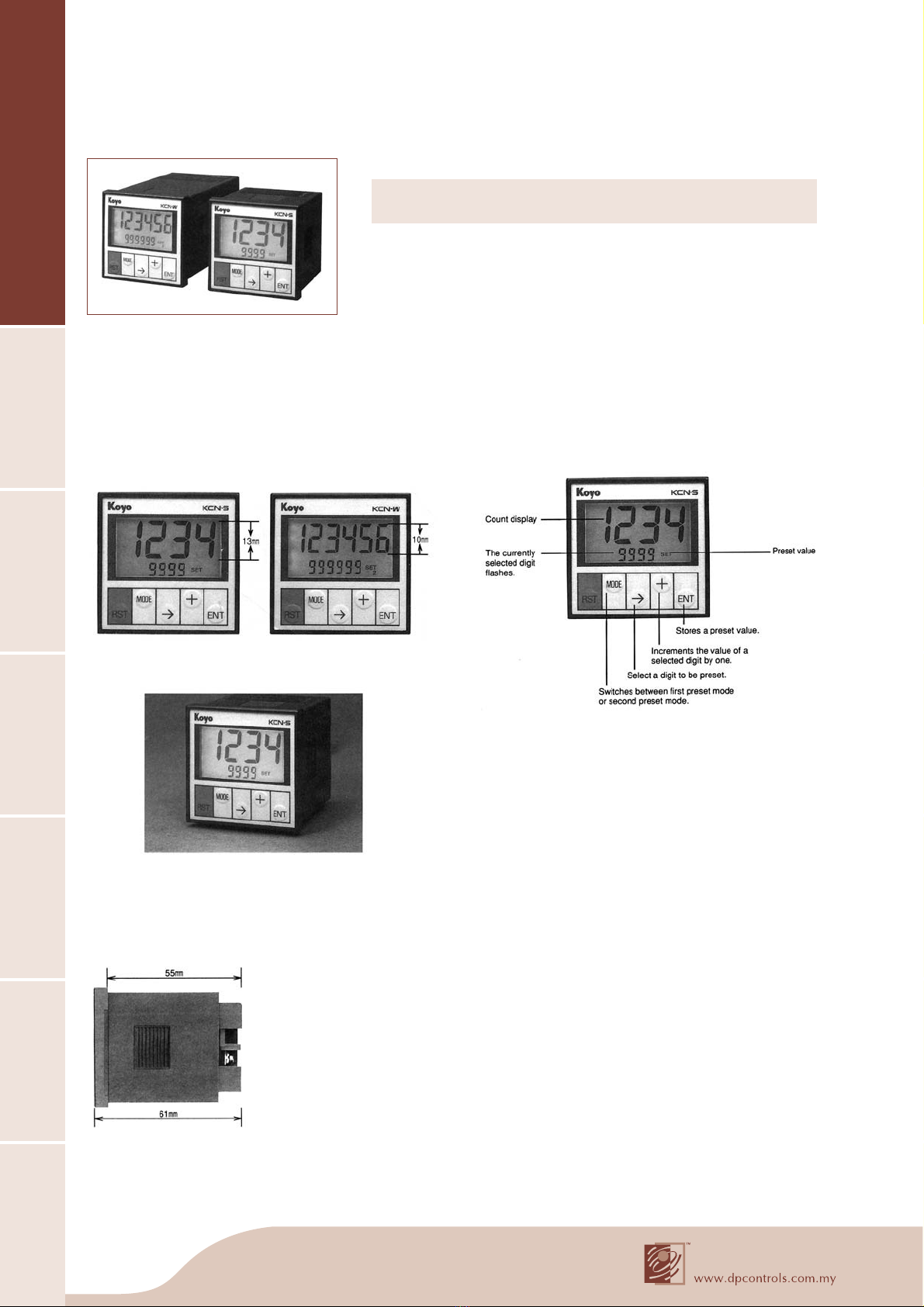

Small body and easy to see display
With its body of only 48 mm by 48 mm, the counter provides full
screen display of either four-digit or six-digit numbers with the
height of 13 mm or 10 mm.
Backlit LCD integrated in all models
Displayed values are backlit to facilicate reading in darkness.
Keypad protection cover
A keypad cover is attached to prevent erroneous operation.
DC power as thin as 55 mm
With minimum space requirement, the control board can be
installed anywhere.
Easy operation
Countup values can be set or modified independently from initial
settings. Changes can be made easily and quickly on site.
A series of models to meet all your needs
All 16 models include advanced functions such as prescaling
and decimal display. These models can be combined
appropriate to satisfy your requirements.
Multifunction
A complete series of models provide advanced functions such
as dual preset nine output modes, count disable, large capacity
sensor power (DC 24V, 60 mA) and AC 100 to 240V user-
selectable power source.
Timer option
The KCN-4S general purpose 4-digit counter can be used also
as a precise digital timer.
Addition, subtraction or both operations are available.
Twelve error codes quickly report error status.
EEPROM to avoid cell replacement
The counter uses an EEPROM to eliminate the use of cells. The
memory can store all counts, preset values and mode settings.
Water proofed front panel
The keypad on the front panel is completely coated (IP64) to
insulate dust and water.
30cps, 1kcps, 2kcps or 5kcps
(selected by digit keys)
Maximum counting speed:
*AC power is 90 mm thick
Encorders & Counters

101
CONTROL COMPONENTS
DIGITAL COUNTERS
Two Categories of Models
General purpose counters
Single preset, One-shit or Hold output, prescaling and decimal point display.
Multifunction
Single or Dual preset setting, nine models including One-shit or Hold and
Compare output, prescaling and decimal point display.
Model Number System
General Specifications
Source Voltage Output Type Sensor Source 4-digit (and timer) 6-digit
DC 24V only
Relay Output
None
KCN-4SR-C KCN-6SR-C
DC Output KCN-4ST-C KCN-6ST-C
AC 110V
or
AC 220V
Relay Output
DC24V
15 mA
KCN-4SR KCN-6SR
DC Output KCN-4ST KCN-6ST
Source Voltage Output Type Sensor Source 4-digit 6-digit
DC12~24V
Relay Output
None
KCN-4WR-C KCN-6WR-C
DC Output KCN-4WT-C KCN-6WT-C
AV100V~240V
Relay Output
DC24V
60 mA
KCN-4WR KCN-6WR
DC Output KCN-4WT KCN-6WT
AC 85~115V, or AC 180~240V
DC 20~28V (Max. 10% p-p ripple)
Approx. 5VA
Approx. 2W
DC 24V (20~28V) 15mA (Max. 10% p-p ripple)
None
EEPROM (Up to 100,000 writes)
-10~+50°C
-25~+70°C (with no freezing)
35~85%RH (with no dewing)
AC 2kV for one minute (For each of AC input, 0V and relay output interconnection)
20MΩ or more at DC 500V (AC: For each of AC input, 0V and relay output interconnection)
Durable for 1 hour along 3 axes at 10 to 55 Hz with 0.5 mm amplitude
No error for 1 hour along 3 axes at 10 to 55 Hz with 0.35 mm amplitude
Durable for 11 ms along 3 axes at 490 m/s2(50 G) No error for 11 ms along 3 axes at 98 m/s2(10G)
±1.5 kV between power terminals (square wave pulse with 1 µs width and 1 ns rise time)
IP64 for the keypad on the front panel against dust and splash.
Flush mounting
Terminal block
Approx. 220 g
Approx. 110 g
AC
DC
AC
DC
AC
DC
AC
DC
Source Voltage
Power Consumption
Sensor Power
Mass
Memory Backup at Power Failure
Ambient Temperature
Storage Temperature
Ambient/Storage Humidity
Withstand Voltage
Insulation Resistance
Vibration Resistance
Shock Resistance
Noise Resistance *
Coating
Installation
Connection
AC 90~264V
DC 10~30V (Max. 10% p-p ripple)
Approx. 5VA
Approx. 2W
DC 24V (20~28V) 60mA (Max. 10% p-p ripple)
None
Approx. 150 g
Approx. 110 g
Item General Purpose (KCN-S) Multifunction (KCN-W)
* Noise tests also include static discharge test and NEMA compliance test.
Encorders & Counters

102
CONTROL COMPONENTS
DIGITAL COUNTERS
Performance Specification
Addition and subtration
Single preset
4 or 6 digits (depending on models)
4 digits: -999~+9999 6 digits: -999~+999999
30cps, 1 kcps, 2 kcps, or 5 kcps (selected by keys) For duty factors, see Counting Timing.
Addition and / or subtraction or two-phase (selected by keys)
Positive (voltage) or negative (no voltage) (selected by keys)
Minimum pulse width: 5 ms
Responded within 0.5 ms (2.5 ms at 5 kcps)
Responded within 0.1s
Power shutdown: 1 s or more Reset duration: 1s or less (until restart)
NPN open collector or relay contact 1a (depending on models)
One Shot (momentary output) or Hold (selected by keys)
0~9990 ms (selected by keys in 10 ms increments)
Any location (selectd by keys)
4 digits: 0.001~9.999 6 digits: 0.001~99.999
Not available
Operation
Setting
Number of Digits
Setting Range
Counting Speed
Input Mode
Input Logic
External Reset Input
Auto Reset
Manual Reset
Power Reset
Output
Output Mode
Output Duration
I/O Response
Decimal Point Display
Prescaling
Count Disable Input
Single or Dual preset (selected by keys)
One Shot (momentary output) or Hold or Compare (selected by keys)
Responded within 2.5 ms
Item General Purpose (KCN-S) Multifunction (KCN-W)
* Output response delays only at 5 kcps.
Maximum counting speed
30cps
1 kcps
2 kcps
5 kcps *
Open collector output
14 ms or less
1 ms or less
0.5 ms or less
2.5 ms or less
Relay output
19 ms or less
6 ms or less
5.5 ms or less
7.5 ms or less
I/O Specifications
Pulse Input
Reset Input
Count Disable Input
NPN Open
Collector Output
Relay Output
Input Speed
Input Resistance
Input Voltage
Input Response
Input Resistance
Input Voltage
Input Response
Input Resistance
Input Voltage
Withstand Voltage
Current
Residual Voltage
Capacity
Lifetime
30 cps / 1 kcps / 2 kcps / 5 kcps
Positive: 15 kΩ
Negative: 3.3kΩ (1.8kΩ for DC models)
L: 0~3V
H: 7~30V
On delay: Max. 5 ms
Off delay: Max. 5 ms
Positive: 15 kΩ
Negative: 3.3kΩ (1.8kΩ for DC models)
L: 0~3V
H: 7~30V
On delay: Max. 5 ms
Off delay: Max. 5 ms
Positive: 15 kΩ
Negative: 3.3kΩ (1.8kΩ for DC models)
L: 0~3V
H: 7~30V
Max. 35V
Max. 100 mA
Max. 2V
AC220V 2A (resistance load)
Min. 100,000 contacts
AC220V 0.5A (cos ø = 0.4)
Min. 200,000 contacts
DC30V 0.5A (L/R = 7ms)
Min. 200,000 contacts
