kozy heat Z-42 User manual

ZERO CLEARANCE FACTORY BUILT FIREPLACE
INSTALLATION
AND
OPERATION MANUAL
Quality Fireplaces for Life
DO NOT
DISCARD
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING: READ INSTRUCTIONS CAREFULLY BEFORE
INSTALLATION. FAILURE TO INSTALL THIS FIREPLACE
CORRECTLY CAN CAUSE SERIOUS STRUCTURAL AND
FIRE HAZARDS AND MAY VOID YOUR WARRANTY.
Z42 JAN. 2009
Z42 REV-08
www.kozyheat.com
Z-42
ARCHED DOOR MODEL
Z-42 CD
CAST IRON DOOR MODEL

CONGRATULATIONS!
We welcome you as a new owner of a Kozy Heat wood burning
fireplace. Kozy Heat products are designed with superior components
and materials and assembled by trained craftsmen who take pride in
their work. Our commitment to quality and customer satisfaction have
remained the same for over 30 years. We offer a complete line of gas and
wood fireplaces, unique cabinets and stylish accessories to compliment
any décor. Adding a fireplace is one of the best ways to increase the
value of your home and we are proud to offer a network of dealers
throughout the country to help make your experience everything you
imagine. We pride ourselves in being dedicated to not only function and
reliability, but customer safety as well. We offer our continual support
and guidance to help you achieve the maximum benefit and enjoyment
from your Kozy Heat gas fireplace.
Jim Hussong Dudley Hussong
INTRODUCTION
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
Homeowner Reference Information
We recommend that you record the following information about your fireplace.
Model Name:______________________________ Date purchased/installed:____________
Serial Number:____________________________ Location on fireplace:_______________
Dealership purchased from:__________________ Dealer Phone:_____________________
Notes:_____________________________________________________________________
__________________________________________________________________________
__________________________________________________________________________
PAGE 1

TABLE OF CONTENTS
INTRODUCTION
Introduction and Homeowner Reference Information 1
TABLE OF CONTENTS
Table of Contents 2
SAFETY INFORMATION
Safety Information 3
FEATURES
Features 4
SPECIFICATIONS
Fireplace Dimensions 5
Clearance to Combustibles 5
Installation Overview 6
Placement Clearance Requirements 6
Placement Illustration 7
TYPICAL INSTALLATION OPTIONS
Typical Installation Options 8
FRAMING

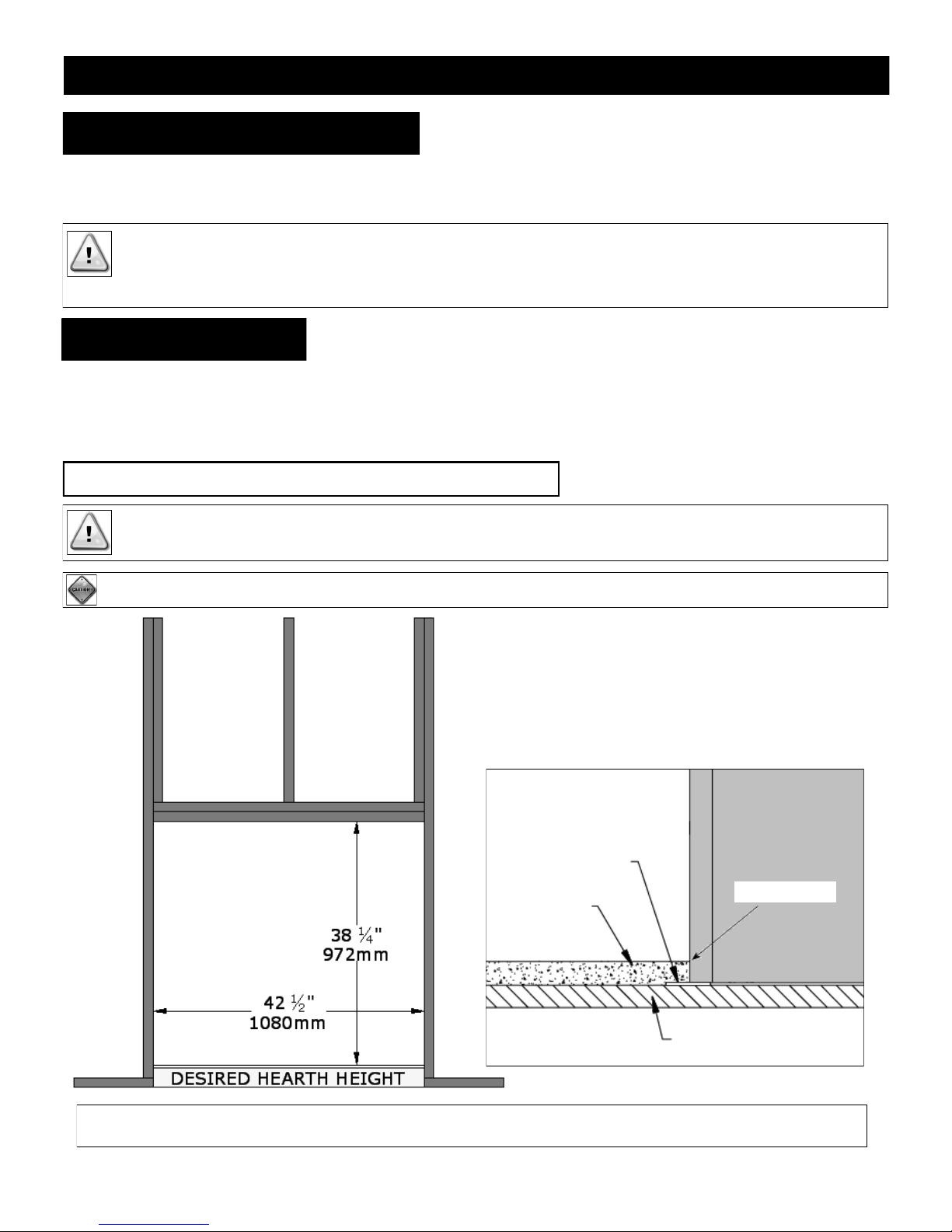

Wall Enclosure Rough Opening 9
Hearth Extension 9
COMBUSTION AIR PIPE INSTALLATION
Combustion Air Pipe Installation 10
Combustion Air Pipe Venting Configurations 11
CHIMNEY
Chimney Location Illustrations 12
Chimney Requirements 13
Approved Chimney Systems 13
Anchor Plate Installation 13
Chimney Installation 14

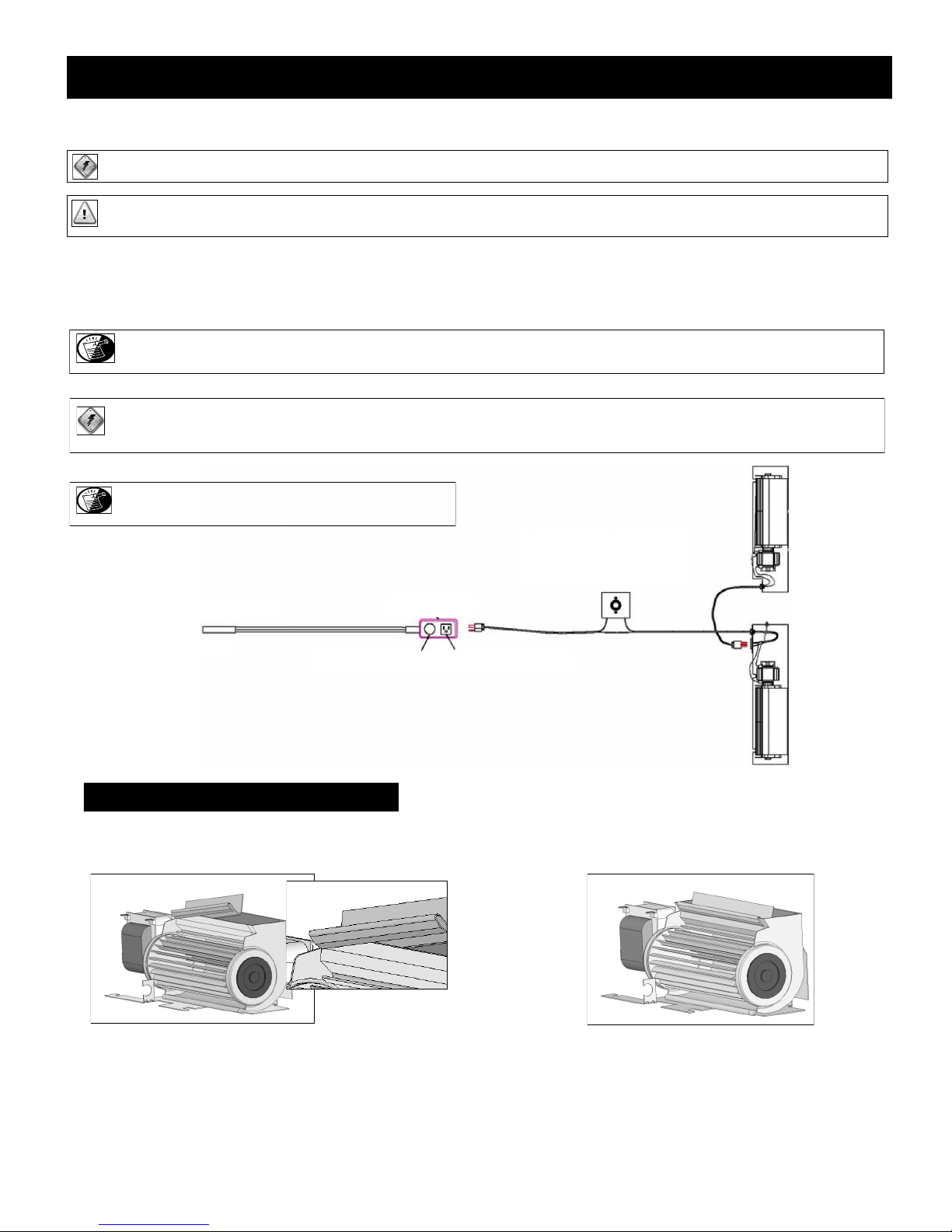

OPTIONAL FAN INSTALLATION
Optional Fan Installation 15-16
Fan Shield Installation 15
FIREBRICK INSTALLATION
Firebrick Installation 17
PAGE 2
FIREPLACE FRAMING & FACING
Fireplace Framing & Facing 18
Mantel Projection Chart 18
COMPLETE THE INSTALLATION
Upper Grill Installation 18
Upper Grill Removal 18
Lower Grill Installation 18
Lower Grill Removal 18
Arched Door Model Spring Handle Installation 18
Cast Iron Door Model Spring Handle Installation 18
DOOR SEAL ALIGNMENT & ADJUSTMENT (Arched Door Model)
Checking the Seal 19
Hinge Adjustment 19
Latch Adjustment 20
DOOR SEAL ADJUSTMENT (Cast Door Model)
Door Seal Adjustment 21
FIREPLACE OPERATION
Fireplace Operation 22
Ash Disposal 22
MAINTENANCE REQUIREMENTS
Creosote Information 23
Glass Information 23
Broken Glass Removal & Replacement - Arched Door Model 23
Broken Glass Removal & Replacement - Cast Iron Door Model 23
OPTIONAL #970 HEAT DUCT KIT INSTALLATION
Optional #970 Heat Duct Kit Installation Instructions 24-28
ALTERNATE FLOOR PROTECTION MATERIAL WORKSHEET
Alternate Floor Protection Material Worksheet 29
TROUBLESHOOTING
Troubleshooting 30
REPLACEMENT PARTS
Replacement Parts 30

If this appliance is installed directly on carpeting, tile or other combustible material other than wood flooring, the appliance shall be installed on a
metal or wood panel extending the full width and depth of the appliance.
Combustible flooring 16” (406 mm) in front of and 8” (203 mm) to each side of the fuel opening must be insulated with non-combustible floor pro-
tection with a minimum insulation R-value of 0.8.
Do not store clothing, furniture or combustibles within 36” (914 mm) of the fireplace.
The chimney should be inspected monthly during the heating season to determine if a creosote buildup has occurred. If creosote has accumulated, it
should be removed to reduce the risk of a chimney fire. We recommend a professional chimney cleaner inspect and clean the chimney at least once
annually.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or
clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance.
The glass front or any part removed for servicing the appliance must be replaced prior to operating the appliance. Work should be done by a quali-
fied service technician.
Clean glass only when cool and only with non-abrasive cleansers.
Do not operate this appliance with the glass/frame assembly removed, cracked or broken. The glass assembly, shall only be replaced as supplied by
Hussong Mfg. Co., Inc. Replacement of the glass assembly must only be performed by a licensed orqualified service person. DO NOT SUBSTITUTE
MATERIALS.
Do not strike or slam glass assembly.
Do not burn waste paper.
Except when loading, the fireplace must be operated with the door / doors closed.
Do not obstruct room air inlet and outlet grills. This may cause the fireplace to overheat.
Burn only dry seasoned wood. Extremely hard woods, such as oak or ash can require up to two years of drying time to be sufficiently dry.
It is recommended that smoke detectors be installed in your home as required by local building codes or the authority having jurisdiction.
Some fuels, such as charcoal, may generate carbon monoxide, a dangerous, odorless gas. Exposure to carbon monoxide may cause serious illness or
death.
For further information on using your fireplace safely, obtain a copy of the National Fire Protection Association publication “Using coal & Wood
Stoves Safely.” NFPA No. HS-10
SAFETY INFORMATION
This fireplace has been tested and listed by Intertek Testing Services (Warnock Hersey) to UL 127-2008, CAN/ULC S610-M98 Safety
Standards for U.S. and Canadian installations. This fireplace installation must conform with local building codes, or in the absence of
local codes, with the NFPA 211 Standard for Chimneys, Fireplaces, and Vents.
IMPORTANT: BEFORE INSTALLING THIS FIREPLACE, THE AUTHORITY HAVING JURISDICTION SHOULD BE CONSULTED TO
DETERMINE IF A PERMIT IS REQUIRED.
INSTALLATION AND REPAIR SHOULD BE PERFORMED ONLY BY A QUALIFIED INSTALLER.
WARNING: THIS FIREPLACE HAS NOT BEEN TESTED WITH ANY GAS COMPONENT. TO REDUCE THE RISK OF FIRE OR IN-
JURY, DO NOT INSTALL ANY GAS COMPONENT, INCLUDING AN UNVENTED GAS LOG SET INTO THIS FIREPLACE.
DO NOT CONNECT THIS FIREPLACE TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
PAGE 3
MOBILE HOME INSTALLATIONS:
WARNING: DO NOT INSTALL IN A SLEEPING ROOM.
CAUTION: THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL, AND CEILING / ROOF MUST BE MAIN-

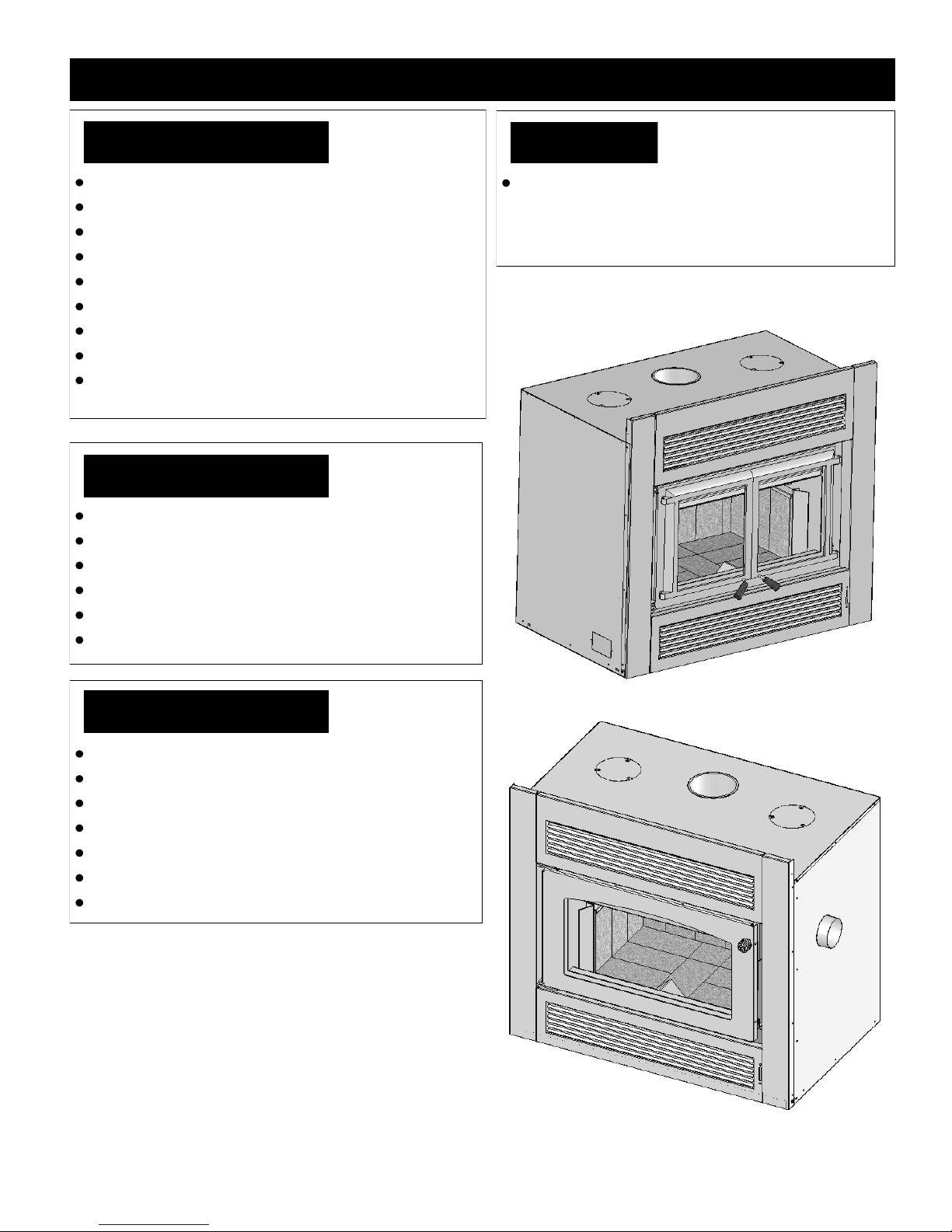

FEATURES
EPA/WA Certified/Non-Catalytic (EPA emissions rate 3.34 g / hr.)
High quality lifetime glass
Arched glass valance (Z42)
Large burning area
Air-seal 10 ga. steel door (Z42)
Twin air-seal cast iron doors (Z42-CD)
Zero Clearance to stand-offs
Air-wash system (keeps viewing area cleaner)
(2) heat duct knock-outs for optional ducting (#970 kit required)
Decorative grills in various styles and finishes
Decorative screen doors in various styles and finishes (Z42 only)
Automatic fan kit with variable speed control ( (2) 100 CFM)
44” (1118 mm) lintel iron
6” flexible heat duct kit
4” non-closure air vent
Finish material trim kits
Tested by Intertek Testing Services (formerly Warnock Hersey)
Sealed combustion chamber
EPA certified
Non-catalytic
Uses 100% outside air for combustion
U.S. and Canadian approved
Fireplace Weight (as packaged for shipment)
Z42: 515 lbs. (233.6 kg)
Z42-CD: 534 lbs. (242.2 kg)
STANDARD FEATURES
OPTIONAL FEATURES
WEIGHT
SAFETY FEATURES
Z-42
ARCHED DOOR MODEL
Z-42 CD
CAST IRON DOOR MODEL
PAGE 4

SPECIFICATIONS
FIREPLACE DIMENSIONS
LETTER KEY A B C D E F G H
DESCRIPTION Height Width Depth Glass Frame
Height
Glass Frame
Width
Stand-off
Height
Front to Flue
Center
Back to Flue
Center
FIREPLACE
DIMENSIONS
INCHES 38 42 25-15/16 18-3/16 31-11/16 3-5/8 18-1/4 7-11/16
MILLIMETERS 965 1067 658 463 805 92 463 196
CLEARANCE TO COMBUSTIBLES
Fireplace to back wall……………………………….0” (0 mm)
Fireplace to sidewalls………………………………..0” (0 mm)
Duct boots to framing……………………………….0” (0 mm)
Top stand-off to header……………………………..0” (0 mm)
Fireplace bottom to inside top of enclosure……..72” (1.83 m)
WITHIN ENCLOSURE AREA EXPOSED AREA
Wallboard to faceplate top edge/ sides………….0” (0 mm)
Fuel door opening to sidewall..………………..8” (203 mm)
Fireplace face top to 8” (203 mm) mantel…..12” (305 mm)
Front of fireplace……………………………..36” (914 mm)
Air duct vent to ceiling………………………….2” (51 mm)
NOTE: Even though the minimum clearance from the back
and side walls is 0”, 1/4” (6 mm) space is recommended for
heat expansion.
PAGE 5
B. 42”
(1067 mm)
E . 31-11/16”
(805 mm)
H. 7-11/16”
(196 mm)
G 18-1/4”
(463 mm)
7-15/16”
(202 mm) 16”
(407 mm)
A . 38”
(965 mm)
D. 18-3/16”
(463 mm)
F. 3-5/8”
(92 mm)
12-1/16”
(307 mm)
16”
(406 mm)
3-1/8”
(80 mm)
5-7/8”
(149 mm) C. 25-15/16”
(658 mm)
9-15/16”
(252 mm)

1. If masonry (optional) will be used, prepare foundation for the masonry load. A lintel is required to support the added weight above the
fireplace.
2. Frame an opening for the fireplace, allowing for vent installation and type of installation (corner, flat wall application).
3. Install optional hearth.
4. Install optional heat duct venting.
5. Install any electrical wiring.
6. Install fireplace into framing.
7. Attach combustion air pipe.
8. Install chimney.
9. Install desired facing material.
10. Install mantel.
11. Install optional fan.
12. Install firebrick.
13. Install door components and grills.
14. Install any optional decorative accessories.
Location of doors and windows on all floors of the home in relation to the fireplace and chimney must be considered and be in compli-
ance with applicable codes, if any.
This fireplace must be installed on a level surface capable of supporting the fireplace and venting.
Fireplace must be placed directly on wood or non-combustible surface (not linoleum or carpet) extending the entire depth and width of
fireplace.
Metal sealing strips must be used under fireplace and hearth extension.
The height of the enclosure must be a minimum of 72” (1.83 m). This measurement is from the fireplace bottom to the inside top of
enclosure.
Due to high surface temperatures, fireplace should be located out of traffic and away from furniture and draperies.
Please be aware of the large amount of heat this fireplace will produce when determining a location.
See illustration on following page.
INSTALLATION OVERVIEW
NOTE: The qualified installer should follow the
procedure best suited for the installation.
PAGE 6
IMPORTANT: Combustible flooring 16” (406 mm) in front of and 8” (203 mm) to each side of the fuel opening must be insulated with non-
combustible floor protection with a minimum insulation R-value of 0.8.
Manufactured hearth materials will usually have a published R value (resistance to heat) or k value (conductivity of heat).
Use the following formula to convert a k value to an R value.
R = 1/k x inches of thickness. See complete formula on page 28.

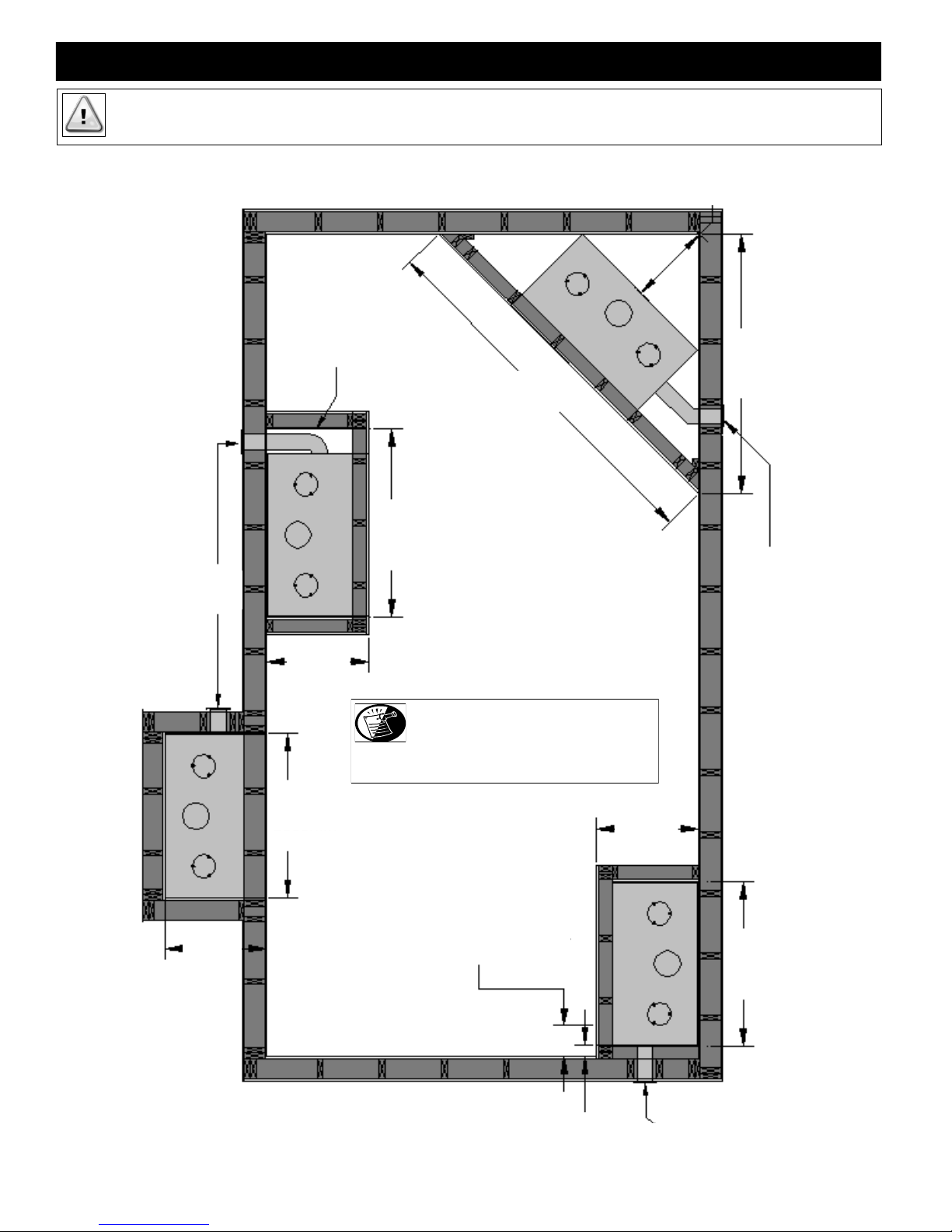

PLACEMENT CLEARANCE REQUIREMENTS

PAGE 7

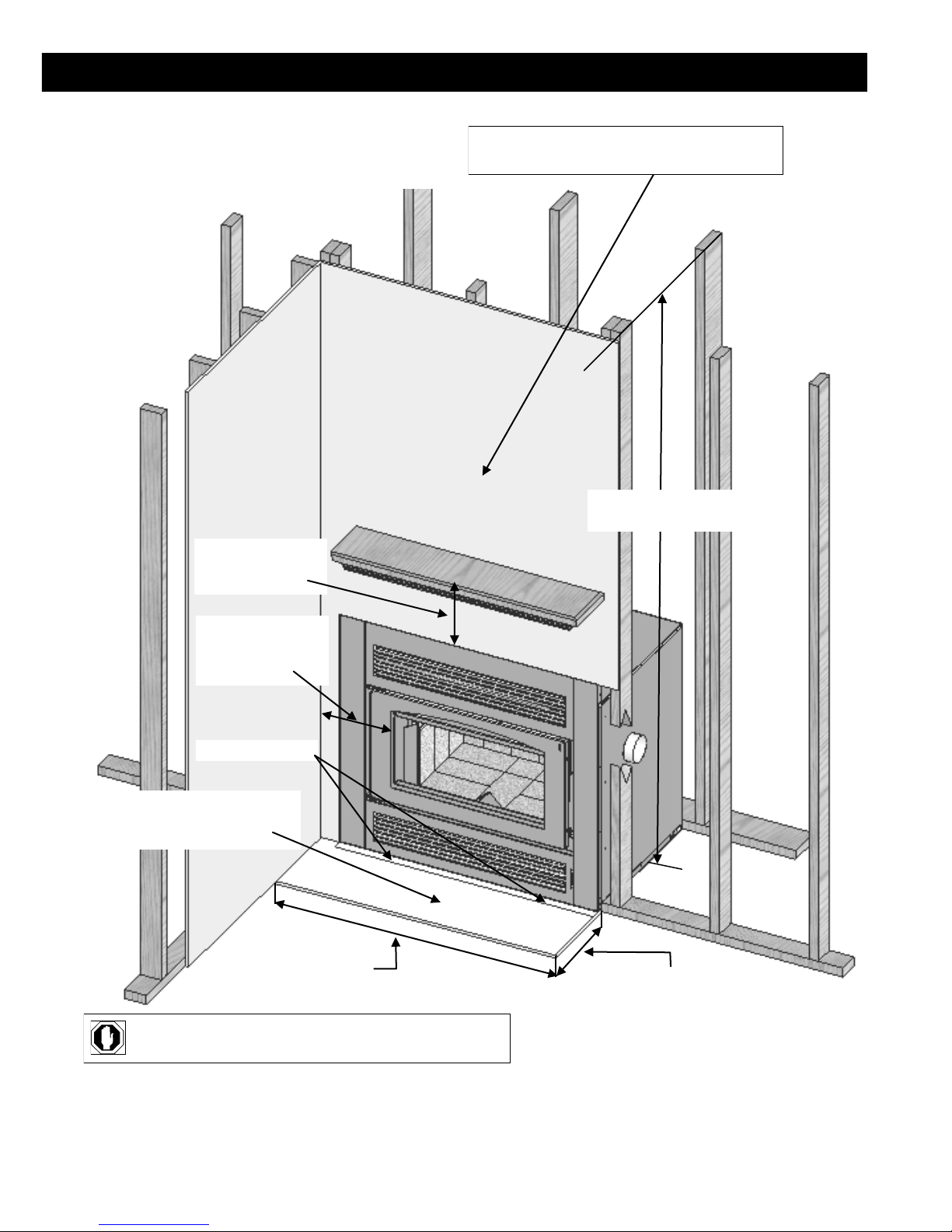

PLACEMENT CLEARANCE REQUIREMENTS
Minimum enclosure height:
72” (1.83 m)
Metal sealing strips
Minimum width:
48” (1219 mm) Minimum depth:
16” (406 mm)
Non-combustible floor protection
with minimum
insulation R-value of .08
Fuel door opening
to adjacent side wall
8” (203 mm)
minimum
Fireplace face top to
8” (203 mm) mantel
12” (305 mm)
WARNING: FOLLOW ALL INSTRUCTIONS AND CLEARANCES
AS OUTLINED THROUGHOUT THIS MANUAL.
DO NOT FILL THE SPACE DIRECTLY ABOVE FIREPLACE
WITH ANY MATERIAL (EXCEPT WOOD FRAMING).
Do not install shelving or cupboards into this area.

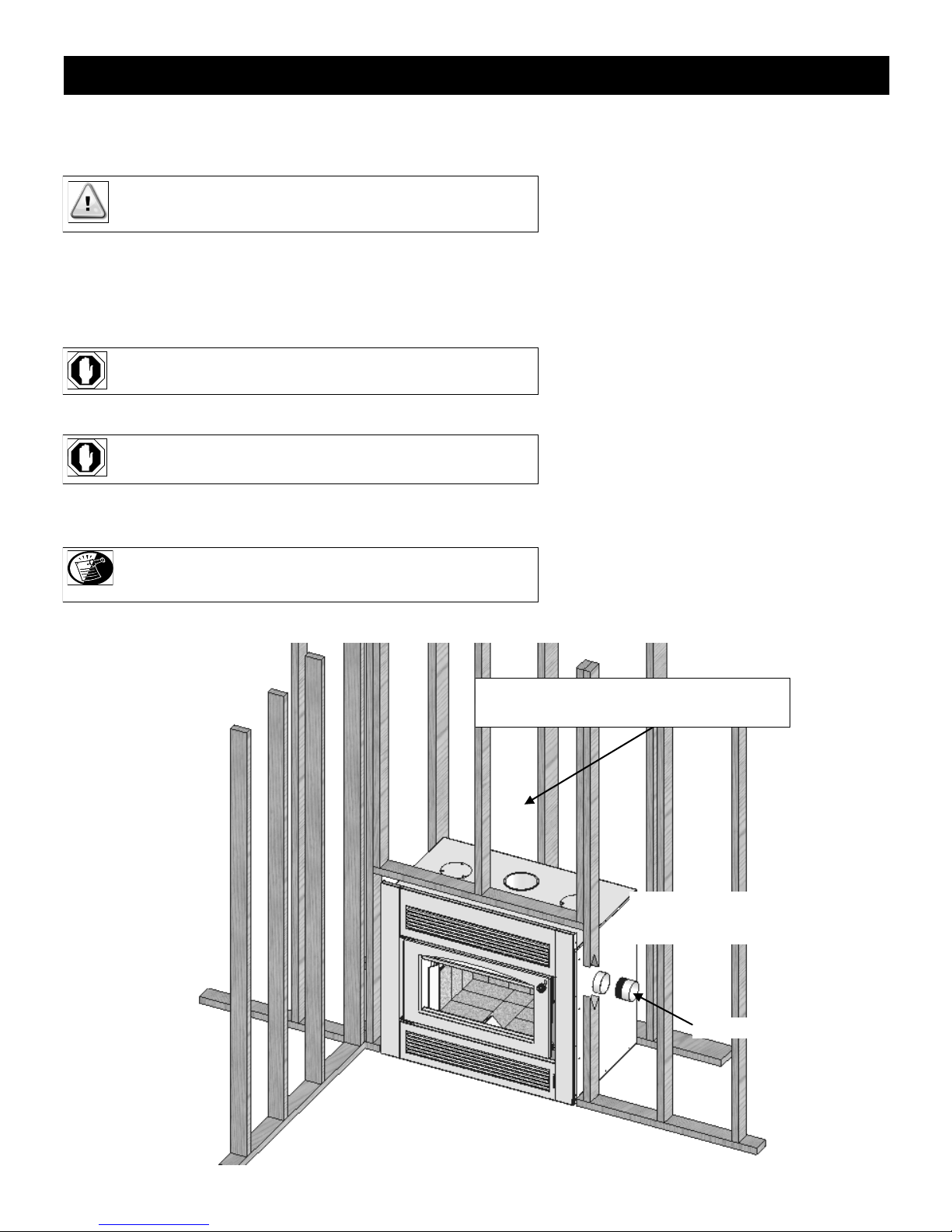

TYPICAL INSTALLATION OPTIONS
IMPORTANT: If this fireplace is installed on an exterior wall, it must be insulated the same as any other exterior wall to prevent cold air from
entering the home.
Combustion air pipes must be secured with screws to prevent separation and cold air transfer.
NOTE: All dimensions include 1/4” (6mm)
side and back expansion space and 1/2”
(13 mm) sheathing. Sheathing is flush with
fireplace front. Dimensions must be adjusted
if sheathing is more than 1/2” (13 mm) thick.
Must allow 6” (152 mm)
for combustion air pipe.
Combustion
Air Pipe
8” (203 mm) from door
to side wall
Combustion
Air Pipe
Combustion
Air Pipe
21-1/2”
(546 mm)
26-1/4”
(667 mm)
42-1/2”
(1080 mm)
26-1/4
(667 mm)
48-1/2”
(1232 mm)
42-1/2”
(1080 mm)
26-1/4”
(667 mm)
94-3/4”
(2407 mm)
67”
(1702 mm)
3”
(76 mm)
PAGE 8

FRAMING
Frame an opening to fit the fireplace. All required clearances must be maintained.
MINIMUM WALL ENCLOSURE DIMENSIONS: 42-1/2” (1080 mm) wide x 38-1/4” (792 mm) high x 26-1/4” (667 mm) deep.
IMPORTANT: Allow a minimum of 6” (152 mm) in framing width dimension for the combustion air pipe which will be installed after fireplace
has been inserted into framing. Please refer to illustration on previous page.
THE ENCLOSURE MUST BE A MINIMUM OF 72” (1.83 m) HIGH FROM THE BOTTOM OF FIREPLACE TO THE INSIDE TOP OF
ENCLOSURE.
APPLIES TO BOTH RAISED AND NON-RAISED HEARTHS: Combustible flooring 16” (406 mm) in front of and 8” (203 mm) to each
side of the fuel door opening must be insulated with non-combustible floor protection with a minimum insulation R-value of 0.8.
Manufactured hearth materials will usually have a published R value (resistance to heat) or k value ( conductivity of heat). Use the following
formula to convert a k value to an R value.
HEARTH EXTENSION
IMPORTANT: Metal sealing strip (included with fireplace) must be used. Install sealing strip so it is centered under fireplace and hearth
extension the full width of fireplace. A sand-cement grout may also be used between the hearth and an on-site constructed hearth extension.
WALL ENCLOSURE ROUGH OPENING
CAUTION: The lower grill must be allowed to open completely. Do not place the fireplace in such a manner that would obstruct this grill.
If installing optional #600-1 Fan Kit, run electrical wiring at this time.
If installing optional #970 Heat Duct Kit, please refer instructions included with kit at this time.
Floor
Non-combustible
hearth extension
material
Metal sealing strips
Sand-cement grout
PAGE 9
R = 1/k x inches of thickness. See complete formula on page 28.

COMBUSTION AIR PIPE
This fireplace requires outside air for combustion and is manufactured with a collar protruding approximately 1/4” (6 mm) from the right side of
fireplace. An outside air pipe adaptor (4” (102 mm) diameter and 3” (76 mm) in length), is included with fireplace to properly connect the out-
side air pipe to fireplace.
IMPORTANT: DO NOT CONNECT OUTSIDE AIR ADAPTOR UNTIL
AFTER FIREPLACE HAS BEEN INSERTED INTO FRAMING.
1. Insert the combustion air intake adaptor into collar on right side of fireplace. Secure with screws.
2. Connect a 4” (102 mm) galvanized or heavier pipe to adaptor and run to nearest outside wall. Secure with screws. See venting configuration
on following page.
Aluminum flex duct pipe approved for outside combustion air may also be used. Do not crush or tear the aluminum flex duct pipe.
3. Avoid running the combustion air an excessive length. Follow the shortest distance possible to terminate to the outside.
WARNING: DO NOT TERMINATE INTO ATTIC OR GARAGE.
TERMINATION MUST BE TO THE OUTSIDE OF HOME.
If ducting beside chimney chase, terminate the intake air at least 3 ft. (914 m) below the termination level of chimney. The air pipe may also be
ducted below the floor level of fireplace providing it is ducted to the outside.
NOTE: If the combustion air pipe runs for any distance outside the enclosure,
but inside the house, wrap with insulation to eliminate condensation or frost
build-up.
4. Mount a standard metal vent cover designed for 4” (102 mm) pipe on the outside exterior wall with the louvers pointing downward.
WARNING: DO NOT USE PLASTIC FLEX PIPE, SUCH AS DRYER VENT
PIPE FOR THE COMBUSTION AIR PIPE VENTING.
Air intake adaptor
Position fireplace into framed opening.
Insert air intake adaptor into 4” collar on
fireplace right side.
PAGE 10
DO NOT FILL THE SPACE DIRECTLY ABOVE FIREPLACE
WITH ANY MATERIAL (EXCEPT WOOD FRAMING).
Do not install shelving or cupboards into this area.

Do not place combustible
material below stand-offs.
Hearth Extension
Metal sealing strip centered under fireplace and
hearth the entire width of fireplace.
COMBUSTION AIR PIPE VENTING CONFIGURATIONS
PAGE 11

CHIMNEY LOCATION
RECOMMENDED LOCATION
Above peak
RECOMMENDED LOCATION
Above peak
Inside heated space
MARGINAL LOCATION
Wind loading possible
MARGINAL LOCATION
Below peak
NOT RECOMMENDED
Not the highest point of roof
Wind loading possible
NOT RECOMMENDED
Too close to tree
Below adjacent structure
Lower roof line
Avoid outside wall
RECOMMENDED
Insulated exterior chase
SLANTED ROOFS
FLAT ROOFS
Chimney must
extend 3 ft. (914 m)
above the roof
Chimney must extend 2 ft. (610 mm)
above any portion of the roof or adjacent
structures within 10 ft. (3.05 m) of the
chimney.
Chimney must extend 2 ft. (610 mm)
above any portion of the roof or adjacent
structures within 10 ft. (3.05 m) of the
chimney.
Chimney must
extend 3 ft. (914 m)
above the roof
PAGE 12

CHIMNEY INSTALLATION
CHIMNEY REQUIREMENTS
MINIMUM CHIMNEY HEIGHT: 12 ft. (3.66 m)
Chimney must extend a minimum of 3 ft. (914 mm) above the highest point where it passes through the roof and at least 2 ft. (610 mm)
higher than any portion of a building within 10 ft. (3.05 m). See illustrations on previous page.
MAXIMUM CHIMNEY HEIGHT: 50ft. (15.24 m)
ELBOWS: A maximum of (4) 30˚elbows may be used (2 sets offsets).
MAXIMUM OFFSET: 4 ft. (1219 mm)
If (2) 30˚elbows are used, the chimney height must be a minimum of 14 ft. (4.27 m).
If (4) 30˚elbows are used, the chimney height must be a minimum of 25 ft. (7.62 m).
Do not connect this fireplace to a chimney flue serving another appliance.
APPROVED CHIMNEY SYSTEMS
Selkirk Metalbestos: UL (Ultra Temp)
Simpson Dura-Vent: Dura-Plus
Simpson Dura-Vent: Dura-Tech
American Metal Products: Amer-Tech
SuperPro / SuperVent
ICC / Excel
Alternate listed 6” diameter HT-type UL 103 All-Fuel Chimney Systems, including CAN-0S629 listed chimneys may be used.
Follow chimney manufacturer‟s instructions for proper chimney installation, clearance to combustibles and support bracket
requirements.
CAUTION: DO NOT FILL REQUIRED CLEARANCES BETWEEN
CHIMNEY AND COMBUSTIBLES WITH INSULATION!
ANCHOR PLATE INSTALLATION
IMPORTANT: The appropriate anchor plate must be purchased with the
chimney system you are installing. Sealant and screws for attaching the
anchor plate to fireplace are included.
Place a bead of sealant under chimney anchor plate. Push plate collar into the fireplace flue. Secure with (4) screws.
IMPORTANT: The anchor plate must fit into the flue collar on fireplace to
prevent creosote leakage.
Anchor Plate
Anchor Plate
Flange Fireplace Flue
Anchor Plate
Sealant
Secure with (4) screws
PAGE 13

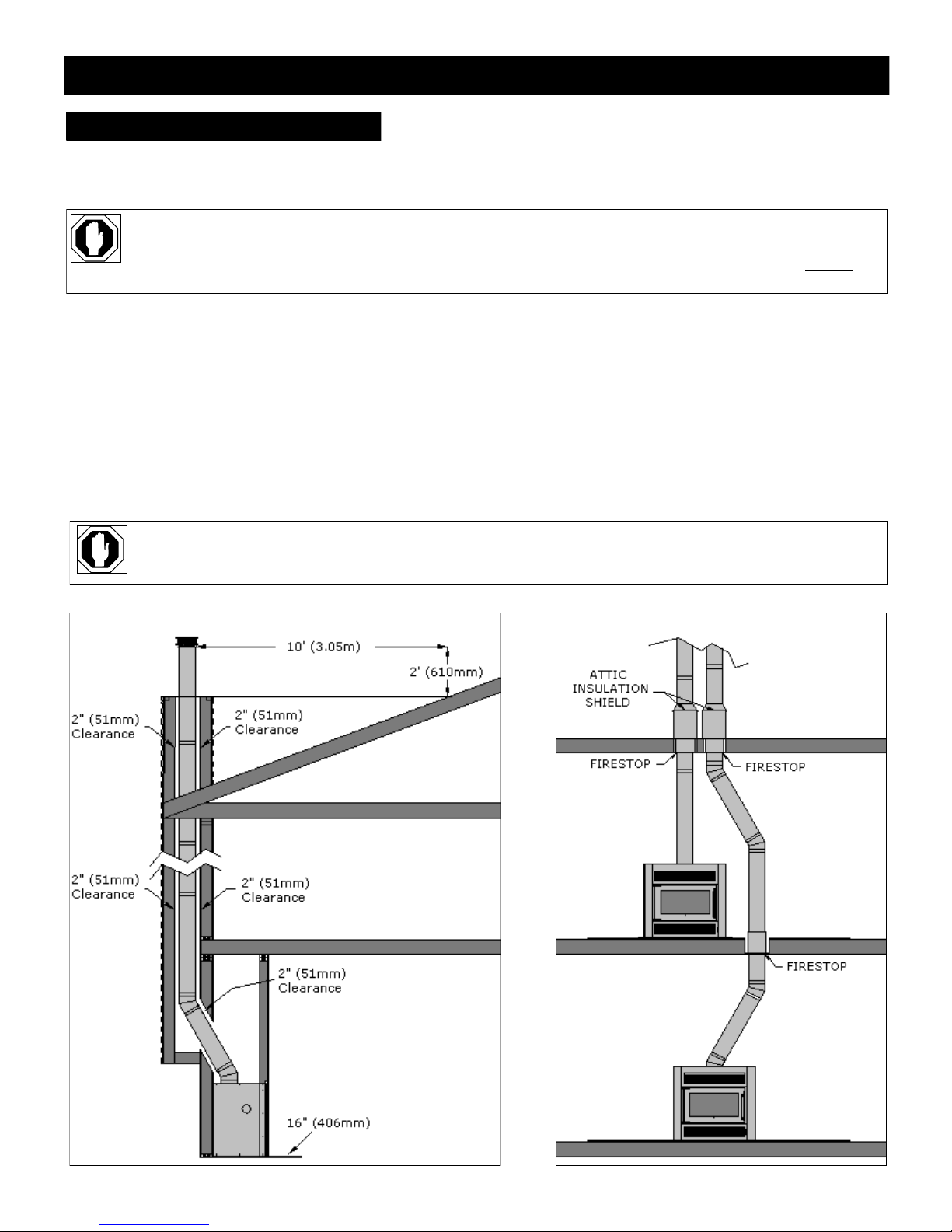

CHIMNEY INSTALLATION
1. After anchor plate installation, connect first chimney section per manufacturer’s installation instructions.
2. Cut and frame the required holes in floor, ceiling, and roof where chimney will pass through.
WARNING: REFER TO CHIMNEY MANUFACTURER‟S INSTRUCTIONS FOR PROPER FRAMING SIZE, CLEARANCE TO COM-
BUSTIBLES AND SUPPORT BRACKET REQUIREMENTS.
WARNING: CLEARANCE BETWEEN CHIMNEY AND COMBUSTIBLES SHOULD NEVER BE LESS THAN 2” (51 mm). DO NOT
FILL THIS REQUIRED AIR SPACE WITH INSULATION OR OTHER MATERIALS.
CHIMNEY INSTALLATION
FIRESTOP: A firestop must be installed where the chimney passes through each floor level. Refer to chimney manufacturer’s instructions for
part numbers and installation procedures.
ATTIC INSULATION SHIELD: An attic insulation shield is required by the chimney manufacturer for protection where the chimney passes
into attic space. This will prevent debris and insulation from coming into contact with the chimney.
Refer to chimney manufacturer requirements.
3. Install chimney sections, firestops, attic insulation shields, etc., following chimney manufacturer’s instructions and requirements, along
with following the chimney minimum / maximum height requirements as outlined in this installation manual.
4. Install the flashing, storm collar and chimney cap following chimney manufacturer’s instructions.
5. Refer to chimney manufacturer’s requirements concerning supports, bracing, anchors, etc.
PAGE 14
WARNING: THE CEILING / ROOF THIMBLE MUST EXTEND COMPLETELY THROUGH THE CAVITY TO THE OUTERMOST
PLANE OF THE ROOF..

INSTALLATION OF THIS FAN SHOULD BE DONE ONLY BY A QUALIFIED INSTALLER
IMPORTANT: Wiring must be done before enclosing fireplace sides. An electrical box and romex connector are pre-installed on a removable
panel on the right side of fireplace. A receptacle / speed control assembly and (3) wire nuts are included in the fireplace components packet.
The optional fan kit includes:
(2) 110 CFM fan with temperature control switch and 4 ft. (1219 mm) fan cord
(4) 1/4” nuts
NOTE: Code approved line voltage wiring 14 gauge or better must be used when wiring this assembly. Refer local electrical codes for specific
requirements.
WARNING: THIS APPLIANCE IS EQUIPPED WITH A THREE-PRONG (GROUNDING) PLUG FOR PROTECTION AGAINST SHOCK
HAZARD AND SHOULD BE PLUGGED DIRECTLY INTO A PROPERLY GROUNDED THREE-PRONG RECEPTACLE. DO NOT CUT
OR REMOVE THE GROUNDING PRONG FROM THIS PLUG.
Incoming wiring
110V - 120V 60Hz
110V - 120V
Temperature Switch:
Magnetically attaches to bottom of
firebox.
Speed Control / Receptacle Assembly
Electrical Box
OPTIONAL FAN INSTALLATION
WARNING: MAKE SURE HOUSEHOLD BREAKER IS SHUT OFF PRIOR TO WORKING ON ANY ELECTRICAL LINES.
PAGE 15
NOTE: Fan Shields, Speed control / receptacle assembly & (3)
wire nuts are included in the fireplace components packet.
Slide one corner of a fan shield onto the front chute on each fan,
making sure ‘V’ portion of shield is inside chute.
FAN SHIELD INSTALLATION
Two fan shields are included in the fireplace components packet. These shields divert more air circulating through the fans upward,
which increases volume exiting through the upper grill. Install shields onto fans before installing fans in fireplace.
Slide fan shield down onto the chute.

OPTIONAL FAN INSTALLATION
The lower grill must be removed from the fireplace prior to installation of this fan. Refer to page18 of this installation manual for assistance if
necessary.
1. Insert fans through the lower grill opening, push to the back. Align mounting slots in fan brackets onto the mounting studs. Secure with
nuts.
2. Connect fan wiring by attaching connectors on right fan onto terminals on left fan.
3. From inside the lower right grill opening, loosen screws securing removable access panel (with electrical box & romex connector in-
stalled). Remove panel.
4. Insert 110V - 120V wiring (with ground) through romex connector and wire to the speed control / receptacle assembly, matching the
black (hot), white (neutral), and green (ground) wires to the corresponding wires on the speed control / receptacle assembly.
5. Secure speed control / receptacle assembly to the electrical box with (2) screws provided.
6. Re-install electrical access panel. Tighten screws.
7. Attach the temperature control switch to the bottom of firebox.
8. Plug cord into the electrical box receptacle.
9. Turn speed control counter-clockwise until it ‘clicks’. This is the ‘OFF’ position.
10. Turn speed control ‘ON’ by turning knob clockwise past the ‘click’ - this is the highest setting.
11. Re-install lower grill. Refer to page 18 of this installation manual if necessary.
Before adjusting the temperature control switch, unplug the 3-prong
plug on the fan cord from the receptacle. Adjust position of the
temperature control switch to a warmer location under the firebox to
turn fan ‘ON’ sooner or move it to a cooler location under firebox
to turn the fan ‘ON’ later. The fan will turn on when the sensor in
the temperature control switch reaches 110° F and will turn ‘OFF’
when the sensor reaches 90° F. After adjustment, plug the 3-prong
plug on fan cord into the receptacle.
NOTE: This appliance must be electrically grounded
and connected in accordance with local codes, or in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70 Current Edition, or the Cana-
dian electrical Code CSA C22.1.
NOTE: This fan will not operate unless the speed con-
trol has been turned „ON‟ and sufficient heat has been
applied to the temperature control switch. The fan will
turn „ON‟ and „OFF‟ automatically as the fireplace
heats and cools. Adjust fan to desired speed while it is
running.
TEMPERATURE CONTROL SWITCH POSITION
PAGE 16

FIREBRICK INSTALLATION
The following firebrick are included with this fireplace:
7- 4-1/2” x 9” (114 mm x 229 mm)
6- 4-1/2” x 10-3/4” (114 mm x 273 mm)
1- 4-1/2” x 4-1/2” (114 mm x 114 mm)
10-4-1/2” x 13-1/2” (114 mm x 343 mm)
2- 2-1/2” x 13-1/2” (64 mm x 343 mm)
1- Firebrick retainer
1. Position (5) 4-1/2” x 13-1/2” (114 mm x 343 mm) and
(1) 2-1/2” x 13-1/2” (64 mm x 343 mm) firebrick along back
wall of firebox.
2. Starting at the back, position (3) 4-1/2” x 10-3/4” (114 mm x
273 mm) under the firebrick brackets along each side of fire-
box.
3. Place (7) 4-1/2” x 9” (114 mm x 229 mm) and (1) 4-1/2” x
NOTE: The 4-1/2” x 4-1/2” (114 mm x 114 mm) firebrick is
at the center back.
4. Lay (5) 4-1/2” x 13-1/2” (114 mm x 343 mm) and (1) 2-1/2”
x 13-1/2” (64 mm x 343 mm) firebrick over the firebrick
refractory panel resting on the (4) stainless steel pipes at top
of firebox.
5. With the 45˚flange down, slide the firebrick retainer between the top of the first pipe & firebrick. Push retainer back until it is against the
front of the firebrick and under the refractory panel. Set retainer down on top of pipe. The 45˚flange on the firebrick retainer should now be
behind the first pipe.
Firebrick refractory panel
Firebrick refractory panel not shown in some
illustrations for clarity purposes only
PAGE 17
Firebrick refractory panel in located on top of pipes. DO NOT DISCARD.

FIREPLACE FRAMING & FACING
Frame in the fireplace. Maintain the necessary clearances to combustibles. The framing materials should not come in actual contact with the
fireplace. If installing a mantel, (combustible material may be used) follow the mantel projection chart below.
CAUTION: If using “thin” brick, a non-combustible facing material
such as rock board or metal must be used. Do not attach directly to
fireplace face.
COMPLETE THE INSTALLATION
HANDLE INSTALLATION - ARCHED DOOR MODELS
HANDLE INSTALLATION - CAST IRON DOOR MODELS
Thread black spring handles (included in fireplace components packet) onto door handles.
Thread black spring handle (included in fireplace components packet) into
nut located in the mounting hole at the top right of door front.
UPPER GRILL INSTALLATION
1. Line rods of upper grill up with the holes located at top of upper grill opening.
2. Push up into holes until bottom of rods clear the glass frame. Place bottom of rods into lower holes and release.
UPPER GRILL REMOVAL
1. Lift grill up far enough to clear the bottom holes. Pull bottom out.
LOWER GRILL REMOVAL
LOWER GRILL INSTALLATION
1. Remove 1/4” nuts from lower grill assembly.
2. Insert bolts through hinges on lower grill opening.
3. Re-attach nuts.
1. Remove 1/4” nuts from lower grill assembly.
2. Pull grill assembly out of hinges.
3. Re-attach nuts to grill assembly.
34"(19mm)
2"(51mm)
3 14"(83mm)
4 12"(114mm)
6"(152mm)
7 14"(184mm")
8 12"(216mm)
10"(254mm)
11 14"(286mm) 17"(432mm)
1"(25mm)
3"(76mm)
5"(127mm)
7"(178mm)
9"(229mm)
11"(279mm)
13"(330mm)
15"(381mm)
NOTE: A non-combustible material such as brick, tile, marble, or
stone may be placed over the top and side face sections. This material
MUST NOT come in direct contact with the fireplace or cracking of
face materials will occur.
Facing material should overlap the side framing members approximately
1/4” - 3/8” (6 mm - 10 mm).
LOWER GRILL
ARCHED DOOR MODEL
PAGE 18

DOOR SEAL ALIGNMENT & ADJUSTMENT (Arched Door Model)
Every effort has been made at the factory to ensure a proper door seal prior to shipment. Misalignment, however, may still occur during shipment,
mishandling and / or installation.
The following procedures will help you determine if the door is sealing properly, and how to achieve a proper seal.
CHECKING THE SEAL
1. Close and latch door.
2. Check seal by pushing against corners of glass.
- No movement indicates proper seal.
- Any movement between the glass and firebox face at any corner indicates an inadequate seal. This will create creosote build-up on
glass and cause the fire to burn faster.
HINGE ADJUSTMENT
1. Close and latch door.
2. Place wooden shim (included) between the bottom of door and the face on the latch side. This is necessary to ‘hold’ the door in horizontal
alignment.
3. Determine if the upper, lower, or both hinges need adjustment.
IMPORTANT: DO NOT LOOSEN NUTS SECURING THE DOOR
HINGES AT THE TOP AND BOTTOM OF DOOR.
UPPER FACE HINGE: Remove upper grill. Locate the two nuts securing upper face hinge.
LOWER FACE HINGE: Open lower grill and locate the two nuts securing the lower face hinge inside the lower grill opening (similar to the
upper grill hinge).
4. Using a 7/16 wrench or nut driver, LOOSEN BUT DO NOT REMOVE the two nuts. Push the door in slightly, (either top or bottom,
depending on adjustment needed) to achieve a tighter door seal. Re-tighten nuts.
5. Remove shim. Repeat steps #1 & #2 in the ‘CHECKING THE SEAL‟ section above.
6. Repeat steps #1 - #5 of this section until proper door seal is achieved.
NOTE: The door may need to be „pulled out‟ if it is binding at
either the top or bottom right corners.
Do not loosen these nuts
Loosen nuts securing face hinge
Place shim between bottom of
door and face
PAGE 19
