Kozy-World GFN4113 User manual

1
WARNING: Ifthe informationinthismanual
isnotfollowedexactly, afireorexplosionmay
resultcausing propertydamage,personalinjury,
or lossof life.
*Aftermarket:Completionofsale,notforpurpose ofresale,
fromthemanufacturer.
Donotstoreoruse gasolineorotherflammable
vaporsand liquidsinthevicinityofthisor any
other appliance.
WHATTO DOIF YOUSMELL GAS
l Donottrytolight anyappliance.
l Donottouch anyelectricalswitch;do notuseany
phone inyourbuilding.
l Immediatelycallyour gassupplierfroma
neighbor sphone.Followthe gassupplier s
instructions.
l If youcannotreach yourgas supplier, call
thefiredepartment.
Installation and service must be performed bya
qualifiedinstaller,serviceagency, orthegas
supplier.
Thisappliancemay beinstalledinanaftermarket*,
permanentlylocated,manufactured(mobile)home,
wherenotprohibitedbylocalcodes.
Thisapplianceisonlyforusewiththe type of gas
indicated on theratingplate.Thisappliance isnot
convertibleforusewithothergases.
GFN4113 GFP4114
GFN4311GFP4312
GFN4227RGFP4228R
WARNING: Thisisanunvented gas-
fired heater. It usesair (oxygen)fromtheroom
inwhichitisinstalled.Provisionsfor ad-
equatecombustionandventilation air mustbe
provided.RefertoAirForCombustionand
Ventilation section onpage5ofthismanual.
Consumer:Pleaseretaintheseinstructionsforfuture
use.
InstaIIer:PleaseLeavetheseinstructionswiththecon-
sumer
FULLSIZEVENT-FREE
FIREPLACE
OWNER SOPERATIONAND
INSTALLATION MANUAL
WARNING: Improper installation,adjustment,
alteration,serviceor maintenance cancauseinjury
orpropertydamage.Refertothismanualforcorrect
installationandoperationalprocedures.Forassis-
tanceoradditionalinformation consultaqualified
installer, serviceagency,orgassupplier.
KW-FHL035-01HR/T-0608
Kozy-World R
GFN4113&GFP4114shown
World-MarketingofAmerican,Inc.
P.O.Box192,Rt.22West
MillCreek,PA17060
KOZY-WORLDPHONENUMBER:[phone]
http://www.worldmkting.com

2
IMPORTANT: Readthisowner s
manual carefullyand completely
beforetrying toassemble,operate,
orservice thisheater.Improper
useofthisheatercancause seri-
ous injuryordeathfromburns,
fire,explosion,electricalshock,
andcarbonmonoxide poisoning.
IMPORTIANTSAFETY
INFORMATION
DANGER: Carbonmonoxide
poisoning mayleadtodeath!
Carbon Monoxide Poisoning:
Earlysigns ofcarbonmonoxidepoi-
soningresemblethefluwith
headaches,dizziness,ornausea.
If youhavethesesigns,theheater
maynotbeworkingproperly. Get
fresh airimmediately! Haveheater
serviced.Somepeoplearemoreaf-
fectedbycarbon monoxidethan
others.Theseincludepregnant
women,peoplewithheart, orlung
disease,anemia,thoseunderthein-
fluenceofalcohol,andthoseathigh
altitudes.
WARNING:Anychange tothisfire-
placeoritscontrolscan be
dangerous.
WARNING: Donotallowfansto
blowdirectlyintotheheater.Avoidany
draftsthat alter burnerflamepatterns.
Ceilingfans cancreatedraftsthat al-
terburnerflamepatterns.Altered
burnerpatternscancausesooting.
Donotplaceclothingorother flam-
mablematerialonornearthe
appliance.Neverplaceanyobjects
inthe fireplace.
Duetohigh temperatures,theappli-
anceshouldbelocatedout oftraffic
andaway fromfurnitureand
draperies.
WARNING:Donotuse ablower
insert,heatexchangerinsert, or other
accessorynotapprovedfor usewith
thisheater.
Heaterbecomesveryhotwhen
running fireplace. Keepchildrenand
adultsawayfromhotsurfacesto
avoidburnsorclothing ignition.
Fireplacewill remainhot foratime
after shutdown.Allowsurfaces tocool
beforetouching.
Carefullysupervise young children
whentheyareinthe roomwith
fireplace.
Youmustoperatethisheaterwith
theheaterscreen inplace.Make
sureheaterscreenisinplace
beforerunningheater.
Keepthe applianceareaclearand
free fromcombustiblematerials,
gasoline,andotherflammable
vaporsand liquids.
1. Thisapplianceisonlyfor usewith
thetype of gas indicatedontherat
ing plate.Thisapplianceisnot con
vertibleforusewithothergases.
2. Donot placePropane/LPsupply
tank(s) inside anystructure.
LocatePropane/LPsupplytank(s)
outdoors.
3. If you smellgas
lShutoff gassupply.
lDonottrytolight anyappliance.
lDonot touch anyelectricalswitch:
donot useanyphoneinyour
building.
lImmediatelycall your gas supplier
fromaneighbor sphone. Follow
thegas supplier sinstructions.
lIfyou cannotreachyour gas
supplier, callthe firedepartment.
and toreplace anypartofthecon-
trolsystem,andanygascontrol,
whichhasbeenunderwater.
Important SafetyInformation ..............2
Air forCombustion and Ventilation.....5
Installation.............................................7
Operating Heater................................11
Cleaning&Maintenance.....................14
Specifications.....................................16
Troubleshooting..................................17
Replacement......................................18
PartsList..............................................19
WARNING
ModelsGFN4113,GFN2311,
GFN4227RareequippedforNatural
gas.Fieldconversionisnotpermitted.
ModelsGFP4114,GFP4312,
GFP4228Rareequippedfor Propane
gas.Fieldconversionisnotpermitted.
Natual and Propane/LP Gas: Natural
andPropane/LPgasisodorless. An
odor-making agentisaddedtothegas.
The odorhelpsyoudetect agasleak.
However, theodoraddedtothegascan
fade.Gasmaybepresenteven though
noodorexists.
Makecertainyoureadandunderstand
all warnings.Keepthismanualfor
reference. It isyour guidetosafe
andproper operation ofthisheater.
TableofContents
4.Thisheatershallnotbe installed
inabedroomorbathroom.
5. Donotusethisheaterasa
wood-burningheater.Useonly
thelogsprovidedwiththeheater.
6. Donotadd extralogsorornaments
suchaspinecones, vermiculite,or
rockwool.Usingtheseaddeditems
cancausesooting.Donotaddlava
rockaroundbase.Rockanddebris
couldfallintothecontrolareaof
heater. Afterservicing,always
replace screenbeforeoperating
heater.
7.Youmustoperatethisheater with
sureheaterscreenisinplace
beforerunning heater.

3
8.Thisheater isdesignedtobe
smokeless. If logsever appear to
smoke,turnoffheater andcalla
qualifiedserviceperson.
Note: Duringinitialoperation, slight
smokingcouldoccurdue tolog
curingand heaterburningmanufac
turingresidues.
9.Topreventthe creationofsoot,
followtheinstructionsin Cleaning
andMaintenance(page 12).
10.Beforeusingfurniturepolish,wax,
carpetcleaner,orsimilarproducts,
turnheateroff. If heated, the vapors
fromtheseproductsmay createa
whitepowderresiduewithinburner
boxoronadjacentwallsor furniture.
11.Thisheaterneedsfresh air ventila-
tiontorunproperly.Thisheaterhas
anOxygenDepletionSensing
(ODS) safetyshutoff system.
TheODSshutsdownthe heaterif not
enoughfreshairisavailable. See Airfor
CombustionandVentilation, pages5
through6.If heaterkeeps shutting off,
see Troubleshooting,pages14
through 15.
12.Donotrun heater:
l Whereflammableliquidsor
vaporsareusedor stored.
l Underdustyconditions.
13.Donotusethisheatertocook
foodorburnpaperorother objects.
14.Donot usethisheater if anypart
hasbeenunder water. lmmedia-
telycallaqualified service techni-
ciantoinspect the roomheater.
SAFETYINFORMATION
Continued
QUALIFIEDINSTALLINGAGENCY
Installation andreplacementofgas
piping,gas utilizationequipmentorac-
cessories and repairandservicing of
equipment shallbe performed onlyby
aqualified agency.Theterm “qualified
agency”meansanyindividual,firm,
corporation,orcompanythateither in
person orthrough arepresentative is
engagedinand isresponsiblefor(a)
the installation,testing,orreplacement
ofgaspipingor(b)theconnection,
installation,testing,repair,orservicing
ofequipment;thatisexperiencedin
suchwork; that isfamiliar withallpre-
cautionsrequired,and thathascom-
plied withallthe requirementofthe
authorityhavingjurisdiction.
15.Turnoffand unplugheater and
letcoolbeforeservicing.Onlya
qualifiedserviceperson should
serviceand repairheater.
16.Operatingheaterabove
elevvationsof 4,500 feetcould
causepilotoutage.
18.Topreventperformance
problems,donot usepropane/
LPfueltankof lessthan100lbs.
capacity.
PRODUCTFEATURES
SAFETY PILOT
Thisheaterhasapilot withan
OxygenDepletionSensing (ODS)
safetyshutoffsystem.TheODS/pilot
shutsoff the heaterif thereisnot
enough freshair.
MANUALOVERRIDE CONTROLSYS-
TEM(GFN4227RandGFP4228R)
Thisheater has twooperationfunctions:
RemoteControlandManualOverride
Control. TheRemoteControlhasa
transmitter, providedwhich requires
three “AAA”batteriesand electricpower
outlettointhe event of apower outage,
then you canoperatetheheaterby
manualoverride.
The ignitor requireone “AAA”battery.
StateofMassachusetts: Theinstal-
lation mustbemadebyalicensed
plumberorgas fitterintheCommon-
wealthofMassachusetts.
Sellersofunventedpropane ornatu-
ralgas-firedsupplementalroomheat-
ersshall providetoeach purchasera
copyof 527 CMR30uponsaleofthe
unit.
InthestateofMassachusetts,
unventedpropaneor naturalgas-fired
spaceheatersshallbe prohibitedin
bedroomsand bathrooms.
Inthe StateofMassachusettsthe
gas cock mustbe a “T”handletype.
TheStateofMassachusettsre-
quiresthataflexibleappliancecon-
nectorcannotexceedthreefeetin
length.
17.Donotoperateheater if anylog
isbroken.Donotoperateheater
if anylogischipped(dime-sized
or larger).

4
UNPACKING
1. Remove topinnerpack.
2.Tiltcartonso thatfireplaceisupright.
3. Remove protectivesidepackaging.
4. Slide fireplace outofcarton.
5.Removeprotectiveplasticwrap.
6. Holdthe screenlift andpull
ing forward.
7.Removelogsetbycuttingplastic
ties.
8. Carefullyunwrap log.
9.Checkforanyshippingdamage. If
stoveorlog isdamaged,promptly
informdealerwhereyoubought
stove.
PRODUCTIDENTIFICATION
Figure1- Vent Free LP/NG Gas Stove
WATERVAPOR:ABY-PRODUCTOFUNVENTEDROOMHEATERS
Watervaporisaby-productofgascombustion.Anunventedroomheater producesapproximatelyone(1)ounce
(30ml) of water forevery1,000BTU s(.3KW s)ofgas inputper hour.
Unventedroomheatersarerecommendedas supplementalheater(aroom). Rather thanaprimaryheatsource
(an entirehouse). Inmostsupplementalheatapplications,the watervapordoes notcreataproblem.Inmost
applications,thewater vaporenhances thelowhumidityatmosphereexperiencedduringcoldweather.Thefollowing
stepswill helpinsurethatwatervapordoesnotbecomeaproblem.
1.Besurethe heaterisasizedproperlyfor the application,including amplecombustionairandcirculationair.
2.If highhumidityisexperienced,dehumidifiermaybeusedtohelplowerthewatervapor content of the air.
3.Donot use an unventedroomheater astheprimaryheatsource.
lnstalland use heaterwithcare.
Followalllocalcodes.Inthe
absence oflocalcodes,usethe
latesteditionof The NationalFuel
GasCode,ANSIZ223.1,also
knownas NFPA54*.
*Availablefrom:
AmericanNationalStandards
lnstitute,lnc.
1430 Broadway
NewYork,NY10018
NationalFireProtection
Association,lnc.
BatterymarchPark
Quincy.MA02269
Thisheaterisdesignedforvent-
free operation.Stateand local codes
insomeareasprohibittheuseof
vent-freeheaters.
LOCALCODES

5
AIRFORCOMBUSTIONANDVENTILATION
WARNING:Thisheater
shallnot beinstalledinaconfined
spaceorunusuallytightconstruc-
tion unlessprovisions areprovided
foradequatecombustion and ven-
tilation air. Readthe following in-
structions toinsureproperfresh
airforthisanotherfuel-burning
appliances inyourhome.
PROVIDING ADEQUATE
VENTILATION
Thefollowing areexcerptsfrom
NationalFuelGasCode, NFPA54/
ANSIZ223.1,Section5.3, Airfor
Combustionand Ventilation.
Allspacesinhomesfall intooneof
thethreefollowingventilation
classifications:
1.UnusuallyTightConstruction
2. Unconfined Space
3. Confined Space
Theinformationon pages5through6
willhelpyou classifyyour spaceand
provideadequateventilation.
Confined andUnconfined Space
TheNationalFuelGasCode,ANS
Z223.1 defines aconfinedspaceasa
spacewhosevolumeislessthan 50
cubicfeet per1,000 Btuperhour (4.8
m3perkw)ofthe aggregateinput
ratingof allappliancesinstalledinthat
spaceand anunconfining spaceasa
spacewhosevolumeisnotless
than50cubicfeet per1,000 Btuper
hour (4.8m3perkw) oftheaggregate
inputrating ofall appliances installed
inthat space. Roomscommunicat-
ingdirectlywiththe spaceinwhich
theappliancesareinstalled*,through
openingsnot furnished withdoors,
areconsidered apartofthe
unconfinedspace.
Thisheatershall notbeinstalledin
aconfinedspaceorunusuallytight
constructionunlessprovisionsare
providedforadequatecombustion
andventilationair.
* Adjoiningroomsarecommunicat-
ing onlyiftherearedoorlesspas-
sagewaysorventilation grillsbe-
tweenthem.
UnusuallyTightConstruction
DETERMINING FRESH-AIRFLOWFORHEATERLOCATION
DeterminingifYouHave aConfined orUnconfinedSpace
Usethisworksheettodetermineif you have aconfinedor unconfinedspace.
Space: Includesthe roominwhichyouwillinstallheaterplus anyadjoiningroomswithdoorlesspassageways
orventilationgrillsbetweentherooms.
1. Determine thevolumeof thespace(length×width×height).
Length×Width×Height= cu.ft.(volumeofspace)
Example: Spacesize 20ft.(length)×16ft.(width)×8ft. (ceilingheight)=2560cu. ft.(volumeofspace)
If additionalventilationtoadjoiningroomissupplied withgrillsor openings,addthevolumeofthese
roomstothetotalvolumeof thespace.
2.Dividethespacevolumeby50 cubicfeettodeterminethemaximumBtu/Hrthespacecansupport.
(volumeofspace) 50 cu.ft.=(MaximumBtu/Hr the spacecansupport)
Example: 2560 cu.ft. (volumeofspace) 50cu.ft.=51.2or 51,200(maximumBtu/Hrthe spacecansupport)
Theair that leaks arounddoorsand
windowsmay provideenoughfresh
airforcombustionandventilation.
However,inbuildings ofunusually
tightconstruction,youmustprovide
additionalfreshair.
Unusuallytightconstruction is
definedasconstructionwhere:
a) wallsand ceilingsexposedtothe
outsideatmospherehavea
continuouswatervaporretarder
witharating of oneperm(6×10-11 kg
perpa-sec-m2)orless with
openingsgasketedorsealed and
b)weatherstrippinghas been added
onwindowsthatcanbe opened
anddoors and
c) caulkingorsealantsareapplied
toareas such as jointsaround
windowanddoorframes, between
soleplates and floors,between
wall-ceiling joints,between wall
panels,atpenetrationsfor
plumbing,electrical,and gas
lines, andatother openings.
If yourhomemeetsall ofthe three
criteriaabove,you mustprovide
additionalfreshair.See VentilationAir
FromOutdoors(page6).
Ifyourhomedoes notmeetall ofthe
three criteriaabove,proceedto
DeterminingFresh-AirFlowFor
HeaterLocation(below).

6
WARNING:Reworkworksheet, adding
thespaceoftheadjoiningunconfined
space. Thecombinedspacesmusthave
enoughfreshair tosupplyallappliances in
bothspaces.
If the actualBtu/Hrusedislessthanthe maximumBtu/Hrthespace can support,the spaceisan
unconfinedspace.Youwillneednoadditionalfreshair ventilation.
3.AddtheBtu/Hrofallfuelburningappliancesinthespace.
Vent-free heaterBtu/Hr
Gas water heater* Btu/Hr
Gas furnaceBtu/Hr
Ventedgas heaterBtu/Hr
Gas heater logsBtu/Hr
Other gas appliances*+Btu/Hr
Total=Btu/Hr
*Donotincludedirect-ventgas appliances.Direct-ventdrawscombustion airfromtheoutdoorsand
ventstotheoutdoors.
4. Comparethe maximumBtu/Hrthespacecan supportwiththeactualamountofBtu/Hr used.
Btu/Hr (maximumthespacecan support)
Btu/Hr(actualamountof Btu/Hrused)
Example : 51,200Btu/Hr(maximumthespace cansupport)
56,000 Btu/Hr(actualamount of Btu/Hr used)
Thespaceintheaboveexampleisaconfinedspacebecause theactualBtu/Hrused ismorethan the
maximumBtu/Hrthe spacecansupport.
Youmustprovide additionalfresh air. Youroptions areasfollows:
A. Reworkworksheet, addingthespace ofan adjoiningroom.If theextraspaceprovidesanunconfined
space,removedoortoadjoining roomoradd ventilation grillsbetweenrooms. See Ventilation AirFrom
InsideBuilding (below).
B.Vent roomdirectlytothe outdoors.See VentilationAir FromOutdoors (below).
C. InstallalowerBtu/Hrheater,iflowerBtu/Hr size makesroomunconfined.
Figure2-VentilationAirfromInside Building
Example:
Gas waterheater30,000 Btu/Hr
Vent-free heater + 26,000 Btu/Hr
Total=56,000Btu/Hr
WARNING:If thearea inwhich theheatermaybeoperated issmallerthanthatdefinedas anunconfined
spaceorif the buildingisofunusuallytightconstruction,provideadequatecombustionandventilationairbyone
of themethodsdescribed intheNationalFuelGas Code, ANSI Z223.1, Section5.3 orapplicablelocalcodes.
Thisfreshairwouldcomefromanadjoining uncon-
finedspace.Whenventilatingtoanadjoininguncon-
fined space,you must providetwopermanentopenings:
one within12"oftheceiling andonewithin12"of the
flooron the wallconnecting the twospaces(see
options1and2,Figure2). Youcanalsoremovedoor
intoadjoiningroom(see option 3, Figure2). Followthe
National Fuel Gas Code.NFPA54/ANSI Z223.1, Sec-
tion 5.3,AirforCombustionand Ventilation forre-
quiredsize of ventilation grillsorducts.
VentilationAirFromlnsideBuilding
Ventilation AirFromOutdoors
Provide extrafreshair byusingventilationgrillsor ducts.
You mustprovidetwopermanentopenings:onewithin
12"of theceiling and onewithin12"of thefloor. Connect
these itemsdirectlytotheoutdoorsorspacesopento
theoutdoors.Thesespacesinclude attics andcrawl
spaces.Followthe NationalFuel Gas Code, NFPA54/
ANSI Z223.1, Section5.3,Air for Combustionand Ven-
tilation for required size ofventilation grillsorducts.
IMPORTANT: Donotprovide openingsforinlet oroutlet
airintoatticif attichas athermostat-controlledpower
vent.Heatedairenteringtheatticwillactivatethe power
vent.
Figure3-Ventilation AirfromOutdoors

7
NOTICE: Thisheateris
intendedforuse assupplemen-
talheat. Use thisheateralong
withyourprimaryheatingsystem.
Donotinstall thisheateras
yourprimaryheatsource.If you
haveacentral heatingsystem,
you mayrun system'scirculat-
ingblowerwhileusingheater.
Thiswillhelpcirculatethe heat
throughoutthe house.
INSTALLATION
WARNING: Aqualifiedtechni-
cianpersonmustinstallheater. Fol-
lowalllocalcodes.
WARNING: Neverinstallthe
heater
l inabedroomorbathroom
l inarecreationalvehicle
l wherecurtains,furniture,clothing,
orotherflammableobjectsare
less than42 inches fromthe
front, top,orsidesof theheater
l inhightrafficareas
l inwindyor draftyareas
WARNING: Maintainthemini-
mumclearances.If youcan, pro-
vide greater clearancesfromfloor,
ceiling,and adjoining sideand
back walls.
warmaircurrents.Thesecurrents
moveheat towallsurfacesnextto
heater.Installingheaternext tovinyl
orclothwallcoveringsoroperating
heaterwhereimpurities (such as
tobaccosmoke,aromaticcandles,
cleaning fluids,oilorkerosene
lamps,etc.)intheairexist,may
discolorwalls.
IMPORTANT: Vent-freeheatersadd
moisturetothe air. Although thisis
beneficial,installingheaterinrooms
withoutenoughventilationairmay
cause mildewtoformfromtoomuch
moisture.See AirforCombustion and
Ventilation,pages5through6.
CHECK GAS TYPE
Use onlythetypeofgas indicatedon
theplate.If yourgassupplycan not
meetthatrequirement,donotinstall
heater.Callthe dealerwhereyou pur-
chasedheater, forthe propertype of
heater.
Figure4-MinimumClearance toWall and Ceiling
CLEARANCESTOCOMBUSTIBLES
(Vent-FreeOperation Only)
Carefullyfollowtheinstructionsbelow.
Thisfireplaceisafreestandingunit
designedtoset directlyonthefloor.
IMPORTANT:You mustmaintain
minimumwallandceilingclearances
duringinstallation.The minimum
clearances areshowninFigure4.
Measurefromoutermostpoint of stove
top.
MinimumWallandCeilingClearances
(seeFigure4)
A. Clearances fromoutermost point
of stovetop toanycombustibleside
wall shouldnotbeless than12
inches.
B. Clearancesfromthestovetopto
the ceiling shouldnotbelessthan
48 inches.
FrontView
CAUTION: Thisheater creates

8
CONNECTINGTO GAS
SUPPLY
WARNING: Aqualifiedtechni-
cianmust connect heater togas
supply. Followall localcodes.
CAUTION: Never connectheater
directlytothegas supply. Thisheater
requires an externalregulator(not
supplied). lnstall theexternalregu-
latorbetweentheheaterand gas
supply.
INSTALLATION ITEMSNEEDED
Beforeinstalling heater,makesure
youhavethe itemslisted below.
l piping(checklocalcodes)
lsealant(resistanttopropane/LP
gas)
lequipmentshutoffvalve*
ltestgauge connection**
lsedimenttrap
ltee joint
lpipewrench
lFlexibleGas hose(check localcode)
*ACSAdesign-certified equipment
shutoffvalvewith1/8" NPT tapisan
acceptablealternativetotestgauge
connection.Purchase theoptional CSA
design-certifiedequipmentshutoff
valvefromyourdealer. See
Accessories.
Figure5-Gas RegulatorLocation
and Gas Line Access IntoStove
Cabinet
Figure6-External RegulatorWith
VentPointing Down
Figure7-Gas Connection
Theinstallermustsupplyanexternal
regulator.Theexternalregulatorwill
reduceincoming gas pressure.You
must reduce incominggaspressure
tobetween11and 14 inches of water.
Ifyou do notreduceincoming gas
pressure,heaterregulatordamage
couldoccur. lnstallexternalregulator
withthe vent pointingdownasshown
inFigure6.Pointing theventdown
protectsitfromfreezing rainor sleet.
*Purchasethe optionalCSAdesign-certified equipmentshutoffvalve
fromyourdealer.See Accessories.
**Minimuminletpressureforpurposeof input adjustment.
NGModels:
5”to10.5”W.C.
Gassupplierprovideexternal
regulatorfornaturalgas
INSTALLATION
Continued
WARNING: Neverconnect
heatertoprivate(non-utility)gas
wells.Thisgasiscommonlyknown
as wellheadgas.
FrontView
CAUTION: Onlyuseanewblack
iron orsteelpipe.Internally-tinned
coppertubing maybeusedin
certainareas.Check you local
codes. Usepipeof1/2"diameteror
greater toallowproper volumegas
toheater. If pipeistoo small, undue
loss ofpressurewilloccur.
Installationmustinclude anequip-
mentshutoff valve,union,and
plugged 1/8"NPTtap. LocateNPT
tap withinreach for testgauge hook
up.NPTtap mustbe upstream
fromheater(seeFigure7).
IMPORTANT:Install equipment
shutoff valveinan accessiblelocation.
The equipmentshutoff valve isfor
turning on or shutting off thegasto
theappliance.Applypipejointsealant
lightlytomalethreads.Thiswillpre-
ventexcess sealantfromgoing into
pipe.Excesssealantinpipecould
result incloggedheatervalves.
CAUTION: Usepipejointseal-
antthatisresistanttogas
(PROPANE or NG).
Werecommendthatyouinstalla
sedimenttrapinasupplylineas
showninFigure7.Locatesediment
trapwhereitiswithinreachforcleaning.
Install inthepiping systembetween
fuelsupplyandheater.Locatesedi-
menttrapwheretrappedmatter isnot
likelytofreeze. Asediment traptraps
moistureand contaminants.This
keepsthemfromgoing intoheater
controls.Ifsedimenttrapisnotin-
stalledorisinstalledincorrectly,
heatermay notrun properly.
CAUTION: Avoiddamageto
regulator. Holdgas regulatorwith
wrench whenconnecting intogas
pipingand/orfittings.
Propane/LP
SupplyTank

9
WARNING: Neveruseanopen
flametocheckforaleak.Applya
mixtureofliquidsoap andwater to
alljoints.Bubblesformingshowa
leak.Correctall leaksimmediately.
CAUTION: Makesureexternal
regulatorhasbeeninstalledbe-
tweengassupplyand heater. See
guidelines under Connecting toGas
Supply (page8).
Figure8-Equipment Shutoff Valve
PressureTestingGas
SupplyPipingSystem
Test Pressures InExcessOf 1/2
PSIG(3.5kPa)
1.Disconnectheaterwithits
appliancemaingas valve (control
valve) andequipmentshutoff valve
fromgas supplypiping system.
Pressures inexcess of1/2psig
will damageheaterregulator.
2. Capoff openend of gas pipe
whereequipmentshutoffvalve
was connected.
3.Pressurizesupplypipingsystem
byeitherusingcompressed airor
openinggas supplytankvalve.
4.Check all jointsofgas supply
pipingsystem.Applymixtureof
liquidsoapand watertogas
joints.Bubblesforming showa
leak.
5. Correct all leaksimmediately.
6.Reconnectheaterand equipment
shutoff valvetogassupply.Check
reconnectedfittingsforleaks.
PressureTesting Heater
Gas Connections
1.Openequipmentshutoffvalve
(seeFigure8).
Figure9-Checking Gas Joints
CHECKING GASCON-
NECTIONS
WARNING: Test all gas piping
and connectionsforleaksafter
installingorservicing.Correctall
leaksimmediately.
INSTALLATION
Continued
2. Opengassupplytankvalve.
3. Makesurecontrolknobofheateris
intheOFFposition.
4.Checkall jointsfromequipment
shutoff valvetocontrolvalve
(Figure9). Applymixtureofliquid
soap andwatertogasjoints.
Bubbles formingshowaleak.
5.Correct all leaksimmediately.
6. Lightheater(see Operating
Heater, page11).Checkallother
internaljointsforleaks.
7.Turnoff heater(see Operation of
Turn-Off , page11).
TestPressuresEqualToor
Less Than 1/2PSIG(3.5kPa)
1.Closeequipmentshutoffvalve
(seeFigure8).
2.Pressurize supplypipingsystem
byeitherusing compressedair
oropeninggassupplytankvalve.
3.Check all jointsfromgas meterto
equipmentshutoffvalve(see
Figure9).Applymixtureofliquid
soapandwatertogasjoints.
Bubblesformingshowaleak.
4.Correct allleaksimmediately.

10
INSTALLATION
Continued
WARNING: Failuretoposition
thepartsinaccordance withthese
diagramsorfailuretouse onlyparts
mayresultinpropertydamageor
personalinjury.
CAUTION: After installationand
periodicallythereafter, checktoen-
surethatnoflamecomes in
contactwithanylog. Withtheheater
settoHigh,checktoseeifflames
contact anylog.If so, reposition logs
according totheloginstallation
instructionsinthismanual. Flames
contacting logs willcreatesoot.
INSTALLINGLOGS
It isveryimportant. Toinstallthelogsexactlyasinstructed. Donot modify
logs.Onlyuse logssuppliedwall heater.
IMPORTANT:Makesurelogdoesnotcoveranyburnerports(seeFigure10).
Figure10-InstallingLog Set
FIG(1) FIG(2)
STEP 1:Install log 1onto thetwoslots in
therear plate as shown.
STEP 2:Install log 2onto thetwoslots in
theleftmiddleplate.Install log 3 onto the
twoslots in therightmiddleplate.
STEP 3:Install log 4onto thetwoslots in
thefrontplate.
FIG(3) FIG(4)
STEP 4: Insert the recessed holeonthe
bottom oflog5onto thepin onlog2, withthe
front of log 5placedon flat surface of log 4.
Insert pin on bottomof log 6intoholein log
3, withthe frontoflog6placedonflat surface
of log 3
FIG(5)
1.All logs.See FIG(1).

11

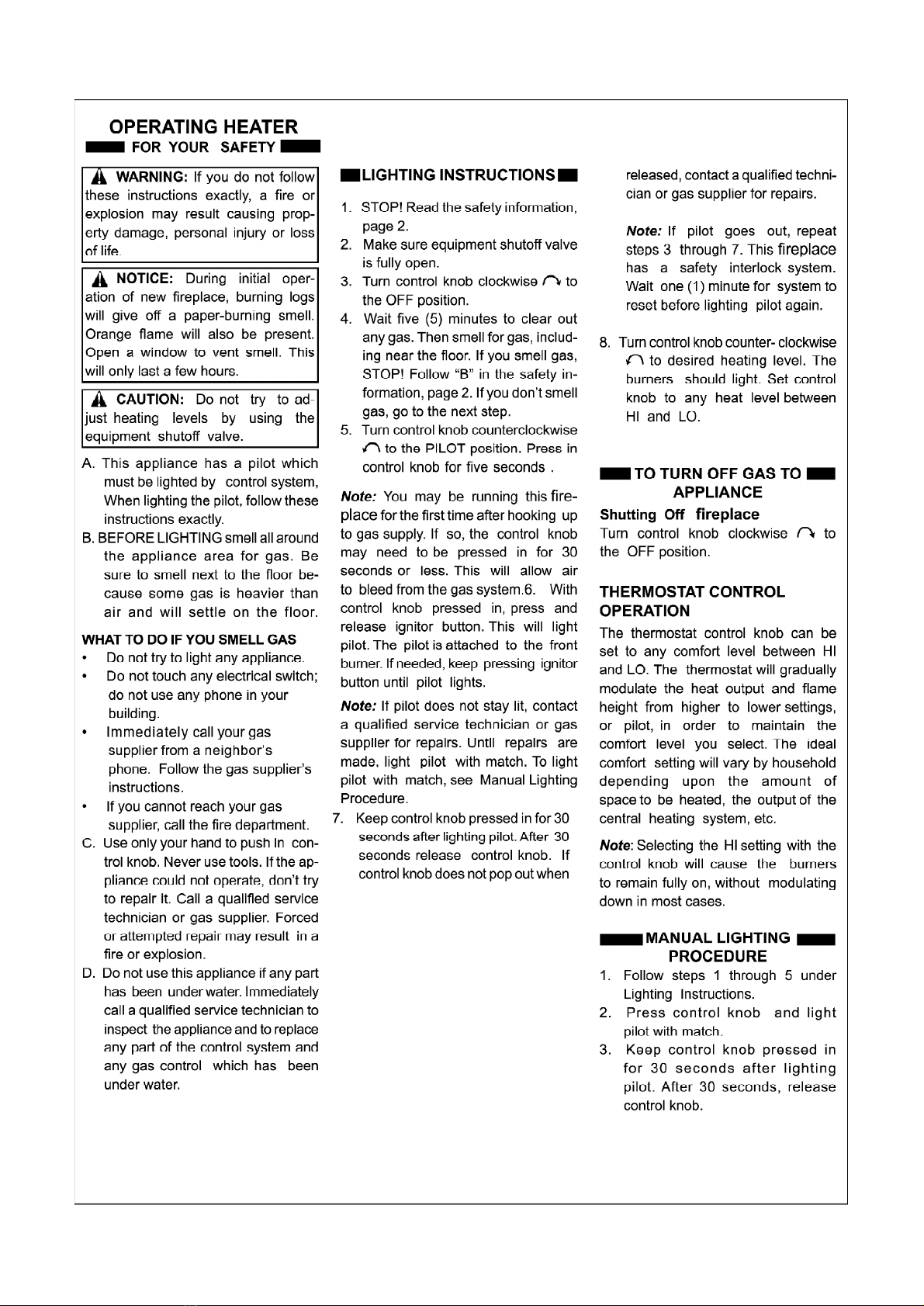

OPERATINGHEATER
FOR YOUR SAFETY
4227Rand4228RSeriesModels
A.Thisappliancehasapilot which
mustbelightedbycontrolsystem,
When lightingthepilot,follow
theseinstructions exactly.
B.BEFORE LIGHTING smell all
aroundtheapplianceareafor
gas.Besuretosmellnexttothe
floorbecause somegasis
heavierthan airandwillsettle
on thefloor.
WHATTODOIFYOUSMELL GAS
CAUTION: Donot trytoadjust
heating levelsbyusingthe
equipment shutoffvalve.
1. STOP!Readthesafetyinformation,
page2.
2.Makesureequipmentshutoff
valve isfullyopen.
Note:Ifoperating byremotecontrol,
you mustset the ControlKnob on
ELECTRICposition.
Donot setthe controlknobbetween
the lockedposition,otherwisethere
will be no powertotheheater.
Note: Please wait oneminuteafter
shutting off fireplacetoallowthe
electronicmoduletoresetbefore
starting again.
Note: Tooperateyourheaterthe ON/
OFFswitchon front ofheater mustbe
intheONposition.TheREDlighton
thefront of heater indicatesthereis
electricalpowertoyourheaterwhen
theON/OFFswitchisinthe ONpo-
sition.TheGREENlightonthe fr-
ontof heaterindicates the pilot light
isON.(SeeFigure11)
WARNING: Ifyou do not
followthese instructionsexactly,a
fireor explosionmayresult causing
propertydamage,personalinjuryor
loss of life.
NOTICE: During initial operation
ofnewfireplace, burninglogs will
giveoff apaper-burning smell.Or-
ange flamewill also bepresent.
Open awindowtoventsmell. This
willonlylastafewhours.
Donot trytolight anyappliance.
Donot touch anyelectricalswitch;
do not useanyphone inyour
building.
Immediatelycall yourgassup
plier fromaneighbor sphone.
Followthe gassupplier s
instructions.
If youcannotreach your gas
supplier,callthe firedepartment.
C.Useonlyyourhandtopushin
controlknob.Neveruse tools.Ifthe
theappli ance couldnot operate, don't
trytorepairit,Call aqualifiedservice
technicianor gas supplier.Forcedor at-
temptedre-pair mayresultinafireor
explosion.
D. Donot use thisapplianceif any
part has beenunder water. Imme-
diatelycallaqualified servicetechni-
ciantoinspecttheapplianceand to
replaceanypart of thecontrolsystem
andanygas control whichhasbeen
underwater.
FunctionofpowerON/OFF swith.
LIGHTINGINSTRUCTIONS
Figure11- ON/OFFSwitch location
OPERATIONSOF
REMOTETRANSMITTER
1.Install threeAAAbatteries inthe
batteryholder.Theinitialstart-up on
the LCD is:SET TEMPis85°F,
ROOM TEMPis85°F,andfan ison
“AUTO”select.
Fig12 Initialstart-updisplay
2.Wheninoperation,pointthe
remote transmitter to theremote
receiver onthefrontoffireplace at
amaximumdistance of 20 feet
withoutany obstructionbetween
them.
OPERATIONSOF
BURNER
1. Before plugginginto theoutlet
make sure that theapplianceis
connectedto thegas supply.Plug
fireplace into aproperly grounded
120Volt, 60Hz, 15amp outlet. You
will hearahigh pitchsoundand
power light(red) onthedoor will
be litthat indicatesthat the
burner isreadyto be operated.
2. Point the remote transmitterto
the burner. Press IGN/OFFbutton,
theelectricspark starts igniting
the pilot andthen theburner. Wait
five(5) minutestoclearoutany
air.If yousmellgas.STOP!
Please checkthegasconnection.
Thegreenoperationlightonthe
frontof fireplacewill be litwhen
pilot andburner are on.
Note: Themain burner does not
respond immediately to the set
temperatureuntilaboutone
minutelater.
3.Toshut off,press IGN/OFF button
onremoteor onfrontof fireplace.
Note: The pilotwillalsoshut off.

12
Fig13 Controlboard
OPERATINGHEATER
Continued
Autooff: whentheburnerisin
operation,press TIMER button.Then
press or tochangetothesched-
uled time,thenpress theTIMERbutton
again,the TIMERstartstimingandthe
TIMER willflashand thegreenopera-
tionlightflashes. Burnerwill automati-
callyshutoff atsettime.
OPERATIONSOF
TIMER
LOCKINGREMOTE
CONTROL
(childproof)
1. ToLock: Press LOCKbutton , a
symbolwillappearoncontrolboard.
2.ToUnlock: PressLOCKbuttonand
holduntillockimageshowsun-
locked(typically6secs.).
Fig14 AUTO”select
Weprovide themanualoverridecon-
trolsysteminthe eventofpower
outage.
Install batteryformanualIgnitor:
1.Unscrewthe ignitor cap.
2. Insert aAAAtypebatterywithits
anode(“+”)pointingout.
3.Screwtheignitorcap back.
Note: Werecommend that thebattery
betakenoutoftheignitorwhenthe
powersupplyresumes.
LIGHTING INSTRUCTIONS
If powerisoff, you can operatethe
fireplace manually.
1. STOP!Readthesafetyinformation
onpage11.
2.Checkthatgassupplytoheater is
on.
3.Open bottomfrontaccesspanel.
4.WithControlKnobinthe onELEC-
TRICposition,press intheControl
Knobandturncounterclockwiseto
OFFposition.
NOTE:Knob cannotbeturned
fromPILOT/IGNto “OFF”unless
knob ispushedinslightly. Donot
force.
5. Wait five (5) minutestoclear out
anygas.Thensmell forgas,
includingnearthe floor.Ifyou smell
gas, STOP! Follow “B”inthesafety
informationonpage11.If youdo
not smellgas,gotothenextstep.
6.Push ingascontrolslightlyandturn
counterclockwisetoPILOT/IGN
anddepressforfive(5)seconds.
NOTE: The firsttimethat the heater
isoperatedafterconnectingthe
gassupply,the controlknobshould
bedepressed for aboutthirty(30)
seconds.Thiswill allowairto
bleedfromthegas system.
7. WithControlKnobpressed in,
pushignitorbutton.Thiswilllight
the pilot.If needed,keep ignitor
buttonuntilpilotlights.
MANUALOVERRIDE
CONTROLSYSTEMOPERATING
INSTRUCTIONS
8.KeepControlKnobdepressed for
ten(10)secondsafterlighting
pilot.If pilot goesout,repeat steps
6,7and8.
9. Turncounterclockwise to “ON”
position.Donotoperatebetween
locked positions.
Shut offheater
Pushingas ControlKnob slightly
and turnclockwise totheOFF
position.Donot force.
Whenelectricpower isavailableand
electricoperationisdesired,turn
clockwisetoOFFposition for
one minutetoallowtheelectronic
moduletoreset beforestarting.Then
pressdownknobandrotateclock-
wise toELECTRICposition.
Donot operatebetween locked
positions.
1. Openfront door.
2.Followsteps1through5under
MANUALOPERATING Lighting
Instructions.
3. WithControlKnob inPILOT/IGN
position,strikematch,and hold
near pilot. Press inControlKnob,
pilotshouldlight.
4.KeepControlKnobpressedinfor
30 secondsafterlightingpilot.
After 30 seconds,release Control
Knob. Followstep9under
MANUALOVERRIDECONTROL
SYSTEMOPERATING
INSTRUCTIONS.
INSPECTINGBURNERS
TOTURNOFF GAS
TO APPLIANCE
Checkpilotflamepatternandburner
flamepatterns often.
MANUALLIGHTING
PROCEDURE
(match light)
TOTURN OFF GASTOAPPLIANCE
Shut offheater
1. Pressthe IGN/OFFbutton.(seefig-
ure15)
2. SettheON/ OFFSwitch position or
unplug the electricpowertotheheater.
Settemperature: Press “Temp”
button, thenpressortoset desired
roomtemperature.Burnerwilloperate
tomaintainset roomtemperature.
a.
b. Set blower: Press “FAN”button. the
blowerwill shift between “AUTO”and
“OFF”option.
When“FAN”isin“AUTO”select:the
blowerwillbeoperatingdepend onthe
temperatureinside theheater.and au-
tomaticallyturnONorOFF.
WhenFanisin “OFF”select theblower
will not operate.

13

14
Figure15 -CorrectPilot FlamePattern
PILOTFLAMEPATTERN
Figure15showsacorrectpilot
flamepattern.Figure16showsan
incorrectpilotflamepattern.The
incorrectpilotflameisnot touching
thethermocouple.Thiswill cause the
thermocoupletocool.Whenthe
thermocouplecools,theheater
will shutdown.If pilotflamepattern
isincorrect, as showninFigure18
lTurnheateroff (seeTOTURNOFF
GAS TOAPPLIANCE, page 9)
lseetroubleshooting, page15.
Figure16-Incorrect Pilot Flame
Pattern
Figure17showsacorrectburner
flamepattern.Figure18 showsan
incorrectburnerflamepattern.If
burnerflameisincorrect:
lTurnheater off(see TOTURNOFF
GAS TOAPPLIANCE, page10)
lseetroubleshooting, page15.
BURNERFLAMEPATTERN
Figure17 -CorrectFlamePattern
withControlKnobSet toHighFlame
Figure18-IncorrectFlamePattern
withControlKnobSet toHighFlame
DISCONNECT WIRNG OR CONTROL
MODULE
1.Removefourscrewsfromtherear
controlpanel,takeout thermostat
sensingbulbfromtheclip,then disco-
nnectthewirestofree tocontrol
modulefromitsmounting location .
Note:Donotconfusethe markon
the eachwire.
2.Remove twoscrewsand hex nuts,
takeout thecontrolmodule. Whenin-
stalling , reverse thestepsabove.
(SeeFigure19andFigure22)
Figure19- Control Model
DISCONNECTFAN
1.Removescrewsfromthe fan
bracketpanel, pullthe fanbracket
panelouttoremove.Thendisconne-
cttwowires free tofan.
2.Markortag eachwireremoved
for itsexact reconnection.Remove
the fourscrewsfromthefan .when
installing , reverse the steps above.
(SeeFigure20andFigure22)
Figure20-Fan
WARNING: Disconnectpower be-
foreattempting anymaintenance or
cleaning toreducethe risk offire, elec-
tricshook orpersonalinjury.Turnoff
heaterandletcoolbeforecleaning.
CLEANINGAND MAINTENANCE
CAUTION:Labelall wiresprior to
disconnection whenservicing
Wiringerrors cancause
improperanddangerous operation.
Verifyproperoperationafterservicing.
controls.
CAUTION: You mustkeepcontrol
areas, burner, andcirculatingairpas-
sagewaysofheaterclean.Inspect
these areasofheaterbeforeeach
use. Haveheaterinspectedyearlyby
aqualifiedserviceperson.Heater
mayneedmorefrequent cleaningdue
toexcessive lintfromcarpeting,
beddingmaterial,pethair,etc.
CLEANING ODS/IGNITOR AND
BURNER
Cleanwithavacuumcleaner.
CLEANINGBURNER
INJECTOR HOLDERAND
PILOTAIRINLETHOLE
Werecommend thatyou cleantheunit
everythree monthsor after2500 hours
of operation.Wealsorecommendthat
youkeepthe burnertubeandpilot as-
semblyclean andfree ofdustand
dirt. Toclean these partswerecom-
mend usingcompressed airnogreater
than30 PSI. You can use avacuum
cleanerinthe blowposition.Ifusing
compressedairinacan,pleasefol-
lowthedirections onthecan.Ifyou don't
followdirectionson thecan,youcould
damagethepilotassembly.
WARNING: Failuretokeep
primaryairopeningsofburnersclean
may resultinsooting andproperty
damage.
14

15
CLEANING ANDMAINTENANCE
Continued
Figure22 -Pilot AirInlet Hole
CABINET
AirPassageways
l Useavacuumcleaner or
pressurizedairtoclean.
MAINBURNER
Periodicallyinspectall burnerflame
holes withtheheaterrunning.All
slottedburnerflameholes should
be openwithyellowflamepresent.All
roundburnerflameholesshouldbe
open withasmallblueflame
present.Someburnerflameholes
may becomeblockedbydebrisor
rust,withnoflamepresent. Ifso,
turnoffheaterandletcool.Either
removeblockageorreplaceburner.
Blockedburnerflameholes will
createsoot.
1.Shutoff theunit, includingthe
pilot. Allowthe unit tocoolforat
leastthirtyminutes.
2.Inspect burner, pilot andprimaryair
inletholes oninjectorholderfor
dustanddirt (see figure21).
3.Blowairthroughtheports/slots
andholesinthe burner.
4. Check theinjector holder located
attheendofthe burnertube
again. Removeanylargeparticles
ofdust, dirt,lint, or pethair witha
softclothorvacuumcleaner
nozzle.
5.Blowairintotheprimaryairholes
ontheinjectorholder.
6.Incaseanylarge clumps ofdust
havenowbeenpushedintothe
burner,repeatsteps 3and4.
Figure21-InjectorHolderOnOutlet
BurnerTube
Exterior
l Useasoftclothdampened witha
mildsoapand watermixture. Wipe
the cabinet toremove dust.
LOGS
l If youremovelogsfor cleaning,
referto InstallingLogs (page10)
toproperlyreplace logs.
l Replacelogs if broken or chipped
(dime-sizedorlarger).
Cleanthepilot assemblyalso.A
yellowtipon thepilot flame
indicates dustanddirtinthepilot
assembly.Thereisasmall pilotair
inlet holeabouttwoinchesfrom
wherethepilotflamecomes out of
thepilotassembly(see Figure22).
Withtheunit off, lightlyblowair
throughtheairinlet hole.Youmay
blowthrough adrinkingstrawif
compressedairisnotvailable.
Figure22-RemoteControlSystemDiagram
15

16
SPECIFICATIONS
Btu(Variable)40000 40000
GasType LPGasNaturalGas
ManifoldPressure8"W.C. 3"W.C.
InletGasPressure
(In.ofwater)*
Maximum14"10.5"
Minimum11"5"
Voltage 120 120
Watt2727
NaturalGas Series
LPGasSeries
GFN4311&GFP4312shown
Dimensions,Inches(H×W×D)
Heater44 3/16”×46 7/8”×16 5/8”
Carton44 7/8”×51”×20 7/8”
Weight, lbs
Stove265
Shipping 295
Ignition Piezo/Automatic
Dimensions,Inches(H×W×D)
Heater45 5/8”×50”×16 7/8”
Carton 46 1/2”×54 1/2”×25 1/2”
Weight, lbs
Stove276
Shipping 308
*Forpurposesofinputadjustment
Dimensions,Inches(H×W×D)
Heater43 3/4”×47 1/2”×17 5/16”
Carton46 5/8”×51”×20 1/4”
Weight, lbs
Stove174
Shipping 205
Ignition Piezo/Automatic
Ignition Remote
GFN4113&GFP4114shown
GFN4227R&GFP4228Rshown
16

17
OBSERVEDPROBLEM POSSIBLECAUSE REMEDY
1.Thermocoupleconnectionloose
atcontrolboard
2.Pilotflamenot touching
thermcouplewhich allowsthermo-
coupletocool,causingpilot
flametogoout. Thisproblem
couldbe caused byone orbothof
thefollowing
A) Lowgaspressure
B) Dirtyor partiallyclogged
ODS/ pilot
3.Thermocoupledamaged
4. Controlvalvedamaged
1.Handtighten untilsnug, then
tighten1/4turnmore.
2. A) Contactlocal propane/LPgas
company.
B) CleanODS/pilot(see Cleaning
andMaintenance,page13)or
replaceODS/pilotassembly
3. Replacethermocouple
4. Replacecontrolvalve
ODS/pilotlightsbutflameiscontinu-
ousigniting and the mainburner
couldn t belit.
TROUBLESHOOTING
WARNING:Makesurethat power
isturnoffbeforeproceeding....
WARNING: Turnoffandletcool
beforeservicing.Onlyaqualified
servicepersonshouldservice and
repairfireplace.
CAUTION:Neveruseawire,
needle,orsimilarobject toclean
ODS/pilot. Thiscan damage ODS/
pilotunit.
SparkatODS/pilotbutnoignition 1. Gas supplyturnedoffor equip-
mentshutoffvalveclosed
2. Airingas lineswhen installed.
3.Depletedgas supply
4. ODS/pilotisclogged
5. Gas regulator settingisnotcorrect
6.Pilotelectrudepositionisnot
correct
7. Wireisnot correct orloosen
8Gasvalveisdamage
1.Turnongassupplyoropenequip-
mentshutoffvalve
2.PressON/OFFbuttonagain
until air isremoved.
3.Contactlocalpropane/LPgas
company
4CleanODS/pilot (seeCleaning
andMaintenance,page 13)or
replaceODS/pilotassembly
5. Replacegas control
6.ReplacePilot
7.Checkthewineandmake wine
correct.
8. Contactdealerorprocom.
Nosparkwhenignition button is
pressed.
1. Checkthe electricpower
2. Place or replace thebattery.
WARNING:Ifyou smell gas
l Shutoff gassupply.
l Donottryto lightanyappliance.
l Donottouchanyelectricalswitch;do notuse anyphonein your
building.
l Immediatelycallyourgassupplierfromaneighbor sphone.
Follow thegassupplier sinstructions.
l Ifyou cannotreachyourgassupplier,call thefire department.
1. Nopower toheater
2.Nobatteryintransmitterorbattery
isn tcorrectlyassembly
17

18
Delayed ignition burner 1. Manifoldpressureistoolow
2. Burnerorifice clogged
1. Contactlocalgascompany
2.Cleanburner(see Cleaning and
Maintenance, page13)
Burnerbackfiringduringcombustion1.Damaged burner
2. Gasregulatordefective
1. Cleanburnerorifice(see
CleaningandMaintenance, page
13)
2.Replace gasregulator
Slight smokeor odorduring initial
operation
1.Residues frommanufacturing
processes
2. Not enoughair
3. Gasregulator defective
1.Problemwill stopafterafew
hoursofoperation
2. Check burner for dirt and debris.
If found, cleanburner(seeCleaning
andMaintenance,page 13)
3.Replace gasregulator
Darkresidueonlogsorinsideof
fireplace
1.Improperlogplacement
2. Air holesatburner inlet blocked
3.Burnerflameholesblocked
1. Properlylocatelogs(see installing
logs,page10)
2.Cleanoutairholesat burner inlet.
Periodicallyrepeatasneeded.
3. Remove blockageor replaceburner
Heaterproducesaclicking/ticking
noisejustafter burnerislit or
shut off
1.Metalexpandingwhileheating
orcontractingwhilecooling
1. Thisiscommon withmost
heaters.Ifnoiseisexcessive,
contact qualified technician.
TROUBLESHOOTING
Continued
l Yourname
l Your address
l Modelandserialnumbers
of yourheater
l Howheater wasmalfunctioning
l Typeof gasused(propane/LPor
NG)
l Purchasedate
REPLACEMENTPARTS
l Warrantycard
Usually,wewill askyou
toreturnthe defective parttothe
factory.
REPLACEMENTPARTS
NOTE: Useonlyoriginalreplace-
ment parts.Thiswillprotectyour
warrantycoverageforpartsre-
placedunderwarranty.
PARTS UNDERWARRANTY
Contactauthorizeddealersofthis
product.If theycan'tsupplyoriginal
replacementpart(s), callKOZY-
WORLD sTechnicalServiceDepart-
mentat(814)643-1775forreferral
information.
PARTS NOTUNDER
WARRANTY
Contactauthorizeddealersofthis
product.If theycan t supplyoriginal re-
placementpart(s)call KOZY-WORLD s
PartsDepartmentat(814)643-1775for
referralinformation.
Whencalling KOZY-WORLD, have ready
l Modelnumber of yourheater
l The replacementpart number
Burnerdoesnotlight after ODS/pilot
islit
1.Burner orifice clogged
2.Inletgaspressureistoolow
3. Burner orifice diameteristoo
small
4.Thermocoupleleadsdiscon-
nectedorimproperlyconnected
5. Burnerswillnotcomein
remoteposition
1.Clean burner (seeCleaning
and Maintenance,page13)or
replaceburner orifice.
2.Contactlocalpropane/LP
gascompany
3. Replace burnerorifice
4.Reconnect leads(seewiring
diagram)
5. Replacebatteryintransmitter
andreceiver
18

19
PARTSLIST
LPNG
NRV82F3-3REGULATOR1
NRV82F3-8REGULATOR1
HL036-02INJECTOR1
HL036-01INJECTOR1
NB40-032HBURNERASSEMBLY1
NB40-140HBURNERASSEMBLY1
ND1703X400X4ODS1
ND1908X400X4ODS1
6FBB504 ODSINLETTUBE ASSEMBLY 11
7FBB502INLETTUBE ASSEMBLY11
8FBB503OUTLETTUBE ASSEMBLY11
QUALITY
KEYNOPARTNUMBERDESCRIPTION
5
1
2
3
4
SIT545T-STATVALVE1
Thislistcontains replaceablepartsused inyourheater. Whenordering
parts, followtheinstructions listedunderReplacementParts onpage17
ofthismanual.
GFN4113 GFP4114
GFN4311GFP4312
19

20
PARTSLIST Thislistcontains replaceablepartsusedinyourheater. When ordering
parts,followthe instructions listedunderReplacementParts onpage17
ofthismanual.
LPNG
1TBB500LOGS11
2B FB-01A5M/FB-01A1MTOPPANEL11
3B FB-04A5M/FB-04A1MSIDE PANEL11
4B FB-05A5M/FB-05A1MSIDE PANEL11
5B FB-03A5M/FB-03A1MBASE11
6B FB-02A5M/FB-02A1MUPPERPANEL11
7FHL001-01BODYTOPCOVER11
8FHL001-02BODYBOARDING11
9FHL008-02BAFFLE11
10 FHL021(022)-02SIDEREFLECTOR22
11 FHL007-02BFIREBOXFLOOR11
12 FBB102LOUVER88
13 FHL001-03BODYBOTTOMCOVER11
14 FBB104SCREEN11
15 FHL015-01TT-STAVALVE BRACKET11
16 PF06-YJLF-FFAN11
17 FBB501BURNER11
18 QL016-03RBLOWERMOUNTPANEL11
QUALITY
KEYNOPARTNUMBERDESCRIPTION
GFN4113 GFP4114
GFN4311GFP4312
20
