Kränzle K 1050 P Installation instructions

Read and conform safety instructions before use!
Keep instructions in a safe place for later use and
pass them on to any future user.
www.kraenzle.com
Original operating manual
High pressure cleaner
K 1050 P
- GB -

2
Dear customer:
We would like to congratulate you on the purchase of your new high pressure
cleaner and thank you for your confidence in our products !
Your choice has fallen on an absolute quality product!
Kränzle high pressure cleaners are characterized by their convenient and
compact design as well as their high suitability for everyday use.
Highest precision and dimensional accuracy in addition to a technology
package consisting of a multitude of details mark the dierence when it comes
to performance, safety and durability.
In order to facilitate handling of the K 1050 P the following pages are intended
to further explain its use.
Technical data K 1050 P
Operating pressure 130 bar (13 MPa)
Nozzle size 25 030
Permissible overpressure 160 bar (16 MPa)
Water output* 7.5 l/min (450 l/h)
Max. Wasserzulaufdruck 1.0 MPa
Water inlet temperatur (1-10 bar) max. 60 °C
High pressure hose 8 m
Conected load
Power input
Power outpu
230V , 9.6 A , 50 Hz
P1: 2.2 kW
P2: 1.65 kW
Weight 19 kg
Dimensions in mm 390 x 290 x 370
Sound level acc. to DIN 45 635 75 dB (A)
Acoustic power LWA 86 dB (A)
Recoil at lance ca. 27 N
Vibration at lance 1.9 m/s2
Art. No. 49.501
* Must be supplied to the unit at least.
Permissible tolerance for figures ± 5 % acc. to VDMA uniform sheet 24411
Technical data

3
Contents
Technical data ........................................................................ 2
Contents ................................................................................. 3
Description of high pressure cleaner ....................................... 4
Explanatory symbols .............................................................. 6
General rules .......................................................................... 7
Safety precautions .................................................................. 8
Functional details ................................................................... 11
Putting into operation ............................................................15
To shut down the pump ......................................................... 19
Small repairs - do it yourself! .................................................20
EC declaration of conformity..................................................24
Wiring diagram ...................................................................... 25
Warranty................................................................................26
Notes ..................................................................................... 27
Spare parts list .......................................................................28

4
Description of high pressure cleaner
Design
The K 1050 P high pressure cleaner is a portable machine with an advanced
arrangement system. Please see construction scheme for more details.
1 Ergonomically shaped handle
2 Pump head made of brass
3 Start/Stop switch with pressure
relief for HP hoses
4 Power supply cable with plug
5 Pump outleet
6
Water connection supply with filter
7 Lances inside holder
8 On/Oswitch
9 Cable reel
10 Trigger gun with safety catch
11 Gun holder
12 HP hose
1
23
4
8
5
6
7
9
10
11
6
12

5
Description of high pressure cleaner
Original-Betriebsanleitung
Hochdruckreiniger
VorInbetriebnahme Sicherheitshinweise
lesenund beachten!
Fürspäteren Gebrauch oder Nachbesitzer
-D -
K1050 P
This is what you have purchased
1. Kränzle high pressure cleaner
K 1050 P
2. Trigger gun with safety catch with
insulated handle and plug coupling
3. Flat jet nozzle with stainless steel
pipe and plug-in nipple
4. Operating manual
5. Water connection supply, plug
coupling with visible filter
6. High pressure hose
Art.No.: 42.403-03
Dirtkiller lance with stainless steel
pipe and plug-in nipple
Optional:

6
Explanatory symbols
Explanatory symbols used in the operating manual
Failure to observe this note may entail environmental
damage.
Note on the use of the machine that failure to adhere to the
instructions may cause excessive wear or total breakdown of the
K 1050 P .
Warning!
Failure to observe this note may result in serious injuries!
Explanatory symbols axed to the high pressure cleaner
In case of improper use, the high pressure jet can be very
dangerous. Do not direct jet at persons, animals or active
electrical equipment or the machine itself.
The unit may not be connected directly to the public
drinking water supply network.

7
Range of application
Use machines for cleaning tasks with high pressure water jet and detergents or with
high pressure water jet without detergents only.
The high pressure cleaner is designed for use in private environment only .
Environmental, refuse disposal and water protection regulations
must be observed !
Inspections
The machine must be inspected according to the “Guidelines for Liquid Spray
Devices” at least once every 12 months by a qualified person, to ensure that
continued safe operation is guaranteed. The results of the inspection are to be
recorded in writing. This may be done in any form .
High pressure cleaners used for commercial purposes have to be
checked by a qualified person at least every 12 months!
Accident prevention
The machine is designed for accidents to be impossible if used correctly. The
operator is to be notified of the risk of injury from hot machine parts and the
high pressure water jet. The “Guidelines for Liquid Spray Devices” must be
complied with.
General rules
Oil leakage
If oil leaks contact your nearest after-sales service (dealer) at once.
Failure to observe this instruction may cause damage to the environment
and/or transmission gearbox.

8

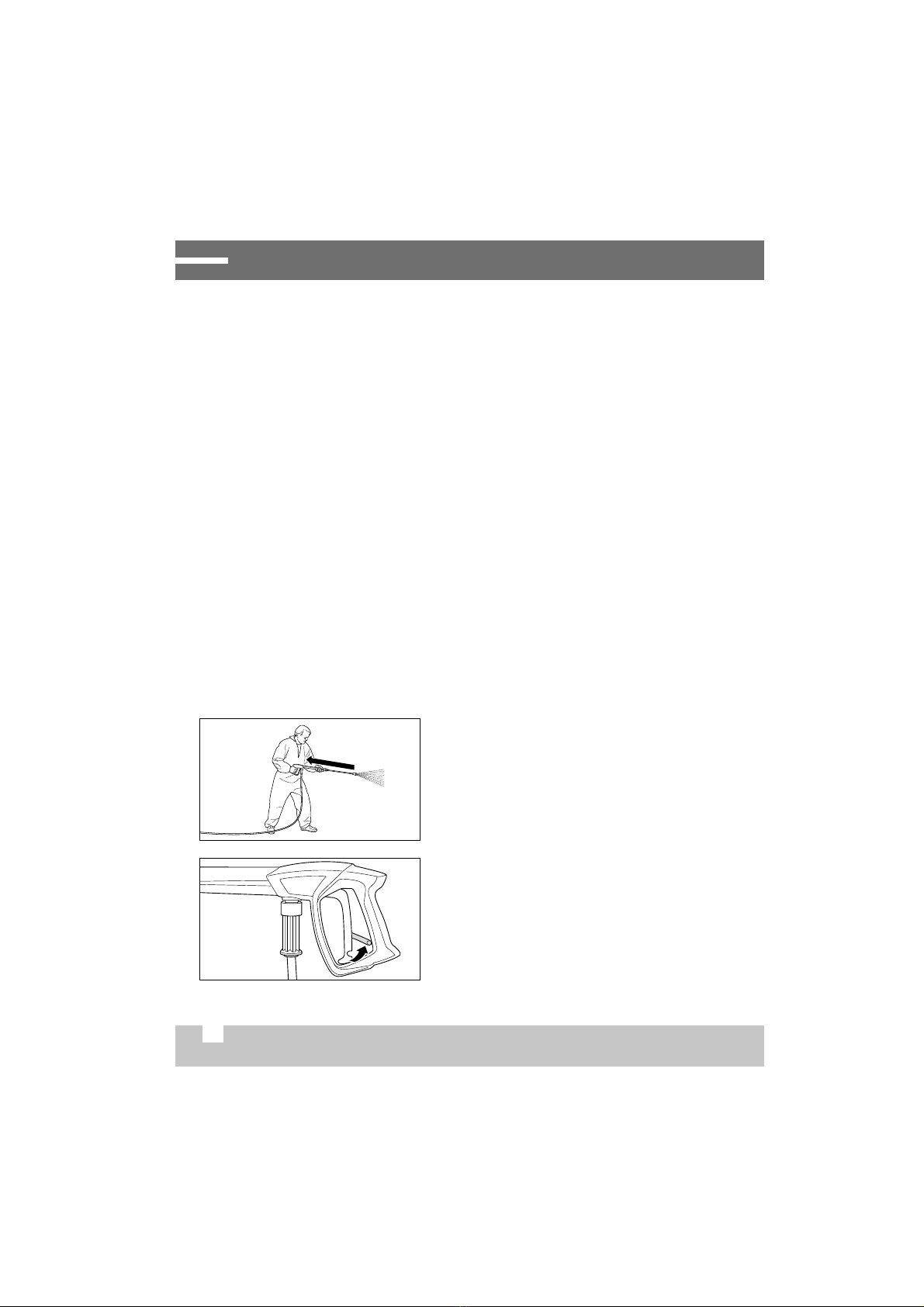

Safety precautions
When using high pressure water for
cleaning, make sure that there is a clearly
noticeable recoil effect on the lance.
Therefore ensure a firm footing
(see chapter „Technical data“)
Apply the safety catch on the spray gun
after each use in order to prevent
unintentional spraying!
Persons operating the machine should wear the necessary protective clothing,
i.e. waterproof clothing, rubber boots, safety goggles, headwear etc. It is prohibited
to use the machine in close vicinity to people lacking suitable protective clothing !
Do not spray against matter containing asbestos or other hazardous substances !
Never spray liquids containing solvents like varnish solvents, petrol, oil or
similar liquid!
Due to the high pressure jet, damage may occur on the objects to be cleaned,
e.g. car tires; therefore, a minimum distance of 30 cm is to be kept.
Prior to putting the high pressure cleaners into operation, check its components
(HP hose, power supply cables, safety trigger gun) for any damage. Replace defect
or damaged components!
The high pressure cleaner is to be properly used. The user is required to adhere
to local requirements and to watch out for any persons in the danger zone!

9

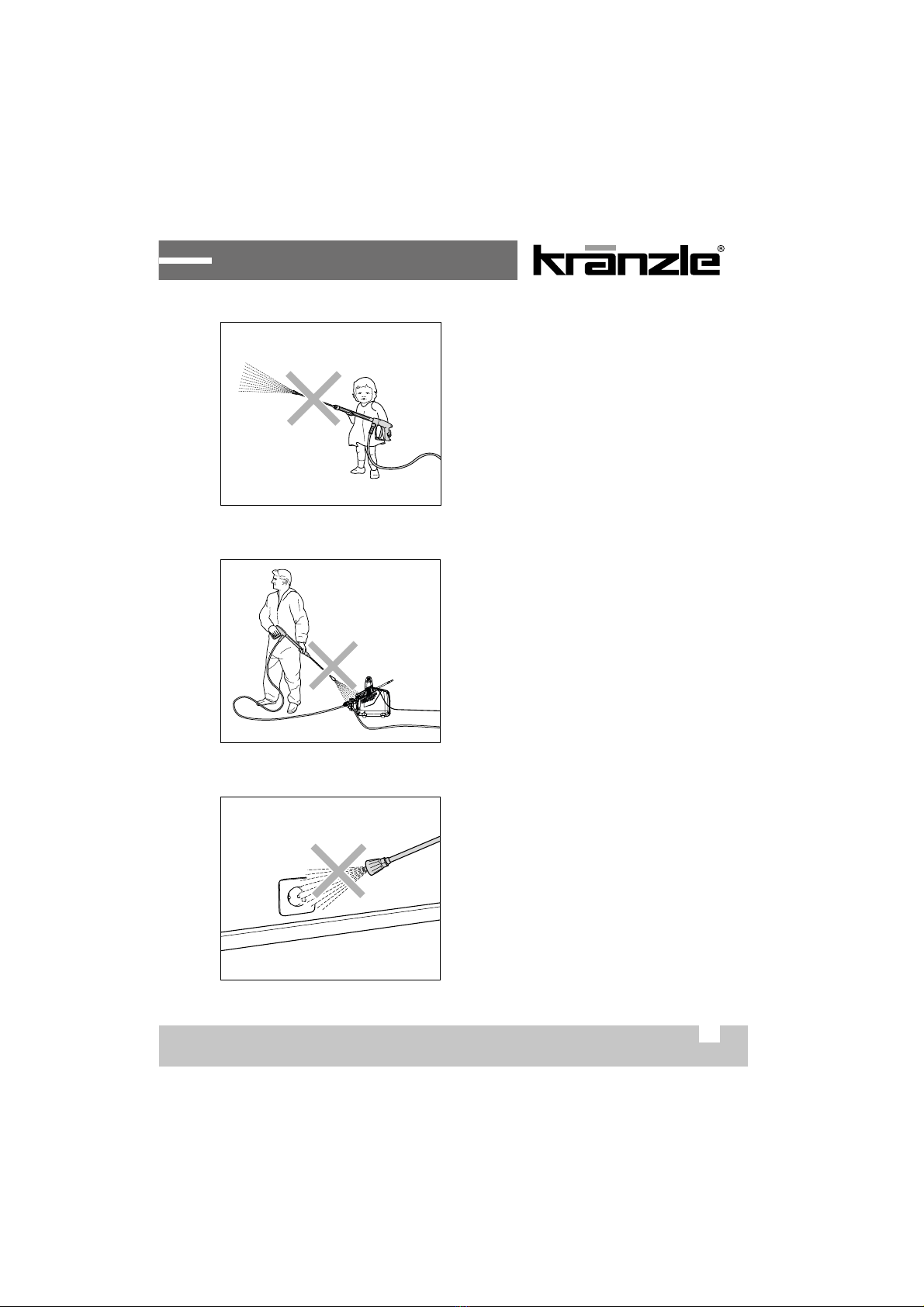

Safety notes - This is prohibited!
Never allow children or untrained persons
to use the high pressure cleaner!
Never direct the water jet at the machine
itself!
The machine may not be placed within
reach of the water jet spray mist!
Never direct the water jet at power sockets
or any other electrical installations!
Within the working area, all live parts are
to be protected from both water jet and
spray mist.

10
Safety notes - This is prohibited!
Never direct the water jet at people or
animals!
Never direct the high pressure jet at
yourself or other persons, not even to
clean clothing or shoes.
Only use power cables which are in perfect
working order!
Do not damage or improperly repair cables
(tearing, squeezing, running over,…).
Never pull the high pressure hose if it has
formed kinks or “nooses”!
Never pull the hose over sharp edges!

11
Functional details
Please note - important: Lack of water
Lack of water occurs more often than you
probably believe. The more powerful a
high-cleaner is the greater is the danger
that a lack of water occurs. If there is only
an insucient amount of water available,
cavitation (water-gas mixture) arises inside
the pump, which is normally noticed too
late or even not at all. The pump will be

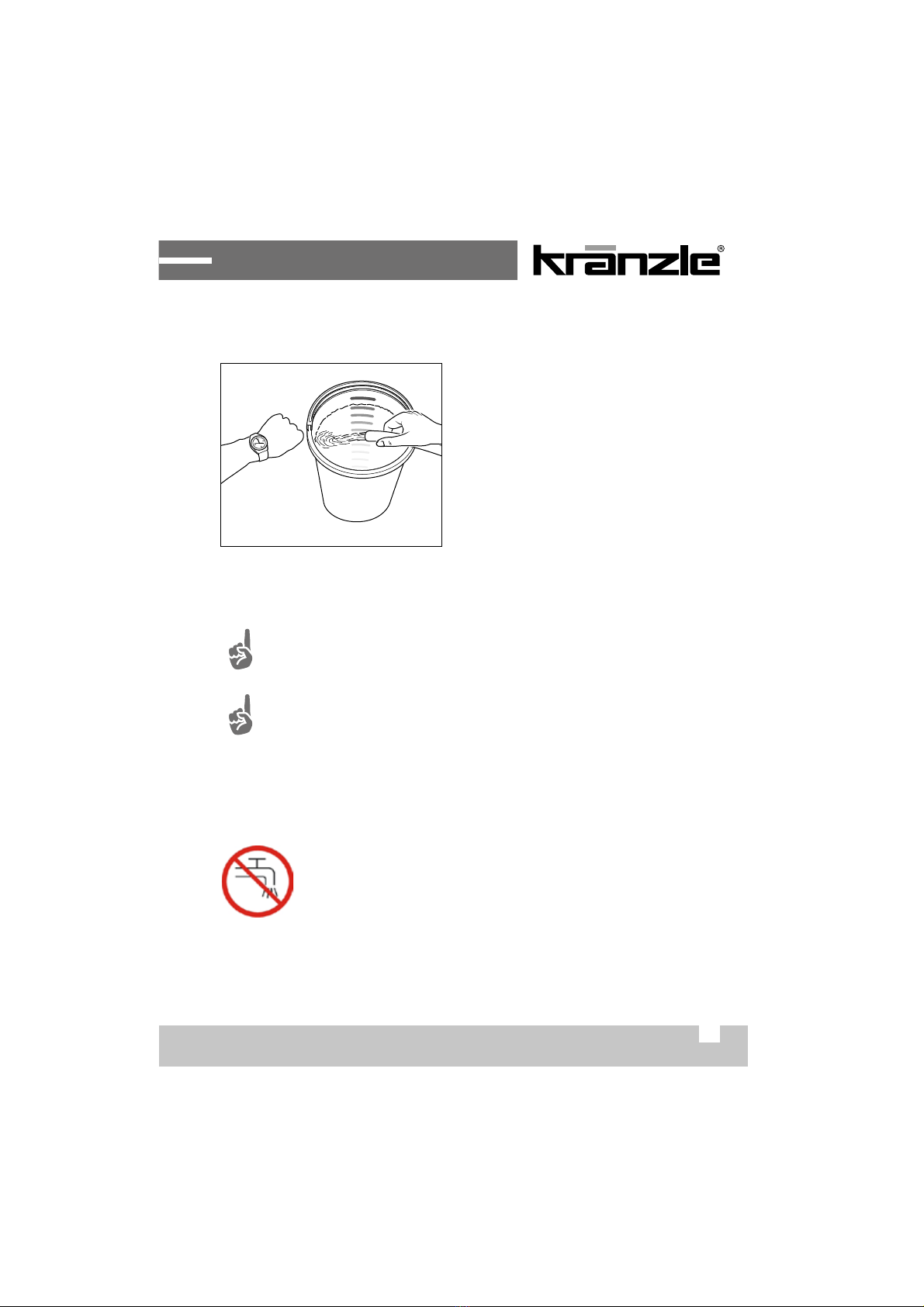

destroyed. Please check the available
quantity of water by filling a bucket with
liter scale for one minute .
A minimum water quantity of 7.5 l/min is needed for the high pressure cleaner
to operate.
I f the metered quantity of water is too small, you have to use a dierent
water connection, guaranteeing the necessary output.
Lack of water leads to an accelerated wear of the joints (guarantee void).
Never let the pump run dry for more than 20 seconds.
Water supply
Please pay attention to the regulations of your waterworks company!
In accordance with DIN EN 61770, the machine may not be directly
connected to the public drinking water supply lines. A brief connection
however is permissible according to DVGW (German Association
for Gas and Water Aairs) if a non-return valve with tube ventilator
(Kränzle order no. 41.016 4) is built into the water supply. Once the
water has passed through the non-return valve it is no longer
considered as drinking water. Also indirect connection to the
public drinking water supply lines is permissible by way of free
emission in accordance with EN 61 770; e.g. by using a reservoir
with a float valve. Direct connection to a non-drinking water
supply line is permissible.

12
Functional details
Insucient quantity of electricity
If there are too many collectors in your
proximity connected to the network at the
same time, the available voltage and the
current intensity may decline. Consequently
the motor of the high pressure cleaner does
not start or even blows. The power supply
may also be insucient if the power cable is
too long or too thin.
If extension cables are too long, this may
lead to a voltage drop causing malfunctions
or start-up diculties.
Kränzle 1050 P: 230 Volt / 50 Hz
Check the line fusing and have the voltage and the available current
intensity checked by an expert in case of uncertainty.

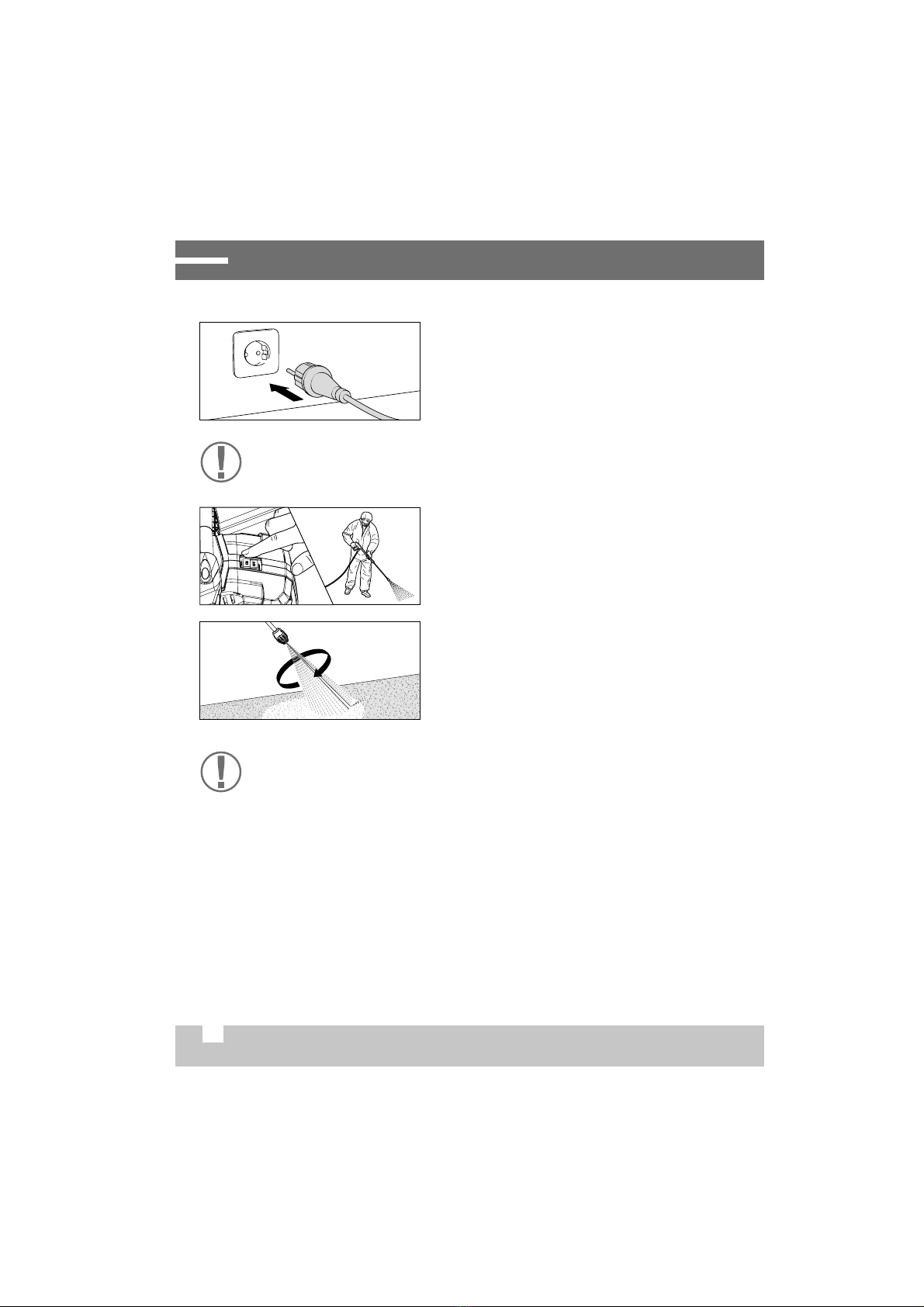

Electrical connection
The machine is supplied with a 5 meter electrical power cable with plug. The mains
plug must be fitted to a standard grounded socket with a 30 mA residual current
operated device. The socket must be protected with a 16 A fuse on the mains side.
When using an extension cable, this must have an earthed lead which is properly
connected to the socket. The conductors in the extension cable must have a
minimum cross section of 1.5 mm². Plug connections must be of a spray-proof design,
and may not be located on a wet floor. When using a cable drum, always keep the
cable wound as far as possible.

13
Functional details
Water and cleaning / care products system
Water can be connected at mains pressure to the high pressure pump. The water is
then forced under pressure by the high pressure pump to the lance. The high pressure
jet is formed by the nozzle at the end of the lance.
Environmental, refuse disposal and water protection regulations must
be observed!
Lance with trigger gun with safety catch
The machine can only be operated when the trigger of the trigger gun with safety
catch is pulled. When the trigger is pulled, the trigger gun opens. The liquid is then
pumped to the nozzle. The spray pressure increases and quickly reaches the selected
operating pressure. When the trigger is released, the trigger gun closes and any
further spraying of liquid from the lance is stopped. The pressure thrust serves to close
the start/stop system, thus causing interruption of the energy supply to the motor.
Owing to this innovative system the high pressure hose is relieved and enables higher
durability of the hose. Opening the gun causes the start/stop system to open, the
electric motor is automatically restarted and the pump starts to transfer the water
on to the high pressure jet where the cleaning jet is generated .
The trigger gun with safety catch is a safety device. Repairs should
only be performed by qualified persons. Should replacement parts be
required, use only components authorized by the manufacturer.
Replacements, repairs, new adjustments and sealing should only be
performed by qualified persons.
Prior to putting the machine into operation make sure that all safety
instructions be observed.

14
Functional details
Motor overload protection
The motor is protected against overloading by means of an overload protection de-
vice included in the motor coil. In the event of overloading or jamming, the excess
temperature cut-out serves to switch othe motor. In case of repeated switching
othe motor by means of the excess temperature cut-out, make sure to eliminate
the cause of the failure.
Replacements and inspection work should only be performed by qualified
persons when the machine is disconnected from the power supply, i.e.
with plug pulled out from the electrical socket.
High pressure hose and spray device
The high pressure hose and spray device which are part of the K 1050 P equipment,
are made of high quality material and engineered to conform with the operating
conditions of the high pressure cleaner and are duly labeled.
If replacement parts are required, only such parts that are authorized
by the manufacturer may be used. The warranty is automatically void if
spare parts of third-party providers are used! The high pressure hose and
spray device must be connected in a pressure-tight manner
(without leakage).
The high pressure hose may not be driven over, pulled excessively, or twisted.
The hose may under no circumstances be pulled over sharp edges. Defective
high pressure hoses must not be repaired (acc. to DIN 20022) but have to
be replaced by new hoses approved by the manufacturer.

15
Putting into operation
Do not place high pressure cleaner on rough surface because unit tends to
vibrate during operation.
When carrying the high pressure cleaner, make sure to bear in mind the
weight of the machine, see technical data.
Neither set up or operate the K 1050 P in rooms where there is a risk of fire
or explosion nor put it into puddles. Do not use the machine under water.
If, none the less, the machine is operated in a hazardous area,
the applicable safety regulations are to be observed.
1. Carry high pressure cleaner to its place
of operation. When parking the unit
make sure that the four rubber buers
stand on a safe support.
2. Unwind high pressure hose straight
and without nooses. (When using hose
extensions take care that the max.
length of 20 m is not exceeded!)

16

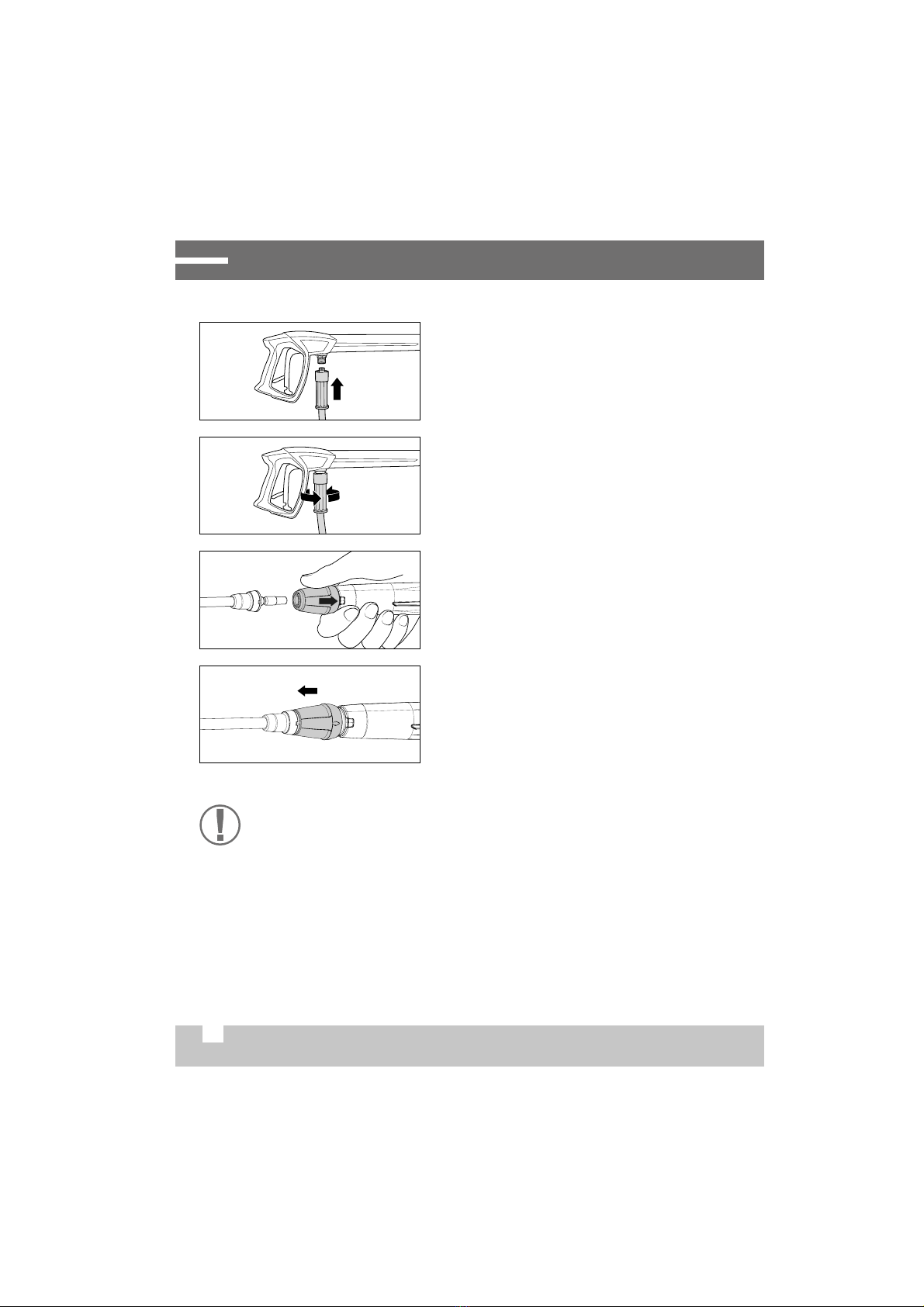

Putting into operation
6. After insertion of the lance, release reta-
ining sleeve and make sure that the lance
is in a secure position.
5. First pull back the retaining sleeve of
the gun, then insert lance into the
plug coupling connection of the gun.
4. Tightly screw together high pressure
hose and trigger gun with safety catch.
3. Push on high pressure hose to trigger
gun with safety catch.
Prior to insertion, check plug coupling connection of lance for cleanliness
(sand, dirt ..) and use clear water to clean, if necessary.
Impurities may damage the sealing in the plug coupling.

17

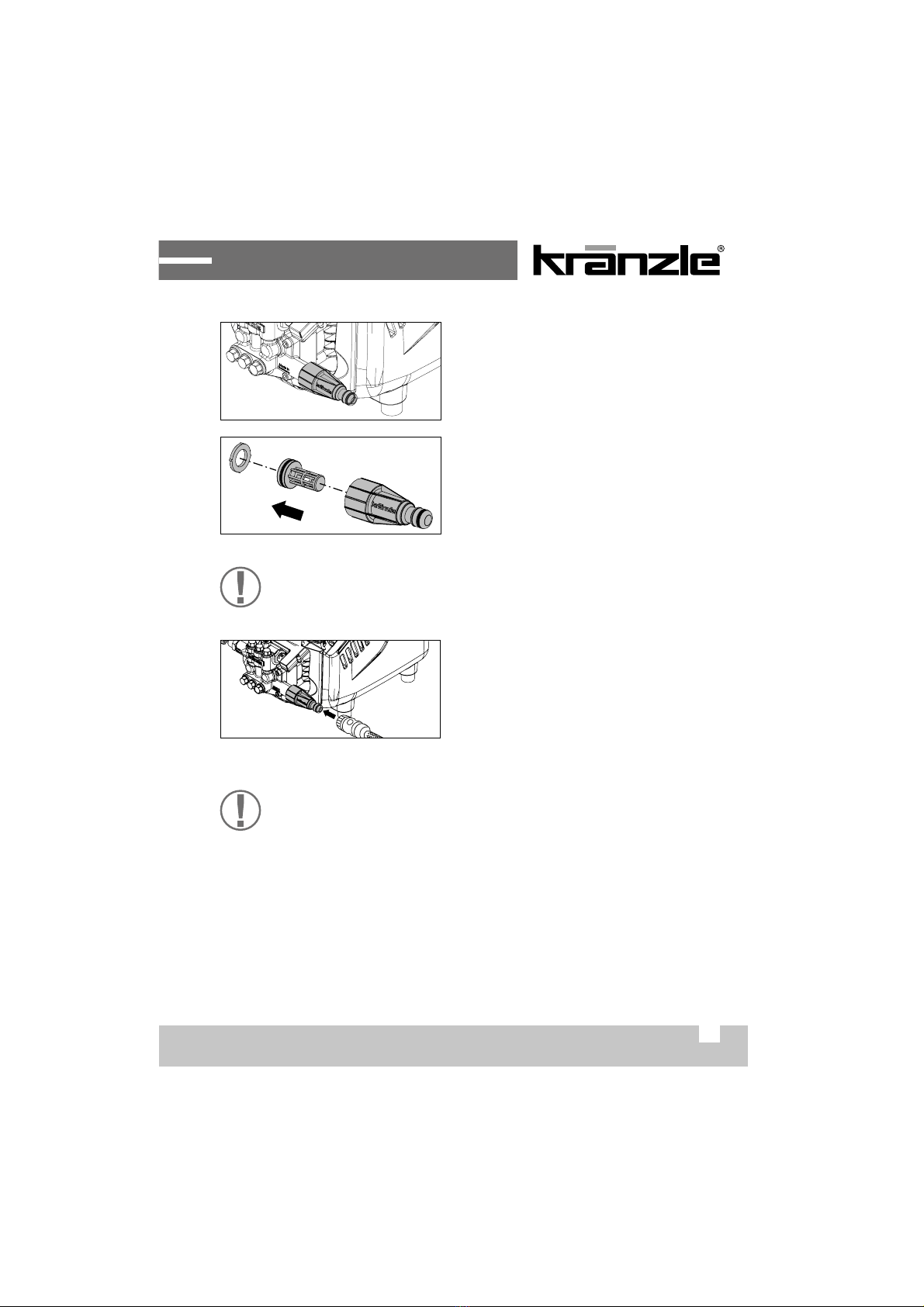

Putting into operation
7. Check water inlet filter for cleanliness
prior to putting the machine into
operation. When inside filter is
contaminated, remove filter and follow
step 7.1.
8. Connect water hose to water inlet.
The cleaner may be connected to a
water mains (1-10 bar pre-pressure)
with either cold or hot water (up to
60°C).
Check sieve for damages.
Do not operate high pressure without or with a damaged sieve.
7.1 If contaminated, remove sieve and
thoroughly rinse and clean with the
rest of the parts in clear water.
Be careful when using hot water!
When running your high pressure cleaner with hot water of 60° C raised
temperatures occur. Do not touch the metal parts of the cleaner without
safety gloves!

18
Never touch plug or live parts with moist or wet hands .
Putting into operation
10. Switch on HP cleaner with opened
trigger gun (trigger pulled). Bleeding of
the machine: Pull and release trigger
of trigger gun with safety catch several
times. Start cleaning task.
It is imperative that safety instructions be observed during use
of the machine.
9. Connect to circuit.
K 1050 P
230 V ~, 9.6 A, 50 Hz
The socket must be protected with a
16A fuse on the mains side.
11. When using the Dirtkiller make sure
that lance points downward when
starting .

19
1. Switch othe high pressure cleaner
2. Cut othe water supply
3. Open the trigger gun with safety catch briefly until the
pressure is released
4. Apply safety catch on the trigger gun
5. Remove water hose and trigger gun with safety catch
6. Drain the pump: switch on the motor for approx. 10 seconds
7. Pull the plug from the socket
8. Clean HP hose and wind up without loops
9. Clean power cable and wind up
10. Clean water filter
11. Store high pressure cleaners in frost-free rooms in winter
Due to their small base, the compact and
mobile Kränzle machines are easy to store.
To shut down the pump

20

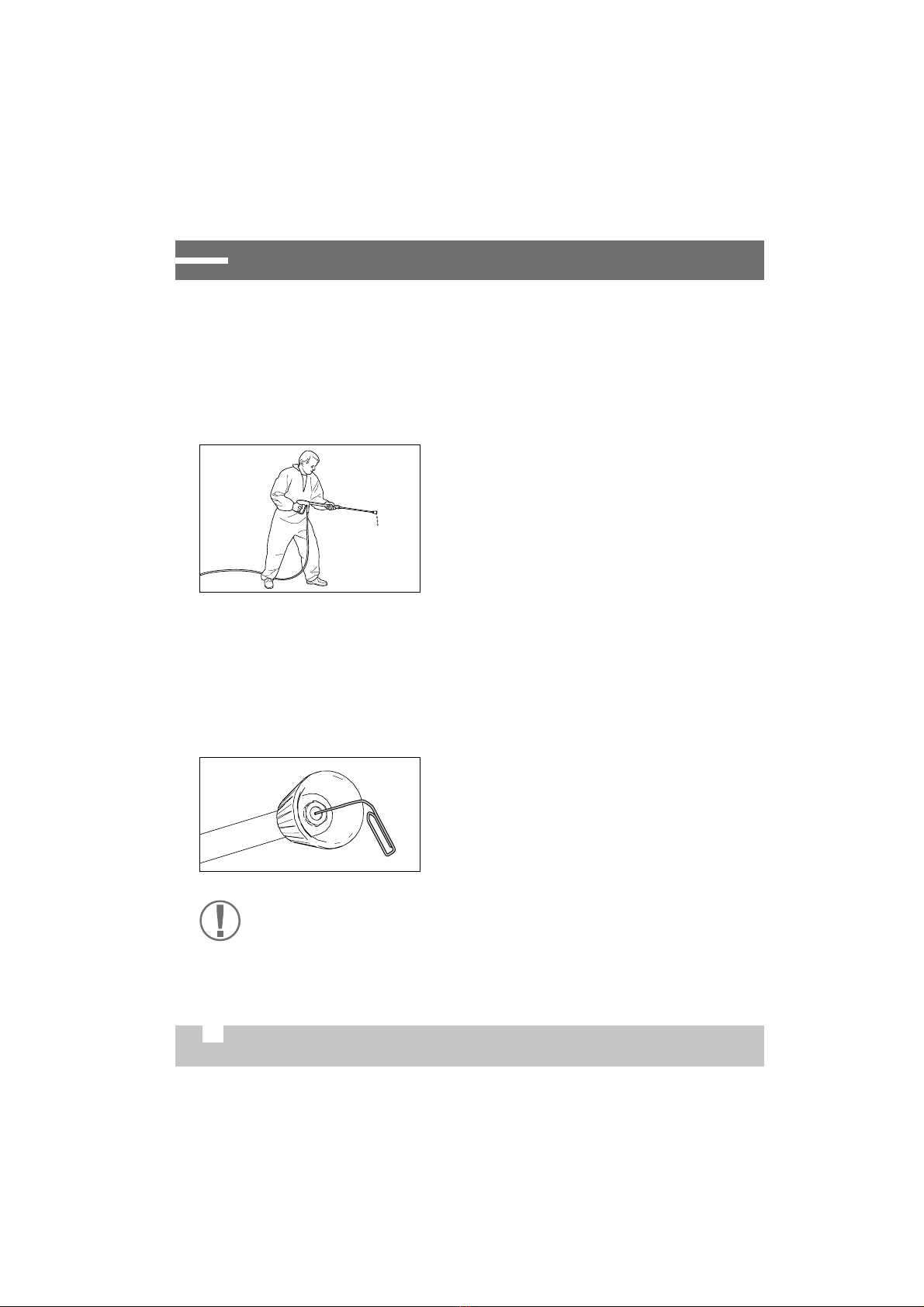

Small repairs - do it yourself!
No or very little water from the lance.
Proceeding:
Switch othe cleaner. Pull plug from
the socket. Operate trigger gun with
safety catch several times to decrease the
pressure.
Unscrew trigger gun and lance first,
then rinse high pressure gun to remove
possible soiling.
Check water inlet filter for soiling.
If the problem still exists, take wire (paper
clip) and push through nozzle opening.
If cleaning by means of a wire is not
successful, replace lance .
Problem:
No water from nozzle although motor is running.
Cause:
Most likely the nozzle is blocked.
Pull plug from socket prior to starting any repair work!
