Kränzle K 145 T User manual

High Pressure Cleaners
Operating manual
Read and conform
safety instructions
before use
GB
K
K

2
Dear customer
We would like to congratulate you on your new high pressure cleaner with integrated
undercarriage and integrated hose drum and to thank you for the purchase.
To ease your introduction to the use of the cleaner, we have provided the following
pages of explanations, tips and hints, which we ask you to read before using for the
first time.
The equipment will assist you professionally in all cleaning tasks, e.g.:
Permissible tolerance for figures ±5 % in acc. with VDMA uniform sheet 24411
Description
- facades
- flagstones
- terraces
- vehicles of all
types
- containers
- machines etc.
- removing of
old paint
Technical
specifications
Operating pressure,
steplessly adjustable
Perm. overpressure
Water output
Hot water input
Suction height
High pressure hose
Electrical ratings
Connect. wattage input
output
Weight
Dimension with mounted
handle in mm
Sound level acc.to 45635
with dirtkiller
Guaranteed sound level L
WA
Vibrations at lance
Recoil at lance
Kränzle
145 T
10 - 130 bar
145 bar
at 1400 U/min
10,5 l/min
max. 60 °C
2,5 m
15 m
230 V ; 50 Hz ; 12,5 A
P1: 2,8 kW
P2: 2,0 kW
36 kg
350 x 330 x 900
78 dB (A)
82 dB (A)
89 dB (A)
2,0 m/s²
approx. 22 N
Kränzle
175 T
10 - 160 bar
175 bar
at 1400 U/min
12 l/min
max. 60 °C
2,5 m
15 m
400 V ; 50 Hz ; 6,7 A
P1: 3,3 kW
P2: 2,6 kW
37 kg
350 x 330 x 900
78 dB (A)
82 dB (A)
91 dB (A)
2,1 m/s²
approx. 27 N

98
1
6
4
3
5
7
2
3
1 Water inlet connection with filter
2 Suction hose with filter (special
accessory) Order no. 15.038 3
3 High pressure pump
4 Press. gauge with glycerin filling
5 Unloader valve - safety valve
6 High pressure injector for cleaning
agents
7 High pressure hose
8 Spray gun
9 Interch. lance with regulator nozzle
Description
Water
400 V
230 V
Construction
The KRÄNZLE 145 T + 175 T - high pressure cleaners ar mobile machines.
The design can be seen from the diagram.
Item

4
The machine can only be operated when the safety trigger is squeezed.
The machine can only be operated when the safety trigger is squeezed. When the
lever is squeezed, the spray gun opens. The liquid is then pumped to the nozzle.
The spray pressure increases and quickly reaches the selected operating pressure.
When the trigger is released, the trigger gun closes and any further spraying of
liquid from the lance is stopped.
The increase in pressure when the trigger gun is closed causes the unloader valve-
safety valve to open. The pump remains switched on and continues to pump liquid
through the pump at reduced pressure. When the trigger gun is opened, the
unloader valve - safety valve closes and the pump ressumes pressure spraying
from the lance
The trigger gun is a safety device. Repairs should only be performed by
qualified persons. Should replacement parts be required, use only
components authorized by the manufacturer.
Lance with trigger gun
The unloader valve - safety valve protects the machine from a build p of excess
pressure, and is designed not to permit an excess pressure to be selected for
operation. The limit nut on the handle is sealed with a spray coating
The operating pressure and spray rate can be steplessly adjusted by turning the
handle.
Replacements, repairs, new adjustments and sealing should only be per-
formed by qualified persons.
Unloader valve - safety valve
Environmental, refuse disposal and water
protection regulations must be observed !
Water and Cleaning System
Water can be connected at mains pressure to the high pressure pump or it can be
sucked directly from a storage tank. The water is then forced under pressure by
the high pressure pump to the lance. The high pressure jet is formed by the nozzle
at the end of the lance.
Cleaning and caring agents can be mixed with the water by a high
pressure injector.
Description

5
The motor is protected from overload by a motor protection switch, which automati-
cally cuts out the motor in the event of overload. However should the switch trip
frequently, the cause of the malfunction should be located and rectified (see page
6).
Replacements and inspection work should only be performed by qualified
persons when the machine is disconnected from the power
supply, i.e. pull out the plug from the electrical socket.
Motor protection switch
Setting up
Location
Neither set up and operate the machine in rooms where there is a risk of
fire or explosion nor put it into puddles. Do not use the machine under
water.
Never use liquid containing solvents such as paint thinners, petrol, oil or
similar liquid matter. Pay attention to the instructions of the
manufacturers of the cleaning agents. The seals in the ma-
chine are not resistant to solvents. The spray of solvents is inflammable,
explosive and poisonous.
CAUTION !
CAUTION !
When running your high pressure cleaner with hot water of 60 °C raised
temperatures occur. Do not touch the machine without safety
gloves!
Description

6
The machine is supplied with an electrical power cord with plug.
The mains plug must be fitted to a standard grounded socket with a
30mA residual current operated device. The socket must be protected
with a 16A delay action fuse on the mains side.
KRÄNZLE 145 T - 230 Volt 50 Hz
KRÄNZLE 175 T - 400 Volt 50 Hz
When using an extension cable, this must have an earthed lead which is
properly connected to the socket. The conductors in the extension cable
must have a minimum cross section of 1.5 mm². Plug connections must
be of a spray-proof design, and may not be located on a wet floor.
(with extension cables of more than 10 m - 2.5 mm2)
Electrical connection
The use of extension cables which are too long may lead to malfunctions and start
up difficulty.
When using a cable drum, always keep the cable wound as far as possible.
CAUTION !
Description

7
Brief operating instructions
are fitted to the machine. Numbers 1-6.
When operating your high pressure cleaner pay attention
that it is in a horizontal position.
1. Connect the high pressure hose with spray gun and machine.
2. Connect to suitable water supply.
3. Flush the air from the pump (open and close the spray gun several times)
4. Make the electrical connection - (KRÄNZLE 145 T 230 Volt A.C.,
KRÄNZLE 175 T 400 Volt three-phase current).
5. Switch on the machine with opened spray gun and commence cleaning.
6. After completing the work, completely empty the pump (switch the motor on for
approximately 20 seconds without the suction and pressure hoses).
Only use clean water ! Protect from frost !
Please pay attention to the regulations of your waterworks company. In accord-
ance with EN 61 770, the machine may not be directly connected to the public
drinking water supply lines.
A brief connection however is permissible according to DVGW (German Association
for Gas and Water Affairs) if a tube ventilator with check valve (Kränzle Order-No.
41.016 4) is built into the water supply.
Also indirect connection to the public drinking water supply lines is permissible by
way of free emission in accordance with EN 61 770; e.g. by using a reservoir with a
float valve.
Direct connection to a non-drinking water supply line is permissible.
CAUTION !
High pressure hose and spray device
The high pressure hose and spraying device supplied with the machine are made of
high grade material, they are also optimized for the machine and marked as required
by the appropriate regulations.
If replacement parts are required, only such parts that are authorized by
the manufacturer and which bear the markings required by the appropriate
regulations may be used. The high pressure hose and spray device must
be connected in a pressure-tight manner. The high pressure hose may not
be driven over, pulled excessively, or twisted. The hose may under no
circumstances be pulled over sharp edges, since otherwise the guarantee
is automatically void.
Description

8

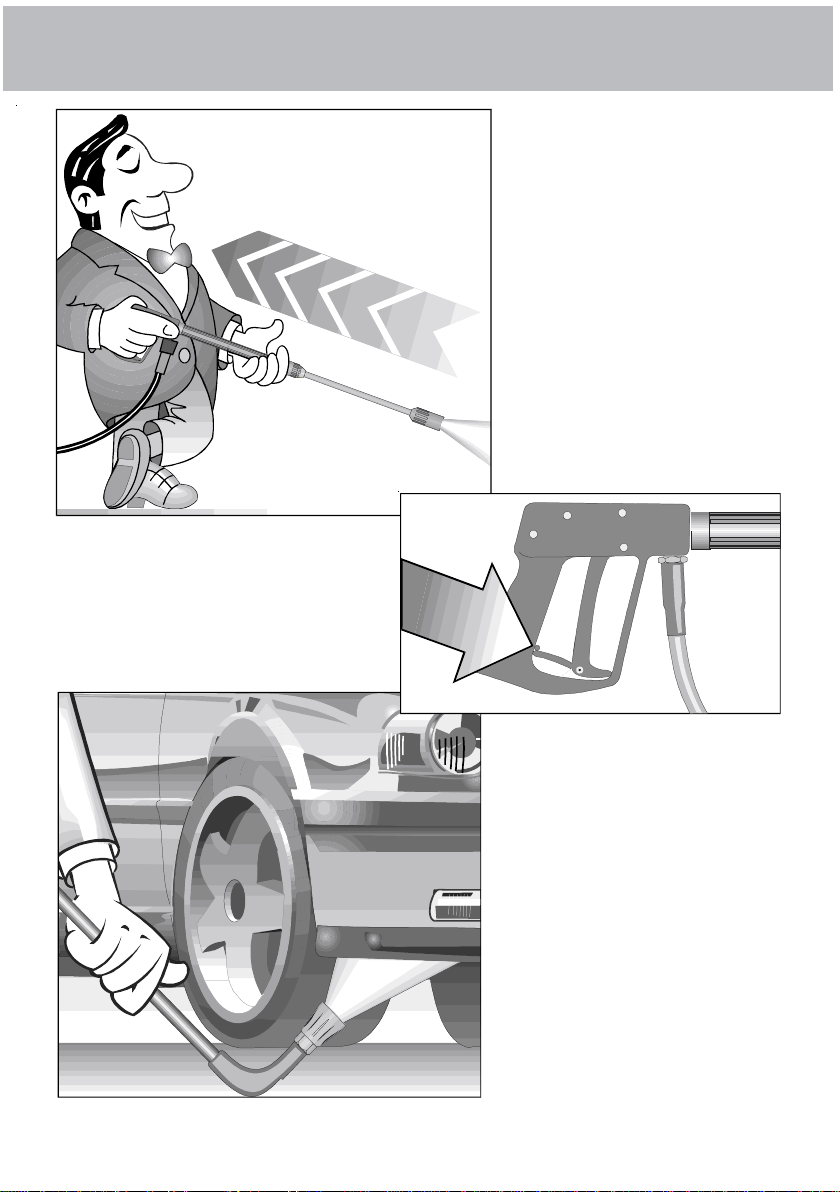

As to the recoil -
see notice on page 2!
Apply the safety catch on the
spray gun after each use, in
order to prevent unintentional
spraying!
Always aim the
underbody lance. Note
when using an angled
underbody lance, like
for example lance No.
41.075, that there is a
certain amount of
torque in the recoil.
(K145 T: 22 Nm
K175 T: 24 Nm)
Safety notes

9
1. Dirtkiller with nozzle 045
Spray lance with regulator
and high pressure nozzle,
flat spray 25045
2. Spray gun with insulated
pistol grip and screw
connection
3. KRÄNZLE - High pressure cleaners 145 T, 175 T, 205 T with hose
drum and 15 m high pressure hose with steel reinforcement NW 6.
4. Crosstip screwdriver
Fixing screw for crank
5. Operating instructions
7. Water inlet components
6. Crank for hose drum
This is what you’ve purchased:

10
Suspension for
dirtkiller
Hose reel with
15m HP-hose
Receptacle
for gun
Receptacle
for lance

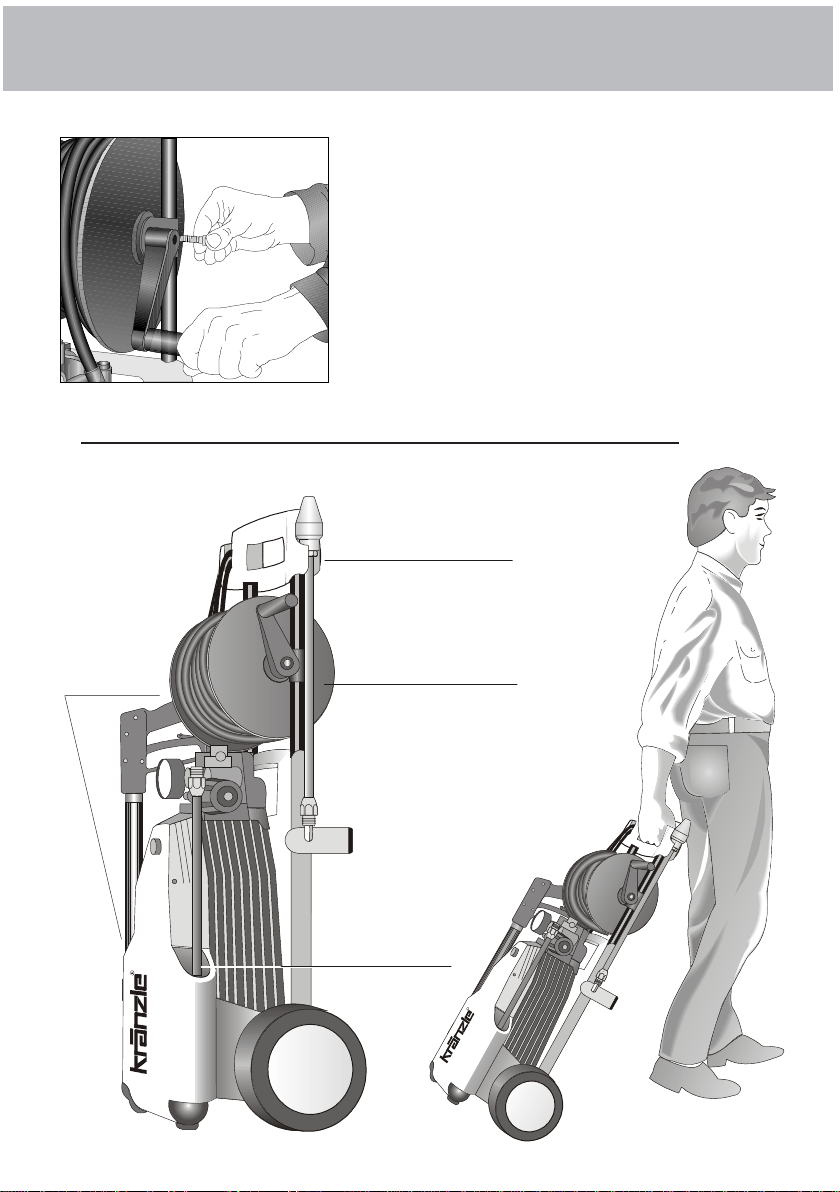

Put high pressure cleaner into upright
position. Now pull the cable holder
from the hexagon on the cable
drum. Remove the screw from the
brass element. Put the crank on the
hexagon and fasten with the screw.
Assemble and furnish your high pressure cleaner

11

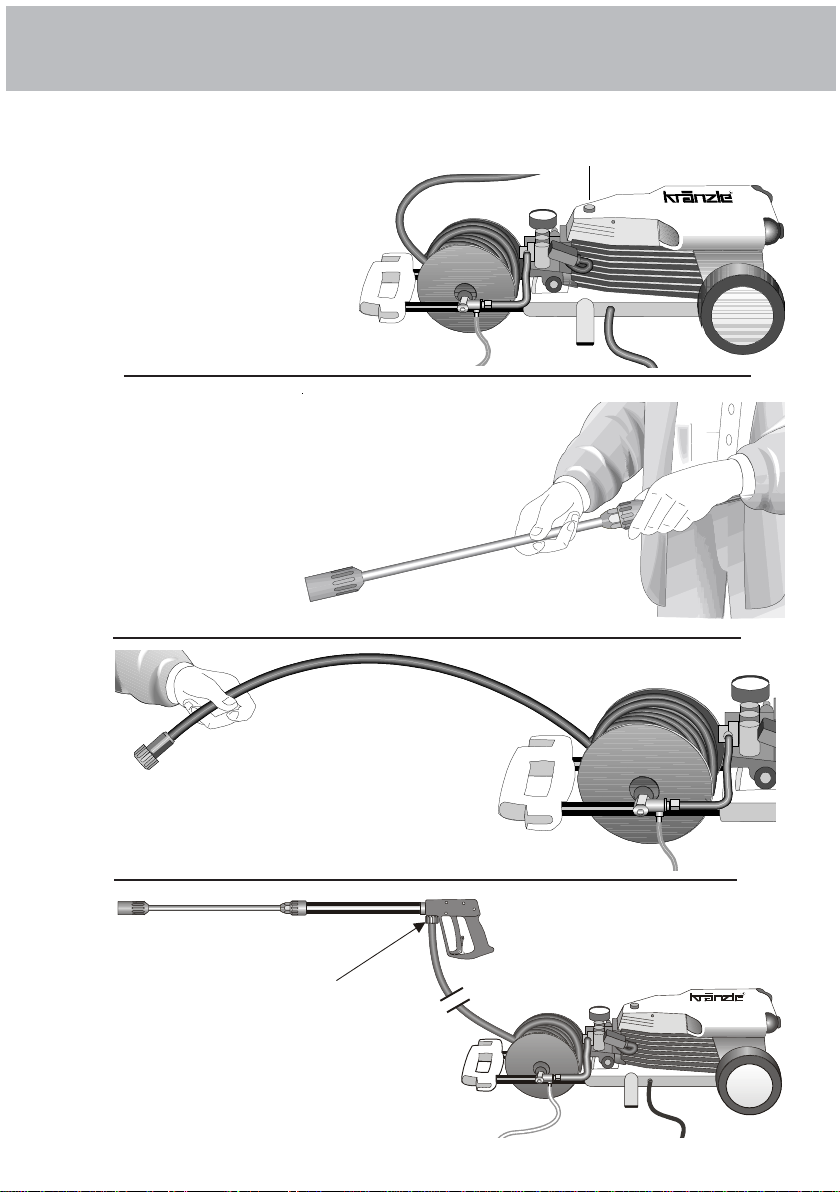

1. Put high pressure cleaner into
horizontal position!
THE HIGH PRESSURE
CLEANER IS ONLY
TO BE OPERATED
IN HORIZONTAL
POSITION !
2. Connect the high pressure lance
to the spray gun.
3. Unwind the
high pressure hose
completely rom the hose
drum und connect to spray gun.
When using extension hoses use
max. 20 m HP-hose or 2 x 10 m
with hose connectors.
High pressure hose connected
to machine and spray gun.
Do not replace the plug !
Preparation for use

12
4. The machine can be connected to a
pressurised water line with cold or
60 °C hot water(see page 2).
Ensure that the water supply is clean when
sucking from external sources. The hose
cross section must be at least 1/2” = 12.7
mm (free passage). Filter 1 must
always be clean.
Please make sure
that the filter is clean
before using your high
pressure cleaner.
CAUTION !
When running your high pressure cleaner with hot water of 60 °C
raised temperatures occur.
Do not touch the pump without safety gloves!
Water
5. Maximum induction
height 2.5 m
see technical
data on page 2
Preparation for use

13
4
5
P max.
Chem.
A mixing ratio of 3-5% is achieved
when the Vario-Jet is fully turned
on. pH value neutral 7-9.
Turn on Vario-Jet to reach low
pressure !
This is accomplished by turning the
handwheel. The default setting is
maximum pressure.

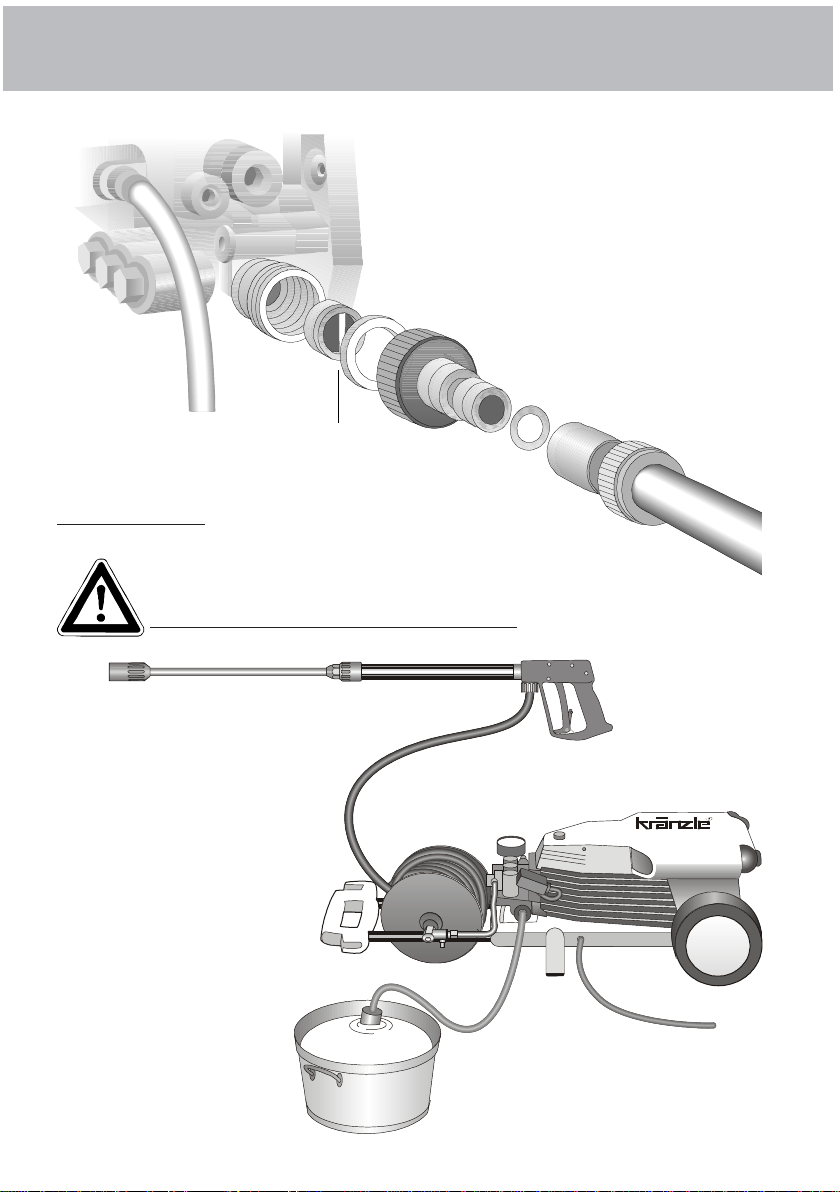

Adjusting the pressure
Unwind HP-hose completely.
Place chemical filter no. 5 in the reservoir
with the cleansing agent. Turn on Vario-Jet
No.4 to to enable the injector to induct the cleansing agent.
By turning back the Vario-Jet nozzle, the supply of chemi-
cal is automatically cut off. Allow the cleansing agent to
take effect and then remove with high pressure spray.
When using cleansing
agents:
Note that you must always comply
with the instructions provided by the
manufacturer of the cleansing agent
(e.g. instructions concerning safety
clothing) and the water protection
regulations!
To shut down the pump:
1. Switch off the machine.
2. Cut off the water supply.
3. Open the spray gun briefly until the pressure is released.
4. Apply the safety catch on the spray gun.
5. Remove the water hose and spray gun.
6. Drain the pump: switch on the motor for approx. 20 seconds.
7. Pull the plug from the socket.
8. Winter: store the pump in rooms above 0°C.
9. Clean the water filter.
Preparation for use

14

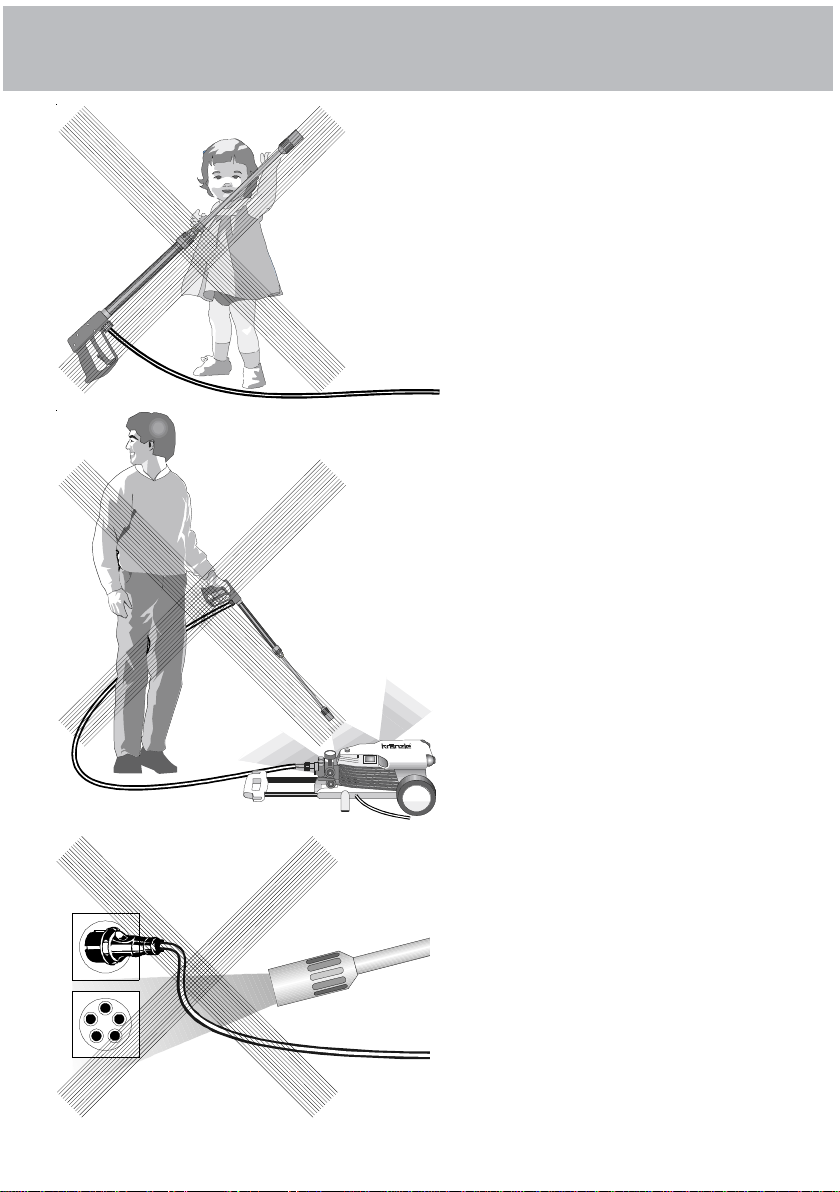

Never direct the
water jet at the
machine itself !
Never direct the
water jet at a po-
wer socket !
Never allow children
to use the high
pressure cleaner !
This is prohibited !

15
Never direct the
water jet at people
or animals !
Do not damage
the power cord or
repair it
incorrectly !
Never pull the high
pressure hose if it has
formed kinks or
“nooses”!
Never pull the hose
over sharp edges !
This is prohibited !

16

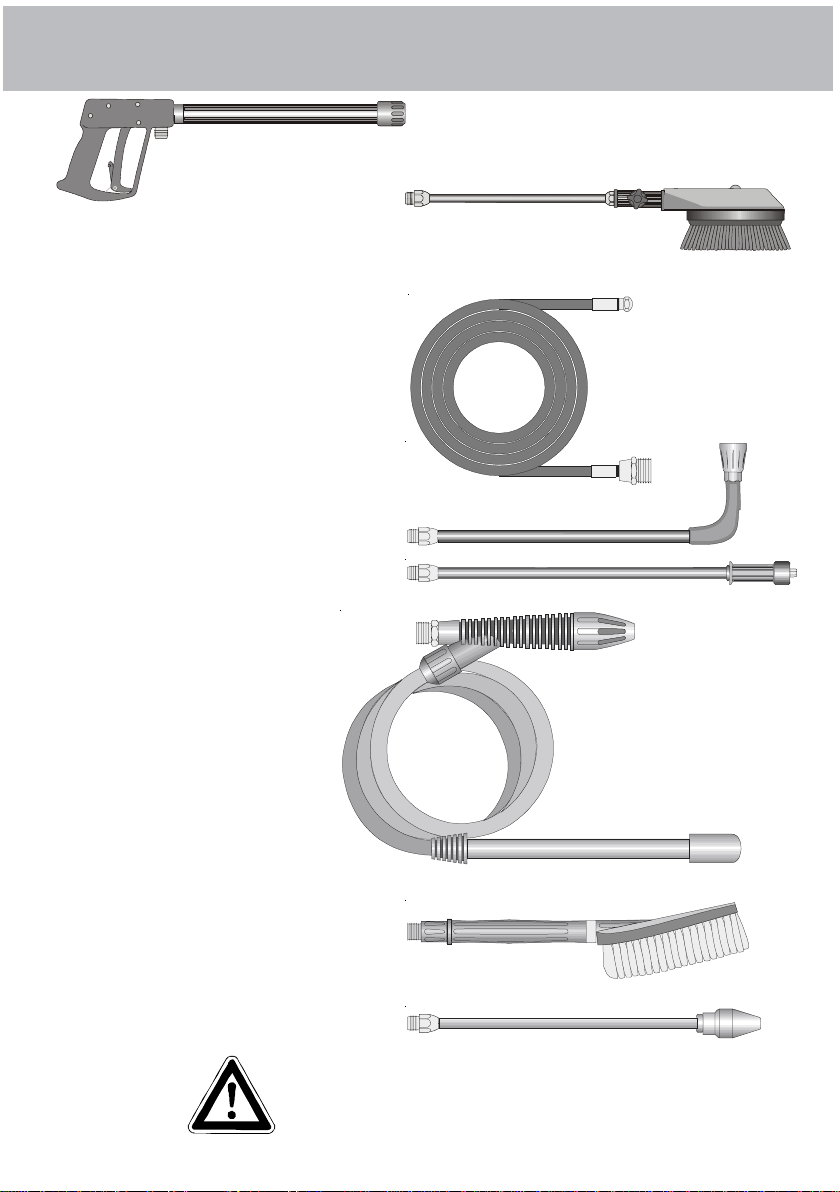

Rotary scrubbing brush
Order No. 41.050 1
Drain and pipe cleaning
hose
10 m - Order No. 41.058 1
15 m - Order No. 41.058
Underbody lance, new
Order No. 41.075 1
Sandblaster
Order No. 41.068 1
Flat brush
Order No. 41.073
Dirtkiller
Order No. 41.072 5
Environmental, refuse disposal and water
protection regulations must be observed
when using the accessories!
Additional KRÄNZLE-accessories for

17
Car cleaning, glass, caravan, boat etc.
rotary washing brush with 40 cm exten-
sion and ST 30 nipple M 22 x 1,5
Underbody cleaning of cars, trailers and
equipment: lance 90 cm with high pressure
nozzle and ST 30 nipple M 22 x 1,5.
The lance must be aimed when spraying.
Cleaning cars and all smooth surfaces :
brush with ST 30 nipple.
Rotary point sprayer for extreme soiling.
Dirtkiller with 40 cm extension and ST 30
nipple.
Cleaning pipes, channels and drains:
pipe cleaning hose with KN nozzle
and ST 30 nipple M 22 x 1,5
Blasting old paint, rust and facades: sand-
blasting injector with suction lance, 3 m
PVC hose and ST 30 nipple.
When sandblasting you must
wear protection clothes! Pay
attention to the instructions
of the manufacturer of the
abrasive!
... for further combination possibilities

18

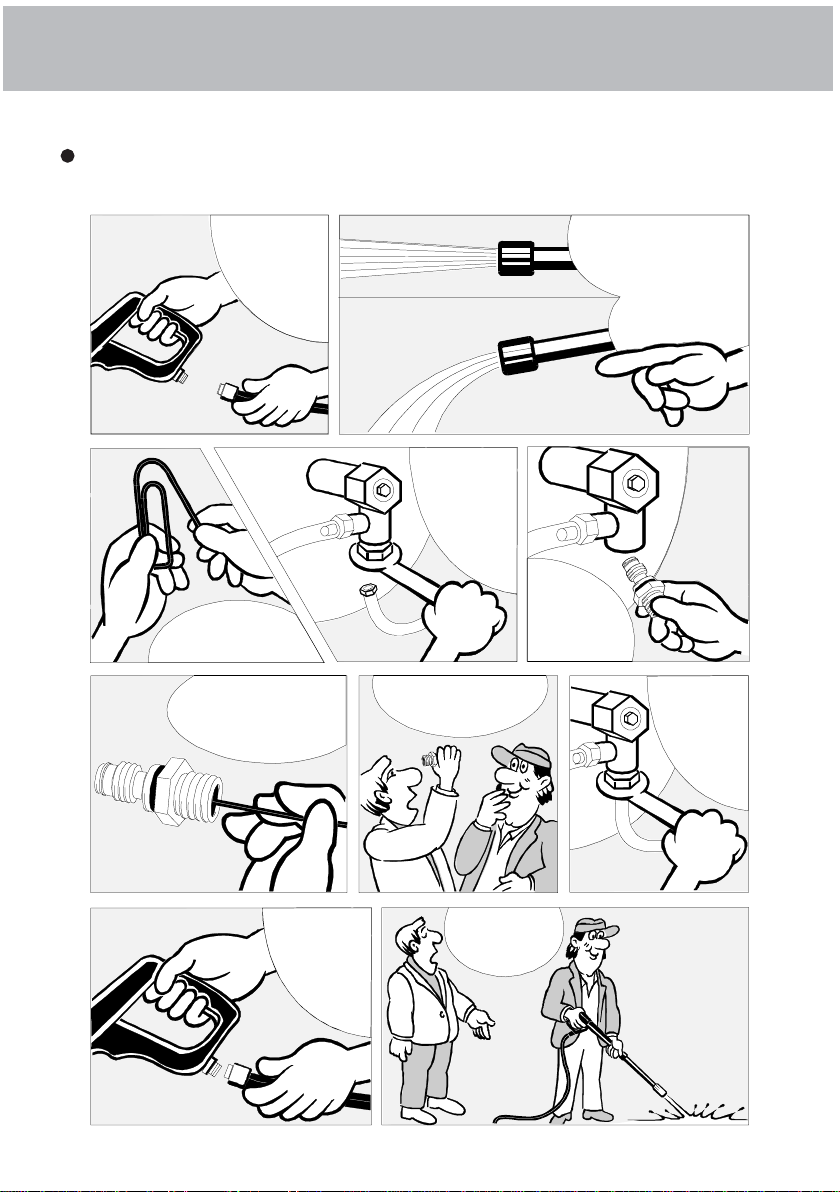

The pressure gauge shows a 10% higher pressure than the working pressure.
You only get a weak flow of water or no water at all!
The injector
may be dirty
and you
should first
remove the hose!
Now turn on the water and
you should get a powerful
stream of water
But if you only
get a weak flow
Then straighten
a paper clip ...
... release feed
line and injector
with an open
ended
spanner
...,
... and pull out
the injector!
Clean the injector
thoroughly from both sides
...
and check that
it is clean.
Reconnect
the hose ...
and you are
ready to continue
your
work!
Small repairs -
Reconnect
feed line
and injector.

19

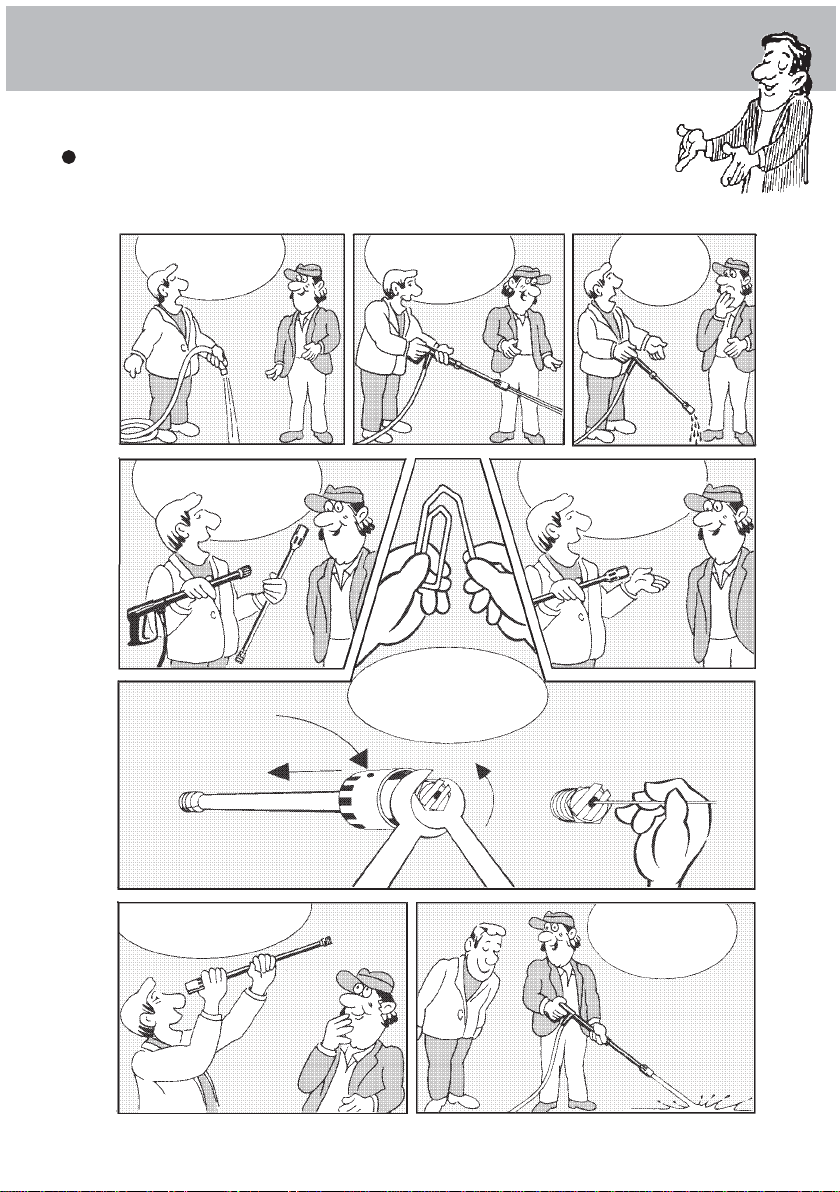

The nozzle is blocked!
No water but the gauge shows full pressure !
Rinse the hose through
first.
You should now have a
powerful stream of
water,
but if you only
get a few
drops from
the
lance
remove the lance and clean
the nozzle.
Using the flat spray lance you
only have to clean the front
nozzle.
Straighten a paper
clip and clean the
nozzle.
Insert pointed object
into the hole and pull
the cap back!
Check visually whether the
nozzle is clean. Now it works as well
as before.
Do it yourself!

20
Nozzle dirty or sticky!
Pressure gauge does not show full pressure.
Water comes out in spurts.
If you do not use the high-pressure cleaner for some time the valves can stick
The high-pressure hose vibrates.
Straighten a
paper clip...
When a valve is blocked, the gauge
shows little
pressure or
no pressure
at all,
or the high
pressure
hose vibrates!
Open the valve
with a socket
wrench...
and remove the
valve screw, the
valve and the
o-ring.
Replace the rubber o-ring.
and remove the dirt
from the valve - the
valve inside must
be closed.
Retighten the valve
screw
...and repeat
on all 6
valves.
Now it works
as well as
before!
Small repairs - Do it yourself!
