Kränzle Ventos 42 L/PC Guide

www.kraenzle.com
Operating manual
with spare parts list
EN
Industrial vacuum cleaner
Ventos  L/PC
Ventos  L/PC

2 3
EN
Operating manual
with spare parts list
Operating manual!
This manual is a translation of the original manual. Read and conform safety
instructions before use! Technical data will be found in the Spare parts list.
Please be aware that the spare part list is part of the operating manual.
Keep the leaflet for later use or any subsequent owners.
Industrial vacuum cleaner
Ventos  L/PC
Ventos  L/PC

4 5
In the operating manual: Marking of notes
Indicates a hazard that will lead directly to serious bodily
injury or death. (Hazard with a high degree of risk)
Indicates a hazard that can possibly lead to serious bodily
injury or death. (Hazard with a high degree of risk)
Indicates a hazard that can possibly lead to minor physical
injuries. (Hazard with a low degree of risk)
Failure to observe this note may entail
environmental damage.
Note on the use of the industrial vacuum cleaner.
Failure to comply may result in excessive wear or
total failure of the unit.

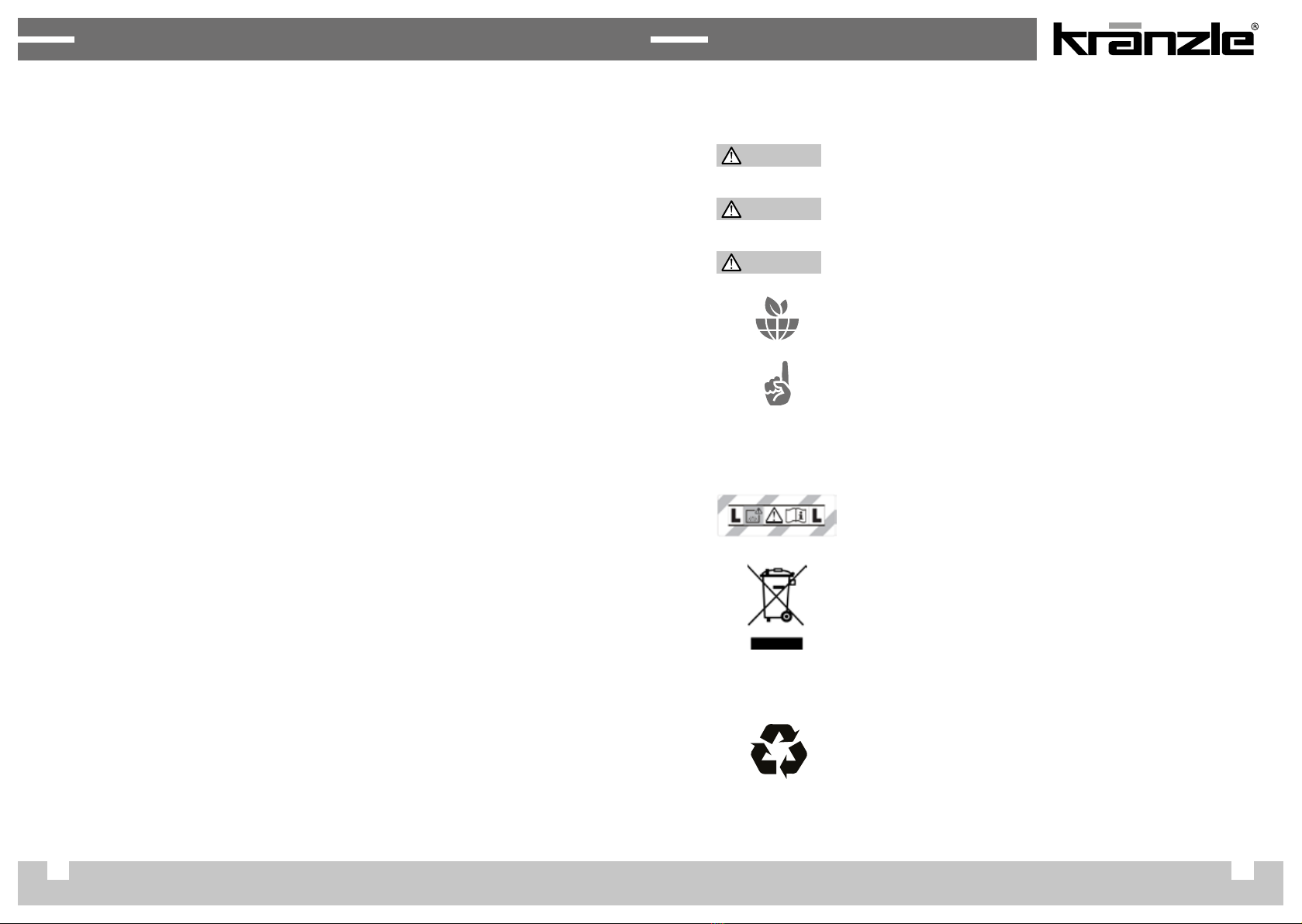

Explanatory symbols used on industrial vacuum cleaner
Dust of dust class L is considered "slightly" hazardous.
Examples can be dusts from gypsum, lime and mica.
For all dusts with AGW values > 1 mg/m3, the max.
permeability of the vacuum cleaner is 1%.
Products marked with this symbol may contain constituents
posing a risk to health or the environment if incorrectly
disposed of. These products must never be disposed
of as household waste.
Explanatory symbols affixed on the packaging
This symbol denotes recyclable packaging materials
which must not be disposed of as household waste.
Information on proper disposal will be gathered from
the recycling directives issued by your local authority.
DANGER
WARNING
ATTENTION
Dear customer,
We would like to congratulate you on the purchase of your new industrial vacuum
cleaner and thank you for your confidence in our products.
Your choice has fallen on an absolute quality product.
Kränzle industrial vacuum cleaners are characterized by their convenient
and compact design as well as their high suitability for everyday use.
Highest precision and dimensional accuracy in addition to a technology package
consisting of a multitude of details mark the difference when it comes to
performance, safety and durability.
In order to facilitate handling of the industrial vacuum cleaner, the following pages
are ntended to further explain the use of the Ventos 32 L/PC / Ventos 42 L/PC.
The figures may be subject to deviation depending on the type of equipment
or accessory purchased by you.
Contents ................................................................................................. 4
Explanatory symbols ........................................................................ 
Safety notes.......................................................................................... 6
Description of the industrial vacuum cleaner ...................... 12
General rules ........................................................................................ 16
Assembly ................................................................................................ 18
Functional details .............................................................................. 22
Putting into operation ..................................................................... 24
Taking out of operation .................................................................. 34
Small repairs - do it yourself ......................................................... 37
Kränzle accessories ............................................................................ 40
EU Declaration of Conformity ...................................................... 42
Warranty ................................................................................................ 43
Technical data ...................................................................................... 44
Pipeline plan ......................................................................................... 46
Spare parts list ..................................................................................... 48
Contents Explanatory symbols

6 7
DANGER The industrial vacuum cleaner and all associated parts must be
checked for proper condition and operational safety before each
use. If the condition is not perfect, the industrial vacuum cleaner
must not be used. Have any damage checked by your dealer or
the nearest authorised service centre.
DANGER
Do not use the industrial vacuum cleaner with a damaged power
cord or plug. To unplug, hold it by the plug, not the cable. Do not
touch the plug or the industrial vacuum cleaner with wet hands.
Switch off all controls before unplugging.
DANGER If the mains connection cable of this unit is damaged, it must
only be replaced with an original Kränzle mains connection
cable and must be carried out by a qualified electrician.
DANGER Always disconnect the appliance from the mains before
opening the industrial vacuum cleaner!
ATTENTION Only operate the industrial vacuum cleaner with an inserted
and undamaged filter. Make sure that the filter is in perfect
condition.
ATTENTION Unplug the vacuum cleaner's power cord before connecting
accessories or power tools to the machine.
DANGER
Always wear protective goggles when working with the machine.
They prevent stones or debris from being blown into or bouncing
back into the user's eyes or face. Working without safety goggles
can cause serious injury.
WARNING Never use the vacuum cleaner as a ladder or stepladder. Failure
to comply with this instruction may result in serious injury and
the vacuum cleaner may be damaged.
DANGER
Do not pull or carry the appliance by the cable and do not use
the cable as a handle. Do not close a door over the cable and do
not pull the cable around sharp edges or corners. Do not run over
the cable with the vacuum cleaner. Keep the cable away from
heated surfaces.
WARNING Read and conform safety instructions before use!
Errors in compliance with the warnings and instructions may
cause electric shocks, fires and/or serious injuries! Keep this
operating manual and spare parts list for later use or subse-
quent owners.
WARNING Remove the accessories from the collection container.
Remove the packaging from all parts of the vacuum cleaner.
DANGER Keep packaging material away from children.
There is a risk of suffocation!
WARNING Safe working with the appliance is only possible if you read the
operating instructions completely and follow the instructions
contained therein exactly.
WARNING The appliance may only be used by persons who have been
explicitly instructed in its operation and handling. This includes
the correct use and handling of the industrial vacuum cleaner
and all accessories, as well as the handling of substances that
come into contact with it.
WARNING The vacuum cleaner is not designed for use by persons with
restricted physical, sensory or mental abilities (including children)!
Children must be kept under supervision to prevent them from
playing with the equipment.
WARNING Do not use the industrial vacuum cleaner if you are under
the influence of drugs, alcohol, medication, tired or distracted.
ATTENTION The unit may only be operated in a room with sufficient
ventilation (observe national occupational health and safety
regulations). When the outflowing air is led back into the room,
a sufficient ventilation rate (L) must be ensured in the room.
In order to comply with the required limit values, the return
flow must not exceed 50 % of the fresh air volume flow (room
volume VR x ventilation rate LW). Without a specific ventilation
system, the following applies: Lw=1h-1.
Safety notesSafety notes

8 9
WARNING When carrying the industrial vacuum cleaner, pay attention
to its weight (see technical data). Note that the weight of the
vacuum cleaner is increased by a filled container.
WARNING Always secure the appliance against rolling away or falling over.
Always apply the brakes on the metal castors when parking the
industrial vacuum cleaner.
ATTENTION When working with the device, the user must ensure that third
parties are not harmed. Particular attention must be paid to
children!
WARNING Keep loose clothing, hair, fingers and all body parts away from
openings and moving parts. Failure to comply with this instruction
may result in serious injury.
ATTENTION
Do not insert objects into openings and do not use the appliance
with openings blocked. Keep openings free of dust, lint, hair and
anything that can reduce air flow.
ATTENTION Never operate the appliance unattended. After switching off
the vacuum cleaner, disconnect the mains plug and wind up
the mains connection cable before going out of sight. The cable
can become a tripping hazard.
DANGER Substances that are toxic, carcinogenic or flammable, such as
arsenic, asbestos, barium, beryllium, lead, pesticides, or other
substances harmful to health must not be cleaned up with this
device. Sharp-edged objects must also not be sucked up.
DANGER
The industrial vacuum cleaner is not suitable for vacuuming
burning or glowing objects such as cigarettes, matches, ashes
or similar. The unit is suitable for picking up dry, non-flammable
dusts (dust class L according to EN 60 335-2-69) and liquids.
DANGER
Do not use the unit to hold flammable or combustible liquids
such as petrol, alcohol, thinners, solvents or in areas where these
may be present.
DANGER
Do not vacuum the following materials: explosive or flammable
gases, liquids and reactive dust particles, reactive metal dust
particles (such as aluminium, magnesium, zinc), in combination
with strongly alkaline or acidic cleaning agents, undiluted and
strong acids and alkalis or organic solvents such as petroleum,
paint thinners, acetone, fuel oil and similar products.
DANGER Never operate this unit when explosive or flammable materials,
vapours or gases are or may be present in the environment.
Electrical equipment may cause arcing or sparks, resulting in
fire or explosion.
WARNING
Do not use your industrial vacuum cleaner for spraying flammable
liquids such as oil-based paints, varnishes, household cleaners etc.
ATTENTION
The vacuum cleaner cannot be used as a water pump, it is only
used to extract air and water mixtures.
ATTENTION
Switch off the industrial vacuum cleaner immediately if foam
develops or liquid escapes.
ATTENTION
When used in elevated positions and where there is a risk of
falling, as well as on uneven terrain, the unit must be secured
against rolling away or falling over. en.
WARNING Be careful when vacuuming stairs. You could injure yourself
and/or damage the vacuum cleaner if you miss steps and fall
or lose your balance.
ATTENTION
The industrial vacuum cleaner must not be used or stored
outdoors in wet conditions.
WARNING If the industrial vacuum cleaner does not work properly or if it
has been dropped, damaged, left outdoors or dropped into water,
always have it checked before use. To do this, take the vacuum
cleaner to your dealer or the nearest authorised service centre.
WARNING
Only use the socket on the vacuum cleaner for the specified
purpose. Only connect power tools that have been tested and
are in perfect condition and with max. 2200 W.
Safety notesSafety notes

10 11
WARNING Risk of injury from uncontrolled start-up of power tools! Before
connecting the mains connection cable of the power tool to the
vacuum cleaner, make sure that the power tool is switched off
and the rotary knob on the vacuum cleaner is set to "OFF" and
thus switched off.
WARNING
Empty the collection container of the vacuum cleaner after each
use. This will also prevent spontaneous ignition of the contents
of the container. After using the vacuum cleaner, the contents
of the dust collection container may contain components that
can pose a risk to health or the environment if disposed of in-
correctly. The safe and proper disposal of these substances, as
well as the disposal of the dust collection container if necessary,
may only be carried out by professionals wearing suitable personal
equipment. They must not be disposed of with household waste.
WARNING The unit must be decontaminated before these operations.
Rooms in which these activities take place must have local
filtered forced ventilation and the area must be properly
cleaned afterwards.
WARNING
Emptying, cleaning and filter changing may only by wearing
suitable personal protective equipment. This protects the person
from substances hazardous to health. Wear a dust mask (suitable
for fine dust) when emptying the container of fine dust of any
kind or substances hazardous to health.
ATTENTION
Static discharge may occur in dry environments. This will affect the
use of the industrial vacuum cleaner. To avoid this electric shock,
humidify the air with a console or humidifier.
WARNING
The industrial vacuum cleaner must be inspected by an expert at
least every 12 months. It must be checked whether safe operation
of the industrial vacuum cleaner is still guaranteed. Before each
safety instruction, the filter must be checked for damage and
the unit must be checked for air tightness. The results of the
inspection are to be recorded in writing.
DANGER Disconnect the unit from the mains before carrying out
any maintenance work on it.
WARNING Cleaning and maintenance work must not be carried out
by children.
WARNING Wear a dust mask (suitable for fine dust) when cleaning
the filter or the industrial vacuum cleaner.
ATTENTION
When carrying out maintenance and repair work it is necessary
to dispose of any contaminated objects which cannot be
adequately cleaned. Such objects must be placed in imperme-
able bags in compliance with the relevant regulations for the
disposal of such refuse. Objects that had to be disposed of
have to be replaced and reinstalled.
ATTENTION In particular, ensure that the unit contains a complete and
functioning filter system again before use.
ATTENTION Clean the water level limiter regularly and check it for signs
of damage.
DANGER Safety devices serve to protect the user and must never be
de-activated or their function bypassed.
Safety notesSafety notes
DANGER
Only use a power supply cable in perfect working
order! Do not damage or improperly repair the
power cable (tearing, squeezing, running over, ...).
Do not kink the mains connection cable and do
not pull it over sharp edges.
WARNING
Never allow children or untrained persons to use
the industrial vacuum cleaner or to play with it!
Children must be kept under supervision to pre-
vent them from playing with the equipment.
Children must be kept under supervision to
prevent them from playing with the equipment.

12 13
Design: Ventos 32 L/PC / Ventos 42 L/PC
The Ventos 32 L/PC / Ventos 42 L/PC is a mobile industrial vacuum cleaner with an
advanced arrangement system. Please see construction scheme for more details.
1. Suction cup head
2. Collection container
3. Control panel/display
4. Filter cleaning button
5.
Hand pipe holder for filter
cleaning
6. Hose/mains connection cable
holder incl. bar
. Fastening of the head
8. Liquid drain of the collection
container
9. Intake manifold
10. Handgrip
11. Metal castors with brake
function
12. Holder for the storage hook
of the suction tube
13. Mains connection cable/plug
14. Holders for accessories
15. Collection container handle
16. Foldable filter cover
17. Filter cover handle for opening
the filter cover
18. Wheels
19. Flat nozzle
20. Hand pipe
21. Suction brush
22. Floor nozzle (for use as a dry
vacuum cleaner)
23. Rubber lips (are required for
use as wet vacuum cleaners.
Assembly see chapter „Putting
into operation“)
24. Dust bag (5 pieces)
19
20
21
22
23
24
25
26
27
28
25. Adapter for electrical tools
26. Antistatic suction hose
27. Disposal bag (1 piece)
28. Suction tube with storage hook
to attach to the vacuum
(e.g.: during work breaks)
29. Comfort accessory storage
(optionally mountable)
Accessories:
Note on unpacking:
Some of these accessories are packed in the collection container.
WARNUNG Remove the accessories from the collection container.
Remove the packaging from all parts of the vacuum cleaner.
DANGER Keep packaging material away from children.
There is a risk of suffocation!
10
14
16
6
7
11
12
13
17
18
4
5
1
2
3
6
8
9
11
10
12
7
15
10
17
45
29
Description of the
industrial vacuum cleaner
Description of the
industrial vacuum cleaner

14 15
1. LED indicator Mains connector
plugged in
2. LED indicator collection
container full
3. LED indicator suction power
intensity
4. On/off/automatic switch-on
knob
5. Socket with cover for mains
connection of electrical tool
(max. 2200 W)
6. Rotary knob for regulating
the suction power
For an explanation of the functions,
see the chapter "Functional details"
in this operating manual.
Display:

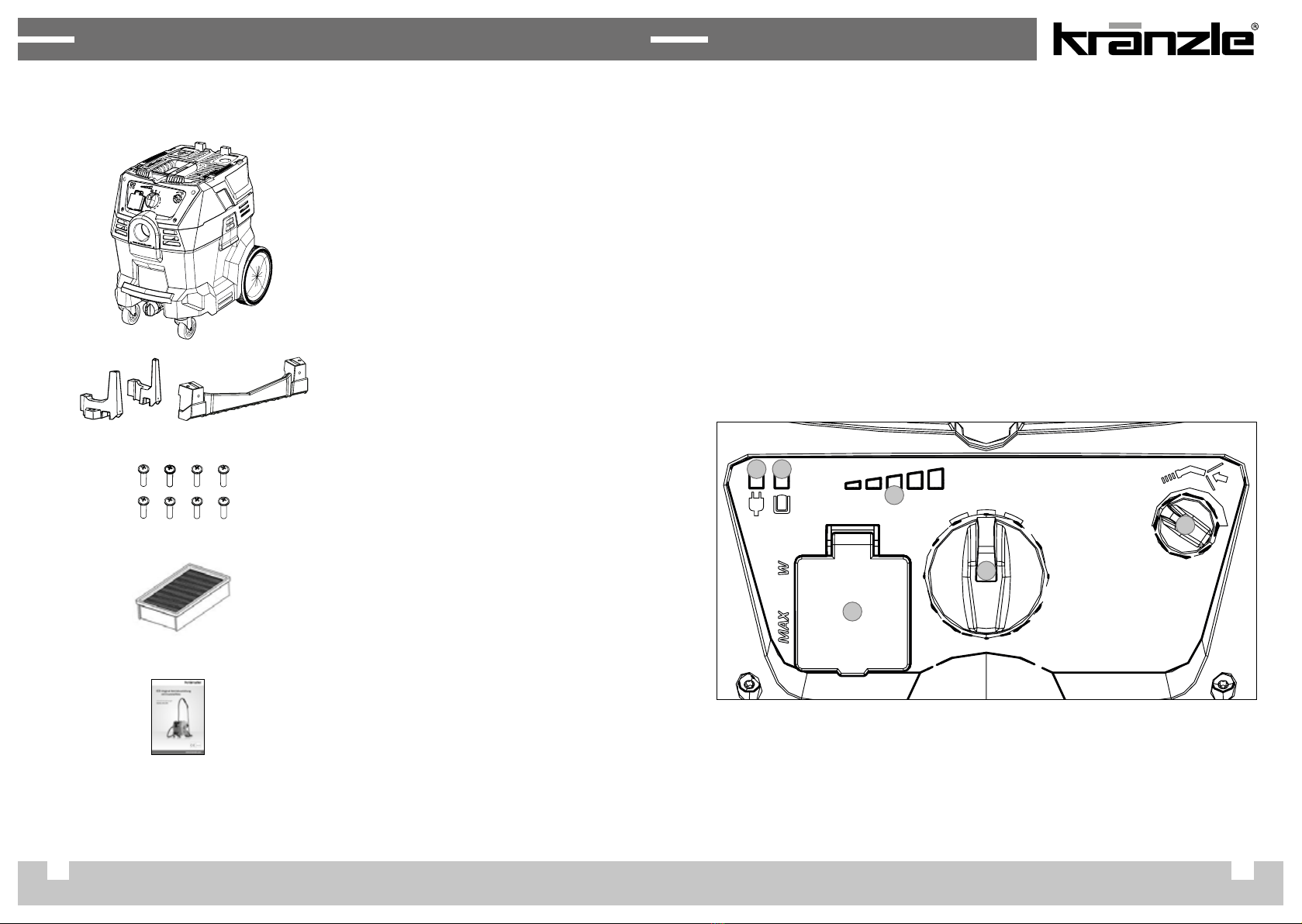

This is what you have purchased:
1. Kränzle industrial
vacuum cleaner
Ventos 32 L/PC
Ventos 42 L/PC
2. Hose/mains connection cable
holder incl. bar
3. 8 Phillips screws
4. 1 pleated filter (PET, 5.500 cm2)
The pleated filter is already
built into the unit.
5. Operating manual
with spare parts list
6. Accessories (see previous page)
Description of the
industrial vacuum cleaner
Description of the
industrial vacuum cleaner
AUTO ON
OFF
2200
1 2
3
4
5
6

16 17
Specified Conditions of Use
This industrial vacuum cleaner has been designed and tested to ensure efficient
and safe operation as long as it is correctly maintained and used in accordance
with the instructions in this operating manual.
This industrial vacuum cleaner is suitable for commercial (in hotels, schools,
hospitals, offices and rental shops) and domestic use. Accidents due to misuse
can only be prevented by the operators of the appliance.
The unit is suitable for the extraction of dry, non-flammable substances and liquids
(dust class L according to EN 60 335-2-69, MAK value > 1 mg/m3).
READ AND OBSERVE ALL SAFETY INSTRUCTIONS!
See chapter "Safety instructions" in these operating manual.
Any other use is considered misuse. The manufacturer accepts no liability for
any damage resulting from such use. The risk of such use is the sole responsibility
of the user. Appropriate and intended use includes correct operation as well as
regular maintenance and repair according to the manufacturer's instructions.
Environmental, refuse disposal and water protection regulations
must be observed!
Tests and approvals
Electrical tests must be carried out in compliance with the safety regulations
according to EN 65638. These tests must be carried out at regular intervals
and after repairs and modifications. This industrial vacuum cleaner has been
approved in accordance with IEC/EN 60335-2-69.
WARNING The industrial vacuum cleaner must be inspected by an
expert at least every 12 months.
It must be checked whether safe operation of the industrial
vacuum cleaner is still guaranteed. Before each safety instruction,
the filter must be checked for damage and the unit must be
checked for air tightness. The results of the inspection are to
be recorded in writing.
Accident prevention
The industrial vacuum cleaner is designed for accidents to be impossible
if used correctly.
Disposal of the old device
Please dispose of devices via suitable collection systems at the end of their
service lives. The devices contain valuable recyclable materials that should
be reused.
General rules General rules

18 19

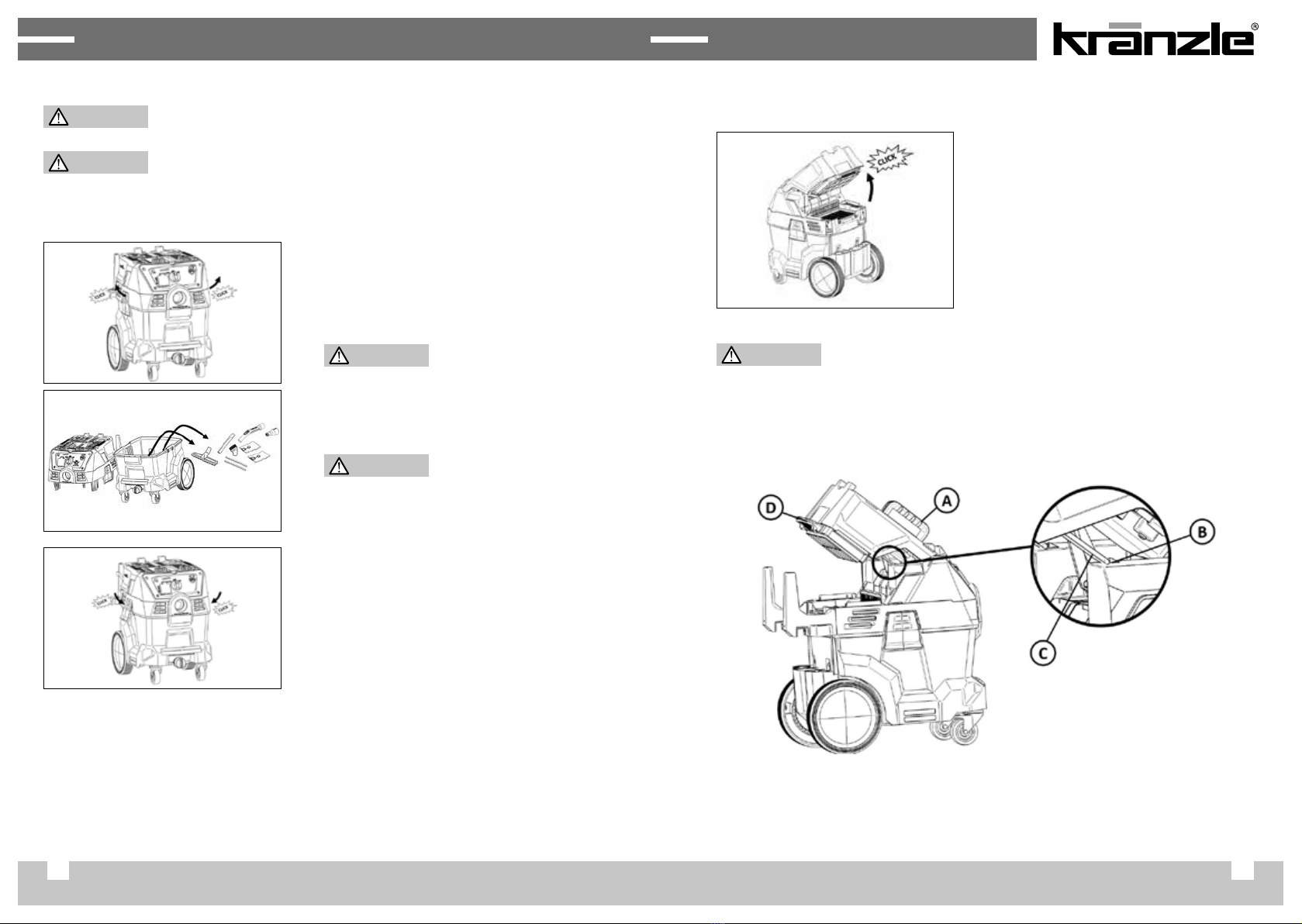

Assembly Assembly
1. The nozzle and accessories of the
unit are placed in the container for
shipping. To open the container, pull
the clamps outwards with a little force.
Then remove the head.
WARNING
Remove the accessories from the
collection container. Remove the
packaging from all parts of the
vacuum cleaner.
DANGER
Keep packaging material away from
children. There is a risk of suffocation!
1. Remove accessories
2. Fitting the hose and mains connection cable holder
2. Place the head on the container of the
vacuum cleaner again. Secure the head
with the clamps. These must engage
completely again to ensure a tight fit.
Lift the teat by the handle to make
sure the lid is securely closed.
ATTENTION
Read the chapter "Safety instructions" in these operating
manual carefully before setting up this industrial vacuum cleaner!
DANGER
Always disconnect the appliance from the mains before opening
the industrial vacuum cleaner!

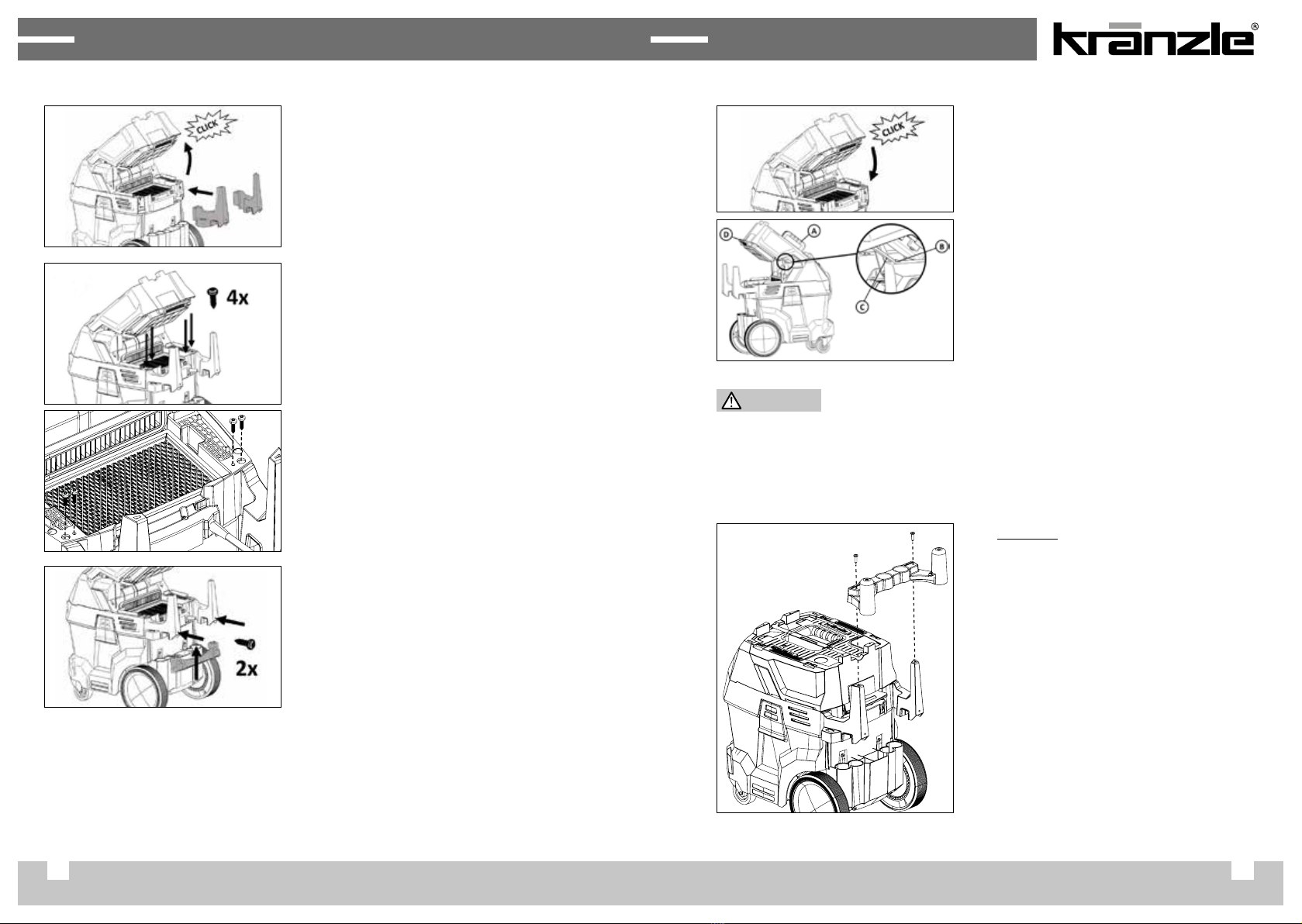

1. Open the filter cover
To open the filter cover, pull the cover
upwards by the filter cover handle (D).
Open the lid until you hear a click and
the rod (C) has hooked into the catch
(B). Only when the catch (C) is properly
engaged can the hand be removed
from the handle (A) or the filter lid
handle (D).
ATTENTION When opening and closing the filter cover, there is a risk of
crushing due to carelessness! Body parts can be crushed by
the filter cover folding down quickly. Therefore, be particularly
attentive, e.g. when resetting the retaining hook and when
slowly lowering the filter cover. Do not allow yourself to be
distracted by anything.

20 21
4. Then attach the bar to the two holders
with two Phillips screws. The bar pro-
vides greater stability and robustness.
Then close the filter cover.
2. Check that the restraint is properly
engaged. Then you can start fitting
the hose/mains connection cable holder.
Insert the holders into the recesses
provided on the head.
3. Attach one of the two hooks on each
side with two Phillips screws each.
Use a suitable screwdriver (PZ2) for this.
Use the four Phillips screws included
in the scope of delivery.
ATTENTION When opening and closing the filter cover, there is a risk of
crushing due to carelessness! Body parts can be crushed by
the filter cover folding down quickly. Therefore, be particularly
attentive, e.g. when resetting the retaining hook and when
slowly lowering the filter cover. Do not allow yourself to be
distracted by anything.
5. Close the filter lid: Lift the lid by the
filter lid handle (D) or by the handle (A)
with one hand. Carefully lift the rod
(C) over the retaining hook (B) with
another hand and slowly lower the lid.
When the rod (C) is above the retaining
hook (B), take your hand off the rod (C)
and close the filter lid.
1. Optional
Mounting the comfort accessory
storage:
Now attach the mains cable/accessory
holder with two Phillips screws.
The bar is not needed for the use
of the comfort accessory storage
and can be removed if required.
Assembly Assembly

22 23
Display
1. LED indicator Mains connector plugged in:
When the unit is plugged in, the LED lights up continuously.
2. LED indicator collection container full:
The unit is equipped with a sensor that detects whether the container/bag
is full. If this LED lights up continuously while the unit is running with the
inlet open, i.e. without load, containers/bags must be emptied.
3. LED indicator suction power intensity: Indicates the level of suction power
4. On/off/automatic switch-on knob: Switch on (ON), switch off (OFF),
automatic switch-on (AUTO): The unit starts when an electrical tool is
connected to the vacuum cleaner (5) and this is switched on.
5. Socket with cover for mains connection of electrical tool
Attention: Only connect electrical tools with max. 2200 W to the mains
connection of the vacuum cleaner.
6. Rotary knob for regulating the suction power
Left = little suction power, Right = full suction power
Filter cleaning
Filter cleaning should be carried out regularly. Filter cleaning becomes necessary
as soon as the suction power decreases (see chapter "Small repairs - do it
yourself!" in this operating manual). The unit is equipped with a semi-automatic
filter cleaning system. You can clean the filters by closing the inlet of the hand
tube (B).
Procedure:

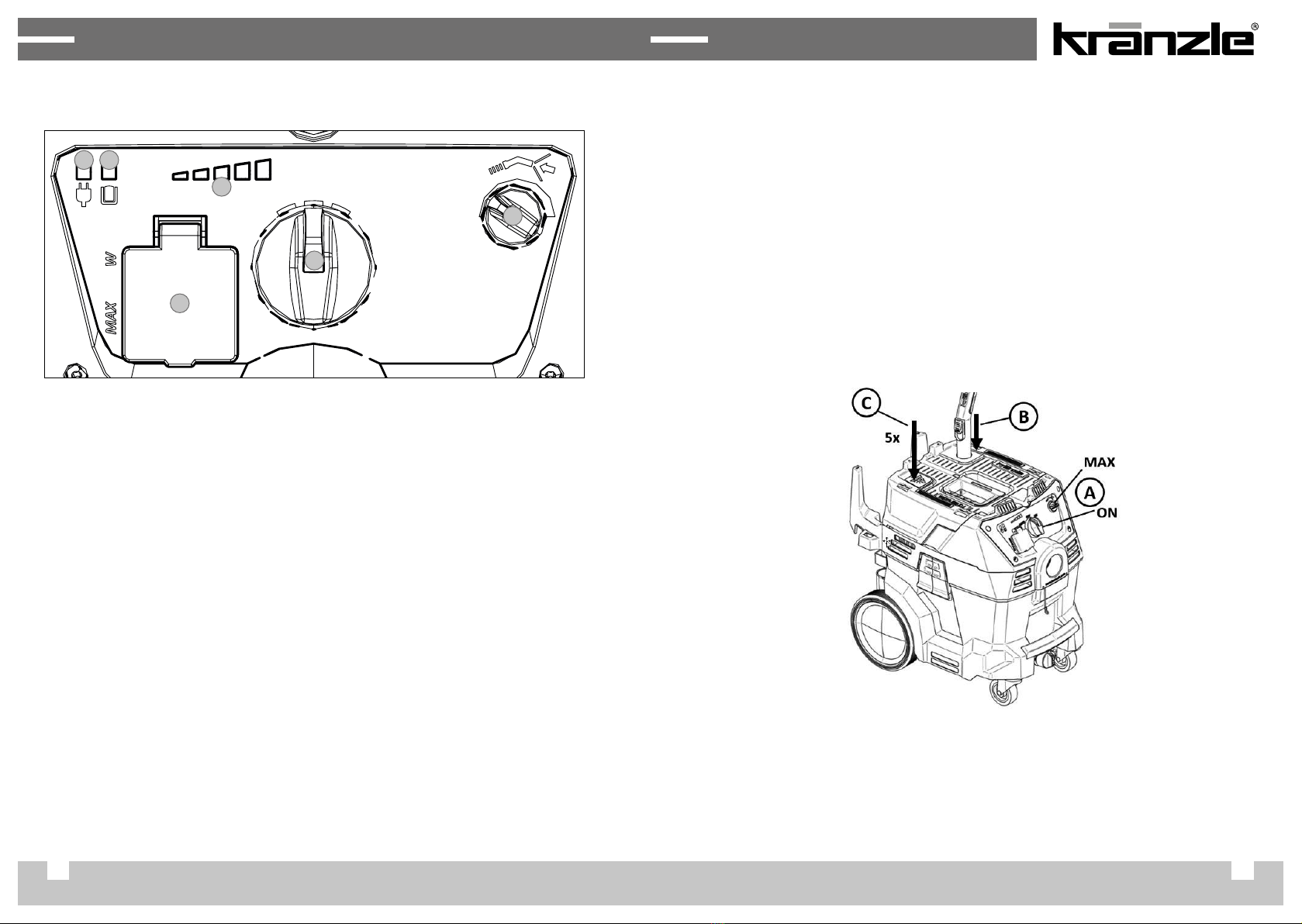

Switch the appliance on and then to max. power (A). Close the inlet with your
hand or the receptacle/opening in the unit (B). After closing the inlet, wait 2-3
seconds until the maximum negative pressure has been built up. Press the
filter cleaning button (C) 5 times quickly in succession. This cleans the filter
and restores suction power.
Functional details Functional details
AUTO ON
OFF
2200
1 2
3
4
5
6

24 25

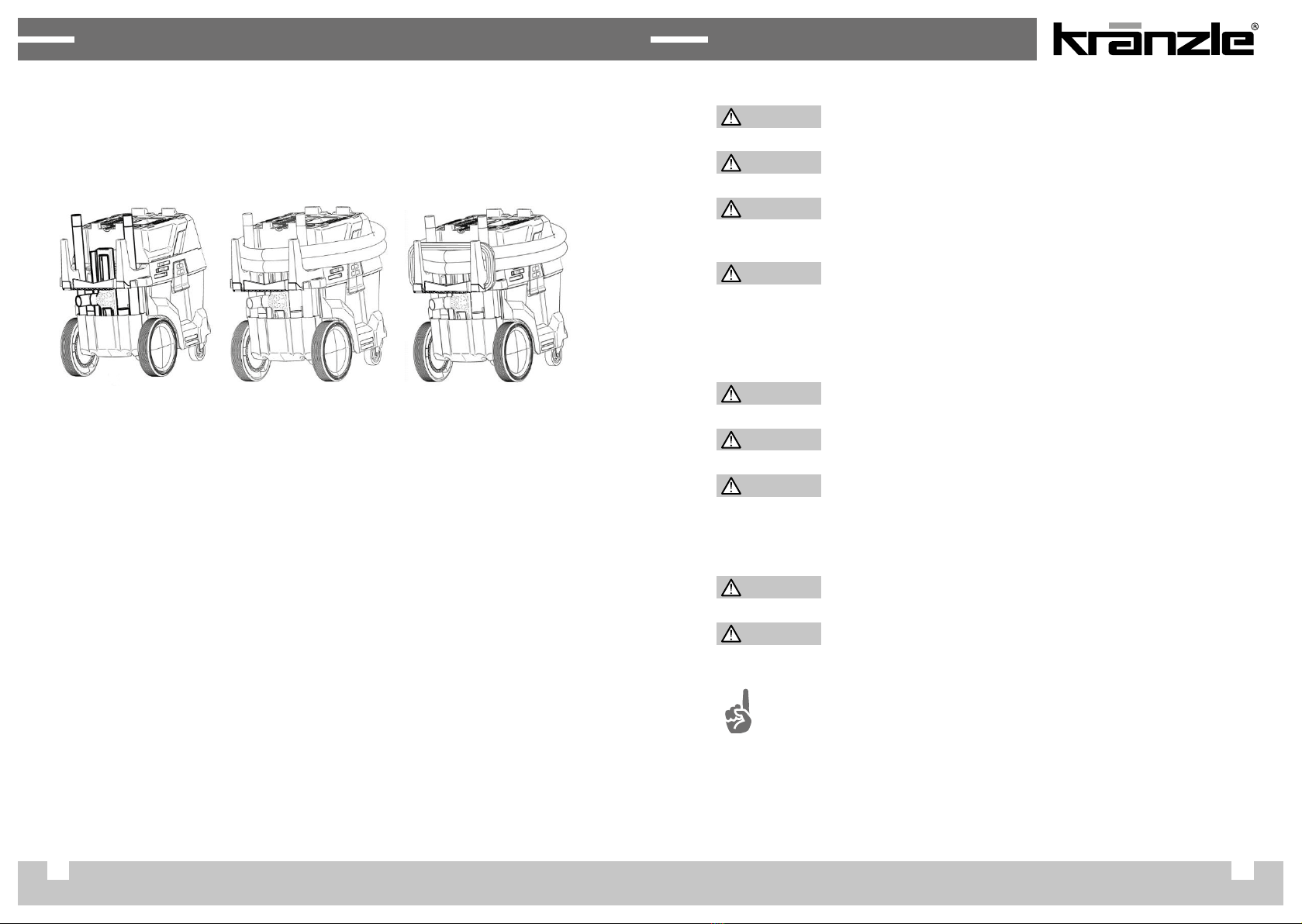

2. Before operating the appliance, make
sure that a clean filter is fitted. A filter
is already installed in the industrial
vacuum cleaner when it is removed
from the original packaging.
1. Open the filter cover
To open the filter cover, pull the cover
upwards by the filter cover handle (D).
Open the lid until you hear a click and
the rod (C) has hooked into the catch
(B). Only when the catch (C) is properly
engaged can the hand be removed
from the handle (A) or the filter lid
handle (D).
3. When vacuuming different types of
dirt, the filter will eventually become
clogged and the suction power will
decrease. Therefore, clean the filter
regularly under running water and
let it dry.
ATTENTION
Read the chapter "Safety instructions" in these operating manual
carefully before setting up this industrial vacuum cleaner!
DANGER
Always disconnect the appliance from the mains before opening
the industrial vacuum cleaner!
ATTENTION
Only operate the industrial vacuum cleaner with an inserted and
undamaged filter. Make sure that the filter is in perfect condition.
4. Put the dry filter back into the appli-
ance and close the filter lid again as
described below.
1. Insert clean pleated filter
To close the filter cover, lift the cover by the filter cover handle (D) or by the handle
(A) with one hand. Carefully lift the rod (C) over the retaining hook (B) with another
and slowly lower the lid. When the rod (C) is above the retaining hook (B), take
your hand off the rod (C) and close the filter lid.
ATTENTION When opening and closing the filter cover, there is a risk of
crushing due to carelessness! Body parts can be crushed by
the filter cover folding down quickly. Therefore, be particularly
attentive, e.g. when resetting the retaining hook and when
slowly lowering the filter cover. Do not allow yourself to be
distracted by anything.
Make sure that the filter cover handle (D) is re-engaged in the collection container
so that the filter cover is securely locked. Check by lifting the machine by the
handle (A) to check that the lid is securely closed.
WARNING
Filter cleaning and filter charging may only by wearing suitable
personal protective equipment. This protects the person from
substances hazardous to health. Wear a dust mask (suitable for
fine dust) when emptying the container of fine dust of any kind
or substances hazardous to health.
WARNING Wear a dust mask (suitable for fine dust) when cleaning the
filter or the industrial vacuum cleaner.
Putting into operation Putting into operation
Note on wet vacuuming:
The pleated filter included in the scope of delivery (Ord. no.: 457079) is only suit-
able for dry vacuuming. For wet vacuuming, we recommend the optionally
available pleated filter Wet + Dry (Ord. no.: 457120).

26 27
1. Insert the disposal bag into the collec-
tion container as shown in the illustra-
tion. Make sure that the holes of the
disposal bag are inside the collection
container.
Use disposal bag (for coarse soiling)
Put the head back on the container of
the vacuum cleaner. Secure the head
with the clamps. These must engage
completely again to ensure a tight fit.
When putting the suction head on,
make sure that the filter bag is not
squeezed between the upper and
lower parts. Lift the vacuum by the
handle to make sure that the lid
is securely closed.
1. Open the dust bag by folding the
cap down from the opening. There
are three edges protruding from the
opening of the dust bag that must
hook into the recesses on the
collection container.
To do this, place the dust bag with
the hooks slightly tilted upwards (1)
and then press the dust bag into a
horizontal position (2).
Use dust bag (for very fine dusts)
2.1 Prepare the device for dry vacuuming
To collect dust and facilitate disposal, the vacuum cleaner can be used with a
dust bag or a disposal bag. The dust bag is recommended for very fine dusts.
To insert the dust bag, remove the
head. To do this, pull the clamps
outwards with a little force and
lift the head off by the handle. 2. When the bag is full, close it with
the cable tie included with the bag.
2. When the dust bag is full, remove it in
the same way and close the dust bag
inlet with the lid.
Remove the head of the suction cup
Reattach the head of the suction cup
ATTENTION
Emptying, cleaning and filter changing may only by wearing
suitable personal protective equipment. This protects the
person from substances hazardous to health. Wear a dust mask
(suitable for fine dust) when empty ing the container of fine dust
of any kind or substances hazardous to health.
DANGER
Always disconnect the appliance from the mains before opening
the industrial vacuum cleaner!
Putting into operation Putting into operation

28 29
6. Choose the right nozzle
Using the floor nozzle:
To vacuum up dry dust and dirt, use the floor
nozzle with bristle edge (1) for dry floors.
To vacuum up wet dirt, remove the bristle
rim with a screwdriver and insert the
rubber extractor (2) instead.
Attach the nozzle for the desired cleaning
purpose to the suction tube (3).
33
7. Moving the vacuum cleaner to the place of use
The unit can be lifted with the handle for transport. A special recessed grip
makes it easy to carry with the suction tube securely fixed.
WARNING
Do not pull or carry the appliance by the cable and do not use
the cable as a handle. Do not close a door over the cable and
do not pull the cable around sharp edges or corners. Do not
run over the cable with the vacuum cleaner. Keep the cable
away from heated surfaces.
WARNING When carrying the industrial vacuum cleaner, pay attention
to its weight (see technical data). Note that the weight of the
vacuum cleaner is increased by a filled container.
WARNING Always secure the appliance against rolling away or falling over.
Always apply the brakes on the metal castors when parking the
industrial vacuum cleaner. Avoid uneven terrain.
2.2 Prepare the device for wet vacuuming
When wet vacuuming, you do not need a dust bag or a disposal bag.
VORSICHT
Only operate the industrial vacuum cleaner with an inserted and
undamaged filter. Make sure that the filter is in perfect condition.
Putting into operation Putting into operation
3. Connect the suction hose to the device
Insert the wider end of the hose into the
suction inlet of the appliance. To remove
the hose, turn and pull it out of the
appliance (in one movement).
4. Connect the hand pipe to the suction hose
First insert the hose opening into
the hand tube.
5. Attach the suction tube to the hand pipe
Then put the suction tube together
and connect it to the hand pipe.
Note on wet vacuuming:
The pleated filter included in the scope of delivery (Ord. no.: 457079) is only suit-
able for dry vacuuming. For wet vacuuming, we recommend the optionally
available pleated filter Wet + Dry (Ord. no.: 457120).
Information on inserting/replacing the flat pleated filter can be found in the
"Start-up" chapter under "1. Insert clean flat pleated filter".

30 31

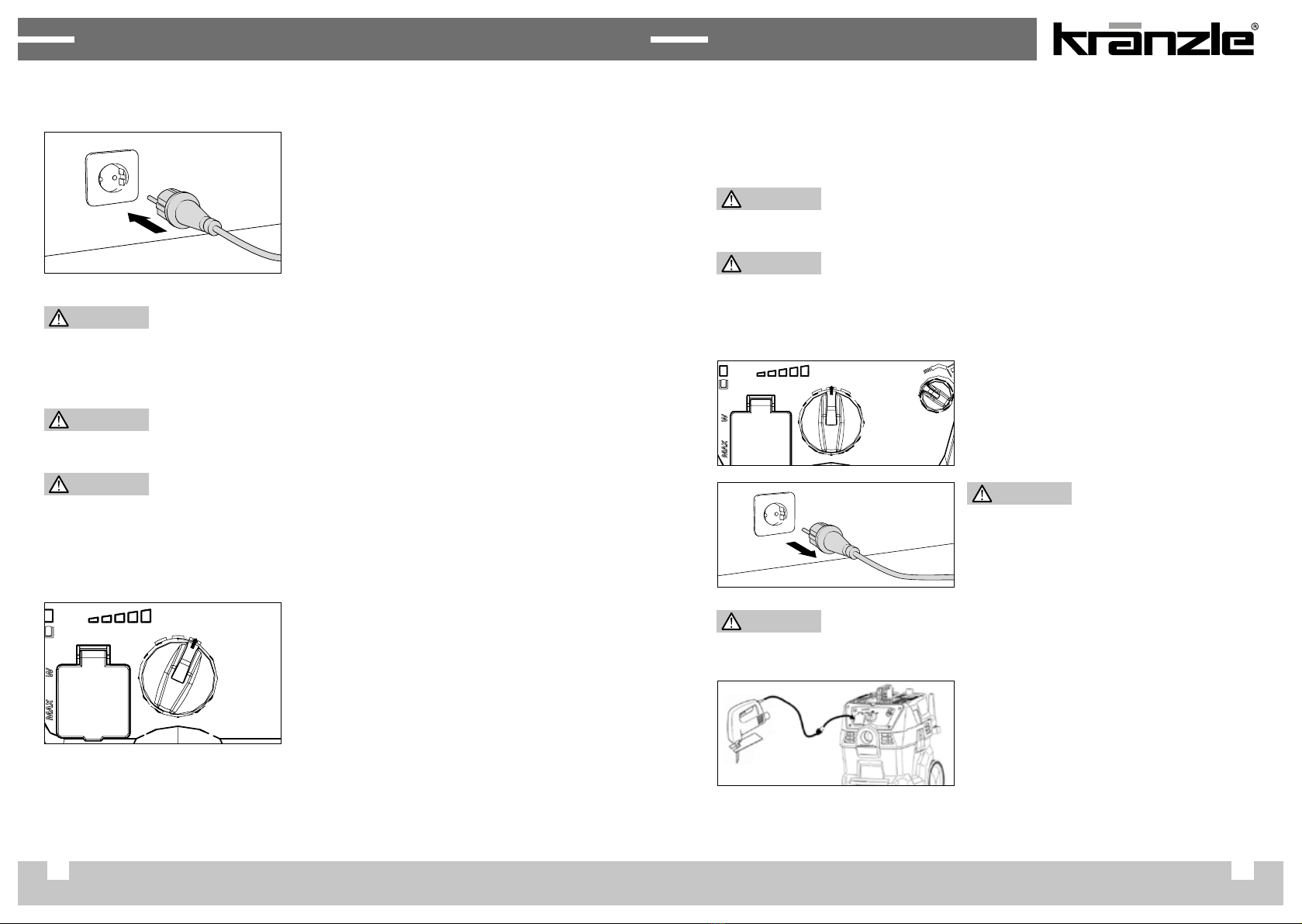

8. Plug in the mains plug
Connect to circuit (see technical data).
9. Switch on the device
AUTO ON
OFF
2200
Set the on/off/automatic switch-on knob
to "ON".
All setting options on the display can be
found in the chapter "Functional details".
in this operating manual.
DANGER
Only connect the unit to properly earthed power sources. The
voltage indicated on the rating plate must match the voltage of
the power source. Only connect the unit to an electrical connec-
tion that has been carried out by a qualified electrician in accor-
dance with IEC 60364-1.
DANGER Only use a power supply cable in perfect working order! Do not
damage or improperly repair the power cable (tearing, squee-
zing, running over, ...).
DANGER
Do not use the industrial vacuum cleaner with a damaged power
cord or plug. To unplug, hold it by the plug, not the cable. Do not
touch the plug or the industrial vacuum cleaner with wet hands.
Switch off all controls before unplugging.
Putting into operation Putting into operation

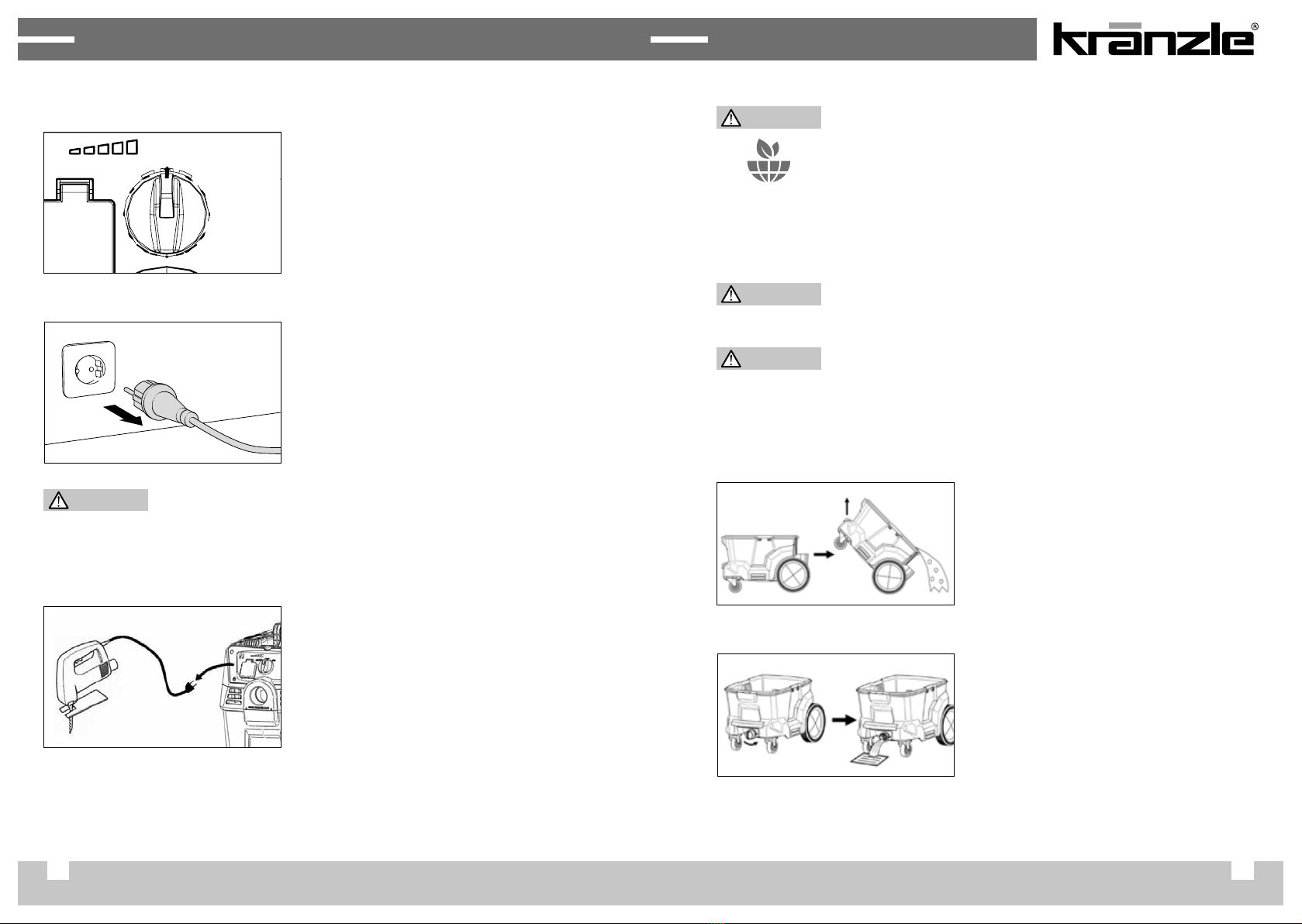

10. Starting up the vacuum cleaner with a power tool
The vacuum cleaner is equipped with a socket through which it can be used
together with a power tool.
WARNING
Only use the socket on the vacuum cleaner for the specified
purpose. Only connect power tools that have been tested and
are in perfect condition and with max. 2200 W.
WARNING Risk of injury from uncontrolled start-up of power tools! Before
connecting the mains connection cable of the power tool to
the vacuum cleaner, make sure that the power tool is switched
off and the rotary knob on the vacuum cleaner is set to "OFF"
and thus switched off.
Make sure that the on/off/automatic
switch-on knob is set to "OFF".
ATTENTION
Unplug the vacuum cleaner's power cord
before connecting accessories or power
tools to the machine.
DANGER Hold the mains cable by the plug to disconnect it, not by the
cable. Do not touch the plug or the industrial vacuum cleaner
with wet hands. Switch off all controls before unplugging.
Plug the mains connection cable of the
power tool into the socket provided on
the vacuum cleaner.
AUTO ON
OFF
2200

32 33
Remove the hand tube and attach the
adapter for the electrical tool to the suction
hose.
Attach the conical adapter to the electrical
tool.
Set the rotary knob to the automatic
switch-on position (AUTO). The vacuum
now starts as soon as the power tool is
switched on. If the power tool is switched
off, the vacuum cleaner also stops with a
delay. During the delay time, the suction
hose is emptied.
AUTO ON
OFF
2200
Connect to circuit (see technical data).
DANGER
Only connect the unit to properly earthed power sources. The
voltage indicated on the rating plate must match the voltage of
the power source. Only connect the unit to an electrical connec-
tion that has been carried out by a qualified electrician in accor-
dance with IEC 60364-1.
DANGER Only use a power supply cable in perfect working order! Do not
damage or improperly repair the power cable (tearing, squee-
zing, running over, ...).
DANGER
Do not use the industrial vacuum cleaner with a damaged power
cord or plug. To unplug, hold it by the plug, not the cable. Do not
touch the plug or the industrial vacuum cleaner with wet hands.
Switch off all controls before unplugging.
Putting into operation Notes

34 35
Taking out of operationTaking out of operation
4.2 Emptying liquid from the collection container
To empty the liquid from the collection
container, unscrew the drain plug and
remove it. Now the liquid can flow out
of the container. Dry the container with
a clean cleaning cloth so that it is ready
for the next use.
WARNING
Empty the collection container of the vacuum cleaner after each
use. This will also prevent spontaneous ignition of the contents of
the con tainer. After using the vacuum cleaner, the contents of the
dust collection container may contain components that can pose
a risk to health or the environment if disposed of incorrectly. The
safe and proper disposal of these substances, as well as the disposal
of the dust collection container if necessary, may only be carried
out by professionals wearing suitable personal protective equip-
ment. They must not be disposed of with household waste.
WARNING
The unit must be decontaminated before these operations. Rooms
in which these activities take place must have local filtered forced
ventilation and the area must be properly cleaned afterwards.
ATTENTION
Emptying, cleaning and filter changing may only by wearing
suitable personal protective equipment. This protects the person
from substances hazardous to health. Wear a dust mask (suitable
for fine dust) when emptying the container of fine dust of any
kind or substances hazardous to health.
4.1 Emptying dust/dirt from the collection container
To empty dust/dirt from the collection
container, remove the head of the appliance
(see chapter "Safety instructions"). If you
use a dust bag or waste bag, remove the
bag and insert a new one.
If you have been working with the electrical
tools, switch them off first and only then
disconnect the mains plug from the vacuum
cleaner. This prevents the electrical tool from
starting up uncontrollably.
Turn the rotary knob of the vacuum cleaner
to "OFF".
Unplug the industrial vacuum cleaner from
the mains.
1. Switch off the device
2. Pull out the mains plug
3. Taking electrical tools out of operation
DANGER
Do not use the industrial vacuum cleaner with a damaged power
cord or plug. To unplug, hold it by the plug, not the cable. Do not
touch the plug or the industrial vacuum cleaner with wet hands.
Switch off all controls before unplugging.
AUTO ON
OFF
2200

36 37
Taking out of operation
Store the vacuum cleaner accessories safely
and in a space-saving way
The accessories, hose and cable can be stored at the back of the appliance.
Storage
To protect the unit from frost, empty the container completely.
Store the vacuum cleaner in a dry place indoors.
WARNING
Cleaning and maintenance work must not be carried out
by children.
DANGER Disconnect the unit from the mains before carrying out any
maintenance work on it.
DANGER
Hold the mains cable by the plug to disconnect it, not by the cable.
Do not touch the plug or the industrial vacuum cleaner with wet
hands. Switch off all controls before unplugging.
ATTENTION When carrying out maintenance and repair work it is necessary
to dispose of any contaminated objects which cannot be ade-
quately cleaned. Such objects must be placed in impermeable
bags in compliance with the relevant regulations for the dis-
posal of such refuse. Objects that had to be disposed of have
to be replaced and reinstalled.
ATTENTION In particular, ensure that the unit contains a complete
and functioning filter system again before use.
ATTENTION
Switch off the industrial vacuum cleaner immediately if foam
develops or liquid escapes.
DANGER The industrial vacuum cleaner and all associated parts must be
checked for proper condition and operational safety before each
use. If the condition is not perfect, the industrial vacuum cleaner
must not be used. Have any damage checked by your dealer or
the nearest authorised service centre.
ATTENTION Clean the water level limiter regularly and check it for signs
of damage.
ATTENTION
Read the chapter "Safety instructions" in these operating manual
carefully before carrying out any repairs!
Caution: Risk of damage! Do not use care products containing silicone
to clean the unit. The surface of the unit and the inside of the collection
container should be cleaned regularly with a damp cloth.
Small repairs - do it yourself

38 39
ATTENTION
Read the chapter "Safety instructions" in these operating manual
carefully before carrying out any repairs!
Problem: Industrial vacuum cleaner emits dust
The industrial vacuum cleaner emits dust from the ventilation slots.
Troubleshooting:
1. If the industrial vacuum cleaner emits dust at the ventilation slots, switch off
the unit immediately (to "OFF"). Ventilate the work area immediately and leave
the room.
2. Check dust bag/disposal bag for correct seating in the collection container.
3.
Check the filter for perfect condition. If the filter is damaged or broken,
it must be replaced.
ATTENTION
Only operate the industrial vacuum cleaner with an inserted and
undamaged filter. Make sure that the filter is in perfect condition.
ATTENTION When carrying out maintenance and repair work it is necessary
to dispose of any contaminated objects which cannot be ade-
quately cleaned. Such objects must be placed in impermeable
bags in compliance with the relevant regulations for the dis-
posal of such refuse. Objects that had to be disposed of have
to be replaced and reinstalled.
Small repairs - do it yourself Small repairs - do it yourself
4. Check the filter for cleanliness and correct seating in the unit. Clean the filter
if necessary (see chapter "Safety instructions" in these operating manual).
Allow the filter to dry before reinserting it into the unit.
VORSICHT
Only operate the industrial vacuum cleaner with an inserted and
undamaged filter. Make sure that the filter is in perfect condition.
VORSICHT
When opening and closing the filter cover, there is a risk of
crushing due to carelessness! Body parts can be crushed by
the filter cover folding down quickly. Therefore, be particularly
attentive, e.g. when resetting the retaining hook and when slowly
lowering the filter cover. Do not allow yourself to be distracted
by anything.
