KRAFTWERK 30002 User manual

Please read these instructions carefully to ensure the safe and effective use of this tool.
Art. 30002
www.KRAFTWERK.eu
KRAFTWERK
Video Endoscope
1 GB Memory
3m insertion tube
GB
Instructions can be downloaded:
www.kraftwerk.eu
Your dealer:

2
Table of contents
Safety recommendations ........................................................................................................................................... 2
EC Declaration of conformity ...................................................................................................................................... 3
1. Description ............................................................................................................................................................ 4
2. Preparation for use ................................................................................................................................................ 5
3. Menu set up ........................................................................................................................................................... 6
4. Recording, viewing and transferring photos and videos .......................................................................................... 7
5. Troubleshooting ..................................................................................................................................................... 8
6. Technical data ........................................................................................................................................................ 9
Warning
• This device must not be used for medical or veterinary purposes.
• Do not modify or disassemble the unit.
• Do not use this item in explosive atmospheres.
Caution
• Keep the device out of the reach of children.
• Do not look directly into the objective lens at the end of the insertion tube,
your eyesight may be seriously damaged.
• Do not forcibly bend, twist or elongate the insertion tube.
• Strong impact on the device may result in the breakage of the objective lens (made of glass)
at the tip of the insertion tube.
• Do not use or store the device at a temperature higher than 60 °C or lower than -20 °C.
• Don’t use the device in the direct sunshine.
• Store the device in a dry and adequately ventilated environment.
• Keep the device away from acid or alkaline solutions, oil or petrol, and do not use it in an atmosphere
containing their vapours.
• Do not remove the SD Memory Card while data is being saved to the card.
This may cause the data to be lost or the card to be damaged.
EC Declaration of conformity
We, KRAFTWERK Europe AG, Mettlenbachstrasse 23, 8617 Moenchaltorf, Switzerland declare that the
KRAFTWERK Endoscope Art. 30002
is designed and manufactured with the EMC standards:
EN 61326:1997+A1:1998+A2:2001+A3:2003 Class A
EN 61000-3-2:2006 (not applicable)
EN 61000-3-3:1995+A1:2001+A2:2005 (not applicable)
EN 61326:2006 / EN 61000-4-2:1995 / EN 61000-4-2:1996
Moenchaltorf, Switzerland, June 2009
Patrick Wyss
CEO of KRAFTWERK company group

3
GB
1. Description
The KRAFTWERK Endoscope 30002 is a compact handheld instrument that allows the user to view applications in
restricted spaces that could not normally be seen with the naked eye.
The 30002 is supplied in a sturdy carrying case and consists of a display unit, insertion tube, main adapter and side
view adapter. The display unit, with a 3,5” wide angle TFT LCD screen, has the capacity of viewing, storing and
reviewing photos and video images.
Images can also be displayed directly on a TV screen or stored and transferred to a PC for viewing later. The display
unit is powered by rechargeable Li-polymer batteries and a multi-voltage charger is included. The 3 metre (9.9 ft.)
insertion tube has a tip of just 5,5 mm (0,22 in) and is equipped with powerful variable LED lighting.
Other lengths are available, see section 7. Spares & accessories.
The 30002 is supplied with the following accessories:
• USB Cable: enables connection to PC for convenient le transfer and maintenance.
• Video Cable: connects display unit to TV.
• Power Adapter: enables the display unit internal batteries to be recharged.
• 1GB SD card: For storage of photos and videos. Refer to Preparation for use (section 2)
for direction of card insertion.
• 30002-M1: 90º side view adapter.
A. POWER button
B. PHOTO button
C. REC button
D. UP button
E. DOWN button
F. OK button
G. Escape
H. LED intensity adjustment
I. SD slot
J. TV OUT jack
K. USB jack
L. DC IN jack
M. Display unit
N. Insertion tube
Parts and function

4

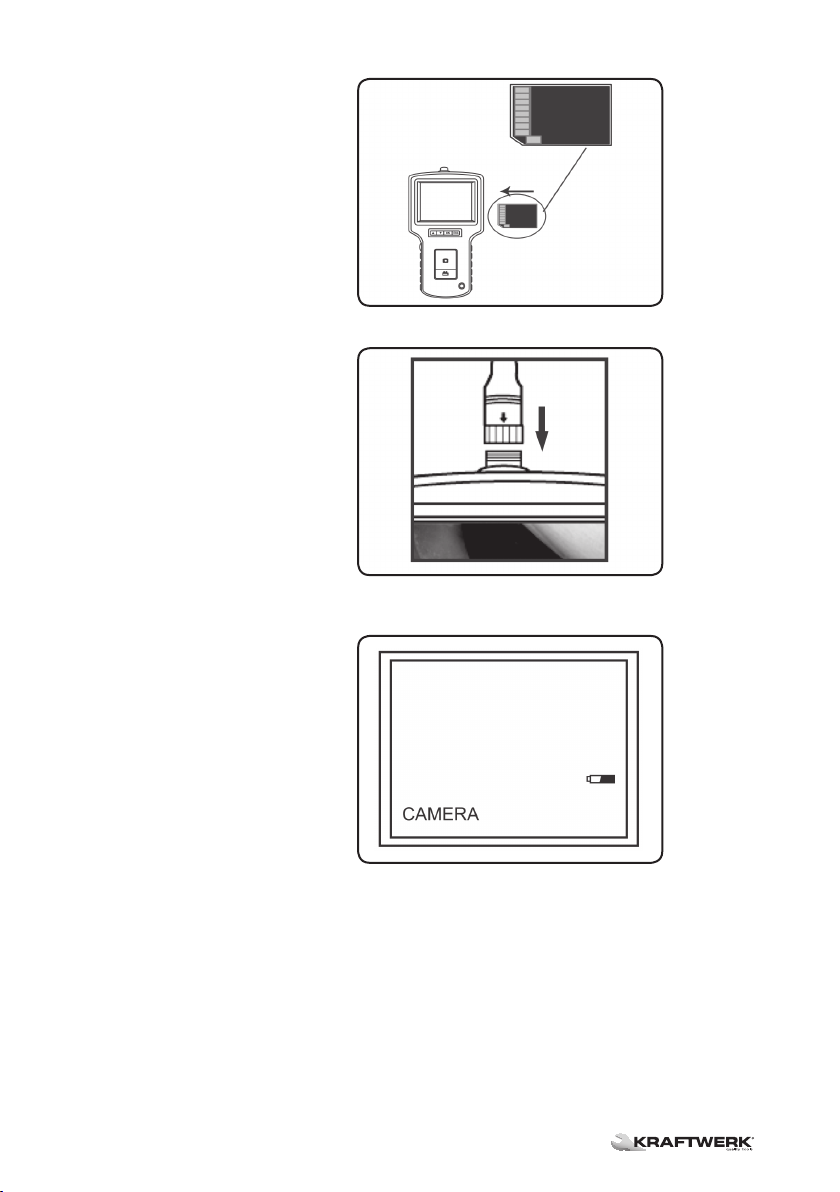

2. Preparation for use
On rst use it is important that the
SD card is inserted as shown as follows:
Connect the insertion tube to the display
unit as shown in the gure and tighten
the locking collar:
Press the POWER button for 3-5
seconds to turn the display unit on.
The Start-up screen is shown briey
followed by the status screen for ve
seconds:
The status screen shows the capacity of the SD card and the internal battery.
If the 30002 has been stored for a long time then the display might not turn on. The most likely cause is that the
internal batteries have been fully discharged. Use the power adapter to recharge the batteries.

5
GB
Directly on the screen, a “live” picture can be seen. This is the camera mode.
It is strongly advised to properly set-up the 30002 before rst use. The indexing of saved photos and videos is based
on date and time only. Other parameters, if set before rst use, can make the operation of the 30002 easier in the
future.
Press POWER button for 3-5 seconds to turn the display unit off.
The side view adapter included, is ideal for viewing pipe walls.
To t the side view adapter, unscrew the chrome tip of the insertion tube and replace with the side view adapter.
3. Menu set up
• Switch the unit on. Ensure that camera mode is active (i.e. a “live” picture can be seen)
• Press the OK button to access the menus. Use the UP or DOWN button to select the menu item.
Press OK to conrm.
The options displayed are as follows:
- Delete all
- Video output
- Date / time setup
- Language
- Video format
- Auto power off
Delete All
Take care in selecting this option, as everything will be deleted from the SD card!
Navigate to DELETE ALL in the menu, press the OK button. Select YES or NO using the UP or DOWN buttons.
Conrm with the OK button.
Date/Time Set up
Press UP button & DOWN button to select year/month/day or hour/minute/second.
Press REC button to increase the value and the PHOTO button to decrease the value.
The date and time can be displayed in the preview image mode.
Use either the PHOTO or REC button to toggle between display “ON” and “OFF”:
Conrm selection and exit menu by pressing OK.
Press POWER button for 3-5 seconds to turn the display unit off.
Display ”ON” Display ”OFF”

6
Language
Navigate to LANGUAGE in the menu, press the OK button. Select the required language
using the UP or DOWN buttons and conrm with the OK button.
Video Format
Navigate to VIDEO FORMAT in the menu, press the OK button. Select the required video
format (NTSC or PAL) using the UP or DOWN buttons. Conrm with the OK button.
Auto Power off
Navigate to AUTO POWER OFF in the menu, press the OK button. Select the required
auto power off time (5, 10, 15, 30 minutes or Disable) using the UP or DOWN buttons.
Conrm with the OK button.
4. Recording, viewing and transferring photos and videos
Recording Photos
In camera mode, press the PHOTO button to take a photo.
The photo is stored to the SD card in jpg format with a le name of running number. For example IMG00001.jpg.
Recording Videos
In camera mode, press the VIDEO button to take a video. The video icon is shown in the top right corner.
• REC
To stop recording, press the VIDEO button again. The video icon disappears. The display reverts to camera mode.
The video is automatically stored to the SD card in asf format with a le name of running number.
For example IMG00002.asf.
Reviewing and deleting saved Photos and Videos
In the camera mode, press the UP or DOWN key, the last photo or video will be displayed.
Press the UP or DOWN keys to navigate to the photo or video to be viewed.
To play the video, press the photo button. Press the photo button again to pause.
To revert to Camera mode, press the ESC button.
To delete a saved photo, press the OK button whilst it is displayed. To delete a saved video, make sure the video is not
in play mode, press the OK button. A delete menu will show.
Toggle between the Yes and No options using the UP and DOWN buttons. Press the OK button to conrm.
Display for saved photo Display for saved video

7
GB
TV Out function
This function allows live pictures or recorded photos and videos to be displayed on a TV screen or beamer. First make
sure that the Video format is set correctly to the used TV system (PAL or NTSC). (See the Menu set up section.)
Connect the black video cable to the display unit TV out jack. Ensure that the other end of the video cable is well
connected to the TV or beamer.
Press the OK button to select menu options, select Video Output and press the OK button. The display unit screen will
turn black and the display will be shown on the TV. You can transfer the screen back to the display unit by selecting
the same function.
Note: The function will detect automatically if the video cable is already inserted in the TV OUT jack. If the video cable
is not inserted, then the screen image will revert to the display unit.
Transferring Photos and Videos to a PC
The computer must be running MS WindowsTM 2000 or later. Turn the 30002 on. Connect the USB cable to the display
unit and the computer. Look for the drive with the SD card les, this should look similar to the following gure:
The les can then transferred and viewed on the PC. In general, on a PC running MS WindowsTM 2000 or later with
WindowsTM Media player, no special software is required to display JPG and ASF les.
5. Troubleshooting
No image on the display after turning the power on:
Battery is exhausted. Connect the display unit to the power adapter supplied and recharge batteries. The 30002 can
be used when connected to ac power.
No image, only words on the LCD monitor after turning the power on:
Check that the insertion tube is correctly connected to the display unit.
Unable to take photos or record video:
SD card not present, wrongly inserted, full or faulty. Check SD card is present, check SD card insertion, check SD
capacity, check if SD card is faulty (check if SD card works in other devices).
Shut down:
When all functions freeze or fail, insert an insulated needle into the hole on the back of the main unit.
The system will restart automatically.

8
6. Technical Data
Insertion Tube & Light Source
Image Sensor CMOS Image Sensor
Resolution (Dynamic / Static) 320 (H) * 240 (V) / 640 (H) * 480 (V)
Size Tip (Insertion Tube ) Diameter 5,5 mm
Tube length 3 m
Field of View (FOV) 67 º
Depth of Field (DOF) 1,5 cm - 10 cm
Light Source 4 variable white LEDs
Probe Working Temperature -20 to 70 °C
Ingress Protection IP57
Display Unit
Power DC5V
Display 3,5” TFT LCD Monitor 320 * 240 Pixels
Interface Mini usb 1,1/ AV out / AV in
Battery (not user serviceable) Rechargeable Li-Polymer Battery (3,7V)
Power adapter 100 - 240 V AC in / 5,5 V DC out
US, UK, EU and Australian plug types
Video Out Format NTSC & PAL
Recording medium SD card (1GB supplied / up to 2GB can be used)
Compression Format MPEG4
Still Image Storage Format JPEG (640 * 480)
Video Recording Format ASF (320 * 240)
Working & Storage/Battery charging temp. range -20 °C to 60 °C /0 to 40 °C
Functions Snapshot, Video recording, Picture & video review on
LCD screen, TV Out, transfer of picture & video
from SD card to PC
Customer services
Contact your local importer of your specialized dealer to obtain address of your service department.
You nd our partners under www.kraftwerk.ch
From date of purchase receipt
2 YEARS GUARANTEE
on material- or production-defects
GUARANTEE

9
