PT-2H –HDMI Extender
2
Introduction
Thanks for purchasing your Kramer PT-2H, an HDMI™EXTENDER, which is ideal for multi-media and home
cinema applications. It is a user-friendly, easy to install, small matchbox-sized box that extends the HDMI
transmission length by regenerating the HDMI signal before it sends the output to the HDMI display or projector. It
lets you extend the HDMI cable distance between the HDMI player and HDMI TV set.
By placing your PT-2H near the display, it removes the digital noise (sparkles) in your picture that may result from
using a long HDMI cable. In addition, the PT-2H:
•Provides a longer HDMI extension. The PT-2H can extend the
maximum cable length to up to 38 meters (120 feet).
•Maintains an HDMI single link video resolution of 1080p.
•Supports the DDWG standard for HDMI compliant displays.
•Is HDCP Compliant.
If a DVI device does not seem to function, verify that the device is HDCP compliant. A non-HDCP compliant DVI
device will not work with a signal that is HDCP encoded.
Connecting your PT-2H

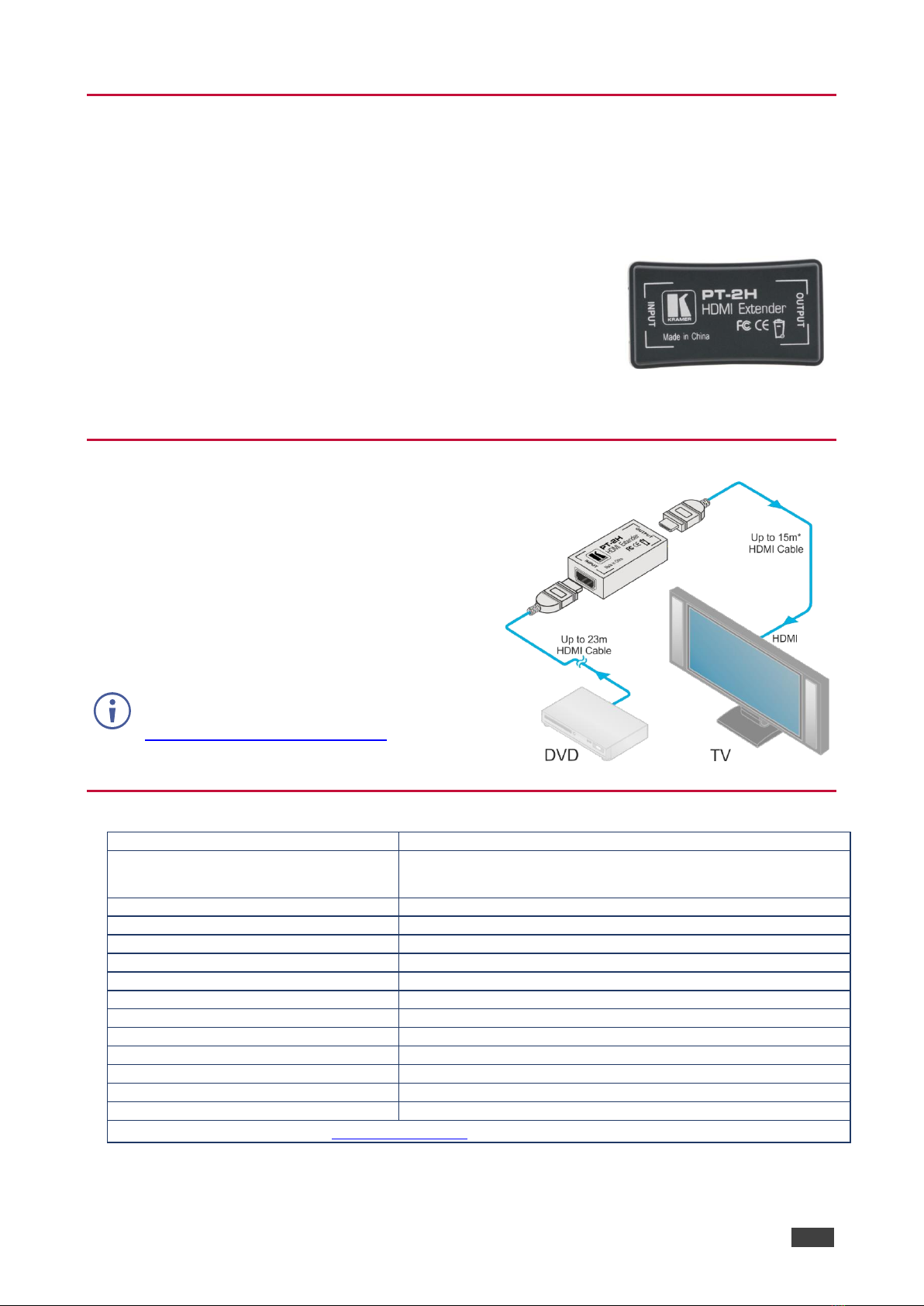

The PT-2H input is connected via a long
male-to-male HDMI cable (not provided) to an HDMI
source, such as a DVD player or a satellite set top
box.
The PT-2H output is connected via a second
male-to-male HDMI cable (not provided) to an HDMI
acceptor, such as a projector or plasma.
* 7m for older models (please check with your local
Kramer office).
To achieve specified extension distances, use the
recommended Kramer cables available at
www.kramerav.com/product/PT-2H.
Using third-party cables may cause damage!
Specifications
INPUT VIDEO SIGNAL:
HDMI/DVI-TMDS
MAX RANGE:
1920x1200, 1080p –38m (120ft): 23m from HDMI source to PT-2H, 15m* from
PT-2H to HDMI acceptor
*7m for older models (check with your local Kramer office)
OUTPUT VIDEO:
HDMI, HDCP1.0/1.1
HDMI INPUT/OUTPUT CONNECTOR:
Type A 19-pin
PC VIDEO FORMAT:
All resolutions from VGA up to UXGA
DTV/HDTV VIDEO FORMAT:
480i, 576i, 480p, 576p, 720p, 1080i, and 1080p
HDMI COMPLIANCE:
HDMI
VIDEO AMPLIFIER BANDWIDTH:
1.65Gbps
OPERATING TEMPERATURE:
0ºC to +70ºC (32ºF to 158ºF)
OPERATING HUMIDITY:
10% to 85% RH (no condensation)
STORAGE TEMPERATURE:
-10ºC to +80ºC (14ºF to 176ºF)
STORAGE HUMIDITY:
5% to 90% RH (no condensation)
WEIGHT:
0.017kg (0.16lbs) approx.
DIMENSIONS:
2.7cm x 4.9cm x 1.5cm (1.1” x 2.0” x 0.6”) W, D, H
Specifications are subject to change at www.kramerav.com
