Kramer PT-2H User manual

The Kramer PT-2H HDMI Extender
Thanks for purchasing your Kramer PT-2H, an HDMI
EXTENDER, which is ideal for multi-media and home
cinema applications. It is a user-friendly, easy to
install, small matchbox-sized box that extends the
HDMI transmission length by regenerating the HDMI
signal before it sends the output to the HDMI display
or projector. It lets you extend the HDMI cable
distance between the HDMI player and HDMI TV set.
By placing your PT-2H near the display, it removes the digital noise (sparkles) in your picture
that may result from using a long HDMI cable. In addition, the PT-2H:
Provides a longer HDMI extension. The PT-2H can extend the maximum cable length to
up to 38 meters (120 feet)
Maintains an HDMI single link video resolution of 1080p
Supports the DDWG standard for HDMI compliant displays
Is HDCP Compliant
If a DVI device does not seem to function, verify that the device is HDCP compliant. A
non-HDCP compliant DVI device will not work with a signal that is HDCP encoded.

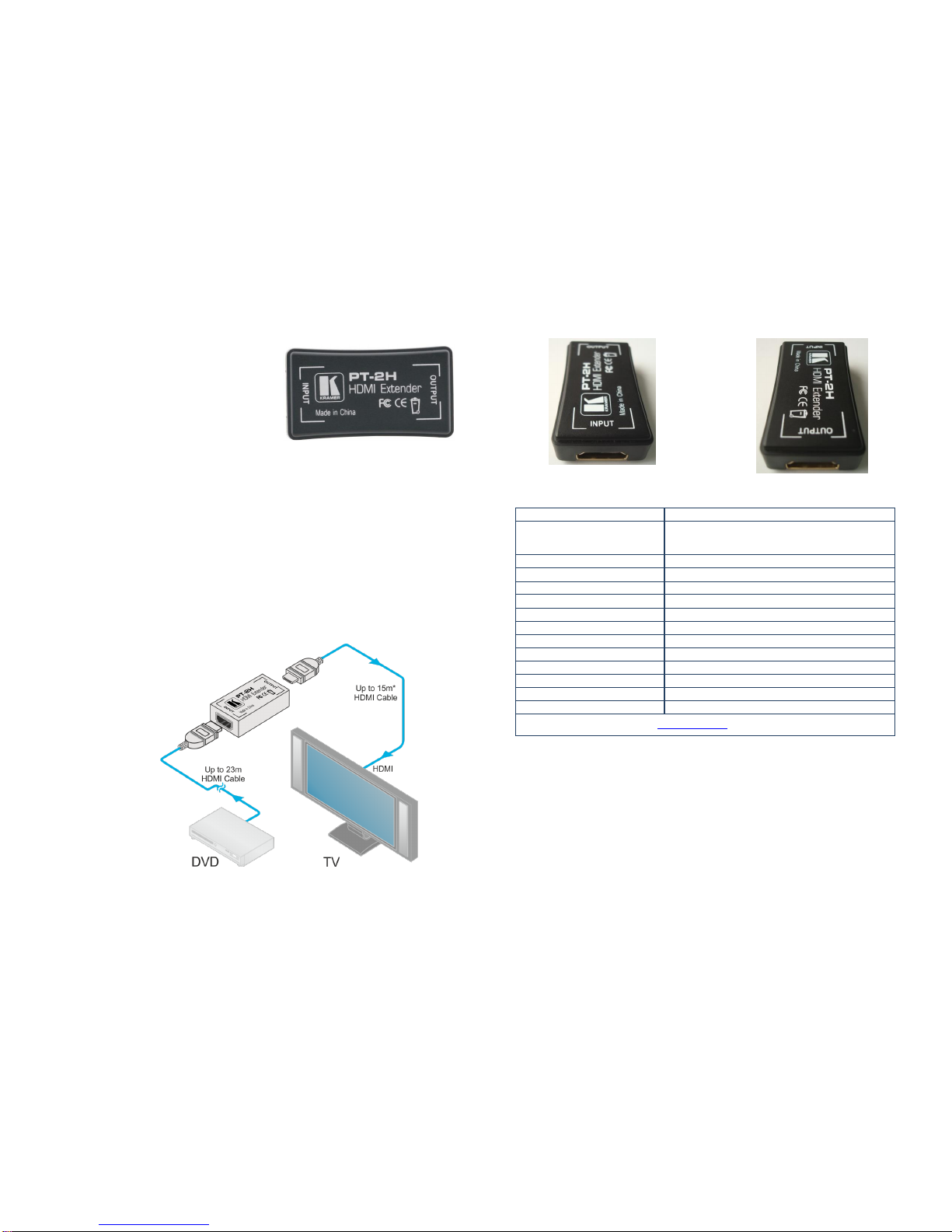

SET UP
ILLUSTRATION
* 7m for older
models (please
check with your
local Kramer
office).
ThePT-2H input is connected via a long
male-to-male HDMI cable (not provided) to
an HDMI source, such as a DVD player or
a satellite set top box.
ThePT-2H output is connected via a second
male-to-male HDMI cable (not provided) to an HDMI
acceptor, such as a projector or plasma.
PT-2H INPUT CONNECTOR:
PT-2H OUTPUT CONNECTOR:
SPECIFICATIONS
INPUT VIDEO SIGNAL:
HDMI/DVI-TMDS
MAX RANGE:
1920x1200, 1080p –38m (120ft): 23m from HDMI source to PT-2H,
15m* from PT-2H to HDMI acceptor
*7m for older models (check with your local Krameroffice)
OUTPUT VIDEO:
HDMI, HDCP1.0/1.1
HDMI INPUT/OUTPUT CONNECTOR:
Type A 19-pin
PCVIDEO FORMAT:
All resolutions from VGA up to UXGA
DTV/HDTV VIDEO FORMAT:
480i, 576i, 480p, 576p, 720p, 1080i, and 1080p
HDMI COMPLIANCE:
HDMI
VIDEO AMPLIFIERBANDWIDTH:
1.65Gbps
OPERATINGTEMPERATURE:
0ºC to +70ºC (32ºF to 158ºF)
OPERATING HUMIDITY:
10% to 85% RH (no condensation)
STORAGE TEMPERATURE:
-10ºC to +80ºC (14ºF to 176ºF)
STORAGE HUMIDITY:
5% to 90% RH (no condensation)
WEIGHT:
0.017kg (0.16lbs) approx.
DIMENSIONS:
2.7cm x 4.9cm x 1.5cm (1.1” x 2.0” x 0.6”) W, D, H
Specifications are subject to change at www.kramerav.com

KRAMER ELECTRONICS LTD.
Installation Instructions
MODEL:
PT-2H
HDMI Extender
For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerav.com
E-mail: [email protected]
P/N: 2900-000676 Rev 4
P/N:
2900-000676
Rev:
4
!
SAFETY WARNING
Disconnect the unit from the power
supplybefore opening and servicing
