Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups
1
, which are clearly defined
by function.
Congratulations on purchasing your Kramer VS-81HD 8x1 HD/SD-SDI
Switcher. This product is ideal for:
Professional broadcasting and production studios
Post production
The package includes the following items:
VS-81HD 8x1 HD/SD-SDI Switcher
Null-modem adapter and power cord
This user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
3
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2

Overview
3
3 Overview
The Kramer VS-81HD is a true 8x1 switcher for standard definition / high
definition SDI signals that lets you switch any one of the eight inputs to two
identical outputs.
In particular, the VS-81HD:
Features selector buttons that automatically light up in different colors—
green, when the VS-81HD detects a ‘standard definition’ signal, or blue,
when it detects a ‘high definition’ signal
Features reclocking and equalization on each input
Supports cable equalization and is SMPTE 259M, 292M and DVB-ASI
1
compliant
SupportsANCdata(embeddedaudio,Teletext, timecodeandsoon)
Switches according to the Bi-level or Tri-level Genlock input according to
SMPTE RP-168
Has an OFF button to disconnect the outputs
Has a front panel lock button
The VS-81HD, which is housed in a 19" 1U rack mountable enclosure, and is fed
from a 100-240 VAC universal switching power supply, can be controlled via the:
Front panel buttons
Infra-red remote control transmitter
Infra-red remote extension cable transmitter, see section 4.1
Remotely, by RS-232 or RS-485 serial commands transmitted by a touch
screen system, PC, or other serial controller
ETHERNET
Remote contact closure for forced operation
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer VS-81HD
away from moisture, excessive sunlight and dust
4 Your VS-81HD 8x1 HD/SD-SDI Switcher
Figure 1 and Table 1 define the VS-81HD 8x1 HD/SD-SDI Switcher.
1 Digital Video Broadcasting - Asynchronous Serial Interface

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VS-81HD 8x1 HD/SD-SDI Switcher
4
Figure 1: VS-81HD 8x1 HD/SD-SDI Switcher

Your VS-81HD 8x1 HD/SD-SDI Switcher
5
Table 1: VS-81HD 8x1 HD/SD-SDI Switcher Features
# Feature Function
1 IR Receiver The red LED is illuminated when receiving signals from the Infra-red
remote control transmitter
2 POWER Switch Illuminated switch for turning the unit ON or OFF
3 OFF Button Press to disconnect the outputs
4 INPUT SELECTOR Buttons Select the input to switch to the output (from 1 to 8)
5 PANEL LOCK Button Disengages the front panel buttons
6 IN BNC Connector Connect to the genlock source
7 TERM Button Press to terminate the genlock source (75) or release for looping
1
8
GENLOCK
LOOP BNC Connector Connect to the GENLOCK connector of the next unit in the line
9 INPUTS BNC Connectors Connect to the serial digital video sources (from 1 to 8)
10 OUTPUTS SDI BNC
Connectors
Connect the two identical SDI outputs to serial digital video
acceptors (1 and 2)
11 RS-485 Detachable Terminal
Block Port
PIN G is for the Ground connection
2
; PINs B (-) and A (+) are for RS-485
12 RS-232 DB 9F Port Connects to the PC or the Remote Controller
3
13 REMOTE Terminal Block
Connector
Connect to dry contact switches (see section 6.5)
14 MACHINE ID Dipswitches Dipswitches for setting the machine ID number
15 REMOTE IR Opening
4
Connects to an external IR receiver
5
unit for controlling the machine via
an IR remote controller (instead of using the front panel IR receiver)
16 ETH FACTORY RESET
Button
Press to reset to factory default definitions
6
:
IP number 192.168.1.39
Mask – 255.255.255.0
Gateway – 192.168.1.1
17 ETHERNET Connector Connects to the PC or other Serial Controller through computer
networking
18 Power Connector with Fuse AC connector enabling power supply to the unit
1 Extending the genlock source to another unit
2 The ground connection is sometimes connected to the shield of the RS-485 cable. In most applications, the ground is not
connected
3 Via a null-modem connection
4 Covered by a cap. The 3.5mm connector at the end of the internal IR connection cable fits through this opening
5 Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if the internal
IR connection cable has been installed), see section 4.1
6 First disconnect the power cord and then connect it again while pressing the ETH Factory Reset button. The unit will power
up and load its memory with the factory default definitions

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VS-81HD 8x1 HD/SD-SDI Switcher
6
4.1 Using the IR Transmitter
You can use the RC-IR2 IR transmitter to control the machine via the built-in
IR receiver on the front panel or, instead, via an optional external IR receiver
1
.
The external IR receiver can be located 15 meters away from the machine.
This distance can be extended to up to 60 meters when used with three
extension cables
2
.
Before using the external IR receiver, be sure to arrange for your Kramer
dealer to insert the internal IR connection cable
3
with the 3.5mm connector
that fits into the REMOTE IR opening on the rear panel.
Connect the external IRreceiver to the REMOTE IR 3.5mm connector.
1 Model: C-A35M/IRR-50
2 Model: C-A35M/A35F-50
3 P/N: 505-70434010-S

Installing on a Rack
7
5 Installing on a Rack
This section describes what to do before installing on a rack and how to rack
mount.
Before installing on a rack, be sure that the environment is
within the recommended range:
Operating temperature range +5 to +45 Deg. Centigrade
5 to 65% RHL, non-condensing
-20 to +70 Deg. Centigrade
5 to 95% RHL, non-condensing
Operating humidity range
Storage temperature range
Storage humidity range
When installing on a 19" rack, avoid hazards by taking
care that:
It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the
room ambient temperature.
Attach both ear brackets to the
machine. To do so, remove the
screws from each side of the machine
(3 on each side), and replace those
screws through the ear brackets.
Place the ears of the machine
against the rack rails, and insert the
proper screws (not provided) through
each of the four holes in the rack
ears.
Note that:
Detachable rack ears can be removed
for desktop use
Always mount the machine in the rack
before you attach any cables or
connect the machine to the power
If you are using a Kramer rack adapter
kit (for a machine that is not 19"), see
the Rack Adapters user manual for
installation instructions (you can
download it at:
http://www.kramerelectronics.com)




In some models, the front panel
may feature built-in rack ears
Once rack mounted, enough air will still flow around the
machine.
The machine is placed straight in the correct horizontal
position.
You do not overload the circuit(s). When connecting
the machine to the supply circuit, overloading the
circuits might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for
fuse replacement, see the value printed on the product
label.
The machine is earthed (grounded) in a reliable way
and is connected only to an electricity socket with
grounding. Pay particular attention
and that you use only the power cord that is
supplied with the machine.
to situations where
electricity is supplied indirectly (when the power cord is
not plugged directly into the socket in the wall), for
example, when using an extension cable or a power
strip,

CAUTION!!
Before Installing on a Rack

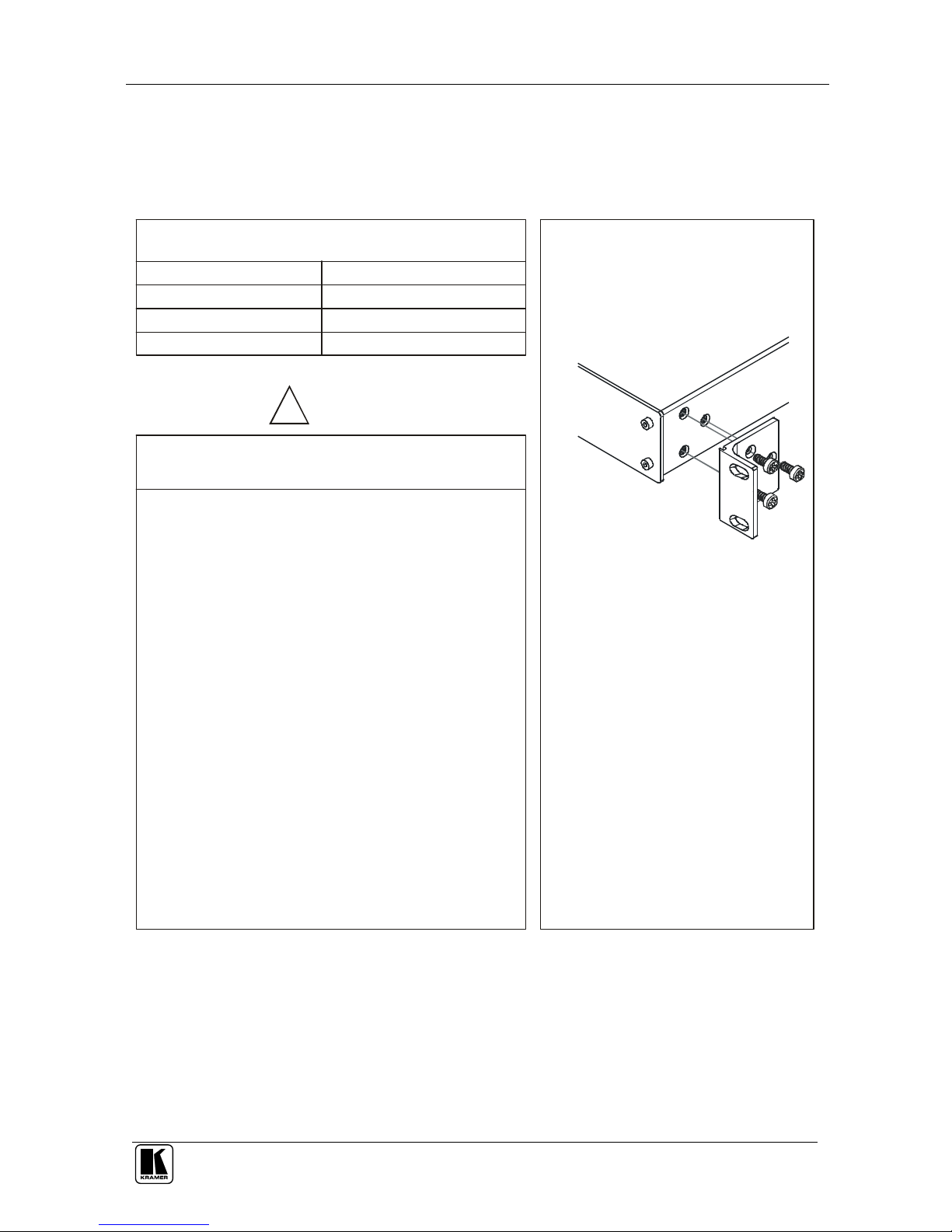

How to Rack Mount
To rack-mount a machine:
1
1
2
2
3
4
5

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting Your VS-81HD 8x1 HD/SD-SDI Switcher
8
6 Connecting Your VS-81HD 8x1 HD/SD-SDI Switcher
You can use your VS-81HD to switch one of the eight high definition /
standard definition SDI inputs to the two identical high definition / standard
definition SDI outputs, as the example illustrated in Figure 2 shows.

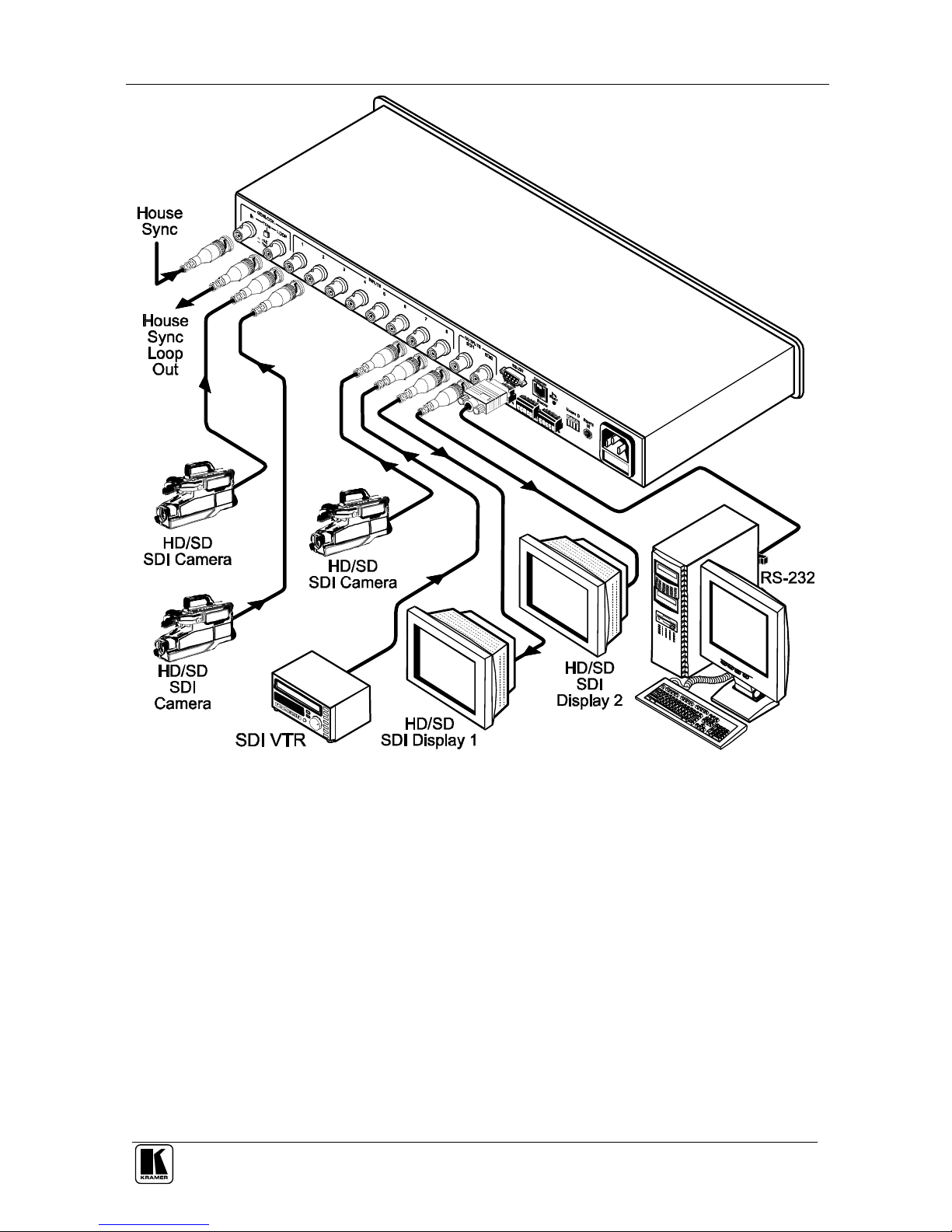

To connect the VS-81HD 8x1 HD/SD-SDI Switcher, as shown in the example in
Figure 2, do the following
1
:
1. Connect up to eight SDI sources to the INPUTS BNC connectors, for example
an:
HD/SD SDI camera to INPUT 1
HD/SD SDI camera to INPUT 2
HD/SD SDI camera to INPUT 7
SDI VTR to INPUT 8
2. Connect the SDI OUTPUT BNC connectors to up to
2
two SDI acceptors (for
example, two HD/SD SDI displays).
3. Set the dipswitches (see section 6.1).
4. As an option
3
, you can connect:
A genlock source to the GENLOCK IN BNC connector
The LOOP BNC connector to the GENLOCK connector of the next
unit in the line, and release the TERM button for looping
4
5. If required, connect a PC and/or controller to the:
RS-232 port (see section 6.2), and/or
RS-485 port (see section 6.3), and/or
ETHERNET connector (see section 6.4)
6. If required
3
, connect a remote dry contact switch (see section 6.5)
7. Connect
5
the power cord
3
.
1 Switch OFF the power on each device before connecting it to your VS-81HD. After connecting your VS-81HD, switch on
its power and then switch on the power on each device
2 When only one output is required, connect that output, and leave the other output unconnected
3 Not illustrated in Figure 2
4 Push in to terminate the input. Release when the input extends to another unit
5 We recommend that you use only the power cord that is supplied with this machine

Connecting Your VS-81HD 8x1 HD/SD-SDI Switcher
9
Figure 2: Connecting the VS-81HD 8x1 HD/SD-SDI Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting Your VS-81HD 8x1 HD/SD-SDI Switcher
10
6.1 Dipswitch Settings
By default, all the dipswitches are set to OFF.
Figure 3 illustrates the VS-81HD dipswitches:
ON
1 2 3 4

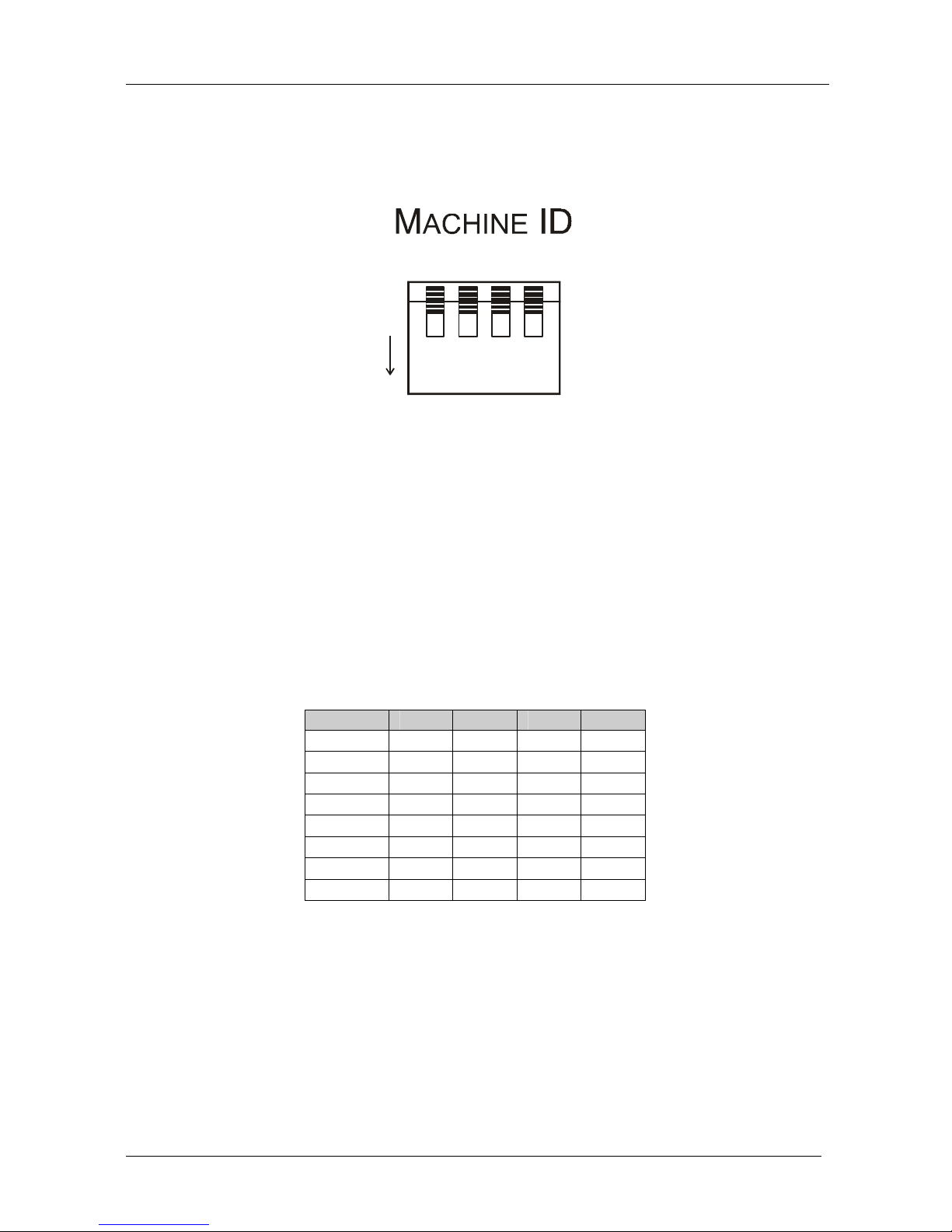

Figure 3: VS-81HD MACHINE ID Dipswitches
6.1.1 Setting the Machine ID Dipswitches
The MACHINE ID determines the position of a VS-81HD unit, specifying
which VS-81HD unit is being controlled when several VS-81HD units
connect to a PC or serial controller. Set the Machine number on a VS-81HD
unit via MACHINE ID DIPS 1, 2, 3 and 4, according to Table 2.
When using a standalone VS-81HD unit, set the Machine ID to 1. When
connecting more than one VS-81HD unit, set the first machine (the Master)
that is closest to the PC, as Machine ID 1 (the dipswitches are set to OFF).
Table 2: MACHINE ID Dipswitch Settings
Mach. # DIP 1 DIP 2 DIP 3 DIP 4
1 OFF OFF OFF OFF
2 OFF OFF OFF ON
3 OFF OFF ON OFF
4 OFF OFF ON ON
5 OFF ON OFF OFF
6 OFF ON OFF ON
7 OFF ON ON OFF
8 OFF ON ON ON

Connecting Your VS-81HD 8x1 HD/SD-SDI Switcher
11
6.2 Controlling via RS-232 (for example, using a PC)
To connect a PC to the VS-81HD unit, using the Null-modem adapter
provided with the machine (recommended):
Connect the RS-232 DB9 rear panel port on the VS-81HD unit to the
Null-modem adapter and connect the Null-modem adapter with a 9-wire
flat cable to the RS-232 DB9 port on your PC
To connect a PC to the VS-81HD unit, without using a Null-modem adapter:
Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel
port on the VS-81HD unit, as Figure 4 illustrates

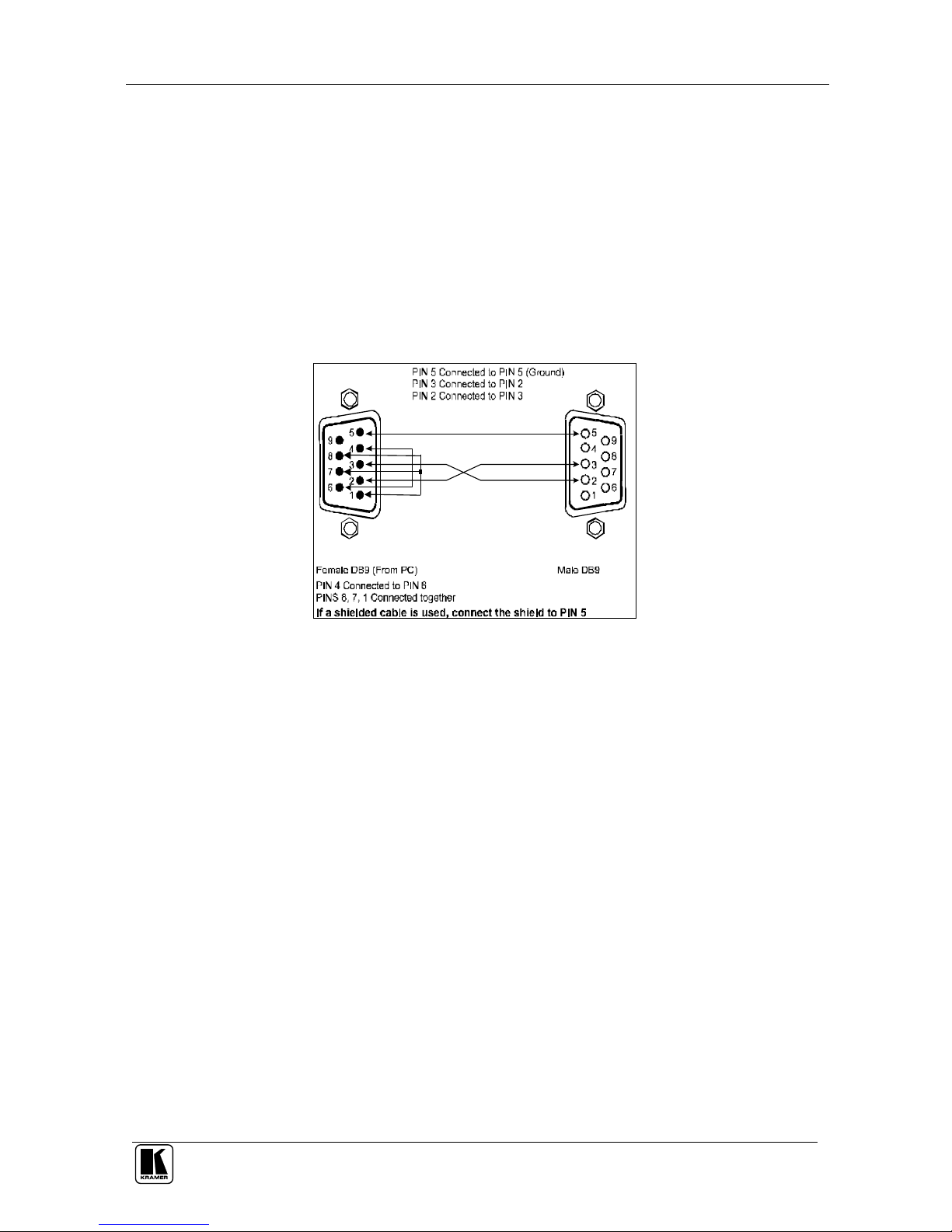

Figure 4: Connecting a PC without using a Null-modem Adapter

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting Your VS-81HD 8x1 HD/SD-SDI Switcher
12
6.3 Controlling via the RS-485 Port
To cascade up to eight individual VS-81HD units, via RS-485 (with control
via a Master Programmable Remote Control system such as the Kramer
RC-3000), as Figure 5 illustrates, do the following:
1. Connect the “A” (+) and “B” (-) PINS on the RS-485 terminal block port of
the RC-3000 to the “A” (+) and “B” (-) PINS, respectively, on each of the
eight VS-81HD units. (If using shielded twisted pair cable, the shield is
usually connected to the “G” (Ground) PIN of the first unit).
2. Set the first VS-81HD unit as MACHINE # 1 and the following seven
VS-81HD units as MACHINE # 2 to MACHINE # 8, according to Table 2.
MACHINE # 1
MACHINE # 8
KEYBOARD EXTENSION REMOTE CONTACT
RS-485 RS-232 IN RS-232 OUT
12 VDC
1 2 1 2 3 4 5 6 7 8 G4 6 8 103 5 7 9 11 12 14 16
OU T
13 15
IN
R C -3 0 0 0
RS-485 PINOUT
B
A
_
+
Figure 5: Controlling via RS-485 (for example, using an RC-3000)

Connecting Your VS-81HD 8x1 HD/SD-SDI Switcher
13
6.4 Controlling via ETHERNET
You can connect the VS-81HD via the Ethernet, using a crossover cable (see
section 6.4.1) for direct connection to the PC or a straight through cable (see
section 6.4.2) for connection via a network hub or network router.
6.4.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable)
You can connect the Ethernet port of the VS-81HD to the Ethernet port on
your PC, via a crossover cable with RJ-45 connectors.
This type of connection is recommended for identification of the factory default
IP Address of the VS-81HD during the initial configuration
After connecting the Ethernet port, configure your PC as follows:
1. Right-click the My Network Places icon on your desktop.
2. Select Properties.
3. Right-click Local Area Connection Properties.
4. Select Properties.
The Local Area Connection Properties window appears.
5. Select the Internet Protocol (TCP/IP) and click the Properties Button (see
Figure 6).

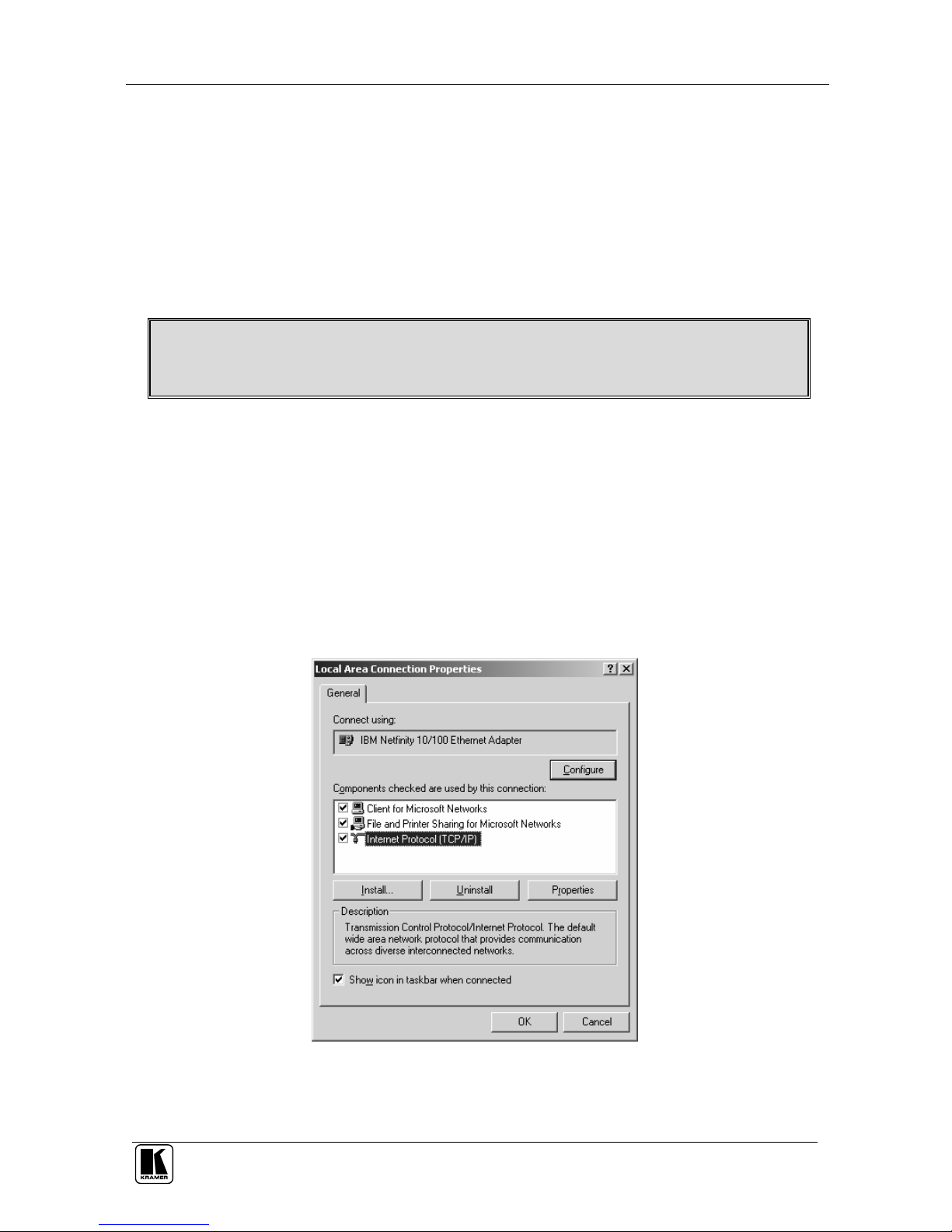

Figure 6: Local Area Connection Properties Window

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting Your VS-81HD 8x1 HD/SD-SDI Switcher
14
6. Select Use the following IP address (192.168.1.39), and fill in the details as
shown in Figure 7.
7. Click OK.
Figure 7: Internet Protocol (TCP/IP) Properties Window
6.4.2 Connecting the ETHERNET Port via a Network Hub (Straight-Through
Cable)
You can connect the Ethernet port of the VS-81HD to the Ethernet port on a
network hub or network router, via a straight-through cable with RJ-45
connectors.
6.4.3 Configuring the Ethernet Port
After connecting the Ethernet port, you have to install and configure it.
For detailed instructions on how to install and configure your Ethernet port,
see the “Ethernet Configuration (FC-11) guide.pdf” on our Web site:
http://www.kramerelectronics.com.

Connecting Your VS-81HD 8x1 HD/SD-SDI Switcher
15
6.5 Controlling via the REMOTE Connector
The dry contact remote control pins operate in a similar way to the input
selector button. Using the contact closure remote control lets you route an input
to the outputs by remote control. To do so, temporarily connect the required
input (from 1 to 8) pin on the REMOTE terminal block connector to the GND
(ground) pin. You can also disconnect the outputs by temporarily connecting the
OFF pin to the GND pin.
DO NOT connect more than one PIN to the GND PIN at the same time
For example, to route input 5 to the outputs, as the example in Figure 8 illustrates,
momentarily touch input # 5 to the GND (ground) pin.
Figure 8: Using the REMOTE Connector

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the VS-81HD
16
7 Operating the VS-81HD
You can operate your VS-81HD via:
The front panel buttons
RS-232/RS-485 serial commands transmitted by a PC, touch screen
system, or other serial controller
The Kramer RC-IR2 Infra-Red Remote Control Transmitter
Infra-red remote extension cable transmitter
The ETHERNET
To switch an input to the outputs via the front panel buttons
1
, press the desired
input button.
When selecting an input that is not connected, that input button blinks.
7.1 Locking the Front Panel
To prevent changing the settings accidentally or tampering with the unit via
the front panel buttons, lock
2
your VS-81HD. Unlocking releases the
protection mechanism.
To lock the VS-81HD:
Press the LOCK button for three seconds, until the LOCK button is
illuminated
The front panel is locked. Pressing a button will have no effect
To unlock the VS-81HD:
Press the illuminated LOCK button until the LOCK button is no longer
illuminated
The front panel unlocks
1 For details of how to route an input to an output using the REMOTE connector, see section 6.5
2 Nevertheless, even though the front panel is locked you can still operate via RS-232 or RS-485, as well as via the Kramer
IR Remote Control Transmitter

Technical Specifications
17
8 Technical Specifications
Table 3 includes the technical specifications:
Table 3: Technical Specifications
1
of the VS-81HD 8x1 HD/SD-SDI Switcher
INPUTS: 8 SDI SMPTE-259M, 292M, 344M serial video, 75 ohms on BNC connectors
1 GENLOCK 75/ Hi-Z on looping BNC connectors, bi-level, Tri-level inputs
OUTPUTS: 2 identical equalized and reclocked SMPTE-259M, 292M, 344M outputs 75
ohms on BNC connectors
1 GENLOCK 75/ Hi-Z on looping BNC connectors, bi-level, Tri-level inputs
MAX. OUTPUT LEVEL: 800mVpp /75 ohms
JITTER: Better than 0.2UI
DATA RATE: Up to 1.485Gbps
CONTROLS: Front-panel, RS-232; RS-485, ETHERNET, infra-red remote, dry contact,
and panel lock
POWER SOURCE: Universal, 100-240VAC, 50/60Hz 22VA
DIMENSIONS: 19 inch (W), 7 inch (D), 1U (H) rack mountable
WEIGHT: 1.5kg. (3.3lbs.) approx.
ACCESSORIES: Power cord, Null-modem adapter
1 Specifications are subject to change without notice
