Kramer MV-6 User manual

Kramer Electronics, Ltd.
Preliminary
USER MANUAL
Model:
MV-6
3G HD-SDI Multiviewer
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1 Quick Start 2
3Overview 3
3.1 Recommendations for Best Performance 4
3.2 Safety Instructions 4
3.3 Recycling Kramer Products 4
3.4 Accessory to Medical Equipment (IEC 60601-1) 5
4Defining the MV-6 3G HD-SDI Multiviewer 6

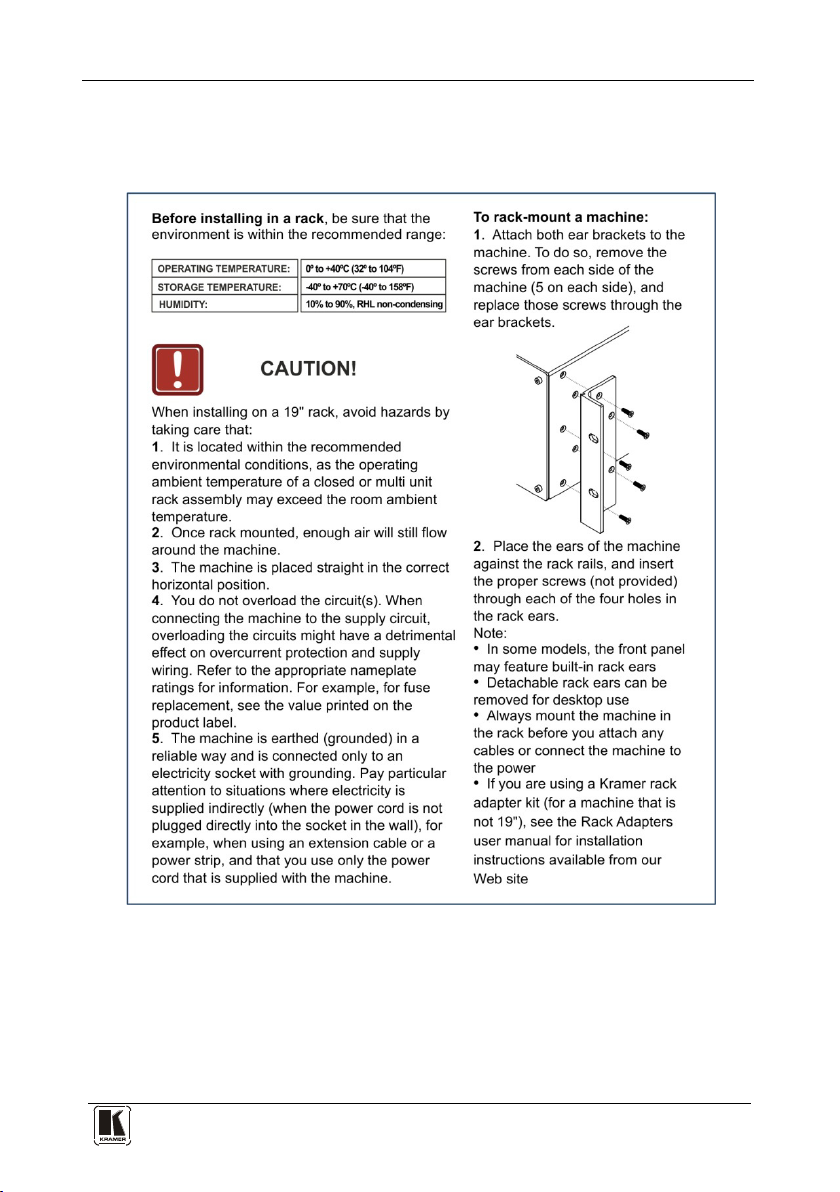

5Installing the MV-6 3G HD-SDI Multiviewer in a Rack 9
6Connecting the MV-6 3G HD-SDI Multiviewer 10
6.1 Connecting to the RS-232 Port 11
6.2 Connecting to the Ethernet Port 11
6.2.1 Connecting the Ethernet Port Directly to a PC 11
6.2.2 Connecting the Ethernet Port via a Network Hub 13
7Operating the MV-6 3G HD-SDI Multiviewer Locally 13
7.1 Display 13
7.2 Adjusting the Size of a Window 14
7.3 Adjusting the Position of a Window 14
7.4 Defining and Saving a Custom Window Layout 14
7.5 Recalling a Window Layout 14
7.6 Freezing/Releasing a Video Output 15
7.7 Locking the Front Panel 15
7.8 Resetting the Device to Factory Defaults 15
7.9 Using the Menu 15
7.9.1 Windows Sub-menu 16
7.9.2 Output Sub-menu 17
7.9.3 Status Sub-menu 17
7.9.4 Comm Settings Sub-menu 17
7.9.5 User Presets Sub-menu 18
7.9.6 System Sub-menu 18
8Operating the MV-6 3G HD-SDI Multiviewer Remotely 19
8.1 Operating the MV-6 via the RS-232 Serial Port 19
8.2 MV-6 Controller Software 19
8.2.1 The Menu Bar 21
8.2.2 The Quick Access Toolbar 21
8.2.3 Connecting to the Device 22
8.2.4 Windows Position 23
8.2.5 Switch Buttons 24
8.2.6 Connection Status 24
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Contents
ii
8.2.7 Changing the Layer Order 25
8.2.8 Implementing Multiple Actions At Once 25
8.2.9 Switching an Input to a Window 25
8.2.10 Changing a Window Setup 26
8.2.11 Changing Input Button Properties 27
8.2.12 Changing the Device Details 28
8.2.13 Updating the Firmware 28
8.2.14 Setting the IP Network Parameters 29
8.2.15 Displaying the MV-6 Software Version Number 29
9Upgrading the Firmware 30
10 Technical Specifications 30
11 Default Communication Parameters 31
12 Kramer Protocol 3000 32
12.1 Kramer Protocol 3000 Syntax 32
12.1.1 Host Message Format 32
12.1.1.1 Simple Command 32
12.1.1.2 Command String 32
12.1.2 Device Message Format 32
12.1.2.1 Device Long Response 32
12.1.3 Command Terms 32
12.1.4 Entering Commands 33
12.1.5 Command Forms 33
12.1.6 Chaining Commands 34
12.1.7 Maximum String Length 34
12.2 Kramer Protocol 3000 Commands 34
12.2.1 Common Commands 34
12.2.2 Network Setting Commands 35
12.2.3 Device Specific Commands 35
Figures
Figure 1: MV-6 3G HD-SDI Multiviewer Front Panel 6
Figure 2: MV-6 3G HD-SDI Multiviewer Rear Panel 8
Figure 3: Connecting the MV-6 3G HD-SDI Multiviewer 10
Figure 4: Local Area Connection Properties Window 12

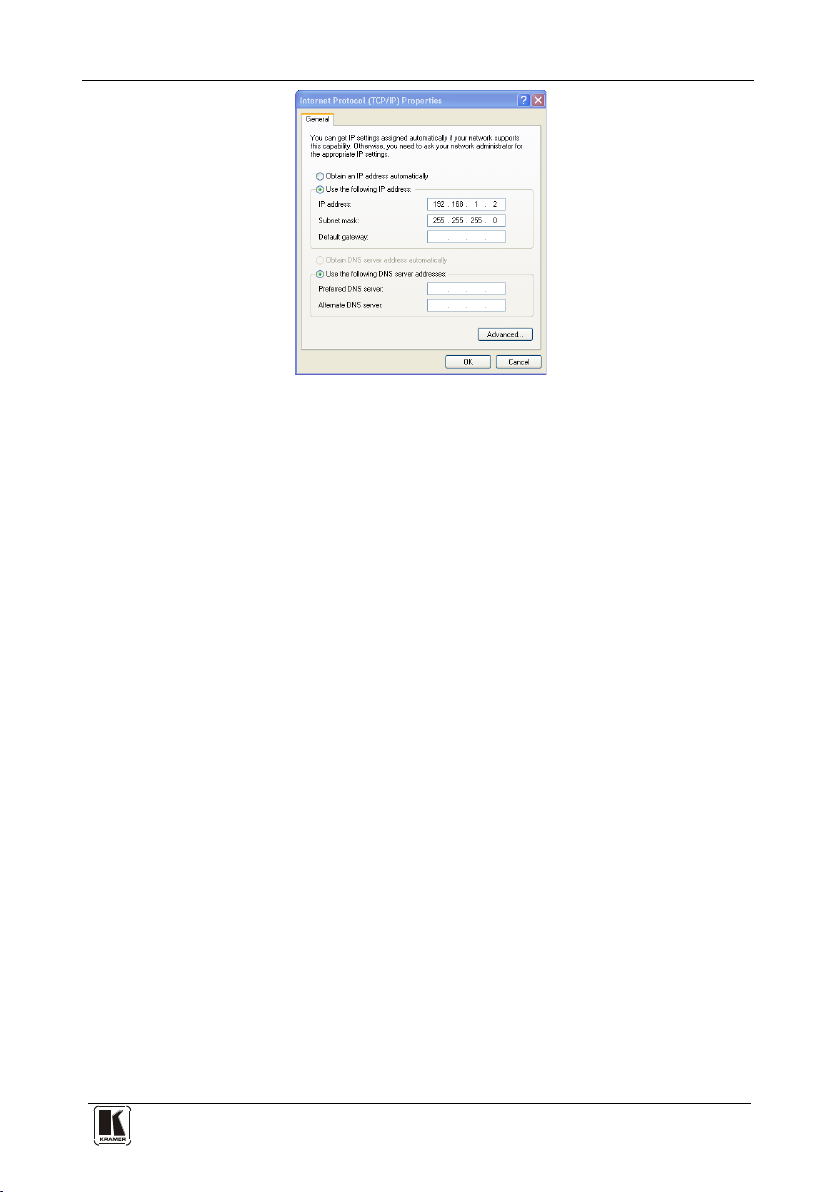

Figure 5: Internet Protocol (TCP/IP) Properties Window 13
Figure 6: MV-6 Controller Software Main Window 20
Figure 7: Quick Access Toolbar 21
Figure 8: Connect Window 22
Figure 9: Windows Position 23
Figure 10: Switch Buttons 24
Figure 11: Layer Order 25
Figure 12: Switching an Input to a Window 26
Figure 13: Windows Setup Window 26
Figure 14: Input Button Properties Window 27
Figure 15: Device Details Window 28
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Contents
iii
Figure 16: About MV-6 Window 29
Tables
Table 1: MV-6 3G HD-SDI Multiviewer Front Panel Features 7
Table 2: MV-6 3G HD-SDI Multiviewer Rear Panel Features 8
Table 3: Windows Sub-menu Parameters and Descriptions 16
Table 4: Output Sub-menu Parameters and Descriptions 17
Table 5: Status Sub-menu Parameters and Descriptions 17
Table 6: Comm Settings Parameters and Descriptions 17
Table 7: User Presets Parameters and Descriptions 18
Table 8: System Sub-menu Parameters and Descriptions 18
Table 9: MV-6 Controller Software Features 20
Table 10: Menu Bar Options 21
Table 11: Quick Access Toolbar Options 21
Table 12: Switch Button Characteristics 24
Table 13: MV-6 Technical Specifications 30
Table 14: Default Communication Parameters 31
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1
Thank you for purchasing the Kramer MV-6 3G HD-SDI Multiviewer
which is ideal for:
that are clearly
defined by function.
•Professional broadcasting and production studios
•Presentation applications
•3G HD-SDI multi-viewing for medical equipment
The package includes the following items:
•The MV-6 3G HD-SDI Multiviewer
•Power cord2
•This user manual
3
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
•Review the contents of this user manual
Go to http://www.kramerelectronics.com to check for up-to-date
user manuals, application programs, and to check if firmware
upgrades are available (where appropriate).
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 We recommend that you use only the power cord supplied with this device
3 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com
i
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
The following quick start chart summarizes the basic setup and operation.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Overview
3
3
3 Overview
The MV-6 is a versatile, high-performance video viewer for signals up to
3G HD-SDI. The device can window up to six sources in any layout and
output the image in SDI, HDMI and CV formats. Both preprogrammed and
customizable screen division is supported.
In particular, the MV-6 features:
•Input bandwidth of up to 3Gbps which supports standard definition,
high definition and 3G high definition serial digital video signals
(SD/HD/3G HD-SDI)
•SMPTE 259M, 292M and 424M input compliance and support for
data rates of 270Mbps, 1483.5Mbps, 1485Mbps, 2967Mbps and
2970Mbps
•Input cable equalization up to 350m (1150ft) for SD1signals, 140m for
1.5GHz HD2
•Multi-video output formats; HD-SDI (292M) and 3G HD-SDI
(SMPTE 424M), HDMI and composite
signals, and 120m (394ft) for 3GHz HD signals
•Front panel color LCD preview screen for real-time display of output
•Kramer re-Klocking™ and equalization on each input – rebuilds the
digital signal to travel longer distances
•Flexible control options; front panel with menu LCD and on-screen
displays, Ethernet, and RS-232
•Screen handling buttons; freeze, size, position, and four pre-
programmed and two user-definable layouts
•Medical equipment compliance
The MV-6 is housed in a 2U height enclosure and is fed from a 100-240
VAC universal switching power supply. The device can be controlled via
the front panel buttons and remotely via:
•RS-232 serial commands transmitted by a PC, touch-screen system or
other serial controller
•Ethernet over a LAN
1 Standard Definition (SD) means an NTSC or PAL compatible video format consisting of 480 (for NTSC) or 576 (for PAL)
lines of interlaced video
2 High Definition (HD) means a video format consisting of 720 active lines of progressive video or 1080 lines of progressive
or interlaced video
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
3.1 Recommendations for Best Performance
To achieve the best performance:
•Use only good quality connection cables (we recommend Kramer
high-performance, high-resolution cables) to avoid interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
•Do not secure the cables in tight bundles or roll the slack into tight
coils
•Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer
MV-6 away from moisture, excessive sunlight and dust
This equipment is to be used only inside a building. It may only be connected
to other equipment that is installed inside a building
3.2 Safety Instructions
Caution: There are no operator serviceable parts inside the unit
Warning: Use only the power cord that is supplied with the unit
Warning: Do not open the unit. High voltages can cause electrical
shock! Servicing by qualified personnel only
Warning: Disconnect the power and unplug the unit from the wall
before installing
3.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive
2002/96/EC aims to reduce the amount of WEEE sent for disposal to
landfill or incineration by requiring it to be collected and recycled. To
comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN)
and will cover any costs of treatment, recycling and recovery of waste
Kramer Electronics branded equipment on arrival at the EARN facility. For
details of Kramer’s recycling arrangements in your particular country go to
our recycling pages at
http://www.kramerelectronics.com/support/recycling/.
!
!
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Overview
5
5
3.4 Accessory to Medical Equipment (IEC 60601-1)
In the modern medical environment remote access is essential, for example,
to transfer clinical data between doctors and to train to medical students.
The MV-6 is certified according to the IEC 60601-1-2, Clause 2.1.3,
Medical Electrical Equipment, Part 1: General Requirements for Emc
standard which is required when accessory devices are used at locations
where medical personnel and patients are present.
The MV-6 constitutes an optional component that can be considered
necessary and suitable as part of medical equipment or for use as part of a
medical system to provide real time simultaneous video feeds to those
present at the local medical environment and at remote locations. In this
environment, the MV-6 can be added to the system ONLY if the connecting
equipment has been evaluated and meets the IEC 60601-1-2 Emc standards.
Note, that when attaching accessory devices to a digital or analog interface,
they must comply with the IEC standard for which they are used: for
medical equipment (IEC 60601-1-2), data processing equipment (IEC
60950) and electromagnetic compatibility (IEC 61000-1).
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the MV-6 3G HD-SDI Multiviewer
6
4 Defining the MV-6 3G HD-SDI Multiviewer
Figure 1and Table 1define the front panel of the MV-6 3G HD-SDI Multiviewer.
Figure 1: MV-6 3G HD-SDI Multiviewer Front Panel
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Defining the MV-6 3G HD-SDI Multiviewer
7
Table 1: MV-6 3G HD-SDI Multiviewer Front Panel Features
#
Feature
Function
1 LCD Video Preview Screen LCD screen to display the output signal
2 WINDOW Buttons (A to F) Press to select one of the windows
3 INPUT Buttons (1 to 6) Press to select the active input following selection of an active window (using the WINDOW buttons)
4 LCD Menu 2 Line x 16 Character
Window/Input or Menu Display During normal operation the Window/Input list is displayed. During menu operations, the Menu/parameter/values are displayed (see Section 7.9
5 ) Menu Navigation Buttons Press the up ( ▲), down (▼), left (◄) and right (►) buttons to navigate the menu, parameters or values
6 ENTER Button Press to enter the menu or accept the parameter/value
7 PANEL LOCK Button Press and hold to lock the front panel buttons. Press and hold again to unlock the buttons (see Section 7.7
8 ) Screen Layout Button
(6 windows)
Press to display and output all six inputs as per the pattern
9 Screen Layout Button
(4 windows)
Press to display and output four selected inputs in a quad pattern
10 Screen Layout Button
(full screen) Press to display and output one selected input as a full screen
11 Screen Layout Button
(2 windows)
Press to display and output two selected inputs as per the pattern
12 U1 Button Press to select the first user-definable output window pattern (programmed using the menu, see Section 7.5
13 ) U2 Button Press to select the second user-definable output window pattern (programmed using the menu, see Section 7.5
14 ) FREEZE Button Press to freeze the selected video window (see Section 7.6
15 ) POSITION Buttons Press either the horizontal (H) or vertical (V) button to change the position of the active window (see Section 7.3
16 ) SIZE Buttons Press either the width (H) or height (V) button to change the size of the active window (see Section 7.9
17 ) MENU Button Press to move back one level through the menu (see Section 7.9 )
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the MV-6 3G HD-SDI Multiviewer
8
Figure 2and Table 2define the rear panel of the MV-6 3G HD-SDI Multiviewer.
Figure 2: MV-6 3G HD-SDI Multiviewer Rear Panel
Table 2: MV-6 3G HD-SDI Multiviewer Rear Panel Features
#
Feature
Function
18 INPUTS (1 to 6) and Associated BNC
LOOP Outputs (1 to 6) Connect Inputs to video sources and Loop outputs to loop video acceptors (see Section 6
19
)
RS-232 9-pin D-sub (F) Connector Connect to the serial port on a PC or remote controller (see Section 6.1
20 ) Mains Power Fuse Fuse for protecting the device
21 Mains Power Switch Switch for turning the device on or off
22 OUTPUTS SDI BNC Connector Connect to an SDI video acceptor (see Section 7.9
23 ) HDMI Connector Connect to an HDMI video acceptor
24 CV BNC Connector Connect to a composite video acceptor
25 ETHERNET RJ-45 Connector Connect to a PC via a LAN for remote control (see Section 6.2
26 ) RESET Button Press and hold while power cycling the device to reset to factory default configuration (see Section 7.8
27 ) Mains Power Connector Connect to the mains power
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Installing the MV-6 3G HD-SDI Multiviewer in a Rack
9
9
9
9
5 Installing the MV-6 3G HD-SDI Multiviewer in a Rack
This section provides instructions for rack mounting the device.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the MV-6 3G HD-SDI Multiviewer
10
6 Connecting the MV-6 3G HD-SDI Multiviewer
The MV-6 accepts up to six SD/HD/3G HD-SDI inputs. The device outputs
a signal (which can be any combination of the inputs) to the SDI, HDMI
and composite video connectors as shown in Figure 3.
Figure 3: Connecting the MV-6 3G HD-SDI Multiviewer
Always switch off the power to each device before connecting it to your
MV-6. After connecting your MV-6, connect its power and then switch
on the power to each device.
i
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Connecting the MV-6 3G HD-SDI Multiviewer
11
11
11
11
To connect1the MV-6 3G HD-SDI Multiviewer as shown in Figure 3:
1. Connect up to six SDI sources (SD, HD or 3G HD-SDI) to the INPUT
BNC connectors (for example, 3G HD-SDI cameras to IN 1 and IN 3,
and an SDI player to IN 2).
2. Connect up to six SDI acceptors (SD, HD or 3G HD-SDI) to the
INPUT LOOP BNC connectors (for example, a preview SDI display to
IN 1—LOOP and a non-linear editor to IN 2—LOOP).
3. Connect up to three display acceptors to the OUTPUT connectors (for
example, a 3G HD-SDI display to the OUTPUT SDI BNC connector,
an LCD display to the HDMI connector, and a CV video recorder to
the OUTPUT CV BNC connector).
4. Optional—Connect a PC and/or serial controller to the:
Ethernet connector (see Section 6.2
RS-232 port
)
—and/or— 2(see Section 6.1
5. Connect the power cord )
2
6.1 Connecting to the RS-232 Port
.
You can connect to the MV-6 via an RS-232 connection using, for example,
a PC. Note that a null-modem adapter/connection is not required.
To connect to the MV-6 via RS-232:
•Connect the RS-232 9-pin D-sub rear panel port on the MV-6 via a
9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to
pin 5 need to be connected) to the RS-232 9-pin D-sub port on your
PC
6.2 Connecting to the Ethernet Port
You can connect the MV-6 via the Ethernet port in either of the following
ways:
•For direct connection to the PC, use a crossover cable (see
Section 6.2.1
•For connection via a network hub or network router, use a straight-
through cable (see
)
Section 6.2.2
6.2.1 Connecting the Ethernet Port Directly to a PC
)
You can connect the Ethernet port of the MV-6 to the Ethernet port on your
PC, via a crossover cable with RJ-45 connectors.
1 Switch off the power to each device before connecting it to your MV-6. After connecting your MV-6, switch on its power
and then switch on the power to each device
2 Not shown in the illustration
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the MV-6 3G HD-SDI Multiviewer
12
This type of connection is recommended for identification of the factory
default IP address1
After connecting the Ethernet port, configure your PC as follows:
of the MV-6 during the initial configuration
1. Right-click the My Network Places icon on your desktop.
2. Select Properties.
3. Right-click Local Area Connection Properties.
4. Select Properties.
The Local Area Connection Properties window appears.
5. Select the Internet Protocol (TCP/IP) and click the Properties Button
(see Figure 4).
Figure 4: Local Area Connection Properties Window
6. Select Use the following IP Address, and fill in the details as shown in
Figure 5. You can use any IP address in the range 192.168.1.1 to
192.168.1.255 (excluding 192.168.1.39) that is provided by your IT
department.
7. Click OK.
1 The default IP address is 192.168.1.39
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Operating the MV-6 3G HD-SDI Multiviewer Locally
13
13
13
13
Figure 5: Internet Protocol (TCP/IP) Properties Window
6.2.2 Connecting the Ethernet Port via a Network Hub
You can connect the Ethernet port of the MV-6 to the Ethernet port on a
network hub or network router, via a straight-through cable with RJ-45
connectors.
7 Operating the MV-6 3G HD-SDI Multiviewer Locally
The MV-6 sports an LCD video preview screen on which the live video
output is shown. Changes made to the device configuration are reflected
immediately on the screen allowing you to monitor the output in real-time.
The MV-6 is operated locally using the front panel buttons.
7.1 Display
When the MV-6 is powered on, the following is displayed briefly:
MV6 Multiviewer
KRAMER
The device then performs a self test. If the test is successful the
Window/Input list is displayed, an example of which is shown below.
WIN A B C D E F
INP 2 4 5 6 1 3
During operation, if there is no button activity for approximately 60 seconds
the display reverts to the Window/Input list.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the MV-6 3G HD-SDI Multiviewer Locally
14
7.2 Adjusting the Size of a Window
The horizontal and vertical size of each window can be modified.
To adjust the size of a window:
1. Select the required window by pressing one of the Window buttons.
The relevant button lights.
2. Press either the H Size or V Size button to adjust the width or height of
the selected window.
3. Use the left (◄) and right (►) buttons to adjust the window width, and
use the up (▲) and down button (▼) to adjust the window height.
The size changes in real-time.
4. Press Menu twice to exit the window size setting.
7.3 Adjusting the Position of a Window
The horizontal and vertical position of each window can be modified.
To adjust the position of a window:
1. Select the required window by pressing one of the Window buttons.
The relevant button lights.
2. Press either the H Position or V Position button to move the window.
3. Use the left (◄) and right (►) buttons to move the window
horizontally, and use the up (▲) and down button (▼) to move the
window vertically.
The position changes in real-time.
4. Press Menu twice to exit the window position setting.
7.4 Defining and Saving a Custom Window Layout
In addition to the four predefined window layouts, the MV-6 can store two
custom window layouts. Once you have defined a custom window layout
you can save it for future recall.
To define and save a custom, user-defined window layout:
1. Using the Size and Position buttons, adjust all windows to the required
configuration.
2. Press and hold either the U1 or U2 Layout button until the button
flashes once.
The window layout is stored in the respective memory.
7.5 Recalling a Window Layout
You can select any of the four predefined or two custom window layouts
using the window layout buttons.
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

Operating the MV-6 3G HD-SDI Multiviewer Locally
15
15
15
15
To select a window layout:
•Press one of the six screen layout buttons.
The button flashes quickly three times and the window layout is
recalled from the memory
7.6 Freezing/Releasing a Video Output
To freeze/release a video output:
1. Select the required window to freeze.
2. Press the Freeze button (see FREEZE Button).
The button lights and the output video freezes.
3. Press the Freeze button.
The button no longer lights and the video is no longer frozen.
7.7 Locking the Front Panel
Lock the front panel buttons to prevent unwanted key presses from
changing the current configuration.
To lock the front panel:
•Press and hold the Panel Lock button (see PANEL LOCK Button).
The button lights and the front panel buttons are locked. Pressing
any button causes the Locked message to display and the Lock
button to flash
To unlock the front panel:
•Press and hold the Panel Lock button (see PANEL LOCK Button).
The button no longer lights and the front panel buttons are
unlocked
7.8 Resetting the Device to Factory Defaults
To reset the device to the factory defaults:
1. Turn the device off.
2. Press and hold the Reset button on the rear panel of the device.
3. While holding the button depressed, turn the device on.
4. Hold the button depressed for 10 seconds and release the button.
The configuration is reset to the factory default.
7.9 Using the Menu
The menu is displayed on the character display when the Enter button is
pressed. After no button activity for about a minute, the window input list is
displayed but the menu remains open in the background at the same position
it was last left in.
Navigation through the menu is performed as follows:
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the MV-6 3G HD-SDI Multiviewer Locally
16
•Enter—display the menu or select a parameter/value
•Up (▲)—scroll up through the parameter/value list
•Down (▼)—scroll down through the parameter/value list
•Left (◄)—move left in the current field
•Right (►)—move right through the current field
•Menu—Move up one level in the menu hierarchy
The main menu comprises six sections:
•Windows (see Section 7.9.1
•Output (see ) Section 7.9.2
•Status (see ) Section 7.9.3
•Comm Settings (see ) Section 7.9.4
•User Presets (see ) Section 7.9.5
•System (see ) Section 7.9.6
7.9.1 Windows Sub-menu
)
The parameters in the Windows sub-menu set the window inputs and
characteristics.
Table 3: Windows Sub-menu Parameters and Descriptions
Parameter
Description
Values
Select window Selects the windowto adjust A, B, C, D, E, F
Default—F
Visibility Makes the selected window visible or non-visible Visible, Non-Visible
Default—Visible
Select layer Selects a source to display in the selected window TOP, 2, 3, 4, 5, 6
Default—TOP
Input Selects an input 1, 2, 3, 4, 5, 6
Default—1
Size Hor size(%) Sets the horizontal size for the selected window 1 to 100
Default— 66
Ver size(%) Sets the vertical size for the selected window 1 to 100
Default— 66
Position X origin(%) Sets the X origin for the selected window 0 to 99
Default— 0
Y origin(%) Sets the Y origin for the selected window 0 to 99
Default— 0
Freeze Freezes or releases the video ON, OFF
Default—OFF
im Vertrieb von
CAMBOARD Electronics
www.camboard.de
Tel. [phone]
Fax [phone]
[email protected]
