Kramer SID-X3N User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
SID-X3N
Step-in Commander
P/N: 2900-300304 Rev 3

SID-X3N – Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Shielded Twisted Pair/Unshielded Twisted Pair 3
2.4 Recycling Kramer Products 3
3Overview 4
4Defining the SID-X3N Step-in Commander 6
5Connecting the SID-X3N 8
5.1 Connecting the Remote Step-In Switch and LED 9
5.2 Connecting the Remote Select Switch and LED 10
5.3 Connecting the Remote Input Selection LEDs 11
6Principles of Operation 12
6.1 Video Input Selection 12
6.2 Audio Signal Control 13
6.3 Automatic Output Shutdown 13
7Operating the SID-X3N 14
7.1 Manually Selecting an Input 14
7.2 Taking Control of the Switcher Input When Connected to the VS-62H 15
7.3 Locking the EDID 15
7.4 Audio Mode Selection 15
7.5 Adjusting the UXGA Input Phase 15
8Configuring the SID-X3N 16
8.1 Setting the Configuration DIP-switch 16
9Technical Specifications 18
9.1 Supported Resolutions 19
10 Default EDID 21
10.1 HDMI, DisplayPort and DVI 21
10.2 PC-UXGA 23
11 Protocol 2000 25
11.1 Syntax 25
11.2 Instruction Codes 26
12 Protocol 3000 28
12.1 Kramer Protocol 3000 Syntax 28
12.2 Kramer Protocol 3000 Commands 31
Figures
Figure 1: SID-X3N Step-in Commander Front Panel 6
Figure 2: SID-X3N Step-in Commander Rear Panel 7
Figure 3: Connecting the SID-X3N Step-in Commander 8
Figure 4: Remote Step-In Switch and LED Wiring 9
Figure 5: Remote Select Switch and LED Wiring 10
Figure 6: Remote Input Indicator LED Connections 11
Figure 7: Remote Input Indicator LED Wiring 11
Figure 8: The Configuration DIP-switch 16

SID-X3N - Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio, and
GROUP 14: Collaboration.
Thank you for purchasing the Kramer MegaTOOLS®SID-X3N Step-in
Commander which is ideal for:
Display systems requiring simple input selection
Remote monitoring of computer activity in schools and businesses
Rental/staging applications
Multimedia and presentation source selection

2
SID-X3N - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check if
firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
resolution, high-quality cables) to avoid interference, deterioration in signal
quality due to poor matching, and elevated noise levels (often associated
with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer SID-X3N away from moisture, excessive sunlight and
dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!
!

SID-X3N - Getting Started
3
3
2.3 Shielded Twisted Pair/Unshielded Twisted Pair
Kramer engineers have developed special twisted pair cables to best match our
digital twisted pair products; the Kramer BC-DGKat623 (CAT 6 23 AWG cable),
and the Kramer BC-DGKat7a23 (CAT 7a 23 AWG cable). These specially built
cables significantly outperform regular CAT 6 and CAT 7a cables.
2.4 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4
SID-X3N - Overview
3 Overview
The SID-X3N accepts an HDMI, DisplayPort, DVI and PC graphics video input, as
well as an unbalanced stereo audio input (which is embedded into the output
signal), and transmits the signal via HDMI cable to a compatible switcher, (for
example, the VS-62H). The device also provides an unbalanced, stereo audio
output. When the SID-X3N is connected to a switcher, it can also control the input
selection of the switcher.
In particular the SID-X3N features:
HDTV support
HDMI with Deep Color, x.v.Color™ and 3D
HDCP compliancy—works with sources that support HDCP repeater mode
Note: When using a MacBook as a source and the content is protected
using HDCP, if the display does not support HDCP, no video is transmitted
Input signal detection based on video clock presence
Automatic input selection based on manual selection or last connected input
Automatic analog audio detection and embedding
Automatic output shutdown when the input signal is lost (with a configurable
delay)
Programmable step-in functionality (when used with the VS-62H connected
via an HDMI cable that supports HEC, HDMI Ethernet Channel)
I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID
handling & processing algorithm ensures Plug and Play operation for HDMI
systems
A lockable EDID
VGA phase adjustment
Power-over-Ethernet passes electrical power along with data on Ethernet
cabling. This allows a single cable to provide both data connection and
electrical power to compatible devices

SID-X3N - Overview
5
5
Equalization and reclocking of the data
A maximum data rate of 6.75Gbps (2.25Gb per graphics channel)
Support for digital audio formats
A MegaTOOLS®sized enclosure. Two devices can be mounted in a rack
using the optional RK-T2B adapter
You can control the SID-X3N using the front panel buttons, or remotely via contact
closure switches.

6
SID-X3N - Defining the SID-X3N Step-in Commander
4 Defining the SID-X3N Step-in Commander
Figure 1 defines the front panel of the SID-X3N.
Figure 1: SID-X3N Step-in Commander Front Panel
#
Feature
Function
1
AUDIO IN 3.5mm Mini Jack
Connect to an unbalanced stereo audio source
2
HDMI
LED
Lights green when the HDMI input is selected
3
HDMI Connector
Connect to an HDMI source
4
DisplayPort
LED
Lights green when the DisplayPort input is selected
5
DP Connector
Connect to a DisplayPort source
6
DVI
LED
Lights green when the DVI input is selected
7
DVI Connector
Connect to a DVI source
8
PC-UXGA
LED
Lights green when the PC-UXGA input is selected
9
PC-UXGA
15-pin HD
Connector (F)
Connect to a PC graphics source
10
INPUT SELECT Button
Press repeatedly to cycle through the inputs manually to
select an input signal and override the automatic selection,
(see Section 7.1)
Note: When the button is lit it is inactive and pressing the
button will not activate the input
11
STEP-IN Button
Press to activate the input on the switcher that the
SID-X3N is connected to, (see Section 7.2)
12
ON LED
Lights green when the device is powered on

SID-X3N - Defining the SID-X3N Step-in Commander
7
7

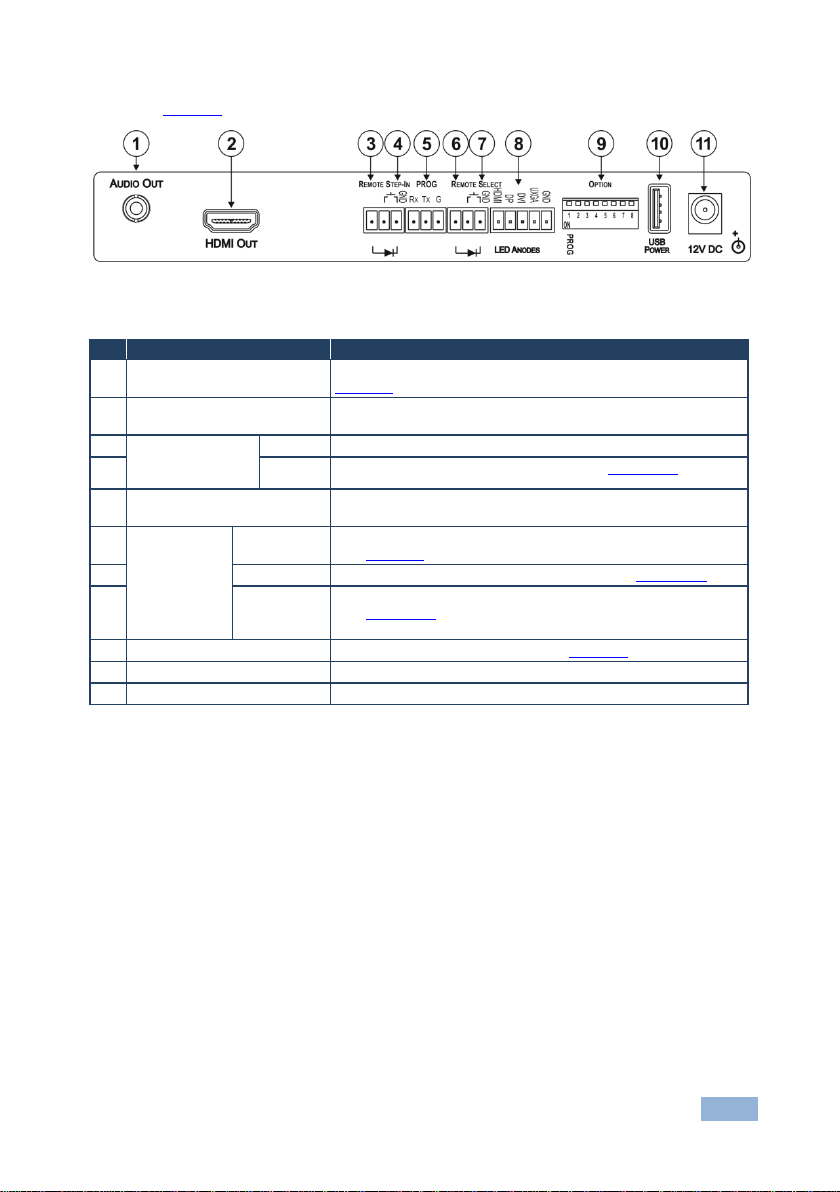

Figure 2 defines the rear panel of the SID-X3N.
Figure 2: SID-X3N Step-in Commander Rear Panel
#
Feature
Function
1
AUDIO OUT 3.5mm Mini Jack
Connect to an unbalanced, stereo audio acceptor, (see
Section 4)
2
HDMI OUT Connector
Connect to a compatible switcher, for example, VS-62H using an
HDMI cable
3
REMOTE STEP-IN
3-pin Terminal
Block
LED
Connect to the anode of the remote Step-In LED indicator
4
Switch
Connect to the remote, Step-In switch, (see Section 5.1)
5
PROG RS-232 3-pin Terminal
Block
Connect to the PC via RS-232 to perform a firmware upgrade
6
REMOTE
SELECT 8-pin
Terminal Block
LED
Connect to the anode of the remote Input Select LED indicator,
(see Section 4)
7
Switch
Connect to the remote, Input Select switch, (see Section 5.2)
8
LED HDMI,
DP, DVI and
UXGA
Connect to the anodes of the remote input indicators
(see Section 5.3)
9
OPTION 8x DIP-switch
Used to set the device behavior, (see Section 8)
10
USB POWER Connector
Provides 5V DC power to a device, (max 1.5A)
11
12V DC Power Connector
Connect to supplied power adapter, center pin positive

8
SID-X3N - Connecting the SID-X3N
5 Connecting the SID-X3N
Switch off the power to all devices before connecting them to your
SID-X3N. After connecting your SID-X3N connect the power to other
devices.

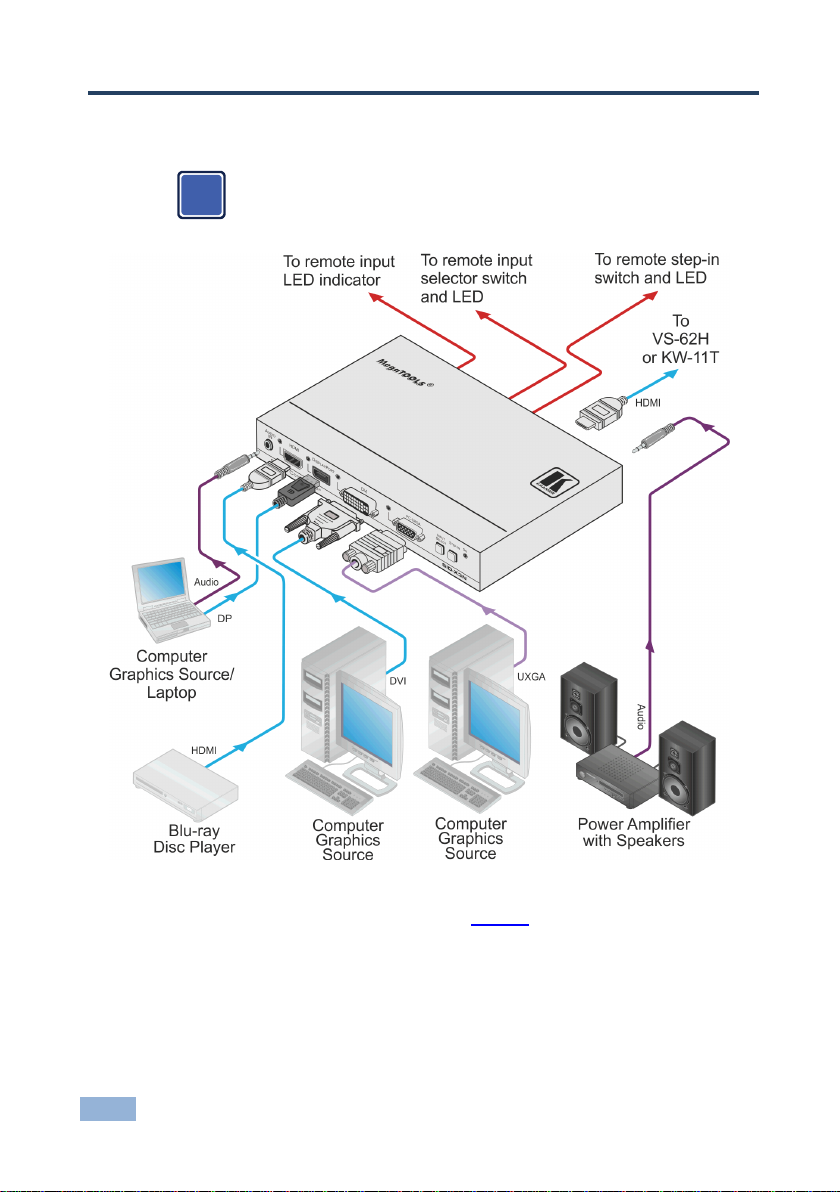

Figure 3: Connecting the SID-X3N Step-in Commander
To connect the SID-X3N as illustrated in Figure 3:
1. Connect up to four video sources, (for example, a Blu-ray disc player, a
laptop, and two computer graphics sources) to the video input connectors.
2. Connect the unbalanced stereo audio source, (for example, the audio output
of the laptop) to the AUDIO IN 3.5mm mini jack.
i

SID-X3N - Connecting the SID-X3N
9
9
3. Connect the AUDIO OUT 3.5mm mini jack to the unbalanced, stereo audio
acceptor, (for example, a power amplifier with speakers).
4. Connect the HDMI OUT connector to a compatible switcher, (for example,
VS-62H or KW-11T).
5. Connect the REMOTE STEP-IN 3-way terminal block to a contact closure
switch and LED, (see Section 5.1).
6. Connect the REMOTE SELECT 3-way terminal block to a momentary
contact closure switch and LEDs, (see Section 5.2).
7. Connect the LED ANODES 5-way terminal block to the remote input
indicator LEDs, (see Section 5.3).
8. If required, connect a device requiring a 5V DC power supply, (for example,
the KW-11T, not shown in Figure 3).
9. Connect the power adapter to the SID-X3N and to the mains power, (not
shown in Figure 3).
Note: All LED supplies include a current limiting resistor and are designed to work
with any standard LED.

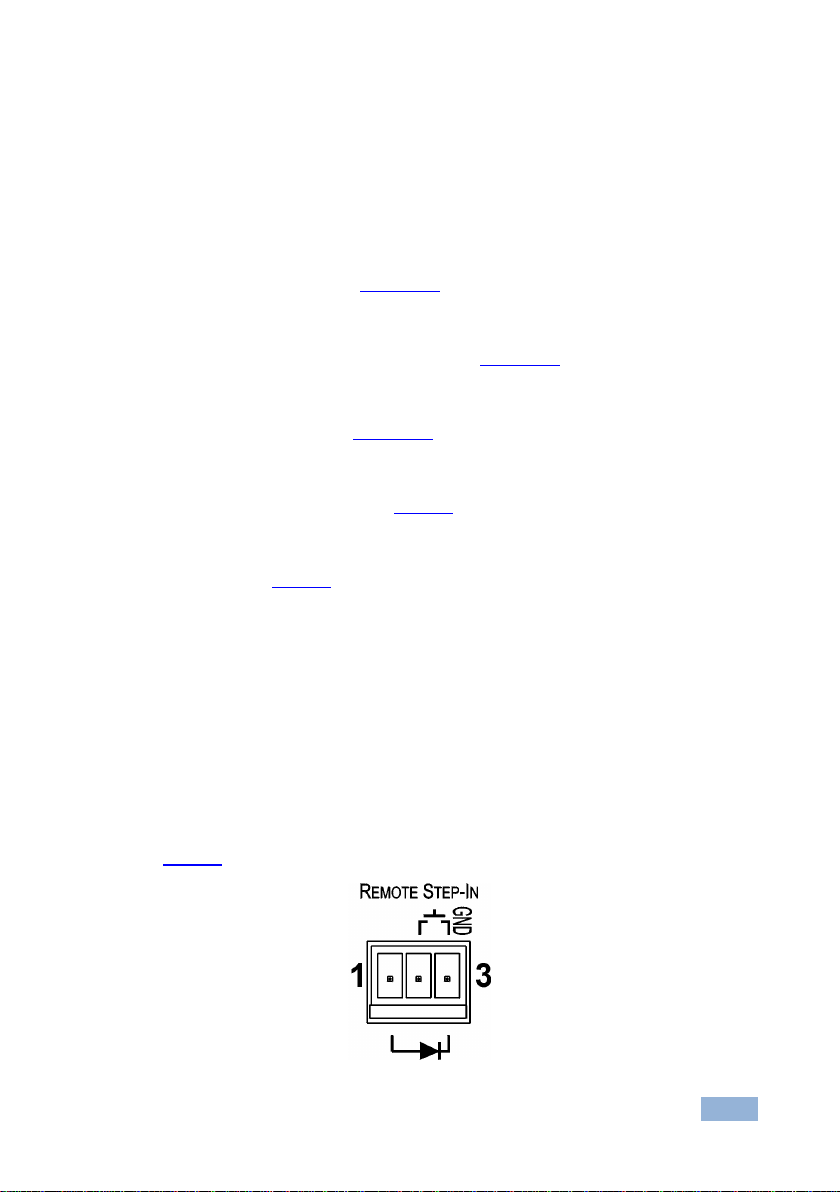

5.1 Connecting the Remote Step-In Switch and LED
You can connect a remote, contact closure step-in switch to take control of the
input of the attached switcher, as well as a remote step-in LED to the REMOTE
STEP-IN terminal block on the rear panel of the SID-X3N.
Figure 4 illustrates the connections from the terminal block to the switch and LED.
Figure 4: Remote Step-In Switch and LED Wiring

10
SID-X3N - Connecting the SID-X3N
To connect a remote step-in switch and LED as illustrated in the example in
Figure 4:
1. Connect pins 2 and 3 from the terminal block to the remote step-in switch.
2. Connect pin 1 from the terminal block to the anode of the remote step-in
LED.
3. Connect pin 3 from the terminal block to the cathode of the remote step-in
LED.
5.2 Connecting the Remote Select Switch and LED
You can connect a remote, contact closure, input selection switch to activate an
input (momentary contact is sufficient to switch inputs), as well as an indicator
LED to the terminal block on the rear panel of the SID-X3N.
Figure 5 illustrates the connections from the terminal block to the switch and LED.

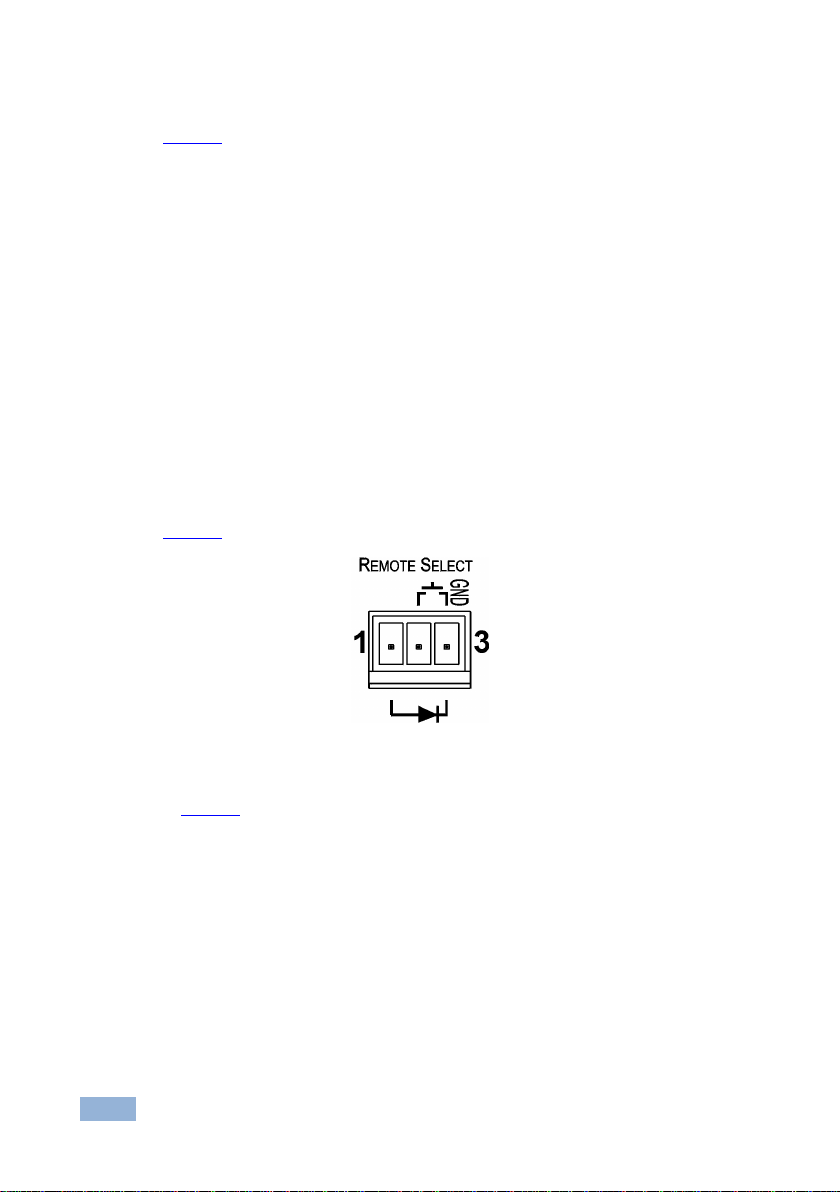

Figure 5: Remote Select Switch and LED Wiring
To connect a remote selection switch and LED as illustrated in the example
in Figure 5:
1. Connect pins 2 and 3 from the terminal block to the remote selection switch.
2. Connect pin 1 from the terminal block to the anode of the remote selection
LED.
3. Connect pin 3 from the terminal block to the cathode of the remote selection
LED.

SID-X3N - Connecting the SID-X3N
11
11
5.3 Connecting the Remote Input Selection LEDs
You can connect remote, input selection LEDS to the LED terminal block on the
rear panel of the SID-X3N to indicate which is the active input.
Figure 6 illustrates the connections from the terminal block to the LEDs.
Figure 6: Remote Input Indicator LED Connections
To connect remote input indicator LEDs:
1. Connect pin 1 from the terminal block to the anode of the remote HDMI
indicator LED.
2. Connect pin 2 from the terminal block to the anode of the remote DP
indicator LED.
3. Connect pin 3 from the terminal block to the anode of the remote DVI
indicator LED, (see the example in Figure 7).
4. Connect pin 4 from the terminal block to the anode of the remote UXGA
indicator LED.
5. Connect pin 5 from the terminal block to the cathode of each LED.
Figure 7: Remote Input Indicator LED Wiring

12
SID-X3N - Principles of Operation
6 Principles of Operation
This chapter describes the principles of operation of the SID-X3N and comprises:
Video input selection (see Section 6.1)
Audio signal control (see Section 6.2)
The SID-X3N selects video and audio inputs based on the rules described below.
6.1 Video Input Selection
The video mode selection is set by the DIP-switches (see Section 8) to either of
the following:
Manual
Last connected
In manual mode the input is selected using the front panel buttons. Only inputs
with a live signal present can be selected.
In last connected mode the SID-X3N selects the input based on which input was
connected last. If the signal on this input is subsequently lost for any reason, the
input with a live signal with the highest priority is selected automatically. The
priority from highest to lowest is:
HDMI
DisplayPort
DVI
PC
Note: In last connected mode, manually selecting an input using the front panel
Input Select button overrides the last-connected automatic selection.
When an input cable is removed, there is a delay of either 0.5 or 3 seconds,
(selectable, see Section 8.1) before automatic switching takes place. After that,
another input can be automatically selected according to the signal priority shown
above.

SID-X3N - Principles of Operation
13
13
6.2 Audio Signal Control
The Option DIP-switches 2 and 3 (see Section 8) control the manner in which
audio is handled.
The following table describes which audio signal is embedded in the output.
DIP-switch
2
DIP-switch
3
3.5mm Mini Jack
Input
Audio on Output
On/Off
On/Off
On/Off
VGA
3.5mm mini jack
Off
On/Off
Inserted
HDMI/DP/DVI
3.5mm mini jack
Not inserted
Embedded HDMI/DP/DVI
On
On/Off
Inserted/Not inserted
HDMI/DP
Embedded HDMI/DP
On
Off
Inserted/Not inserted
DVI
Embedded DVI
On
On
Inserted/Not inserted
3.5mm mini jack
6.3 Automatic Output Shutdown
The SID-X3N can disable the output (signal and 5V) when there is no signal for a
specified period in:
Manual mode—when the signal on the currently selected input is lost
Automatic mode—when there is no signal on any of the inputs
The delay period is set by the DIP-switch, (see Section 8.1). At the end of this
period, both the output signal and the power supply to other devices are disabled.
The return of an input signal on either the currently selected input (in manual
mode), or on any input (in automatic mode), immediately re-activates the output.

14
SID-X3N - Operating the SID-X3N
7 Operating the SID-X3N
This chapter describes the operating procedures of the SID-X3N and comprises:
Manually selecting an input (see Section 7.1)
Taking control of the switcher input (see Section 7.2)
Locking the EDID (see Section 7.3)
Audio mode selection (see Section 7.4)
Powering up the SID-X3N recalls the last settings (that is, the configuration of the
device when it was powered down) from the non-volatile memory.
7.1 Manually Selecting an Input
Note: When the button is lit it is inactive and pressing the button will not activate
the input
To manually select an input:
Press the INPUT SELECT button repeatedly until the required input is active
as indicated by the associated LED
Note: Only inputs that have an active signal can be selected.
Note: The manual selection overrides the video selection mode set when in last
connected mode and remains in effect until the device is power cycled.

SID-X3N - Operating the SID-X3N
15
15
7.2 Taking Control of the Switcher Input When Connected
to the VS-62H
To activate the input of the VS-62H to which the SID-X3N is connected, press the
STEP-IN button. If the VS-62H grants the SID-X3N access to the input, the STEP-
IN button lights. If the VS-62H does not grant access for some reason, the button
flashes for a few seconds and then does not light. This may be because the
VS-62H input connected to the SID-X3N has been set to have a lower priority than
the currently active input.
Note: Input priority on the VS-62H is set using the Kramer Control Software.
7.3 Locking the EDID
The currently stored EDID can be locked to prevent it from being overwritten. To
lock the current EDID, set DIP-switch 5 to ON (see Section 8).
Note: The device must be power-cycled after you change this DIP-switch.
7.4 Audio Mode Selection
Option DIP-switches 2 and 3 control the manner in which audio is handled (see
Section 8).
7.5 Adjusting the UXGA Input Phase
Adjust the phase to get a clean, sharp picture on the screen, with minimal
horizontal streaking and shimmering.
To adjust the UXGA input phase:
Press and hold the Input Select button to increase the phase repetitively by
one degree per second
Press and hold the StepIn button to decrease the phase repetitively by one
degree per second

16
SID-X3N - Configuring the SID-X3N
8 Configuring the SID-X3N
8.1 Setting the Configuration DIP-switch
The 8x dip-switch provides the ability to configure a number of device functions. A
switch that is down is on, a switch that is up is off. By default, switch 2 is down
(on), all the other switches are up (off).

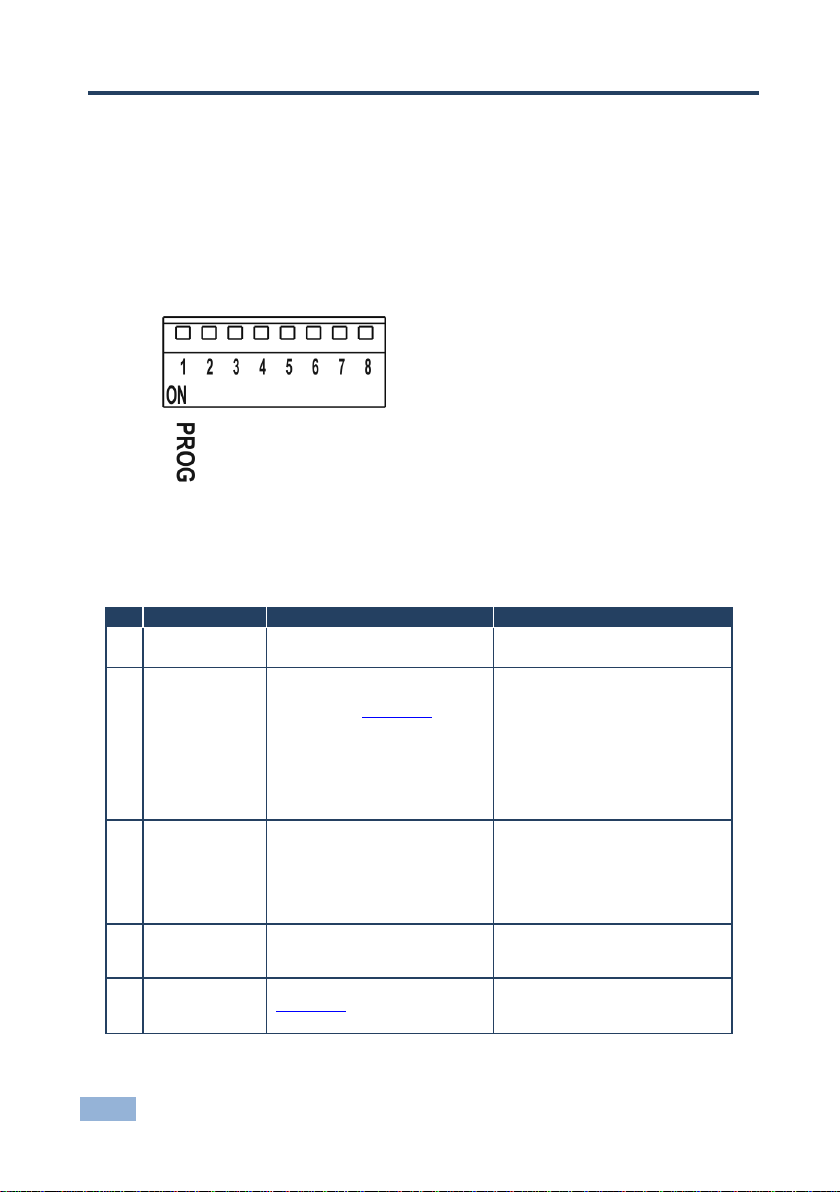

Figure 8: The Configuration DIP-switch
Note: You must power cycle the device if you make any changes to the
DIP-switch.
#
Feature
Function
DIP-switch
1
Program
Enables firmware updates
On—Enable updating
Off—Disable updating
2
General Audio
Control
Selects whether the analog
audio is embedded in the
outputs, (see Section 6.2)
On—Use embedded audio for
HDMI and DP; the audio selection
for DVI is selected by DIP-switch 3
Off—The HDMI, DVI and DP
inputs use the analog audio signal
if a 3.5mm audio jack is inserted
into the analog audio input. If no
jack is inserted, they use their
embedded audio signals
3
DVI Audio
Control
(active only
when DIP-
switch 2 is on)
Selects whether the analog
audio is embedded in the DVI
signal
On—When switch #2 is on, the
analog audio signal is used with
the DVI input
Off—When switch #2 is off, the
embedded audio signal is used in
the DVI input
4
Video Mode
Input Selection
Sets the video input selection
mode to either last connected or
manual
On—Last connected
Off—Manual
5
Lock EDID
Locks the current EDID, (see
Section 7.3)
On—Locked EDID
Off—Automatic EDID selection
