USER MANUAL



Model:
VM-1045
Video Component Distributor

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 1
3 Overview 3
4 Your VM-1045 Video Component Distributor 3
5 Installing the VM-1045 on a Rack 6
6 Connecting a VM-1045 Video Component Distributor 7
7 Configuring the VM-1045 Video Component Distributor 9
7.1 Configuring a 2x1:5 s-Video (Y/C) DA 9
7.2 Configuring a 4x1:5 Composite Video DA 9
7.3 Configuring a 1:20 composite video DA 10
7.4 Configuring a 1:10 s-Video (Y/C) DA 10
8 Technical Specifications 11
Figures
Figure 1: VM-1045 Video Component Distributor – Front and Rear View 4
Figure 2: Underside of the VM-1045 Video Component Distributor 4
Figure 3: Connecting a VM-1045 Video Component Distributor 8
Figure 4: Configuring as a 2x1:5 s-Video (Y/C) DA 9
Figure 5: Configuring as a 4x1:5 Composite Video DA Configuration 9
Figure 6: Configuring as a 1:20 Composite Video DA 10
Figure 7: Configuring as a 1:10 s-Video DA 10
Tables
Table 1: VM-1045 Video Component Distributor Features 5
Table 2: Underside Features of the VM-1045 Video Component Distributor 5
Table 3: Technical Specifications of the VM-1045 Video Component Distributor 11

Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
500-plus different models now appear in 8 Groups
1
, which are clearly defined
by function.
Congratulations on purchasing your Kramer VM-1045 Video Component
Distributor.
The VM-1045 is ideal for:
Computer and workstation RGBS distribution
Video duplication studios, delivering undiminished quality video
duplicates
Broadcast component signal distribution
Each package includes the following items:
VM-1045 Video Component Distributor
This user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
3
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2

Overview
3
3 Overview
The Kramer VM-1045 is a high performance distribution amplifier for
component video signals. The unit has four channels. Each channel includes
seven BNC connectors: an input, a looping output, and five outputs.
The VM-1045 can be configured as a 1x1:5 component RGB/S DA, a 2x1:5
s-Video (Y/C) DA or as a 4x1:5 composite video DA.
The channels can be interconnected via the looping outputs to form larger
configurations. Also, several VM-1045 machines can be cascaded via the
looping outputs.
In particular, the VM-1045:
Has a bandwidth of over 415MHz, ensuring transparent video
performance and supporting SDI signals (for example, a 4x1:5 SDI DA)
Features independent input signal termination, as well as level and EQ.
controls per channel
Achieving the best performance means:
Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and
elevated noise levels (often associated with low quality cables)
Avoiding interference from neighboring electrical appliances and
positioning your VM-1045 away from moisture, excessive sunlight and
dust
4 Your VM-1045 Video Component Distributor
Figure 1, Figure 2, Table 1 and Table 2 define the VM-1045:

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VM-1045 Video Component Distributor
4
Figure 1: VM-1045 Video Component Distributor – Front and Rear View
Figure 2: Underside of the VM-1045 Video Component Distributor

Your VM-1045 Video Component Distributor
5
Table 1: VM-1045 Video Component Distributor Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 INPUT BNC Connector Connects to the video source (from CHANNEL A to CHANNEL D)
3 TERM 75
 / Hi-Z Button
1
Press to select 75, release to select Hi-Z
2
4 LOOP BNC Connector Connect to an additional unit
5 OUT BNC Connector Connect to the video acceptor (from OUT 1 to OUT 5 on each channel)
6 Power Connector with Fuse AC connector enabling power supply to the unit
Table 2: Underside Features of the VM-1045 Video Component Distributor
# Feature Function
1 LEVEL Trimmer
1
Adjusts
3
the video output level
2 EQ. Trimmer
1
Adjusts
3
the video EQ. (equalization) compensation of the output
1 Independent controls per channel (from A to D)
2 For looping select Hi-Z
3 Insert a screwdriver into the small hole and carefully rotate it to adjust the level

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Installing the VM-1045 on a Rack
6
5 Installing the VM-1045 on a Rack
This section describes what to do before installing on a rack and how to rack
mount.
Before installing on a rack, be sure that the environment is
within the recommended range:
Operating temperature range +5 to +45 Deg. Centigrade
5 to 65% RHL, non-condensing
-20 to +70 Deg. Centigrade
5 to 95% RHL, non-condensing
Operating humidity range
Storage temperature range
Storage humidity range
When installing on a 19" rack, avoid hazards by taking
care that:
It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the
room ambient temperature.

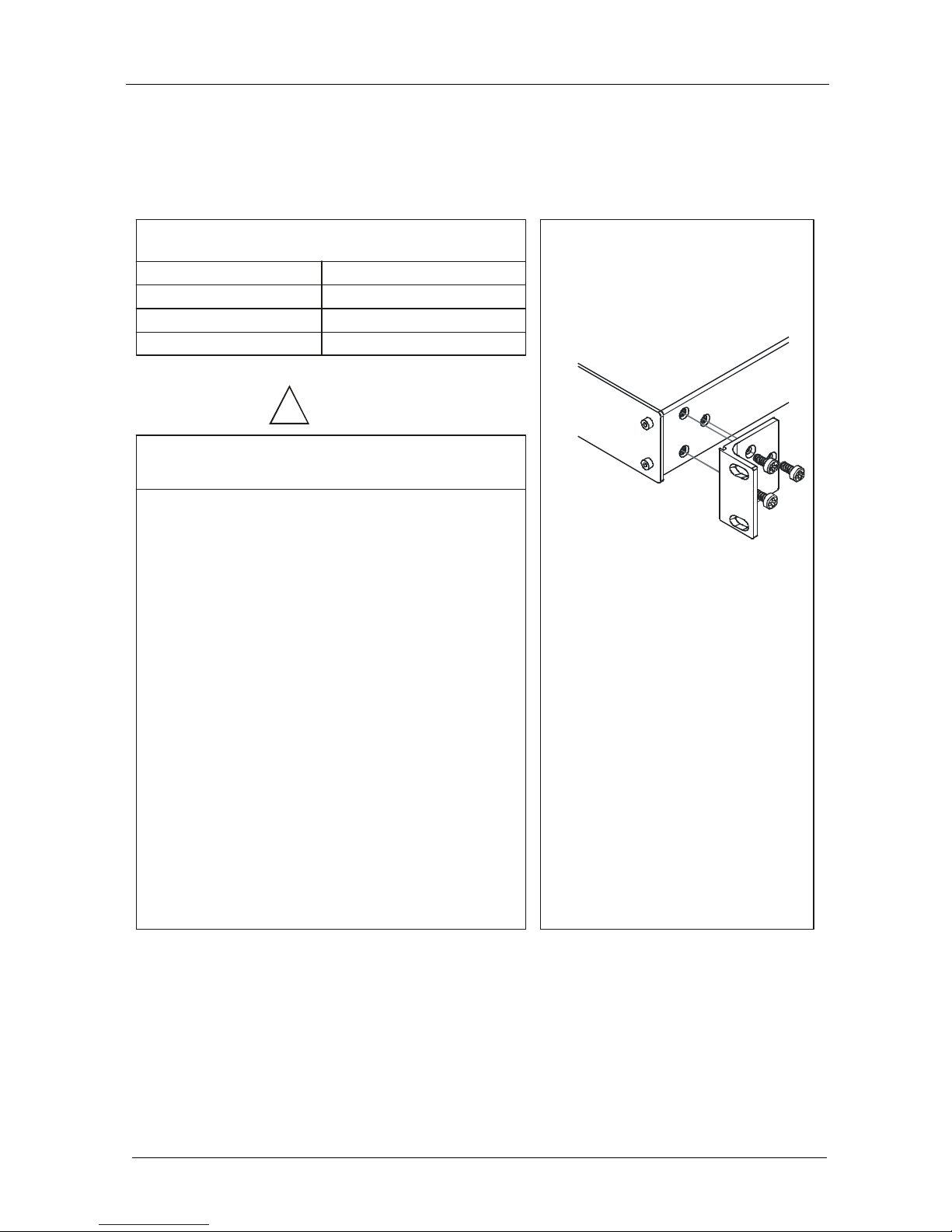

Attach both ear brackets to the
machine. To do so, remove the
screws from each side of the machine
(3 on each side), and replace those
screws through the ear brackets.
Place the ears of the machine
against the rack rails, and insert the
proper screws (not provided) through
each of the four holes in the rack
ears.
Note that:
Detachable rack ears can be removed
for desktop use
Always mount the machine in the rack
before you attach any cables or
connect the machine to the power
If you are using a Kramer rack adapter
kit (for a machine that is not 19"), see
the Rack Adapters user manual for
installation instructions (you can
download it at:
http://www.kramerelectronics.com)




In some models, the front panel
may feature built-in rack ears
Once rack mounted, enough air will still flow around the
machine.
The machine is placed straight in the correct horizontal
position.
You do not overload the circuit(s). When connecting
the machine to the supply circuit, overloading the
circuits might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for
fuse replacement, see the value printed on the product
label.
The machine is earthed (grounded) in a reliable way
and is connected only to an electricity socket with
grounding. Pay particular attention
and that you use only the power cord that is
supplied with the machine.
to situations where
electricity is supplied indirectly (when the power cord is
not plugged directly into the socket in the wall), for
example, when using an extension cable or a power
strip,

CAUTION!!
Before Installing on a Rack
How to Rack Mount
To rack-mount a machine:
1
1
2
2
3
4
5

Connecting a VM-1045 Video Component Distributor
7
6 Connecting a VM-1045 Video Component Distributor
To connect the VM-1045 as illustrated in the example in Figure 3, do the
following
1
:
1. Connect a component video source (for example, an RGBS camera) to
the INPUT connectors.
2. Connect the LOOP BNC connectors (from channel A to channel D) to
the INPUT BNC connectors
2
on the next VM-1045 machine.
3. Connect the OUT 1 connectors of each channel
3
to the acceptor (for
example, RGBS display 1).
4. Connect the OUT 5 connectors of each channel
3
to the acceptor (for
example, RGBS display 5).
5. Connect the power cord
4
(not shown in this illustration).
6. If required, on the machine underside, for each channel, adjust the:
EQ.
LEVEL
1 Switch OFF the power on each device before connecting it to your VM-1045. After connecting your VM-1045, switch on
its power and then switch on the power on each device. Switching on the VM-1045, recalls the previous setup from the non-
volatile memory
2 On each channel
3 You do not need to connect all the outputs
4 We recommend that you use only the power cord that is supplied with this machine

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting a VM-1045 Video Component Distributor
8

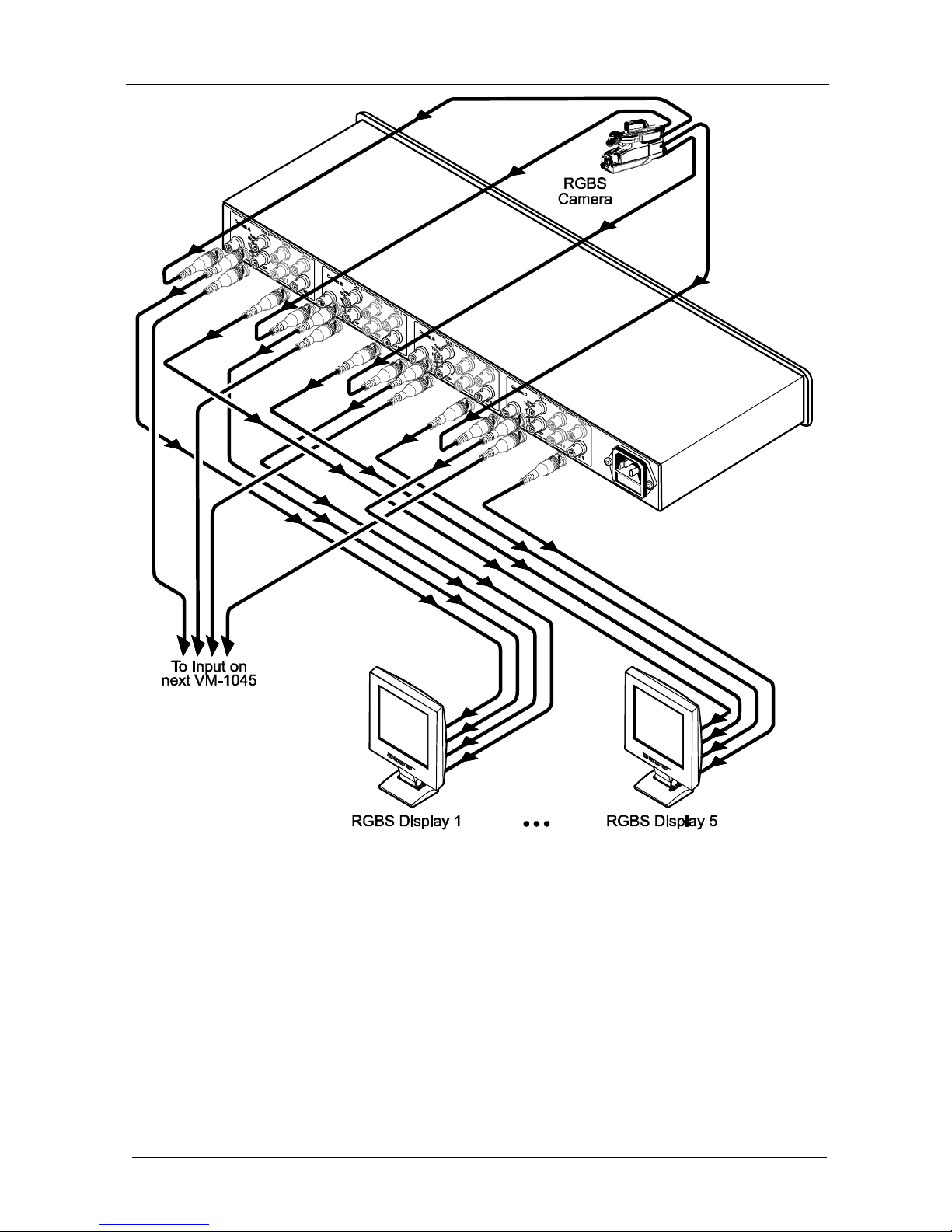

Figure 3: Connecting a VM-1045 Video Component Distributor

Configuring the VM-1045 Video Component Distributor
9
7 Configuring the VM-1045 Video Component Distributor
You can configure the VM-1045 in several different ways, including, as a:
2x1:5 s-Video DA (see section 7.1)
4x1:5 composite video DA (see section 7.2)
The channels can be interconnected via the looping outputs to form larger
configurations, for example a:
1:20 composite video DA (see section 7.3) or a 2x1:10 composite video DA
1:10 s-Video DA (see section 7.4)
7.1 Configuring a 2x1:5 s-Video (Y/C) DA
You can configure the VM-1045 as a 2x1:5 s-Video (Y/C) DA (see Figure 4):
Y
Y
C
C
s-Video
Source
s-Video
Source
s-Video Display 5s-Video Display 1
...
s-Video Display 5
s-Video Display 1
...
Figure 4: Configuring as a 2x1:5 s-Video (Y/C) DA
7.2 Configuring a 4x1:5 Composite Video DA
You can configure the VM-1045 as a 4x1:5 composite video DA. The
illustration in Figure 5 shows how to configure each channel:
Composite Video
Source
Composite Video
Display 5
Composite Video
Display 1
...
Figure 5: Configuring as a 4x1:5 Composite Video DA Configuration

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Configuring the VM-1045 Video Component Distributor
10

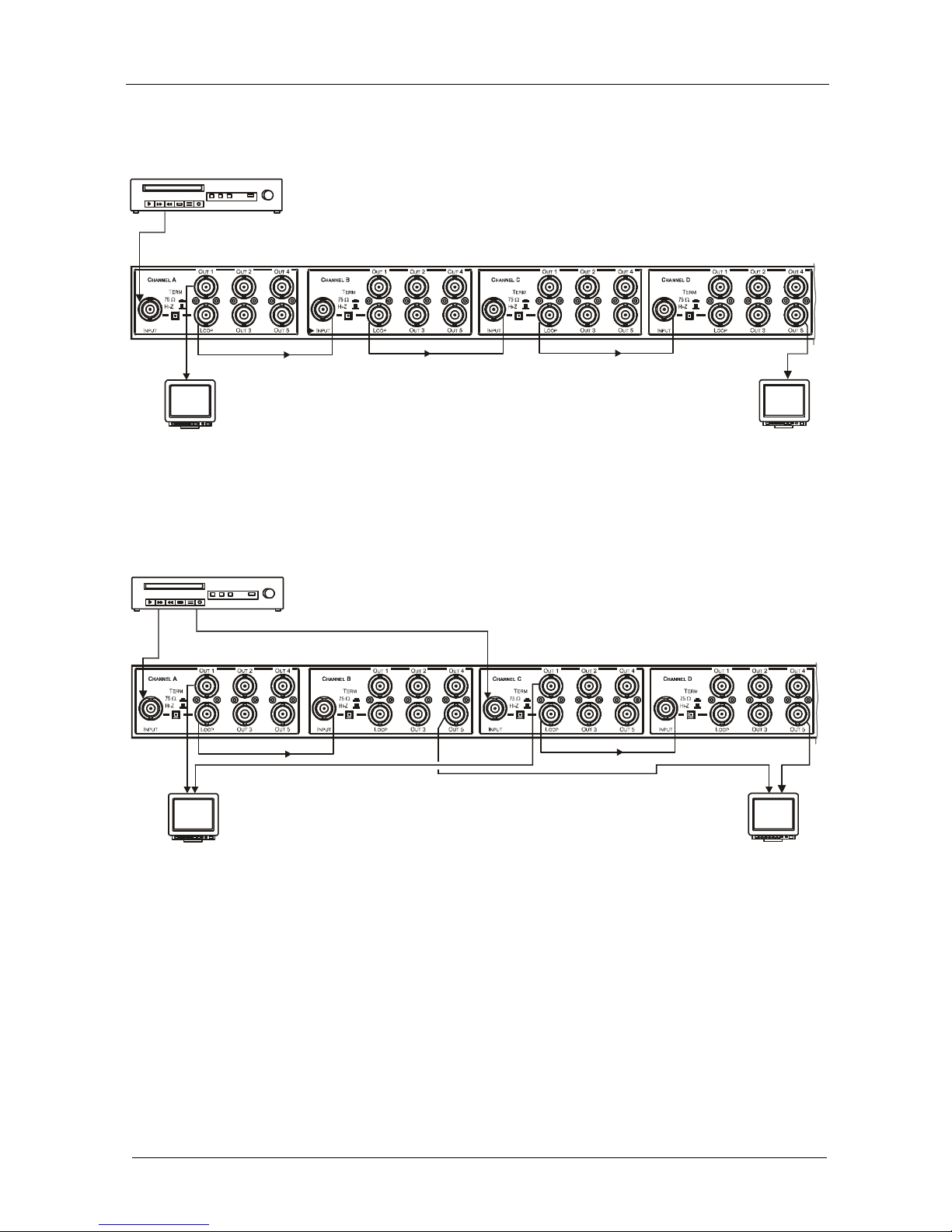

7.3 Configuring a 1:20 composite video DA
Figure 6 illustrates the VM-1045 as a 1:20 composite video DA:
Composite Video
Source
Composite Video
Display 20
Composite Video
Display 1
...
Figure 6: Configuring as a 1:20 Composite Video DA
7.4 Configuring a 1:10 s-Video (Y/C) DA
Figure 7 illustrates the VM-1045 as a 1:10 s-Video DA:
Y
C
Y
C
s-Video
Source
s-Video Display 10
s-Video Display 1
...
Figure 7: Configuring as a 1:10 s-Video DA

Technical Specifications
11
8 Technical Specifications
Table 3 includes the technical specifications:
Table 3: Technical Specifications
1
of the VM-1045 Video Component Distributor
INPUTS: 4 x 1 video inputs, 1Vpp/75 on BNC connectors with loop
OUTPUTS: 4 x 5 video outputs, 1Vpp/75on BNC connectors
MAX. OUTPUT LEVEL: 2.7Vpp
BANDWIDTH (-3dB): 415MHz
DIFF. GAIN: 0.03%
DIFF. PHASE: 0.03 Deg.
K-FACTOR: <0.05%
S/N RATIO: 73dB, 5MHz
CROSSTALK (all hostile): -58dB
CONTROLS: Level: –2dB to +6.1dB; EQ.: 0dB to 9dB@50MHz
COUPLING: DC
POWER SOURCE: 90-240V AC, 50/60Hz, 2VA
DIMENSIONS: 19-inch (W), 7-inch (D) 1U (H) rack-mountable
WEIGHT: 2.6kg (8lbs.) approx
ACCESSORIES: Power cord
1 Specifications are subject to change without notice

KRAMER: SIMPLE CREATIVE TECHNOLOGY
12
LIMITED WARRANTY
WHO IS PROTECTED?
WHAT IS COVERED AND WHAT IS NOT COVERED
WHAT WE WILL PAY FOR AND WHAT WE WILLNOT PAY FOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OF IMPLIED WARRANTIES
EXCLUSION OF DAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
Kramer
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items. We will not payfor the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and lightindustry environment".
CFR-47: FCC Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
1. Removal or installationscharges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to other property caused by defects inthis product, damages basedupon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
NOTE:
Part 1:

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N: 2900-000280 REV 1
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
