VM-80VN Quick Start
P/N:
2900- 301263QS
Rev:
3
Scan for full manual
VM-80VN Quick Start Guide
This guide helps you install and use your VM-80VN for the first time.
Go to www.kramerav.com/downloads/VM-80VN to download the latest user manual and check if firmware
upgrades are available.
Step 1: Check what’s in the box
VM-80VN 1:8 Video Distributor
4 Rubber feet
1 Power supply (12V DC)
1 Quick start guide
Step 2: Get to know your VM-80VN
This section defines the VM-80VN.
#
Feature
Function
1
POWER LED
Illuminates when the device is powered on
2
CH2 ADJ HF Trimmer
Adjusts the CH2 cable compensation equalization level
3
CH2 ADJ Level Trimmer
Adjusts the CH2 video gain level
4
CH1 ADJ HF Trimmer
Adjusts the CH1 cable compensation equalization level
5
CH1 ADJ Level Trimmer
Adjusts the CH1 video gain level
6
CH 1 IN BNC Connector
Connects to the CH1 video source
7
CH 1 IN 75ΩPushbutton
Press in for CH1 75Ω termination, release for no termination
8
1:8 Pushbutton
Press in for 1:8 operation, release for 1:4 operation
9
CH 2 IN BNC Connector
Connects to the CH2 video source
10
CH 2 IN 75 ΩPushbutton
Press in for CH2 75Ω termination, release for no termination
11
CH 1 OUT BNC Connector
Connects to the CH1 video acceptor(s) (from 1 to 4)
12
CH 2 OUT BNC Connector
Connects to the CH2 video acceptor(s) (from 1 to 4)
13
12V DC Connector
Connector for attaching the 12V DC power supply

Step 3: Mount VM-80VN
Install VM-80VN using one of the following methods:
•Attach the rubber feet and place the unit on a flat surface.
•Mount the unit in a rack using the recommended rack adapter (see www.kramerav.com/product/VM-80VN).
•Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.
•Avoid uneven mechanical loading.
•Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.
•Reliable earthing of rack-mounted equipment should be maintained.

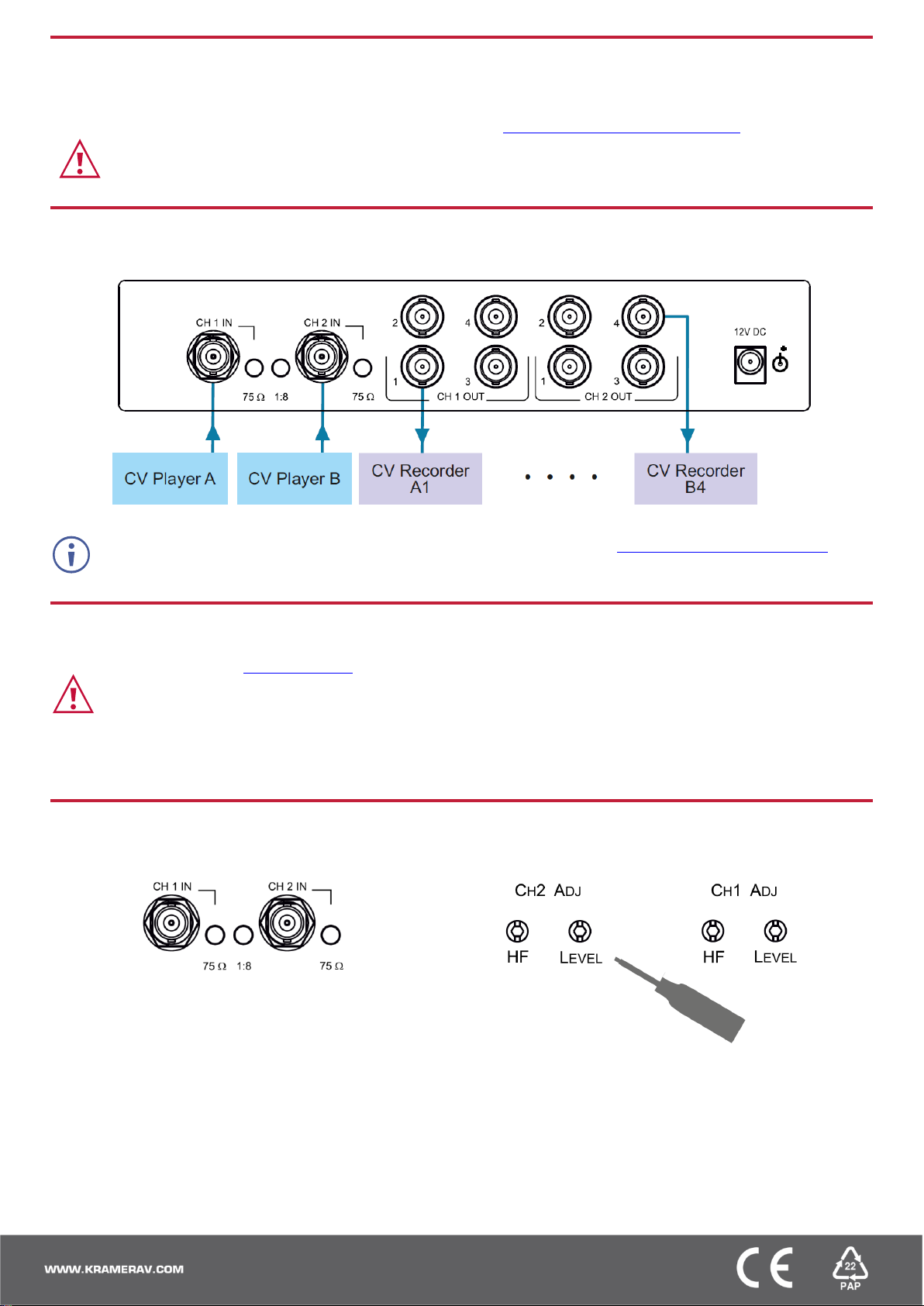

Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your VM-80VN.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-80VN.
Using third-party cables may cause damage!
Step 5: Connect power
Connect the 12V DC power adapter to VM-80VN and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
•For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the
terminal or in the User Manual.
•There are no operator serviceable parts inside the unit.
Warning:
•Use only the power cord that is supplied with the unit.
•Disconnect the power and unplug the unit from the wall before installing.
Step 6: Operate VM-80VN
For 1:8 operation, press the 1:8 button
Using a small screwdriver, adjust the HF (EQ) or Level
(Gain) potentiometers per channel
For looping, press the 75Ω button
