USER MANUAL
Models:
VP-420, PC/HD Scaler
VP-421, PC/HD Scaler

Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1 Quick Start 2
3Overview 3
4Your PC/HD Scaler 4
4.1 Your VP-420 PC/HD Scaler 4
4.2 Your VP-421 PC/HD Scaler 5
5Connecting the VP-420/VP-421 PC/HD Scaler 6
6Operating the VP-420/VP-421 7
6.1 Using the Front Panel Buttons 7
6.2 Using the OSD 8
6.2.1 Using the Front Panel Buttons 8
6.2.2 The MAIN MENU 9
6.2.3 The “OUTPUT” Submenu 9
6.2.4 The “OSD” Submenu 10
7Technical Specifications 10
Figures
Figure 1: VP-420 PC/HD Scaler – Front and Rear View 4
Figure 2: VP-421 PC/HD Scaler – Front and Rear View 5
Figure 3: Connecting the VP-420 PC/HD Scaler 7
Tables
Table 1: VP-420 PC/HD Scaler Front Panel Features 5
Table 2: VP-421 PC/HD Scaler Front Panel Features 6
Table 3: 15-pin HD PINOUT for HD 6
Table 4: The MAIN MENU Parameters and Functions 9
Table 5: The “OUTPUT” Submenu – Available Resolutions 9
Table 6: The “OSD” Submenu – Available Adjustments 10
Table 7: Technical Specifications of the VP-420/VP-421 PC/HD Scaler 10

Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1
Thank you for purchasing your Kramer VP-420 or VP-421 PC/HD Scaler.
These products are ideal for:
that are clearly
defined by function.
•Projection systems in conference rooms, boardrooms, hotels and
churches
•Home theater up-scaling
The package includes the following items:
•VP-420 or VP-421 PC/HD Scaler
•Power adapter (5V DC input)
•This user manual2
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high-performance high-resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from the Internet at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start

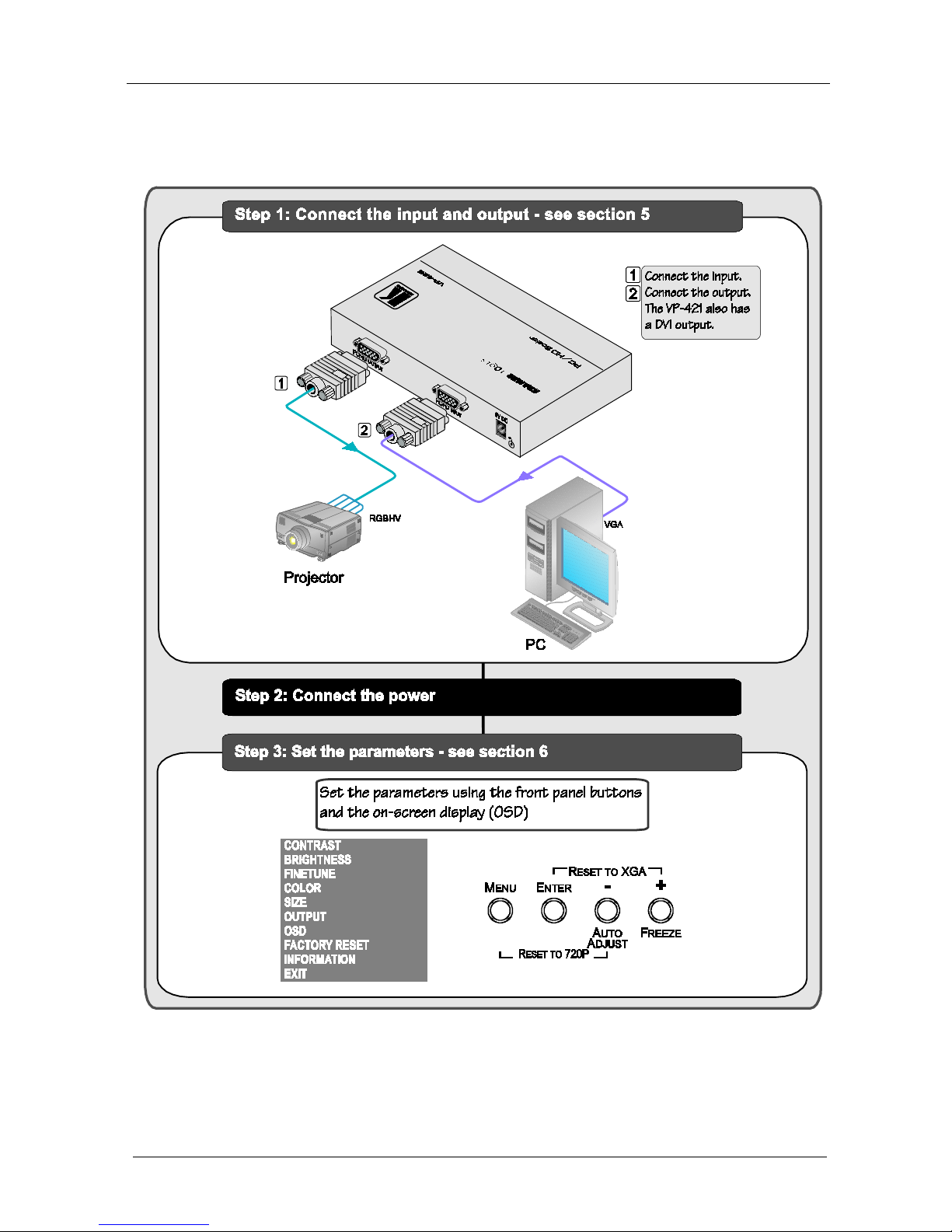

This quick start chart summarizes the basic setup and operation steps.

Overview
3
3
3 Overview
The Kramer VP-420/VP-421 PC/HD Scaler is a high-performance digital
scaler for computer graphics and HDTV signals. It up- or down-scales
computer graphics and HDTV signals to resolutions up to WUXGA and
1080p. The following output resolutions are supported:
PC: VGA, SVGA, XGA, 1280x800, SXGA, UXGA, WXGA, SXGA+,
WXGA+, WSXGA, WUXGA, COMPONENT: 480p, 576p, 720p
@50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz.
The VP-420/VP-421 PC/HD Scaler also features:
•An On-Screen Display (OSD) for easy setup and adjustment, accessible
via the front-panel buttons
•A built-in ProcAmp for convenient signal adjustment
•A non-volatile memory that retains the last settings used
•Quick auto-adjust
•Freeze button
•RGBHV or component video input and/or output
The machine is fed from an external 5V DC source, making it suitable for
field operation.
Operate your VP-420/VP-421 directly via the front panel push buttons and
the on-screen display (OSD).
To achieve the best performance:
•Use only good quality connection cables1
•Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer
VP-420/VP-421 away from moisture, excessive sunlight and dust
to avoid interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your PC/HD Scaler
4
4 Your PC/HD Scaler
For a description of the:
•VP-420 PC/HD Scaler, see section 4.1
•VP-421 PC/HD Scaler, see section 4.2
4.1 Your VP-420 PC/HD Scaler
Figure 1and Table 1define the VP-420 PC/HD Scaler:
Figure 1: VP-420 PC/HD Scaler – Front and Rear View

Your PC/HD Scaler
5
5
Table 1: VP-420 PC/HD Scaler Front Panel Features
#
Feature
Function
1 PC/HD OUTPUT 15-pin HD
connector
Connects to computer graphics or HDTV acceptor
2 PC/HD INPUT 15-pin HD connector Connects to computer graphics or HDTV source
3 5V DC +5V DC connector for powering the unit
4 ON LED Lights when the unit is powered on
5 COMPONENT OUT LED Lights when component video is output
6 MENU button Press to enter/escape the on-screen display (OSD) menu.
Press together with the – button to reset to 720p
7 ENTER button In OSD, press to choose the highlighted menu item.
Press together with the + button to reset to XGA
8 – /AUTO ADJUST button In OSD, press to move backward through the list or to
decrement the parameter value. When not in OSD, press to
automatically adjust the picture to fit the display
9 +/FREEZE button In OSD, press to move forward through the list or to
increment the parameter value. When not in OSD, press to
freeze the display
4.2 Your VP-421 PC/HD Scaler
Figure 2and Table 2define the VP-421 PC/HD Scaler:
Figure 2: VP-421 PC/HD Scaler – Front and Rear View

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-420/VP-421 PC/HD Scaler
6
Table 2: VP-421 PC/HD Scaler Front Panel Features
#
Feature
Function
1 PC/HD OUTPUT 15-pin HD
connector
Connects to computer graphics or HDTV acceptor
2 DVI OUTPUT DVI connector Connects to DVI acceptor
3 PC/HD INPUT 15-pin HD connector Connects to computer graphics or HDTV source
4 5V DC +5V DC connector for powering the unit
5 ON LED Lights when the unit is powered on
6 COMPONENT OUT LED Lights when component video is output
7 MENU button Press to view the on-screen display (OSD) menu.
Press together with the – button to reset the display to 720p
resolution
8 ENTER button In OSD, press to choose the highlighted menu item.
Press together with the + button to reset to XGA
9 – /AUTO ADJUST button In OSD, press to move backward through the list or to
decrement the parameter value. When not in OSD, press to
automatically adjust the picture to fit the display
10 +/FREEZE button In OSD, press to move forward through the list or to
increment the parameter value. When not in OSD, press to
freeze the display
5 Connecting the VP-420/VP-421 PC/HD Scaler
To connect your VP-420/VP-421, as illustrated in the example in Figure 3
do the following:
1. Connect a computer graphics or HDTV source to the PC/HD INPUT
15-pin HD connector.
2. Connect to the PC/HD OUTPUT 15-pin HD connector to a computer
graphics or HDTV acceptor as follows:
When connecting to an XGA acceptor (RGBHV), then connect to
the acceptor’s XGA connector
When connecting to a component acceptor (YPbPr), then connect
as shown in Table 3
Table 3: 15-pin HD PINOUT for HD
PIN #
Signal
1 Pr
2 Y
3 Pb
6, 7, 8 Ground
3. If connecting a VP-421, connect the DVI OUTPUT to a DVI acceptor1
4. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in
.
Figure 3).
1 The VP-421 outputs on both the 15-pin HD connector and the DVI connector. You can connect to either output or to both of
them simultaneously

Operating the VP-420/VP-421
7
7
Figure 3: Connecting the VP-420 PC/HD Scaler
6 Operating the VP-420/VP-421
The VP-420/VP-421 is operated directly via the front panel buttons, and via
the OSD menu (see section 6.2).
6.1 Using the Front Panel Buttons
During normal operation (without the OSD), the front panel buttons
perform the following functions:
•Pressing MENU opens the on-screen display (OSD) main menu (see
section 6.2), the next press closes the OSD
•Pressing +/FREEZE freezes the display, the next press unfreezes the
display
•Pressing – /AUTO ADJUST automatically centers the display
•Pressing MENU and –/AUTO ADJUST together resets the display to
720p and the COMPONENT OUT LED lights
•Pressing +/FREEZE and ENTER together resets the display to XGA
and the COMPONENT OUT LED turns off

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the VP-420/VP-421
8
6.2 Using the OSD
You can use the OSD to set a wide variety of parameters. When the MENU
button is pressed, the main menu opens allowing access to all the device
settings (see Table 4).
When setting FINETUNE, COLOR, SIZE, OUTPUT (see Table 5), and
OSD (see Table 6) a submenu opens with the applicable parameters.
6.2.1 Using the Front Panel Buttons
While the OSD is open, the front panel buttons perform the following
functions:
•Pressing + and – move forward and backward through the menu items
and increment or decrement the parameter values
•Pressing ENTER selects and activates a menu item or accepts the
parameter value set
•Pressing MENU closes the OSD menu1
As an example of setting parameters, to increase the contrast on the display:
1. From normal operation, press MENU.
The OSD main menu appears on the screen.
2. Press the + or – button to highlight CONTRAST.
CONTRAST changes to green when highlighted.
3. Press ENTER.
The contrast value parameter changes to red.
4. Press the + button to increase the value (increase the contrast) or
the – button to decrease the value (decrease the contrast).
The value ranges from 0 to 100.
5. Press ENTER to set the value.
The contrast value parameter changes back to white.
6. To return to normal operation, highlight EXIT and press ENTER, press
MENU, or wait until the menu times out.
1 The menu times out by default after 10 seconds. To change the OSD display time, adjust the OSD/TIMER parameter

Operating the VP-420/VP-421
9
9
6.2.2 The MAIN MENU
Table 4defines the MAIN MENU parameters and functions.
Table 4: The MAIN MENU Parameters and Functions
Parameter
Function
CONTRAST Adjusts the contrast
BRIGHTNESS Adjusts the brightness
FINETUNE Adjusts the other ProcAmp parameters, for example, hue, sharpness, noise reduction,
and so on
COLOR Adjusts the color of the display – RED, GREEN, BLUE
SIZE Select the size of the display: LETTER BOX, PANSCAN, FULL, OVERSCAN, and two
underscan settings: UNDER 1 and UNDER 2
OUTPUT Sets the output resolution (see Table 5)
OSD Adjusts parameters of the on-screen display (see Table 6)
FACTORY RESET Resets the device to its factory default parameters and automatically senses the input
and output devices
INFORMATION Displays the source, input and output resolutions and the software version
EXIT Select to exit the OSD
6.2.3 The “OUTPUT” Submenu
The “OUTPUT” submenu allows you to choose the output resolution sent to
the display. Each press of the + or – button cycles through the list of
resolutions.
Table 5defines the resolutions available on the “OUTPUT” submenu and
how they appear on the display.
Table 5: The “OUTPUT” Submenu – Available Resolutions
Parameter
Appears As
Parameter
Appears As
VGA 640x480 WUXGA 1920x1200
SVGA 800x600 480P 480p
XGA 1024x768 576P 576p
1280x800 1280x800 720P50 720p @50Hz
SXGA 1280x1024 720P60 720p @60Hz
UXGA 1600x1200 1080P50 1080p @50Hz
WXGA 1366x768 1080P60 1080p @60Hz
SXGA+ 1400x1050 1080p (RGBHV)
1
1920x1080
WXGA+ 1440x900 1080I50 1080i @50Hz
WSXGA 1680x1050 1080I60 1080i @60Hz
1 1080p (RGBHV) appears in the Menu as 1080PRGB

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
10
6.2.4 The “OSD” Submenu
The “OSD” submenu allows you to adjust the location of the OSD, the
length of time it is displayed, and the darkness of its background (see
Table 6).
Table 6: The “OSD” Submenu – Available Adjustments
Parameter
Function
Range
Default
H-POSITION Adjusts the horizontal position of the OSD on the screen 0–100 50
V-POSITION Adjusts the vertical position of the OSD on the screen 0–100 50
TIMER Adjusts the length of time in seconds the OSD appears on the screen 0–100 10
BACKGROUND Adjusts the shade of the OSD background from black to transparent 0–8 4
EXIT Select to exit to the Main Menu
7 Technical Specifications
Table 7: Technical Specifications1
INPUTS:
of the VP-420/VP-421 PC/HD Scaler
1 PC/HD on a 15-pin HD connector, RGBHV/YPbPr
OUTPUT: 1 PC/HD on a 15-pin HD connector, RGBHV/YPbPr
1 DVI on a DVI connector (VP-421 only)
OUTPUT RESOLUTIONS
2
PC: VGA, SVGA, XGA, 1280x800, SXGA, UXGA, WXGA, SXGA+,
WXGA+, WSXGA, WUXGA, COMPONENT: 480p, 576p, 720p @50/60Hz,
1080i @50/60Hz, 1080p @50/60Hz
:
OUTPUT REFRESH RATE: 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
PROCESSING DELAY: 3 frames
CONTROLS: Front panel buttons, ON and COMPONENT OUTPUT LEDs
POWER SOURCE: VP-420: 5V DC, 800mA; VP-421: 5V DC, 1A
DIMENSIONS: 19cm x 13.5cm x 2.5cm (7.5” x 5.3” x 0.98”) W, D, H
WEIGHT: 0.66kg (1.45lbs) approx.
ACCESSORIES: Power supply
OPTIONS: 19" rack adapter
1 Specifications are subject to change without notice
2 All resolutions are outputted @ 60Hz, except where noted

11
11
LIMITED WARRANTY
WHOIS PROTECTED?
WHATIS COVEREDAND WHATIS NOTCOVERED
WHAT W E WIL L PAY FO R AND W HAT W E WIL L NO T PAY F OR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATIONOFIMPLIEDWARRANTIES
EXCLUSIONOFDAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
Kramer
HOW LONGIS THE WARRANTY
Labor and parts are warranted for three years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expensesfor covered items. We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
This warranty gives youspecific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval.Thismay be obtained from your dealer.
This equipment has been tested todetermine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other actsof nature
ii) Product modification,or failureto followinstructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented tothe carrier)
v) Removal or installationof the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessoriesused inconjunctionwiththe product
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to otherproperty caused by defects inthis product, damages based upon inconvenience, loss ofuse of the product, loss
of time, commercialloss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations andexclusions may not apply toyou.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
IF reattached, removed or otherwise interfered with.
* FCC and CE approvedusingSTPcable (for twistedpair products)
NOTE:
Part 1:

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [e-mail]
P/N: 2900-000506 REV 4
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
