Kramer TP-125xl User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODELS:
TP-125xl
UXGA/Audio/Data Line
Transmitter
TP-126xl
UXGA/Audio/Data Line
Receiver
P/N: 2900-300206 Rev 1

TP-125xl/TP-126xl – Contents i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Shielded Twisted Pair/Unshielded Twisted Pair 3
2.4 Recycling Kramer Products 3
3Overview 4
4Defining the TP-125xl/TP-126xl Line Transmitter and Receiver 5
4.1 Defining the TP-125xl UXGA/Audio/Data Line Transmitter 6
4.2 Defining the TP-126xl UXGA/Audio/Data Line Receiver 7
5Connecting the TP-125xl and TP-126xl 8
6Operating the TP-125xl and TP-126xl 10
6.1 Capturing the EDID 10
6.2 Adjusting the Level and Equalization on the TP-126xl 10
7Wiring the Twisted Pair RJ-45 Connectors 11
8Technical Specifications 12
Figures
Figure 1: TP-125xl UXGA/Audio/Data Line Transmitter Front Panel 6
Figure 2: TP-125xl UXGA/Audio/Data Line Transmitter Rear Panel 6
Figure 3: TP-126xl UXGA/Audio/Data Line Receiver Front Panel 7
Figure 4: TP-126xl UXGA/Audio/Data Line Receiver Rear Panel 7
Figure 5: Connecting the TP-125xl Transmitter and TP-126xl Receiver 8

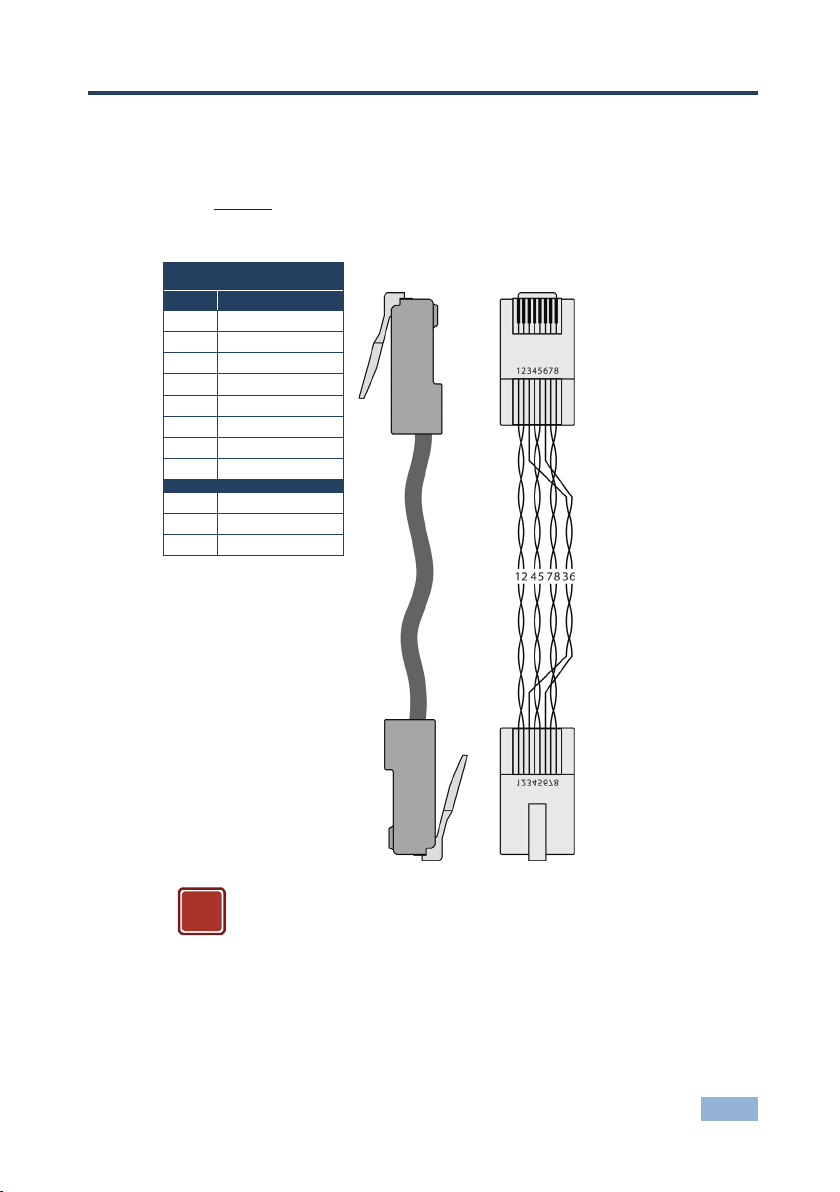

Figure 6: TP Pinout Wiring 11

TP-125xl/TP-126xl - Introduction 1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Video Products.
Thank you for purchasing the Kramer TOOLS®TP-125xl UXGA/Audio/Data Line
Transmitter and TP-126xl UXGA/Audio/Data Line Receiver which are ideal for:
•Presentation and multimedia applications
•Long range graphics distribution for schools, hospitals, stores and security
applications
Each package includes the following items:
•TP-125xl UXGA/Audio/Data Line Transmitter and TP-126xl
UXGA/Audio/Data Line Receiver
•2 Power adapters
•This user manual
Download up-to-date Kramer user manuals from http://www.kramerelectronics.com

2 TP-125xl/TP-126xl - Getting Started
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high performance high resolution cables
Go to http://www.kramerelectronics.com to check for up-to-date
user manuals, application programs, and to check if firmware
upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
•Use only good quality connection cables to avoid interference, deterioration
in signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
•Do not secure the cables in tight bundles or roll the slack into tight coils
•Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
•Position your Kramer TP-125xl and TP-126xl away from moisture,
excessive sunlight and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution: There are no operator serviceable parts inside the unit
Warning: Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning: Disconnect the power and unplug the unit from the
wall before installing
i
!
!

TP-125xl/TP-126xl - Getting Started 3
3
2.3 Shielded Twisted Pair/Unshielded Twisted Pair
We recommend the use of Kramer’s BC-SXTP skew-free, shielded Twisted Pair
(STP) cable. If unshielded twisted pair (UTP) cable is preferred, use Kramer’s
BC-UXTP skew-free, UTP cable.
2.4 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4 TP-125xl/TP-126xl - Overview
3 Overview
The TP-125xl and TP-126xl are a high-performance, TP (Twisted Pair) transmitter
and receiver pair for transmitting computer graphics video, unbalanced stereo
audio, and bidirectional RS-232 data signals over extended distances using CAT
5/6 cable.
The TP-125xl encodes computer graphics video, unbalanced stereo audio and
RS-232 data into a TP signal. The TP-126xl decodes the TP signal into computer
graphics video, digital unbalanced stereo audio, and RS-232 data signals. The
TP-125xl and TP-126xl together form an extended computer graphics/audio/data
line transmission and reception system.
More specifically, the TP-125xl and TP-126xl support:
•Video resolutions up to UXGA (1920 x 1200)
•EDID (TP-125xl)
•HDTV
•Level (gain) and equalization (peaking) adjustment (TP-126xl)
•Full duplex, bidirectional RS-232 transmission
•Increased level of protection against noise, spikes and interference in
adverse environments
•Transmission range of up to 250m (820ft)

TP-125xl/TP-126xl - Defining the TP-125xl/TP-126xl Line Transmitter and Receiver 5
5
4 Defining the TP-125xl/TP-126xl Line
Transmitter and Receiver
This section defines the:
•TP-125xl UXGA/Audio/Data Line Transmitter (see Section
4.1)
•TP-126xl UXGA/Audio/Data Line Receiver (see Section 4.2)
The TP-125xl has inputs for:
•Computer graphics video
•Unbalanced stereo audio
•RS-232 data
The TP-125xl encodes the video, audio and data signals and transmits them over
STP cable to a TP-126xl receiver. RS-232 data and commands flow
bidirectionally, allowing status requests and control of a destination unit. The
RS-232 interface makes it possible to control almost any device over a
transmission range of up to 250m over STP cabling.
The TP-126xl accepts the encoded signal over STP from the TP-125xl and
outputs computer graphics video, unbalanced stereo audio, digital audio and
RS-232 data.

6 TP-125xl/TP-126xl - Defining the TP-125xl/TP-126xl Line Transmitter and Receiver
4.1 Defining the TP-125xl UXGA/Audio/Data Line
Transmitter

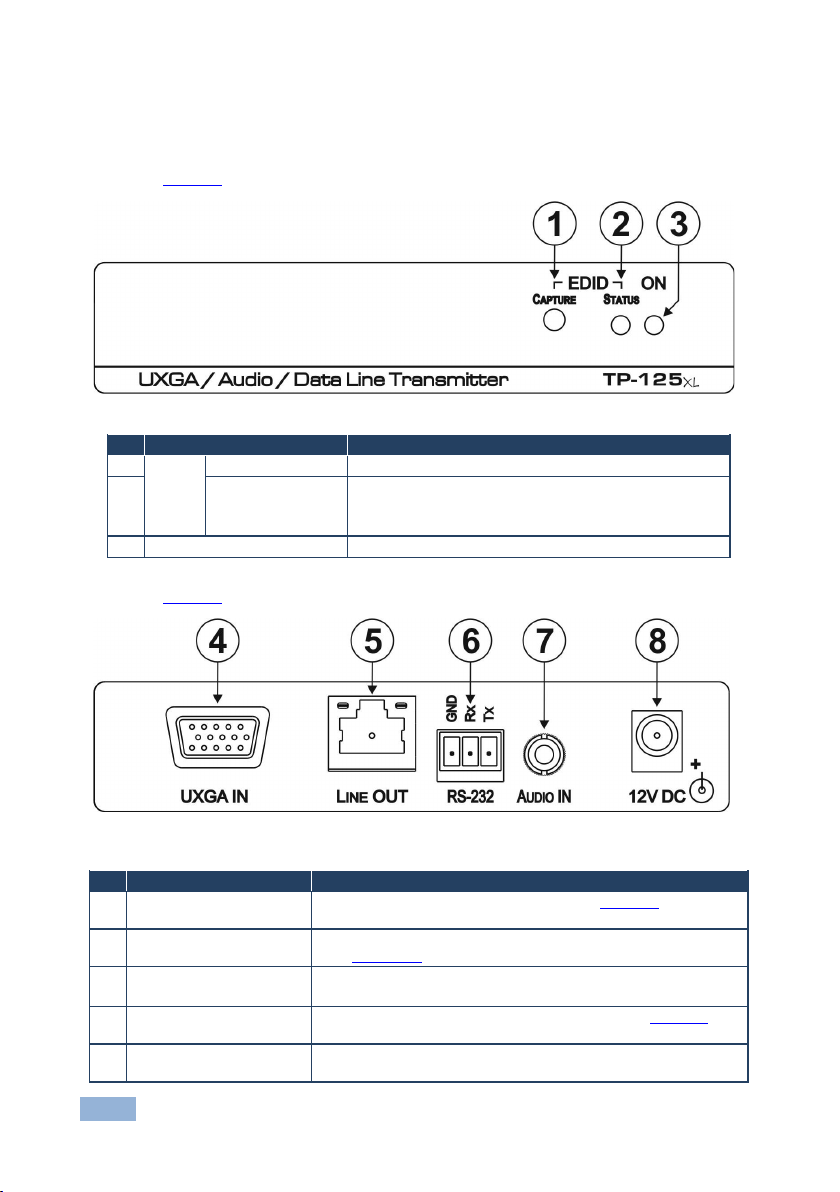

Figure 1defines the front panel of the TP-125xl.
Figure 1: TP-125xl UXGA/Audio/Data Line Transmitter Front Panel
# Feature Function
1
EDID
CAPTURE Button Press to capture the EDID from the video display
2 STATUS LED Indicates the following EDID status:
•Flashes slowly then lights solid—new EDID stored
•Flashes quickly then lights solid—default EDID stored
3 ON LED Lights green when the device is powered on
Figure 2defines the rear panel of the TP-125xl.
Figure 2: TP-125xl UXGA/Audio/Data Line Transmitter Rear Panel
# Feature Function
4 UXGA IN 15-pin HD
Connector (F)
Connect to a computer graphics source (see Section 5)
5 LINE OUT RJ-45
Connector
Connect to the Line In RJ-45 connector on the TP-126xl
(see Section 2.3)
6 RS-232 Serial Port 3-pin
Terminal Block
Connect to an RS-232 device (PC or controller).
Note: The RS-232 link is bidirectional
7 AUDIO IN 3.5mm Mini
Jack
Connect to an unbalanced, stereo audio source (see Section 5)
8 12V DC Power Connector Connect to one of the supplied +12V DC power adapters. Center
pin positive

TP-125xl/TP-126xl - Defining the TP-125xl/TP-126xl Line Transmitter and Receiver 7
7
4.2 Defining the TP-126xl UXGA/Audio/Data Line Receiver
Figure 3defines the front panel of the TP-126xl.
Figure 3: TP-126xl UXGA/Audio/Data Line Receiver Front Panel
# Feature Function
1 LINK LED Lights green when the TP link is established
2 LEVEL Trimmer Use to adjust the output signal level (see Section 6.2)
3 EQ. Trimmer Use to adjust the cable compensation equalization level
4 ON LED Lights green when the device is powered on
Figure 4defines the rear panel of the TP-126xl.
Figure 4: TP-126xl UXGA/Audio/Data Line Receiver Rear Panel
# Feature Function
5 UXGA OUT 15-pin HD
Connector (F)
Connect to a computer graphics video acceptor (see Section 5)
6 LINE IN RJ-45 Connector Connect to the Line Out RJ-45 connector on the TP-125xl
(See Section 2.3)
7 RS-232 Serial Port 3-pin
Terminal Block
Connect to the RS-232 device to be controlled.
Note: The RS-232 link is bidirectional
8
AUDIO
OUT
ANALOG 3.5mm
Mini Jack
Connect to an unbalanced, stereo audio acceptor (see Section 5)
9 S/PDIF RCA
Connector
Connect to a digital audio acceptor
10 12V DC Power Connector Connect to one of the supplied +12V DC power adapters. Center
pin positive

8 TP-125xl/TP-126xl - Connecting the TP-125xl and TP-126xl

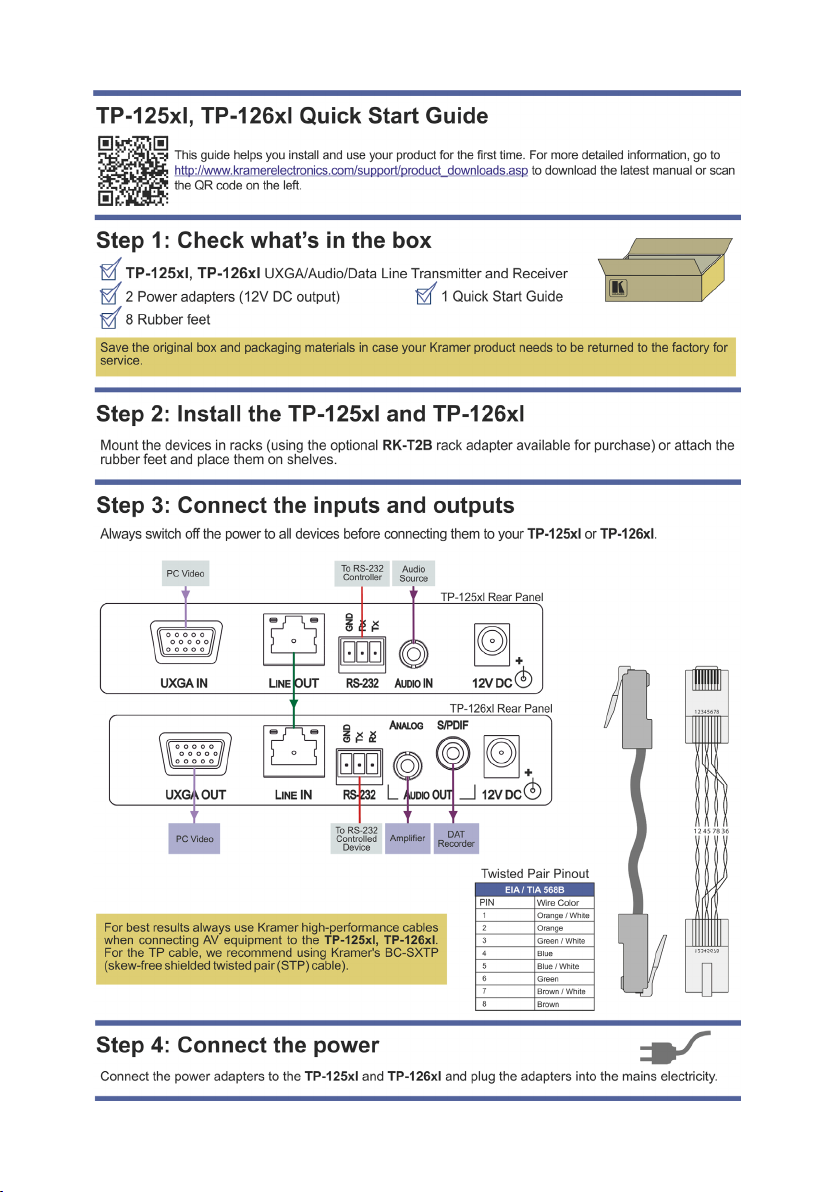

5 Connecting the TP-125xl and TP-126xl
Switch off the power to all devices before connecting them to your
TP-125xl/TP-126xl. After connecting your TP-125xl/TP-126xl, connect
the power to the transmitter and receiver and then switch on the power
to the other devices.
Figure 5: Connecting the TP-125xl Transmitter and TP-126xl Receiver
To connect the TP-125xl and the TP-126xl as illustrated in Figure 5:
1. On the TP-125xl, connect:
The computer graphics video source, (for example, the graphics output
from a laptop) to the UXGA In 15-pin HD connector (F)
i

TP-125xl/TP-126xl - Connecting the TP-125xl and TP-126xl 9
9
The RS-232 controller, (for example, a laptop controller with an
RS-232 interface) to the RS-232 3-pin terminal block
An unbalanced, stereo audio source, (for example, the audio output
from a laptop) to the Audio In 3.5mm mini jack
2. On the TP-126xl, connect:
The UXGA Out 15-pin HD (F) connector to the video acceptor, (for
example, an AV display system)
The RS-232 3-pin terminal block to the controlled device, (for example,
an AV display system)
The Audio Out Analog 3.5mm mini jack to the unbalanced, stereo
audio acceptor, (for example, an AV display system with speakers)
The Audio Out S/PDIF RCA connector to the digital audio acceptor,
(for example, a DAT recorder)
3. Using STP cabling, connect the TP-125xl Line Out RJ-45 connector to the
TP-126xl Line In RJ-45 connector (see Section 2.3).
4. Connect the power adapters to the power sockets on the TP-125xland
TP-126xl, and connect the adapters to the mains electricity (not shown in
Figure 5).
5. If necessary, adjust the level and equalization for an optimum picture (see
Section 6.2).

10 TP-125xl/TP-126xl - Operating the TP-125xl and TP-126xl
6 Operating the TP-125xl and TP-126xl
6.1 Capturing the EDID
The TP-125xl is programmed with a default EDID. To replace the default EDID
you can replace it with the EDID from a display device.
To capture a new EDID:
•With the display device connected to the TP-125xl, press the EDID Capture
button on the front panel of the TP-125xl.
If the EDID is successfully captured the Status LED flashes slowly for a few
seconds and then lights solid. If the EDID is not successfully captured the
Status LED flashes quickly for a few seconds then lights solid when the
default EDID is loaded.
6.2 Adjusting the Level and Equalization on the TP-126xl
You can manually adjust the signal level and equalization using the trimmers on
the front of the TP-126xl to achieve an optimum picture.
To adjust the level and equalization on the TP-126xl:
1. Use a small screwdriver to slowly turn the Level trimmer clockwise to
increase or anticlockwise to reduce the signal level of the TP-126xl.
2. Use a small screwdriver to slowly turn the EQ trimmer clockwise or
anticlockwise until you achieve an optimum picture.

TP-125xl/TP-126xl - Wiring the Twisted Pair RJ-45 Connectors 11
11
7 Wiring the Twisted Pair RJ-45 Connectors
When using STP cable, connect/solder the cable shield to the RJ-45 connector
shield. Figure 6defines the TP pinout using a straight pin-to-pin cable with RJ-45
connectors.
EIA /TIA 568B Figure 6: TP Pinout Wiring
PIN
Wire Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
Pair 1 4 and 5
Pair 2 1 and 2
Pair 3 3 and 6
Warning: Using a TP cable that is incorrectly wired will cause
permanent damage to the device
!

12 TP-125xl/TP-126xl - Technical Specifications
8 Technical Specifications
TP-125xl TP-126xl
INPUTS: 1 UXGA on a 15-pin HD
connector (F)
1 Unbalanced stereo audio on a
3.5mm mini jack
1 Bidirectional RS-232 serial
port on a 3-pin terminal block
1 TP on an RJ-45 connector
OUTPUTS: 1 TP on an RJ-45 connector 1 UXGA on a 15-pin HD connector (F)
1 Digital audio on an RCA connector
1 Unbalanced stereo audio on a
3.5mm mini jack
1 Bidirectional RS-232 serial port on a
3-pin terminal block
VIDEO RESOLUTION: Up to WUXGA, 1080p
MAX. OUTPUT LEVEL: Video: 1.1V
Audio: 2.2V
AUDIO:
BANDWIDTH: Audio: 20Hz-20kHz @–3dB
S/N RATIO: Audio: 84dB unweighted
COUPLING: AC
TND+N: Audio: 0.02% unweighted
TOTAL GAIN: Analog/analog: 0dB
Analog/SPDIF: –12dBFS
RS-232: BAUD RATE: 9600, 19200bps
MODE: Full-duplex
POWER CONSUMPTION: 12V DC 206mA 12V DC 235mA
TRANSMISSION DISTANCE: Up to 250m (820ft)
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F)
HUMIDITY: 10% to 90%, RHL non-condensing
DIMENSIONS: 12.1cm x 7.18cm x 2.48cm (4.76" x 2.83" x 0.98"), W, D, H
WEIGHT: 0.2kg (0.44lbs.) approx. each
ACCESSORIES: 2 Power supplies
OPTIONS: RK-3T 19” rack adapter, Kramer BC-UXTP cable, Kramer BC-SXTP
cable

13

For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerelectronics.com
E-mail: [e-mail]
P/N:
2900- 300206
Rev:
1
!
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
