Kraus Bolden KSF1610MB User manual

Single Handle Pull Down
Kitchen Faucet
KSF-1610
INSTALLATION GUIDE
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. DEC 16, 2020
Bolden™

Congratulations on the purchase of your new
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance, or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [e-mail]
Have the model number available, and retain a copy of your receipt
with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
1

Prior to Installation:
•Make sure you have all necessary parts by checking the diagram and parts list. If
any part is missing or damaged, please contact Kraus Customer Service at 800-775-
0703 for a replacement
•
•Pre-drilled countertop hole size requirement: 1-3/8”(min)
•Max countertop thickness: 3 3/8”
Tools you will need:
13
Wrench Phillips Screwdriver Safety Goggles
Silicone Sealant
(optional)
Pipe Tape
2
Turn o the hot and cold water lines at the angle stops and turn on the old faucet
to release any built-up pressure

3
A. Spray Head
C. Washers
D. Mounting Nut
F. Weight
Diagram and Parts List
G. Weight Clip
H. Quick Connector
B. Faucet Body
E. Screws
I. Sensor Control Box
J. Battery Pack
A
B
C
D
E
F
GH
I
J1
J2 J3
K
L
J1. Battery Pack
J2. Screw
J3. Anchor
K. Battery
L. 2.5mm Hex Wrench

4

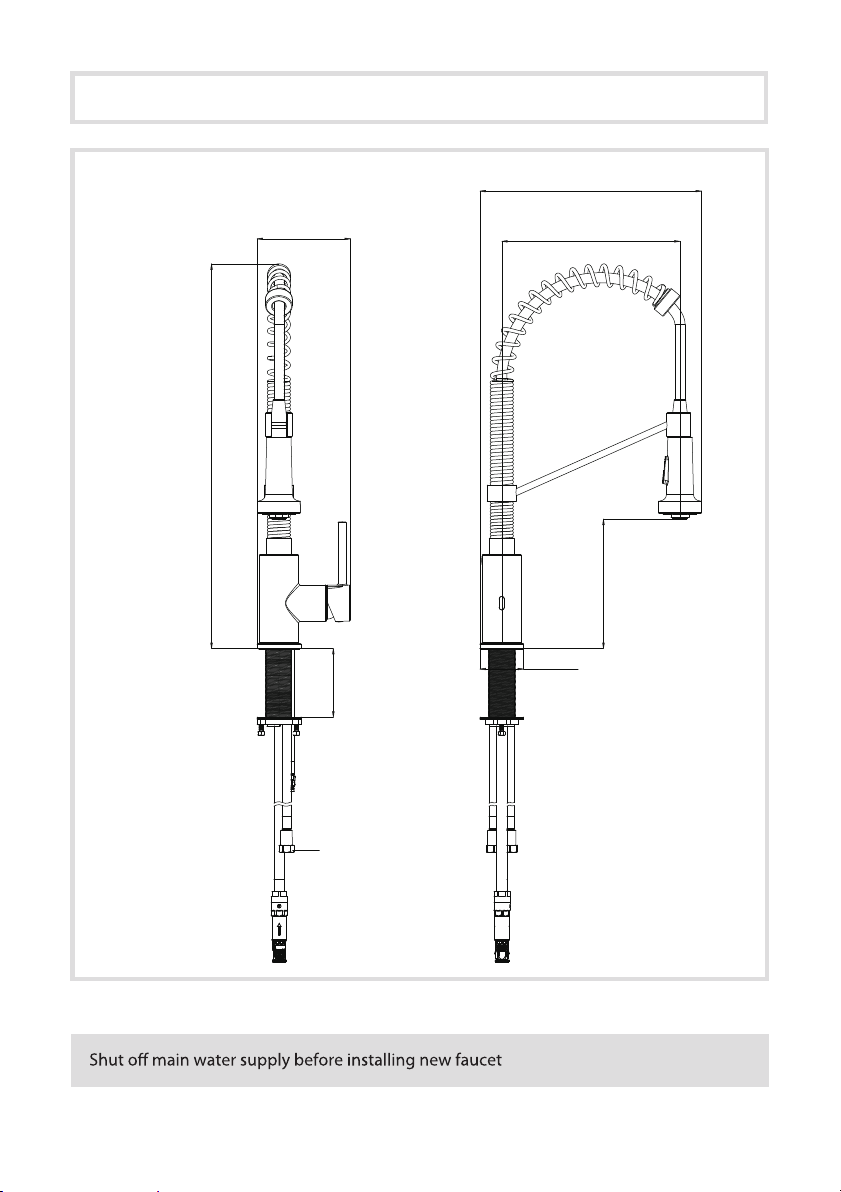

Faucet Dimension
Installer Tip:
3/8”-compression
6 1/4"
[159.7mm]
Ø2 1/8"
[54.0mm]
3 3/8C
[84.7mm]
4 1/2"
[115.4mm]
18"
[456mm]
8 5/8"
[220.0mm]
10 3/4"
[273.5mm]

5
E
Step 1: Installing the faucet
Shut o the water supply. Insert faucet
body (B) through the hole inthe sink.
Step 2: Securing the faucet assembly
Install the washers (C) onto the threaded
mounting shank.
Thread the mounting nut (D) onto the
mounting shank. Lock the mounting nut (D)
into position by tightening the screws (E).
Do not overtighten.
B
C
DE
(2N.m
Max)

6

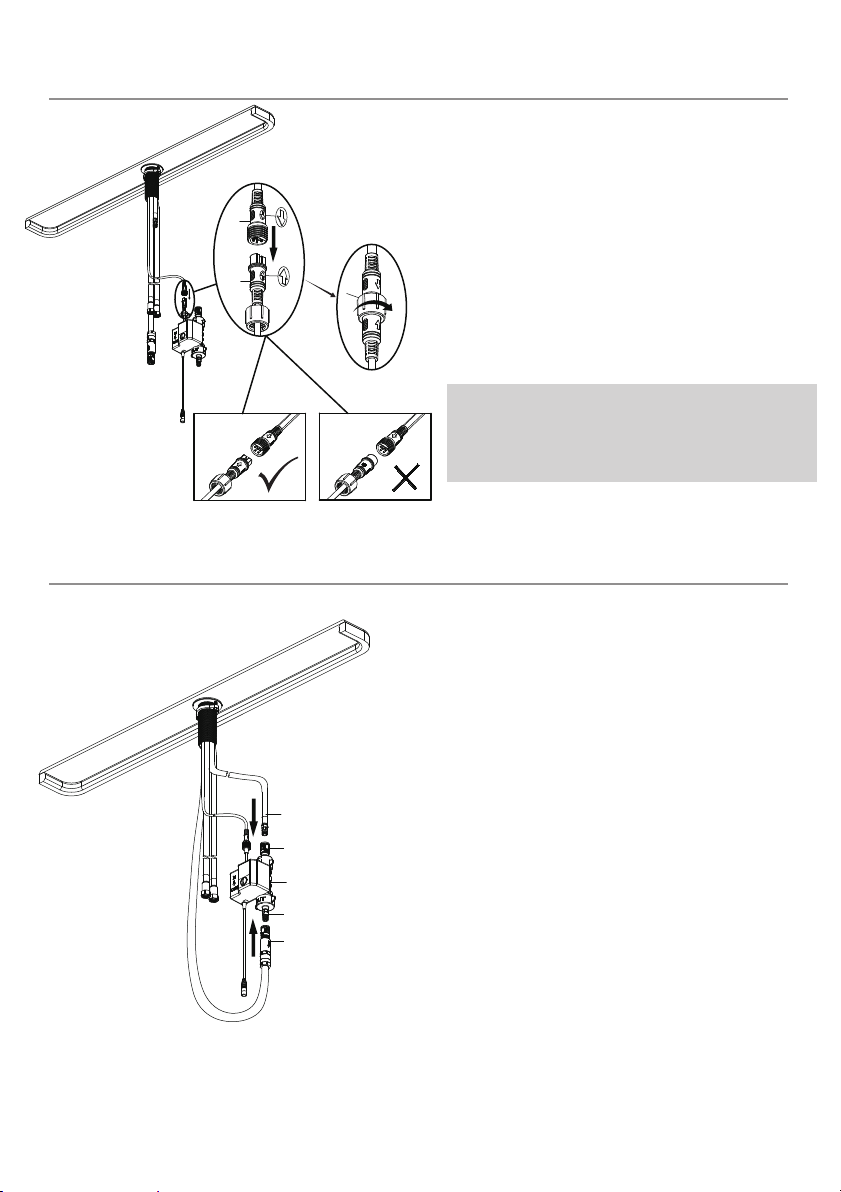

Step 3: Installing the sensor control box
Step 4: Installing the sensor control box
Connect the hose (1& 2) to the connector
(3 & 4) on the control box (5). Push rmly
together until they snap into place.
1
23
2
3
4
1
5
Install the data cable (1) to the control box
connection (2). Ensure the arrows on the
data cable and control box connection are
aligned to one another to ensure proper
installation. Ensure they are tightly
connected by rmly pushing together.
Secure the connection by hand tightening
the nut (3) in a clockwise direction onto the
threaded sensor cable.
CAUTION: If the connections are not
made properly, the sensor feature will
not work.

7
Step 5: Securing the faucet assembly
Install the weight clip (G) at the point of
the hose marking "weight here". Insert
the weight (F) onto the weight clip (G)
by sliding it down onto the weight clip (G).
Step 6: Installing the battery pack
To open the battery housing, squeeze the
tabs (1) on the cover (2), then remove the
cover (2). Install the four AA batteries (3)
included by matching the positive (+) and
Negative (-) ends on the battery (3) to the
(+) and (-) markings in the battery pack (4).
The negative ends of the battery (3) should
always connect to the spring end of the
battery slots in the battery pack (4). Reinstall
the battery pack cover (2) by pushing up and
snapping into place.
Weight
here
Weight
here
G
F
G
F
2
1
2
3
4
4
NOTE: When the sensor ashes 10 times
continuously and slowly, the batteries
have lost their charge. Replace the
batteries (3).

8
6mm
(1/4") dia.

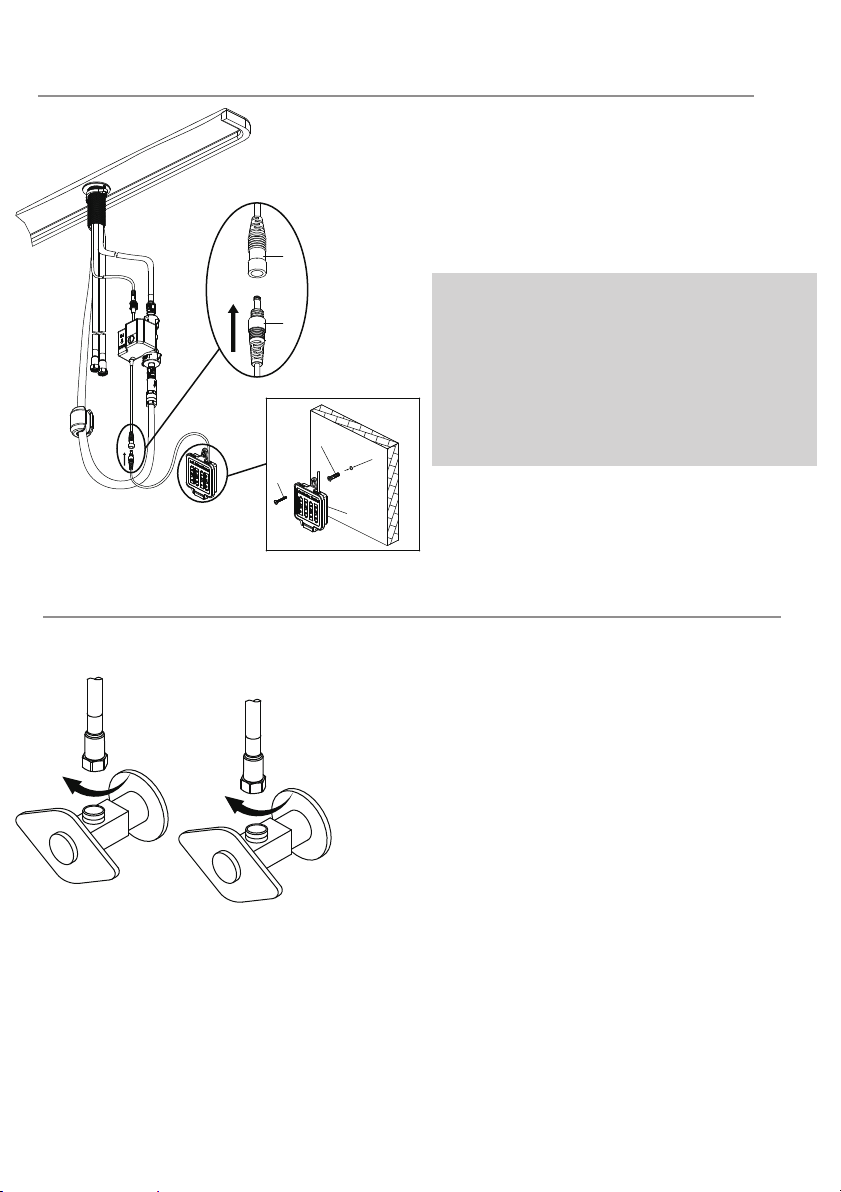

Step 7: Installing the battery pack
Drill a hole in the wall using a 6mm (1/4 in.)
diamater drill bit. Install the battery pack (J1)
using the molly anchor (J3) and screw (J2)
provided. Insert the battery pack cable (1) into
the control box connection (2).
Step 8: Connect waterlines to main valve
Attach waterlines to angle stops
and tighten until snug. Turn on angles
stops and check for leaks (DO NOT TURN
FAUCET ON)
2
1
J3
J2
J1
NOTE: After installing the battery pack,
the light on the sensor will ash and the
faucet will sound when you move your
hand in the sensor area. If not, check to
ensure the batteries are installed
correctly.

9

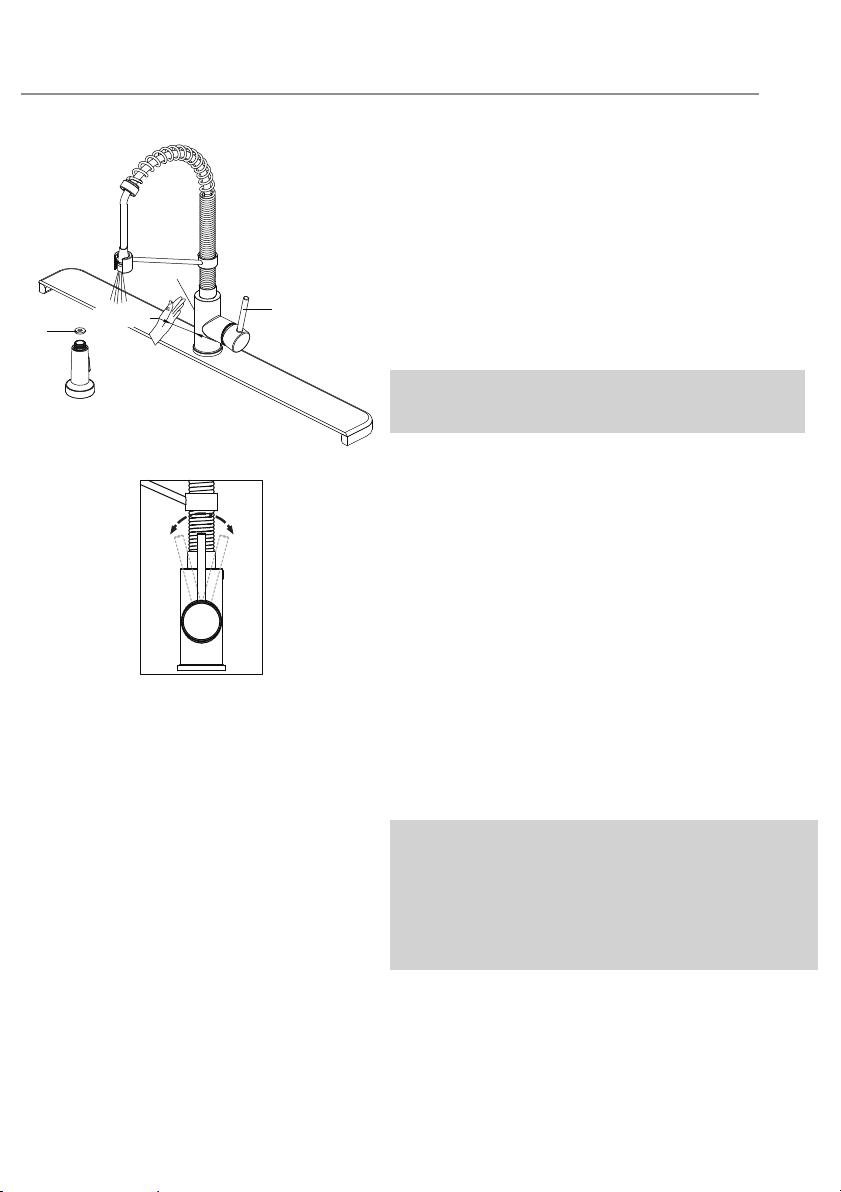

Step 9: Flush faucet
Flushing and checking for leaks: After the
installation is complete, unscrew and remove
the spray head in order to ush the line. Turn
on the water supply and allow both hot and
cold water to run for at least one minute each.
This ushes away any debris that could cause
damage to internal parts. Check for leaks.
Re-attach the spray head. Do not lose the
gasket (1) in the hose.
Operating the sensor: Turn the handle (2)
away from the faucet to the full on position.
Turn the water on by activating the sensor (3)
by waving your hand within 6cm of the sensor.
Move handle towards you and away from you,
the water ow pattern can be switched from
the hot water to cold water. If the sensor does
not work, then you can refer to the
troubleshooting. If you want to use the faucet
without the sensor feature, then you can refer
to troubleshooting 5. Then, turning on the
water can be done by moving the handle away
from the faucet to the full on position.
Cold
Hot
1
2
3
6cm MAX
Note: The sensor is active only when the
handle is in the ON position. As a water
saving feature, the water will turn o
automatically after 3 minutes of continuous
ow.
NOTE: Please make sure washer is installed
attaching spray head to hose.
