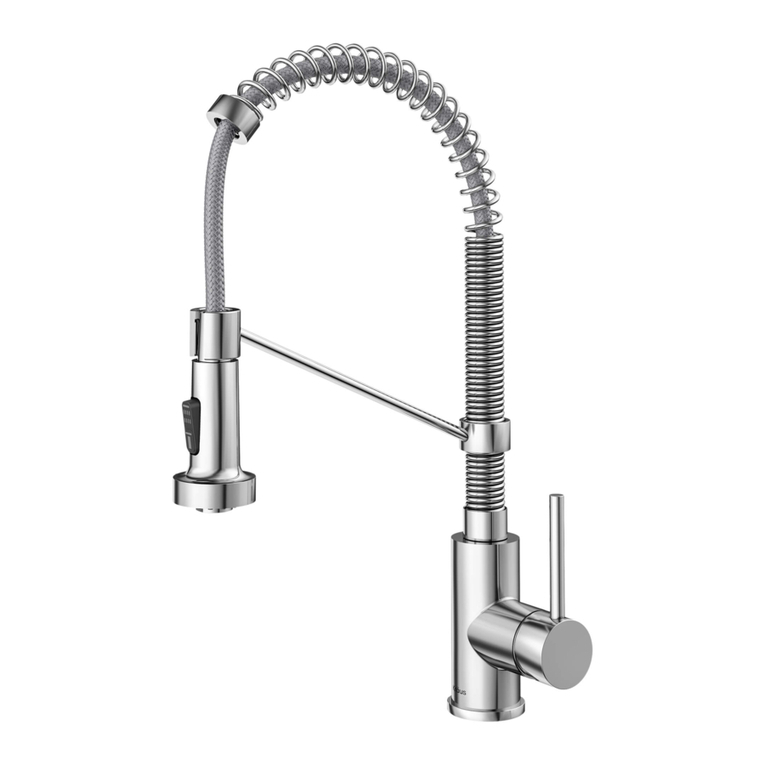

Kraus Bolden KPF-1610 User manual

INSTALLATION MANUAL
Bolden™Single Handle
Commercial Kitchen Faucet
KPF-1610
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2017 Kraus USA Inc. I REV. June 22, 2017

Thank you for your purchase
We would like to take this opportunity to thank you for choosing Kraus.
We hope that you are completely satised with your purchase, and enjoy it for years
to come. If you have any questions, or require technical assistance, please contact
us at 800.775.0703 and one of our representatives will be happy to help.
For more information about Kraus products, please visit:
www.kraususa.com
In order to activate your warranty and get faster access to customer support, please
register your new Kraus product at:
www.kraususa.com/registration
Sincerely,
Kraus USA Customer Service

Prior to Installation:
• Make sure you have all necessary parts by checking the diagram and parts
list. If any part is missing or damaged, please contact Kraus Customer
Service at 800-775-0703 for a replacement
• Turn o the cold and hot water at the angle stops and turn on the old
faucet to release any built up pressure
• Flush angle stops to release any debris prior to installation
• Pre-drilled hole size requirement: 1-3/8” (min) – 1-1/2” (max)
• Max countertop thickness: 1-3/8
• 1, 2, or 3 hole installation
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]

Diagram and Parts List
1
6
7
2
3A
3B
3C
3D
5A 5B
8
9
4

Diagram and Parts List Tools you will need
1
10
279
10 31/32”
Minimum distance 90mm
Less than 90mm
Cold Water
32 3/32”
Ø35~Ø38
1
23
10
9
11
12 13
Hexagon Nut
Hot
Water
Cold
Water
2 3
1
45
7
6
8
45
67
8
Ø1 3/8”~Ø1 1/2”
815
194
7 5/8”
Ø1 3/8~Ø1 1/2”
30˚
10 11
Close
Open Left
Hot Water
Push
25˚ 90˚
12
13
8
7
Ø35~Ø38
Max35
217
8 17/32”
Max1 3/8”
9
11
12 13
2
3
4
5
6
7
8
Adjustable Wrench
Phillips Screwdriver
Safety Goggles
Silicone Sealant
(optional)
1. Spray Head
2. Faucet Body
3. Mounting Hardware
A. Rubber Washer
B. Metal Washer
C. Mounting Nut
D. Mounting Screws
4. Supply Hose
5. Hot & Cold Waterlines
A. Hot
B. Cold
6. Hose
7. Washer
8. Weight
9. Hex Wrench

Faucet Installation Procedure
Installer Tip:
Shut o main water supply before installing new faucet

Step 1: Remove mounting hardware
Remove the mounting
screws (3D), mounting nut
(3C), metal (3B) and rubber
washer (3A) from the
mounting pipe
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
Step 2: Install faucet and mounting hardware
Insert faucet body (2) into
hole in countertop. Install
mounting hardware (3A, B,
C & D) from underneath the
countertop
3A
3B
3C
3D
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
3A
3B
3C
3D

Step 3: Secure mounting hardware
Adjust direction of faucet
body (2) so that handle is on
right side of faucet. Tighten
mounting nut (3C) until snug.
Tighten mounting screws
(3D) with Phillips screwdriver
until snug
Step 4: Attach spray hose and counterweight
Connect spray hose (6)
to supply hose (4). Install
weight (8) on lowest
vertical point on spray
hose (6)
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
3C
3D
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
4
6
8

Connect waterlines(5A&B)
to angle stops. Tighten
both ends of waterlines
with a wrench until snug.
Turn on hot and cold angle
stops and check for leaks
Step 6: Flush spray hose
Step 7: Check for leaks
Remove spray head (1) from
spray hose (6). Hold tip of
spray hose (6). Turn faucet on
and let the water run for 60
seconds to ush any debris
Check for leaks at the
connections. Retighten if
necessary
Step 5: Connect waterlines
NOTE: Please make sure
washer (7) is installed
attaching spray head to hose
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
1
6
1. Diagram and Parts List Step1: Remove mounting hardware Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
5B
5A

Care & Maintenance
*To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
*This installation manual is subject to change without further notice.
