KROHNE OPTIWAVE 6300 C Instruction Manual

OPTIWAVE 6300 C
OPTIWAVE 6300 COPTIWAVE 6300 C
OPTIWAVE 6300 C Technical Datasheet
Technical DatasheetTechnical Datasheet
Technical Datasheet
Non-contact Radar (FMCW) Level Meter for Solids
•One converter for all antenna types (PTFE Drop, PP Drop and metallic horn)
•The only guarantee for measuring accurately in dusty conditions
•Uses a unique Drop antenna design for very dusty atmospheres
© KROHNE 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en

CONTENTS
2 www.krohne.com 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
OPTIWAVE 6300 C
1 Product features 3
1.1 The radar solution for solids ............................................................................................ 3
1.2 Options.............................................................................................................................. 5
1.3 Measuring principle.......................................................................................................... 6
2 Technical data 7
2.1 Technical data................................................................................................................... 7
2.2 Antenna selection........................................................................................................... 13

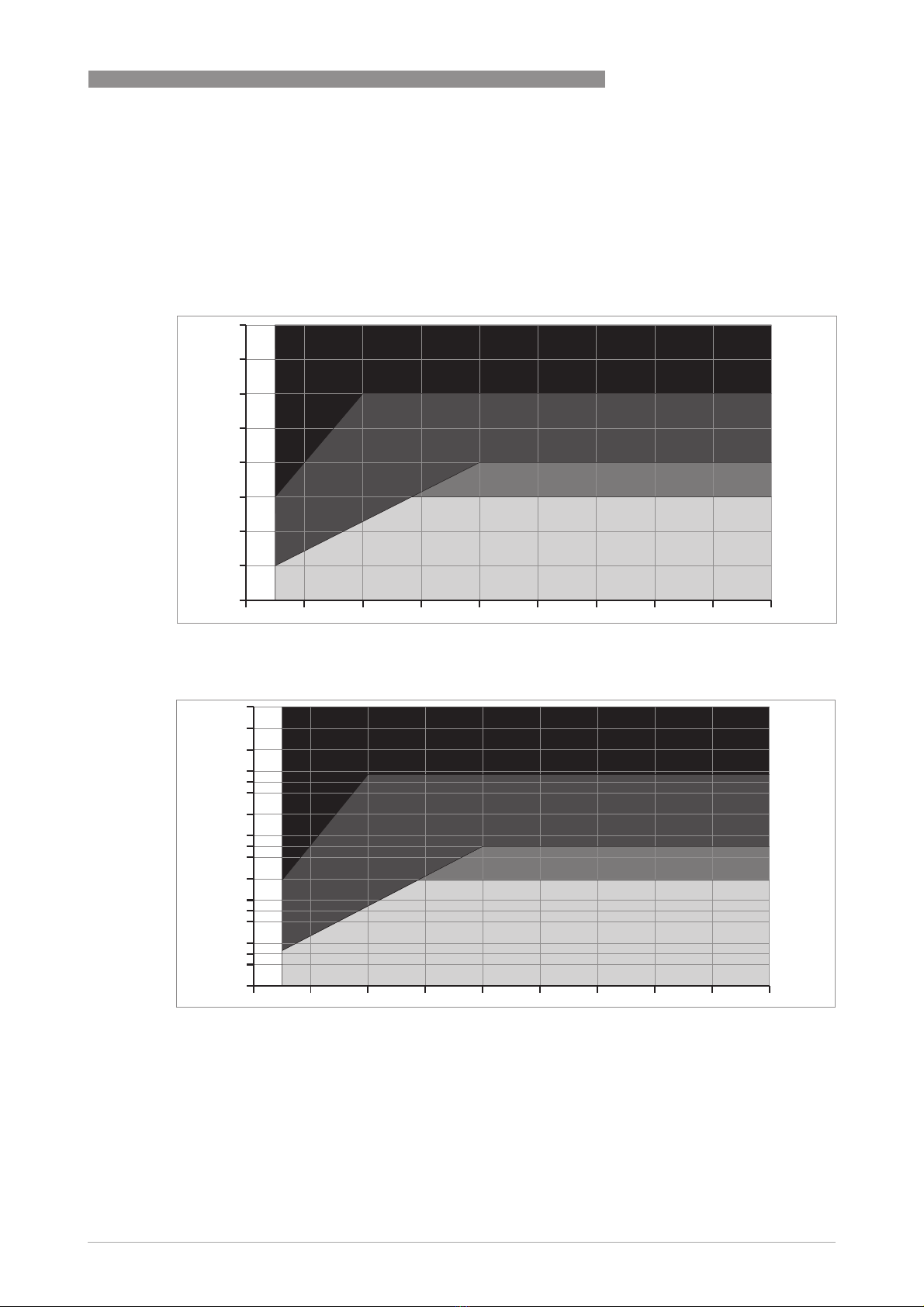

2.3 Guidelines for maximum operating pressure................................................................ 14

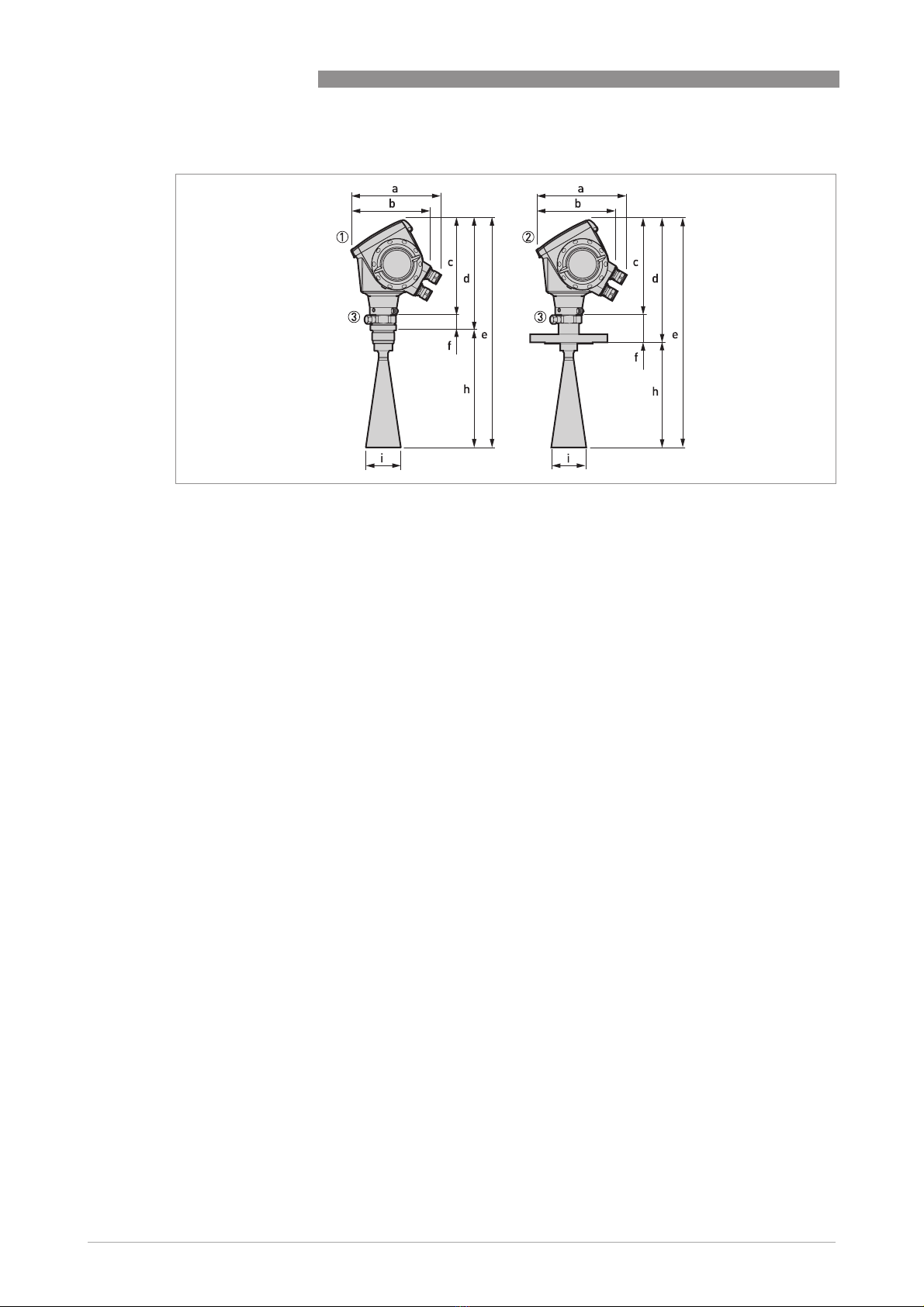

2.4 Dimensions and weights ................................................................................................ 16
3 Installation 24
3.1 Intended use ................................................................................................................... 24
3.2 Pre-installation requirements ....................................................................................... 24
3.3 How to prepare the silo before you install the device ................................................... 24
3.3.1 Theoretical data for nozzle position .....................................................................................24
3.4 Installation recommendations for solids....................................................................... 26
3.5 How to install the device on the silo .............................................................................. 27
3.5.1 How to install a device with a flange connection ................................................................. 27
3.5.2 How to install a device with a threaded connection............................................................. 27
4 Electrical connections 28
4.1 Safety instructions.......................................................................................................... 28
4.2 Electrical installation: outputs 1 and 2 .......................................................................... 28
4.2.1 Non-Ex devices ..................................................................................................................... 29
4.2.2 Devices for hazardous locations........................................................................................... 29
4.2.3 PROFIBUS PA........................................................................................................................ 30
4.2.4 FOUNDATION Fieldbus ......................................................................................................... 30
4.3 Protection category ........................................................................................................30
4.4 Networks ........................................................................................................................ 31
4.4.1 General information.............................................................................................................. 31
4.4.2 Point-to-point connection..................................................................................................... 31
4.4.3 Multi-drop networks ............................................................................................................. 32
4.4.4 Fieldbus networks................................................................................................................. 33
5 Order form 35
5.1 Device data ..................................................................................................................... 35
5.2 Rating data...................................................................................................................... 36
5.3 Contact data.................................................................................................................... 36
6 Notes 37

PRODUCT FEATURES 1
3
OPTIWAVE 6300 C
www.krohne.com04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
1.1 The radar solution for solids
This device is a non-contact Radar (FMCW) Level Meter for distance, level, volume and mass
measurement of powders, granulates and other solids. It gives a stabler measurement than
pulse radar and is well suited to dusty process conditions. The device can operate at very low and
very high process temperatures as long as the process connection temperature limits are
observed.
1 Optional touch screen with 4-button operation
2 2-wire level meter
3 Removable and rotatable converter with quick connector system
4 Stainless steel horn or PTFE/PP Drop antennas
5 Optional flange plate protection (for corrosive products) or antenna extension (for long nozzles)
6 One converter for all applications (same housing for Ex d and non-Ex)

1PRODUCT FEATURES
4
OPTIWAVE 6300 C
www.krohne.com 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
Highlights
•±10 mm / ±0.4¨standard accuracy
•PP or PTFE Drop antenna: its shape prevents product build-up in dusty applications
•Operates up to a flange temperature of 200°C / 390°F and 40 bar / 580 psig
•Measuring range up to 80 m / 260 ft
•Antenna can be extended to suit any nozzle length
•PACTware and DTMs included as standard
•Optional second current output
•Directly-accessible graphic touchscreen/wizard (option)
•An installation wizard specifically for solids that permits the instrument to measure uneven
surfaces accurately
Industries
•Minerals & Mining
•Chemical
•Food
•Iron, Steel & Metals
•Pulp & Paper
Applications
•Storage
•Silos
•Hoppers

PRODUCT FEATURES 1
5
OPTIWAVE 6300 C
www.krohne.com04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
1.2 Options
Drop antennas
Horn antennas
Drop antennas are a unique innovation to measure
powders and other solids in very dusty atmospheres.
The ellipsoidal shape of the antennas prevents
build-up and generates a small beam angle for
accurate measurement of silo contents. They have
these features:
•2 antenna sizes: DN80 or DN150.
•An installation wizard specifically for solids that
permits the instrument to measure uneven
surfaces accurately.
•Antennas can be extended to suit any nozzle length.
•Made of either PP or PTFE.
Use of metal horn antennas is recommended for
measuring granulates, high-pressure and high-
temperature applications, cement works or
processes with cyclone separators. They are
particularly resistant to mechanical shocks. They
have these features:
•Made of stainless steel 316L.
•4 antenna sizes: DN80, DN100, DN150 or DN200.
•Antennas can be extended to suit any nozzle length.

1PRODUCT FEATURES
6
OPTIWAVE 6300 C
www.krohne.com 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
1.3 Measuring principle
A radar signal is emitted via an antenna, reflected from the product surface and received after a
time t. The radar principle used is FMCW (Frequency Modulated Continuous Wave).
The FMCW-radar transmits a high frequency signal whose frequency increases linearly during
the measurement phase (called the frequency sweep). The signal is emitted, reflected on the
measuring surface and received with a time delay, t. Delay time, t=2d/c, where d is the distance
to the product surface and c is the speed of light in the gas above the product.
For further signal processing the difference Δf is calculated from the actual transmit frequency
and the receive frequency. The difference is directly proportional to the distance. A large
frequency difference corresponds to a large distance and vice versa. The frequency difference Δf
is transformed via a Fourier transformation (FFT) into a frequency spectrum and then the
distance is calculated from the spectrum. The level results from the difference between tank
height and measuring distance.
Figure 1-1: Measuring principle of FMCW radar
1 Transmitter
2 Mixer
3 Antenna
4 Distance to product surface, where change in frequency is proportional to distance
5 Differential time delay, Δt
6 Differential frequency, Δf
7 Frequency transmitted
8 Frequency received
9 Frequency
10 Time

TECHNICAL DATA 2
7
OPTIWAVE 6300 C
www.krohne.com04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
2.1 Technical data
• The following data is provided for general applications. If you require data that is more
relevant to your specific application, please contact us or your local representative.
• Additional information (certificates, special tools, software,...) and complete product
documentation can be downloaded free of charge from the website (Download Center).
Measuring system
Measuring principle 2-wire loop-powered level transmitter; K-band (24...26 GHz) FMCW radar
Application range Level measurement of powders and granulates
Primary measured value Δf (change in frequency) between the emitted and received signal
Secondary measured value Distance, level, volume, mass and reflectivity
Design
Construction The measurement system consists of a measuring sensor (antenna) and a signal
converter which is only available in a compact version
Standard Antenna purging system for horn antenna (supplied with a ¼NPTF connection - for
horn antenna only)
Options Integrated LCD display with sun cover (-20..+60°C/-4…+140°F); if the ambient
temperature is not in these limits, the display switches off
2nd current output
FOUNDATION Fieldbus output (4-wire device with local HART communication)
PROFIBUS PA output (4-wire device with local HART communication)
PTFE/PP flange plate protection (for Drop antenna without antenna extensions only)
Distance piece (for process temperature: +150...+200°C / +300...+390°F)
Accessories Weather protection
Antenna extensions of 105 mm / 4.1¨length (max. length for Drop antenna versions:
525 mm / 20.7¨)
2°PP slanted flange (for all antennas)
Max. measuring range 80 m / 260 ft
Depends on the antenna option, dielectric constant of the product and installation
type. Refer also to "Antenna selection".
Min. tank height 0.2 m / 8¨
Dead zone Antenna extension length + antenna length + 0.3 m / 12¨
Beam angle of antenna Horn / Sheet metal horn DN80 / 3¨: 10°
Horn / Sheet metal horn DN100 / 4¨: 8°
Sheet metal horn DN150 / 6¨: 8°
Sheet metal horn DN200 / 8¨: 8°
Drop DN80 / 3¨: 8°
Drop DN150 / 6¨: 4°
Display and user interface
Display and user interfaceDisplay and user interface
Display and user interface
Display LCD display
9 lines, 160 × 160 pixels in 8-step grayscale with 4-button keypad
Interface languages English, German, French, Italian, Spanish, Portuguese, Japanese, Chinese
(Mandarin) and Russian

2TECHNICAL DATA
8
OPTIWAVE 6300 C
www.krohne.com 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
Measurement accuracy
Resolution 1mm/0.04¨
Repeatability ±5mm/±0.2¨
Accuracy ±10 mm / ±0.4¨, when distance < 10 m / 33 ft;
±0.1% of measured distance, when distance > 10 m / 33 ft
Reference conditions acc. to EN 60770
Reference conditions acc. to EN 60770Reference conditions acc. to EN 60770
Reference conditions acc. to EN 60770
Temperature +20°C ±5°C / +70°F ±10°F
Pressure 1013 mbara ±20 mbar / 14.69 psia ±0.29 psi
Relative air humidity 60% ±15%
Target Metal plate in an anechoic chamber
Operating conditions
Temperature
TemperatureTemperature
Temperature
Ambient temperature -40…+80°C/-40…+175°F (according to the temperature limits of the gasket
material. Refer to "Materials" in this table.)
Ex: see supplementary operating instructions or approval certificates
Storage temperature -40…+85°C/-40…+185°F
Flange temperature Horn / Sheet metal horn antenna:
Horn / Sheet metal horn antenna:Horn / Sheet metal horn antenna:
Horn / Sheet metal horn antenna:
Standard: -50…+150°C/-58…+300°F
Option: -50…+200°C/-58…+390°F
(the process connection temperature must agree with the temperature limits of the
gasket material. Refer to "Materials" in this table.)
Ex: see supplementary operating instructions or approval certificates
Drop antenna (PTFE):
Drop antenna (PTFE):Drop antenna (PTFE):
Drop antenna (PTFE):
-50…+150°C/-58…+300°F (the process connection temperature must agree with
the temperature limits of the gasket material. Refer to "Materials" in this table.)
Ex: see supplementary operating instructions or approval certificates
Drop antenna (PP):
Drop antenna (PP):Drop antenna (PP):
Drop antenna (PP):
-40…+100°C/-40…+210°F (the process connection temperature must agree with
the temperature limits of the gasket material. Refer to "Materials" in this table.)
Ex: see supplementary operating instructions or approval certificates
Pressure
PressurePressure
Pressure
Operating pressure Drop antenna (PP):
Drop antenna (PP):Drop antenna (PP):
Drop antenna (PP):
-1…16 barg / -14.5…232 psig;
subject to process connection used and flange temperature
Drop antenna (PTFE):
Drop antenna (PTFE):Drop antenna (PTFE):
Drop antenna (PTFE):
-1…40 barg / -14.5…580 psig;
subject to process connection used and flange temperature
Horn / Sheet metal horn antenna:
Horn / Sheet metal horn antenna:Horn / Sheet metal horn antenna:
Horn / Sheet metal horn antenna:
Standard: -1…40 barg / -14.5…580 psig;
subject to process connection used and flange temperature
Other conditions
Other conditionsOther conditions
Other conditions
Dielectric constant (εr) ≥1.5
Vibration resistance IEC 60068-2-6 and EN 50178 (10...57 Hz: 0.075 mm / 57...150 Hz:1g)
Protection category IP 66/67 equivalent to NEMA type 4X (housing) and type 6P (antenna)
Maximum rate of change 10 m/min / 33 ft/min

TECHNICAL DATA 2
9
OPTIWAVE 6300 C
www.krohne.com04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
Installation conditions
Process connection size The nominal diameter (DN) should be equal to or larger than the antenna diameter.
If the nominal diameter (DN) is smaller than the antenna, either:
- provide the means to adapt the device to a larger process connection on the silo
(for example, a plate with a slot), or
- use the same process connection, but remove the antenna from the device before
installation and fit it from inside the silo
Process connection position Make sure that there are not any obstructions directly below the process
connection for the device.

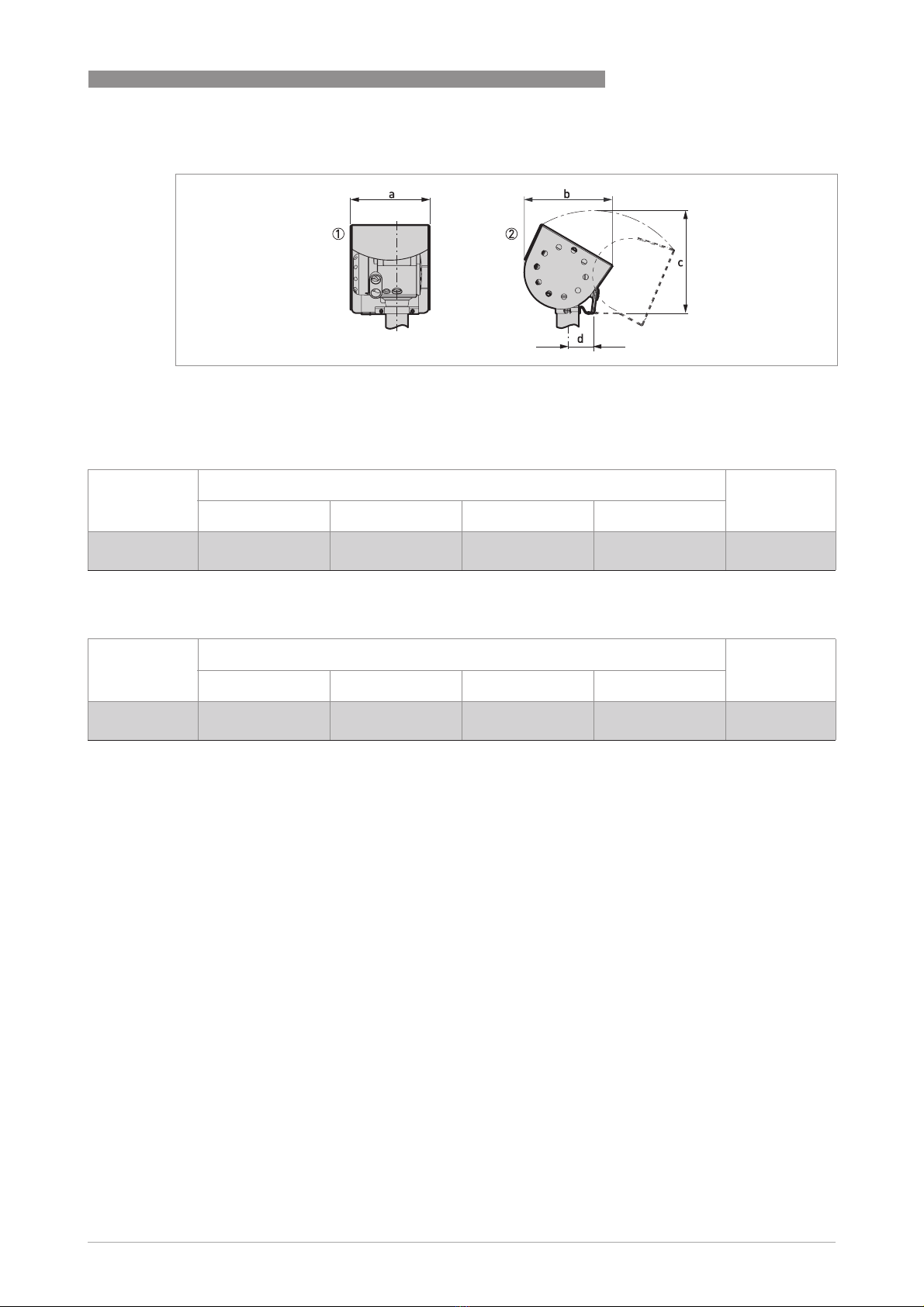

Dimensions and weights Refer to "Technical data: Dimensions and weights".
Materials
Housing Standard: Aluminium with a polyester topcoat
Option: Stainless steel (1.4404 / 316L)
Wetted parts, including antenna Horn / Sheet metal horn antenna: Stainless steel (1.4404 / 316L)
Drop antenna: PTFE; PP - a PP or PTFE flange plate protection option is also
available
Process connection Stainless steel (1.4404 / 316L) - a PP or PTFE flange plate protection option is also
available for the Drop antenna
Gaskets (and o-rings for the
sealed antenna extension option) PTFE Drop antenna:
PTFE Drop antenna:PTFE Drop antenna:
PTFE Drop antenna:
FKM/FPM (-40…+150°C/-40…+300°F); Kalrez®6375 (-20…+150°C/-4…+300°F);
EPDM (-50°C…+150°C/-58…+300°F) 1
PP Drop antenna:
PP Drop antenna:PP Drop antenna:
PP Drop antenna:
FKM/FPM (-40…+100°C/-40…+210°F); Kalrez®6375 (-20…+100°C/-4…+210°F);
EPDM (-40°C…+100°C/-40…+210°F) 1
Horn / Sheet metal horn antenna:
Horn / Sheet metal horn antenna:Horn / Sheet metal horn antenna:
Horn / Sheet metal horn antenna:
FKM/FPM (-40…+200°C/-40…+390°F); Kalrez®6375 (-20…+200°C/-4…+390°F);
EPDM (-50°C…+150°C/-58…+300°F) 1
Feedthrough Standard: PEI (-50...+200°C / -58...+390°F - max. range. The feedthrough
temperature limits must agree with the temperature limits of the gasket material
and antenna type. If the distance piece option is not attached, the maximum
temperature is 150°C/300°F.)
Option: Metaglas®(-30...+200°C / -22...+390°F - max. range. The feedthrough
temperature limits must agree with the temperature limits of the gasket material
and antenna type. If the distance piece option is not attached, the maximum
temperature is 150°C/300°F.) 2
Weather protection (Option) Stainless steel (1.4301 / 304)
Process connections
Thread G1½; 1½NPT
Flange version
Flange versionFlange version
Flange version
EN DN80…150 in PN16 or PN40; others on request
ASME 3¨…8¨in 150 lb, 3¨...4¨in 300 lb; others on request
JIS 80…100A in 10K; others on request
Other Others on request

2TECHNICAL DATA
10
OPTIWAVE 6300 C
www.krohne.com 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
Electrical connections
Power supply Terminals output 1 - Non-Ex / Ex i:
Terminals output 1 - Non-Ex / Ex i:Terminals output 1 - Non-Ex / Ex i:
Terminals output 1 - Non-Ex / Ex i:
14…30 VDC; min./max. value for an output of 22 mA at the terminal
Terminals output 1 - Ex d:
Terminals output 1 - Ex d:Terminals output 1 - Ex d:
Terminals output 1 - Ex d:
20…36 VDC; min./max. value for an output of 22 mA at the terminal
Terminals output 2 - Non-Ex / Ex i / Ex d:
Terminals output 2 - Non-Ex / Ex i / Ex d:Terminals output 2 - Non-Ex / Ex i / Ex d:
Terminals output 2 - Non-Ex / Ex i / Ex d:
10…30 VDC; min./max. value for an output of 22 mA at the terminal (additional
power supply needed - output only)
Cable entry M20×1.5; ½NPT
G½(not for FM- and CSA-approved devices. Not for stainless steel housings.)
M25×1.5 (for stainless steel housings only)
Cable gland Standard: none
Options: M20×1.5 (for non-Ex and Ex -approved devices with M20×1.5 and M25×1.5
cable entries); others are available on request
Cable entry capacity (terminal) 0.5…1.5 mm²
Input and output
Current output
Current outputCurrent output
Current output
Output signal
(Output 1) 4…20 mA HART®or 3.8…20.5 mA acc. to NAMUR NE 43 3
Output signal
(Output 2 - optional) 4…20 mA (no HART®signal) or 3.8…20.5 mA acc. to NAMUR NE 43
Resolution ±3µA
Temperature drift Typically 25 ppm/K
Error signal High: 22 mA; Low: 3.6 mA acc. to NAMUR NE 43
PROFIBUS PA
PROFIBUS PAPROFIBUS PA
PROFIBUS PA
Type 4-wire (+ local HART) level transmitter; K-band FMCW radar
Function blocks 7 (level, distance, level conversion, level mass, reflection, ullage conversion and
distance mass)
Protocol / Communication
standard PROFIBUS PA protocol that agrees with IEC 61158-2, galvanically isolated
Physical layer types Standard power signaling, bus powered, non I.S.
Other features Bus interface with integrated reverse polarity protection
Device power supply (24 V input) 18...30 VDC
Current consumption on
PROFIBUS network 20 mA
Output data Level, distance, level conversion, level mass, reflection, ullage conversion or
distance mass
Input data None
Error current FDE Typically 0 mA (FDE =Fault Disconnection Electronic)
Address range 0...125. Default address: 126.
FOUNDATION Fieldbus
FOUNDATION FieldbusFOUNDATION Fieldbus
FOUNDATION Fieldbus
Type 4-wire (+ local HART) level transmitter; K-band FMCW radar
Function blocks 1 × Resource Block (RB), 4 × Analog Input Blocks (AI), 1 × Transducer Block (TB)
Analog Input Block: 50 ms
Protocol / Communication
standard Foundation Fieldbus protocol that agrees with IEC 61158-2, galvanically isolated
ITK version 5.1

TECHNICAL DATA 2
11
OPTIWAVE 6300 C
www.krohne.com04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
Physical layer types Standard power signaling, bus powered, non I.S.
Other features Bus interface with integrated reverse polarity protection
Device power supply (24 V input) 18...30 VDC
Bus power supply 9...32 VDC (non-Ex); 9...17.5 VDC (intrinsically-safe)
Basic current 20 mA
Maximum error current 20 mA
Start current after 10 ms 20 mA
Polarity sensitivity Yes
Minimum cycle time 100 ms
Output data Level, distance, level conversion, level mass, reflection, ullage conversion or
distance mass
Input data None
Error current FDE Typically 0 mA (FDE =Fault Disconnection Electronic)
Link Master function Not supported
Approvals and certification
CE This device fulfils the statutory requirements of the EC directives. The
manufacturer certifies successful testing of the product by applying the CE mark.
Explosion protection
Explosion protectionExplosion protection
Explosion protection
ATEX
KEMA 04ATEX1218 X II 1 G, 1/2 G, 2 G Ex ia IIC T6...T3;
II 1 D, 1/2 D, 2 D Ex iaD 20 or Ex iaD 20/21 or Ex iaD 21 IP6X T70°C...T95°C;
II 1/2 G, 2 G Ex d[ia] IIC T6...T3;
II 1/2 D, 2 D Ex tD[iaD] A21/20 or Ex tD[iaD] A21 IP6X T70°C...T95°C
IECEx
IECEx KEM 06.0025 X Ga Ex ia IIC T6…T3; Ex iaD 20 IP6X T70°C…T95°C;
Ga/Gb Ex d[ia] IIC T6…T3; Ex tD[iaD] A21/20 IP6X T70°C…T95°C
FM - Dual Seal-approved NEC 500
NEC 500NEC 500
NEC 500
XP-IS/Cl.I,Div.1/Gr.ABCD/T6;
DIP / Cl. II/III / Div. 1 / Gr. EFG / T6;
IS / Cl. I/II/III / Div. 1 / Gr. ABCDEFG / T6;
NI / Cl. I / Div. 2 / Gr. ABCD / T6
NEC 505
NEC 505NEC 505
NEC 505
Cl. I / Zone 0 / AEx d[ia] IIC T6;
Cl. I / Zone 0 / AEx ia IIC T6;
Cl. I / Zone 2 / AEx nA[ia] IIC T6
Hazardous (Classified) Locations, indoor/outdoor Type 4X and 6P, IP66, Dual Seal
CSA - Dual Seal-approved CEC Section 18 (Zone ratings)
CEC Section 18 (Zone ratings)CEC Section 18 (Zone ratings)
CEC Section 18 (Zone ratings)
Cl. I, Zone 1, Ex d, IIC (Antenna: Zone 0) T6;
Cl. I, Zone 0, Ex ia, IIC T6;
Cl. I, Zone 2, Ex nA, IIC T6
CEC Section 18 and Annex J (Division ratings)
CEC Section 18 and Annex J (Division ratings)CEC Section 18 and Annex J (Division ratings)
CEC Section 18 and Annex J (Division ratings)
XP-IS, Cl. I, Div. 2, Gr. ABCD; Cl. II, Div. 2, Gr. FG; Cl. III, Div. 2 T6;
IS, Cl. I, Div. 1, Gr. ABCD; Cl. II, Gr. FG; Cl. III T6

2TECHNICAL DATA
12
OPTIWAVE 6300 C
www.krohne.com 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
NEPSI Ex dia IIC T3~T6 DIP A21/A20 TAT70°C~T95°C IP6X;
Ex ia IIC T3~T6 DIP A21/A20 TAT70°C~T95°C IP6X
CEPEL / INMETRO
CEPEL-EX-1996/11X BR-Ex ia IIC T6…T3 Ga
Ex ia IIIC T95°C Da IP67
BR-Ex d[ia] IIC T6…T3 Gb
Ex t[ia Da] IIIC T95°C Db IP67
Other standards and approvals
Other standards and approvalsOther standards and approvals
Other standards and approvals
EMC Electromagnetic Compatibility Directive 2004/108/EC in conjunction with EN 61326-
1 (2006)
R & TTE Radio Equipment and Telecommunications Terminal Equipment Directive
1999/5/EC in conjunction with ESTI EN 302 372 (2006)
FCC Rules Part 15
Industry Canada RSS-210
LVD Low-Voltage Directive 2006/95/EC in conjunction with EN 61010-1 (2001)
CRN This certification is for all Canadian provinces and territories. For more data, refer
to the website.
NAMUR NAMUR NE 21 Electromagnetic Compatibility (EMC) of Industrial Process and
Laboratory Control Equipment
NAMUR NE 43 Standardization of the Signal Level for the Failure Information of
Digital Transmitters
1Kalrez®is a registered trademark of DuPont Performance Elastomers L.L.C.
2Metaglas®is a registered trademark of Herberts Industrieglas, GMBH & Co., KG
3HART®is a registered trademark of the HART Communication Foundation

TECHNICAL DATA 2
13
OPTIWAVE 6300 C
www.krohne.com04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
2.2 Antenna selection
This graph shows which antenna to select for the application based on:
•D, the measuring range and
•εr, is the dielectric constant of the product being measured
Figure 2-1: Selection of antenna for solid applications (graph of distance in m against εr)
Figure 2-2: Selection of antenna for solid applications (graph of distance in ft. against εr)
1 Distance, D [m]
2 Distance, D [ft]
3 Dielectric constant (εr)
4 On request
5 DN150 horn, DN200 horn and DN150 Drop antenna
6 DN100 horn, DN150 horn, DN150 Drop and DN200 horn antenna
7 DN80 horn, DN80 Drop, DN100 horn, DN150 horn, DN150 Drop and DN200 horn antenna
1
5
3
7
4
6
12345678910
0
10
20
30
40
50
60
70
80
2
4
3
5
7
6
12345678910+
0
20
30
40
60
70
80
100
120
130
140
160
180
190
200
220
240
260

2TECHNICAL DATA
14
OPTIWAVE 6300 C
www.krohne.com 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
2.3 Guidelines for maximum operating pressure
Make sure that the devices are used within their operating limits.
Figure 2-3: Pressure / temperature de-rating (EN 1092-1), flange and threaded connection, in °C and barg
Figure 2-4: Pressure / temperature de-rating (EN 1092-1), flange and threaded connections, in °F and psig
1 p [barg]
2 T [°C]
3 p [psig]
4 T [°F]
5 Threaded connection, G (ISO 228-1)
6 Flange connection, PN40
7 Flange connection, PN16
-50 0 50 100 150 200
0
10
20
30
40
20
-60 0 68 160 210 300 380 400
0
50
100
150
200
250
300
350
400
450
500
550
600

TECHNICAL DATA 2
15
OPTIWAVE 6300 C
www.krohne.com04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
CRN certification
CRN certificationCRN certification
CRN certification
There is a CRN certification option for devices with process connections that agree with ASME
standards. This certification is necessary for all devices that are installed on a pressure vessel
and used in Canada.
Figure 2-5: Pressure / temperature de-rating (ASME B16.5), flange and threaded connections, in °C and barg
Figure 2-6: Pressure / temperature de-rating (ASME B16.5), flange and threaded connections, in °F and psig
1 p [barg]
2 T [°C]
3 p [psig]
4 T [°F]
5 Threaded connection, NPT (ASME B1.20.1).
6 Flange connection, Class 300
7 Flange connection, Class 150
-50 050 100 150 200
0
10
20
30
40
-60 0100 120 210 300 320 380 400
0
50
100
150
200
250
300
350
400
450
500
550
600

2TECHNICAL DATA
16
OPTIWAVE 6300 C
www.krohne.com 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
2.4 Dimensions and weights
Dimensions and weights in mm and kg
Dimensions and weights in inches and lb
Housing
Figure 2-7: Housing dimensions
1 Housing front view
2 Housing side view
Dimensions [mm] Weights [kg]
a b c d e f g
Housing 180 122 158.5 182 1 167 277 155 3.3
1If fitted with standard cable glands
Dimensions [inches] Weights [lb]
a b c d e f g
Housing 7.1 4.8 6.2 7.2 1 6.5 10.9 6.1 7.3
1If fitted with standard cable glands
• Cable glands are delivered on demand with non-Ex, Ex i- and Ex d-approved devices.
• The diameter of the outer sheath of the cable must be 6 … 12 mm or 0.2 … 0.5 ¨ .
• Cable glands for FM- or CSA-approved devices must be supplied by the customer.
• A weather protection cover is available on request with all devices.

TECHNICAL DATA 2
17
OPTIWAVE 6300 C
www.krohne.com04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
Dimensions and weights in mm and kg
Dimensions and weights in inches and lb
Weather protection
Figure 2-8: Dimensions of the weather protection option
1 Weather protection, back view
2 Weather protection, left side view
Dimensions [mm] Weights [kg]
a b c d
Weather
protection
208 231.5 268 1 66 2.9
1Radius
Dimensions [inches] Weights [lb]
a b c d
Weather
protection
8.2 9.1 10.6 1 2.6 6.4
1Radius

2TECHNICAL DATA
18
OPTIWAVE 6300 C
www.krohne.com 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
Dimensions and weights in mm and kg
Dimensions and weights in inches and lb
DN80/3¨horn antenna versions
Figure 2-9: DN80/3¨horn antenna versions
1 DN80/3¨horn antenna with G 1½or 1½NPT thread connection
2 DN80/3¨horn antenna with flange connection
3 Antenna purging system (supplied with ¼NPTF connection)
i
Dimensions [mm] Weights
[kg]
a b c d e f h Øi
Thread
connection
182 1 167 201 250 496 49 246 2 75 6.8
Flange
connection
182 1 167 201 263 480 62 217 2 75 11.1...18.9
1If fitted with standard cable glands
2Additional antenna extensions of Ø39 × length 105 mm are available
Dimensions [inches] Weights
[lb]
a b c d e f h Øi
Thread
connection
7.2 1 6.5 7.9 9.8 19.5 1.9 9.7 2 315
Flange
connection
7.2 1 6.5 7.9 10.4 18.9 2.4 8.5 2 324.4...41.5
1If fitted with standard cable glands
2Additional antenna extensions of Ø1.5 × length 4.1¨are available

TECHNICAL DATA 2
19
OPTIWAVE 6300 C
www.krohne.com04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
Dimensions and weights in mm and kg
Dimensions and weights in inches and lb
DN100/4¨horn antenna versions
Figure 2-10: DN100/4¨horn antenna versions
1 DN100/4¨horn antenna with G 1½or 1½NPT thread connection
2 DN100/4¨horn antenna with flange connection
3 Antenna purging system (supplied with ¼NPTF connection)
Dimensions [mm] Weights
[kg]
a b c d e f h Øi
Thread
connection
182 1 167 201 250 565 49 315 2 95 7.2
Flange
connection
182 1 167 201 263 549 62 286 2 95 11.6...28.2
1If fitted with standard cable glands
2Additional antenna extensions of Ø39 × length 105 mm are available
Dimensions [inches] Weights
[lb]
a b c d e f h Øi
Thread
connection
7.2 1 6.5 7.9 9.8 22.2 1.9 12.4 2 3.7 15.8
Flange
connection
7.2 1 6.5 7.9 10.4 21.6 2.4 11.3 2 3.7 25.6...62.2
1If fitted with standard cable glands
2Additional antenna extensions of Ø1.5 × length 4.1¨are available

2TECHNICAL DATA
20
OPTIWAVE 6300 C
www.krohne.com 04/2011 - 4000305604 - TD OPTIWAVE 6300 R04 en
Sheet metal horn antenna versions
Figure 2-11: DN80/3¨, DN100/4¨, DN150/6¨and DN200/8¨sheet metal horn antenna versions
1 Sheet metal horn antenna (DN80/3¨, DN100/4¨, DN150/6¨or DN200/8¨) with G 1½or 1½NPT thread connection
2 Sheet metal horn antenna (DN80/3¨, DN100/4¨, DN150/6¨or DN200/8¨) with flange connection
3 Antenna purging system (supplied with ¼NPTF connection)
