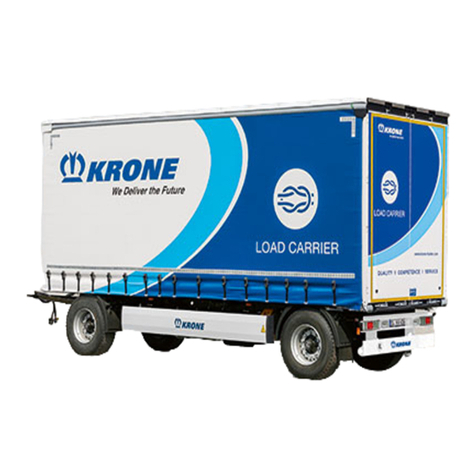

Krone LOAD CARRIER User manual

31/07/2019
EN
OPERATING INSTRUCTIONS
LOAD CARRIER
Building material
515133256-00

Dear Customer,
These are the operating instructions for the KRONE vehicle you have pur-
chased.
These operating instructions contain important information for the proper use
and safe operation of the KRONE vehicle.
If these operating instructions should become completely or partially unus-
able for any reason, you can order replacement operating instructions for
your KRONE vehicle by stating the item number.
Customer Service
Telephone: [phone] / 209-320
Fax: [phone] / 209-367
email: [email protected]
Spare Parts
Telephone: [phone] / 209-302
Fax: [phone] / 209-238
email: [email protected]

TABLE OF CONTENTS
Operating instructions • Load Carrier • 515133256-00 • 07/2019 3
Table of contents
1 Information about this document.................................................................. 7
1.1 Introduction ....................................................................................................... 7
1.2 Other applicable documents ............................................................................. 7
1.3 Product identification and type plate................................................................. 7
1.4 Retention of documents.................................................................................... 8
1.5 Part positions .................................................................................................... 8
1.6 Optional components........................................................................................ 8
1.7 Symbols used in these instructions ..................................................................8
1.8 Copyright .......................................................................................................... 9
2 Safety ............................................................................................................. 10
2.1 Warnings......................................................................................................... 10
2.2 Intended use ................................................................................................... 10
2.3 Personnel qualification and requirements....................................................... 11
2.3.1 Operator.......................................................................................................... 11
2.3.2 Driving staff..................................................................................................... 11
2.3.3 Skilled craftsmen ............................................................................................11
2.4 Personal protective equipment ....................................................................... 12
2.5 Transported material characteristics............................................................... 12
2.6 Information, warning, and mandatory signs.................................................... 12
2.7 Danger areas .................................................................................................. 12
2.8 Protective and safety devices ......................................................................... 12
2.9 General safety instructions ............................................................................. 13
2.10 Notes about legal regulations ......................................................................... 14
2.11 Warranty and liability ......................................................................................15
2.12 Limits of use.................................................................................................... 15
2.13 Environmental hazards ................................................................................... 15
3 Vehicle overview........................................................................................... 17
4 Commissioning ............................................................................................. 19
4.1 Initial commissioning....................................................................................... 19
4.2 Delivery and handover.................................................................................... 19
5 Running gear operation ............................................................................... 20
5.1 Using wheel chocks ........................................................................................ 20
5.1.1 Wheel chocks without anti-theft device........................................................... 20
5.1.2 Wheel chocks with anti-theft device................................................................ 20
5.1.3 Wheel chocks with spring-clip mount.............................................................. 20

TABLE OF CONTENTS
4Operating instructions • Load Carrier • 515133256-00 • 07/2019
5.1.4 Putting on the wheel chocks ........................................................................... 21
5.2 Landing leg winches ....................................................................................... 21
5.3 Rear braces .................................................................................................... 23
5.3.1 Rear braces with crank mechanism (rigid) .....................................................23
5.3.2 Rear braces without crank mechanism........................................................... 24
5.4 Draw fork ........................................................................................................25
5.5 Drawbar wale.................................................................................................. 28
5.6 Supply and control connections...................................................................... 29
5.7 Blind couplings................................................................................................ 32
5.8 Draining the compressed air tanks ................................................................. 33
5.9 Brake system .................................................................................................. 33
5.9.1 Service brake.................................................................................................. 35
5.9.2 Parking brake.................................................................................................. 35
5.9.3 Emergency release devices for the parking brake.......................................... 36
5.10 Air suspension ................................................................................................ 39
5.11 Lift axles..........................................................................................................41
5.12 Rigid axle ........................................................................................................ 42
5.13 Step-on devices .............................................................................................. 42
5.13.1 Hand strap ...................................................................................................... 42
5.13.2 Aluminium ladder ............................................................................................ 42
5.13.3 Fold-down steps .............................................................................................43
5.14 Side collision protection .................................................................................. 43
5.14.1 Folding side collision protection with lock ....................................................... 43
5.15 Spare wheel bracket ....................................................................................... 44
5.15.1 Spare wheel with basket storage.................................................................... 45
5.15.2 Spare wheel with winch .................................................................................. 45
5.15.3 Spare wheel in the pallet storage box............................................................. 46
5.15.4 Changing the spare wheel .............................................................................. 46
5.16 Storage box ....................................................................................................47
5.17 Pallet storage box ........................................................................................... 48
5.18 Depots ............................................................................................................ 49
5.18.1 Post depot.......................................................................................................49
5.18.2 Bracket for MultiBlock beams ........................................................................ 50
5.19 Tool box .......................................................................................................... 50
5.20 Water tank ......................................................................................................51
5.21 Fire extinguisher ............................................................................................. 51
6 Superstructure operation............................................................................. 53
6.1 Board walls and posts..................................................................................... 53
6.2 Rear wall......................................................................................................... 55
6.3 Door retainer chain ......................................................................................... 57

TABLE OF CONTENTS
Operating instructions • Load Carrier • 515133256-00 • 07/2019 5
6.4 Mobile front wall.............................................................................................. 57
6.5 Front wall depot for edge protectors ............................................................... 58
7 Road operations ...........................................................................................60
7.1 Commissioning before each trip ..................................................................... 60
7.2 Hitching and unhitching the trailer ..................................................................60
7.3 Manoeuvring the trailer without a connected compressed air supply ............. 63
7.4 Parking the trailer safely ................................................................................. 64
8 Loading and securing ..................................................................................65
8.1 Using straps.................................................................................................... 66
8.2 Ensuring form-fitting........................................................................................ 68
8.3 Securing pallets with hoop casings and shrink-wrap ...................................... 68
8.4 Securing loads with tension chains to centre posts/board walls..................... 68
8.5 Using the Multi Safe system ........................................................................... 69
8.5.1 Using the Multi-Lock external frame ............................................................... 69
8.5.2 Using the Multi Lash lashing rings .................................................................. 69
8.5.3 Using the Multi Flex chain adapter .................................................................70
8.5.4 Using the Multi Flex Flat chain adapter ..........................................................70
8.5.5 Using the Multi Fix system.............................................................................. 71
8.5.6 Multi Rail lashing rail....................................................................................... 72
9 Troubleshooting in the event of faults .......................................................73
9.1 Checking the lift axle control........................................................................... 74
9.2 Fixing braking abnormalities ........................................................................... 74
10 Maintenance and repair................................................................................ 77
10.1 Care and cleaning........................................................................................... 77
10.2 Maintenance ................................................................................................... 78
10.2.1 Regular checks and functional testing ............................................................ 79
10.2.2 Maintenance intervals for the authorised specialist workshop........................ 80
10.2.3 Maintenance intervals for the driver................................................................ 81
10.2.4 Wheels and tyres ............................................................................................ 81
10.2.5 Axle and suspension....................................................................................... 81
10.2.6 Brake system .................................................................................................. 82
10.2.7 Lubricating the trailer ...................................................................................... 83
10.2.8 Electrical equipment .......................................................................................83
10.2.9 Contour marking ............................................................................................. 83
10.2.10 Bolted connections .........................................................................................83
10.2.11 Load securing ................................................................................................. 83
10.2.12 Coupling ring................................................................................................... 83
10.2.13 Tail lift batteries............................................................................................... 83
10.3 Repair ............................................................................................................. 84
11 Decommissioning......................................................................................... 86

TABLE OF CONTENTS
6Operating instructions • Load Carrier • 515133256-00 • 07/2019
11.1 Temporary decommissioning.......................................................................... 86
11.2 Recommissioning ........................................................................................... 86
11.3 Final decommissioning and disposal .............................................................. 87
12 Spare parts and customer service .............................................................. 88
12.1 Spare parts ..................................................................................................... 88
12.2 Customer service and support........................................................................ 88
13 Technical data............................................................................................... 89
13.1 Dimensions and weights................................................................................. 89
13.2 Plugs and socket pin assignments .................................................................89
13.2.1 Connector ....................................................................................................... 89
13.2.2 Socket S (white) ISO3731, 7‑pin ...................................................................89
13.2.3 Socket N (black) ISO1185, 7-pin ................................................................... 90
13.2.4 Socket ISO 12098, 15-pin............................................................................... 90
Index .............................................................................................................. 91

INFORMATION ABOUT THIS DOCUMENT
Operating instructions • Load Carrier • 515133256-00 • 07/2019 7
1 Information about this
document
1.1 Introduction
These operating instructions are intended
for the operators of the trailer and their
staff. The operating instructions are de-
signed to help you to get to know the trailer
and to use it within its intended usage cap-
abilities.
It is mandatory that the operating instruc-
tions be read, understood and applied by
every person who is tasked with the follow-
ing work:
○ Driving, parking and manoeuvring the
trailer,
○ Loading and unloading the trailer,
○ Resolving any disruptions to the work-
flow,
○ Servicing the trailer (maintenance and
care),
○ Disposing of working materials and
auxiliary materials.
The operation instructions incorporate im-
portant hints for safe, appropriate, and eco-
nomical operation of the trailer. They serve
to
○ prevent risks and damages,
○ reduce repair costs and downtimes,
and
○ increase the reliability and durability of
the trailer.
Immediately replace operating instructions
that have become illegible or are missing.
KRONE cannot be held liable for damage
and operational interference caused by fail-
ure to observe these operating instructions.
The warranty conditions can be found in
our general terms and conditions of busi-
ness.
INFO
If you have any questions, please contact
KRONE customer service (see "12.2 Cus-
tomer service and support", pg.88).
1.2 Other applicable documents
For safe and failure-free operation of the
trailer, detailed knowledge of the individual
components is required. Other documents
also apply in conjunction with these operat-
ing instructions.
Please observe the following additional
documents, especially the safety instruc-
tions:
○ Operating instructions for the tractor
unit,
○ All instructions for additional parts and
components,
○ All instructions for additional equip-
ment and special equipment.
○ Re-order any instructions that have
gone missing or become illegible (see
"12 Spare parts and customer service",
pg.88).
When handling the trailer and for all main-
tenance work, please also observe:
○ The maintenance regulations for the
used installed components,
○ Load securing regulations.
1.3 Product identification and
type plate
Every trailer can be clearly identified by the
attached type plate. The vehicle ID number
(VIN) is also embossed on the chassis.

INFORMATION ABOUT THIS DOCUMENT
8Operating instructions • Load Carrier • 515133256-00 • 07/2019
The type plate is attached to the following
location for product identification:
L:
Typ
mm kg
kg
kg
kg
1-
Fahrzeugwerk Bernard Krone GmbH & Co. KG
2-
3-
kg
kg
kg
kg
kg
1-
2-
3-
kg
W: mm
b/b MAX : mm
b MIN : mm
2
1
Fig.1-1: Type plate attachment points
1 Standard
2 Alternative
The following information is shown on the
type plate:
12
3
4
5
6
7
8
9
10
11
12
13
14
15
Fig.1-2: Example type plate
1 Manufacturer
2 EC type approval number (if available)
3 Vehicle ID number
4 Approved total mass
5 Total mass on the coupling point
6 Technically approved axle loads
7 Technically approved total mass
8 If applicable, the nationally approved
total masses for registration/operation
including the code
9 If applicable, dead weight
10 Min. distance
11 Distance/max. distance
12 Vehicle width
13 Vehicle length
14 If applicable, national type approval no.
15 Type designation
1.4 Retention of documents
► Store these instructions and all other
applicable documents in a safe place.
► Pass the complete documentation on
to the next driver or owner.
1.5 Part positions
The description of part positions is always
viewed in forward driving direction.
1.6 Optional components
KRONE trailers are fitted with a number of
optional components. The operating in-
structions describe all of the components in
the following sections.
All the components are not necessarily on
your trailer.
1.7 Symbols used in these in-
structions
Various markings and symbols are used in
the text in these instructions. These are ex-
plained below.
○ Bullet list
– Sub-list
1. Numbered list
þPrerequisite for action
► Action step
ðIntermediate action result
üResult of the action
INFO
Additional information and tips.

INFORMATION ABOUT THIS DOCUMENT
Operating instructions • Load Carrier • 515133256-00 • 07/2019 9
: Also observe the enclosed supplier
documentation.
1.8 Copyright
These instructions represent an official
document within the meaning of laws
against unfair competition. They incorpor-
ate texts and drawings which, in their en-
tirety or partly, without written consent of
the manufacturer, are not to be
○ copied (except attached copy origin-
als),
○ published, or
○ made public by other means.
The copyright to these instructions remains
with
Fahrzeugwerk Bernard KRONE
GmbH & Co. KG, D‑49757 Werlte
Violations oblige compensation for dam-
ages.

SAFETY
10 Operating instructions • Load Carrier • 515133256-00 • 07/2019
2 Safety
This manual contains instructions for your
safety and for safe operation.
The basic safety instructions include in-
structions that apply fundamentally to safe
use or maintenance of the safe condition of
the trailer.
The action-related warnings warn you
about residual hazards and are found be-
fore a dangerous action.
► Follow all the instructions to prevent
personal injury, environmental or prop-
erty damage.
2.1 Warnings
Design and structure
The action-related warnings are structured
as follows:
!
WARNING
Type and source of the danger!
Explanation of the type and source of the
danger.
► Measures to avert the danger.
Hazard level
The warnings are classified according to
the severity of the danger. The following
explains the danger levels with their asso-
ciated signal words and warning symbols.
!
DANGER
Direct danger to life or serious injuries
!
WARNING
Possible danger to life or serious injuries
CAUTION
Possible slight injuries, environmental
damage or property damage
WARNING
Possible serious injury caused by crushing
CAUTION
Possible slight injury caused by crushing
NOTE
Possible environmental damage or prop-
erty damage
2.2 Intended use
Intended use includes the observance of
all operating and maintenance instructions
supplied with the vehicle as well as the ob-
servance of the maintenance intervals and
conditions prescribed therein.
The KRONE trailer and its superstructures
are intended exclusively for legal transport-
ation purposes in compliance with applic-
able laws, rules and regulations.
Operational reliability of the vehicle is guar-
anteed only if all applicable instructions,
settings, laws, rules, regulations, and limit-
ations are fully complied with.
The trailer is produced with state-of-the-art
manufacturing systems in compliance with
all applicable safety-related laws, rules,
and regulations. Nevertheless, operation of
the trailer incorporates dangers for life and
limb of the operator and other personnel,
or danger of equipment damage, or opera-
tional problems.
► The trailer is to be operated only if in
technically adequate state, and in ac-
cordance with safety and danger-re-
lated laws, rules, and regulations, un-
der strict compliance with the opera-
tion instructions.
► Have any faults that could impair
safety immediately repaired by an au-
thorised specialist workshop.
Foreseeable misuse
Any use going beyond proper transport us-
age is considered non-intended. Avoid the
following:
○ Transport of persons or animals
○ Transports that are subject to special
regulations, e.g. dangerous goods
transports

SAFETY
Operating instructions • Load Carrier • 515133256-00 • 07/2019 11
○ Transport of unsecured loads
○ Transport of materials, which, due to
their properties, do not ensure safe
handling and transport or only with ad-
ditional equipment
○ Exceeding the technically permitted
weights, axle loads and drawbar loads
○ Exceeding the maximum vehicle
speed
○ Exceeding the permitted length, width
and height dimensions (including by
driving with an expanded rear)
○ Use of components that are not ap-
proved by KRONE, e.g. tyres, ac-
cessories, spare parts
Fahrzeugwerk Bernard KRONE GmbH &
Co. KG is not liable for damage resulting
from non-intended use. Risks deriving from
such infractions are exclusively borne by
the operator.
2.3 Personnel qualification and
requirements
KRONE trailers and KRONE superstruc-
tures as well as their operating compon-
ents may only be used and maintained by
persons who have the respective qualifica-
tion and who have read and understood
the operating instructions.
In the operating instructions, a distinction is
made between
○ Operator,
○ Driving staff, and
○ Skilled craftsmen.
2.3.1 Operator
The operator is responsible for proper op-
eration of the vehicle. The operator must:
○ Instruct the driving staff in the use of
the vehicle,
○ Ensure that the trailer is regularly
checked and serviced in an authorised
technical workshop.
2.3.2 Driving staff
The driving staff consists fundamentally of
the vehicle driver and a co-driver if applic-
able. The driving staff are responsible for
proper operation of the vehicle and must
○ Have read and understood the operat-
ing instructions,
○ Have reached the legal minimum age.
○ Ensure that the trailer is regularly ser-
viced by qualified staff.
When transporting and loading/unloading,
only driving staff may be used who have
received instruction prior to the first deploy-
ment and who have subsequently received
verbal instruction at least once a year relat-
ing to this work.
This instruction should particularly cover
the following points:
○ The operating instructions,
○ The measures to be taken in the event
of malfunctions.
Driving is limited to persons who have the
required driving license. In addition, the
drivers must receive training with respect
to:
○ The respective transport trailer and as-
sociated tractor unit,
○ The additional suppliers' information
listed (see "1.2 Other applicable docu-
ments", pg.7),
○ Motor Vehicle Traffic Regulations and
Motor Vehicle Construction and Use
Regulation, C.U.R., and
○ All relevant regulations that apply to
health and safety, accident prevention
and environmental protection in the
country of use, as well as
○ Other safety-related, occupational
health and road traffic regulations.
2.3.3 Skilled craftsmen
The skilled craftsmen of a specialist work-
shop are authorised to perform the main-
tenance work (maintenance and repair).
Authorised skilled craftsmen must have a
recognised qualification or have the relev-

SAFETY
12 Operating instructions • Load Carrier • 515133256-00 • 07/2019
ant knowledge of their specialised area re-
quired to meet the relevant regulations,
rules and guidelines.
2.4 Personal protective equip-
ment
Personal protective equipment serves to
avoid injuries and is prescribed by national
regulations depending on the cargo.
► Wear suitable personal protective
equipment when loading and unload-
ing.
○ Depending on the transported goods,
eyes, ears and respiratory tract must
be protected with suitable protective
equipment.
○ Gloves and safety shoes are generally
worn.
► Observe the national regulations re-
garding personal protective equipment.
► Always keep an eyewash bottle filled
with clean water at hand in the working
environment.
2.5 Transported material char-
acteristics
The trailer is designed to transport many
different goods.
► Before loading, make sure that the
trailer is suitable for the goods to be
carried.
2.6 Information, warning, and
mandatory signs
There are information, warning and man-
datory signs attached to the trailer.
► Observe and follow the signs.
► Keep the signs clean and legible.
► Do not remove, paint over or paste
over the signs.
► Immediately replace signs that have
become illegible or are missing.
Depending on the equipment and use, ap-
propriate pictograms are used in the in-
formation, warning and mandatory signs.
2.7 Danger areas
On and around the trailer there are areas
with an increased danger to your safety or
to the safety of other persons. Ensure ad-
equate lighting when performing any work
in hazard areas.
► Observe the following danger areas
and instruct unauthorised persons to
leave these areas:
Danger area Danger
Loading and unload-
ing area
There is a risk of in-
jury on loose or un-
even ground or on
slopes.
Between the vehicle
frame and the load
There is a risk of
crushing.
Area approx. 5 m
around the vehicle
(manoeuvring area)
There is a risk of acci-
dents.
Under the vehicle The vehicle can move
due to a defect or
when starting up and
injure persons.
Between the tractor
unit and trailer, espe-
cially when hitching
and unhitching
Persons can be
crushed or run over.
The trailer can tip
over or tilt up.
Connection between
the tractor unit and
trailer
There is a risk of in-
jury when hitching
and unhitching the
trailer from the tractor
unit by incorrect oper-
ation when opening
and closing the con-
nections of the com-
pressed air hose con-
nectors and cables.
2.8 Protective and safety
devices
Depending on the equipment, the trailers
are equipped with the following protective
and safety devices.
► Check the function of the protective
and safety devices regularly.

SAFETY
Operating instructions • Load Carrier • 515133256-00 • 07/2019 13
► Have defective components repaired
only by authorised specialist work-
shops or by KRONE.
Component Function
Automatic anti-block-
age system (ABS)
Prevents blockage of
the wheels when
braking
Automatic load-de-
pendent brake power
regulation (ALB)
Regulates the braking
effect depending on
the load status
Electronic brake sys-
tem (EBS)
Braking assistance
system, which con-
tains/comprises the
brake components
and connected driving
dynamics systems of
the vehicle
Roll stability support
(RSS)
Prevents the trailer
from tipping over
Hazard lights Serve to indicate a
traffic hazard
Wheel chocks Prevent accidental
rolling away when
parking/unhitching
Side collision protec-
tion
Prevents cyclists and
pedestrians from
passing under the
trailer in case of acci-
dent
Underrun protection Prevents under-run-
ning in case of rear-
end collisions
Indicators and control
displays
Serve to monitor and
make settings for the
trailer; optional sys-
tems differ according
to the manufacturer
2.9 General safety instructions
The basic safety instructions include all
safety measures sorted according to the
theme, and must always be observed.
Pneumatic dangers
There is a risk of injury due to pressure in
the pneumatic system.
► Do not open any components of the
pneumatic system if there is pressure
in the lines.
► Check the hose connections of the
pneumatic system regularly.
► When aerating and venting the sys-
tem, pay attention to unforeseeable
movement of pneumatic actuators.
► Fully depressurise the pneumatic sys-
tem before beginning maintenance
work.
Dangers while driving
There is a risk of impact on bridges, in tun-
nels or with other structures. Persons can
be injured or the vehicle, the transported
goods, and the structure can be severely
damaged.
► Observe the vehicle dimensions incl.
the transported goods.
► Observe the permissible passage di-
mensions (height, width).
Dangers when manoeuvring, coupling
and uncoupling
When manoeuvring or hitching and un-
hitching, there is a lethal risk of crushing
for persons standing between the tractor
unit and trailer as well as in the coupling
area.
► Only drive in reverse when nobody is
endangered.
► Only manoeuvre with a guiding assist-
ant.
► Before uncoupling, secure the trailer
additionally with wheel chocks against
accidental movement.
► Instruct all persons to leave the area
between the tractor unit and the trailer
during the coupling procedure.
Dangers when parking and unhitching
Accidental trailer movements, unstable
ground and poor securing at night can
cause serious accidents and injuries.
► Actuate the parking brake when un-
hitching.

SAFETY
14 Operating instructions • Load Carrier • 515133256-00 • 07/2019
► Also use wheel chocks on the wheels.
► When parking the trailer in a public
traffic area during the hours of dark-
ness, the vehicle should be particularly
marked in accordance with the legal
requirements.
Load distribution
Incorrect load distribution as well as im-
properly secured loads can lead to danger-
ous road handling and serious accidents or
damage to the vehicle.
INFO
Observe the load distribution plan for op-
timum loading. The load distribution plan
is individually calculated for every trailer.
Using the load distribution curve, you can
read the distance that must be maintained
between the front wall and the load.
► Observe the specified axle loads and
drawbar loads.
► Secure the load in accordance with the
applicable regulations.
► Ensure that the load securing aids are
not damaged and are functional.
Load securing
Unsecured or incorrectly secured loads
can result in poor road handling or even
accidents. Lost loads can cause injury to
other road users.
► Secure the load according to the re-
quirements of the relevant regulations
for load securing.
► Observe the instructions on the load
securing certificates.
Dangers caused by improper mainten-
ance
Improperly performed maintenance work
(care and cleaning, maintenance, repairs)
impairs the safety.
► Perform regular inspections for de-
fects.
► Perform care and cleaning work prop-
erly.
► Only have repair work carried out by
authorised specialist workshops or by
KRONE.
Operating materials
Operating materials (e.g. lubricants,
coolants, fuels) are hazardous to health.
Immediately seek medical attention upon
ingesting operating materials. If possible,
avoid breathing vapours. Do not allow op-
erating materials to come into contact with
the skin, eyes, or clothing. Clean affected
skin areas with water and soap. If it enters
the eyes, immediately and thoroughly
clean them with abundant clear water.
Change soiled clothing as soon as pos-
sible. Keep operating materials away from
children.
2.10 Notes about legal regula-
tions
The trailer is built according to the regula-
tions that were applicable at the time of de-
livery in the intended country of registra-
tion.
► Observe compliance with the nation-
ally prescribed monitoring inspections
and time intervals.
► Observe compliance with the nation-
ally prescribed weights, axle loads,
and drawbar loads. They can be lower
than the technically possible values.
► Observe compliance with the nation-
ally prescribed maximum vehicle
height for the tractor-trailer combina-
tion.
Changes to the vehicle against the data
provided in the registration documents res-
ult in the operating permit becoming in-
valid. This includes, in particular, driving on
public roads without a power supply for the
brake electronics via the ISO-7638 plug
connection.
► Do not make any unauthorised
changes or manipulations.
► Have permitted changes entered into
the vehicle documentation by a certi-
fied test centre.

SAFETY
Operating instructions • Load Carrier • 515133256-00 • 07/2019 15
► Only use proper and approved tyres.
► Only used approved and suitable
spare parts (see "12.1 Spare parts",
pg.88).
► Observe the normal use position of a
moving component for normal vehicle
use and when the vehicle is parked.
► Only drive with the EBS plug connec-
ted.
► Moving parts are to be positioned in
the normal use position while driving,
when stopped and parked:
Component Use position
Side collision protec-
tion (collision protec-
tion, pallet storage
boxes, etc.)
Stow box covers at
the side perpendicu-
lar and parallel to the
vehicle's longitudinal
axis are closed
Rear underrun pro-
tection
Lowest distance to
the road
Spray suppression
(spray suppression
and splash guard)
folded down
Lighting equipment
(spotlights, lights,
lamps, signal devices
and conspicuous
markings) on cur-
tains, board walls and
rear doors
Corresponding to the
delivery condition of
the vehicle
If curtains, board
walls and/or rear
doors with attached
lighting equipment
have been removed,
the lighting equipment
must be mounted to
the vehicle again.
2.11 Warranty and liability
The "General terms and conditions of sale
and delivery" from Fahrzeugwerk Bernard
KRONE GmbH & Co. KG fundamentally
apply.
Warranty and liability claims for personal
injury and material damage are excluded if
they are due to one of more of the follow-
ing causes:
○ Improper use (see "2.2 Intended use",
pg.10),
○ Operating the trailer with missing or
non-functional safety devices,
○ Failure to observe the instructions, re-
quirements and prohibitions of these
operating instructions and the operat-
ing instructions for the accessories,
○ Failure to follow the instructions, re-
quirements and prohibitions of the
maintenance instructions,
○ Unauthorised structural changes to the
KRONE product,
○ Inadequate monitoring of wear parts,
○ Improper maintenance or repairs not
being carried out in good time,
○ Use of non-approved and unsuitable
spare parts (see "12.1 Spare parts",
pg.88).
For the assessment of warranty and liabil-
ity claims, you must permit unimpeded ac-
cess to the data stored in the brake elec-
tronics. Deleting this data needed for an
assessment can result in an exclusion of li-
ability.
You can find the warranty conditions at
www.krone-trailer.com.
2.12 Limits of use
► Observe the following requirements for
the operational environment and con-
ditions of use:
○ Permissible temperature range (de-
pending on the specification, the addi-
tional equipment, and the tyres).
○ Permissible functional range and per-
missible age of the tyres
○ Permissible clearance and permissible
swing radius
○ Load-bearing and level road conditions
2.13 Environmental hazards
► Always observe environmental protec-
tion when operating.
► Avoid the release of operating materi-
als into nature and the environment.

SAFETY
16 Operating instructions • Load Carrier • 515133256-00 • 07/2019
► Dispose of operating materials and
other chemicals in accordance with the
applicable national regulations.
► Drive with the correct tyre inflation
pressure.

VEHICLE OVERVIEW
Operating instructions • Load Carrier • 515133256-00 • 07/2019 17
3 Vehicle overview The following illustrations provide an ex-
ample for the superstructure of the turn-
frame trailer and the central axle trailer in
the building material version with board
walls.
1 2
34567
Fig.3-1: Overview of the turnframe version of the Load Carrier building material trailer
1 Board wall
2 Rear wall
3 Rear underrun protection
4 Axle assembly
5 Side collision protection
6 Control unit for brake system/air suspension
7 Draw fork

VEHICLE OVERVIEW
18 Operating instructions • Load Carrier • 515133256-00 • 07/2019
1 2
35 4678
Fig.3-2: Overview of the central axle version of the Load Carrier building material trailer
1 Board wall
2 Rear wall
3 Rear underrun protection
4 Tool box (option)
5 Axle assembly
6 Control unit for brake system/air suspension
7 Side collision protection
8 Drawbar wale
Usage designs
The Load Carrier building material trailer is
intended for transporting building materials.
It is designed as a turnframe trailer or as a
central axle trailer. The trailer is offered
with board walls or as a plateau.

COMMISSIONING
Operating instructions • Load Carrier • 515133256-00 • 07/2019 19
4 Commissioning
4.1 Initial commissioning
Initial commissioning is performed by
Fahrzeugwerk Bernard KRONE GmbH &
Co. KG. The delivery from the factory or
production site is ready for operation.
► Check that the documentation
provided is complete.
► Obtain instruction on operation and
ask questions if necessary.
INFO
The transfer is not done by staff from
Fahrzeugwerk Bernard KRONE GmbH &
Co. KG.
4.2 Delivery and handover
Delivery and handover of the trailer takes
place at a production site of Fahrzeugwerk
BernardKRONEGmbH & Co. KG.
► Check that the documentation
provided is complete.
► Familiarise yourself with the product
and the documents.
► Obtain instruction on operation and
ask questions if necessary.
► Collect with a suitable tractor unit.

RUNNING GEAR OPERATION
20 Operating instructions • Load Carrier • 515133256-00 • 07/2019
5 Running gear operation
5.1 Using wheel chocks
!
WARNING
Risk of accident due to improperly
used wheel chocks!
Unintentional trailer movements and im-
proper use of wheel chocks can result in
serious injury and property damage.
► Secure the tractor unit additionally
with wheel chocks when unhitching.
► Secure the unhitched trailer with
wheel chocks.
► Place wheel chocks only on wheels
mounted on rigid axles, never on
wheels mounted on lift axles or steer-
ing axles.
► Always secure wheel chocks on the
trailer with the appropriate securing
devices before travel.
5.1.1 Wheel chocks without anti-theft
device
Removing the wheel chocks
► Remove safety split pin.
► Pull the wheel chocks off the retaining
rod.
üThe wheel chocks have been re-
moved.
Stowing the wheel chocks
► Slide the wheel chocks onto the retain-
ing bar.
► Secure the wheel chocks with the
safety split pins.
üThe wheel chocks are stowed and se-
cured.
5.1.2 Wheel chocks with anti-theft
device
Removing the wheel chocks
► Remove safety split pin.
► Pull out the wheel chocks with the theft
protection chains.
üThe wheel chocks have been re-
moved.
Stowing the wheel chocks
► Insert the wheel chocks into the
bracket.
► Secure the wheel chocks with the
safety split pins.
► Thread the theft protection chain in the
bracket.
üThe wheel chocks are stowed and se-
cured.
5.1.3 Wheel chocks with spring-clip
mount
Removing the wheel chocks
► Depending on the design, push down
or pull up the spring clip.
► Remove the wheel chock.
üThe wheel chocks have been re-
moved.
Stowing the wheel chocks
► Depending on the design, push down
or pull up the spring clip.
► Insert the wheel chock in the bracket.
► Secure the wheel chock with the
spring clip.
üThe wheel chocks are stowed and se-
cured.
